Manfrotto 7302YB User manual

Manfratta
INSTRUCTIONS
7302YB
000
144 em 1,47 kg 3,5 kg
56.9" 3.241bs 7.71bs
7322YB
000
141 em 1 ,1 kg 2kg
55.51" 2.4 Ibs 4.4 Ibs
7303YB
000
142em 1,34 kg 3,5 kg
55.9" 2.951bs 7.71bs
7322SHYB
000
119 em 1,02 kg 2kg
46.85" 2.25 Ibs 4.4 Ibs

o

INTRODUCTION
Lightweight tripod designed for digital cameras.
KEY FEATURES
•Reversible centre column
•Rapid action lever leg extension locks
•Ball head
SETUPO
Open the 3tripod legs.
To adjust the height
of the tripod, each leg has telescopic extensions that can be
released by rotating lever "A"
on the locking collar "B".
CENTRE COLUMN HEIGHT ADJUSTMENTe
To release the central column "C", unlock lever "0" and adjust the height of the
column as required. Tighten lever "0" to lock in position.
INVERTING THE CENTRAL COLUMN e
The centre column can be inverted.
Remove the rubber cap "E" (fig.
2), unlock lever "0" and remove the column "c"
pulling it upward out of the shoulder of the tripod.
Invert the column
"C" and insert it (fig. 3) into the shoulder from below. •
Tighten lever "0" and replace the rubber cap "E".
LEG ANGLE ADJUSTMENT 0
Each leg can be set at 2angles of spread. To change the angle on aleg, close
the leg towards the centre column slightly and rotate the locking button "W" at
the top of the leg and then reposition the leg.
MODEL 7302YB
REMOVE QUICK RELEASE PLATE FROM HEAD 0
To remove plate "G" it is necessary to open the lever "H".
The lever "H" can not be opened whilst the safety lever "I"
is in closed position.
To remove the safety catch, rotate safety lever "I" fully
in the direction of the arrow
and then rotate the lever "H" until peg "L" clicks up holding the open the lever "H".
ASSEMBLING CAMERA ON PLATE 0
Fix the camera onto plate "G" by screwing home camera screw "M" into the
camera's threaded hole WITHOUT APPLYING FORCE, using the ring "Q"
1,\. Before fully locking, align the camera with the plate "G" Please ensure you
~ have securely locked the camera on to the release plate before use
MOUNTING THE CAMERA ON THE HEAD 0&Q
Push the ring "Q" so that it is flat against the plate "G"
AInsert the camera plate "G" (fig. 7) on top of the head until locking lever "H"
ill clicks and closes.
Rotate the safety lever "I" fully in the direction of the arrow.
1,\. Make sure that plate "G" (fig. 8) is fully locked by pushing lever "H" and
~ checking that the camera is fitted securely to the head.
REMOVE THE CAMERA FROM THE HEAD CD
Whenever the camera needs to be removed from the head, release the safety lever
A"I" and then hold the camera securely in one hand while operating locking
ill lever "H" with the other.
USE~ & CD
The lever "P" locks the movement of the head. To release the ball "N" for positioning
the camera, unlock lever "P" by rotating until free position. Once the desired position
is achieved, lock the ball "N" by turning lever "P" fully in aclockwise direction. ."
Note: The angle of the lever on the ratchet knob "P" can be repositioned as required
without effecting the lock itself. Pull the lever outwards, rotate as required and
release and it will locate
in the new position.
1,\. The heads are maintenance-free.
~ Do not lubricate with any oil or silicon.

Cod. 7302,01 -09/08 Copyright ©2008 Manfrotto Sassano Italy

Manfrotto
ISTRUZIONI GENERAL!
GENERAL INSTRUCTIONS &WARNINGS
INSTRUCTIONS GENERALES ET PRECAUTIONS
GENERELLE INSTRUKTIONEN UNO WARNUNGEN
ISTRUCCIONES GENERALES YAOVERTENCIAS
flm, f*<g ..to);:t~

•
•Thank you for choosing MANFROTTO.
It is important to read the full instructions before use in order
to take full advantage of the system and prevent accidental
damage.
Do not exceed the maximum specified load (see
specifications).
Always engage safety locks and devices where applicable
on the product.
Do not use product at temperatures less than -30°C or more
than +60°C (-22°F / +140°F).
Dry the product after use in wet conditions.
Not recommended to use in seawater.
Do not leave the product in the sun for long periods and
avoid high temperatures e.g. in a car or behind glass for
hours.
~ .. rJDo not leave your product unattended when working where
~ .
• i\~I~ ~. the general public could be endangered.
A\ ,f \'j \. .Keep out of the reach of children
It is recommended that the equipment be removed from the
support for transportation.
Don't scrub the spirit-level: you could charge it
electrostatically and it could temporarily loose the precision.
Clean with mild detergent and asoft cloth.
Remove dust and sand from all locking threads and sliding
segments.
The equipment does not require regular lubrication but if
required, use standard lubricant oils or grease.
In the event on the product becoming defective, the unit
should be returned to an authorized MANFROTTO service
agent.

Manfrotto

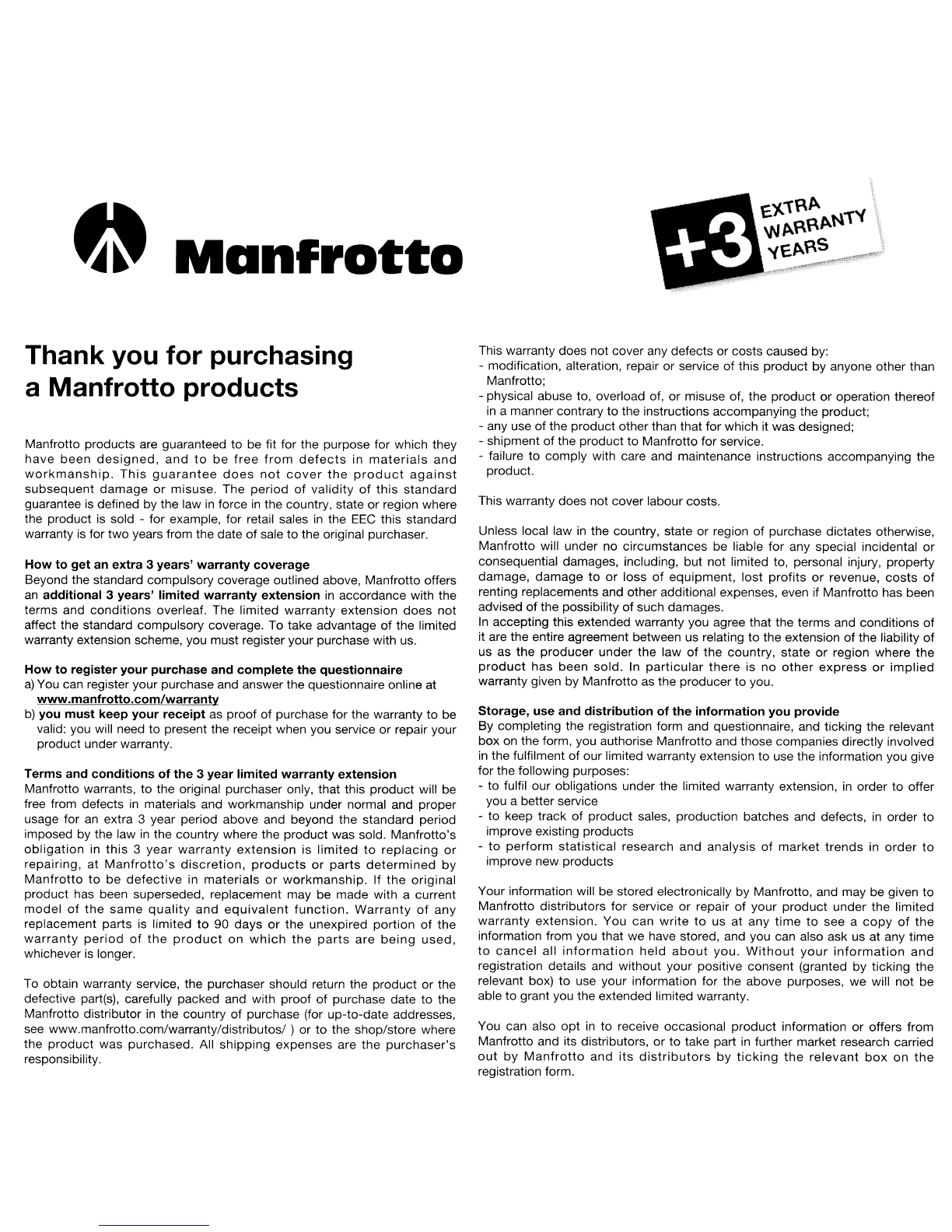

Thank you for purchasing
aManfrotto products
Manfrotto products are guaranteed to be fit for the purpose for which they
have been designed, and to be free from defects in materials and
workmanship. This guarantee does not cover the product against
subsequent damage or misuse. The period of validity of this standard
guarantee is defined by the law in force in the country, state or region where
the product
is sold -for example, for retail sales in the EEC this standard
warranty is for two years from the date of sale to the original purchaser.
How to get an extra 3 years' warranty coverage
Beyond the standard compulsory coverage outlined above, Manfrotto offers
an additional 3 years' limited warranty extension in accordance with the
terms and
conditions overleaf. The limited warranty extension does not
affect the standard compulsory coverage. To take advantage of the limited
warranty extension scheme, you must register your purchase with us.
How to register your purchase and complete the questionnaire
a) You can register your purchase and answer the questionnaire online at
www.manfrotto.com/warrantv
b) you must keep your receipt as proof of purchase for the warranty to be
valid: you will need to present the receipt when you service
or repair your
product under warranty.
Terms and conditions of the 3 year limited warranty extension
Manfrotto warrants, to the original purchaser only, that this product will be
free from defects
in materials and workmanship under normal and proper
usage for
an extra 3year period above and beyond the standard period
imposed by the law
in the country where the product was sold. Manfrotto's
obligation in this 3 year warranty extension is limited to replacing or
repairing, at Manfrotto's discretion, products or parts determined by
Manfrotto to be defective in materials or workmanship. If the original
product has been superseded, replacement may be made with acurrent
model of the same quality and equivalent function. Warranty of any
replacement parts is limited to 90 days or the unexpired portion of the
warranty period of the product on which the parts are being used,
whichever is longer.
To obtain warranty service, the purchaser should return the product
or the
defective part(s), carefully packed and with proof of purchase date
to the
Manfrotto distributor
in the country of purchase (for up-to-date addresses,
see www.manfrotto.com/warranty/distributos/ )
or to the shop/store where
the
product was purchased. All shipping expenses are the purchaser's
responsibility.
This warranty does not cover any defects
or costs caused by:
-modification, alteration, repair
or service of this product by anyone other than
Manfrotto;
-physical abuse to, overload of,
or misuse of, the product or operation thereof
in amanner contrary to the instructions accompanying the product;
-any use
of the product other than that for which it was designed;
-shipment
of the product to Manfrotto for service.
-failure
to comply with care and maintenance instructions accompanying the
product.
This warranty does not cover labour costs.
Unless local law
in the country, state or region of purchase dictates otherwise,
Manfrotto will under no circumstances be liable for any special incidental
or
consequential damages, including, but not limited to, personal injury, property
damage,
damage to or loss of equipment, lost profits or revenue, costs of
renting replacements and other additional expenses, even if Manfrotto has been
advised of the possibility of such damages.
In accepting this extended warranty you agree that the terms and conditions of
it are the entire agreement between us relating to the extension of the liability of
us as the producer under the law of the country, state or region where the
product has been sold. In particular there is no other express or implied
warranty given by Manfrotto as the producer to you.
Storage, use and distribution of the information you provide
By completing the registration form and questionnaire, and ticking the relevant
box on the form, you authorise Manfrotto and those companies directly involved
in the fulfilment of our limited warranty extension to use the information you give
for the following purposes:
-to fulfil our obligations under the limited warranty extension,
in order to offer
you abetter service
-
to keep track of product sales, production batches and defects, in order to
improve existing products
-
to perform statistical research and analysis of market trends in order to
improve new products
Your information will be stored electronically by Manfrotto, and may be given to
Manfrotto distributors for service
or repair of your product under the limited
warranty extension. You can write to us at any time to see a copy of the
information from you that we have stored, and you can also ask us at any time
to cancel all information held about you. Without your information and
registration details and without your positive consent (granted by ticking the
relevant box)
to use your information for the above purposes, we will not be
able to grant you the extended limited warranty.
You can also
opt in to receive occasional product information or offers from
Manfrotto and its distributors,
or to take part in further market research carried
out by Manfrotto and its distributors by ticking the relevant box on the
registration form.

Thankyau
Good Lucl<!
ThankYou for purchasing aBogen Imaging distributed product and Good Luck in our
monthly prize drawing.
Muchas Gracias
Suerte!
Muchas Gracias POI" compral" un producto distribuido pOl' Bogen Imaging ymucha
suerte en nuestro sorteo mensual de premios.
When you register your purchase and complete the shol-t questionnaire you are eligible
for the Monthly Prize Drawing. Register online at: bogenimaging.us/warranty
Una vez registrada la compra ycompletado el breve cuestionario usted tendl"cj acceso
anuestro
sorteo mensual de premios.
For your records retain this card and your receipt as proof of purchase.
bogen
Imaging
Regrstrese on-line en: www.bogenimaging.us/warranty
Conserve esta tarjeta ysu recibo como comprobante de compra.
bogen
Imaging
2+3 2 years warranty plus an additional 3 years warranty when you register YOUI" Manfrotto
product online
or by mail.
For further information on Premier Choice brands go to:
www.bogenimaging.us
Bogen Imaging warrants, to the original purchaser only, that this product will be free from defects in
materials and workmanship undernomral and proper usage foraperiod of (see above) from the date
of purchase. Rashtubes, batteries and cords excluded. Bogen Imaging's obligation under this warranty is
limited to replacing or repailing at Bogen Imaging's option, products or parts detemrined by Bogen
Imaging to be defective in materials, or workmanshipTo obtain warranty service, the purclhaser must
c1el0er the product or the defective part( s), ,.arefUlfy pad<ecl and with proof of purclhase date to: Bogen
Imaging 565 East Gescent Avenue, fD. Box 506, Ramsey. NJ 07446. All shipping expenses are the
purchasers responsibility, Ifthe product has been superseded, replacerrent will be made with acurrent
model
of the sarre quality and equivalent function. Warranty of replacement parts is limited to 90 days
or the unexpired portion of the warranty period of the product on which the parts are being used,
whichever is longer: This warranty does not cover any defects or costs caused by. (I) modiiication,
alteration, repair or se~ce of this product by anyone otherthan Bogen Imaging; (2) physical abuse to,
overload of, or misuse of, the product or operation thereof in amannercontrary to the accompanying
instructions: (3) any use of the product otherthan thatforwhich it was intended: or (4) shipment of the
product
to Bogen Imaging for se~ceThis warranty does notcover laibor costs. Underno circumstances
shall Bogen Ima~ng be lialble for any special incidental or consequential damages, including but notlimited
to, personal injury. property damage, damage to or loss of equipment lost proiits or revenue, costs of
renting replacements and other additional expenses, even if Bogen lma~ng has been advsed of the
possibility of such damages. Some states do not allow the exclUSion or limitation of incldentai or
consequential damages, so the aIbove limitation or exclusion may not appfy to you.Any express warranty
not provded
herein, and any remedy which but for the warranty contained herein might arise by
implication or operation of Iavv, is hereby excluded and disclaimed including the implied warranties of
rrerchantalbility and of the fitness foraparticular purpose. Some states donotallow limitation on implied
warranties, so above limitation may not appfy to you.This warranty g0es you speciiic leg;aI rights, and you
may have other rights, which may vary rom state to state.
2+3 ~ 2 an os de garantra mas una extension de 3 an os una vez efectuada la reglstracion
del producto on"line 0por correo
Para mayor informacion sobre marcas Premier Choice entre en:
www.bogenimaging.us
BClgen Imaging garan~za sollmente aI comprador orglnal. que este pnxJucto se encuentra lib,-e de defectos en los
materiales y en la mana de obra bao condiciones de uso apropiado y nOlmal por un penodo de (-.er ,-eferencias
bao' 'Penodos de Garantia Limitada' ') desde la fecha de compra Quedan excluidos los tubas de destellolas baterlas
y los caJjes. La oljigacion de BClgen Imaging bao esta garantJa esta Imitada a reemplazar 0 ,-eparal:segUn las Opelones
de Bogen Imaging productos 0 i"1I1:es que Bogen Imaging determine defectuosas en los matenales 0 maClO de obra
Para acceder aI servicio de garanua. el compradol" debe envlar el producto 0 laC s) palters) defectuosa( s). embalado
cUlciadosamente y con comprobante de fecha compra a: Bogen Imaging 565 East Crescent Avenue. rD. BClx 506,
Ramsey NJ 07446. Todos los gastos de env'o san a cargo del compradorSi el pn:xJucto hublese sido descon~nuado
el reemplazo se hara con un modele coniente de la mlsma caidacl Y fUncion ecu~alente. La garantia pala el
reemplazo de pal1:es se limita a90 dras 0a la porcion de ~empo remanente de la garantia del producto en el cual
estan siendo usadas las partes, en todo caso el que sea de mayor duraCion. Esta galantia no cubr-e ningun defecto
o costos generados por: (I) Modificaoon aJtelacion. l-eparaCion 0 servicio de este prDducto PO'" OtJa persona que
no sea BClgen Imaging (2) Arusa fisico. sabrecarga. 0 utJl,zacron inaproplada del producto 0 alguna OpelaClon
contraria a las Instrucciones de usa (3) Cuaquier uso del producto distinto aI usa PO"~ el cual este lUe Intencronaclo
I creado (4) EI en",o de este produdo a Bogen Imagjng para efectuar la repalaClon. Esta galantia no cubre costas
de trabaJO nl laboraJes. BaJO ninguna crrcunstancra. Bogen Imaging es responsatJe por cualquie,' ~po de dana PO"
incidente 0 como consecuencia de (*) lesiones en personas. dai'io de propiedad dano 0 penjida del ecUlpo. perdida
de ganancias 0 red~os costos de alquiler c1ebido aI reemplazo del produdO uotm gasto asociado. aun baJO la
posibilidad de que BClgen Imaging hal'" ~do aclvertido sabre estos plubables danos I eventos. Algunos estados no
perm~en la exclusion 0 limitacron de danos par Incldentes 0 como consecuenc", de los mismos, en tal caso las
exclu~ones Y limitaciones alTIba mencronadas pueclen no aplrcar a su persona Cualquiel" otro garantJa expllcrta no
citada en este texto, y cualquier resarcimento que puecla sUrgir de esta garantia por implicacron y Opelacron de la
ley queda por ende excluida y no ten ida en con~deracron InciUjendo las garantJas implrcitas del mercan~llsmo y de
"' idoneidad para propcis~os especfficos. Algunos estados no pe,m~en la IimitaoOn en garantias implrcitas. por 10 cual
la limitaoOn apenas mencionacla puecle que no aplique a su persona Esta garantia Ie asegula derechos legales
especfficos y Ud. puede tenel" otms derechos - los cuales V31ian de estado en estado. (') la garantia pl-evee "' no
responsabilidad baJO los slguientes casos peru no se Irmrta a .105 msmos

Cod. 3,9333 - 06/06
Copyright ©2006 Manfrotto Sassano Italy
