Mantelmount Mm540 User manual

U.S. PAT. NO. 8,864,092

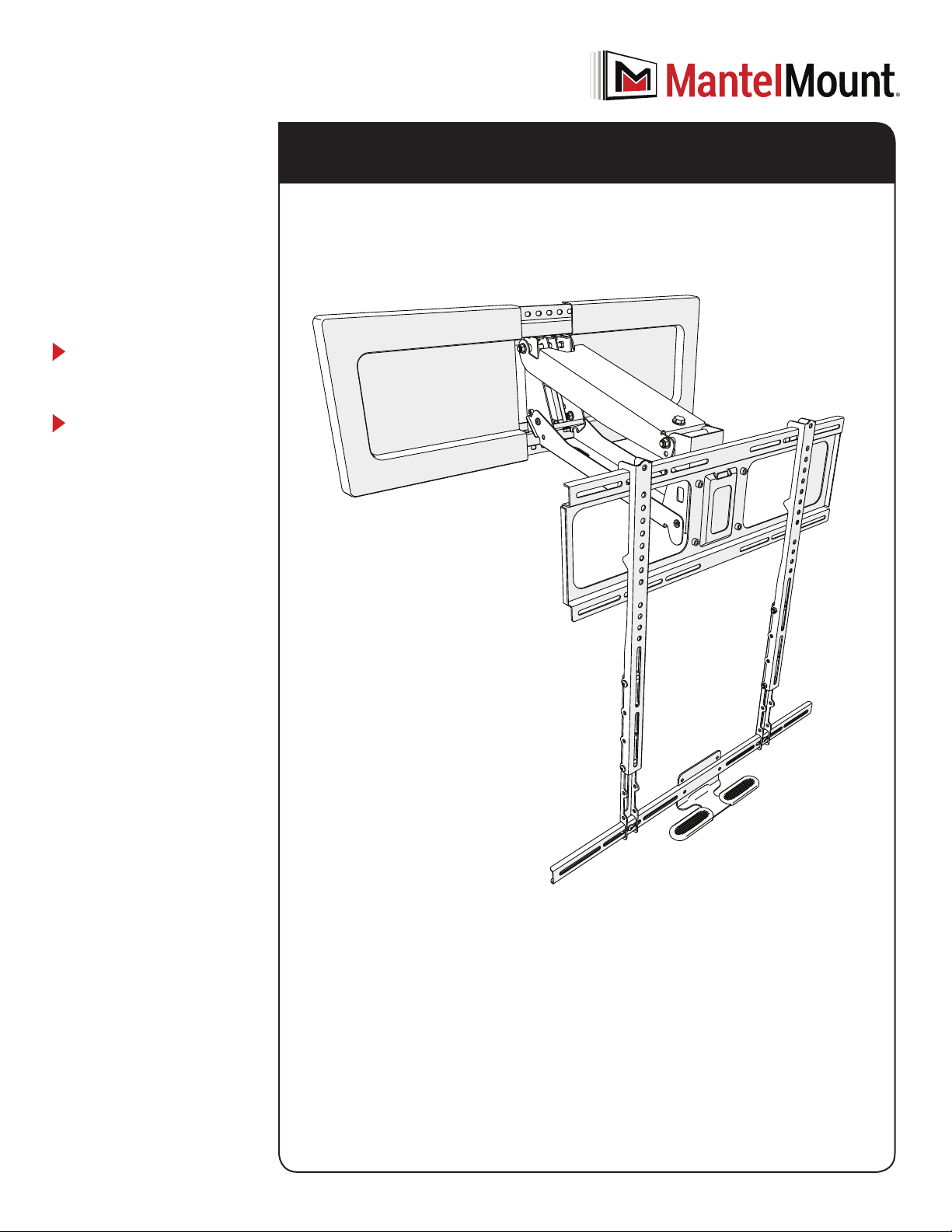

INSTALLATION INSTRUCTIONS

MM540

Standard

Pull Down

TV Mount

Contains important safety information – please save! MantelMount.com

Read this entire manual

before you begin.

Do not unpack

box contents

until verifying the

requirements listed

on page 2–3.

If you need help, call 1.800.897.9755 ext.1

For missing/damaged parts or questions during installation,

please contact our Customer Support team at 1.800.897.9755 ext.1

or support@mantelmount.com. Customer satisfaction is our highest priority!

BEFORE INSTALLATION

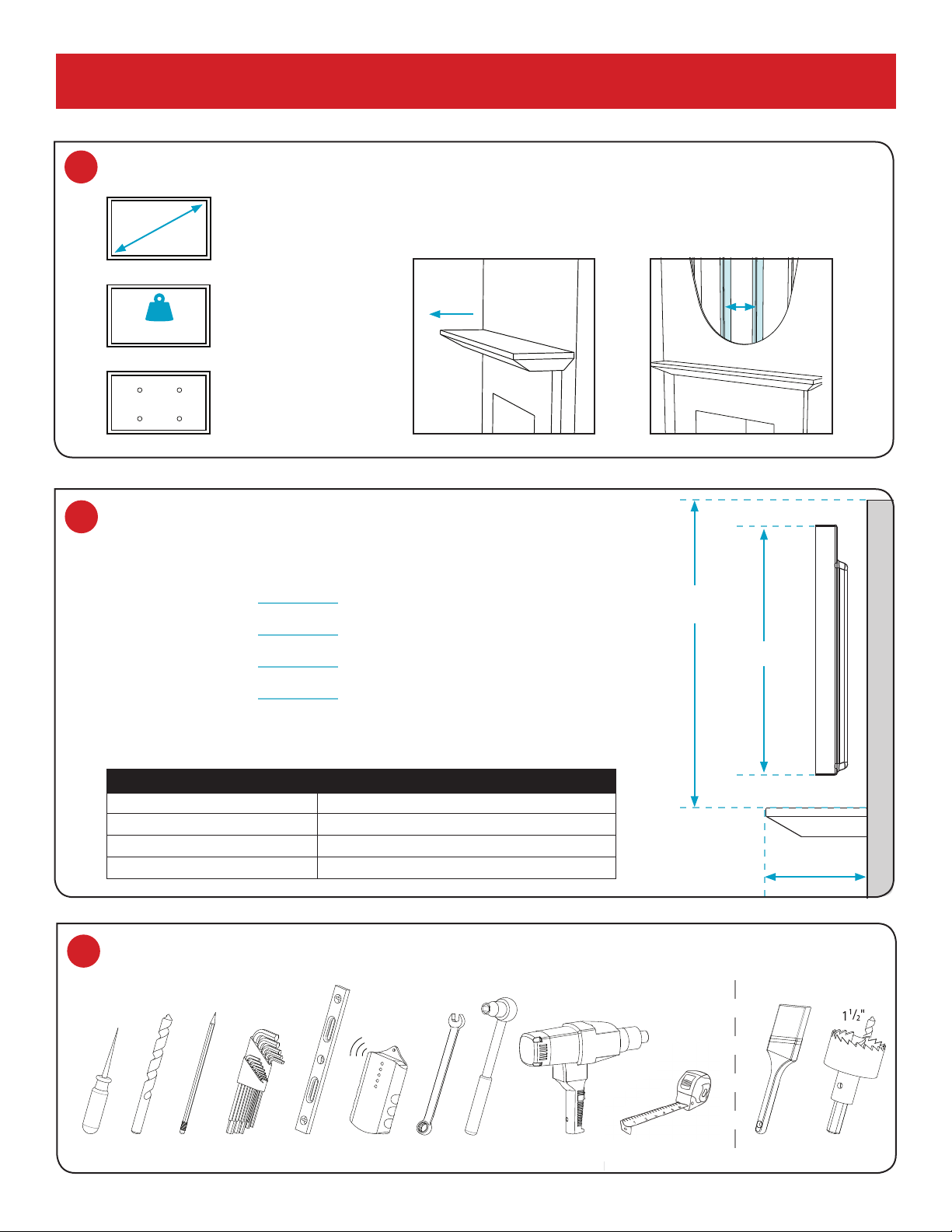

1Verify TV and mount space meet these criteria:

VESA

Width: 200-700mm

Height: 100-500mm

SCREEN SIZE

44" to 80"

(Diagonally)

2 Verify MantelMount will t the wall space.

VESA

Width: 200-700mm

Height: 100-500mm

44"– 80"

VESA COMPLIANT

Width: 200–600mm

Height: 200–600mm

WEIGHT CAPACITY

20 to 90 LBS.

(Including Sound Bar)

WOOD STUDS FOR MOUNTING

Studs Maximum 28" apart;

Wall Covering Maximum 5/8"

MANTEL DEPTH

18" MAXIMUM

VESA

Width: 200-700mm

Height: 100-500mm

MAX 90 LBS

18" MAX

WALL SPACE

HEIGHT

TV HEIGHT

MANTEL DEPTH

If Mantel Depth is: Required Vertical Space is:

Less than 9" TV height + 4"

9" – 11" TV height + 5"

11" – 14" TV height + 6"

14" – 18" TV height + 8"

A. Use the reference diagram (right) and chart (below) to write down the following

measurements (in inches):

Wall Space Height

:(Distance from mantel to ceiling/crown moulding.)

TV Height:

(Include sound bar height if placing below TV.)

Mantel Depth:

(Distance mantel extends away from the wall.)

Required Vertical Space:

(Calculation from chart below.)

B. If the Required Vertical Space is less than or equal to the Wall Space

Height, then MantelMount will t the wall space.

STUDS

MAX 28"

APART

3 Verify you have the required tools.

7/32"

4–5mm

10–14mm

OPTIONAL

AWL DRILL BIT PENCIL LEVEL STUD FINDER WRENCH SOCKET WRENCH POWER DRILL TAPE MEASURER PAINT BRUSH HOLE SAWALLEN WRENCHES

MM540 Installation Instructions

{02} x4

M5x30

{01} x4

M5x12

{03} x4

M5x40

{05} x4

M6x30

{04} x4

M6x16

{06} x4

M6x40

{08} x4

M8x25

{07} x4

M8x15

{09} x4

M8x45

{10} x4

M5-M6

{11} x8

{12} x12

Spacer

{10} x4

M5-M6

{11} x8

{12} x12

Spacer

{17} x4

Lag Bolt

{20} x1

Safety Bolt

{22} x2

Anchor

{24} x4

Cable Ties

{17} x4

Lag Bolt

{20} x1

Safety Bolt

{22} x2

Anchor

{24} x4

Cable Ties

{17} x4

Lag Bolt

{20} x1

Safety Bolt

{22} x2

Anchor

{24} x4

Cable Ties

{17} x4

Lag Bolt

{20} x1

Safety Bolt

{22}

Anchor

{24} x4

Cable Ties

{17} x4

Lag Bolt

{20} x1

Safety Bolt

{22} x2

Anchor

{24} x4

Cable Ties

BEFORE INSTALLATION

4 Verify all parts are included.

If any parts are missing or

damaged, contact

Customer Support at

1-800-897-9755 x1

before installing.

{10} x4

M5-M6

{11} x8

{12} x12

Spacer

{15} x16

M6x10

{18} x4

M6x40

{17} x4

Lag Bolt

{20} x1

Safety Bolt

{27} x1

Safety Nut M8

{23} x8

Locknut M6

{22}

Anchor

{24} x4

Cable Ties

{14} x4

HEX M8x15

{53} x1

Center

Handle

{57} x2

Wall Cover

{31} x2

Vertical

Brace

{59} x2

Sound Bar

Wing

{30} x2

Brace

Extender

{32} x2

Wall Plate

{55} x1

Horizontal

Brace

{33} x1

TV Brace

{35} x1

Lifting

Arm

Black Parts for Mount

Silver Screws for back of TV

{02} x4

M5x30

{01} x4

M5x12

{03} x4

M5x40

{05} x4

M6x30

{04} x4

M6x16

{06} x4

M6x40

{08} x4

M8x25

{07} x4

M8x15

{09} x4

M8x45

{10} x4

M5-M6

{11} x8

{12} x12

Spacer

{15} x16

M6x10

{18} x4

M6x40

{17} x4

Lag Bolt

{20} x1

Safety Bolt

{27} x1

Safety Nut M8

{23} x8

Locknut M6

{22}

Anchor

{24} x4

Cable Ties

{14} x4

HEX M8x15

{53} x1

Center

Handle

{57} x2

Wall Cover

{31} x2

Vertical

Brace

{59} x2

Sound Bar

Wing

{30} x2

Brace

Extender

{32} x2

Wall Plate

{55} x1

Horizontal

Brace

{33} x1

TV Brace

{35} x1

Lifting

Mechanism

Black Parts for Mount

Silver Screws for back of TV

{02} x4

M5x30

{01} x4

M5x12

{03} x4

M5x40

{05} x4

M6x30

{04} x4

M6x16

{06} x4

M6x40

{08} x4

M8x25

{07} x4

M8x15

{09} x4

M8x45

{10} x4

M5-M6

{11} x8

{12} x12

Spacer

{15} x16

M6x10

{18} x4

M6x40

{17} x4

Lag Bolt

{20} x1

Safety Bolt

{27} x1

Safety Nut M8

{23} x8

Locknut M6

{22}

Anchor

{24} x4

Cable Ties

{14} x4

HEX M8x15

{53} x1

Center

Handle

{57} x2

Wall Cover

{31} x2

Vertical

Brace

{59} x2

Sound Bar

Wing

{30} x2

Brace

Extender

{32} x2

Wall Plate

{55} x1

Horizontal

Brace

{33} x1

TV Brace

{35} x1

Lifting

Mechanism

Black Parts for Mount

Silver Screws for back of TV

{02} x4

M5x30

{01} x4

M5x12

{03} x4

M5x40

{05} x4

M6x30

{04} x4

M6x16

{06} x4

M6x40

{08} x4

M8x25

{07} x4

M8x15

{09} x4

M8x45

SILVER SCREWS FOR BACK OF TV

{10} x4

M5-M6

{11} x8

{12} x12

Spacer

{15} x16

M6x10

{18} x4

M6x40

{17} x4

Lag Bolt

{20} x1

Safety Bolt

{27} x1

Safety Nut M8

{23} x8

Locknut M6

{22}

Anchor

{24} x4

Cable Ties

{14} x4

HEX M8x15

{53} x1

Center

Handle

{57} x2

Wall Cover

{31} x2

Vertical

Brace

{59} x2

Sound Bar

Wing

{30} x2

Brace

Extender

{32} x2

Wall Plate

{55} x1

Horizontal

Brace

{33} x1

TV Brace

{35} x1

Lifting

Mechanism

Black Parts for Mount

Silver Screws for back of TV

{02} x4

M5x30

{01} x4

M5x12

{03} x4

M5x40

{05} x4

M6x30

{04} x4

M6x16

{06} x4

M6x40

{08} x4

M8x25

{07} x4

M8x15

{09} x4

M8x45

{10} x4

M5-M6

{11} x8

{12} x12

Spacer

{15} x16

M6x10

{18} x4

M6x40

{17} x4

Lag Bolt

{20} x1

Safety Bolt

{27} x1

Safety Nut M8

{23} x8

Locknut M6

{22}

Anchor

{24} x4

Cable Ties

{14} x4

HEX M8x15

{53} x1

Center

Handle

{57} x2

Wall Cover

{31} x2

Vertical

Brace

{59} x2

Sound Bar

Wing

{30} x2

Brace

Extender

{32} x2

Wall Plate

{55} x1

Horizontal

Brace

{33} x1

TV Brace

{35} x1

Lifting

Mechanism

Black Parts for Mount

Silver Screws for back of TV

{02} x4

M5x30

{01} x4

M5x12

{03} x4

M5x40

{05} x4

M6x30

{04} x4

M6x16

{06} x4

M6x40

{08} x4

M8x25

{07} x4

M8x15

{09} x4

M8x45

{10} x4

M5-M6

{11} x8

{12} x12

Spacer

{15} x16

M6x10

{18} x4

M6x40

{17} x4

Lag Bolt

{20} x1

Safety Bolt

{27} x1

Safety Nut M8

{23} x8

Locknut M6

{22}

Anchor

{24} x4

Cable Ties

{14} x4

HEX M8x15

{53} x1

Center

Handle

{57} x2

Wall Cover

{31} x2

Vertical

Brace

{59} x2

Sound Bar

Wing

{30} x2

Brace

Extender

{32} x2

Wall Plate

{55} x1

Horizontal

Brace

{33} x1

TV Brace

{35} x1

Lifting

Mechanism

Black Parts for Mount

Silver Screws for back of TV

{02} x4

M5x30

{01} x4

M5x12

{03} x4

M5x40

{05} x4

M6x30

{04} x4

M6x16

{06} x4

M6x40

{08} x4

M8x25

{07} x4

M8x15

{09} x4

M8x45

BLACK PARTS

FOR MOUNT

Thread patterns may vary.

Customer Support 1.800.897.9755 x1 [email protected]

{10} x4

M5-M6

{11} x8

{12} x12

Spacer

MM540 Installation Instructions

MM540 INSTALLATION STEPS

STEP 1 Attach Braces to TV

.....................................PAGE 5

STEP 2 Determine Wall Placement

..............................PAGE 8

STEP 3 Attach Mount to Wall

....................................PAGE 12

STEP 4 Attach TV to Mount

.....................................PAGE 14

STEP 5 Make Final Adjustments

.................................PAGE 17

CAUTION / WARNING SPECIAL NOTE REQUIRES TWO PEOPLE

DO NOT

HELPFUL INFORMATION

Symbols Used in this Manual

Installation Tips & Videos: http://mantelmount.com/install-tips

Questions during installation? Contact Customer Support

Monday – Friday, 7am– 4pm PST

1.800.897. 9755 x1 or [email protected]

Two people required for parts of this installation.

This product is intended to

be installed by professional

contractors or persons

familiar with the tools and

methods required for this

installation.

If you are uncertain about

your ability to perform this

installation, please contact a

professional.

Keep children away from the

work area during installation.

This product contains small parts,

please keep out of reach from

children.

Do not let small children

pull on or hang from

MantelMount.

Only persons tall enough to

control the product all the

way to the top/raised position

should operate MantelMount.

Do not allow small children to

push MantelMount upward to

the top position. This will cause

the mount to slam against the

wall due to the upward force of

the springs.

WARNING WARNING CAUTION

Do not use this product for

purposes not specically

described in these

instructions.

MantelMount is not responsible

for damage or injury caused

by incorrect installation or

improper use.

CAUTION

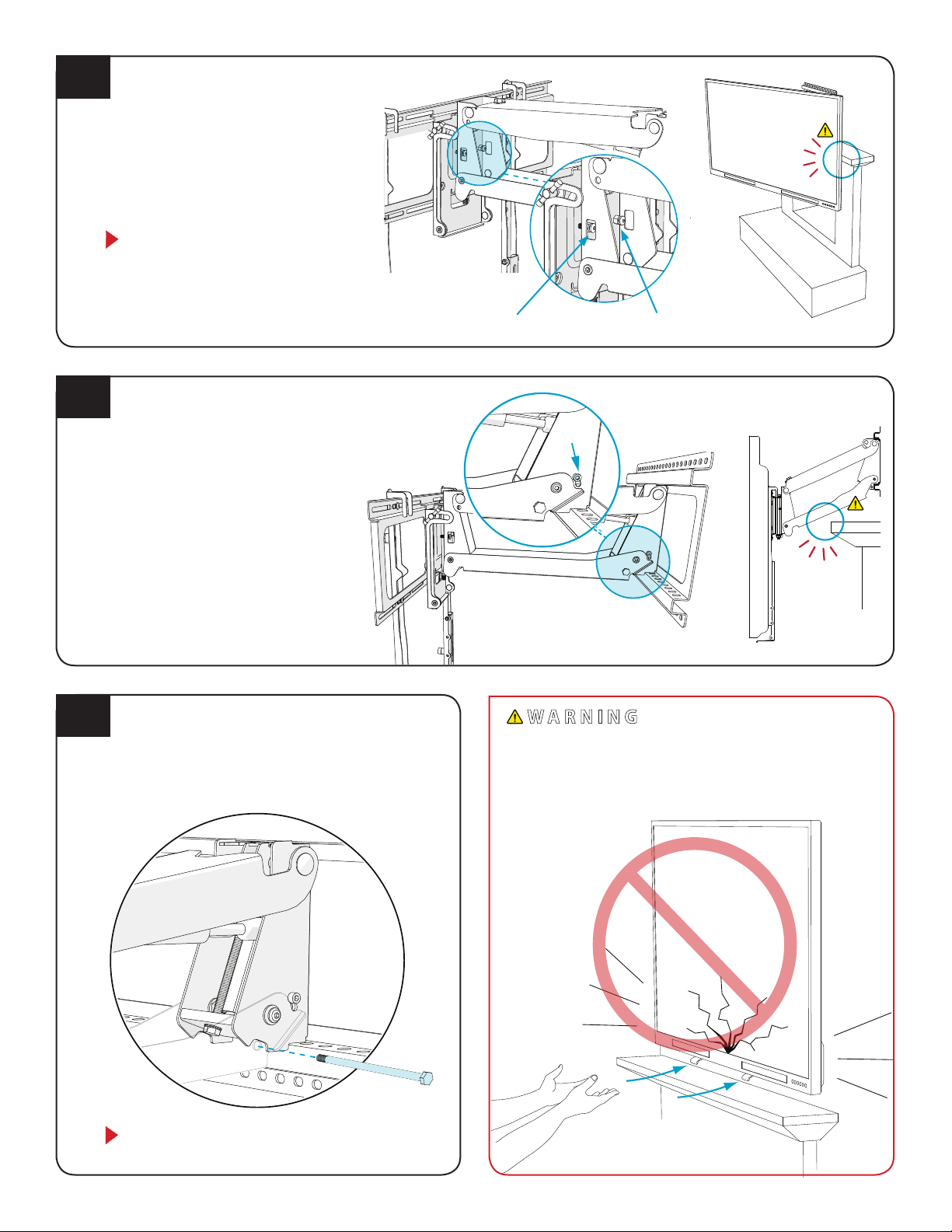

Do not remove the gas

springs or any bolts that hold

the Lifting Arm together.

WARNING

Select Screws and Spacers.

If Spacers {12} are required, choose one of these Screw

combinations shown with maximum Spacer usage.

1.3

{02}

{01} {10}

{10}

{11}

{12}

{10} {12}

{12}

{12} {12}

{12}

{03}

{05}

{04}

{06}

{08}

{07}

{09}

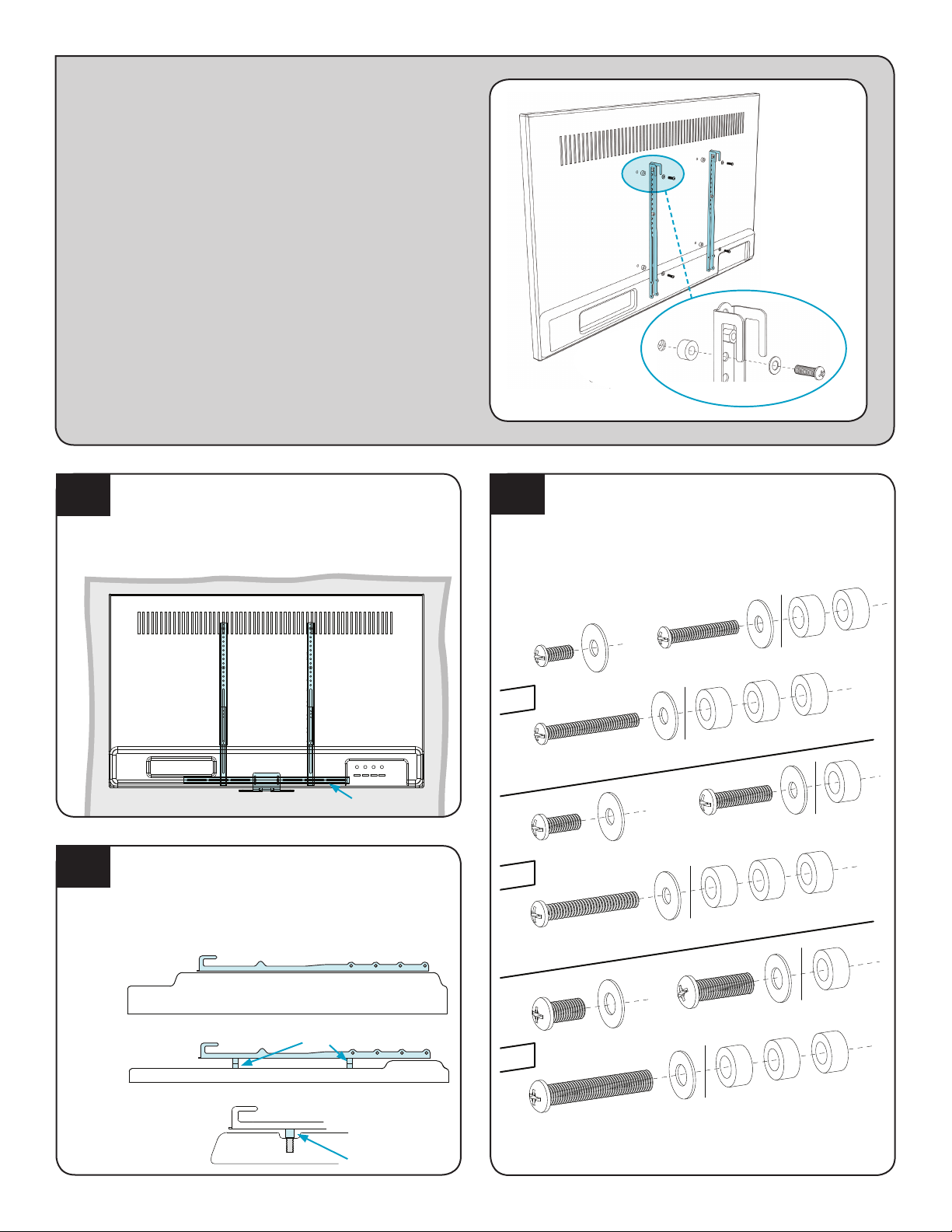

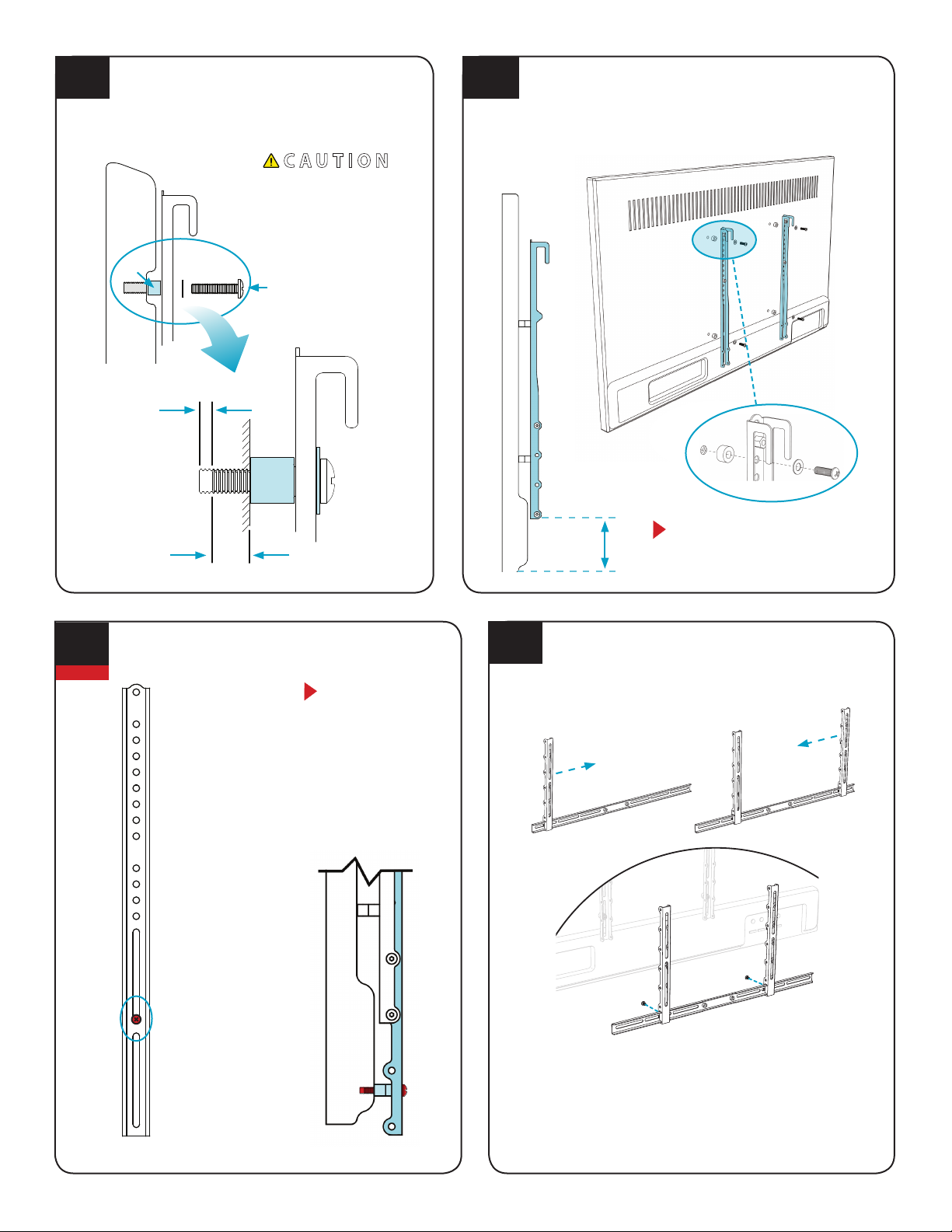

Test-t Brace components on back of TV.

Place TV screen-side down on a at, blanketed surface.

Lay out components to check assembly conguration. If

installing a sound bar, refer to STEP 1.8.

1.1

STEP 1

Attach Braces

to TV

Determine if TV has a at or irregular back.

An irregular back will require Spacers {12} and longer

Screws to ll spaces between the Vertical Brace {31} and

the TV. The Braces must be parallel to television screen.

1.2

Flat Back TV

Irregular Back TV {12}

{12}

{31}

Irregular Back TV

(Recessed Threads)

{31}

{30}

{53} {55}

{31}

{30}

BACK

OF TV

Customer Support 1.800.897.9755 x1 [email protected]

OPTIONAL

1.7

If the lower VESA holes are less than 3" from the

bottom of the TV:

1.6

Connect the Vertical

Braces {31} through

the UPPER VESA

holes only, so that

the bottom of the

braces are between

3" to 10" from the

bottom of the TV.

If the only option is

to attach the Vertical

Braces to the UPPER

VESA holes through

a slot: 1) Hand-thread

the screw through

the slot; 2) slide the

Vertical Brace upward

until the screw meets

the bottom of the

slot; and 3) tighten

the screw.

You must attach the

Brace Extenders {30}

to the Vertical Braces

as described in STEP

1.7. However, you

must also attach the

LOWER VESA hole

through the Brace

Extender as shown.

{31}

SIDE VIEW

{30}

{31}

{55}

{15}

{30}

{31}

{30}

Attach the Horizontal Brace to Brace Extenders.

Slide one Brace Extender {30} onto the left end of the

Horizontal Brace {55}, then slide the other Brace Extender

onto the opposite right end.

Attach the Vertical Braces to the back of TV.

Install the Vertical Braces {31} so that the bottoms of the

braces are between 3" to 10" from the bottom of TV, centering

the braces vertically as much as possible.

{31}

3 to 10

INCHES

1.5

SIDE VIEW

{31}

VERTICAL BRACES

MUST ALWAYS

BE INSTALLED

HIGHER THAN THE

BOTTOM OF THE TV.

If the lower VESA holes are less than

3" from the bottom of TV, go to

STEP 1.6; otherwise skip to STEP 1.7.

Hand-thread screw combination into the TV.

Ensure there is adequate thread engagement

without hitting the bottom of threaded insert.

1.4

Do not use screws that

are too long for the TV’s

threaded inserts because

it may damage internal

components!

MUST LEAVE

A GAP IN

THREADED

TV INSERT

MAXIMIZE THREAD

ENGAGEMENT FOR

STABILITY

AFTER ASSEMBLY

(ENLARGED)

{10}

{12}

CAUTION

TV SCREW

MM540 Installation Instructions6

UPPER

VESA

HOLE

WITH

SCREW

IN PLACE

LOWER

VESA

HOLE

WITH

SCREW

IN PLACE

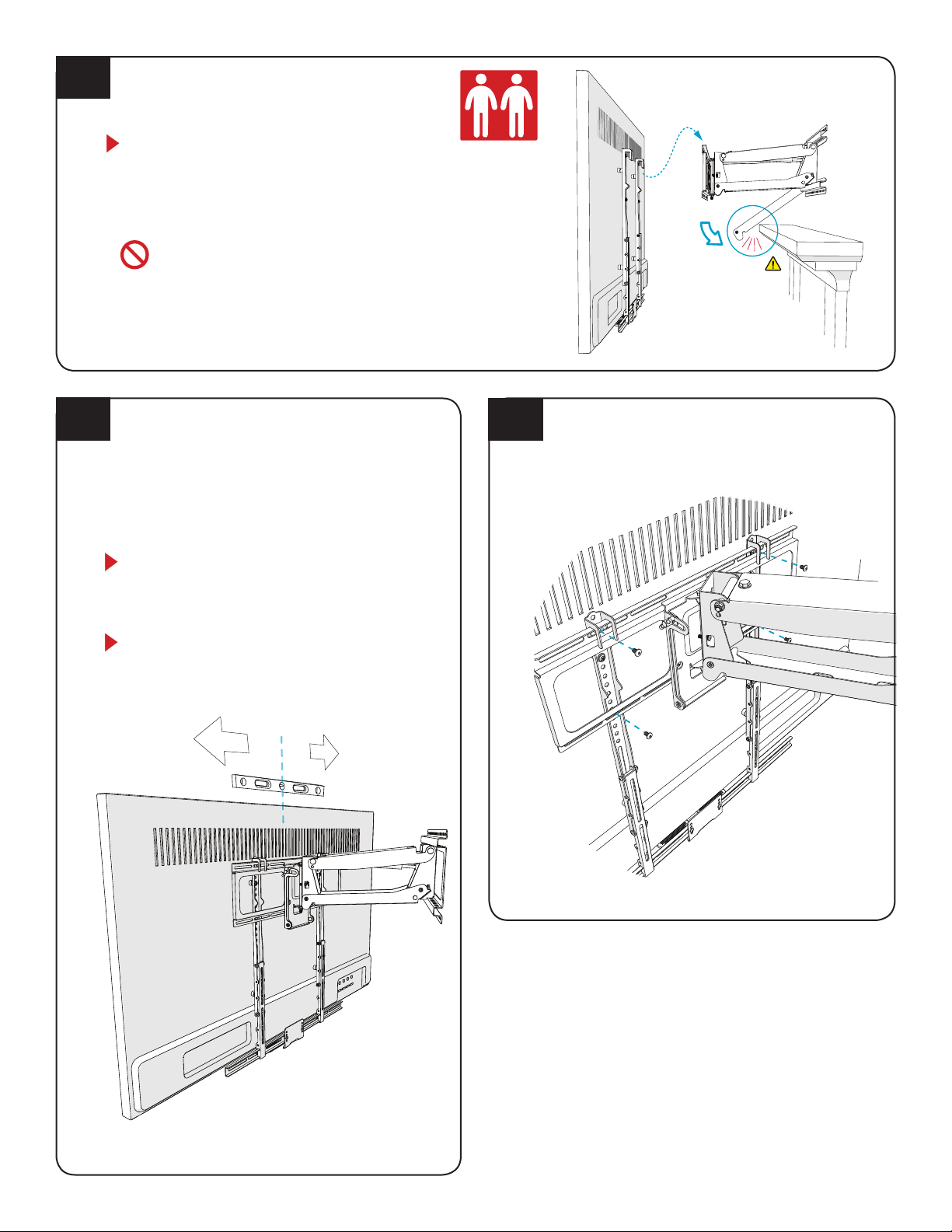

Align the Brace Extenders with the Vertical Braces

(that are already mounted to the back of the TV) while

positioning the Horizontal Brace so that it extends an

equal amount on either side of the Brace Extenders.

Attach Horizontal Brace to Brace Extenders with

Screws {15}.

{30}

{55} {55}

{30}

Customer Support 1.800.897.9755 x1 suppor[email protected]

1.9

Attach Brace Extenders to the Vertical Braces.

Slide the Brace Extenders {30} (with the Horizontal

Brace {55} now attached to them) onto the Vertical

Braces {31}. Position it so that the Horizontal Brace will

be hidden by the TV. Use Screws {18} and Nuts {23} to

attach.

{15}

Attach Heat-Sensing Center Handle to Horizontal

Brace.

Attach the Center Handle {53} with Screws {15} to the

Horizontal Brace {55}, ensuring that the Handle is within

one inch from the bottom of the TV or sound bar.

{55}

INSTALL THE CENTER

HANDLE SO THAT IT

SITS 1" BELOW THE

TV OR SOUND BAR

IF USING ONE.

{53}

1" MAX

(25mm)

SIDE

VIEW

OPTIONAL

1.8

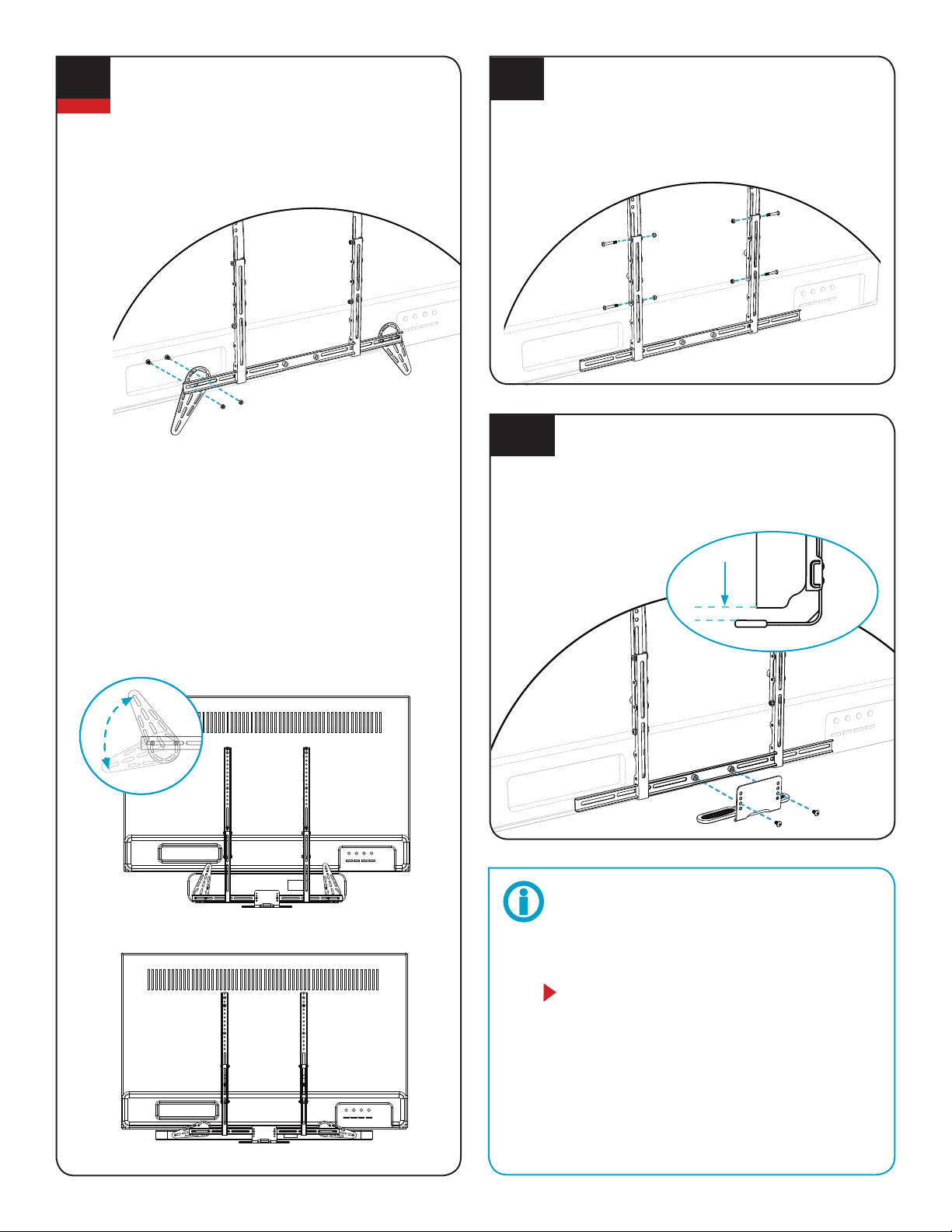

If installing a sound bar, attach the Sound Bar Wings.

Use Screws {15} and Nuts {23} to attach the Sound Bar

Wings {59} to the Horizontal Brace {55}. Position the

Wings to t the mounting holes of the sound bar.

Install sound bar. See below for Sound Bar Wing

installation information.

{59}

{55}

{23}

{18}

{23} {23}

{31}

{30}

{55}

{18}

Protect the TV with Heat-Sensing Center Handle.

The patented Heat-Sensing Handle turns red if the

temperature above the replace exceeds a safe 110° F –

a visual cue that either the TV needs to be raised to the

UP position or the replace needs to be turned o.

To eectively lower the TV using the Handle, follow the

MantelMount Three-Step Pull Down Technique:

1. Stand in front of the mount, arms extended with

palms up and elbows straight.

2. Firmly grasp the lifting handles and lean back

slightly with one foot forward and one foot back.

3. Step backward with forward foot to pull the mount

away from the wall while placing downward

pressure on the handles (keep elbows extended).

WIDE

TALL

WIDE

TALL

Arrange Sound Bar Wings and sound bar to work with

the Heat-Sensing Center Handle.

The Sound Bar Wings may be positioned and rotated so

that the Center Handle {53} will reach below the sound

bar.

For example, if a sound bar is tall, the Brace Extenders

{30} and Horizontal Brace can be attached lower down on

the Vertical Braces toward the bottom of the sound bar

while the Wings point upwards in order to align with the

sound bar’s installation holes.

{53}

1.10

TALLER SOUND BAR

WIDER SOUND BAR

STEP 2

Determine

Wall Placement

Measure the distance

from the bottom of the

Vertical Braces {31} (not

the Extenders) to the

bottom of the TV/

sound bar.

2.1 2.2

DEPTH OF MANTEL

{31}

12.50 13.25 14.25 15.5010.50.00" 10.75 11.25 11.75 17.00 19.00

11.50 12.25 13.25 14.509.50.00" 9.75 10.25 10.75 16.00 18.00

10.50 11.25 12.25 13.508.50.00" 8.75 9.25 9.75 15.00 17.00

9.50 10.25 11.25 12.507.50.00" 7.75 8.25 8.75 14.00 16.00

8.50 9.25 10.25 11.506.50.00" 6.75 7.25 7.75 13.00 15.00

7.50 8.25 9.25 10.505.50.00" 5.75 6.25 6.75 12.00 14.00

6.50 7.25 8.25 9.504.50.00" 4.75 5.25 5.75 11.00 13.00

5.50 6.25 7.25 8.503.50.00" 3.75 4.25 4.75 10.00 12.00

8" OR LESS 9" 10" 11" 12" 13" 14" 15" 16" 17" 18"

10"

DISTANCE

FROM 2.1

VALUE FROM

LOOKUP TABLE

DISTANCE

MINIMUM DISTANCE BETWEEN

MANTEL & LOWER WALL PLATE HOLES

MEASURE

THIS

DISTANCE

Determine the minimum vertical position of the Wall Plate.

Use the Look-up Table below to nd the minimum distance between the mantel and

the bottom of the lower Wall Plate {32}. This will be the intersection of the distance

from STEP 2.1 and the mantel depth. Write the minimum distance in the box below.

Most customers want their TV mounted as close to the mantel as possible. If this

describes you, go directly to STEP 2.4.

However, if you want the TV higher on the wall (such as centered between the

mantel and ceiling) e.g. for extra space on the mantel for pictures or a center speaker,

continue to STEP 2.3.

MM540 Installation Instructions8

OPTIONAL

2.4 2.5

DISTANCE

FROM 2.2 OR 2.3

2.3

Some customers want to place their TV higher than the

minimum distance from the mantel. Examples might be

centering the TV between the mantel and the ceiling/crown

moulding, or to ensure extra space below the TV for pictures or

a center speaker.

To determine the precise vertical position of the Wall Plate (32},

use measurements already taken, and do some simple math

using the formulas below.

Gather measurements (write them down):

(A) Available Space PAGE 2

(B) TV Height PAGE 2

(D) Value from STEP 2.2 PAGE 8

Do some simple math (write down answers):

(E) = (A) – (B)

(F) = (E) + (C) – 3

Next, choose which option best describes your preference:

1) If you want to center the TV between the mantel and ceiling,

use this calculation:

(H) = E – 2

2) If you know a specic number of inches you want between

the mantel and the bottom of the TV, write it below:

(H) =

Preferred Wall Plate location:

The calculation below will tell you how many inches above the

mantel to place the lower Wall Plate slots for the preferred TV

position.

(I) = H + C – 3

Note: (I) should never be less than (D), the minimum Wall Plate

height, or greater than (F), the maximum Wall Plate height.

BONUS: To gure out how far below the mantel the bottom of

the TV will travel, solve this equation:

(J) = 27" – (H)

Place the Wall Plates higher on the wall.

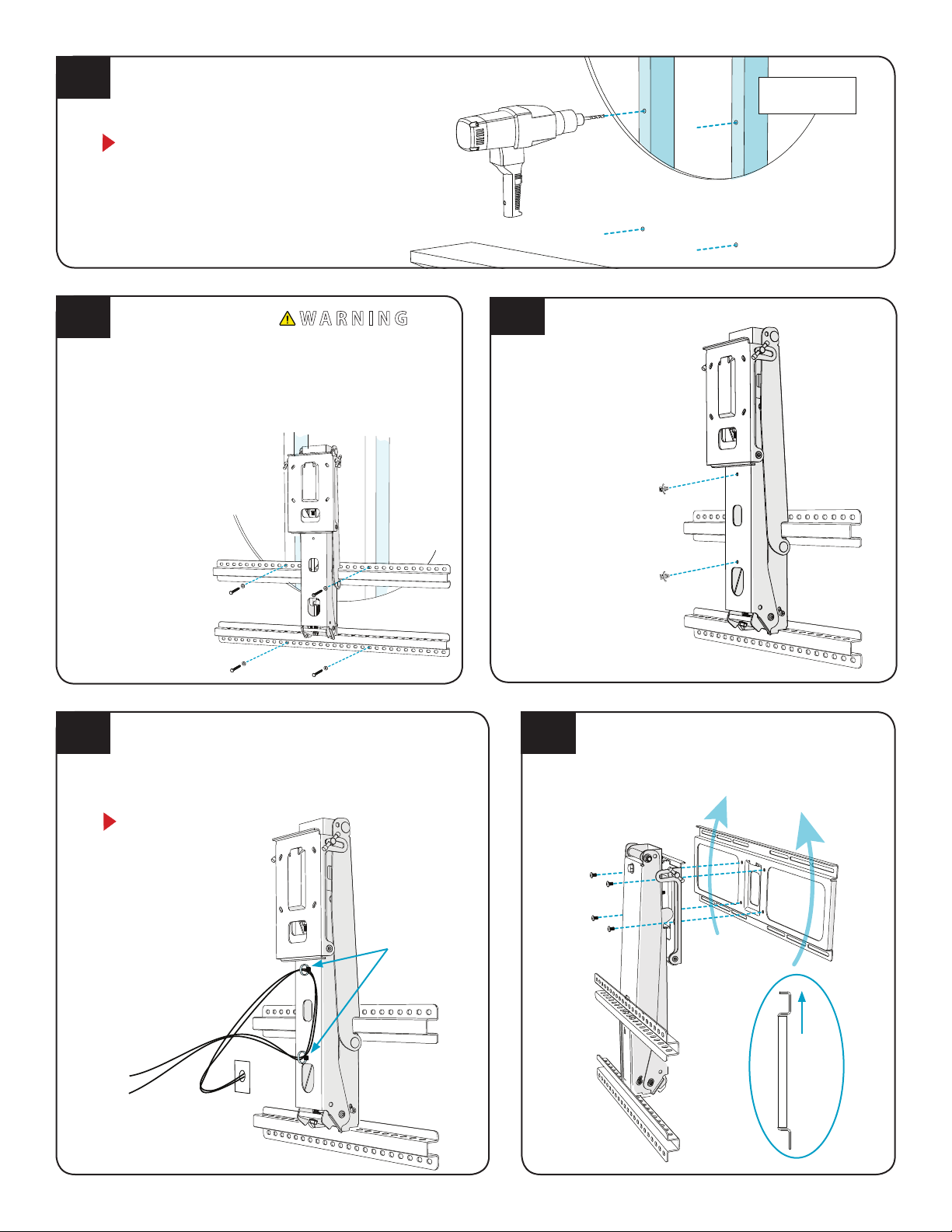

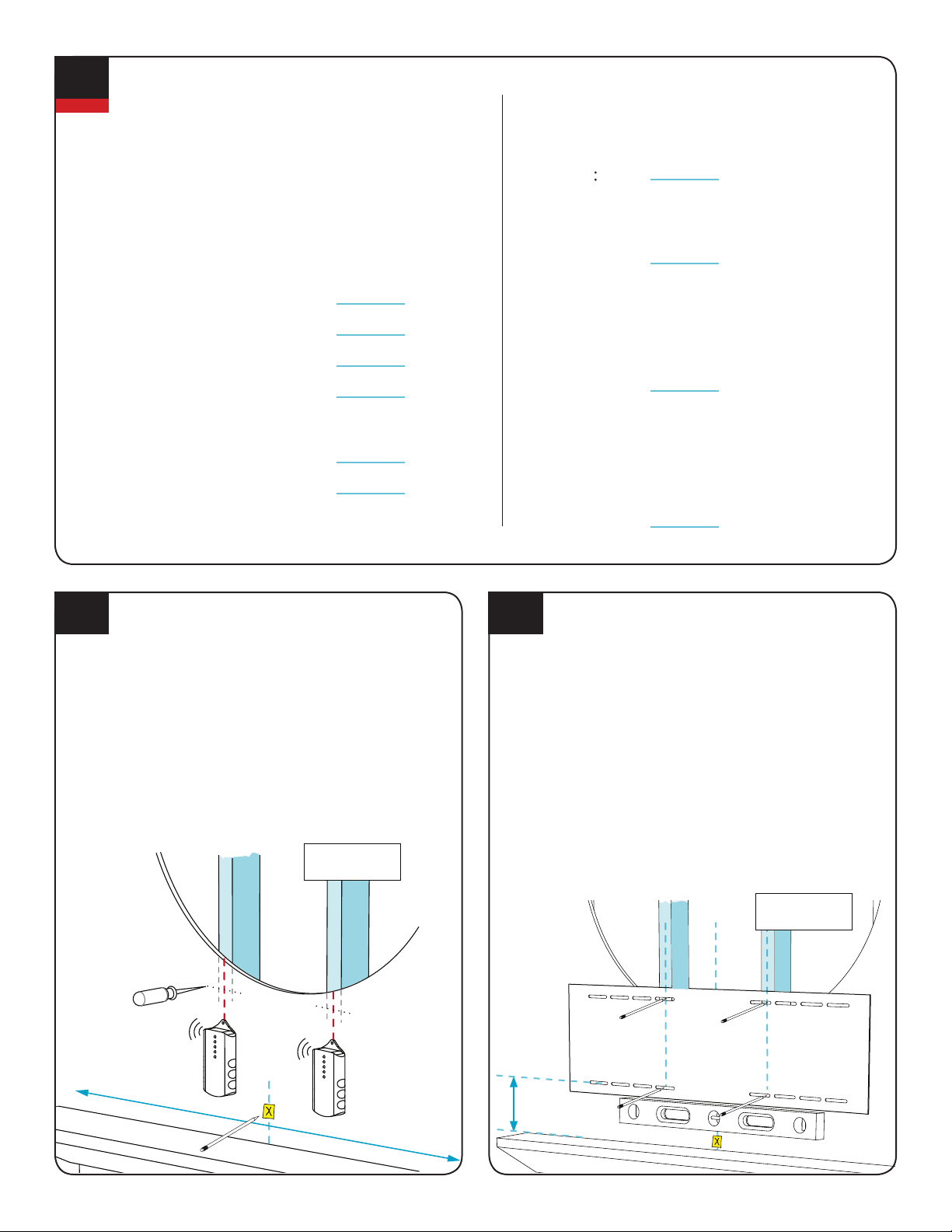

Find the center of your mantel and the centers of two studs.

Measure and mark the center line of the mantel onto the

wall with tape.

Next, use a stud nder to locate two studs, one on each

side of the centerline. (If you prefer to use one center stud

alone, see “Mount Space” in the Troubleshooting Tips on

page 21.)

Then, at the height from either STEP 2.2 or 2.3, locate the

center of the stud(s) by poking a sharp awl or nish nail

through the drywall to nd each stud edge. Mark these

center spots on the wall. Lag Bolts must be installed into

the CENTER of the studs in STEP 3.4.

AWL

TEMPLATE

STUD FINDER

Determine the positioning of the Wall Plates.

Position the LOWER SLOTS of the Template at the

appropriate distance from the mantel according to

placement preferences from either STEP 2.2 or 2.3. Use a

level to orient the Template.

Mark the center of the four slots along the marks for the

centers of the studs. This should create a cross mark for

each hole to drill.

Correctly orient a loose Wall Plate {32} to the LOWER hole

markings (with slots down) and then the UPPER holes

(with slots up). Determine if you can perfectly center

the Wall Plate over the mantel while reaching two studs,

and without interfering with a wall outlet. If there are no

issues, skip to STEP 3.1. Otherwise, proceed to STEP 2.6.

Cutout shown

for reference

Cutout shown

for reference

9Customer Support 1.800.897.9755 x1 suppor[email protected]

MM540 Installation Instructions

STUD

BEFORE AFTER

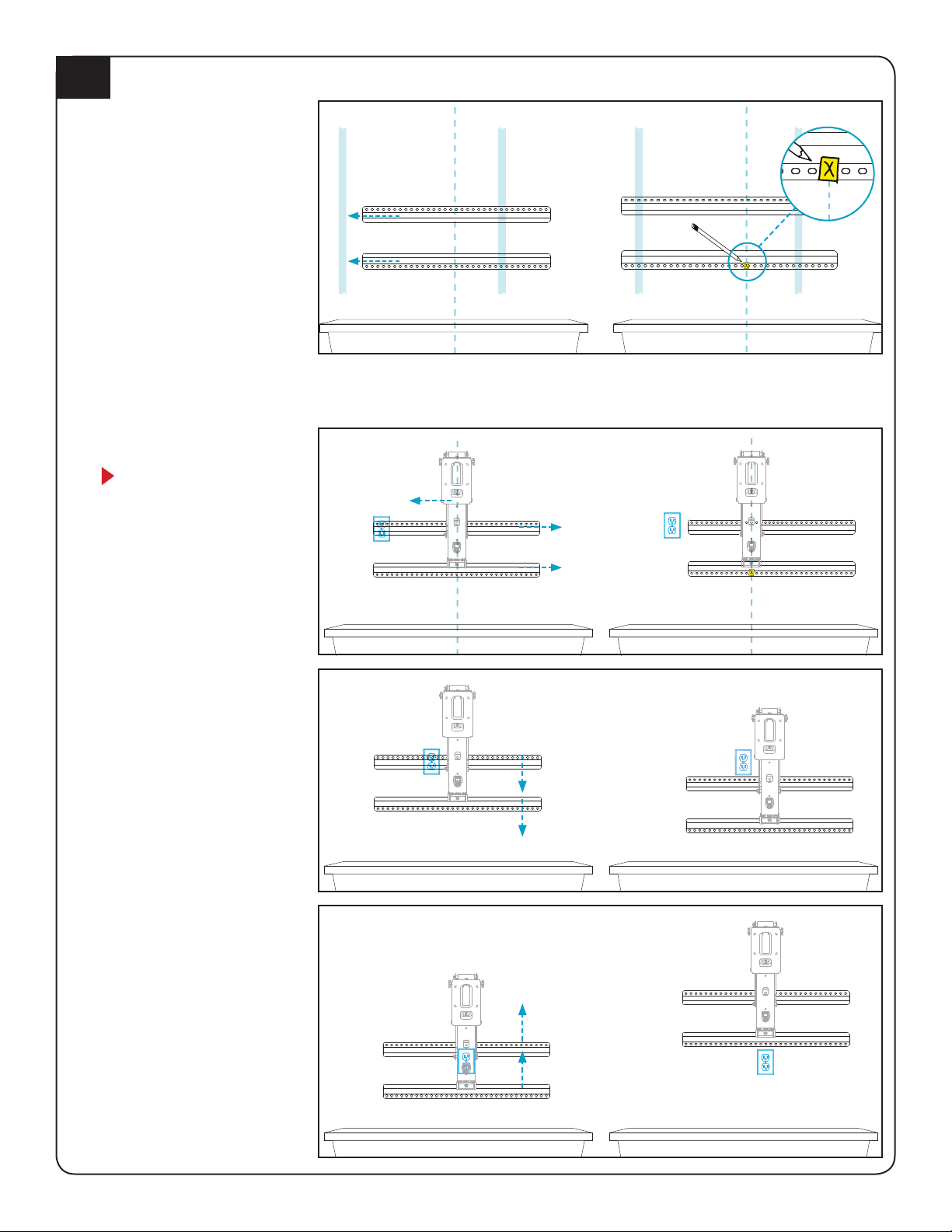

A. Slide the Wall Plates sideways on the wall until they reach two studs.

2.6

B. If necessary, move Wall

Plates to clear an outlet.

If a Wall Plate installation is

impeded by an electrical outlet

(or other) and professionally

relocating the outlet is impossible,

try one of these options:

• Move Wall Plates left or right

to clear the outlet. The Lifting

Arm can be attached anywhere

within the Wall Plates in order to

center the TV above the mantel,

making it adaptable for many

installation situations.

• Move Wall Plates up or down to

clear the outlet. As long as you

don’t place the LOWER Wall Plate

below the Minimum Distance

(STEP 2.2) or above the Maximum

Distance (STEP 2.3), MantelMount

will still function properly.

Simply move the Wall Plates up

or down enough to clear the

outlet, leaving them as close

as possible to the originally

planned vertical positions.

Next, move the Vertical Braces

{31} on the back of the TV using

the same number of inches used

to move the Wall Plates (e.g.,

move the Vertical Braces up 2" if

the Wall Plates were moved up

by 2"). The bottom of the Vertical

Braces must remain between 3

to 10 inches from the bottom of

the TV.

If outlet is directly behind the

Lifting Arm, the only solution is

to move the Wall Plates up.

BEFORE

AFTER

The Wall Plates {32} don’t have

to center-align with the Lifting

Arm {35} or the mantel. As long

as the Wall Plates are bolted

into studs, the Lifting Arm can

slide within them, allowing

it (and therefore the TV) to

center-align with the mantel.

Slide the Wall Plates sideways

until they reach two studs, and

then mark the center line of

the wall onto the Wall Plates.

Remember to correctly orient

the Wall Plates as shown in

this image and keep track of

which Wall Plate is the UPPER

and LOWER (don’t accidentally

reverse them).

2.7

OPTIONAL

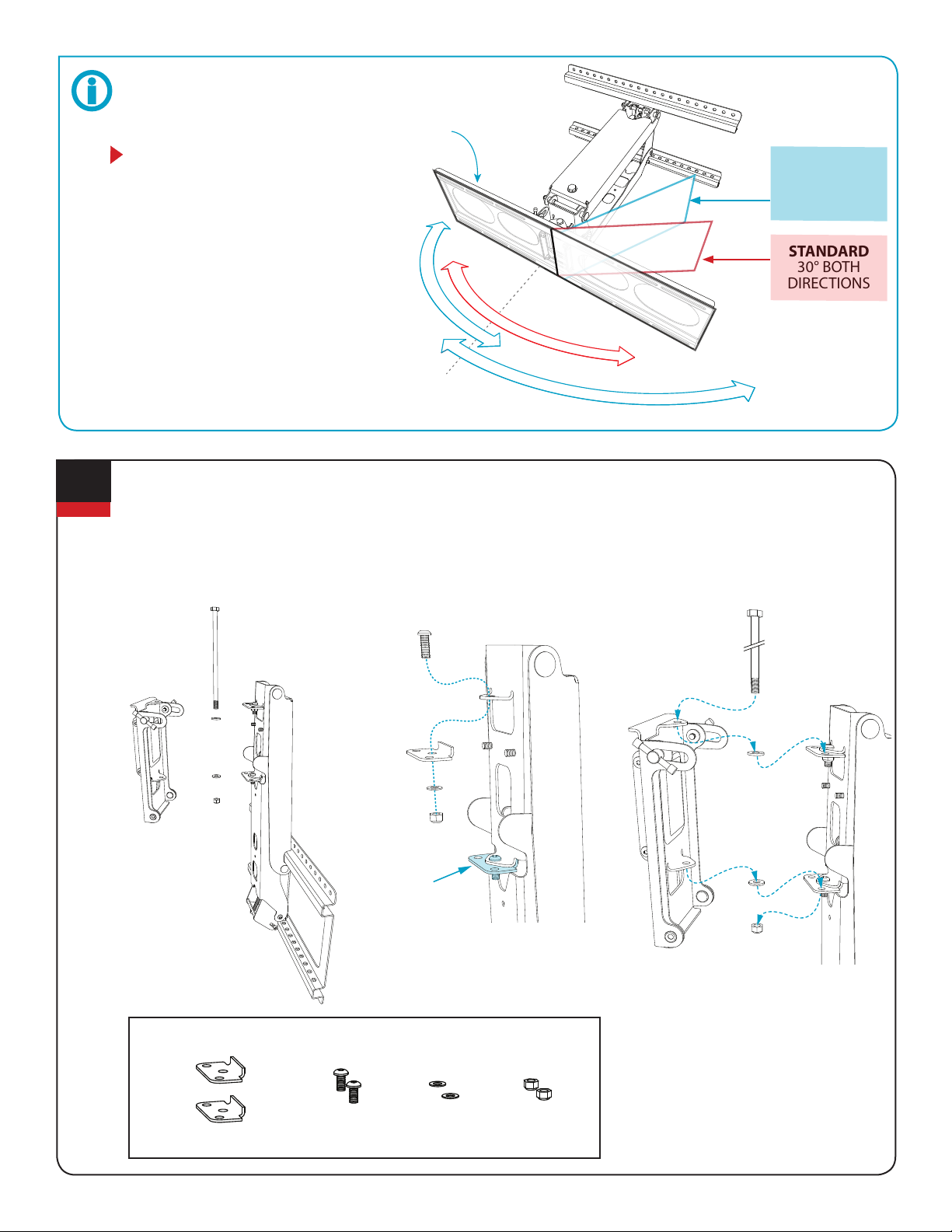

Install the One-Way Swivel Kit if you want your TV to swivel 60° in only one direction and you are not mounting it above a

mantel.

30˚

60˚

STANDARD

30° BOTH

DIRECTIONS

OPTIONAL

60° ONE

DIRECTION

ONLY

{56}

{11}

{25}

{36}

MantelMount MM540 is designed to swivel 30°

left and 30° right. Most TVs will swivel all the

way to the mantel or wall within this amount of

standard swivel.

However, for situations where more swivel to

one side only is desired, such as in a corner or

on a side wall, the optional One-Way Swivel

Kit will provide 60° of swivel in either the

left or right direction (but not both). This

situation is recommended only for a mounting

situation that does not include a mantel.

Note: The Auto-Straightening feature does

not work with the One-Way Swivel Kit. The TV

will need to be manually straightened so it’s

parallel with the wall when raising it to the UP

position.

A. Remove the Swivel TV Plate {34}

from the Lifting Arm {35}. Save all of

the hardware for reassembly at the end

of this optional step.

B. Install both Side Swivel Plates {56}

onto the Lift Arm. The plates nestle

underneath the existing tabs. The

Screws {36} are installed in the center

hole of each Side Swivel Plate.

C. Re-attach the Swivel TV Plate onto

the desired side of the Side Swivel

Plates. Follow the reverse order that

each part was removed.

{34} {35}

One-Way Swivel Kit Parts

{36} Screws {11} Washers {25} Nuts

{56} Side Swivel Plates

TV frame

shown for

reference only.

Customer Support 1.800.897.9755 x1 suppor[email protected]

If the Lifting Arm is blocking a Wall Plate

hole you need to access:

Move the Wall Plates {32} to the left

or right of the desired position and

temporarily install it. Use four Lag

Bolts {17} to secure the Wall Plates to

the studs. This will allow you to pull the

Lifting Arm {35} down and install the

Safety Bolt (see STEP 4.1) in order to

access the blocked Wall Plate hole.

Then, remove Lag Bolts and reinstall

the mount in the desired position.

For assistance,

contact Customer

Support.

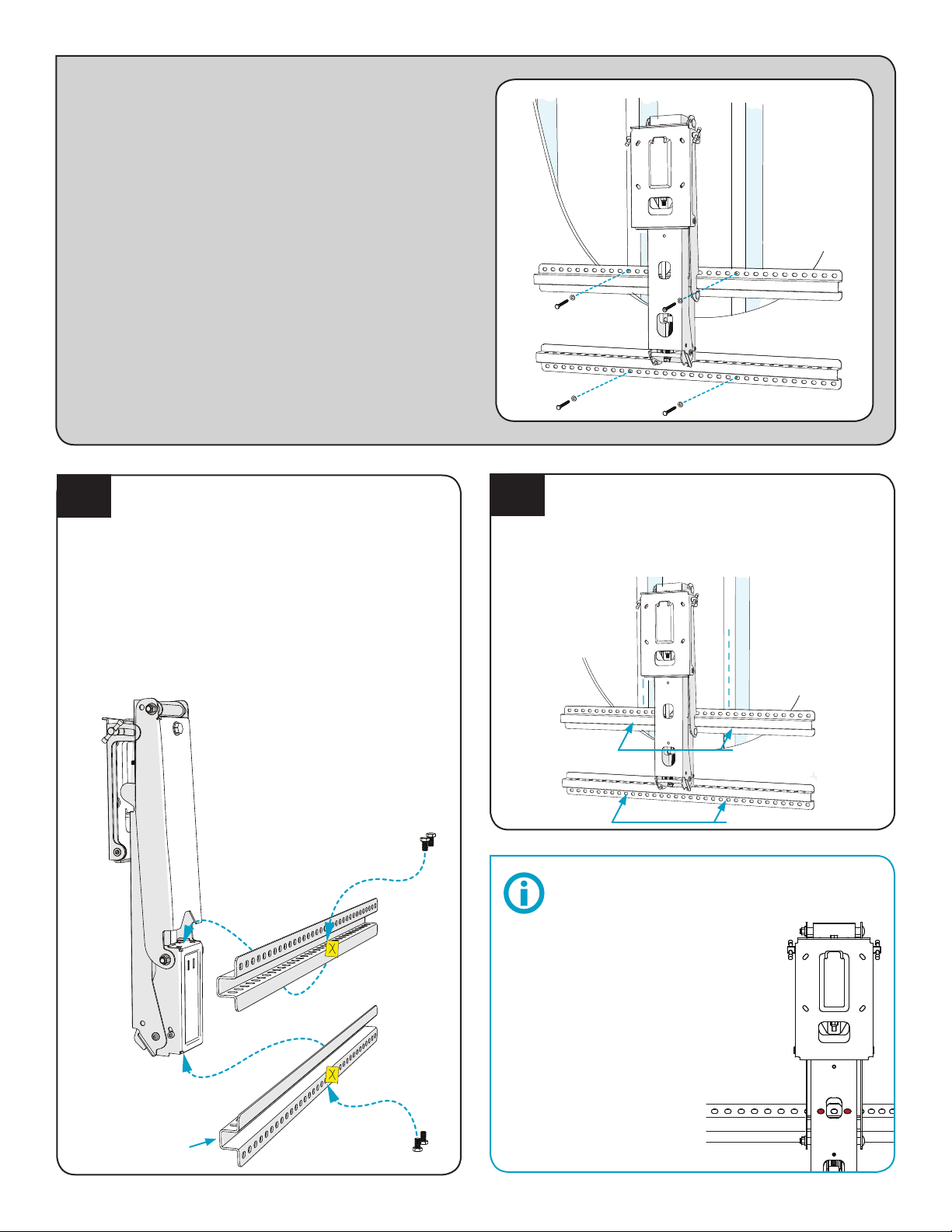

Attach Lifting Arm to Wall Plates.

If you arrived from STEP 2.5 then you can attach the Lifting

Arm {35} directly to the centers of the Wall Plates (32}.

If you arrived from STEP 2.6 (or optional STEP 2.7) then

you must align the center of the Lifting Arm to the marks

on the Wall Plates, while orienting the Upper and Lower

Wall Plate correctly.

Install four bolts {14} through the back channels of the

Wall Plates into the threaded holes of the Lifting Arm.

Tighten securely.

3.1

STEP 3

Attach Mount

to Wall

3.2

ALIGN HOLES WITH LOWER MARKS

ALIGN HOLES WITH UPPER MARKS

{35}

{14}

{32}

BACK CHANNEL

{35}

{32}

Verify positioning of the mount with stud(s).

Align the mount to the LOWER marked spots on the

wall and verify that the markings for the two UPPER

hole locations are accurate. Fine tune the upper marks if

necessary.

MM540 Installation Instructions12

Customer Support 1.800.897.9755 x1 suppor[email protected]

Attach the TV Brace to the Lifting Arm.

Hang the TV Brace {33} onto the Lifting Arm {35}

and make sure it’s level when tightening the four

Leveling Screws {15}.

3.7

{33}

{35}

{15}

3.4

{17} {11}

Do not over-tighten Lag

Bolts, it can cause property

damage or injury. Tighten

only until the washers are

rmly against the Wall Plate.

WARNING

3.5

Insert Cable Tie Anchors

into Lifting Arm.

Insert two Cable Tie

Anchors {22} into

the front holes on

the lower part of

the Lifting Arm {35}.

Press rmly until at. {35}

{22}

Use the included Cable Ties to attach cables.

Ensure Cable Ties {24} are sideways to the lower part of the

Lifting Arm {35}, making a gentle loop. The gure below

illustrates the recommended way to attach cables.

3.6

Cables must be

long enough to

accommodate the

extension and swivel

of the mount. Check

all ranges of motion

before tightening the

Cable Ties. {24}

{35}

PROFILE

VIEW OF

TV BRACE

{33}

3.3

Drill four pilot holes.

Use a 7/32" drill bit to create a depth of 2.5"

(65mm), including wall covering.

Wall covering (drywall) must not exceed a

thickness of 5/8".

Cutout shown

for reference

Attach the Wall Plates

and Lifting Arm

(referred to as the

“mount” from this step

forward) onto the wall.

Install Lag Bolts {17} and

Washers {11} through

the Wall Plate {32} holes,

directly into the center

of the studs, using the

pilot holes drilled in

STEP 3.3.

4.1

{20}

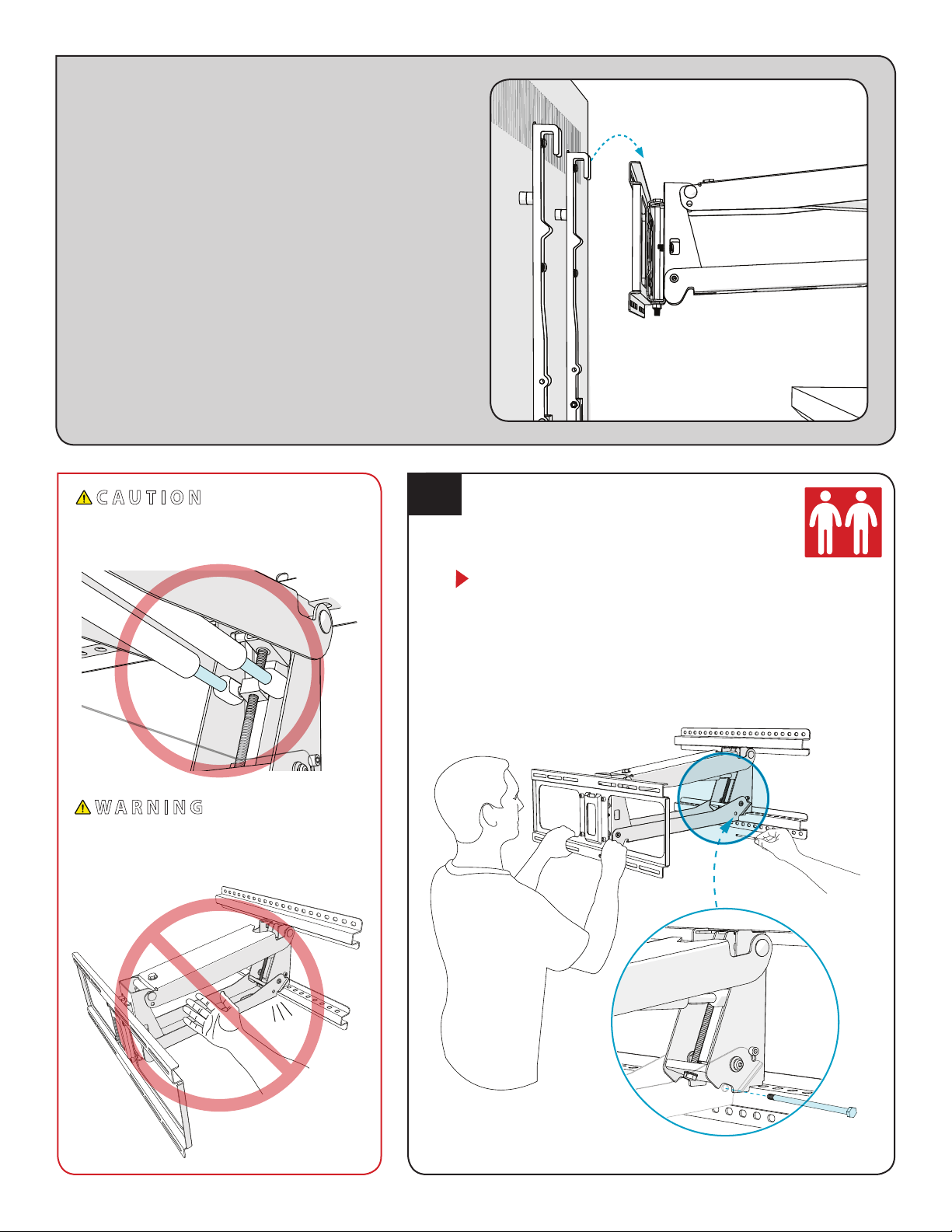

Insert the Safety Bolt and Safety Nut.

Use your body weight to rmly pull down the TV Brace

{33} until the Lifting Arm {35} is horizontal to the oor.

Continue holding onto the TV Brace.

A second person must insert the Safety Bolt {20}

through the Safety Hole in the base of the

Lifting Arm and install the Safety Nut {27}.

Slowly release the TV Brace until the Lifting Arm gently

comes to rest against the Safety Bolt. The Lifting Arm

should remain in a horizontal position during installation.

You will later remove the Safety Bolt in STEP 5.4.

STEP 4

Attach TV

to Mount

PERSON 1

PERSON 2

Do not put hands into Lifting Arm without the

Safety Bolt and Safety Nut installed. The force of

the Lifting Arm can cause bodily injury!

Do not damage or scratch the rods of the

Gas Springs while performing these steps!

WARNING

CAUTION

{35}

{33}

MM540 Installation Instructions14

Customer Support 1.800.897.9755 x1 suppor[email protected]

{15}

{33}

{31}

Center and level the TV on the TV Brace.

Make sure the center of the brace is aligned with the

center of the TV before leveling. Move on to STEP 4.4

once the TV is level.

If the TV sags to one side, carefully slide it sideways in the

opposite direction up to a MAXIMUM of 2 inches, until it

levels.

If the TV is now level but appears noticeably o-center

above the mantel, remove the TV and relocate the Wall

Plates {32} an equal distance in the opposite direction to

compensate. Repeat STEPS 3.3 and 3.4.

If you experience additional issues leveling the TV, refer

to “TV Leveling” in the Troubleshooting Tips on page 22.

Attach the TV Brace to the Vertical Braces.

Install four Screws {15} through the TV Brace {33} and

into the Vertical Braces {31}.

2 inches

MAX

2 inches

MAX

Carefully hang the TV on the TV Brace.

Make sure that all the hooks on the Vertical Braces {31}

engage the TV Brace {33}.

If the Lifting Arm {35} appears to be too close to the

mantle, remove the TV. Refer to STEP 5.3 and make an

adjustment to the Bottom Stop positions. Repeat this

process until the Lifting Arm is a safe distance from the

mantle when the TV is installed.

Do not allow the TV to drop far enough to cause

the Lifting Arm to hit the mantel.

4.2

4.3 4.4

{31}

{33}

{35}

Attach the electrical and signal cables to the TV.

Ensure cable segments have extra length so they are not stressed/kinked when the mount moves, and that they do not get pinched

behind the tilting mechanism when the mount is raised.

4.5

MM540 Installation Instructions

STEP 5

Make Final

Adjustments

Adjust the Lifting Force for the TV.

First, review all the images in this step.

With Safety Bolt {20} in place, use a 10–14mm socket wrench with an

extension to adjust the Tension Bolt {41} (the long bolt inside the Lifting Arm

{35}).

For heavy TVs, turn the Tension Bolt clockwise in order to pull the Gas Springs

{38} DOWN and increase the lifting force. Turn counterclockwise for lighter TVs.

The Gas Springs move slowly as you turn the Tension Bolt. Their movement is

subtle. Please be patient as it may take multiple revolutions to reach the

desired tension.

Adjust the Tension Bolt until the TV gently stays in the lowered position.

Move the TV up and down within the range below the Safety Bolt. The TV

should almost stay up against the Safety Bolt and slowly lower to the Bottom

Stops when released.

TENSION

BOLT

SAFETY BOLT

Approximate

position for

lighter TVs

(about 20 lbs)

Approximate

position for

heavier TVs

(about 90 lbs)

5.1

Do not adjust the Tension

Bolt all the way to the

bottom – your mount

won’t function properly in

that position.

Turn Tension Bolt

Counter Clockwise

LIGHTER TV?

Turn Tension Bolt

Clockwise

HEAVIER TV?

Bottom

Stop

Side

Swivel

Stops

Post-Leveling

Lifting ForceTilt

CAUTION

GAS

SPRINGS

{35}

Customer Support 1.800.897.9755 x1 suppor[email protected]

MM540 Installation Instructions18

Adjust the Side Swivel Stop positions,

if necessary.

To keep the TV from bumping the

mantel or wall, loosen the Locknuts {23}

and adjust the Swivel Stop Screws to the

desired stopping left and right positions.

Tighten both Locknuts after the

adjustments are made.

If no swivel is desired, it may be

necessary to remove the Locknuts and

reattach them on the other side of the

Swivel Bracket so that the Screws can be

threaded out to their maximum length.

5.2

Never release the handle before the TV mount is fully upright.

(Don’t let it slam up!) MantelMount is strongest in the top

position, and allowing it to slam closed can damage televisions.

Always control the lifting process.

5.3

{23}

{35}

Remove the Safety Bolt and Safety Nut.

Store these parts for future use. The Safety Bolt {20}

and Safety Nut {27} are needed to remove the TV at any

time in the future.

5.4

{20}

STORE SAFETY BOLT FOR FUTURE USE!

Adjust the Bottom Stop positions and

level the TV, if necessary.

To keep the TV from hitting the top of

the mantel or dropping too low, adjust

the Bottom Stop screws on each side of

the Lifting Arm {35}.

Loosen the Locknuts {23} and adjust

the Bottom Stop screws to the desired

stopping position, and tighten the

Locknuts.

Next, place a level on top of the TV. If

the TV is not level in the DOWN position,

adjust one of the bottom stop screws

until the TV is level.

WARNING

SWIVEL

STOP

SCREWS

Customer Support 1.800.897.9755 x1 suppor[email protected] 19

Verify the proper Lifting Performance (Force).

MantelMount is designed to keep the TV securely in

the UP position while also allowing it to gently rest in

the DOWN position. Refer to diagram below.

If you need to make adjustments, reinsert the Safety

Bolt and then repeat STEP 5.1.

For more information on rening Lifting Performance,

refer to “Mount Performance” in the Troubleshooting

Tips on page 21.

Make Post-Leveling adjustments, if necessary.

Place a level on top of the TV while it’s in the UP position.

If it’s level, the installation is complete! If not, slightly

loosen all four Leveling Screws {15} and rotate the TV

until it’s level and then tighten all the Screws.

Adjust the Vertical Tilt Position.

Locate the two sliding knobs on each

side of the Tilt Mechanism on the Lifting

Arm {35}. Slightly loosen the knobs and

position the TV to the desired tilt, then

tighten the knobs.

The tilt will remain at the same angle

while the mount is raised or lowered,

unless it is manually changed.

5.5 5.6

5.7

{15} x4

Strongest in the UP/TOP position

Neutral in

the MID

positions

Weakest in the

DOWN/BOTTOM

position

{35}

Customer Support 1.800.897.9755 x1 suppor[email protected]

MM540 Installation Instructions20

5.8

Install the Wall Plate Covers.

For wiring inside the Wall Plates {32}, use a Hole Saw drill bit to cut a hole through a Wall Cover {57}.

Be careful not to damage the edge around the hole. For best results, support the Wall Cover with scrap wood behind the drilling area.

Paint the Wall Covers if desired. Once dry, snap them onto the Wall Plates.

Thank you for purchasing a MantelMount.

For installation assistance, refer to the Troubleshooting Tips or contact Customer Support.

1.800.897.9755 ext.1

support@mantelmount.com

Monday – Friday

7:00am – 4:00pm PST

{57}

{32}

Table of contents

Other MantelMount TV Mount manuals

MantelMount

MantelMount MM750 User manual

MantelMount

MantelMount MM700 User manual

MantelMount

MantelMount MM440 User manual

MantelMount

MantelMount MM720 User manual

MantelMount

MantelMount MM710 User manual

MantelMount

MantelMount MM860 User manual

MantelMount

MantelMount MM340 User manual

MantelMount

MantelMount MM860 User manual

MantelMount

MantelMount MM340 Assembly instructions

MantelMount

MantelMount MM815 User manual

Popular TV Mount manuals by other brands

PEERLESS

PEERLESS PARAMOUNT PF640 and assembly Installation and assembly manual

peerless-AV

peerless-AV PLP PAN42 Installation and assembly

GEM

GEM L-GL600-AL Specification sheet

Starburst Technologies

Starburst Technologies SB-3770UST installation manual

CHIEF

CHIEF FSB-4226 installation instructions

Speaka Professional

Speaka Professional 62 95 68 operating instructions

EINHELL

EINHELL KWK 1 operating instructions

Chauvet Professional

Chauvet Professional STRIKE ARRAY FLUSH BRACKET user manual

Digital Watchdog

Digital Watchdog DWC-PMB-WLW quick start guide

COMPU-LOK

COMPU-LOK CL105 installation instructions

Echogear

Echogear EGLL2 instruction manual

Crestron

Crestron TSW-70 Series quick start guide

delight

delight 39692 manual

Helios

Helios FML64PL Assembly instructions

jbc

jbc RHT instruction manual

ACT

ACT AC8336 Quick install

Vivo

Vivo MOUNT-SFTV4A instruction manual

Front Runner

Front Runner RRAC106 manual

MantelMount MM540 User manual

Popular TV Mount manuals by other brands
