Marantz SR7013 User manual

.
AV Surround Receiver
SR7013
Owner’s Manual
Contents Connections Playback Settings Tips Appendix
1
Front panel Display Rear panel Remote Index

Accessories 8
Inserting the batteries 9
Operating range of the remote control unit 9
Features 10
High quality sound 10
High performance 12
Easy operation 16
Part names and functions 17

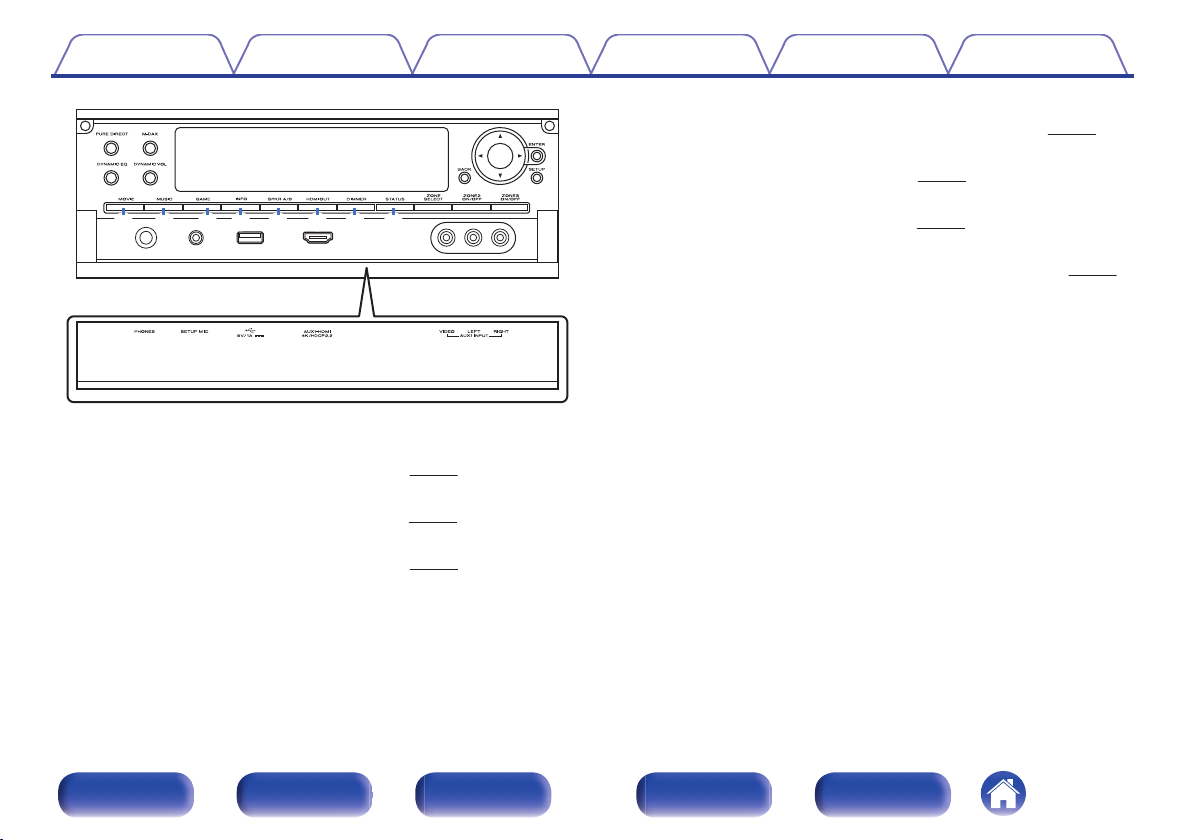

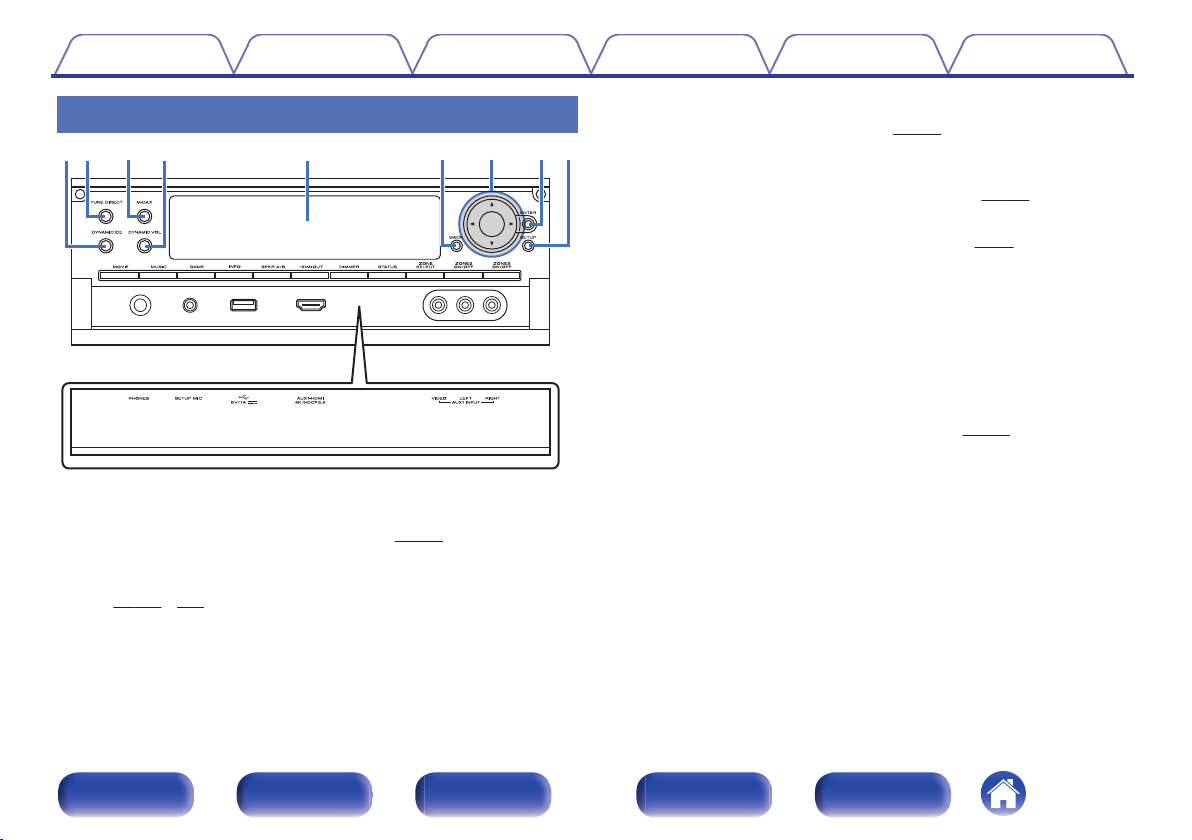

Front panel 17
Display 22
Rear panel 26
Remote control unit 30
Connections
Speaker installation 35
Connecting speakers 43
Before connecting speakers 43
Speaker configuration and “Amp Assign” settings 47
Connecting 5.1-channel speakers 49
Connecting 7.1-channel speakers 50
Connecting 9.1-channel speakers 54
Connecting 11.1-channel speakers 62
Connecting 7.1-channel speakers: Bi-amp connection of front
speakers 68
Connecting 7.1-channel speakers: Second pair of front speakers 69
Connecting multi-zone speakers 70
Connecting a TV 75
Connection 1 : TV equipped with an HDMI connector and
compatible with the ARC (Audio Return Channel) / eARC
(Enhanced Audio Return Channel) 76
Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC (Audio Return Channel) / eARC
(Enhanced Audio Return Channel) 78
Connection 3 : TV equipped without an HDMI connector 79
Connecting a playback device 80
Connecting a set-top box (Satellite tuner/cable TV) 81
Connecting a DVD player or Blu-ray Disc player 82
Connecting a video camcorder or game console 83
Connecting a turntable 84
Connecting a device with a multi-channel output connector 85
Connecting a USB memory device to the USB port 86
Connecting an FM/AM antenna 87
Connecting to a home network (LAN) 89
Wired LAN 89
Wireless LAN 90
Connecting an external control device 91
REMOTE CONTROL jacks 91
DC OUT jacks 92
Connecting the power cord 93
Contents Connections Playback Settings Tips Appendix
2
Front panel Display Rear panel Remote Index

Playback
Basic operation 95
Turning the power on 95
Selecting the input source 95
Adjusting the volume 96
Turning off the sound temporarily (Muting) 96
Playback a DVD player/Blu-ray Disc player 96
Playing a USB memory device 97
Playing files stored on USB memory devices 98
Listening to music on a Bluetooth device 101
Playing music from Bluetooth device 102
Pairing with other Bluetooth devices 104
Reconnecting to this unit from a Bluetooth device 105
Listening to FM/AM broadcasts 106
Listening to FM/AM broadcasts 107
Tuning in by entering the frequency (Direct Tune) 109
RDS Search 109
PTY Search 110
TP Search 111
Radio text 111
Changing the tune mode (Tune Mode) 112
Tuning in to stations and presetting them automatically (Auto
Preset Memory) 112
Presetting the current broadcast station (Preset Memory) 113
Listening to preset stations 113
Specify a name for the preset broadcast station (Preset Name) 114
Skipping preset broadcast stations (Preset Skip) 115
Cancelling Preset Skip 116
Listening to Internet Radio 117
Listening to Internet Radio 118
Playing back files stored on a PC or NAS 119
Playing back files stored on a PC or NAS 120
Getting the HEOS App 123
HEOS Account 124
Playing from streaming music services 125
Listening to the same music in multiple rooms 128
AirPlay function 132
Playing songs from your iPhone, iPod touch or iPad 133
Playing iTunes music with this unit 133
Perform iTunes playback operations with the remote control unit
of this unit 134
Play a song from your iPhone, iPod touch or iPad on multiple
synced devices (AirPlay 2) 135
Spotify Connect function 136
Playing Spotify music with this unit 136
Contents Connections Playback Settings Tips Appendix
3
Front panel Display Rear panel Remote Index

Convenience functions 137
Adding to HEOS Favorites 138
Playing back HEOS Favorites 138
Deleting a HEOS Favorites 139
Adjusting the volume of each channel to match the input source
(Channel Level Adjust) 140
Adjusting the tone (Tone) 141
Displaying your desired video during audio playback (Video
Select) 142
Adjusting the picture quality for your viewing environment (Picture
Mode) 143
Playing the same music in all zones (All Zone Stereo) 144
Selecting a sound mode 145
Selecting a sound mode 146
Direct playback 147
Pure Direct playback 147
Auto surround playback 148
Description of sound mode types 149
Sound mode that can be selected for each input signal 153
HDMI Control function 157
Setting procedure 157
Smart Menu function 158
Sleep timer function 160
Using the sleep timer 161
Smart select function 162
Calling up the settings 163
Changing the settings 164
Panel lock function 165
Disabling all key button operations 165
Disabling all button operations except VOLUME 165
Canceling the Panel lock function 166
Remote lock function 167
Disabling the sensor function of the remote control unit 167
Enabling the remote sensor function 167
Switches light illumination on/off 168
Web control function 169
Controlling the unit from a web control 169
Playback in ZONE2/ZONE3 (Another room) 171
Connecting ZONE 171
Playback in ZONE2/ZONE3 177
Contents Connections Playback Settings Tips Appendix
4
Front panel Display Rear panel Remote Index

Settings
Menu map 179
Menu operations 183
Audio 184
Center Level Adjust 184
Subwoofer Level Adjust 184
Bass Sync 185
Surround Parameter 185
M-DAX 190
Audio Delay 191
Volume 192
Audyssey®193
Graphic EQ 196
Video 198
Picture Adjust 198
HDMI Setup 200
Output Settings 205
Component Video Out 209
On Screen Display 209
4K Signal Format 210
TV Format 212
Inputs 213
Input Assign 213
Source Rename 215
Hide Sources 215
Source Level 216
Input Select 217
Speakers 218
Audyssey® Setup 218
Procedure for speaker settings (Audyssey® Setup) 220
Error messages 226
Retrieving Audyssey® Setup settings 228
Manual Setup 229
Amp Assign 229
Speaker Config. 236
Distances 241
Levels 243
Crossovers 244
Bass 245
Front Speaker 246
2ch Playback 246
Contents Connections Playback Settings Tips Appendix
5
Front panel Display Rear panel Remote Index

Network 249
Information 249
Connection 249
Wi-Fi Setup 250
Settings 252
Network Control 254
Friendly Name 254
Diagnostics 255
HEOS Account 256
You have not signed in 256
You have already signed in 256
General 257
Language 257
ECO 257
ZONE2 Setup / ZONE3 Setup 261
Zone Rename 263
Smart Select Names 263
Trigger Out 1 / Trigger Out 2 264
Front Display 264
Firmware 265
Information 268
Usage Data 269
Save & Load 270
Setup Lock 270
Reset 271
Operating external devices with the remote control unit 272
Registering preset codes 273
Operating devices 276
Initializing registered preset codes 279
Setting the back light 280
Disabling the backlight 280
Specifying the zone used with the remote control unit 281
Contents Connections Playback Settings Tips Appendix
6
Front panel Display Rear panel Remote Index

Tips
Tips 283
Troubleshooting 285
Power does not turn on / Power is turned off 286
Operations cannot be performed through the remote control unit 287
Display on this unit shows nothing 287
No sound comes out 288
Desired sound does not come out 289
Sound is interrupted or noise occurs 292
No video is shown on the TV 293
The menu screen is not displayed on the TV 295
The color of the menu screen and operations content displayed
on the television is different from normal 295
AirPlay cannot be played back 296
USB memory devices cannot be played back 297
Bluetooth cannot be played back 298
The Internet radio cannot be played back 299
Music files on PC or NAS cannot be played back 300
Various online services cannot be played 301
The HDMI Control function does not work 301
Cannot connect to a wireless LAN network 302
When using HDMI ZONE2, the devices does not function properly 303
Update/upgrade error messages 304
Resetting factory settings 305
Resetting network settings 306
Appendix
About HDMI 307
Video conversion function 310
Playing back a USB memory devices 312
Playing back a Bluetooth device 313
Playing back a file saved on a PC or NAS 314
Playing back Internet Radio 315
Personal memory plus function 315
Last function memory 315
Sound modes and channel output 316
Sound modes and surround parameters 318
Types of input signals, and corresponding sound modes 321
Explanation of terms 324
Trademark information 333
Specifications 335
Index 341
Contents Connections Playback Settings Tips Appendix
7
Front panel Display Rear panel Remote Index

Thank you for purchasing this Marantz product.
To ensure proper operation, please read this owner’s manual carefully before using the product.
After reading this manual, be sure to keep it for future reference.

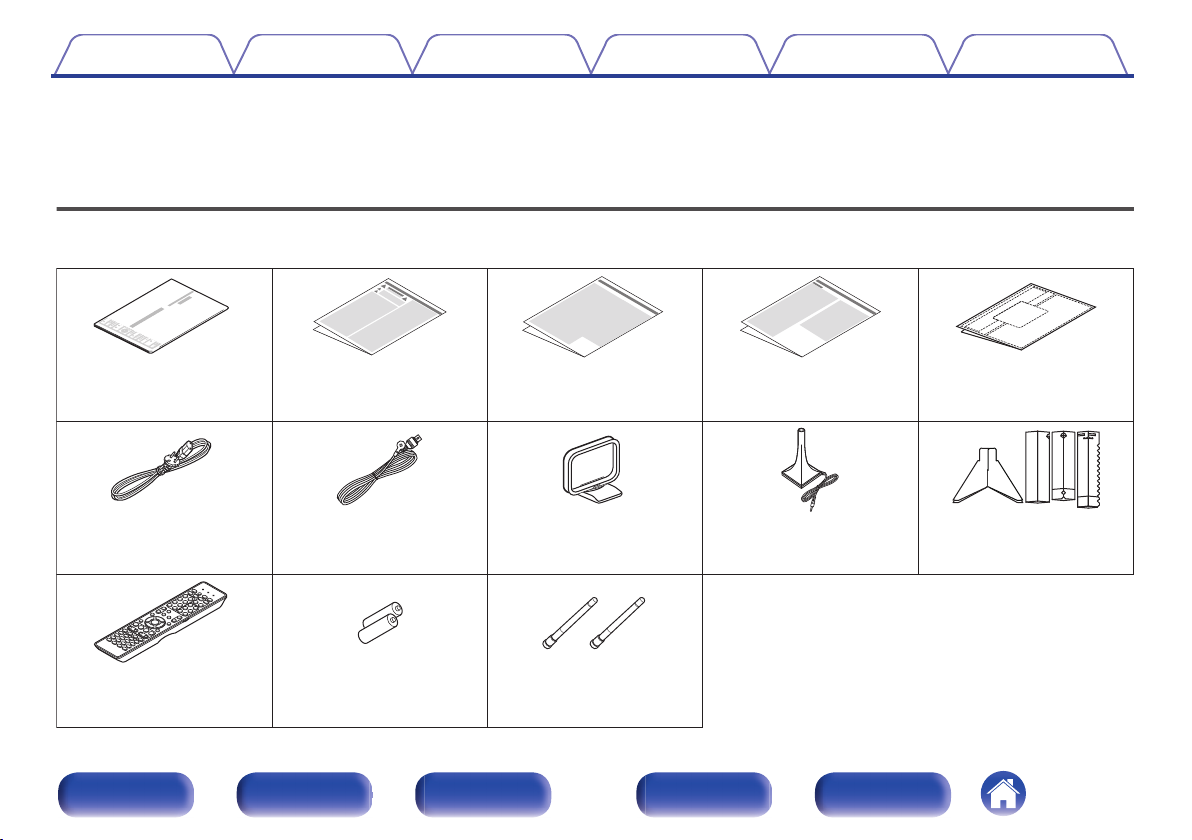

Accessories
Check that the following parts are supplied with the product.
.
Quick Start Guide Safety Instructions Notes on radio Cable labels
Power cord FM indoor antenna AM loop antenna
External antennas for
Bluetooth/wireless
connectivity
Sound calibration
microphone stand
Cautions on Using Batteries
Remote control unit
(RC036SR)
R03/AAA batteries
Sound calibration
microphone
Contents Connections Playback Settings Tips Appendix
8
Front panel Display Rear panel Remote Index

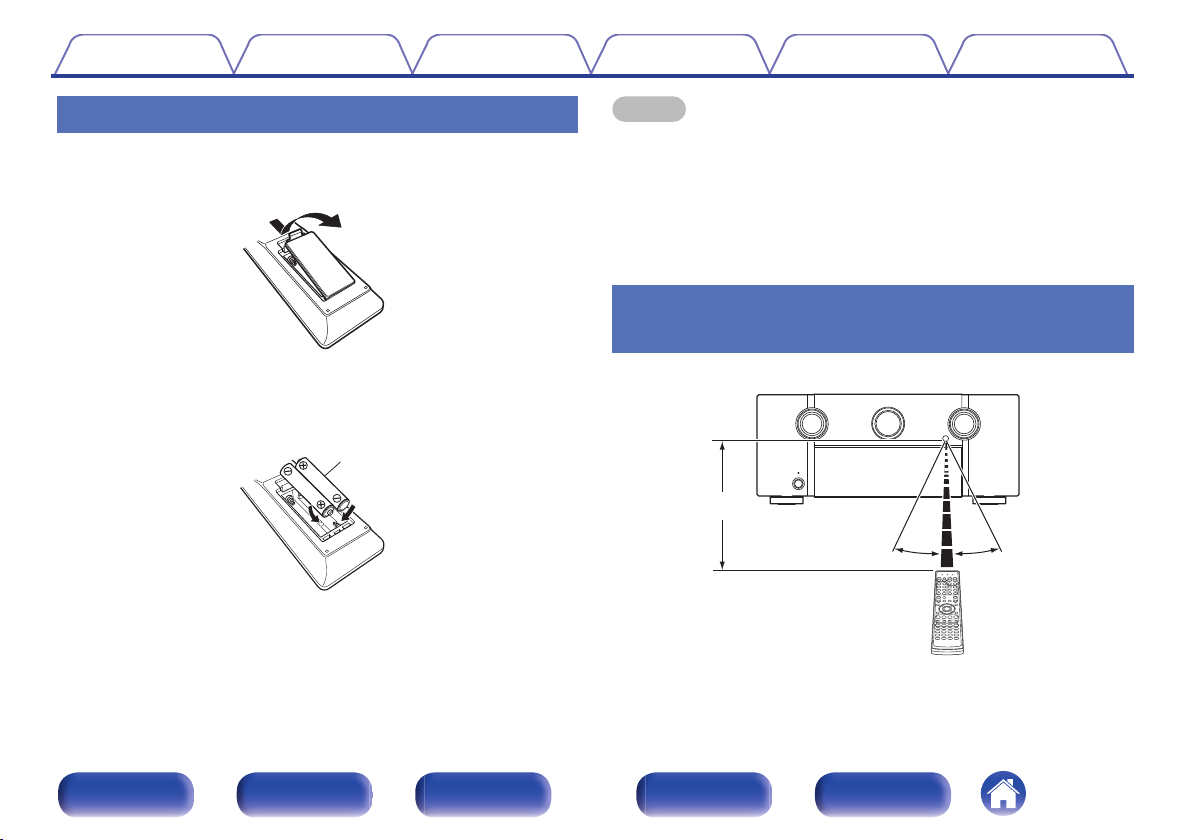

Inserting the batteries
1Remove the rear lid in the direction of the arrow and
remove it.
.
2Insert two batteries correctly into the battery
compartment as indicated.
.
Batteries
3Put the rear cover back on.
NOTE
0To prevent damage or leakage of battery fluid:
0Do not use a new battery together with an old one.
0Do not use two different types of batteries.
0Remove the batteries from the remote control unit if it will not be in use for long
periods.
0If the battery fluid should leak, carefully wipe the fluid off the inside of the battery
compartment and insert new batteries.
Operating range of the remote control
unit
Point the remote control unit at the remote sensor when operating it.
.
30° 30°
Approx. 7 m
Contents Connections Playback Settings Tips Appendix
9
Front panel Display Rear panel Remote Index

Features
High quality sound
0With discrete circuit technology, the power amplifier provides
identical quality for all 9-channels (165 Watts x 9-channels)
For optimum realism and stunning dynamic range, the power amplifier
section features discrete power devices (not integrated circuitry).
By using high current, high power discrete power devices, the amplifier
is able to easily drive high quality speakers.
0Current feedback amplifier
This unit uses a high-speed current feedback amplifier circuit for its
preamplifier so that signals from a Blu-ray Disc player and other
equipment that support high-definition audio formats can be amplified
with high fidelity. The high-speed current feedback amplifier also
reproduces a natural sound space.
0Dolby Atmos (v p. 325)
This unit is equipped with a decoder that supports Dolby Atmos audio
format. The placement or movement of sound is accurately reproduced
by the addition of overhead speakers, enabling you to experience an
incredibly natural and realistic surround sound field.
0DTS:X (v p. 328)
This unit is equipped with the DTS:X decoder technology. DTS:X brings
the home theater experience to new heights with its immersive object
based audio technology which removes the bounds of channels. The
flexibility of objects allows for sound to be scaled large or small and
moved around the room with greater accuracy than ever before leading
to a richer immersive audio experience.
0DTS Virtual:X (v p. 328)
DTS Virtual:X technology features DTS’s proprietary virtual height and
virtual surround processing to deliver an immersive sound experience
from any type of input source (stereo to 7.1.4 channel) and speaker
configuration.
zDTS Virtual:X is not for use when Height speakers are connected.
0Audyssey LFC™ (Low Frequency Containment) (v p. 195)
Audyssey LFC™ solves the problem of low frequency sounds
disturbing people in neighboring rooms or apartments. Audyssey
LFC™ dynamically monitors the audio content and removes the low
frequencies that pass through walls, floors and ceilings. It then applies
psychoacoustic processing to restore the perception of low bass for
listeners in the room. The result is great sound that no longer disturbs
the neighbors.
0Discrete subwoofers and Audyssey Sub EQ HT™ (v p. 219)
The unit has two subwoofer output capability and can adjust the level
and delay for each subwoofer individually.
Audyssey Sub EQ HT™ makes the integration seamless by first
compensating for any level and delay differences between the two
subwoofers and then applying Audyssey MultEQ® XT32 to both
subwoofers together for improved deep bass response and detail.
Contents Connections Playback Settings Tips Appendix
10
Front panel Display Rear panel Remote Index

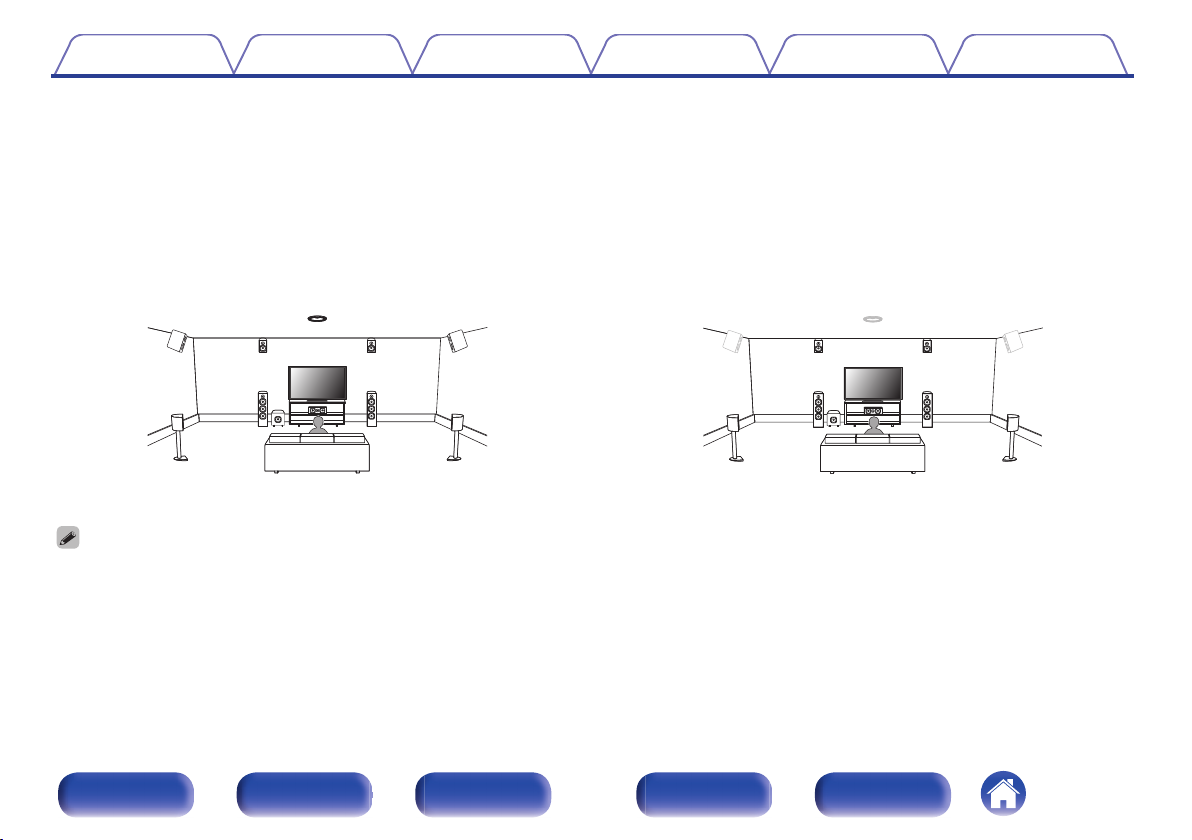

0Auro-3D
This unit is equipped with an Auro-3D decoder.
With Auro-3D, Front Height (FHL + FHR), Surround Height (SHL + SHR) and Top Surround (TS/optional) are added to a conventional 5.1-channel
system to achieve a natural and realistic sound field that is three-dimensional and fully immersive.
You will be able to fully enjoy Auro-3D playback if you properly place the speakers for Auro-3D.
2 Auro-3D playback
.
FHL FHR
SHL SHR
TS
FL FR
SW
SL SR
C
2 Dolby Atmos playback
.
FHL FHR
SHL SHR
TS
FL FR
SW
SL SR
C
0Auro-3D does not support a Dolby Atmos configuration using Top Front, Top Middle or Top Rear speakers.
But it is possible to support both an Auro-3D and Dolby Atmos by adding Front Height and Rear Height speakers* to a 5.1 configuration.
zFor an optimum Auro-3D experience Surround Height speakers are strongly recommended.
Contents Connections Playback Settings Tips Appendix
11
Front panel Display Rear panel Remote Index

High performance

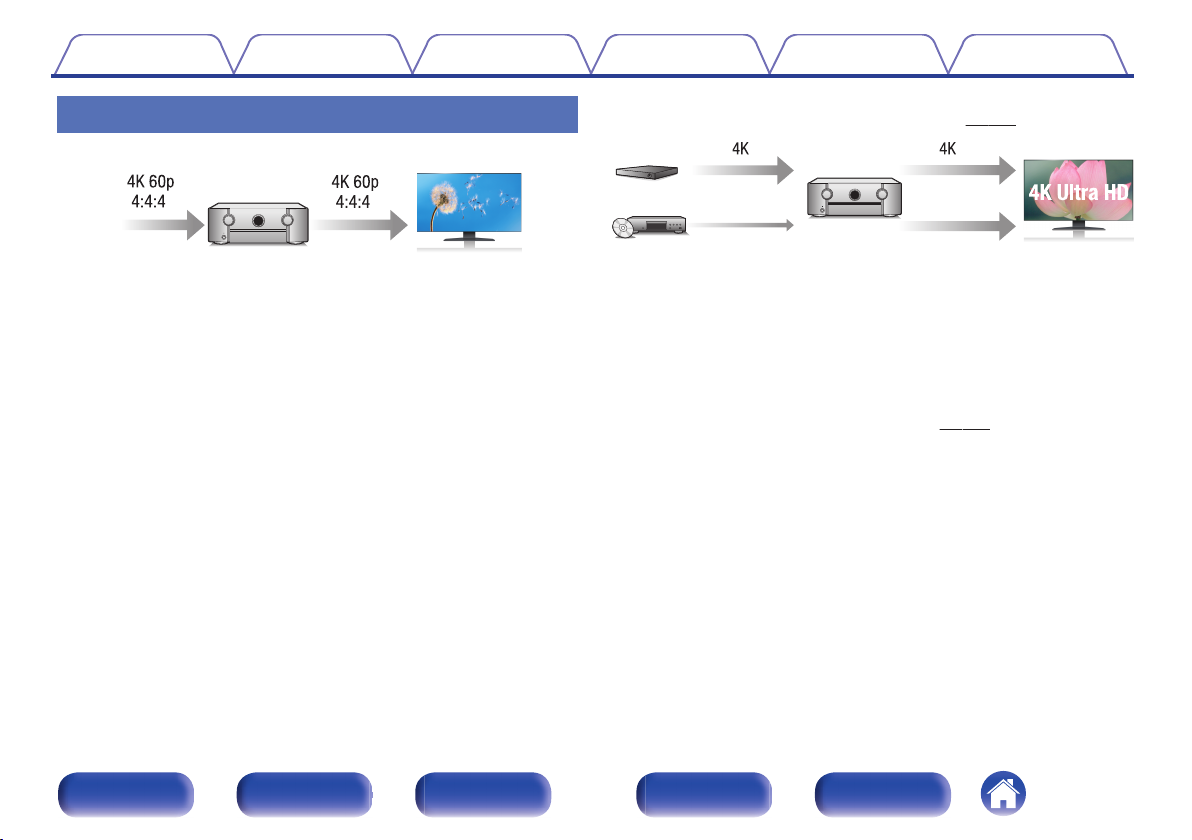

04K 60Hz input/output supported
.
When 4K Ultra HD (High Definition) is used, an input/output speed of 60
frames per second (60p) is achieved for video signals. When connected
to 4K Ultra HD and 60p video signal input compatible TV, you can enjoy
the sense of realism only available from high-definition images, even
when viewing fast-moving video.
This unit also supports image processing for 4K 60p, 4:4:4 and 24-bit
videos. By processing the video at the original resolution, this unit lets
you enjoy flawless, high-definition picture quality.
This unit also supports HDR (High Dynamic Range) and BT.2020 wide
color gamut.
0HDCP 2.2
This unit is compatible with HDCP 2.2 copyright protection standard.
0Digital video processor upscales analog video signals (SD
resolution) to HD (720p/1080p) and 4K (v p. 207)
.
4K
Up scaling
Up to 1080p
This unit is equipped with a 4K video upscaling function that allows
analog video or SD (Standard Definition) video to be output via HDMI at
4K (3840 × 2160 pixels) resolution. This function enables the device to
be connected to a TV using a single HDMI cable, and produces high
definition images for any video source.
0Equipped with HDMI ZONE2 output (v p. 171)
The ZONE2 multi-room output includes an HDMI output that lets you
enjoy a different A/V source in that room, with another program playing
in the main room.
Contents Connections Playback Settings Tips Appendix
12
Front panel Display Rear panel Remote Index

0HDMI connections enable connection to various digital AV
devices (8 inputs, 3 outputs)
.
83
OutIn
For connection to a broad range of digital sources, this unit features 8
HDMI inputs, including 1 on the front panel that lets you quickly and
conveniently connect a camcorder, game console or other HDMI-
equipped device. There are dual HDMI outputs for the main room, and a
third HDMI output for another room.
0eARC (Enhanced Audio Return Channel) function compatibility
The eARC function is compatible with conventional ARC function-
compatible audio formats in addition to multichannel linear PCM, Dolby
TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X and other audio
formats a conventional ARC function cannot transmit.
Additionally, connecting to an eARC function-compatible television
enables enjoyment of higher-quality surround playback of the audio
content played from your television.
0The device is equipped with a AirPlay® function in addition to
network functions such as Internet radio etc. (v p. 132)
.
You can enjoy a wide variety of content, including listening to Internet
Radio, playing audio files stored on your PC.
This unit also supports Apple AirPlay which lets you stream your music
library from an iPhone®, iPad®, iPod touch® or iTunes®.
0Supports AirPlay 2® wireless audio
Sync multiple AirPlay 2 compatible devices/speakers for simultaneous
playback.
This unit supports AirPlay 2 and requires iOS 11.4 or later.
Contents Connections Playback Settings Tips Appendix
13
Front panel Display Rear panel Remote Index

0Playback of DSD and FLAC files via USB and networks
This unit supports the playback of high resolution audio formats such as
DSD (5.6 MHz) and FLAC 192 kHz files. It provides high quality
playback of high resolution files.

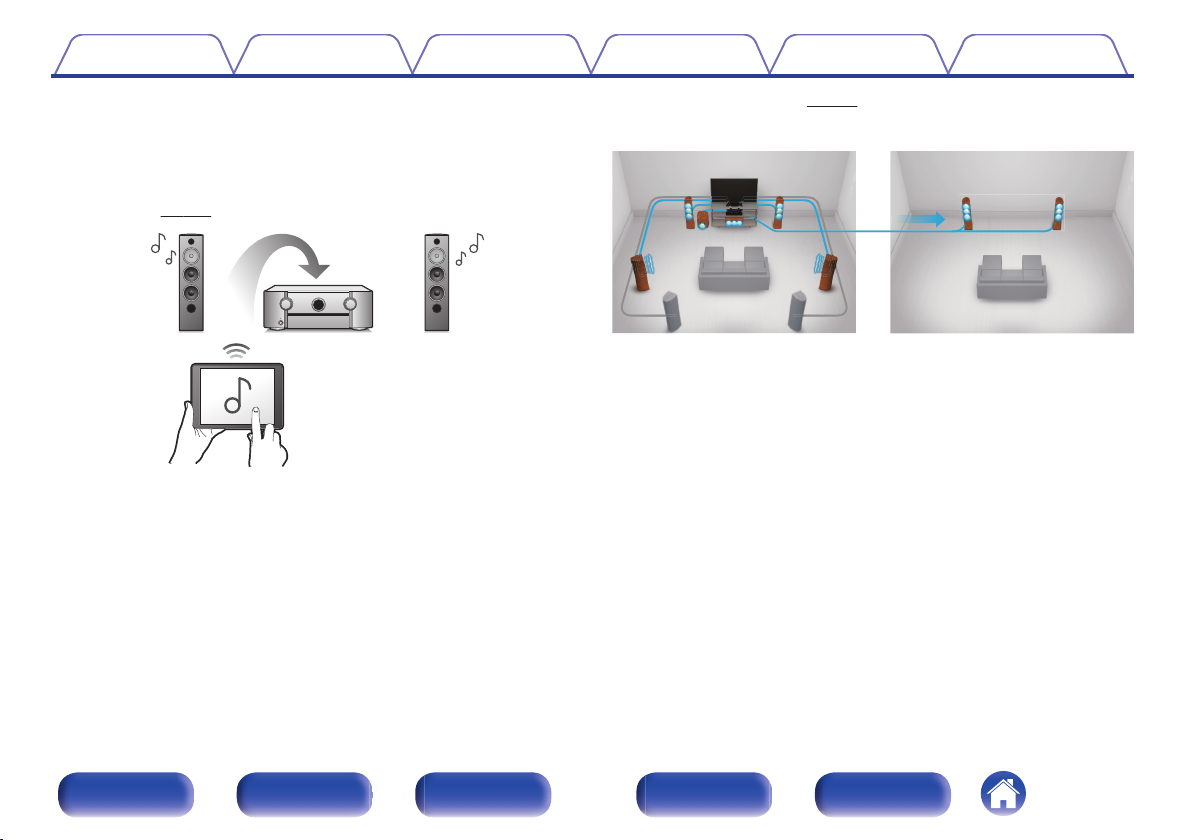

0Wireless connection with Bluetooth devices can be carried out
easily (v p. 101)
.
You can enjoy music simply by connecting wirelessly with your
smartphone, tablet, PC, etc.
0Multi-Room audio (v p. 144)
.
【MAIN ZONE】【ZONE2】/【ZONE3】
You can select and play back the respective inputs in MAIN ZONE,
ZONE2 and ZONE3.
In addition, when the All Zone Stereo function is used, the music being
played back in MAIN ZONE can be enjoyed in all the zones at the same
time. This is useful when you want to let the BGM propagate throughout
the whole house.
0Energy-saving design
This unit is equipped with an ECO Mode function that allows you to
enjoy music and movies while reducing the power consumption during
use, and also an auto-standby function that automatically turns off the
power supply when the unit is not in use. This helps reduce
unnecessary power use.
Contents Connections Playback Settings Tips Appendix
14
Front panel Display Rear panel Remote Index

0Compatible with the “Marantz 2016 AVR Remote” Appz for
performing basic operations of the unit with an iPad, iPhone or
Android™ devices (Google, Amazon Kindle Fire)
.
Along with many new features, the graphics and user interface have
been completely overhauled. The new app gives you full control of the
AVR as well as access to its setup menu for detailed adjustments from
your phones or tablets. “Marantz 2016 AVR Remote” App also gives
you quick access to the receiver's status display, option menus,
Marantz Blu-ray Disc player control, and online owner's manual for your
convenience.
zDownload the appropriate “Marantz 2016 AVR Remote” App for your iOS or
Android devices. This unit needs to be connected to the same LAN or Wi-Fi
(wireless LAN) network that the iPhone or iPod touch is connected to.
0HEOS provides streaming music from your favorite online music
sources
.
HEOS wireless multi-room sound system that enables you to enjoy your
favorite music anywhere and everywhere around your home. By utilizing
your existing home network and the HEOS App (available for iOS,
Android and Amazon devices), you can explore, browse, and play
music from your own music library or from many online streaming music
services.
When multiple HEOS devices are connected to the same network,
HEOS devices can be grouped to play back the same music on all
devices simultaneously, or different music can be played on each
separate HEOS device.
Contents Connections Playback Settings Tips Appendix
15
Front panel Display Rear panel Remote Index

Easy operation
0“Setup Assistant” provides easy-to-follow setup instructions
First select the language when prompted. Then simply follow the
instructions displayed on the TV screen to set up the speakers, network,
etc.
0Easy to use Graphical User Interface
This unit is equipped with a Graphical User Interface for improved
operability.
Contents Connections Playback Settings Tips Appendix
16
Front panel Display Rear panel Remote Index

Part names and functions
Front panel
.
wq te r y
u
For details, see the next page.
Contents Connections Playback Settings Tips Appendix
17
Front panel Display Rear panel Remote Index

.
u
ewqytr
APower operation button (X)
Used to turn the power of the MAIN ZONE (room where this unit is
located) on/off (standby). (v p. 95)
BPower indicator
This is lit as follows according to the power status:
0Off: Power on
0Red: Normal standby
0Orange:
0When “HDMI Pass Through” is set to “On” (v p. 200)
0When “HDMI Control” is set to “On” (v p. 202)
0When “Network Control” is set to “Always On” (v p. 254)
CINPUT SELECTOR knob
This selects the input source. (v p. 95)
DMain display
This displays various pieces of information. (v p. 22)
ERemote control sensor
This receives signals from the remote control unit. (v p. 9)
FVOLUME knob
This adjusts the volume level. (v p. 96)
GDoor
When you are using buttons and/or connectors behind the door, press
the bottom of the door to open it. Be careful not to catch your fingers
when closing the door.
.
Contents Connections Playback Settings Tips Appendix
18
Front panel Display Rear panel Remote Index

With the door open
.
y u ow
qer ti
ADYNAMIC EQ button
This switches the Dynamic EQ settings. (v p. 194)
BPURE DIRECT button/indicator
This switches the sound mode between Direct, Pure Direct and Auto.
(v p. 147 – 148)
This lights when the Pure Direct mode is selected as the sound mode.
CM-DAX button/indicator
This enables the M-DAX mode. (v p. 190)
This lights when the M-DAX mode is selected.
DDynamic Volume button (DYNAMIC VOL)
This switches the Dynamic Volume settings. (v p. 195)
ESub display
This displays various pieces of information. (v p. 24)
FBACK button
This returns to the previous screen.
GCursor buttons (uio p)
These select items.
HENTER button
This determines the selection.
ISETUP button
This displays the menu on the TV screen. (v p. 183)
Contents Connections Playback Settings Tips Appendix
19
Front panel Display Rear panel Remote Index

.
Q0 Q1 Q2 Q3 Q4 Q5 Q6 Q7
JMOVIE button
This switches the sound mode to “Movie”. (v p. 146)
KMUSIC button
This switches the sound mode to “Music”. (v p. 146)
LGAME button
This switches the sound mode to “Game”. (v p. 146)
MInformation button (INFO)
This displays the status information on the TV screen. (v p. 269)
NSpeaker A/B switching button (SPKR A/B)
This sets the front speakers to use. (v p. 246)
OHDMI OUT button
This sets the HDMI monitor output. (v p. 200)
PDIMMER button
Each press of this switches the brightness of the display. (v p. 264)
QSTATUS button
Each press of this switches the status information that is shown on the
display.
Contents Connections Playback Settings Tips Appendix
20
Front panel Display Rear panel Remote Index
