Marantz NA6005 User manual

Network Audio Player
NA6005 /N1B, N1SG, U1B, K1B, FN
NA6005
S1228V04DM/DG1603 .
Ver. 4
•Some illustrations using in this service manual are slightly different from the actual set.
•Please use this service manual with referring to the operating instructions without fail.
•For purposes of improvement, specications and design are subject to change without notice.
Please refer to the
MODIFICATION NOTICE.
Service
Manual

Contents
ABOUT THIS MANUAL.............................................................3
What you can do with this manual ............................................3
Using Adobe Reader (Windows version) ..................................4
SAFETY PRECAUTIONS..........................................................6
NOTE FOR SCHEMATIC DIAGRAM.........................................7
NOTE FOR PARTS LIST...........................................................7

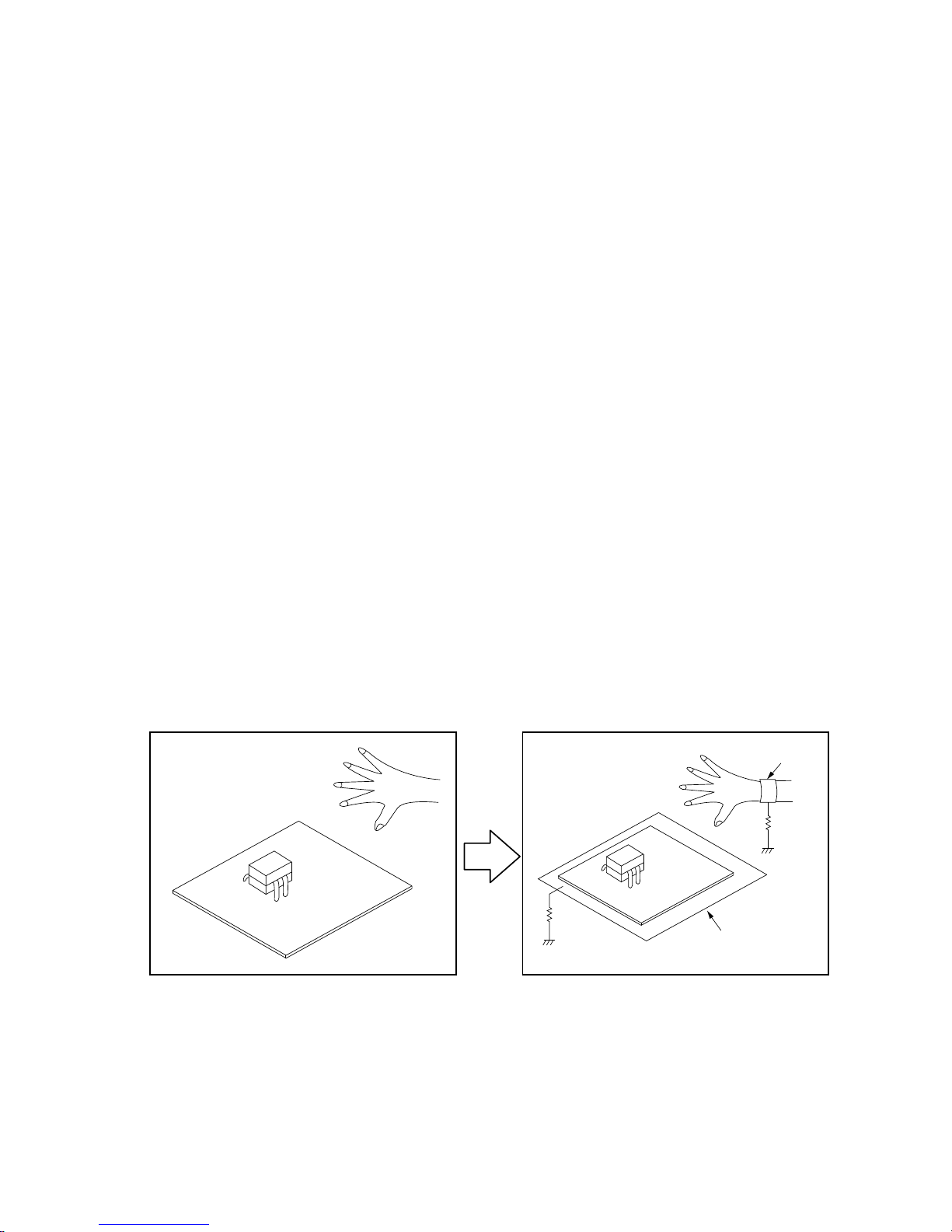

INSTRUCTIONS FOR HANDLING SEMI-CONDUCTORS
AND OPTICAL UNIT.................................................................7
1. Ground for Human Body......................................................7
2. Ground for Workbench.........................................................7
TECHNICAL SPECIFICATIONS................................................9
DIMENSION.............................................................................10
CAUTION IN SERVICING.......................................................11
Updating this unit ....................................................................11
Initializing this unit (Initialization for the factory)......................11
DISASSEMBLY........................................................................12
SPECIAL MODE......................................................................18

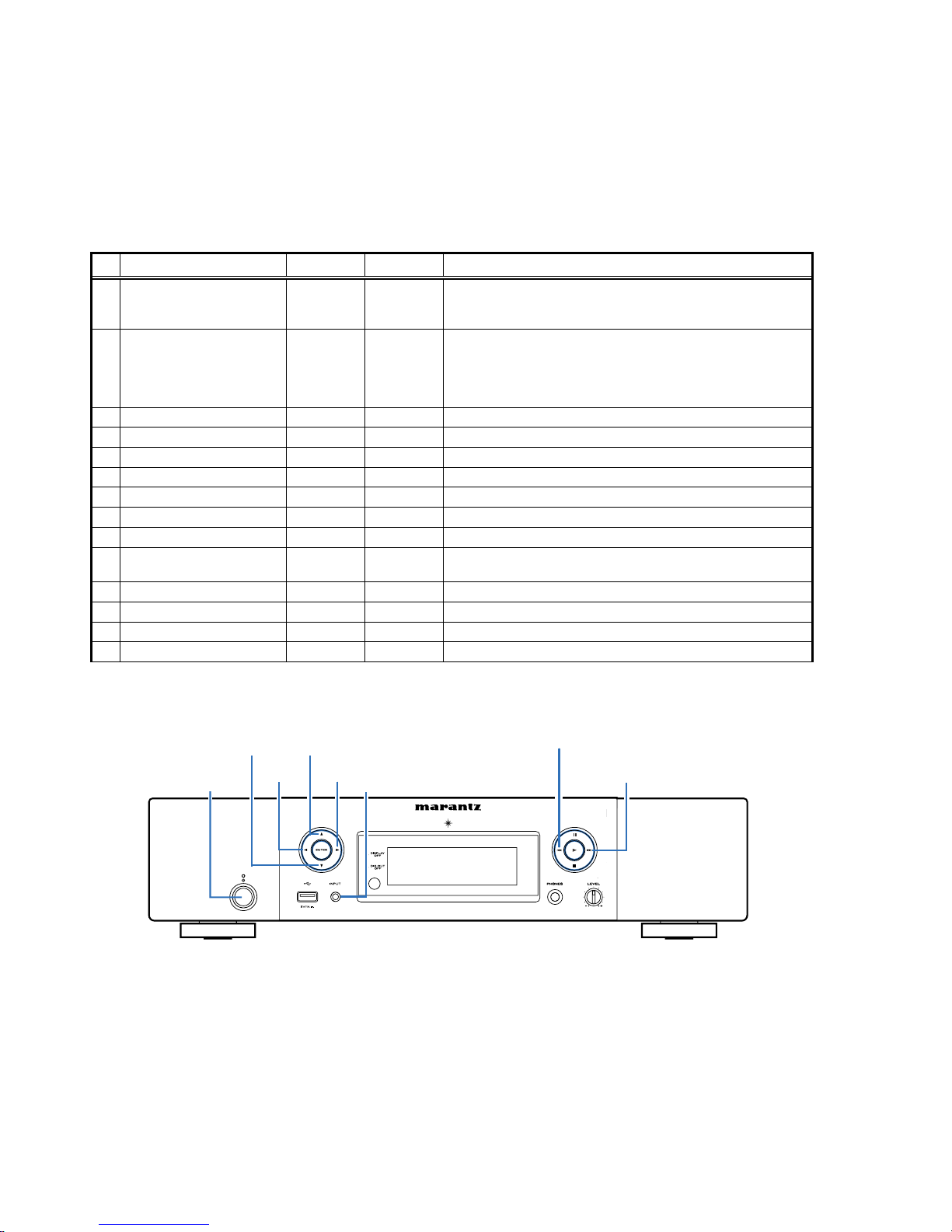

Special mode setting button....................................................18
1. Initialization for the factory mode .......................................19
2. Owner’s Manual described initialization mode (User Reset)19

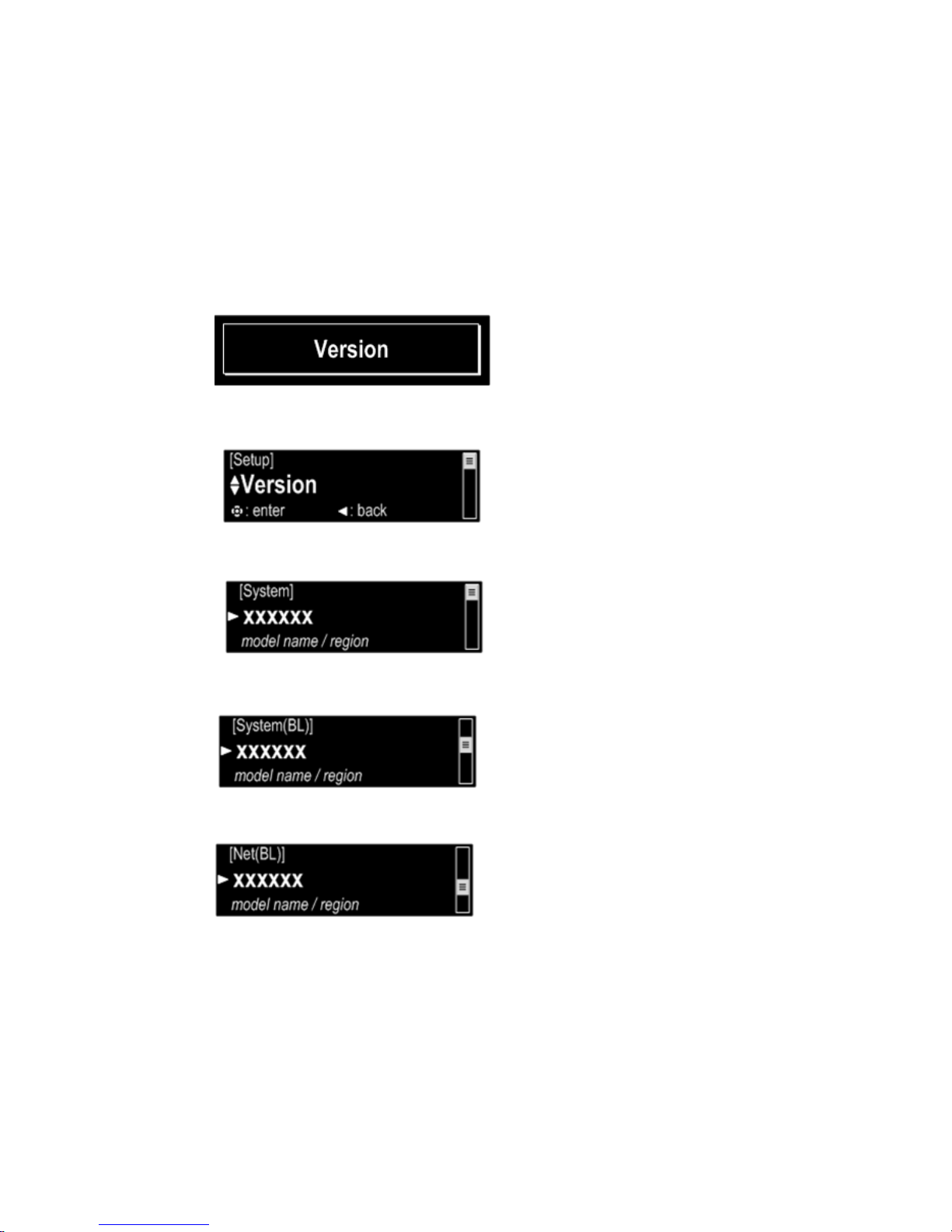

3. Version check.....................................................................20
4. Product Mode 1..................................................................21
5. Product Mode 2..................................................................21
6. Protection history display mode.........................................22
7. "DPMS" force update mode...............................................23
8. "232C" force update mode.................................................24
9. MAC Address rewrite mode ...............................................24
10.Access to development server mode.................................24
11.USB update mode..............................................................24
12."USB" force update mode..................................................24
13.920 rewrite mode ...............................................................24
14.Factory rewirte mode .........................................................24
PROCEDURE AFTER REPLACING
THE MICROPROCESSOR, ETC............................................25
Firmware Update Procedure..................................................26
1. Updating by DPMS.............................................................26
Firmware Update Procedure..................................................27
2. Updating by USB................................................................27
3. "USB" force update mode..................................................29
TROUBLE SHOOTING............................................................31
1. OLED dosen't light.............................................................31
2. Cannot connect to network. / Cannot connect to Bluetooth.32
2.1. First Setup dosen't operate normally,
Ethernet doesn't playback, Bluetooth doesnot..................32
2.2. Cannot connect to network ..............................................33
3.1. Optical Output..................................................................34
3.2. USB doesn't playback......................................................35
3.3. Check the Audio Block.....................................................36
MEASURING METHOD AND WAVEFORMS .........................37
BLOCK DIAGRAM...................................................................39
POWER DIAGRAM..................................................................40
WIRING DIAGRAM..................................................................41
PRINTED CIRCUIT BOARDS..................................................42
PHONE ...................................................................................44
SCHEMATIC DIAGRAMS (1/7) ..............................................45
SC01_MAIN............................................................................45
SC02_NETWORK...................................................................46
SC03_AUDIO..........................................................................47
SC04_FRONT.........................................................................48
SC05_DIR_DAC .....................................................................49
SC06_MAIN_POWER.............................................................50
SC07_SMPS...........................................................................51
EXPLODED VIEW ...................................................................52
PACKING VIEW.......................................................................53
SEMICONDUCTORS...............................................................54
1. IC's.....................................................................................54
2. DISPLAY............................................................................59
2

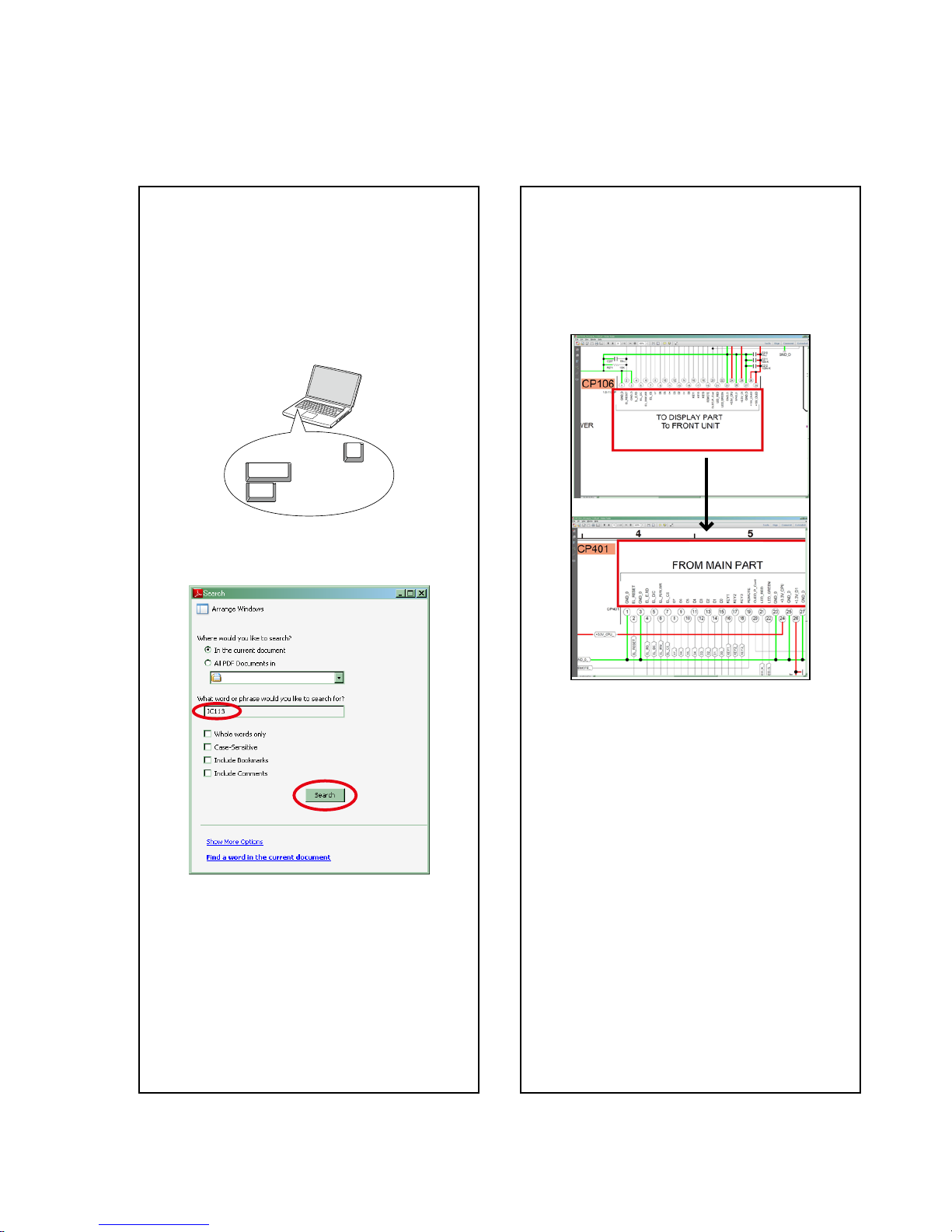

Jump to the target of a schematic
diagram connector
Click the Ref. No. of the target connector in the red
box around a schematic diagram connector.
•The screen jumps to the target connector.
•Pagemagnicationstaysthesameasbeforethe
jump.
CP401
CP106
v
ABOUT THIS MANUAL
Read the following information before using the service manual.
What you can do with this manual
Search for a Ref. No. (phrase)
(Ctrl+Shift+F)
You can use the search function in Acrobat Reader
to search for a Ref. No. in schematic diagrams, block
diagrams, and parts lists.
1.Press Ctrl+Shift+Fonthekeyboard.
• The Search window appears.
2.EntertheRef.No.youwanttosearchforinthe
Search window, and then click the Search button.
•A list of search results appears.
3.Click an item on the list.
• The screen jumps to the page for that item, and the
searchphraseisdisplayed.
Ctrl
Shift
F
3

Using Adobe Reader (Windows version)
• Properties
Click this button and check that the printer is set to a
suitable paper size.
• Page to print
Select the following checkbox.
"More Options" : "Current View"
• Page Sizing & Handling
Select the following checkbox.
"Size" / "Size Options" : "Fit"
Add notes to this data (Sign)
TheSignfunctionletsyouaddnotestothedatain
this manual.
Savetheleonceyouhavenishedaddingnotes.
[Example using Adobe Reader X]
On the "View" menu, click "Sign".
• The Sign pane appears.
[Example using Adobe Reader 9]
On the "Document" menu, click "Sign".
Magnify schematic / printed wiring
board diagrams - 1
(Ctrl+Space, mouse operation)
Press Ctrl+Spaceonthekeyboardanddragthe
mousetoselecttheareayouwanttoview.
• Theselectedareaismagnied.
• Whenyouwanttomovetheareashown,hold
down Space and drag the mouse.
• Whenyouwanttoshowafullpageview,press
Ctrl+0onthekeyboard.
Ctrl Space
0

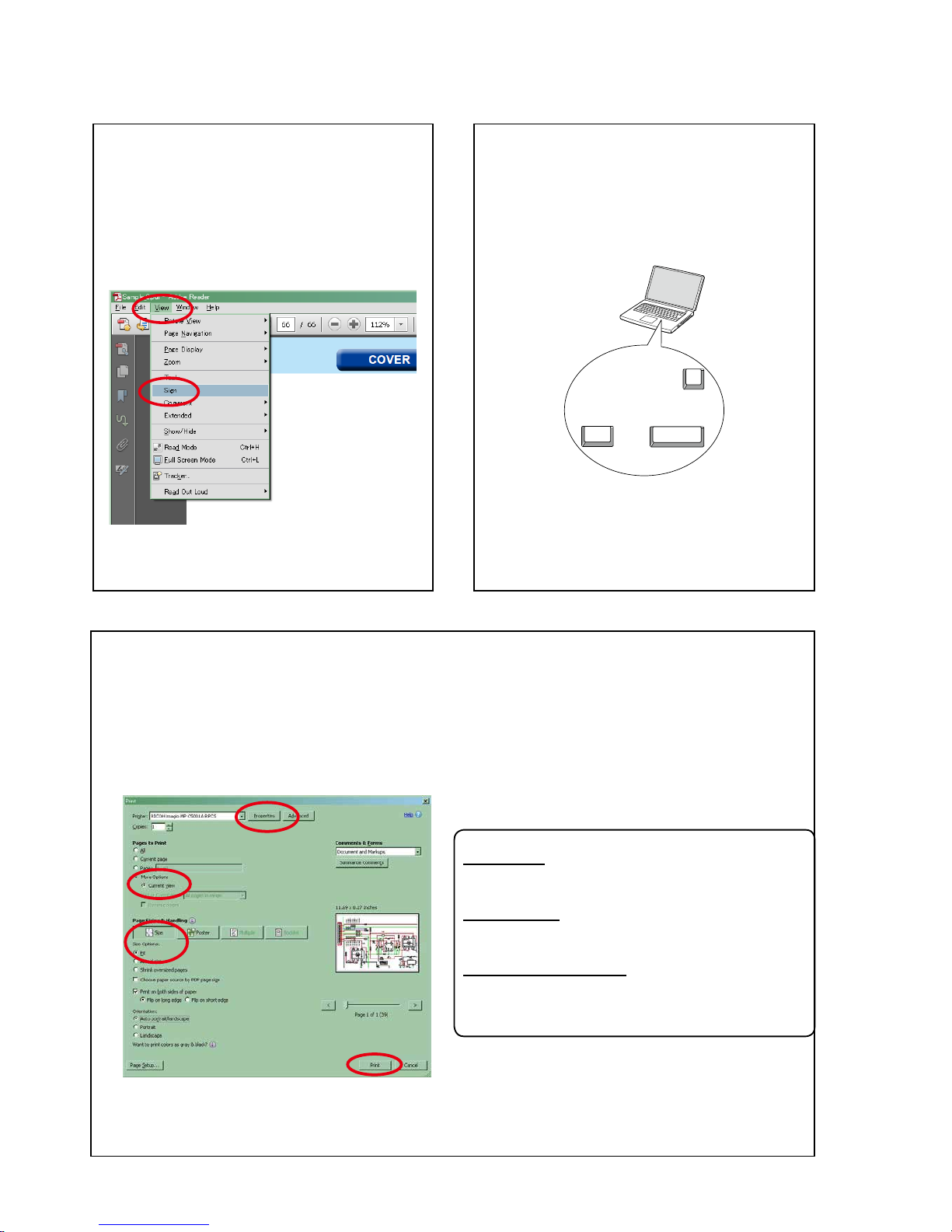

Print a magnied part of the manual
ThePropertiesdialogboxandfunctionswillvarydependingonyourprinter.
1. Dragthemousetomagnifythepartyouwanttoprint.
2. On the "File" menu, click "Print".
3. CongurethefollowingsettingsinthePrintdialogbox.
4. Click the Print button to start printing.
4

Magnify schematic / printed wiring
board diagrams - 2
(Pan & Zoom function)
ThePan&Zoomfunctionletsyouseewhichpartof
amagnieddiagramisbeingshowninaseparate
window.

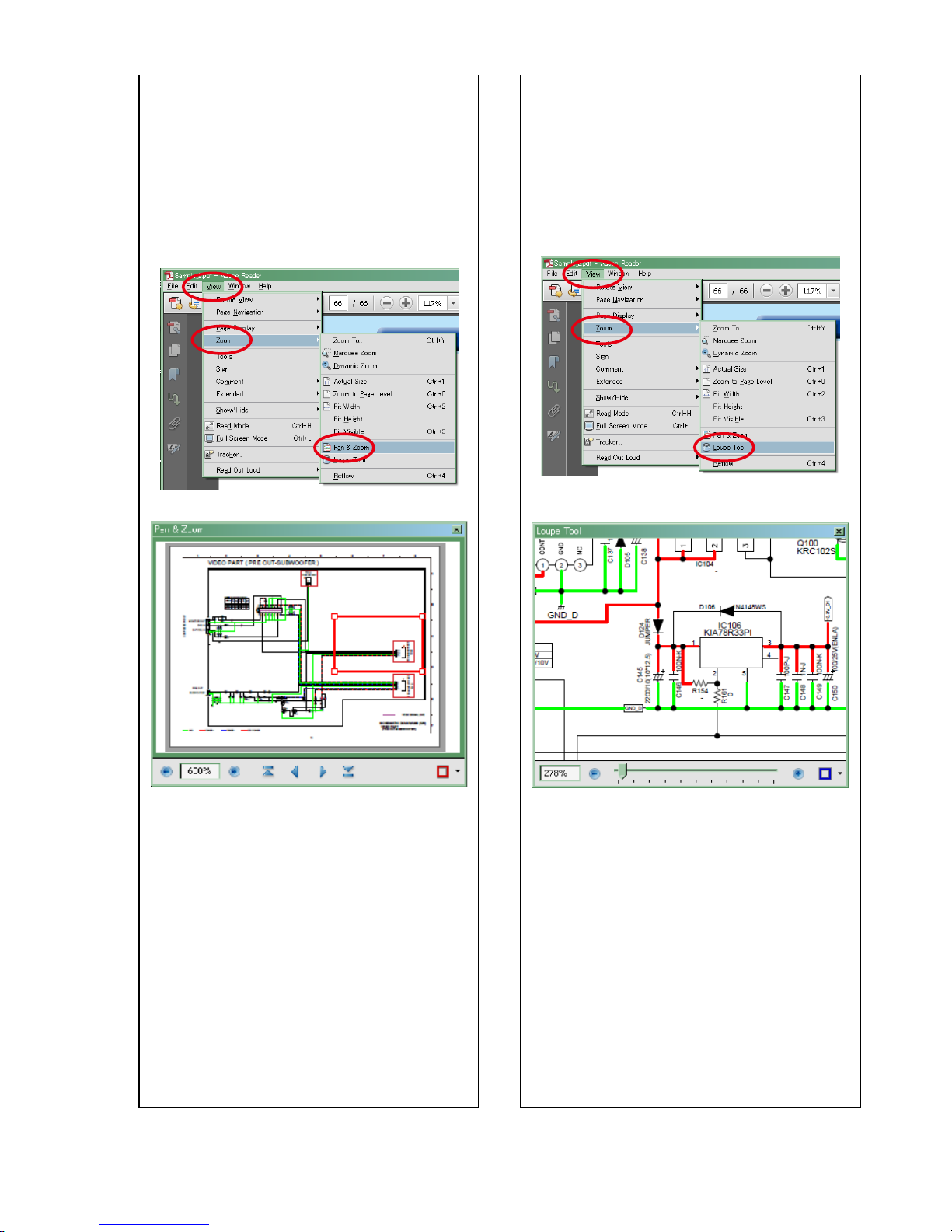

[Example using Adobe Reader X]
On the "View" menu, point to "Zoom", and then click
"Pan & Zoom".
• The Pan & Zoom window appears on the screen.
[Example using Adobe Reader 9]
On the "Tools" menu, point to "Select & Zoom", and
then click "Pan & Zoom Window".
Magnify schematic / printed wiring
board diagrams - 3
(Loupe Tool function)
TheLoupeToolfunctionletsyoumagnifyaspecic
part of a diagram in a separate window.
[Example using Adobe Reader X]
On the "View" menu, point to "Zoom", and then click
"Loupe Tool".
• The Loupe Tool window appears on the screen.
[Example using Adobe Reader 9]
On the "Tools" menu, point to "Select & Zoom", and
then click "Loupe Tool Window".
5

SAFETY PRECAUTIONS
The following items should be checked for continued protection of the customer and the service technician.
leakage current check
Beforereturningthesettothecustomer,besuretocarryouteither(1)aleakagecurrentcheckor(2)alinetochassis
resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the
power cord is less than 460 kohms, the set is defective.
Be sure to test for leakage current with the AC plug in both polarities, in addition, when the set's power is in each state
(on,offandstandbymode),ifapplicable.
CAUTION Please heed the following cautions and instructions during servicing and
inspection.
◎Heed the cautions!
Cautions which are delicate in particular for servicing
are labeled on the cabinets, the parts and the chassis,
etc. Be sure to heed these cautions and the cautions
described in the handling instructions.
◎Cautions concerning electric shock!
(1) AnACvoltageisimpressedonthisset,soifyou
touch internal metal parts when the set is energized,
youmaygetanelectricshock.Avoidgettingan
electricshock,byusinganisolatingtransformer
and wearing gloves when servicing while the set is
energized,orbyunpluggingthepowercordwhen
replacing parts, for example.
(2) Therearehighvoltagepartsinside.Handlewith
extra care when the set is energized.
◎Caution concerning disassembly and
assembly!
Through great care is taken when parts were
manufacturedfromsheetmetal,theremaybeburrson
theedgesofparts.Theburrscouldcauseinjuryifngers
are moved across them in some rare cases. Wear gloves
toprotectyourhands.
◎Use only designated parts!
Theset'spartshavespecicsafetyproperties(re
resistance,voltageresistance,etc.).Besuretouseparts
which have the same properties for replacement. The
burrs have the same properties. In particular, for the
importantsafetypartsthatareindicatedbythezmark
on schematic diagrams and parts lists, be sure to use
the designated parts.
◎Be sure to mount parts and arrange the wires
as they were originally placed!
Forsafetyseasons,somepartsusetapes,tubesorother
insulatingmaterials,andsomepartsaremountedaway
from the surface of printed circuit boards. Care is also
takenwiththepositionsofthewiresbyarrangingthem
andusingclampstokeepthemawayfromheatingand
highvoltageparts,sobesuretoseteverythingbackas
itwasoriginallyplaced.
◎Make a safety check after servicing!
Check that all screws, parts and wires removed or
disconnected when servicing have been put back in their
original positions, check that no serviced parts have
deteriorate the area around. Then make an insulation
check on the external metal connectors and between
the blades of the power plug, and otherwise check that
safetyisensured.
(Insulationcheckprocedure)
Unplug the power cord from the power outlet, disconnect
the antenna, plugs, etc., and on the power. Using a 500V
insulation resistance tester, check that the insulation
resistancevaluebetweentheinplugandtheexternally
exposedmetalparts(antennaterminal,headphones
terminal,inputterminal,etc.)is1MΩorgreater.Ifitis
less, the set must be inspected and repaired.
Manyoftheelectricandthestructuralpartsusedinthe
sethavespecialsafetyproperties.Inmostcasesthese
propertiesaredifculttodistinguishbysight,andtheuse
ofreplacementpartswithhigherratings(ratedpower
andwithstandvoltage)doesnotnecessarilyguarantee
thatsafetyperformancewillbepreserved.Partswith
safetypropertiesareindicatedasshownbelowonthe
wiring diagrams and the parts list in this service manual.
Be sure to replace them with the parts which have the
designated part number.
(1) Schematicdiagrams.......Indicatedbythez mark.
(2) Partslists.......Indicatedbythezmark.
The use of parts other than the
designated parts could cause electric
shocks,resorotherdangerous
situations.
CAUTION Concerning important
safety parts
6

NOTE FOR PARTS LIST
1.Partsindicatedby"nsp" on this table cannot be supplied.
2.Whenorderingapart,makeacleardistinctionbetween"1"and"I"(i)toavoidmis-supplying.
3.Apartorderedwithoutspecifyingitspartnumbercannotbesupplied.
4.Partindicatedby" ★" mark is not illustrated in the exploded view.
WARNING:Partsindicatedbythezmarkhavecriticalcharacteristics.UseONLYreplacementpartsrecommendedbythemanufacturer.
NOTE FOR SCHEMATIC DIAGRAM
WARNING:
Partsindicatedbythezmarkhavecriticalcharacteristics.UseONLYreplacementpartsrecommendedbythemanufacturer.
CAUTION:
Beforereturningthesettothecustomer,besuretocarryouteither(1)aleakagecurrentcheckor(2)alinetochassisresistancecheck.If
the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power cord is less than 460 kohms, the set
is defective.
WARNING:
DONOTreturnthesettothecustomerunlesstheproblemisidentiedandremedied.
NOTICE:
ALLRESISTANCEVALUESINOHM.k=1,000OHM/M=1,000,000OHM
ALLCAPACITANCEVALUESAREEXPRESSEDINMICROFARAD,UNLESSOTHERWISEINDICATED.PINDICATESMICRO-MICRO
FARAD.EACHVOLTAGEANDCURRENTAREMEASUREDATNOSIGNALINPUTCONDITION.CIRCUITANDPARTSARESUBJECT
TOCHANGEWITHOUTPRIORNOTICE.
INSTRUCTIONS FOR HANDLING SEMI-CONDUCTORS AND OPTICAL UNIT
Electrostaticbreakdownofthesemi-conductorsoropticalpickupmayoccurduetoapotentialdifferencecausedby
electrostatic charge during unpacking or repair work.
1. Ground for Human Body
Besuretowearagroundingband(1MΩ)thatisproperlygroundedtoremoveanystaticelectricitythatmaybe
chargedonthebody.
2. Ground for Workbench
Besuretoplaceaconductivesheetorcopperplatewithpropergrounding(1MΩ)ontheworkbenchorothersurface,
wherethesemi-conductorsaretobeplaced.Becausethestaticelectricitychargeonclothingwillnotescapethrough
thebodygroundingband,becarefultoavoidcontactingsemi-conductorswithyourclothing
<Incorrect>
CBA
Grounding Band
Conductive Sheet or
Copper Plate
1MΩ
1MΩ
<Correct>
CBA
7

Personal notes:
8

nAudio section
• Analog output
n[PCM] n[DSD]
Channels: 2-channels 2-channels
Playable frequency range: 2 Hz ‒ 96 kHz 2Hz ‒ 100kHz
Playable frequency response: 2 Hz ‒ 96 kHz 2 Hz ‒ 50 kHz (‒3 dB)
Sampling frequency: 192 kHz
2 Hz ‒ 20 kHz
(PCM sampling frequency: 44.1 kHz)
S/N: 110 dB (Audible range) 110 dB (Audible range)
Dynamic Range: 100 dB (Audible range) 105 dB (Audible range)
Harmonic Distortion: 0.0020% (1 kHz, Audible range) 0.0010% (1 kHz, Audible range)
• Output Level 2.1 Vrms 1.5 Vrms
• H/P Output Level 100 mW/32 Ω/ohms (variable maximum) 70 mW/32 Ω/ohms (variable maximum)
• Digital output
Output: -21 ‒ -15 dBm ‒
nTuner section
[FM] [AM]
Receiving Range: 87.5 MHz – 107.9 MHz 520 kHz – 1710 kHz
Effective sensitivity: 1.2 μV / 75 Ω/ohms 20 μV
FM Channel separation: 42 dB (1 kHz)
FM S/N ratio: Monaural : 70 dB
Stereo : 70 dB
Distortion: Monaural : 0.5 % (1 kHz)
Stereo : 0.5 % (1 kHz)
nWireless LAN
Network type (wireless LAN standards): Conforming to IEEE 802.11b
Conforming to IEEE 802.11g
Conforming to IEEE 802.11n
(Wi-Fi® compliant)*
Security: WEP 64 bit, WEP 128 bit
WPA/WPA2-PSK (AES)
WPA/WPA2-PSK (TKIP)
Radio frequency: 2.4 GHz
No. of channels: 1 – 13 ch
*(Wi-Fi® CERTIFIED) Logo and the Wi-Fi CERTIFIED On-Product Logo are registered trademarks of the Wi-Fi Alliance.
nBluetooth section
Communications system: Bluetooth Version 2.1 + EDR (Enhanced Data Rate)
Transmission power: Maximum 2.5 mW (Class 2)
Maximum communication range: Approx. 10 m in line of sight*2
Frequency band: 2.4 GHz band
Modulation scheme: FHSS (Frequency-Hopping Spread Spectrum)
Supported profiles: A2DP (Advanced Audio Distribution Prole) 1.2
AVRCP (Audio Video Remote Control Prole) 1.4
Corresponding codec: SBC, AAC
Transmission range (A2DP): 20 Hz - 20,000 Hz
*2 The actual communication range varies depending on the influence of such factors as obstructions between devices, electromagnetic waves from microwave
ovens, static electricity, cordless phones, reception sensitivity, antenna performance, operating system, application software etc.
nGeneral
Power supply voltage/frequency: AC 230 V, 50/60 Hz(N), AC 120 V 60 Hz(U),
AC 100 V 50/60 Hz(F), AC 220 V, 50 Hz(K)
Power consumption: 35 W
Power consumption in standby mode: 0.4 W
Power consumption in “Network Control”
– “On”mode:
4.0 W
For the purpose of improvement, the specications and design are subject to change without notice.
TECHNICAL SPECIFICATIONS
9

12 15/16 (329)
14 5/16 (364)
1 3/8 (35)
13 3/8 (340)
2
(50)
2 3/16
(56)
2
(50)
9/16
(14)
3 9/16 (90)
4 1/8 (104)
8 7/8 (225)
2 5/16
(59) 1 3/4
(45)
17 5/16 (440)
6 4/16 (160)
DIMENSION
Unit : in. (mm)
Weight : 13 lbs 4 oz (6.0 kg)
10

CAUTION IN SERVICING
Updating this unit
• When you replace the IC101, you need rmware updates. See "FIRMWARE UPDATE PROCEDURE".
• When you replace the WLAN MODULE, you need rmware updates. And MAC Address seal replacement is required.
See "FIRMWARE UPDATE PROCEDURE".
Initializing this unit (Initialization for the factory)
This unit initialization should be performed when the μcom, peripheral parts of μcom, and WLAN MODULE are replaced.
d
1. Press the power operation button "X" to turn off the power, and remove the AC plug from the socket.
2. While holding down buttons "CURSOR d" and "INPUT" simultaneously, insert the AC plug into the wall outlet to
turn on the power. (Factory Reset)
3. Press the power operation button to place this unit on standby.
4. While holding down buttons "CURSOR f" and "8" simultaneously, press the power button to turn on the power.
(Initialized)
5. Wait for more than 90 seconds after "Initialized" is displayed and then turn the power off.
(During this time, start and initialize the network devices.)
NOTE: • If step 5 fails, start over from step 1.
• All user settings will be lost and the factory setting will be recovered after the set is initialized.
So make sure to note down your setting beforehand for restoring after the initialization.
Power operation
button(X)
Fast-revers/Reverse-skip
button (8)
CURSORd
11

12
DISASSEMBLY
• Remove each part in the order of the arrows below.
• Reassemble removed parts in the reverse order.
• Read "Precautions During Work" before reassembling removed parts.
• If wire bundles are removed or moved during adjustment or part replacement, reshape the wires after completing the
work. Failure to shape the wires correctly may cause problems such as noise.
FRONT PANEL ASSY
See "DISASSEMBLY"
1. FRONT PANELASSY"
and "EXPLODED VIEW"
FRONT PCB
(Ref. No. of EXPLODED VIEW : P1)
STANDBY PCB
(Ref. No. of EXPLODED VIEW : P3)
PHONE PCB
(Ref. No. of EXPLODED VIEW : P2)
SMPS PCB
See "DISASSEMBLY"
3. POWER PCB"
and "EXPLODED VIEW"
SMPS PCB
(Ref. No. of EXPLODED VIEW : P5)
CABINET TOP
MAIN PCB
See "DISASSEMBLY"
2. MAIN PWB"
and "EXPLODED VIEW"
MAIN PCB
(Ref. No. of EXPLODED VIEW : P6)
AUDIO PCB
See "DISASSEMBLY"
5. AUDIO PCB"
and "EXPLODED VIEW"
AUDIO PCB
(Ref. No. of EXPLODED VIEW : P7)
POWER PCB
See "DISASSEMBLY"
4. POWER PCB"
and "EXPLODED VIEW"
POWER PCB
(Ref. No. of EXPLODED VIEW : P4)

13
Explanatory Photos for DISASSEMBLY
• The angles from which the photos are taken are shown by "Photo angle :A, B, C, D".
• See the diagram below about the shooting direction of each photograph.
• Photographs with no shooting direction indicated were taken from the top of the unit.
• The photograph is NA6005U1B model.
The viewpoint of each photograph
(Shooting direction:X)[View from the top]
Shooting direction: B
Shooting direction: C
Shooting direction: A
Shooting direction: D
Front side

14
1. FRONT PANEL ASSY
Proceeding: CABINET TOP →FRONT PANEL ASSY
(1) Remove the screws.
(3) Remove the connector wires and FFC. Remove the screws.
CN107
FFC Cable
CP126
Loosen
CP141
See "EXPLODED VIEW" for instructions on how to remove each PCB of the FRONT PANELASSY.
Bottom side

15

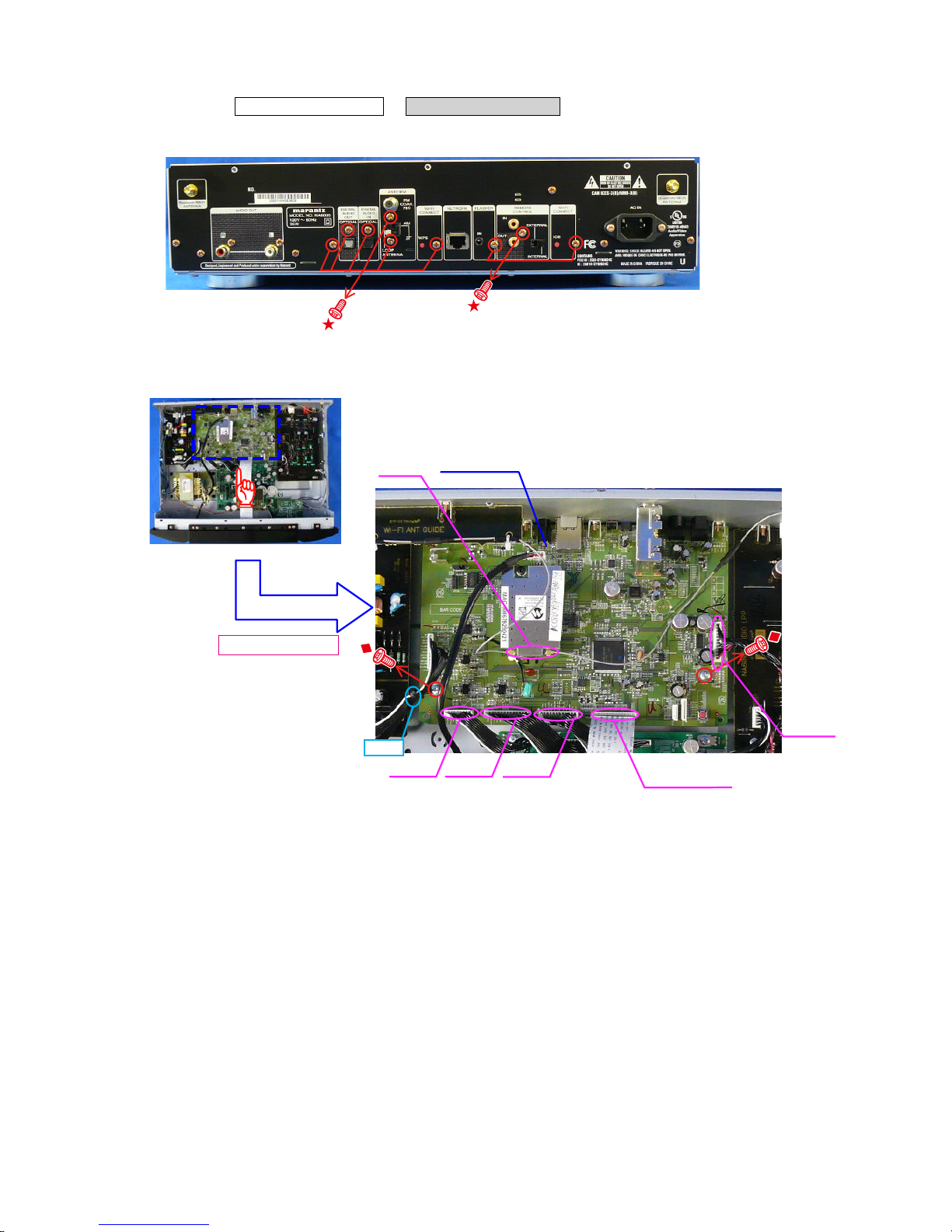

2. MAIN PCB
Proceeding: CABINET TOP →MAIN PCB
(1) Remove the screws.
(2) Remove the screws.Remove the connector wires and FFC.
DIGITAL PCB
Antenna
connector
FFC Cable
CN100
CP121
Loosen
CP106CP101
Shooting direction: B

16
3. SMPS PCB
Proceeding: CABINET TOP →SMPS PCB
(1) Remove the screw.
(2) Remove the screws. Remove the connector wires and FFC.
4. POWER PCB
Proceeding: CABINET TOP →POWER PCB
(1) Remove the screws. Remove the connector wires and FFC.
SMPS PCB
CN801
CN802
CN441
カット
POWER PCB
CN100
CP126
CP106 CP101
CP123
CP122

17
5. AUDIO PCB
Proceeding: CABINET TOP →AUDIO PCB
(1) Remove the screws.
(2) Remove the connector wires and remove the screws.
AUDIO PCB
CP100
CP114
CP130

18
SPECIAL MODE

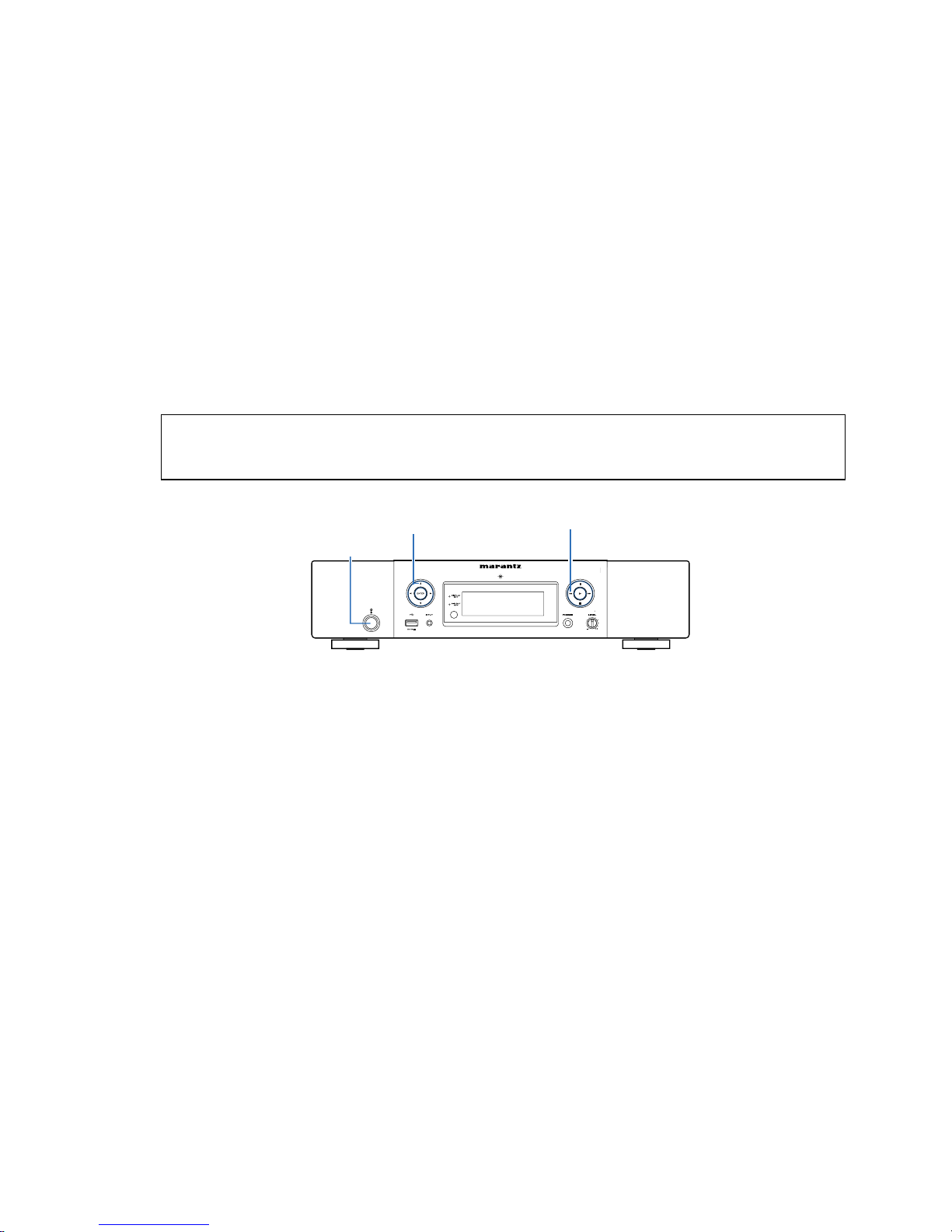

Special mode setting button
No.2, 6, 11, 15 : d
Hold down buttons Abutton and Bbutton at the same time and press the "POWER" button to turn on the power.
No.1, 4, 5, 7, 8, 9, 10, 12, 13, 14 : d
Hold down buttons Abutton and Bbutton at the same time and connect the power cord to an outlet. Each button continue
to press until the turning on POWER LED.
No.3 :
Hold down the Power button for at least 3 seconds while pressing the A button.
No. Mode Button A Button B Contents
1 Initialization for the factory CURSOR dINPUT
d
The setting value to default.
※Be sure to do the "Owner’s Manual described Initialization"
after the "Factory Initialization".f
2Owner’s Manual described
initialization CURSOR f 8
The differences between this operation and restoring the factory
default are as follows. d
• Does not clear the version information such as rewriting failed log.
• Does not clear the history of protection.
• Network devices are started and initialized.
3 Version check CURSOR d-Version Display.
4 Product mode 1 CURSOR 1-Development/Fuctory use. Not for service.
5 Prodcut mode 2 CURSOR 0-Development/Fuctory use. Not for service.
6 Protection history CURSOR 0 8 Protection history view and reset.
7 "DPMS" force update CURSOR 1INPUT Forced updated by DPMS.
8 "232C" force update CURSOR 0INPUT Development/Fuctory use. Not for service.
9MAC Address rewrite CURSOR fINPUT Development/Fuctory use. Not for service.
10 Access to development server
mode CURSOR d 8 Development/Fuctory use. Not for service.
11 USB update CURSOR 1 8 Updated by USB
12 "USB" force update CURSOR 0 8 Forced updated by USB
13 920 rewrite CURSOR f 8 Development/Fuctory use. Not for service.
14 Factory rewirte CURSOR f-Development/Fuctory use. Not for service.
Power operation
button(X)
INPUT
Fast-revers/Reverse-skip
button (8)
Fast-forward/Forward-skip
button(9)
CURSOR1
CURSOR0
CURSORdCURSORf

19
1. Initialization for the factory mode
Backup data initialization is carried out. See Initialization Items.
After initialization, move on to nomal mode.
CAUTION
Version information (such as rewriting failed log) Clear.
Clear the history of protection.
Operation
While holding down buttons "CURSOR d" and "INPUT" simultaneously, insert the AC plug into the wall outlet to turn on the
power. d
Startup display
All lights display (2 seconds) - All off display (2 seconds)
Lighting of all LEDs on the unit (4 second)
"Factory Reset" displayed for 5 seconds.
Initialization Items (Default setting)
Setting
Source Internet Radio
DIMMER 100%
Sleep OFF
REPEAT/RANDOM OFF
Favorite list Clear all
iPod mode Remote Mode
Setup Menu/Network Set to Initial value, all
Protection history NO PROTECT
Version up information Clear all
2. Owner’s Manual described initialization mode (User Reset)
Backup data initialization is carried out. Refer to Initialization Items.
After initialization, move on to nomal mode.
CAUTION
The differences between this operation and restoring the factory default are as follows.
• Does not clear the version information such as rewriting failed log.
• Does not clear the history of protection.
• Network devices are started and initialized d
Operation
In "STANDBY" status, press and hold the "CURSOR f" and "8" buttons along with the power operation button to turn
on the power.
Startup display
"Initialized" displayed for 5 seconds.
Wait for more than 90 seconds after "Initialized" is displayed and then turn the power off. d
(During this time, start and initialize the network devices.)

20
3. Version check
Menu items appear in the Add Version.Otherwise, normal operation.
To exit this mode, unplug the power cord.
Display order
System u-com → System u-com (Boot loader) → Network u-com (Boot loader) → Network u-com (Image) → Serial No. →
Bluetooth Mac Address
Operation
In standby status, hold down the Power button for at least 3 seconds while pressing the "CURSOR d" button.
Startup display
"Version" displayed for 5 seconds.
How to Display Version
Press the "INPUT" button and select the "Setup".
Press ENTER button.
The version of the system-μ Processor.
Press CURSOR f.
The version of the boot loader(system-μ Processor).
Press CURSOR f.
The version of the boot loader(network-μ Processor).
