Marcy MWB-36780B User manual

www.puretecfitness.com Marcy Fitness
NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
Safety Notice
Hardware Identifier
Assembly Instruction
Parts List
Warranty
Ordering Parts
Model
MWB-36780B
Retain This
Manual for
Reference
170305
OWNER'S
MANUAL
MARCY®BENCH &
WEIGHT SET
MWB-36780B
IMPORTANT: Please read this manual before commencing
assembly of this product.

www.puretecfitness.com Marcy Fitness
TABLE OF CONTENTS
BEFORE YOU BEGIN...................................................................................…. 1
IMPORTANT SAFETY NOTICES..................................................................…. 2
HARDWARE IDENTIFIER.....…....................................................................…. 4
ASSEMBLY INSTRUCTIONS........................................................................…. 5

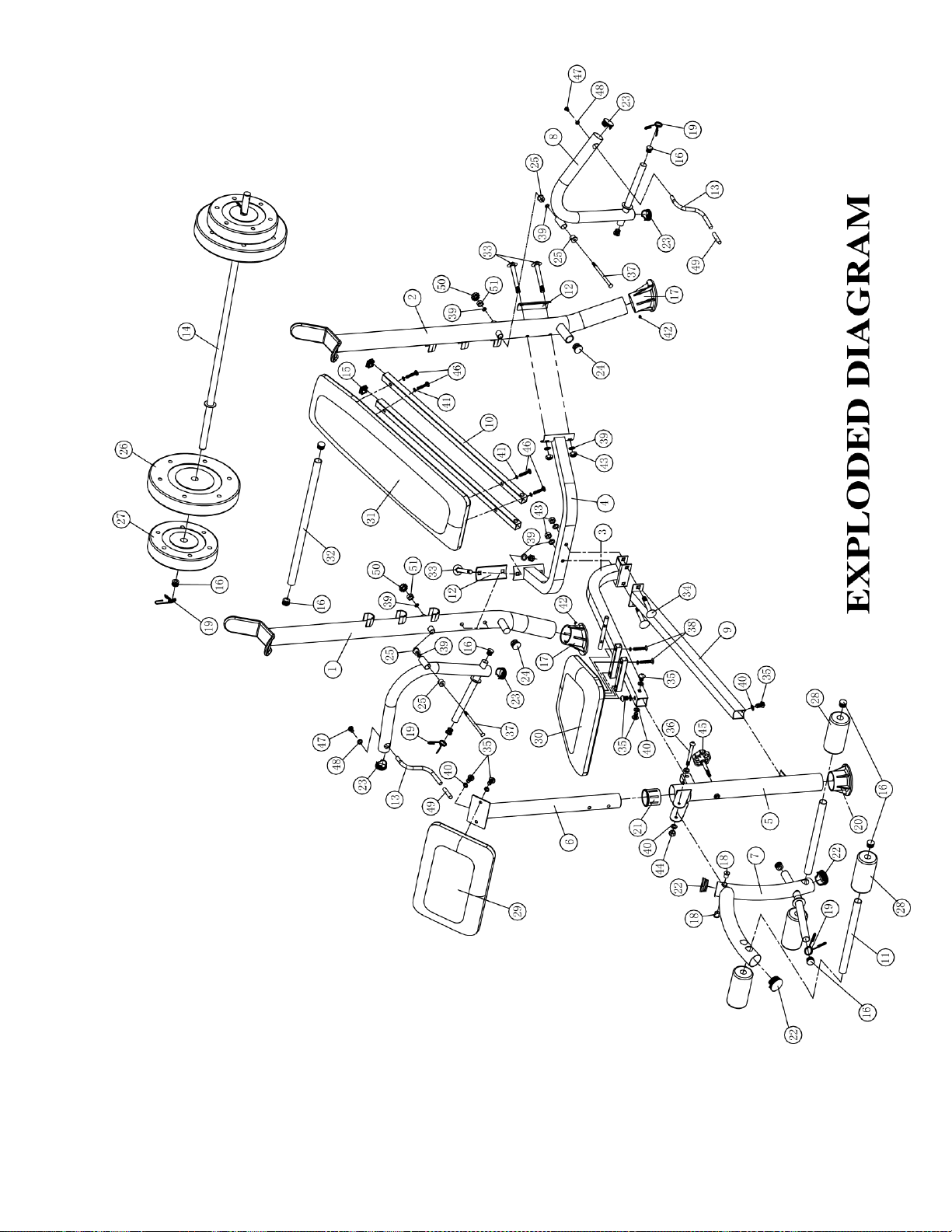

EXPLODED DIAGRAM………………………………………………………………. 12
PARTS LIST...............................................................................................……. 13
WARRANTY.................................................................................................…. 14
ORDERING PARTS.......................................................................................… 14
BEFORE YOU BEGIN
Thank you for selecting the MARCY MWB-36780B Bench & Weight Set. For
your safety and benefit, read this manual carefully before using the machine.
As the official representative for Marcy, we are committed to providing
complete customer satisfaction. If you have any questions, or find there are
missing or damaged parts, we guarantee you complete satisfaction through
direct assistance from our factory. To avoid unnecessary delays, please call
our Customer Solutions Department. Monday to Friday 8am to 5pm GMT.
1
Pure-Tec Limited
www.puretecfitness.com
Tel: [phone]
Email: [email protected]
Monday –Friday 0800 –1700 GMT

www.puretecfitness.com Marcy Fitness
IMPORTANT SAFETY NOTICE
PRECAUTIONS
This exercise machine is built for optimum safety. However, certain precautions apply
whenever you operate a piece of exercise equipment. Be sure to read the entire manual
before you assemble or operate your machine. In particular, note the following safety
precautions:
1. Keep children and pets away from the machine at all times. DO NOT leave
children unattended in the same room with the machine.
2. Only one person at a time should use the machine.
3. If the user experiences dizziness, nausea, chest pain, or any other abnormal symptoms,
STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.
4. Position the machine on a clear, leveled surface. DO NOT use the machine near water
or outdoors.
5. Keep hands and feet away from all moving parts.
6. Always wear appropriate workout clothing when exercising. DO NOT wear robes or
other clothing that could become caught in the machine. Running or aerobic shoes are
also required when using the machine.
7. Use the machine only for its intended use as described in this manual. DO NOT use
attachments not recommended by the manufacturer.
8. Do not place any sharp object around the machine.
9. Disabled person should not use the machine without a qualified person or physician in
attendance.
10. Before using the machine to exercise, always do stretching exercises to properly warm
up.
11. Never operate the machine if the machine is not functioning properly.
12. A spotter is recommended during exercise.
CARE AND MAINTENANCE
1. Lubricate moving parts with WD-40 or light oil periodically.
2. Inspect and tighten all parts before using the machine.
3. The machine can be cleaned using a damp cloth and mild non-abrasive detergent.
DO NOT use solvents.
4. Maximum weight capacity on the uprights: 90 kgs
5. Maximum user’s weight: 136 kgs
6. Maximum weight capacity on the leg developer: 45 kgs
7. Assembled Dimension: 166cm x 138cm x 127cm
WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR
PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE
OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL
INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. PURE-TEC LTD
ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE
SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.
SAVE THESE INSTRUCTIONS. 2

www.puretecfitness.com Marcy Fitness

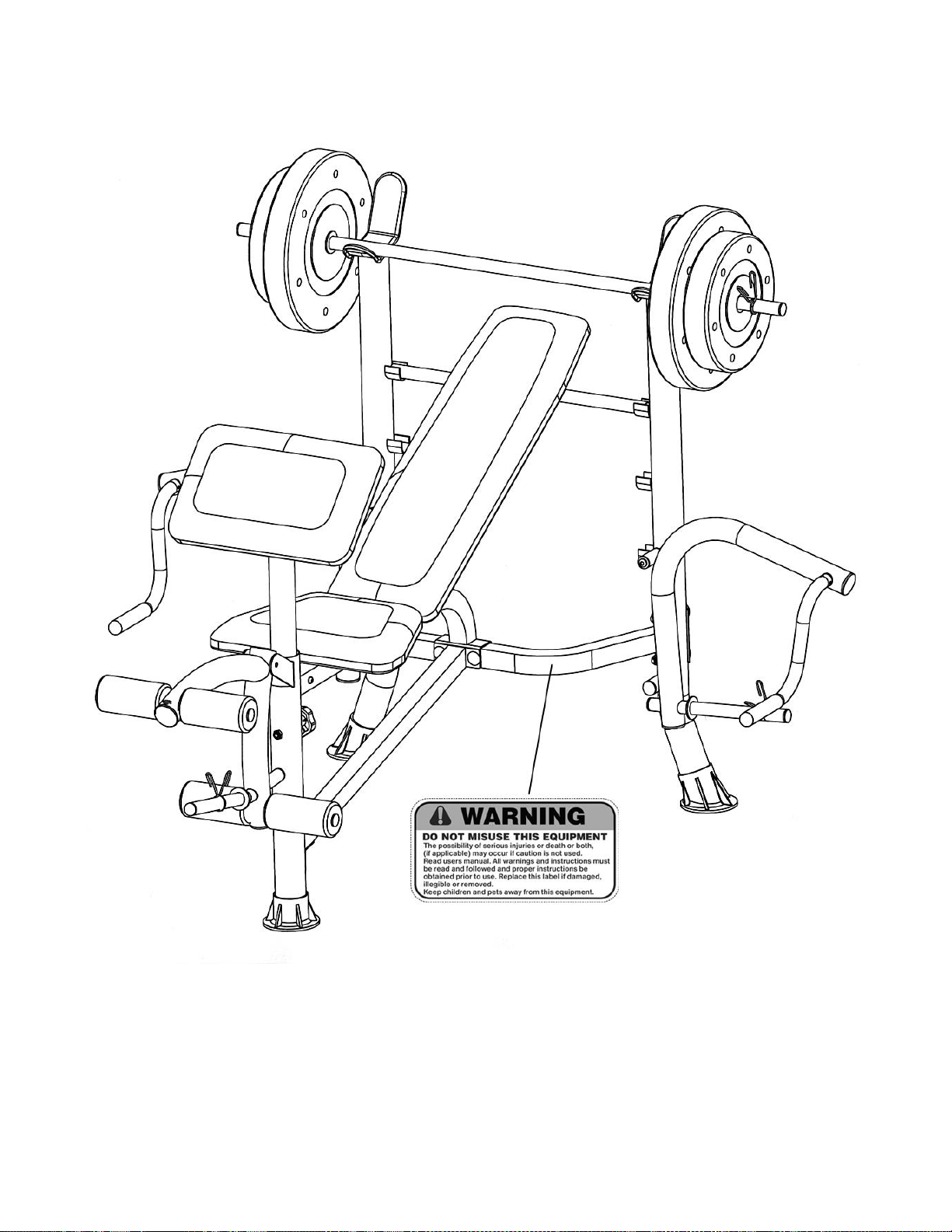

WARNING LABEL PLACEMENT
3

www.puretecfitness.com Marcy Fitness

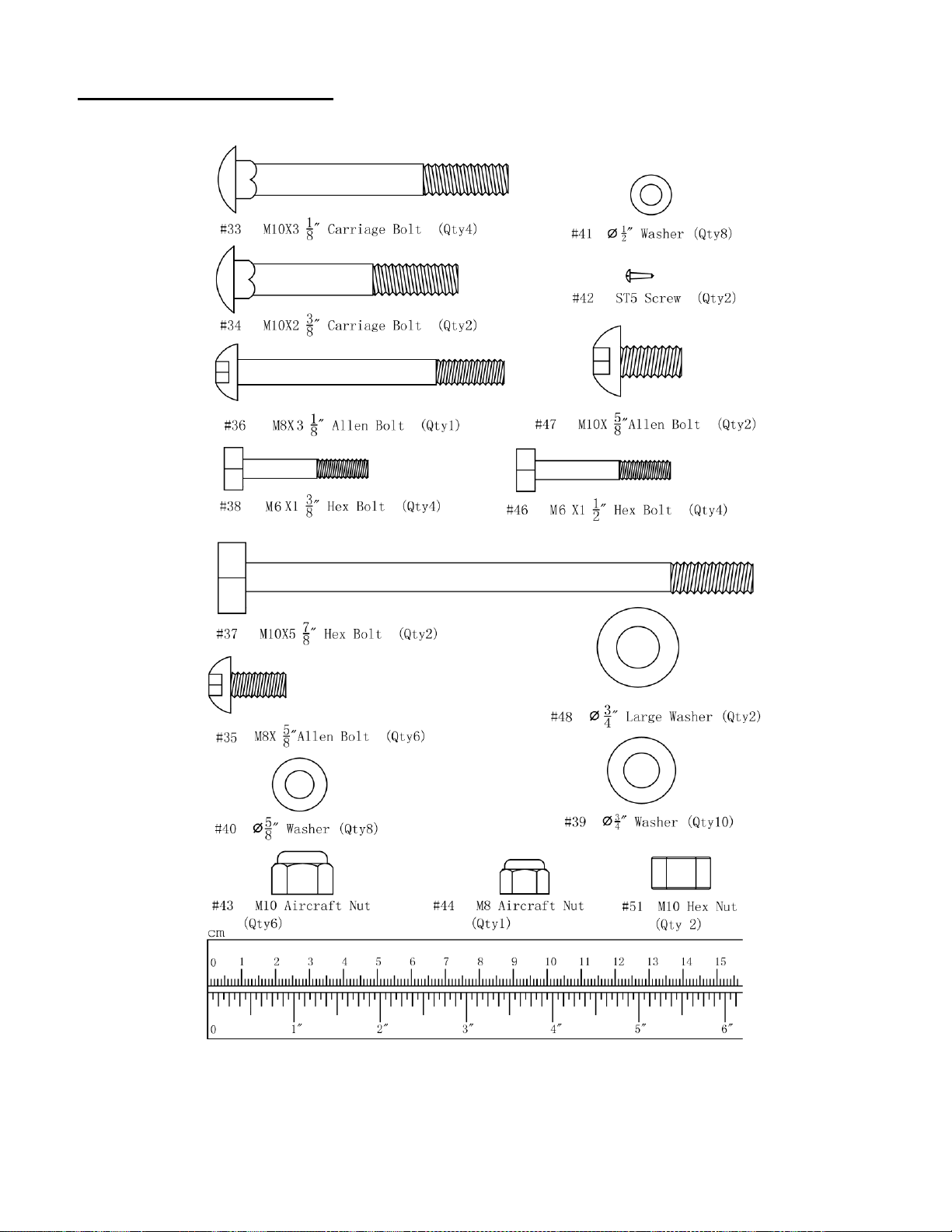

HARDWARE IDENTIFIER
NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size.
4

www.puretecfitness.com Marcy Fitness
ASSEMBLY INSTRUCTION
Tools Required for Assembling the Machine: Two Adjustable Wrenches and Allen
Wrenches
NOTE: It is strongly recommended that two or more people assemble this machine
to avoid possible injury.

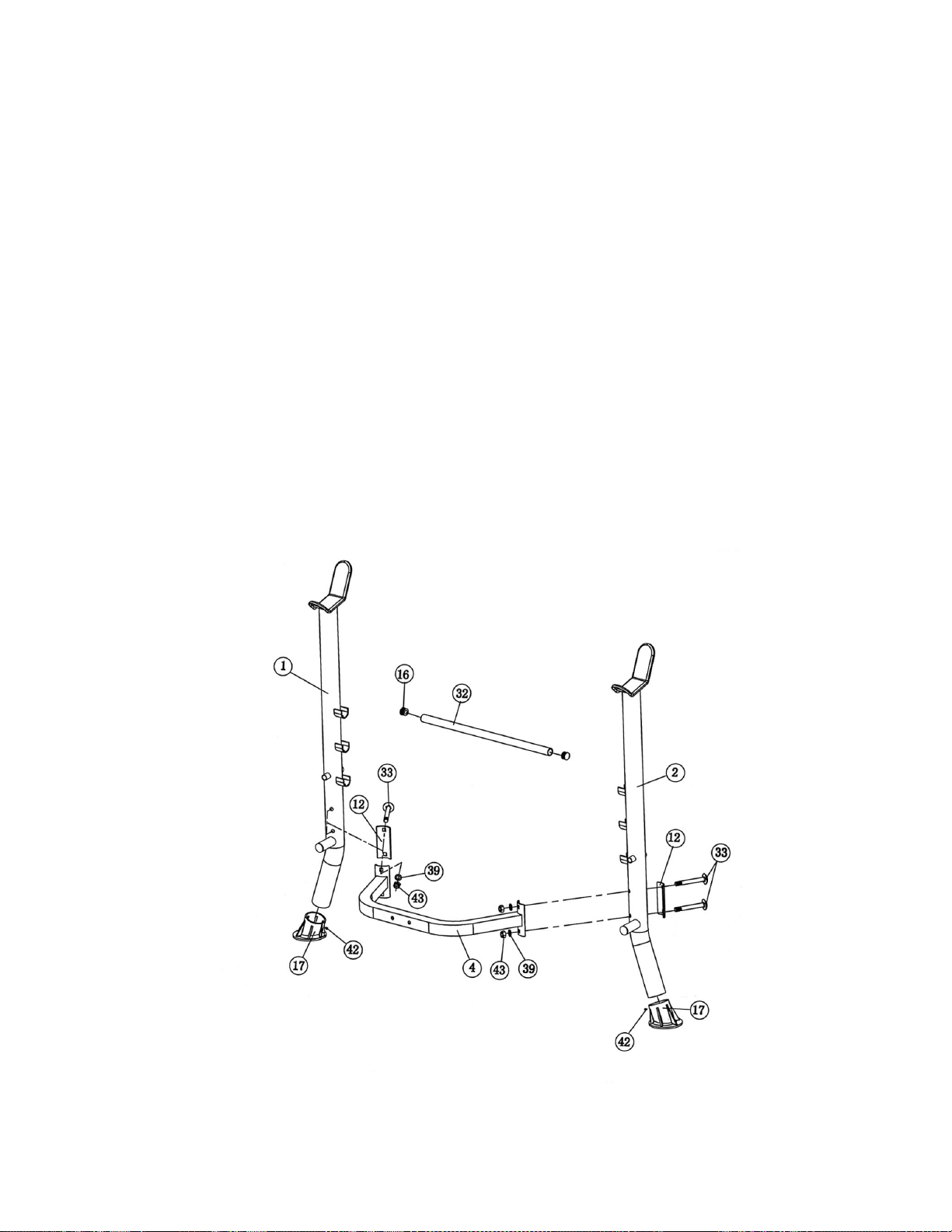

STEP 1 (See Diagram 1)
A.) Weight bench should be placed on a flat, level, clear surface during workout
and storage to avoid any potential injuries. Should a level surface be
unavailable, please ensure that the incline or decline is no more than 3 degrees
for optimal safety and performance.
B.) Do not tighten Nuts and Bolts until instructed to do so.
C.)Install the two Upright End Caps (#17) onto the bottom of the Right & Left Upright
Beams (#1 & #2). Secure each Cap with a ST5 Screw (#42).
D.)Connect the two Upright Beams by a Cross Brace (#4) in the Mid-span. Secure them
with two M10 x 3 1/8” Carriage Bolts (#33), one Curved Bracket (#12), two ¾”
Washers (#39), and two M10 Aircraft Nuts (#43) on each end of the Cross Brace.
E.) Place the Backrest Adjustment Bar (#32) onto the selected slots on the Upright Beams
to obtain desired incline for the Backrest. DIAGRAM 1
5

www.puretecfitness.com Marcy Fitness

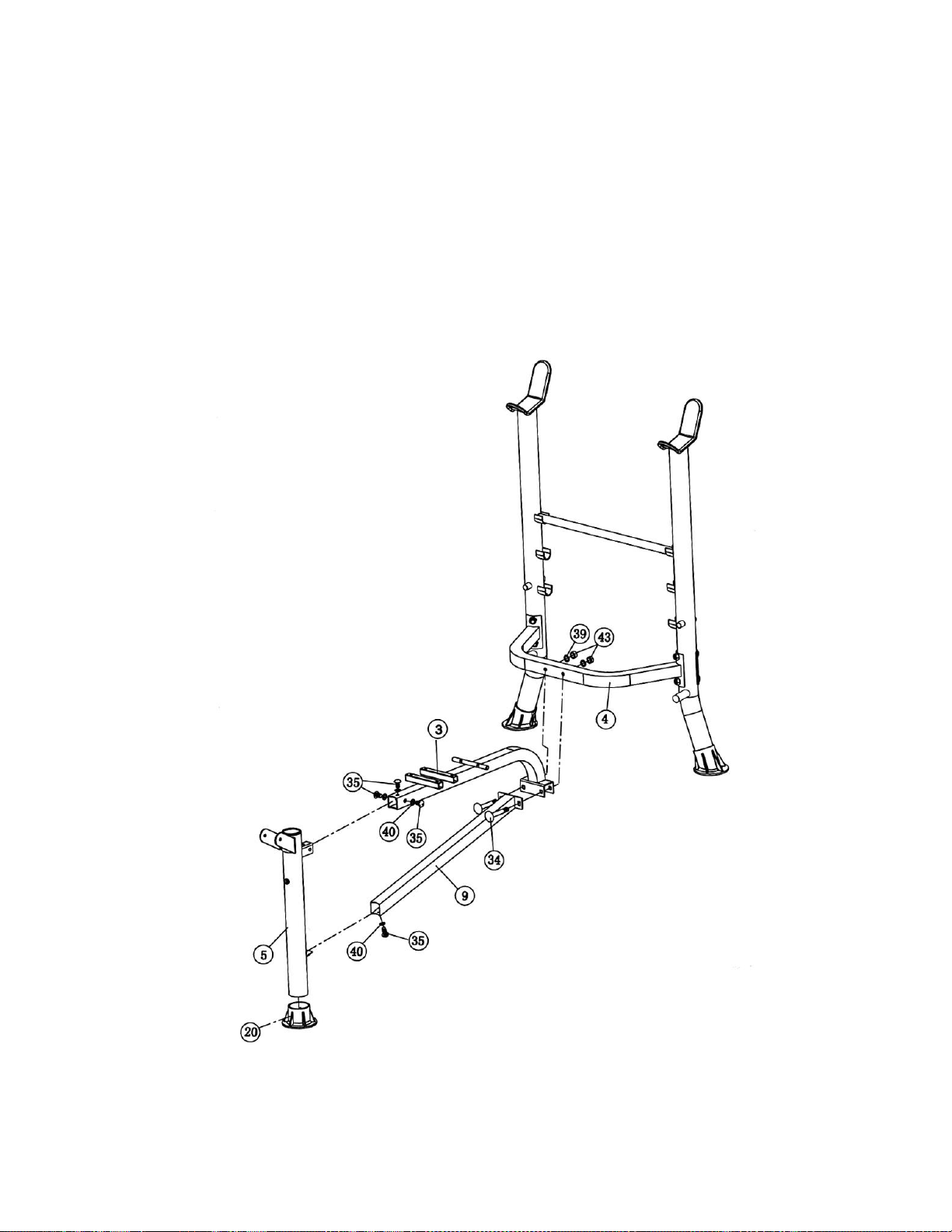

STEP 2 (See Diagram 2)
A.) Do not tighten Nuts and Bolts until instructed to do so.
B.) Install a Front Leg End Cap (#20) onto the bottom of Front Leg (#5). Attach the Front
Leg to the Main Seat Support (#3). Secure it with three M8 x 5/8” Allen Bolts (#35) and
three Ø 5/8” Washers (#40).
C.)Attach the Main Seat Support (#3) to the Cross Brace (#4). Attach the Main Seat
Stabilizer (#9) to the Main Seat Support. Align the holes. Secure the Main Seat
Support, Main Stabilizer, and Cross Brace together with two M10 x 2 3/8” Carriage
Bolts (#34), two Ø ¾” Washers (#39), and two M10 Aircraft Nuts (#43).
D.)Attach the other end of Main Seat Stabilizer (#9) to the Front Leg (#5). Secure it with
one M8 x 5/8” Allen Bolt (#35) and Ø 5/8” Washer (#40).
E.) Securely tighten all Nuts and Bolts previously installed. DIAGRAM 2
6

www.puretecfitness.com Marcy Fitness

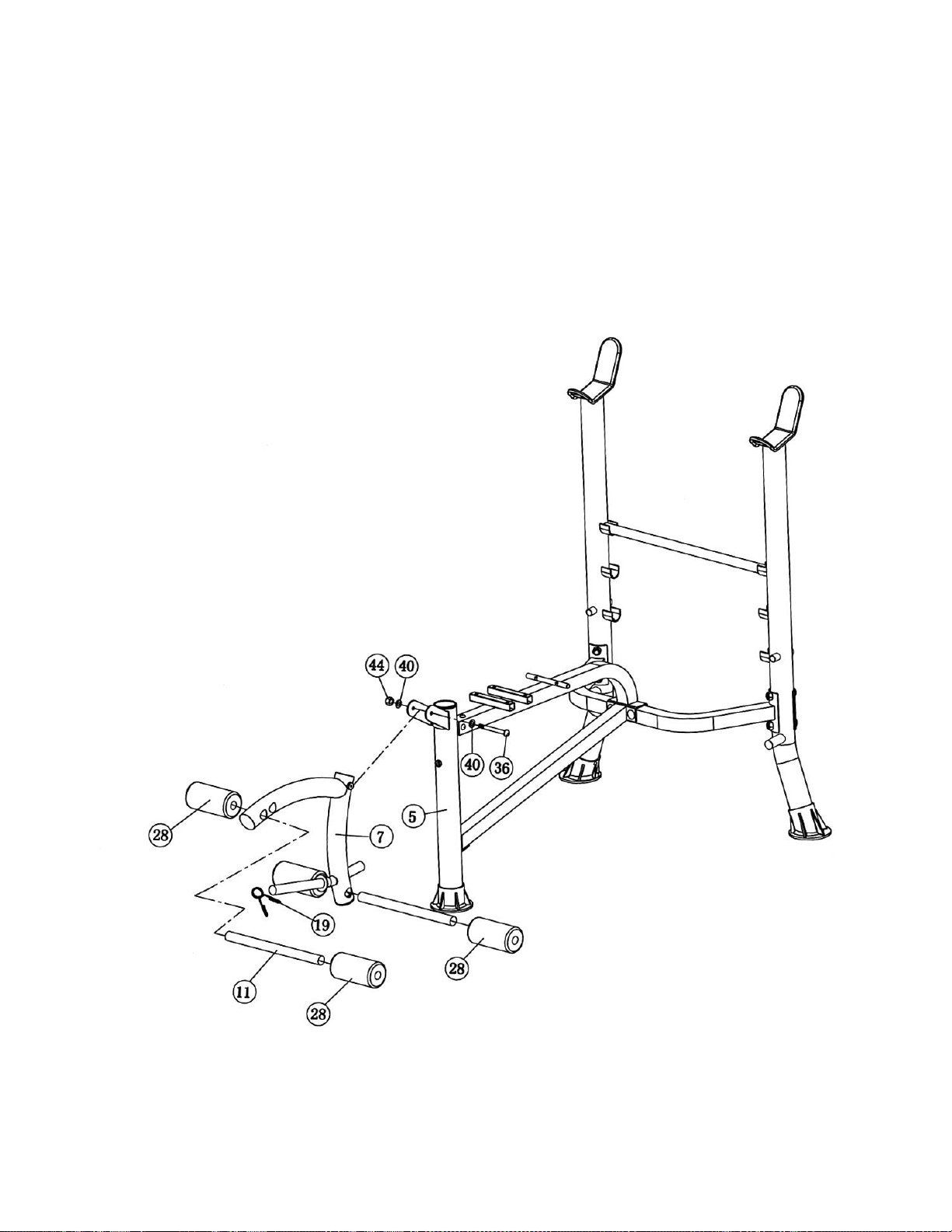

STEP 3 (See Diagram 3)
A.) Attach the Leg Developer (#7) to the Front Leg (#5). Secure it with one M8 x 3 1/8”
Allen Bolt (#36), two Ø 5/8” Washers (#40), and one M8 Aircraft Nut (#44).
B.) Insert two Foam Tubes (#11) halfway through the holes on the Leg Developer. Push
four Foam Rolls (#28) onto the Tubes from both sides.
C.) Attach a Spring Clip (#19) to the weight post on Leg Developer.
DIAGRAM 3
7

www.puretecfitness.com Marcy Fitness
STEP 4 (See Diagram 4)
A.) Attach the Backrest Supports (#10) onto both ends of the pivot on the Main Seat Support
(#3). Place the other end rest against the Backrest Adjustment Bar (#32).
B.) Place the Backrest Board (#31) onto the Backrest Supports. Secure it with four M6 x 1 ½”
Hex Bolts (#46) and Ø ½” Washers (#41).
C.)Place the Seat Pad (#30) onto the Main Seat Support. Secure it with four M6 x 1 3/8” Hex
Bolts (#38) and Ø ½” Washers (#41). DIAGRAM 4
8

www.puretecfitness.com Marcy Fitness

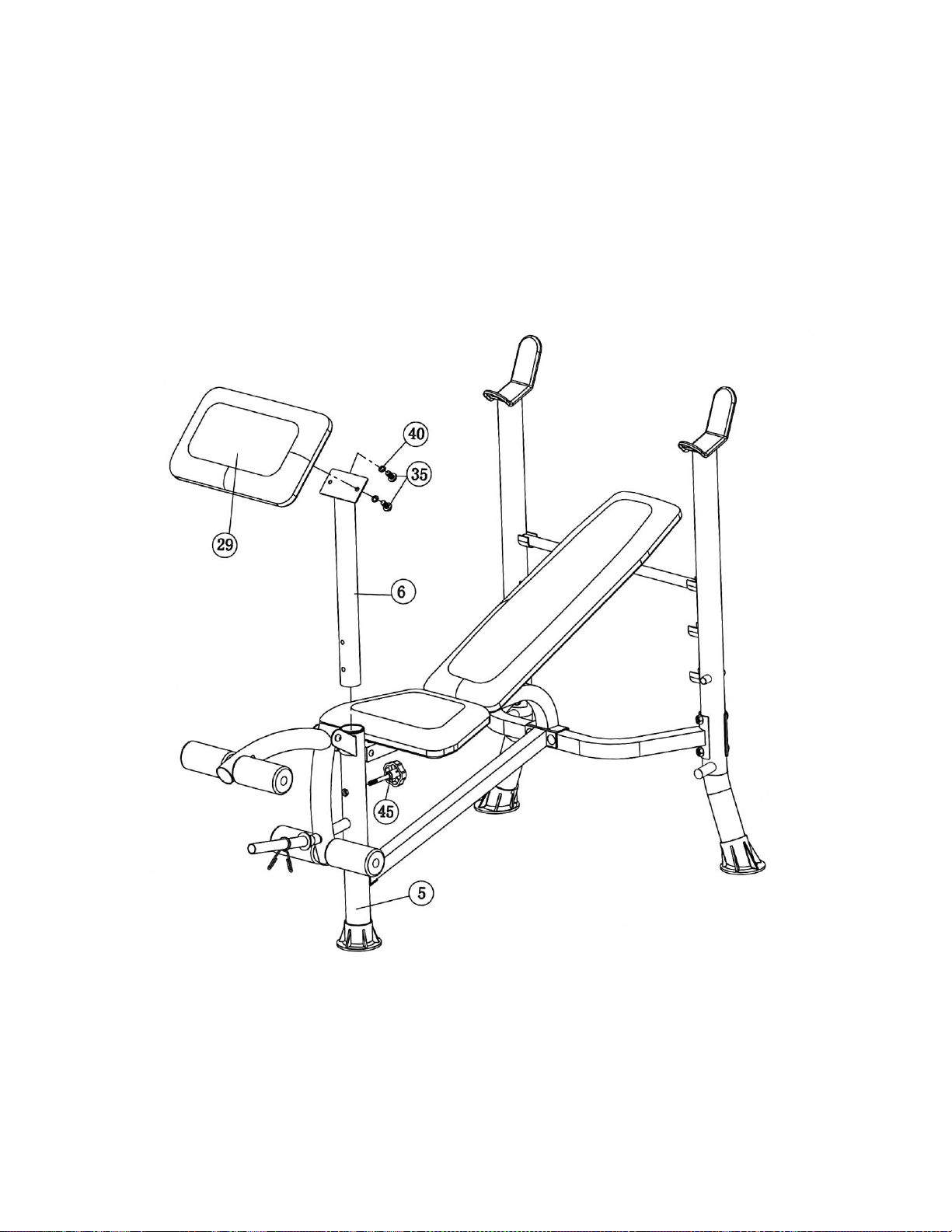

STEP 5 (See Diagram 5)
A.) Attach the Arm Curl Pad (#29) to the Arm Curl Stand (#6). Secure it with
two M8 x 5/8” Allen Bolts (#35) and Ø 5/8” Washers (#40).
B.) Insert the Arm Curl Stand into the top opening on the Front Leg. Secure it
with a M10 x 2 5/8” Lock Knob (#45).
C.)When using Leg Developer, remove the Arm Curl Stand from the Front Leg.
DIAGRAM 5
9

www.puretecfitness.com Marcy Fitness

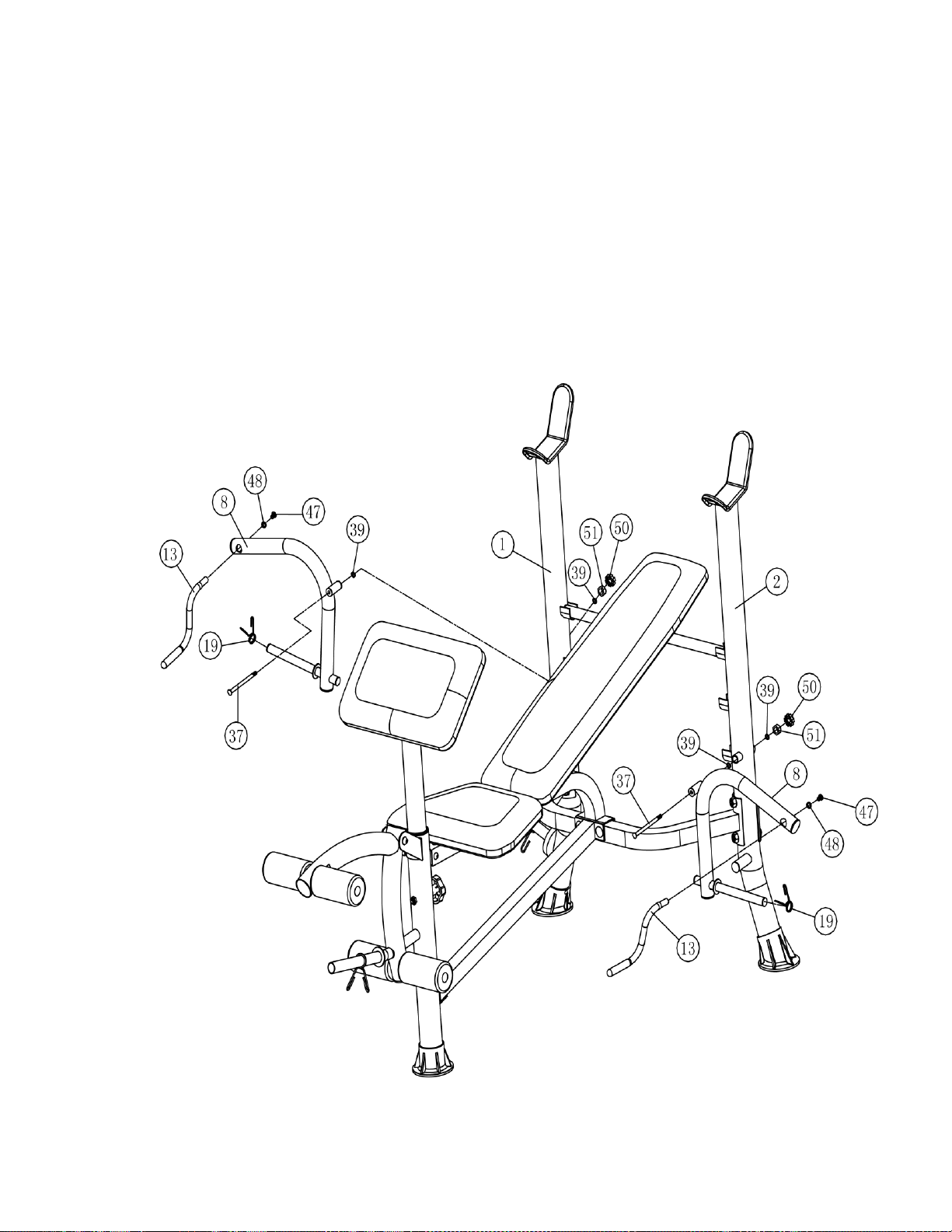

STEP 6 (See Diagram 6)
A.) Attach one Butterfly (#8) to the pivot on Left Upright Beam (#2). Secure
it with one M10 x 5 7/8” Hex Bolt (#37), two Ø ¾” Washers (#39), one
M10 Hex Nut (#51)and one M10 Butterfly Lock Knob (#50). Do not over
tighten the Knob. Make sure the Butterfly is able to move freely.
B.) Insert a Butterfly Handle (#13) through the opening on the Butterfly arm
from front. Secure the Handle with one M10 x 5/8” Allen Bolt (#47) and
one Ø ¾” Large Washer (#48). Attach a Spring Clip (#19) to the weight
post on the Butterfly.
C.) Repeat Procedure A and B to install the other Butterfly to Right Upright
Beam (#1). DIAGRAM 6
10

www.puretecfitness.com Marcy Fitness
STEP 7 (See Diagram 7)
A.) Load 25 lbs two Weight Plates (#26) onto each end of the Bar.
B.) Load 15 lbs two Weight Plates (#27) onto each end of the Bar.
C.) Attach a Spring Clip (#19) to each end of the Bar to hold the plates in position.
D.) Place the Weight Bar (#14) onto the Left & Right Upright Beam (#2) & (#1).
E.) When loading and unloading weight plates onto the weight bar, it is best to seek
assistance from a work out partner. It is recommended that the weight plates be
loaded/unloaded on the ground rather than making any adjustments while the bar is
on the bench. If there are weight plates loaded/unloaded on the bar while on the
bench, the plates should be loaded/unloaded in equal amounts; preventing the bar
from being unevenly weighted, and causing the bar to tip.
DIAGRAM 7
11

www.puretecfitness.com Marcy Fitness
12

www.puretecfitness.com Marcy Fitness
PARTS LIST
KEY NO. DESCRIPTION QUANTITY
1 Right Upright Beam 1
2 Left Upright Beam 1
3 Main Seat Support 1
4 Cross Brace 1
5 Front Leg 1
6 Arm Curl Stand 1
7 Leg Developer 1
8 Butterfly 2
9 Main Seat Stabilizer 1
10 Backrest Support 2
11 Foam Tube 2
12 Curved Bracket 2
13 Butterfly Handle 2
14 Weight Bar 1
15 1” Square End Cap 2
16 Ø 1” End Cap 14
17 Upright End Cap 2
18 Ø ¾” Bushing 2
19 Spring Clip 5
20 Front Leg End Cap 1
21 Ø 2 3/8” x Ø 2” Sleeve 1
22 Ø 2” End Cap 3
23 Ø 1 ¾” End Cap 4
24 Ø 1 1/8” End Cap 2
25 Ø 1” Bushing 4
26 25lb Weight Plate 2
27 15lb Weight Plate 2
28 Foam Roll 4
29 Arm Curl Pad 1
30 Seat Pad 1
31 Backrest Board 1
32 Backrest Adjustment Bar 1
33 M10 x 3 1/8” Carriage Bolt 4
34 M10 x 2 3/8” Carriage Bolt 2
35 M8 x 5/8” Allen Bolt 6
36 M8 x 3 1/8” Allen Bolt 1
37 M10 x 5 7/8” Hex Bolt 2
38 M6 x 1 3/8” Hex Bolt 4
39 Ø ¾” Washer 10
40 Ø 5/8” Washer 8
41 Ø ½” Washer 8
42 ST5 Screw 2
43 M10 Aircraft Nut 6
44 M8 Aircraft Nut 1
45 M10 x 2 5/8” Lock Knob 1
46 M6 x 1 ½” Hex Bolt 4
47 M10 x 5/8” Allen Bolt 2
48 Ø ¾” Large Washer 2
49 Butterfly Grip 2
50 M10 Butterfly Lock Knob 2
51 M10 Hex Nut 2
13

www.puretecfitness.com Marcy Fitness
LIMITED WARRANTY
Pure-Tec. warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. Please refer to
www.puretecfitness.com for warranty conditions. This warranty extends only to the
original purchaser and is valid for home use only. Pure-Tec’s obligation under
this Warranty is limited to replacing damaged or faulty parts at Pure-Tec’s option.
All returns must be pre-authorised by Pure-Tec. This warranty does not extend
to any product or damage to a product caused by or attributable to
freight damage, abuse, misuse, improper or abnormal usage, purchasers
own repairs or for products used for commercial or rental purposes. No
other warranty beyond that specifically set forth above is authorised by Pure-Tec.
Pure-Tec is not responsible or liable for indirect, special or consequential damages
arising out of or in connection with the use or performance of the product or other
damages with respect to any economic loss, loss of property, loss of revenues or
profits, loss of enjoyments or use, costs of removal, installation or other
consequentialdamages or whatsoever natures.
The warranty extended hereunder is in lieu of any and all other warranties and any
implied warranties of merchantability or fitness for a particular purpose is limited in
its scope and duration to the terms set forth herein.
Your statutory rights are not affected.
ORDERING REPLACEMENT PARTS
Replacement parts can be ordered by calling our Customer Solutions Department
Monday to Friday, 8am until 5 pm GMT.

Pure-Tec Limited
www.puretecfitness.com
Tel: [phone]
Email: servic[email protected]
Monday - Friday 0800 –1700 GMT
When ordering replacement parts, always give the following information.
1. Model
2. Description of Parts
3. Part Number
4. Date of Purchase
14
