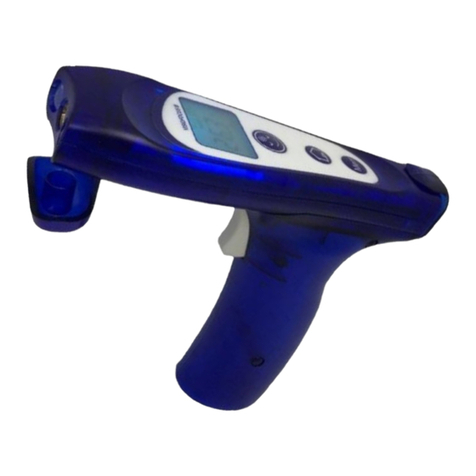

MarMonix MIT-367 User manual

Mini Infrared Thermometer
Products Code: MIT-367
User Manual
WWW.MARMONIX.CO

1. Safety
 Use extreme caution when the laser beam is turned
on.
 Do not let the beam enter your eye, another person’s
eye or the eye of an animal.
 Be careful not to let the beam on a reflective surface
strike your eye.
 Do not allow the laser light beam impinge on any gas
which can explode.
2. Features
 Precise non-contact measurements
 Built in laser pointer
 User selectable ˚C or ˚F
 MAX/MIN temperature displays
 Trigger lock
 Automatic Data Hold & Auto power off
 Automatic selection range and Display Resolution
0.1˚C(0.1˚F)
 The meter at 8 inches away measure 1 inch target
 Backlight LCD display

Wide range application:
Food preparation, Safety and Fire inspectors, Plastic
molding, Asphalt, Marine and screen printing,
measure ink and dryer temperature, Diesel and Fleet
maintenance.
Field of View
The Infrared Thermometer’s field of view is 8:1,
measuring that if the Infrared Thermometer is 8
inches from the target, the diameter of the object
under test must be at least 1 inch. Other distances are
shown below in the field of view diagram. Refer to the
chart printed on the meter for more information.

3. Specifications
 General Specifications
Meas. Ranges -50˚C to 500˚C/ -58˚F to 932˚F
Response Time Less than 1 second
Over Range Indication LCD will show “------“
Polarity
Automatic (no indication for
positive polarity); Minus (-)
sign for negative polarity.
Emissivity 0.95 fixed value
Field of View
D/S=Approx8:1
ratio(D=distance,S=spot) (Has
90%encircled energy at the
focal point)
Diode Laser
Output<1mW, Wavelength
630~670nm, class 2 (II) Laser
product
Spectral Response 6~14um
Power Off
Automatic shut off after 8
seconds, approx
Operating Temp. 0˚C to 50˚C/ 32˚F to 122˚F
Storage Temp. -20˚C to 60˚C/-4˚F to 140˚F
Relative Humidity
10% ~ 90%RH operating,
<80%RH storage
Power Supply
9V battery, NEDA 1604A or
IEC 6LR61, or equivalent
Weight 180g.
Size 82 x 41.5 x 160mm

 Infrared Thermometer Specifications
Range Resolution Accuracy
-50˚C to 0˚C (-58˚F to 32˚F)
0.1˚C/˚F
±4˚C/ ±7˚F
0˚ to 500˚C (32˚F to 932˚F)
±2% of
reading or
±2˚C/±4˚F
Note:
Accuracy is given 18˚C to 28˚C (64˚ to 82˚C), less than
80%RH.
Emissivity:
0.95 fixed value
Field of View:
Make sure that the target is larger than the unit’s spot
size.
The smaller the target, the closer you should be to it.
When accuracy is critical, make sure the target is at
least twice as large as the spot size.

4. Front Panel
Description
1- IR Sensor
2- Laser pointer beam
3- LCD Display
4- ˚C/˚F select key
5- Max/Min select key
6- Laser & Backlight
select key
7- Measurement trigger
8- Battery cover
5. Indicator
1- Measuring indication
2- Data hold
3- Laser point
4- Fixed emissivity
(0.95) scan symbol
5- Temperature ˚C
(Celsius)/
˚F(Fahrenheit)
6- LOW battery
indicator
7- MAX/MIN readout
8- MAX/MIN Symbol
9- Digital readout

6. Measurement Operation
6-1. Hold the meter by its Handle Grip and point it
toward the surface to be measured.
6-2. Pull and hold the trigger to turn the meter on and
begin testing. The display will light if the battery is good.
Replace the battery if the display does not light.
6-3. while measuring, the SCAN display icon will appear
in the upper left hand corner of the LCD.
6-4. While continuing to pull the trigger:
 Push the “Laser/Backlight” button once to turn on the
laser pointer. When the laser is on, the laser icon
will appear on the LCD.
Push the “Laser/Backlight” button two times to turn on
the backlight.
Push the “Laser/Backlight” button three times to turn
the laser off.
Push the “Laser/Backlight” button four times to turn
both the laser and backlight off.
 Select the temperature units (˚C or ˚F) using the “˚C/˚F”
buttons.
 Select the Max/Min mode using the “Max/Min”
buttons.
6-5. Release the trigger and HOLD display icon will
appear on the LCD indicating that the reading is being
held.

6-6. The meter will automatically power off on
approximately 8 seconds after the trigger is released.
Note: Measurement Considerations
Holding the meter by its handle, point the IR Sensor
toward the object whose temperature is to be
measured. The meter automatically compensates for
temperature deviations from ambient temperature.
Keep in mind that it will take up to 30 minutes to adjust
to wide ambient temperatures are to be measured
followed by high temperature measurements, some
time (several minutes) is required after the low (and
before the high) temperature measurements are made.
This is a result of the cooling process which must take
place for the IR sensor.

1. Battery
Replacement
7-1. As battery
power is not
sufficient, LCD will
display
replacement with
one new battery
type 9V is required.
7-2. Open battery
cover, then take
out the battery from instrument and replace with a
new 9-Volt battery and place the battery cover back.
7. Notes
8-1. How it works
Infrared thermometers measure the surface
temperature of an object. The unit’s optics sense
emitted, reflected, and transmitted energy, which is
collected and focused onto a detector. The unit’s
electronics translate the information into a temperature
reading which is displayed on the unit.
8-2. Field of View
Make sure that the target is larger than the unit’s spot
size. The smaller the target, the closer you should be to

it. When accuracy is critical, make sure the target is at
least twice as large as the spot size.
8-3. Distance a hot spot
As the distance (D) from the object increases, the spot
size (S) of the area measured by the unit becomes larger.
8-4. Locating a hot spot
To find a hot spot aim the thermometer outside the area
of interest, then scan across with an up and down
motion until you locate hot spot.
8-5. Reminders
 Not recommended for use in measuring shiny or
polished metal surfaces (stainless steel, aluminum, etc.).
 The unit cannot measure through transparent surfaces
such as glass. It will measure the surface temperature of
the glass instead.
Steam, dust, smoke, etc., can prevent accurate
measurement by obstructing the unit’s optics
