Marquee EASY UP 0259184 User manual

SIZE:29.7*21.0
ASSEMBLY INSTRUCTIONS
EASY UP GAZEBO
3M X 3M
Item no.: 0259184
Care and Maintenance
Wash frame and canopy with a mild solution
of soap and water, rinse thoroughly. Dry
completely. Do not use bleach or solvents.
Inspect frame periodically to ensure all
bolts and nuts are tight. Always return the
gazebo to the carry bag after use. Be sure
the gazebo is completely dry before storing it.
IMPORTANT: DO NOT USE EXCESSIVE FORCE
DURING ANY PART OF SET-UP

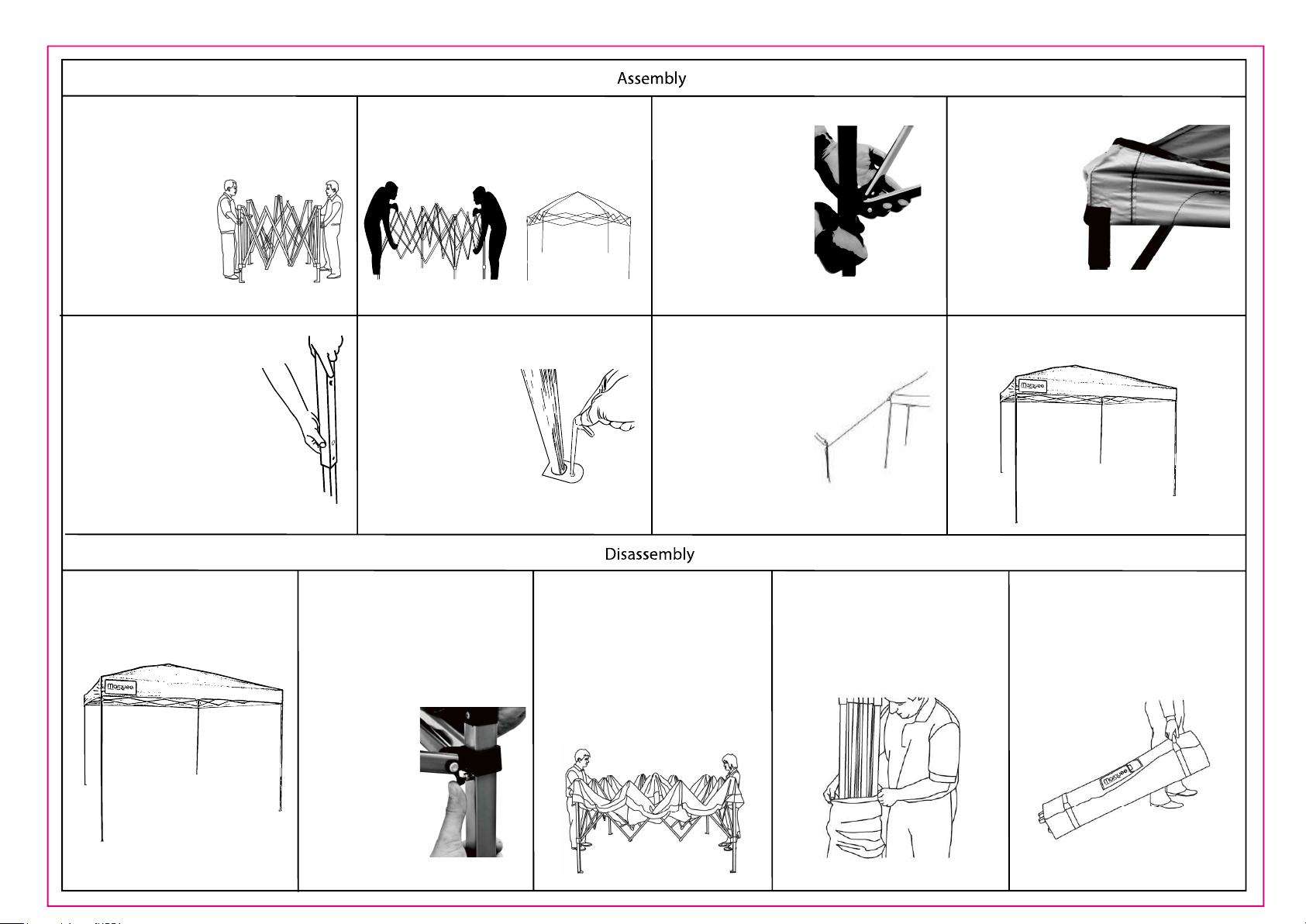

Assembly Instructions
8
4
D
E
STAKE
ROPE

Step 1
Place the canopy frame (A)
only in the centre of the
setup area. With a partner
on the opposite side of
the frame, hold the two
outer legs and lift
slightly for ground
clearance. Take a few
steps back and extend
the frame to full arm's
length, approximately
1.2 metres.
Step 2
With a partner hold the top and bottom of the
eave where it forms a "V". Lift slightly and slowly
walk backwards until the frame is fully extended.
Take care to avoid pinching your hands or fingers.
Step3
At each corner, hold
the leg of the frame
with one hand and
lift the slider with the
other hand until it
clicks past the
spring pin.
Step4
Place the canopy (B)
over the top of the
frame. Use the
hook & loop to
secure each
corner of
the frame.
Step 5
The adjustable legs offer two
height positions. Tilt one side of
the canopy upward and extend a
lower leg section until it clicks into
place. Repeat on the adjacent leg
until all legs are extended. When
extending the legs, have a partner
hold the frame stable and avoid
having only two diagonal
legs extended.
Step 1
Press the leg pin in and lower each
leg completely. Be careful not to trap
your fingers.
Step 2
At each corner, push in the locking
button and pull the slider down slowly
until the button pops out above the
slider. Be careful to not pinch your
fingers. Please ensure that all
sliders are in an unlocked position
below the button prior to attempting
to collapse the
frame. Closing the
frame with any
sliders in a locked
position will cause
damage or breakage.
Step 4
Place the frame into the storage
bag (C) slowly until gazebo fits
comfortably. Zip the storage bag
completely shut. Be sure the gazebo
is completely dry before storage.
Step 5
Wheel your gazebo to your desired
storage area.
Step 6
Stake (D) down the
gazebo by driving the 4
stakes through one of
the holes on each base
foot. This will keep the
leg from moving sideways
in mild weather conditions.
Step 7
Measure out from the leg to a
proper distance and secure
the 4 stakes to ground at a
45 degree angle. Tie up one
end of each rope to the rope
holder located on the outside
fabric corners. Tie the other
end of each rope to the
anchor on the ground.
Step 3
Hold the top of the centre frame section
and lift slightly and slowly, walk toward
your partner as the frame folds in. Keep
walking until the frame is about
half-way closed. Be sure to avoid
pinching your hands and fingers. Hold
outside legs and continue closing
canopy as you walk towards your
partner.
Step 8
The gazebo is now completely assembled.
