Marshalltown SPEED STRIKER User manual

SPEED STRIKERTM POWER SCREED
Part#STRIKE45-L | EDI#28166
104 S. 8th Ave. | Marshalltown, IA
Phone [phone] | Fax [phone]
www.MARSHALLTOWN.com
WS#1716

2 of 16 104 S. 8th Ave. Marshalltown, IA Phone [phone] • Fax [phone] www.MARSHALLTOWN.com WS#1716
TABLE OF CONTENTS
Safety Precautions ......................................................................................................................................................................................... 2
Warranty ...........................................................................................................................................................................................................3
Common Components...................................................................................................................................................................................4
Installing Handle Bars & Kickstand..............................................................................................................................................................5
Attaching Blade ...............................................................................................................................................................................................5
Installing Throttle Cable..............................................................................................................................................................................6-7
Machine Adjustments ....................................................................................................................................................................................8
Technical Data/Capacities ............................................................................................................................................................................9
Maintenance.....................................................................................................................................................................................................9
Parts Breakdown......................................................................................................................................................................................10-11
How to Wet Screed....................................................................................................................................................................................... 12
How to Screed Form to Form ..................................................................................................................................................................... 13
How to Operate.............................................................................................................................................................................................. 14
Operating on Wet Concrete........................................................................................................................................................................ 15
SAFETY PRECAUTIONS
DANGER!
• DANGER or
WARNING!
WARNING safety signs are located near specific hazards.
CAUTION!
• General precautions are listed on CAUTION safety signs.
This machine was built with user safety in mind, however, it can present hazards if improperly operated and serviced.
Follow operating instructions carefully and use good judgement when operating!
If you have questions about operating or servicing this equipment, please contact your Marshalltown distributor or
Marshalltown Company at 800-888-0127 or 641-753-0127.
ALWAYS
• Always stop engine between loads of concrete
• Always screed while walking backwards
• Always clearly mark and be aware of all grade pins,
form stakes or other trip hazards
• Always follow all safety warnings and labels of the
engine manufacturer
• Always read and understand the owners manual of
the engine manufacturer
• Always wear approved hearing, eye and breathing
protection
• Always use form oil to coat blade or other parts
susceptible to concrete build up (avoiding electrical
connections) before each use
• Always properly secure screed before transporting
• Always follow recommended maintenance schedules
• Always make sure all connections and fasteners are
tight before every use
• Always always make sure engine is in "OFF" position
when servicing or not in use
• Always use in a well ventilated area
• Always keep Speed Striker™ and engine manual handy
on the job site
• Always replace parts as they become damaged or worn
NEVER
• Never operate screed without all parts and safety
covers correctly attached
• Never allow children to operate
• Never operate under the influence of drugs or alcohol
• Never use screed for anything other than its
intended purpose
• Never set eccentric weights to where excessive
vibration occurs at low RPM (weights too far open)
• Never set eccentric weights to where it takes excessive
RPM to make weights vibrate (weights too far closed)
• Never allow engine to run unattended or idle on
top of wet concrete
• Never place concrete higher than the leading
“curl edge” of the blade
• Never fill gas tank while engine is running
• Never start engine near spilt fuel
• Never fill gas tank, operate, or service screed
near open flame
• Never use parts or blades from other manufacturers
• Never service a hot engine
• Never operate without proper training
• Never spray water or other liquid on a hot engine

3 of 16
104 S. 8th Ave. Marshalltown, IA Phone [phone] • Fax [phone] www.MARSHALLTOWN.comWS#1716
WARRANTY
Marshalltown Company (the Company) warrants, that for a period of twelve (12) months from the date of purchase, it will
replace or repair, free of charge, for the original retail purchaser only, any part or parts, manufactured by the Company, found
upon examination by the Company or its assigned representatives, to be defective in material or workmanship or both. All
transportation charges for parts submitted for replacement or repair under this warranty must be borne by the original retail
purchaser. This is the exclusive remedy under this warranty.
Failure by the original retail purchaser to install, maintain and operate said equipment in accordance with good industry
practices, or failure to comply with the specific recommendations of the Company set forth in the owner’s manual, shall
render this warranty null and void. The Company shall not be liable for any repairs, replacements, or adjustments to the
equipment or any costs for labor performed by the purchaser without the Company’s prior written approval. The effects of
corrosion, erosion and normal wear and tear are specifically excluded from this warranty.
THE COMPANY MAKES NO OTHER WARRANTY OR REPRESENTATION OF ANY KIND WHATSOEVER, EXPRESSED OR
IMPLIED, EXCEPT THAT OF TITLE. ALL IMPLIED WARRANTIES, INCLUDING ANY WARRANTY OF MERCHANTABILITY AND
FITNESS FOR PARTICULAR PURPOSE ARE HEREBY DISCLAIMED. LIABILITY FOR CONSEQUENTIAL AND INCIDENTAL
DAMAGES UNDER ANY AND ALL WARRANTIES, OTHER CONTRACTS, NEGLIGENCE, OR OTHER TORTS IS EXCLUDED TO
THE EXTENT EXCLUSION IS PERMITTED BY LAW.
Notwithstanding the above, any legal claim against the Company shall be barred if legal action thereon is not commenced
within twenty–four (24) months from the date of purchase or delivery, whichever occurs last. This warranty constitutes the
entire agreement between the Company and the original retail purchaser and no representative or agent is authorized to
alter the terms of same without expressed written consent of the Company.

4 of 16 104 S. 8th Ave. Marshalltown, IA Phone [phone] • Fax [phone] www.MARSHALLTOWN.com WS#1716

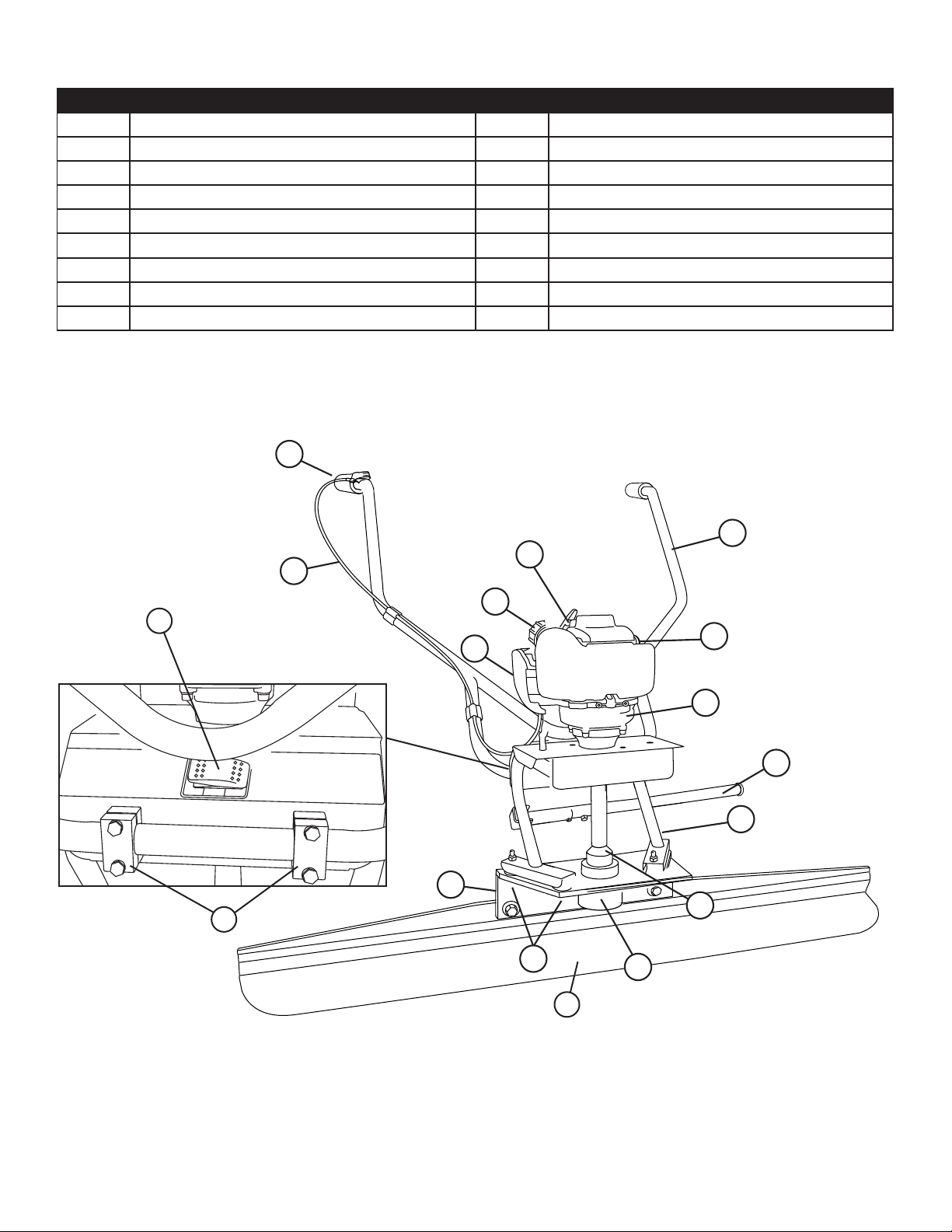

COMMON COMPONENTS
REF # DESCRIPTION REF  DESCRIPTION
1 START/STOP SWITCH 10 DRIVE SHAFT
2 ENGINE 11 VIBRATION DAMPENERS
3 RECOIL STARTER 12 BLADE
4 OIL CAP 13 ECCENTRIC WEIGHT COVER
5 GAS CAP 14 FRAME
6THROTTLE LEVER 15 BOARD MOUNTING PLATE
7 HANDLE BAR MOUNTING BLOCKS  THROTTLE CABLE
8 HANDLE BARS 17 AIR FILTER
9 KICKSTAND
2
14
4
3
5
17
6
8
9
10
11 13
15
16
1
7
12

5 of 16
104 S. 8th Ave. Marshalltown, IA Phone [phone] • Fax [phone] www.MARSHALLTOWN.comWS#1716
ASSEMBLY INSTRUCTIONS

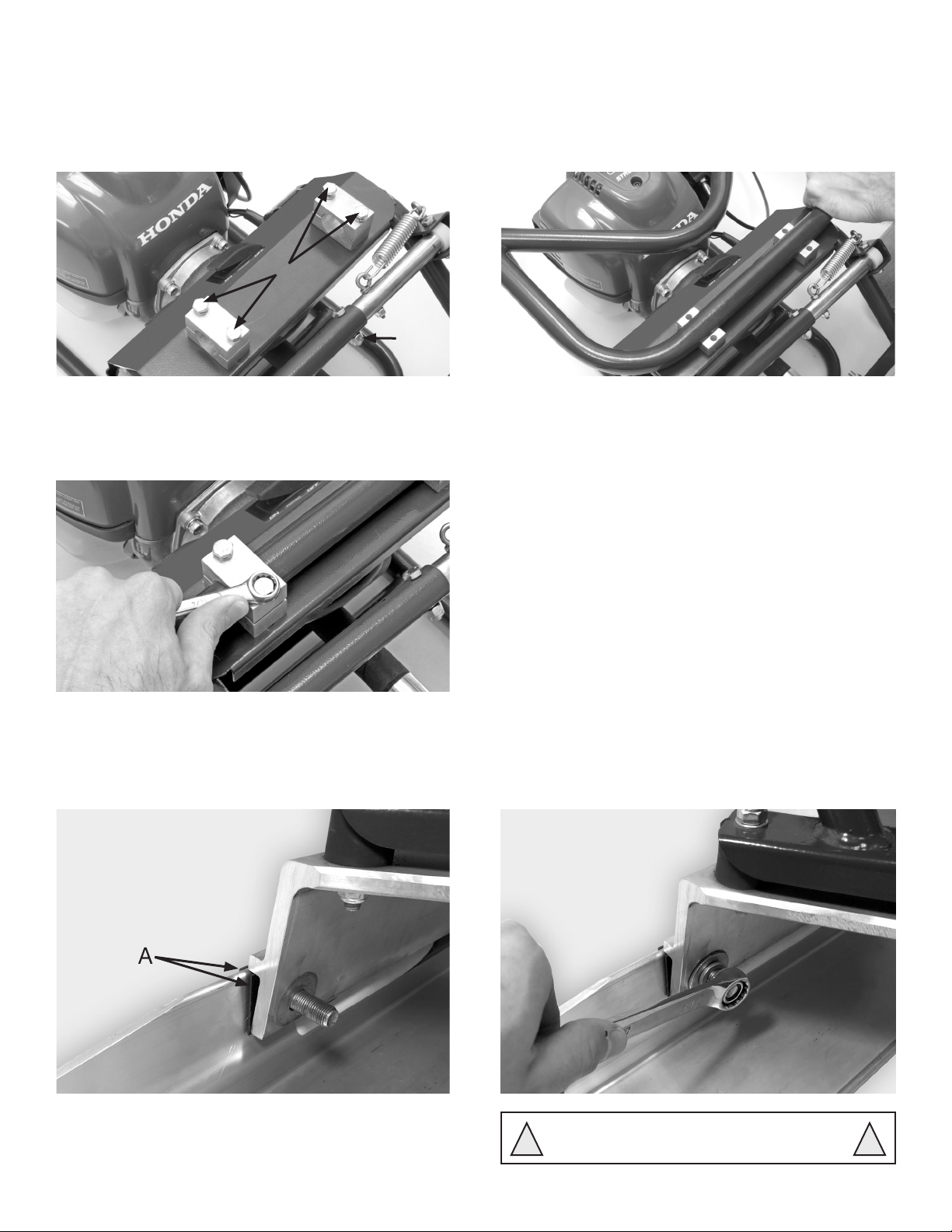

Step 1 – Remove the 4 hex screws (A) that hold down
the two handle mounting blocks.
Step 2 – Slide kickstand arm onto kickstand end and
fasten with nut & bolt (B) as shown.
Step 4 – Making sure all mounting block and frame holes
are aligned, insert hex screws and tighten with 7/16"
wrench or socket.
Step 3 – Place handle bars into mounting blocks, making
sure handle bars are centered evenly across the
mounting blocks.
INSTALLING HANDLE BARS AND KICKSTAND
ATTACHING BLADE
Attach blade as shown, making sure the blade is
positioned on the “back side” of the base extrusion with
blade spacers (A) on both sides of the blade.
Make sure bolts are tight before each use.
! !
A
B
Assembly is easy, following these steps:

6 of 16 104 S. 8th Ave. Marshalltown, IA Phone [phone] • Fax [phone] www.MARSHALLTOWN.com WS#1716

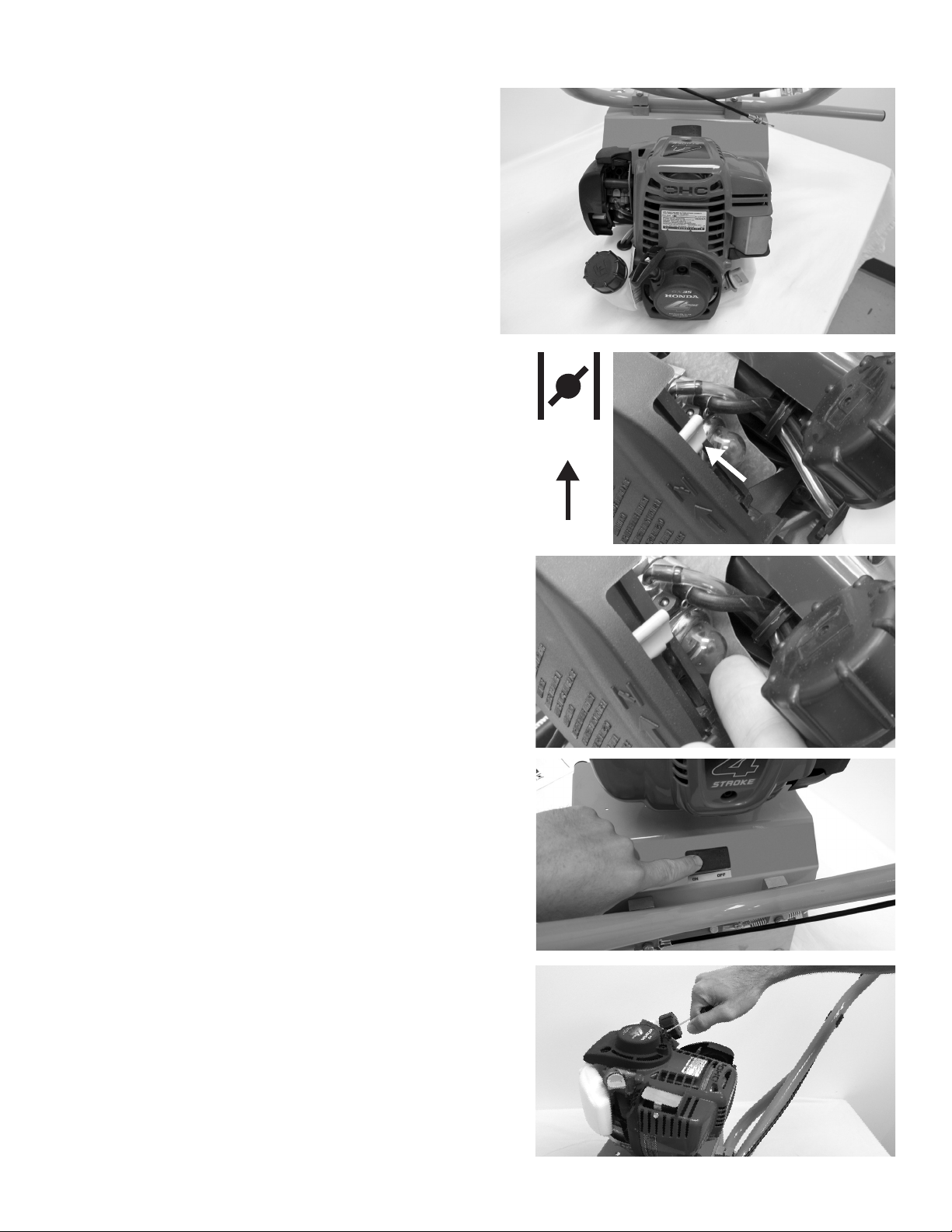

INSTALLING THROTTLE CABLE
Step 1 – Remove carburetor cover by pressing clips.
Step 4 – Attach the throttle lever to the handle, as
shown above.
Step 3 – Fasten the throttle cable as shown. Make sure
there is a nut on each side of plastic fitting. Make sure
the cable does not work itself out of the plastic fitting
while tightening.
Step 2 – The throttle has a rotating silver peg (A) with a
slot on one side of it. One end of the throttle cable has a
metal barrel (B) that fits into this slot. Insert barrel into
the slot so when the throttle cable is pulled, it will pull the
throttle open (toward the base plate of the screed).
B
A

7 of 16
104 S. 8th Ave. Marshalltown, IA Phone [phone] • Fax [phone] www.MARSHALLTOWN.comWS#1716
Step 7 – Secure throttle cable using clips, as shown
above.
Step 6 - Once cable is through throttle lever, return the
lever to the “idle” position shown above. Using pliers, pull
all extra slack out of the cable, making sure you are not
actually opening the throttle at the carburetor. Once all
slack is removed, tighten locking screw.
Note – the plastic housing of the throttle cable will fit up
into the throttle cable housing.
Step 5 – Thread the exposed metal end of the throttle
cable into the throttle lever. The lever will need to be
“opened” to expose the hole it fits into. Back out the set
screw to allow the cable to pass through.
INSTALLING THROTTLE CABLE

8 of 16 104 S. 8th Ave. Marshalltown, IA Phone [phone] • Fax [phone] www.MARSHALLTOWN.com WS#1716
MACHINE ADJUSTMENTS

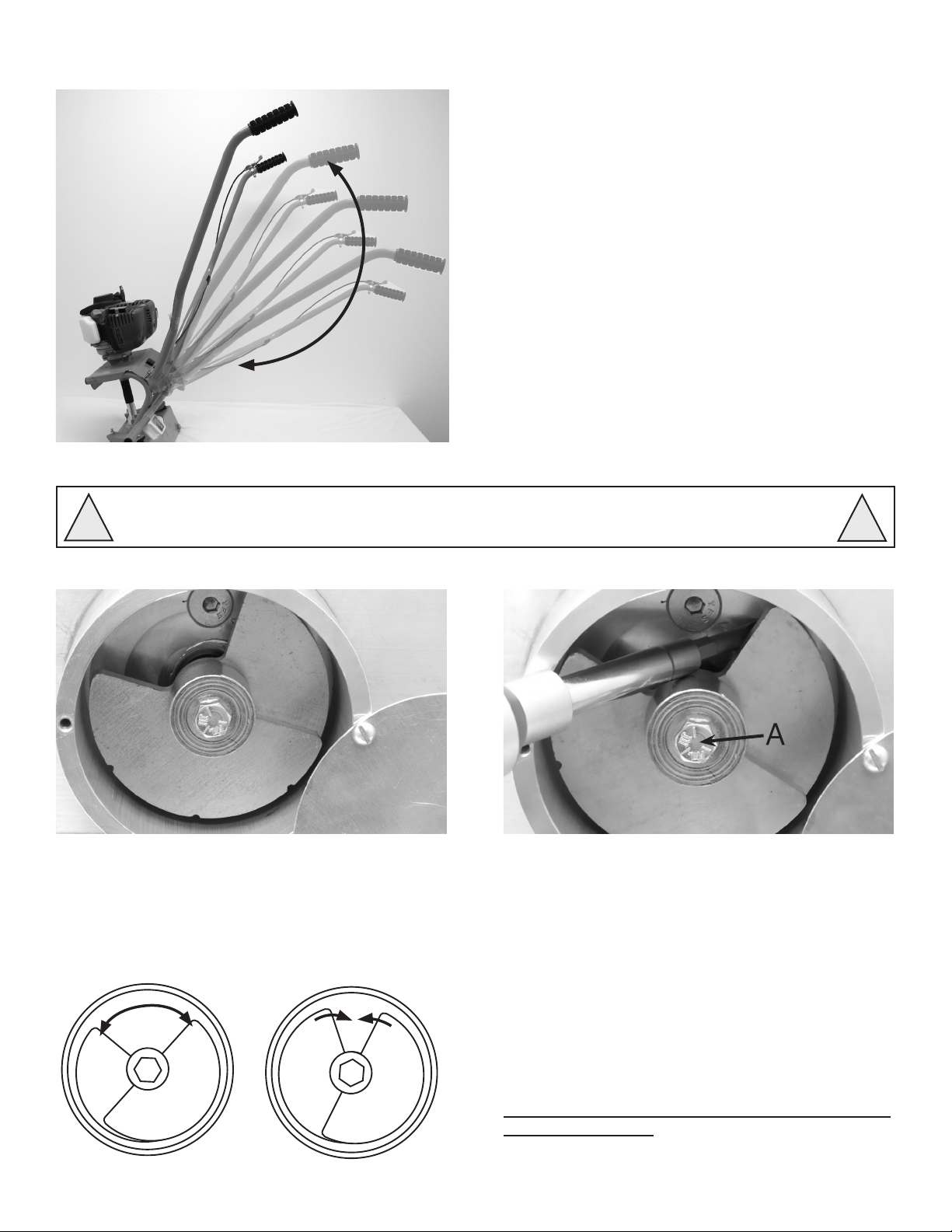

ECCENTRIC WEIGHTS
Using a slotted screwdriver remove the eccentric cover.
Using a 7/16" socket, loosen the eccentric weight tight-
ening bolt (A). You will need to wedge a screwdriver
against the weight to keep it from turning while loosening
bolt.
DECREASEINCREASE Increase vibration, increase the gap between the
weights by spreading them apart.
Decrease vibration, decrease the gap between the
weights. If imbalance is increased then use less engine
RPM.
Note: Always check and retighten the eccentric weights
every 10 hours of use.
CAUTION
Always make sure engine is stopped with switch in "OFF" position before making adjustments.
!!
ECCENTRIC WEIGHTS
The factory weight setting will provide sufficient board
vibration for most jobs. For jobs where low slump or
dry concrete is being poured, the weight can easily be
adjusted to allow for more vibration at lower RPM.
HANDLES
Your Speed Striker™ screed handle can be adjusted for a
customized fit.
The height of the handle can be adjusted right below the
motor.
ADJUSTABLE

9 of 16
104 S. 8th Ave. Marshalltown, IA Phone [phone] • Fax [phone] www.MARSHALLTOWN.comWS#1716
Check and retighten eccentric weights Every 10 hours or every month
Check oil level Before each use
Change engine oil First month or 10 hrs. - 6 mo. or 50 hrs after
Check fuel level Before each use
Inspect air filter Before each use
Replace air filter Every 25 hours or every 3 months
Spark plug - check and adjust Every 100 hours or 1 year
Spark plug - replace Every 300 hours or 2 years
Cooling fins Every 50 hours
Electronic Connections Before each use
Check Nuts and bolts Before each use
Replace nuts and bolts As necessary
Model Number STRIKE45-L
Drive System Flexible Shaft
Weight 28.5 lbs. (12.9 kg)
Blade Lengths 4, 6, 8, 10, 12, 14, 16'
1.2, 1.8, 2.4, 3, 3.7, 4.3, 4.9M
Blade Weight 1.85 Lb./ft. 2.75(kg/m)
Engine Type 4-stroke, overhead cam, single cylinder
Engine Make Honda
Engine Model GX35
Engine Horsepower 1.3 hp (1.0kW) @ 7,000 rpm
Engine Displacement 2.18 cu-in (35.8cm3)
Spark Plug CM5H (NGK)
CMR5H (NGK)
Spark Plug Gap 0.60 - 0.70mm
(0.024 - 0.028 in)
Engine Speed - idle 3,100 ± 200 rpm
Oil Type - Engine SAE 10W-30 (refer to engine manual)
Oil Capacity - Engine 0.11 qt (3.5 oz., 0.10 L)
Fuel Type Pump octane rating 86 or higher (refer to engine manual)
Fuel Tank Capacity 0.166 US gal (0.63 L)
TECHNICAL DATA/CAPACITIES
CAUTION
Your Speed StrikerTM ships with a pre-measured bottle of oil (3.5 oz).
Do not at anytime have more than 3.5 oz. of oil in the engine. Too much oil will foul
out the spark plug resulting in an engine that is hard to start and keep running.
! !
MAINTENANCE

10 of 16 104 S. 8th Ave. Marshalltown, IA Phone [phone] • Fax [phone] www.MARSHALLTOWN.com WS#1716
PARTS BREAKDOWN
BLADE SIZES
EDI PART # SIZE-FT. SIZE-M
13336 SWSBLADE4 4 1.2
13281 SWSBLADE6 6 1.8
13283 SWSBLADE8 8 2.4
13284 SWSBLADE10 10 3.0
13287 SWSBLADE12 12 3.7
13290 SWSBLADE14 14 4.3
13291 SWSBLADE16 16 4.9
12950 SWSBLADE16P2 16 (2 sets of mounting holes) 4.9
DET. QTY. DESCRIPTION
1 1 HONDA MOTOR
2 4 VIBRATORY SCREED HANDLEBAR CLAMP
3 1 HANDLEBAR ASSEMBLY
4 1 BASE EXTRUSION
5 2 BLADE SPACER
6 1 KILL SWITCH
7 4 VIBRATION ISOLATOR
8 1 MAIN IMBALANCE
9 1 ADJUSTABLE IMBALANCE
10 1 ECCENTRIC SHAFT
11 1 BUSHING ECCENTRIC SHAFT
12 1 WEIGHT ADJUSTMENT TIGHTENING CAP
13 1 LOWER BEARING HOUSING
14 1 COUPLING DRIVE SHAFT
15 1 CENTRIFUGAL CLUTCH
16 1 FLEX SHAFT
19 2 BLADE ATTACHMENT NUT
20 1 BLADE
21 1 KICKSTAND END
22 1 KICKSTAND ARM
23 2 KICKSTAND EYEBOLT
24 1 KICKSTAND END CAP
25 1 EXTENSION SPRING
26 1 FRAME
27 1 ECCENTRIC COVER
28 1 ECCENTRIC COVER CAP
29 3 DRIVETRAIN BASE MOUNTING SCREW
30 1 ECCENTRIC WEIGHT JAM NUT
31 1 ECCENTRIC TIGHTENING CAP BOLT
32 2 BLADE ATTACHMENT WASHER
33 4 ECCENTRIC COVER MOUNTING SCREW
34 4 ECCENTRIC CAP SCREW
35 8 VIBRATION ISOLATOR NUT
36 4 WELD NUT FOR HANDLEBAR CLAMPS
37 1 EYEBOLT NUT
38 1 EYEBOLT WASHER
39 8 VIBRATION ISOLATOR WASHER
40 2 BLADE ATTACHMENT LOCK WASHER
41 2 BLADE ATTACHMENT BOLT
42 2 KICKSTAND NUT
43 6 KICKSTAND BOLT
44 1 REPLACEMENT DRIVESHAFT CORE (NOT PICTURED)
45 1 THROTTLE LEVER ( FRICTION STYLE)
46 4 ENGINE MOUNTING BOLTS
47 2 HANDLEBAR GRIPS
48 1 THROTTLE CABLE (NOT PICTURED)
49 1 KILL SWITCH WIRING (NOT PICTURED)
REPLACEMENT PARTS INDEX
EDI PART # DESCRIPTION DETAILS INCLUDED
13308 13308 HANDLES WITH GRIPS 17, 18, 47
13309 13309 GRIPS 47
13310 ENG-HONDA HONDA ENGINE 1, 46
13312 13312 THROTTLE LEVER 45
13313 13313 THROTTLE CABLE 48
13314 13314 HANDLEBARS 3
13315 13315 HANDLEBAR CLAMPS W/HARDWARE 2, 43
13316 13316 HANDLEBAR CLAMP HARDWARE ONLY 43
13317 13317 ON/OFF SWITCH W/WIRES 6, 49
13318 13318 ON/OFF SWITCH WIRES 49
13320 13320 ECCENTRIC COVER W/HARDWARE 27, 28, 33, 34
13321 13321 KICKSTAND 21, 22, 23, 24, 25, 42, 43
13322 13322 KICKSTAND HARDWARE 23, 25, 42, 43
13323 13323 DRIVE TRAIN 10, 13, 14, 16, 29, 44
13324 13324 CLUTCH 15, 46
13325 13325 VIBRATION DAMPENING KIT 7, 35, 39
13330 13330 ECCENTRIC WEIGHTS & HARDWARE 8, 9, 11, 12, 30, 31
13331 13331 ECCENTRIC WEIGHT HARDWARE ONLY 11, 12, 30, 31
13332 13332 MACHINE BASE 4
13333 13333 BLADE LOCKING HARDWARE 19, 32, 40, 41
13334 13334 DRIVE SHAFT 44
13335 13335 DRIVE SHAFT HOUSING 10, 13, 14, 16
12951 12951 FRAME ONLY 26
12952 12952 ECCENTRIC COVER HARDWARE ONLY 33, 34

11 of 16
104 S. 8th Ave. Marshalltown, IA Phone [phone] • Fax [phone] www.MARSHALLTOWN.comWS#1716
PARTS BREAKDOWN
7
4
32
40
19
29
39
35
8
11
9
30
12
31
27
28
34
5
33
37
38
42
43
23
21
47
3
1
15
46
16
14
13
26
6
2
43
22
24
41
32
20
26
42
26
23
43
10
36
45
39
35
25

12 of 16 104 S. 8th Ave. Marshalltown, IA Phone [phone] • Fax [phone] www.MARSHALLTOWN.com WS#1716
HOW TO WET SCREED
SETTING ELEVATION OF SLAB
• Use grade pins (A) to set height of slab in the middle of
the pour.
• Chalk line or expansion joint sets elevation around walls.
• Form boards set elevation where there are no walls.
Blade Length
12-18 inches
A A
A A
12" - 18"
A A
A A
AA
AA
C
B
B
B
B

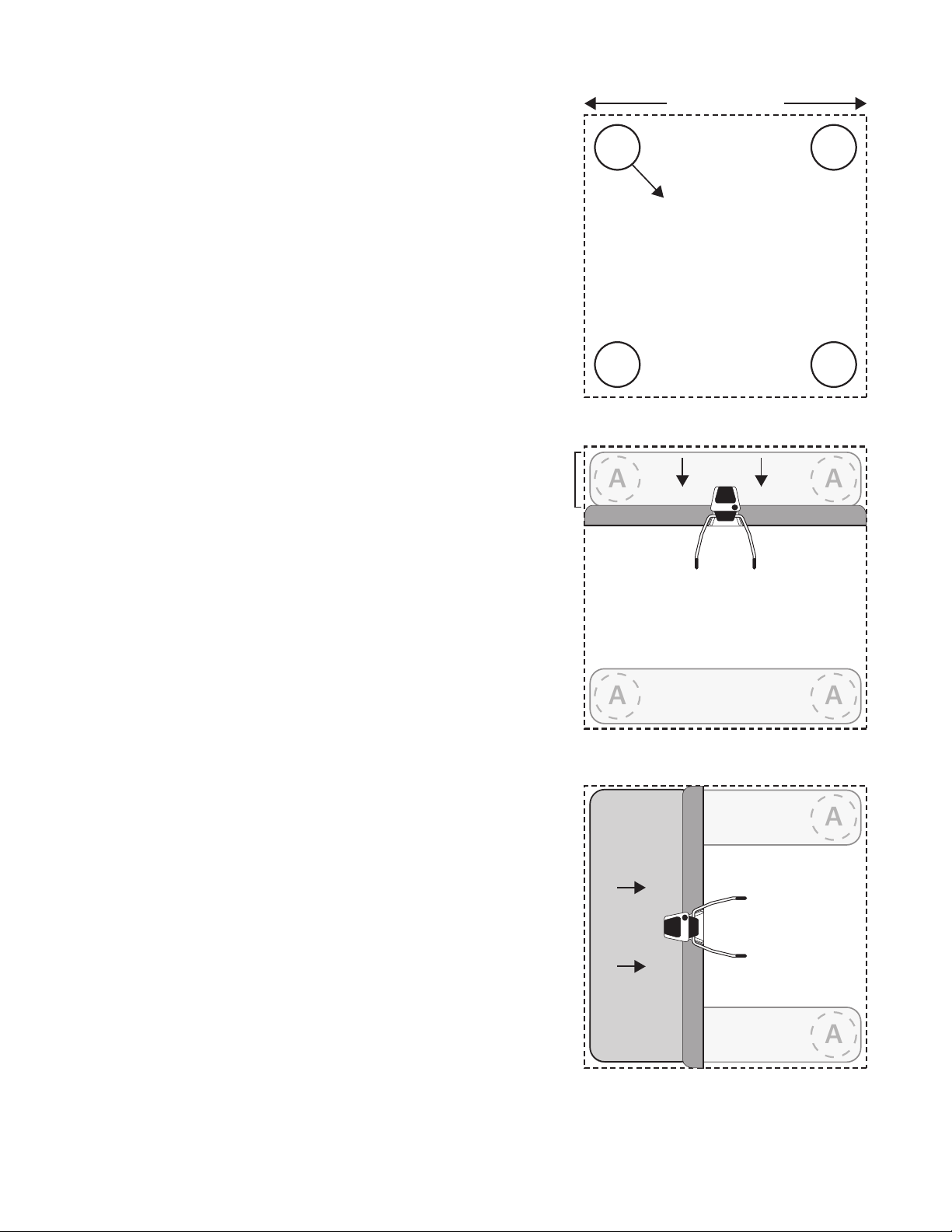

MAKING WET PADS
1. Using hand float, make wet pads around all grade pins (A).
NOTE: Make sure all wet pad distances are shorter than
the length of blade being used.
2. Use blade to stretch from wet pad to wet pad
forming rows (B).
3. Once rows are formed, run screed blade off of the two
rows leveling the previously untouched concrete (C) in
between.
NOTE: Height of concrete in area (C) must be slightly
higher than wet pad rows (B) prior to striking off.
Once floated, wet pads (B) and concrete (C) will all be
the same height.
1
2
3

13 of 16
104 S. 8th Ave. Marshalltown, IA Phone [phone] • Fax [phone] www.MARSHALLTOWN.comWS#1716

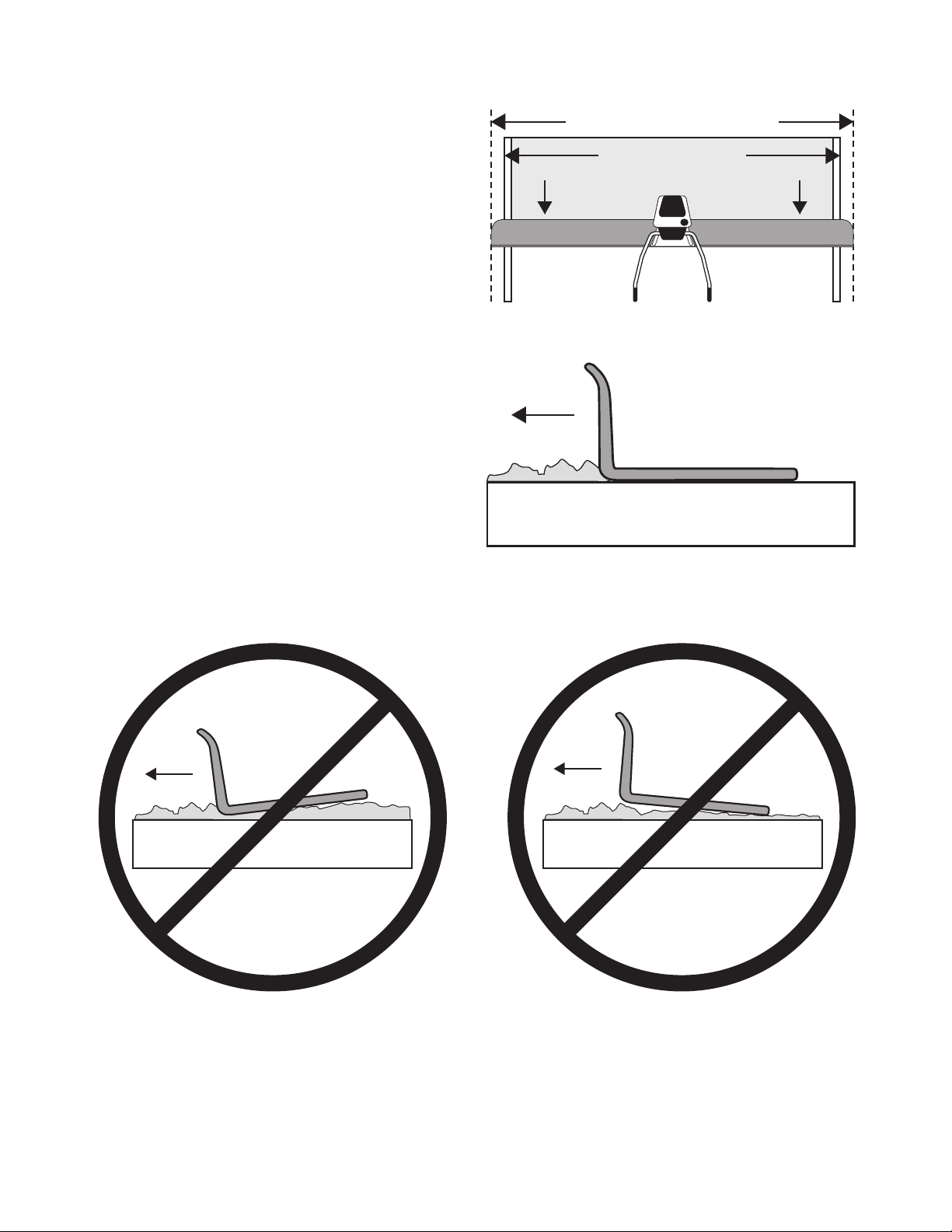

HOW TO SCREED FORM TO FORM
Length of blade should overlap form boards on both
sides of the pour.
Keep bottom of blade as flat as possible while striking
off of forms.
To ensure the longest possible blade life, use the
lowest possible vibration setting in relationship to the
slump of concrete being used.
Width of Screed Blade
Width of Form
Form Board
ELEVATED
TRAILING EDGE
Form Board
ELEVATED
LEADING EDGE
KEEP SCREED BLADE FLAT
Form Board
An elevated trailing edge may provide an area for
concrete to build up resulting in a slab elevation that
is too high.
An elevated leading edge can trap rocks between the
blade and forms resulting in a slab elevation that is too
high.

14 of 16 104 S. 8th Ave. Marshalltown, IA Phone [phone] • Fax [phone] www.MARSHALLTOWN.com WS#1716
HOW TO OPERATE
FUEL AND OIL
Make sure gas tank has plenty of 86 octane or higher gasoline.
Your 4 stroke Honda engine uses straight gasoline, NEVER
USE A GAS/OIL MIX. Empty entire bottle of provided Honda
engine oil into crank case. The maximum oil capacity is 3.5 oz.
NEVER OVERFILL.
STARTING
1. On a cold engine, move choke lever to CLOSED
position. To restart a warm engine leave choke in
OPEN position
2. Press priming bulb repeatedly until fuel can be
seen in the clear-plastic fuel-return tube.
3. Press On/Off Switch to the On Position.
4. Pull the starter grip lightly until you feel resistance,
then pull briskly. Repeat until engine starts.
5. If the choke lever was moved to the CLOSED
position to start the engine, gradually move it to
the OPEN position as the engine warms up.
RESTARTING A WARM ENGINE
1. Leave the choke lever in the OPEN position.
2. If there is no fuel in the clear-plastic fuel-return
tube, press priming bulb repeatedly
until fuel can be seen in the tube.
3. Press On/Off Switch to the On Position
4. Pull the starter grip lightly until you feel resistance,
then pull briskly. Repeat until engine starts.
CLOSED
OPEN
1
2
3
4

15 of 16
104 S. 8th Ave. Marshalltown, IA Phone [phone] • Fax [phone] www.MARSHALLTOWN.comWS#1716
Once the engine is warm and running by itself with the choke OPEN you can begin screeding concrete.
For specific instructions on Wet Screeding and Form to Form screeding please see pages 12 and 13.
1. Begin by placing concrete within your forms slightly higher than the forms themselves.
2. Place screed on top of concrete and start engine.
3. Increase engine RPM until the clutch engages causing the screed to vibrate.
4. Walking backwards, begin screeding concrete (see page 12 for Wet Screeding or Page 13 for Form to Form screeding).
5. Your throttle lever does not require constant contact, but you can adjust RPM and vibration to accommodate wet or
dry concrete. Dry or low slump concrete may require more vibration to level and screed.
6. Continue moving backwards while keeping concrete placed in front of the blade. The roll back feature of the blade will
keep help keep concrete from sliding over the blade. Concrete placed too high may slide over the board! This could
make the screed too hard to pull and result in a slab that is out of level.
OPERATING ON WET CONCRETE
DO NOT OVER VIBRATE CONCRETE
The following are signs of too much vibration:
!!
• Excessive concrete splatter
• Blade sinking below wet pads
• Ripple or “wake marks” following the blade
• Concrete easily sliding underneath form boards causing dips along the form edge
Always remember, the less vibration the better. Use only enough vibration to be able to
comfortably pull screed backwards, leaving a smooth, level surface.

104 S. 8th Ave., Marshalltown, IA
Phone [phone]
Fax [phone]
www.MARSHALLTOWN.com
WS#1716

SPEED STRIKERTM LA ENRASADORA MOTORIZADA
PIEZA#STRIKE45-L | EDI#28166
104 S. 8th Ave. | Marshalltown, IA
Teléfono 800-888-0127 / 641-753-0127 | Fax [phone]
www.MARSHALLTOWN.com
WS#1716

2 de 16 WS#1716104 S. 8th Ave. Marshalltown, IA Teléfono 800-888-0127 / 641-753-0127 • Fax [phone] www.MARSHALLTOWN.com
CONTENIDO
Precauciones de Seguridad.......................................................................................................................................................................... 2
Garantía.............................................................................................................................................................................................................3
Componentes Comunes................................................................................................................................................................................4
Instalación de la BARRA de las manijas y de la barra de apoyo .............................................................................................................5
Instalación de la hoja ......................................................................................................................................................................................5
Instalación del cable del acelerador.........................................................................................................................................................6-7
Ajustes de la máquina ....................................................................................................................................................................................8
Datos y características técnicos..................................................................................................................................................................9
Mantenimiento.................................................................................................................................................................................................9
Descripción de las piezas .......................................................................................................................................................................10-11
Cómo apisonar en húmedo......................................................................................................................................................................... 12
Cómo apisonar de encofrado a encofrado .............................................................................................................................................. 13
Operación ....................................................................................................................................................................................................... 14
Operación en concreto húmedo ................................................................................................................................................................ 15
Este equipo fue construido pensando en la seguridad del usuario; sin embargo, puede haber riesgos si se opera o se le
da servicio inadecuadamente. Siga detenidamente las instrucciones de operación ¡y use su buen juicio al operar la unidad!
Si tiene preguntas acerca de la operación o servicio de este equipo, comuníquese con su distribuidor Marshalltown o con
Marshalltown Company al teléfono 800-888-0127 o al 641-753-0127.
SIEMPRE
• Siempre apague el motor entre cargas de concreto
• Siempre distribuya el concreto caminando hacia atrás
• Siempre marque claramente y manténgase alerta a la estacas de nivel,
estacas de encofrado y otros riesgos de tropezones
• Siempre obedezca todas las advertencias y etiquetas de seguridad del
fabricante del motor
• Siempre lea y entienda el manual del propietario proporcionado por el
fabricante del motor
• Siempre use protectores auditivos, oculares y respiratorios apropiados
• Siempre use aceite de moldes para recubrir la hoja u otras piezas
susceptibles a la acumulación de concreto (evitando las conexiones
eléctricas) antes de cada uso
• Siempre fije adecuadamente el vibrador antes de transportarlo
• Siempre siga los programas de mantenimiento recomendados
• Siempre asegúrese de que todas las conexiones y sujetadores estén
firmes antes de cada uso
• Siempre asegúrese de que el motor esté apagado cuandohaga el
servicio o cuando no lo use
• Siempre use el vibrador en un área bien ventilada
• Siempre mantenga el manual del vibrador Speed Striker™ y el del motor
a la mano en el sitio de trabajo
• Siempre reemplace las piezas tan pronto como se dañen o desgasten
NUNCA
• Nunca opere el vibrador cuando le falten partes o no tenga
las cubiertas de seguridad correctamente instaladas
• Nunca permita que los niños operen la unidad
• Nunca opere la unidad bajo la influencia de drogas o alcohol
• Nunca use el vibrador para nada que no sea su uso indicado
• Nunca coloque pesos excéntricos donde ocurra vibración excesiva a
bajas RPM (pesos demasiado separados)
• Nunca coloque pesos excéntricos en áreas en las que se requieren RPM
excesivas para que los pesos vibren (pesos demasiado cerca)
• Nunca permita que el motor funcione desatendido o a marcha en vacío
sobre concreto húmedo.
• Nunca coloque el concreto más arriba del “borde rizado” frontal
de la hoja
• Nunca llene el tanque de gasolina con el motor funcionando
• Nunca arranque el motor cerca de derrames de combustible
• Nunca llene el tanque de gasolina, no opere ni dé servicio al vibrador
cerca de llamas expuestas
• Nunca use piezas ni hojas de otros fabricantes
• Nunca dé servicio a un motor caliente
• Nunca opere la unidad si no tiene la capacitación adecuada
• Nunca rocié agua o líquidos sobre un motor caliente
• Los letreros de seguridad de PELIGRO o ADVERTENCIA se encuentran ubicados cerca
de riesgos específicos.
• Las medidas de seguridad generales se enumeran en los letreros de seguridad de
PRECAUCIÓN.

3 de 16
WS#1716 104 S. 8th Ave. Marshalltown, IA Teléfono 800-888-0127 / 641-753-0127 • Fax [phone] www.MARSHALLTOWN.com
GARANTÍA
Marshalltown Company (la Compañía) garantiza que por un periodo de doce (12) meses a partir de la fecha de compra,
reemplazará o reparará gratuitamente, sólo al comprador minorista original, todas las piezas o partes fabricadas por la
Compañía que, al ser examinadas por la Compañía o sus representantes asignados, se determine que tienen defectos en
los materiales, la mano de obra o ambos. Todos los cargos de transportación de las piezas enviadas para su reemplazo o
reparación bajo esta garantía deberán ser pagados por el comprador minorista original. Éste es el recurso exclusivo bajo
esta garantía.
Si el comprador minorista original no instala, mantiene y opera dicho equipo de acuerdo con las buenas prácticas en la
industria, o si no sigue las recomendaciones específicas de la Compañía indicadas en el manual del propietario, esta garantía
se anulará e invalidará. La Compañía no será responsable de ninguna reparación, reemplazo o ajuste del equipo, ni de ningún
costo por la mano de obra que realice el comprador sin la aprobación por escrito previa de la Compañía. Los efectos de la
corrosión, erosión y desgaste normal se excluyen específicamente de esta garantía.
LA COMPAÑÍA NO HACE NINGUNA OTRA GARANTÍA NI DECLARACIÓN DE ABSOLUTAMENTE OTRA CLASE, EXPRESA O
IMPLÍCITA, SALVO LA ANTERIOR. POR MEDIO DE LA PRESENTE SE RENUNCIA A TODAS LAS GARANTÍAS IMPLÍCITAS,
INCLUSO CUALQUIER GARANTÍA DE COMERCIALIZACIÓN E IDONEIDAD PARA UN PROPÓSITO PARTICULAR. SE EXCLUYE
LA RESPONSABILIDAD POR DAÑOS INCIDENTALES Y RESULTANTES BAJO CUALQUIERA Y TODAS LAS GARANTÍAS,
OTROS CONTRATOS, NEGLIGENCIA Y OTROS PERJUICIOS, EN LA MEDIDA QUE TAL EXCLUSIÓN DE LA EXTENSIÓN SEA
PERMITIDA POR LA LEY.
No obstante lo antedicho, cualquier reclamación legal contra la Compañía será desestimada si la acción legal sobre la misma
no comienza en un plazo de veinticuatro (24) meses a partir de la fecha de compra o de la entrega, lo que ocurra después.
Esta garantía constituye todo el acuerdo entre la Compañía y el comprador minorista original, y ningún representante o
agente tiene autoridad para alterar los términos de la misma sin el consentimiento expreso por escrito de la Compañía.

4 de 16 WS#1716104 S. 8th Ave. Marshalltown, IA Teléfono 800-888-0127 / 641-753-0127 • Fax [phone] www.MARSHALLTOWN.com
2
14
4
3
5
17
6
8
9
10
11 13
15
16
1
7
12
REF # DESCRIPCIÓN REF  DESCRIPCIÓN
1 INTERRUPTOR DE ARRANQUE Y PARADA 10 EJE DEL IMPULSOR
2MOTOR 11 AMORTIGUADORES DE VIBRACIÓN
3 ARRANQUE MANUAL 12 HOJA
4 TAPÓN DEL DEPÓSITO DE ACEITE 13 CUBIERTA DE LOS PESOS EXCÉNTRICOS
5 TAPÓN DEL DEPÓSITO DE GASOLINA 14 BASTIDOR
6PALANCA DEL ACELERADOR 15 PLACA UNIVERSAL DE MONTAJE
7
BLOQUES DE MONTAJE DE LA BARRA DE LAS MANIJAS  CABLE DEL ACELERADOR
8 BARRA DE LAS MANIJAS 17 FILTRO DE AIRE
9BARRA DE APOYO
COMPONENTES COMUNES
