Martin Yale Industries 62001 User manual

R
Model 62001
Model 62002 (230V)
High Speed
Letter Opener
Specifications
Functional
Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Up to 17,500 per Hour
Maximum Envelope Thickness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1/4”
Slitting Depth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Adjustable
Load Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6”
Physical
Dimensions . . . . . . . . . .12-1/4” H x 21-1/4” W x 14 3/4” D (machine only)
Machine Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . .34 lbs. (machine only)
Electrical
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . .Model 62001 115 VAC, 1.3 Amp
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Model 62002 230 VAC
Introduction
Thank you for selecting the Martin Yale Model 62001 High Speed Letter Opener. The Model
62001 is an automatic letter opener capable of processing up to 17,500 mixed envelopes per
hour and makes it possible to handle large volumes of different sized envelopes without pre-
sorting. Please review this manual in its entirety before attempting to operate your Model
62001. Thorough understanding of this information will help eliminate most operator-associat-
ed errors and ensure years of trouble-free performance.
WARNING: Keep hands clear of moving belts.
WARNING: Never connect power to the opener until you are ready to set up and oper-
ate your Model 62001. This machine contains moving parts. During setup, operation,
and maintenance keep hands, hair, loose clothing, and jewelry away from all moving
parts. Serious bodily injury could result. Service, or disassembly of covers should only
be attempted with the power disconnected and locked out.

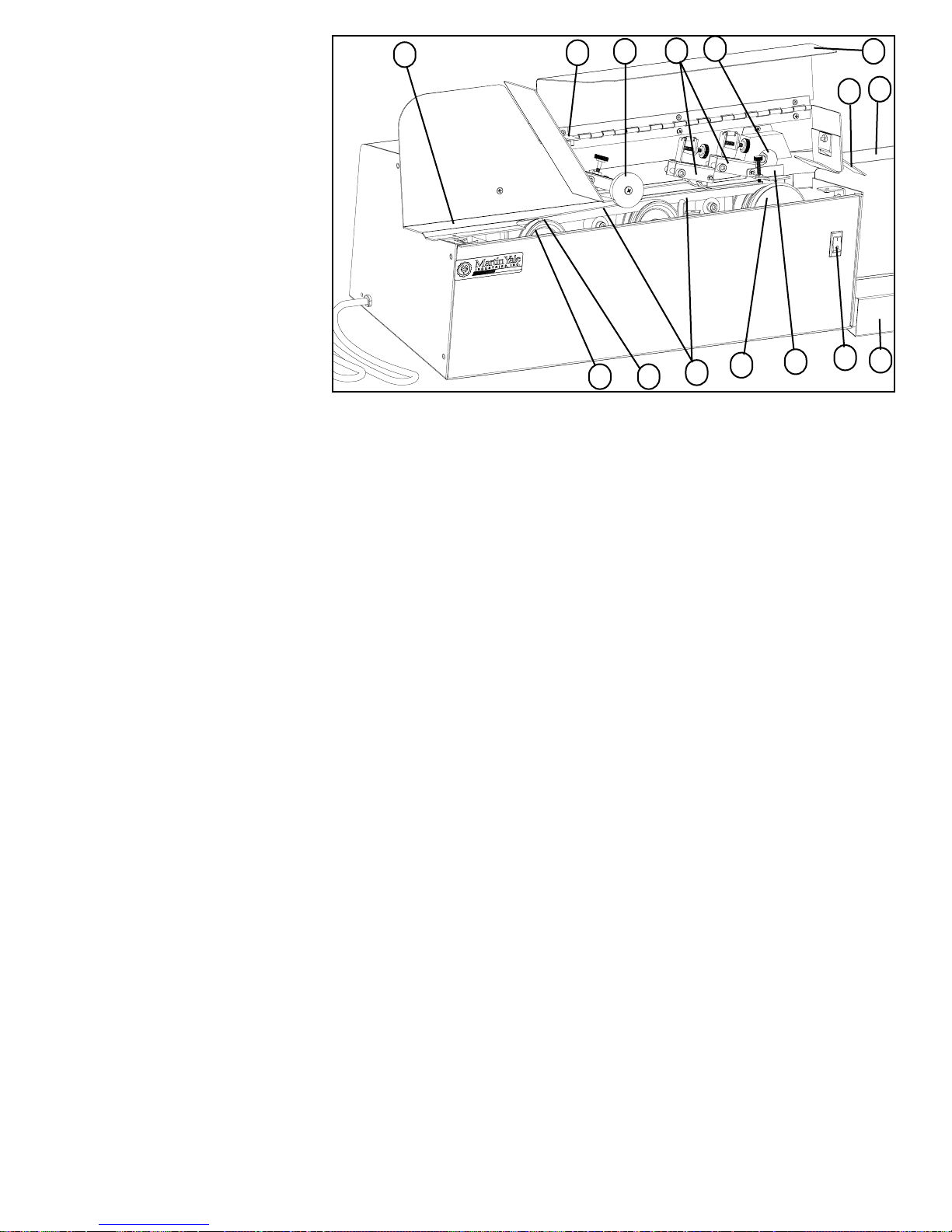

Figure 1
1.0 Parts
A. Feed Deck
B. Safety Interlock
C. Holdback Wheel
D. Ski Assembly
E. Blade Assembly
F. Front Cover Assembly
G. Plate Deflector
H. Scrap Bin
I. Catcher Base
J. Power Switch
K. Pressure Plate
L. Ejector Wheel
M. Feed Belt
N. Eccentric Pulley Assembly
O. Pulley Flange
2.0 Unpacking
Carefully unpack the letter opener. Place all packing materials back in the shipping box
and store the box for any future shipment of the letter opener. Inspect the letter opener and all
accessories for shipping damage. If any damage is found, contact the carrier immediately.
ATTENTION: For equipment that plugs in, the socket/outlet shall be installed near the
equipment and shall be readily accessible.
3.0 Features
The Martin Yale Model 62001 High Speed Letter Opener is a precision-engineered mail
handling machine embodying unique design features that make it possible to handle large vol-
umes of different sized envelopes without pre-sorting.
Before operating the Model 62001, please look over the machine to familiarize yourself
with these design features and how they function.
2
A
BC D E F
G
L
H
I
J
K
M
N
O

3.1 Feed Mechanism
An exclusive feed design mechanism feeds many different size envelopes with-
out pre-sorting and is virtually jam proof.
* Note the twin spiral feed belts (M, see Fig. 1). Their spiral counterclockwise action
shunts envelopes against the back plate for precision slitting. Note that the belt at left
is angled more sharply. This “pre-feeds” envelopes to the belt at right.
* The transporter wheel (not shown), another Model 62001 feature, acts as a further
assurance that out-size pieces will be shuttled inward on the front deck (Fig. 2).
* The holdback wheel (C) prevents jamming at the loading end. Since it is spring
loaded, the bulkier the envelope, the greater the pressure exerted by the holdback
wheel. This effectively prevents entry of more than one piece of mail at a time.
The combined action of these interrelated parts eliminates many of the problems
associated with conventional mail opening machines and explains why the Model 62001
can deliver a high speed capacity of 17,500 mixed envelopes per hour.
3.2 Ski Assembly
The ski assembly (D) guides envelopes straight into the blade assembly (E).
Front and back adjustments are factory set to apply correct pressure to letters of vary-
ing size. (NOTE: Should adjustment become necessary, loosen the locking nut and
adjust the black thumbscrew accordingly. Retighten the locking nut).
3.3 Blade Assembly
Self-sharpening blades made of precision steel (E) cut a measured strip from
each envelope, whether fed face-up or face-down. The control knob at right (see Fig. 2)
adjusts the blade and permits the operator to vary the width of cut from wide to fine.
3.4 Ejection Assembly
The ejector wheel (L) pulls the envelopes out into the catcher base (I). The pres-
sure plate directly above it (K) keeps the envelope in position for accurate ejection. The
plate deflector (G) angles pieces downward into the catcher base.
3.5 Catcher Base
The catcher base (I) receives all opened envelopes as they leave the blade and
ejection assemblies. A separate light-weight scrap bin (H) keeps scrap separate from
opened envelopes for easier disposal.
3.6 Split Deck
Interiors of most mail opening machines are inaccessible without the removal of
the entire operating assembly. The Model 62001 has a unique split deck feature which
solves that problem. The deck is split lengthwise into two halves, front (see Fig. 2) and
rear. The front half is removable, making cleaning, inspection and repair of the interior
of the letter opener easier.
3.7 Eccentric Pulley Assembly
3

The eccentric pulley assembly has the effect of separating the individual
envelopes so that only one envelope is fed at a time. You will note the pulley (N)
bounces up and down when the unit is in operation. This is normal.
3.8 Safety Interlock
The tab of the safety interlock (B) is released whenever the front cover assembly
(F) is lifted. Power is automatically cut which shuts off the machine so that the operator
never comes in contact with moving parts.
3.9 Automatic Resetting Thermal Motor Protection
In the unlikely event of a jam or other machine malfunction, the motor may auto-
matically shut down due to overheating. The thermal breaker will then self reset after the
motor cools to normal operating temperature. Caution: The machine may start run-
ning unexpectedly when an overheated motor cools to normal operating temper-
ature.
3.10 Self-sharpening Blades
The blades are precision ground of high carbon steel. As noted, they adjust for
width of cut and are self-sharpening. Note: Self-sharpening action is continuous
whenever mail is not going through the opener and will cause a whirring noise.
This is normal.
4.0 Installation and Set-up
4.1 Installation
Place the Model 62001 on a flat, level surface where it will be used. Make sure
ample space is provided for the catcher base. The cooling slots on the machine back
should be unobstructed. The socket-outlet shall be installed near the equipment and
shall be easily accessible.
4.2 Attach the plate deflector
This is a one-time only instal-
lation. Look for the plastic packet
inside the shipping carton. It con-
tains the nickel-plated plate deflector
and screw. Simply attach outside at
point as shown. (See Fig. 2)
4.3 Align the Catcher Base
The catcher base simply sits
on the exit side of the folder in a posi-
tion to catch processed envelopes as they are ejected from the machine (See Fig. 1 for
placement). The scrap bin lies in the narrow recess of the catcher base. The entire
assembly then is aligned so that the inside front wall of the scrap bin butts against the
front edge of the protruding lip of the scrap chute (See Fig. 2).

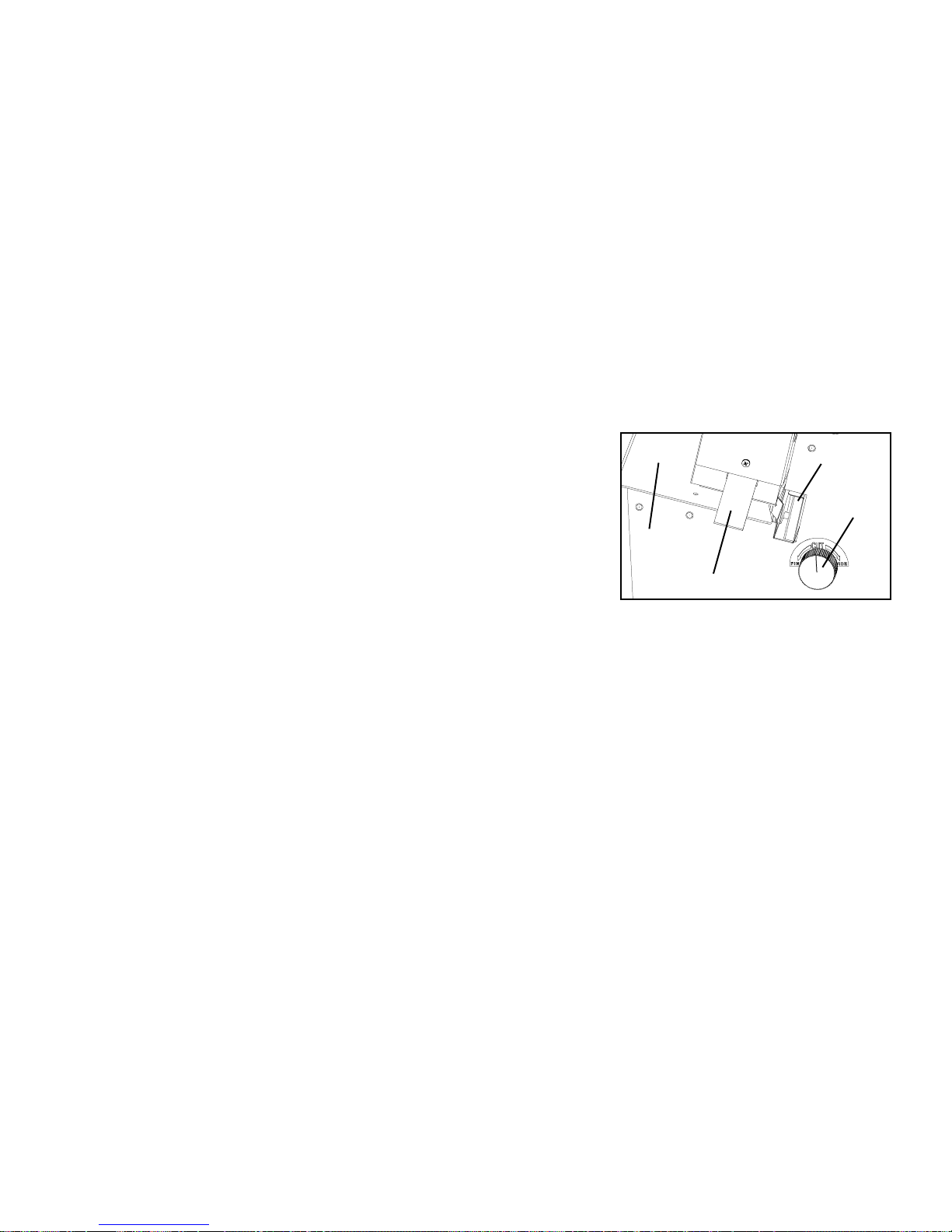

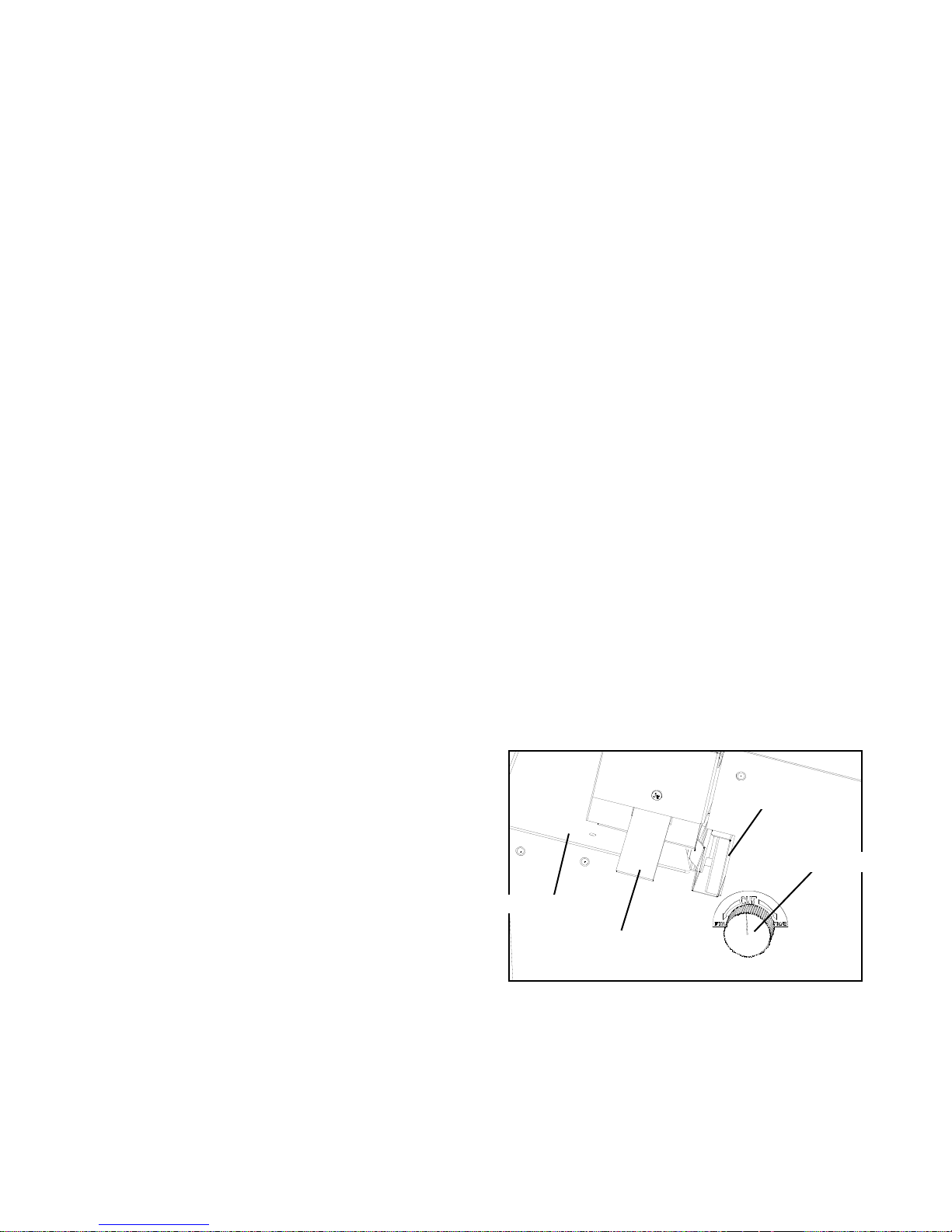

Figure 2
4
Control Knob
Front Deck
Scrap Chute
Plate
Deflector

5.0 Operation
5.1 Machine Preparation
Check the control knob (Fig.2) for width of cut desired, from wide to fine. The cut
should be deep enough to open envelopes cleanly but fine enough to insure that the
blade does not come into contact with contents such as checks and money orders, etc.,
nor coins, staples and paper clips. Make sure the Model 62001 is ‘OFF’ as indicated by
the ‘O’ on the power switch. Plug the machine into an appropriate power outlet.
5.2 Mail Preparation
Using a table or other flat surface, hand jog (tamp while holding the mail loosely)
a handful of mail (not more than a 3” high stack) so contents move to the bottom of the
envelopes. Lightly fan stack to insure that envelopes are separated. NOTE: Some
types of envelopes may open easier on the bottom edge rather than the top. In
that case, jog the envelopes so that the contents move to the top. Smooth all curled
edges or torn flaps so the edge entering the Model 62001 is free of protruding surfaces
that could snag on machine parts. Remove and hand process any severely damaged
letters.
5.3 Mail Processing
1) Load prepared envelopes on the feed deck (A) at the left side of the machine
with the edge to be cut inward.
2) Turn the machine ‘ON’ by depressing the power switch at right (J). The Model
62001 will now feed and slit the loaded envelopes.
3) The opened envelopes should now start processing and stacking in the catch-
er base. Do not let the envelopes accumulate higher than 4 inches, as this
may cause a back jam.
4) Remove chads regularly by lifting out the scrap bin (H) and emptying.
6.0 Routine Maintenance
6.1 Housekeeping
Keep the Model 62001 clean. Smooth functioning of the Model 62001 requires
daily removal of accumulated scrap with a soft bristled brush. If scraps are stuck
between blades, remove these also. Be sure to check machine before each use for
signs of such accumulation. Periodically remove the front deck for inspection of interior.
6.1.1 Front Deck Removal
Before attempting to remove the front deck, make sure the letter
opener is turned ‘OFF’ and the machine is unplugged. Unscrew the two
Phillips head screws, one on the left and one on the right, and lift out the front
deck. Caution: Do NOT remove the screw in the center (near transporter
wheel). To reinstall, angle the front deck in and downward. Then, while lifting the
ski assembly (D), slide the front deck into position. Reinsert screws and tighten.
5

6.2 Feed belts
Approximately once for every twenty hours of machine operation, clean the feed
belts of the unit with soap and water. Turn the machine off and on repeatedly to make
sure that the entire lengths of the belts are cleaned.
6.3 Holdback wheel maintenance
The holdback wheel does not rotate; hence it will wear a flat spot over time. If this
occurs, simply loosen the center screw of the holdback wheel and rotate it to expose a
fresh surface.
6.4 Blade Maintenance
For each 40,000 pieces of mail processed, coat both the upper and lower blades
with a blade emollient such as Premier Brand Trim Ease Lubricant (Martin Yale
#MRS037046, available through your Martin Yale Dealer).
7.0 Troubleshooting
Several of the most commonly encountered problems are listed below along with the
most common causes and remedies.
6
7.1 Envelopes Jam
7.2 Feeding
Problems
7.3 Envelopes
Only Partially
Cut
7.4 Envelope
Contents Cut
Scrap build-up in ski assem-
bly and blade assembly area
Scrap bin filled beyond
capacity
Feed belts dirty
Holdback wheel worn
Envelope too thick
Transport Wheel not rotating
Ski Assembly misadjusted
Cut adjusted to wide
Envelopes not tamped
Clean as outlined in section 6.1
Clear scrap out of letter opener and
make sure the scrap bin is cleared regu-
larly during machine use
Clean as described in section 6.2
Turn holdback wheel as described in
section 6.3
Make sure letter thickness is no more
than 1/4”
Verify that transport wheel spins as the
opener runs
Make sure ski assembly moves freely,
and the springs are still attached to both
ends of it.
Set the cut width adjustment to a nar-
rower setting
Prepare mail as outlined in section 5.2
Problem Possible Cause Remedy

WHT.
BLK.
GRN.
WHT.
OFF-ON
BLACK
F
E
I
O
SWITCH
D
C
BROWN
BLACK MOTOR
DRIVE
G
RUN
CAPACITOR
MOTOR
INTERLOCK
SWITCH
BLACK
ORANGE
VIOLET
B
A
15MFD MOTOR CAP
SPST ROCKER SWITCH
1632 MICRO SWITCH
110V MOTOR 1501X AC
FUSE HOLDER
EM-S045231
M-S63601106
M-S021064
G
F5A FUSE
M-S033067
M-S033053
M-S045225
D
C
BM-S037020
A18/3 SV CORD
1
1
1
1
1
1
1
M-S021065
GCV7 AC MOTOR 220V
M-S045249
M-S037286
D
A6MF MOTOR CAP
EUROPEAN CORD SET.
1
1
1
Wiring Diagram Model 62001 (115 VAC) / 62002 (230 VAC) Letter Opener
7
7.5 Not Cutting or
Abnormal
Noise
7.6 Will Not Run
7.7 Motor Runs,
Belt Not
Rotating
Blades worn or lubrication
needed
Paper jam
Lid not closed
Power disconnected
Thermal breaker tripped
Fuse blown (non-resettable)
Electrical malfunction
Timing belt disconnected
from motor or belt broken
Lubricate blades or replace
Unplug opener and clear jam
Make sure front cover assembly is
closed
Try the opener in a known good outlet
Let the Model 62001 cool for at least 1/2
hour, then try again
Replace fuse
Call Martin Yale customer service
Connect or replace belt
Problem Possible Cause Remedy

R
251 Wedcor Avenue • Wabash, IN 46992
Phone: [phone] • FAX: [phone]
website: www.martinyale.com • email: [email protected]
MADE IN U.S.A.
M-S62000610 Rev. 4 1/13/06
8

Model 62002
(230V)
Vysokorychlostní
OtvíraþDopisĤ
Úvod
DČkujeme Vám, že jste si vybrali vysokorychlostní otvíraþdopisĤznaþky Martin Yale model 62002. Model 62002 je
automatický otvíraþdopisĤschopný otevĜít až 17.500 obálek za hodinu, který dovoluje zpracovat velký poþtu obálek
rĤzné velikosti bez pĜípravného tĜídČní. Seznamte se, prosím, s celým návodem na obsluhu ještČdĜíve, než uvedete
model 62002 do provozu. Pochopení obsažených informací Vám pomĤže pĜedejít vzniku vČtšiny chyb ve spojení
s obsluhou stroje a zaruþím Vám roky bezporuchového provozu.
VÝSTRAHA: Nikdy nepĜipojujte otvíraþdopisĤna elektrickou síĢ, dokud není model 62002 nastaven a pĜipraven
k provozu. Tento stroj zahrnuje pohyblivé þásti. BČhem nastavování, provozu a údržby nesahejte na žádnou
z pohybujících se þástí stroje a dbejte na to, aby nedošlo k zachycení vlasĤ, volného obleþení a doplĖkĤ. To by
mohlo zpĤsobit vážná zranČní. Údržbu nebo demontáž krytĤprovádČjte zásadnČna odpojeném a vypnutém
stroji.
Specifikace
Funkþní Vlastnosti
Rychlost ......................................................................až 17.500 za hodinu
Maximální TloušĢka Obálky............................................................. 6,3 mm
Hloubka NaĜíznutí..................................................................... nastavitelná
Kapacita ...................................................................................... 152,4 mm
Fyzikální Vlastnosti
RozmČry ......................311 mm výška x 540 mm šíĜka x 375 mm hloubka
(pouze stroj)
Hmotnost Stroje ..........................................................15,4 kg (pouze stroj)
Elektrické Vlastnosti
Elektrická Energie ................................................... 230 V, 50/60 Hz, 1,5 A
251 Wedcor Avenue • Wabash, IN 46992
website: www.martinyale.com •email: [e-mail]
MADE IN U.S.A.

2
2.0 Vybalení
OtvíraþdopisĤopatrnČvybalte. Uložte veškerý balicí materiál do pĜepravní bedny a uložte ji pro pĜípadnou budoucí lodní pĜepravu otvíraþe
dopisĤ. OtvíraþdopisĤa veškeré pĜíslušenství zkontrolujte na pĜepravní škody. Pokud odhalíte škody stroje, ihned se obraĢte na pĜepravce.
3.0 Charakteristika
Vysokorychlostní otvíraþdopisĤznaþky Martin Yale model 62002 je stroj pĜesného strojírenství na zpracování poštovních zásilek, který se
vyznaþuje jedineþnými konstrukþními vlastnostmi, které dovolují zpracování velkého množství obálek rĤzné velikosti bez pĜípravného tĜídČní.
PĜed uvedením modelu 62002 do provozu si stroj podrobnČprohlédnČte, abyste se seznámili s tČmito konstrukþními vlastnostmi a jejich funkcí.
3.1 Podávací mechanismu
Unikátní podávací mechanismus podává obálky rĤzné velikosti bez pĜípravného tĜídČní a je teoreticky odolný vĤþi ucpávání.
* VšimnČte si dvou spirálových podávacích pásĤ(M, viz obr. 1). Jejich spirálový pohyb proti smČru hodinových ruþiþek posunuje obálky proti
zadní desce a zajišĢuje tak pĜesné naĜíznutí. Pás vlevo má ostĜejší úhel. Díky tomu je podávání obálek na pás vpravo plynulé.
* Koleþko dopravníku (není vidČt) - jako další vlastnost modelu 62002 - pĤsobí jako další jištČní pohybu nadmČrných obálek smČrem k zadní
desce (obr. 2).
* PĜídržné koleþko (C) brání ucpávání na konci podávací desky. Protože je vybaveno pružinou, tak þím objemnČjší je obálka, tím vČtší je tlak
vyvíjený pĜídržným koleþkem. To úþinnČbrání zavedení více než jedné obálky souþasnČ.
Kombinované pĤsobení tČchto vzájemnČpropojených þástí pĜedchází vzniku mnoha problémĤ, které se vyskytují u konvenþních strojĤna
otvírání poštovních zásilek, a vysvČtluje, proþmĤže model 62002 zpracovat vysokou rychlostí až 17.500 obálek rĤzné velikosti za hodinu.
3.2 Sestava ližin
Sestava ližin (D) vede obálky pĜímo do sestavy nožĤ(E). PĜední a zadní seĜízení je nastaveno z továrny tak, aby byl zajištČn správný tlak na
obálky rĤzné velikosti. (POZNÁMKA: Pokud bude nutné provést seĜízení, povolte pojistnou matici a seĜićte þerný kĜídlatý šroub. NáslednČ
dotáhnČte pojistnou matici.)
3.3 Sestava nožĤ
SamoostĜící nože vyrobené z pĜesné oceli (E) odĜezávají odmČĜený proužek z každé obálky bez ohledu na to, zda je pĜivedena horní nebo
spodní stranou nahoru. Regulaþní knoflík vpravo (viz obr. 2) je urþen pro seĜizování nožĤa dovoluje obsluze mČnit šíĜku Ĝezu od širokého po
úzký.
3.4 Vyhazovací koleþko
Vyhazovací koleþko (L) odvádí obálky do koše na otevĜené obálky (I). PĜítlaþná deska pĜímo nad ním (K) udržuje obálky v poloze tak, aby byly
správnČze stroje vyhozeny. Vodicí deska (G) stlaþuje obálky dolĤdo koše.
3.5 Koš na otevĜené obálky
Do koše na otevĜené obálky (I) padají všechny otevĜené obálky tak, jak opouštČjí sestavu nožĤa vyhazovací zaĜízení. Samostatná lehká
nádrž na odĜezky (H) zachycuje odĜezky z otevĜených obálek pro snazší manipulaci.
3.6 DČlená deska
VnitĜní þásti vČtšiny otvíraþĤ jsou pĜístupné až po odstranČní celé ovládací sestavy. Model 62002 má jedineþnou dČlenou desku, která tento
problém Ĝeší. Deska je rozdČlena podélnČdo dvou polovin, pĜední (viz obr. 2) a zadní. PĜední polovina je vyjímatelná a usnadĖuje tak þištČní,
provádČní prohlídek a oprav na vnitĜních þástech otvíraþe dopisĤ.
1.0 ýásti stroje
A. Podávací deska
B. Blokovací spínaþ
C. PĜídržné koleþko
D. Sestava ližin
E. Sestava nožĤ
F. Sestava þelního krytu
G. Vodicí deska
H. Nádrž na odĜezky
I. Koš na otevĜené obálky
J. Spínaþ
K. PĜítlaþná deska
L. Vyhazovací koleþko
M. Podávací pás
N. Sestava výstĜedné kladky
O. PĜíruba Ĝemenice
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
Obrázek 1
