5400
More power, more choice, higher productivity
New mid-horsepower range 5 models: 125 to 145 hp
MF
VISION INNOVATION LEADERSHIP QUALITY RELIABILITY SUPPORT PRIDE COMMITMENT
5400
HP
125-145
HP
125-145 MF
5400
VISION INNOVATION LEADERSHIP QUALITY RELIABILITY SUPPORT PRIDE COMMITMENT

MF 5400 Series: more
power, new features,
wider choice
The higher horsepower models in the current MF 5400 range
have evolved significantly in key areas, providing farmers with
the opportunity to boost the productivity and efficiency of their
businesses.
A new range
The enduring popularity of the
MF 5400 Series has received
a considerable boost with
the introduction of a range of
enhancements. These aim to
provide users with more power,
improved performance and a
more modern appearance, but
maintaining the 5400 Series’
reputation for simplicity of
operation, reliability and ease
of maintenance.
In recognition of the growing
demand among mixed farmers
for more power to handle ever-
larger implements and save time
in transport applications, the
introduction of two additional
models at the top end of the
horsepower range has extended
the choice available. In addition,
levels of comfort within the cab
provide the operator with an
excellent working environment.
02

03

04

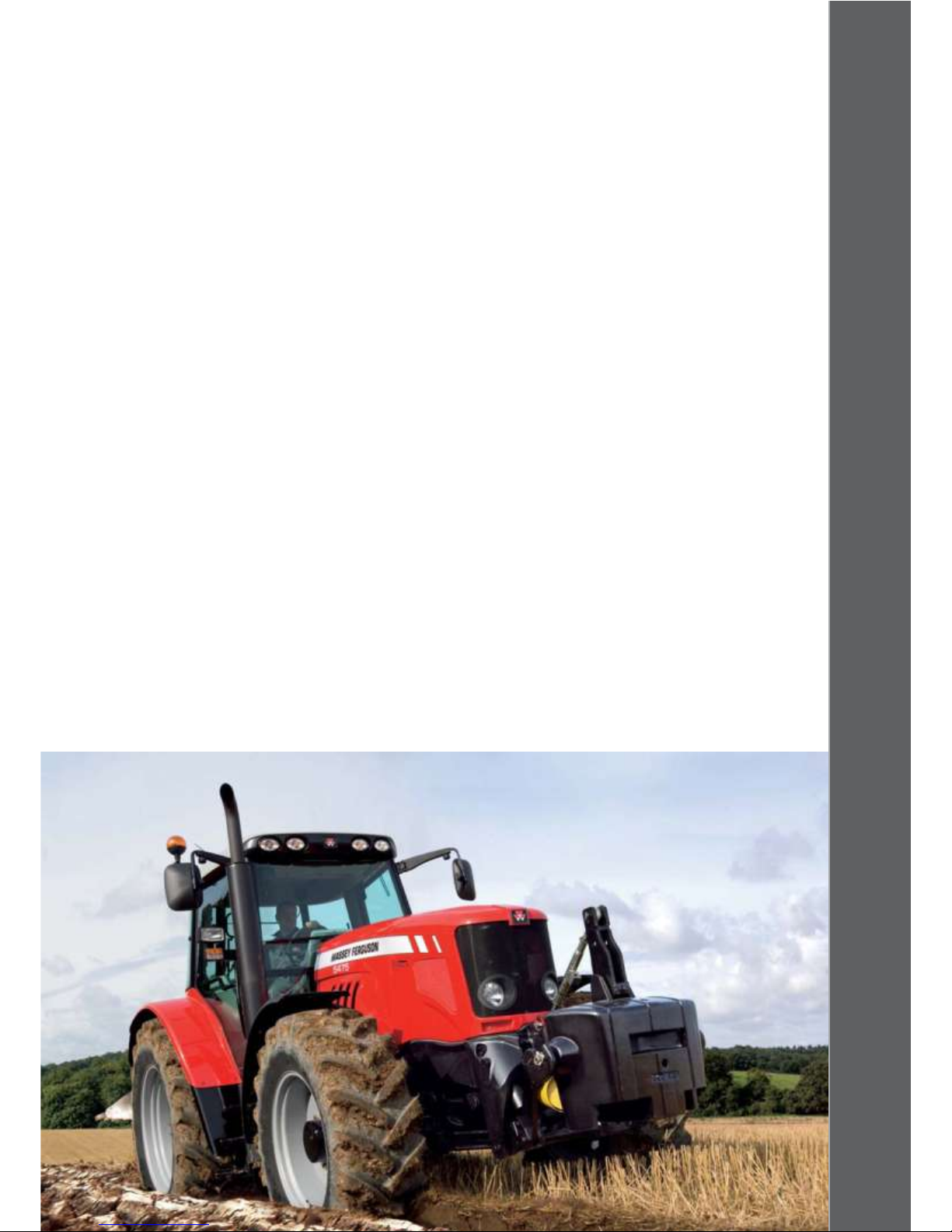

A true all-rounder
The latest, high-specification engines provide tremendous pulling
power and economy over a wide range of engine speeds.
1hp figures - ISO TR14396.
Model range
Model Cylinder Power hp
Rated1
Power hp
Max
Transport
Boost hp1
MF 5460 4 115 125 135
MF 5465 6 120 130 140
MF 5470 4 125 135 145
MF 5475 6 135 145 155
MF 5480 4 135 145 155

High power delivery to wheels and
PTO is ensured with the superb
Dyna-4 ‘powershift’ transmission,
featuring Massey Ferguson’s
uniquely efficient – but simple
– left-hand Power Control.
Unprecedented levels of comfort,
with plenty of space, a quiet cab,
first-class all-round visibility and
high performance heating and
ventilation all ensure a working
environment in which the operator
will thrive.
Key features:-
• New styling, with clean,
modern lines
The new pivoting bonnet allows
improved access for regular
maintenance of the
air filter and radiators
• Latest generation
Tier III engines
Emissions compliant, fuel-
efficient power units providing
improved power and torque
characteristics and lower
fuel consumption
• New engine transport boost
Better pulling capacity, improved
uphill performance, transporting
heavier loads faster, reducing
journey times
• The superb Dyna-4
transmission now as standard
Simple to use, four speeds on
the go, less power loss
• New front axle support, and
optional integrated front
linkage (IFLS) on the
MF 5465/75
For greater strength and
manoeuvrability
• New pivoting cooling package
on the MF 5465/75
For easier maintenance
It’s your tractor – you specify
The new MF 5400 Series carries a
range of choices in bonnet design,
cab height and visibility to enable
purchasers to tailor their new
machine to precisely match the
tasks required of it.
The ‘Visio’ roof style can be
specified, together with factory-
installed beams for an MF 900
Series front loader.
05

More power,
more fuel savings
The introduction of the latest Tier III common rail and
four-valve engines means the new MF 5400 Series mid-hp
tractors benefit from the same features as the MF 6400 and
MF 7400 higher hp models.
06
New generation engines
Featuring 4- or 6-cylinders, all the
MF engines powering the new
MF 5400 Series tractors deliver
more power. Excellent hauling
ability, an impressive power bulge
All models have significantly
more power at 2000 rev/min
than previously at 2200 rev/min
previously – an extra 10 hp, in fact
– with additional power available
for transport applications in 3rd
and 4th range.
and transport boost – all this
combined with first class fuel
economy and straightforward
operation.

01
Torque reserve
B B
A A
Power increase
The torque curve shows how
‘pulling power’ is maintained
as engine speed falls and
how it is increased with boost
A: Normal torque curve
B: Extra torque, available when
3rd or 4th gear are selected.
High power, with power
increase as engine speed
falls between 2200 and
2000 rev/min
A: Normal power curve
B: Extra power, available
when 3rd or 4th gear
are selected.
07
Torque (Nm)
Power (PS)

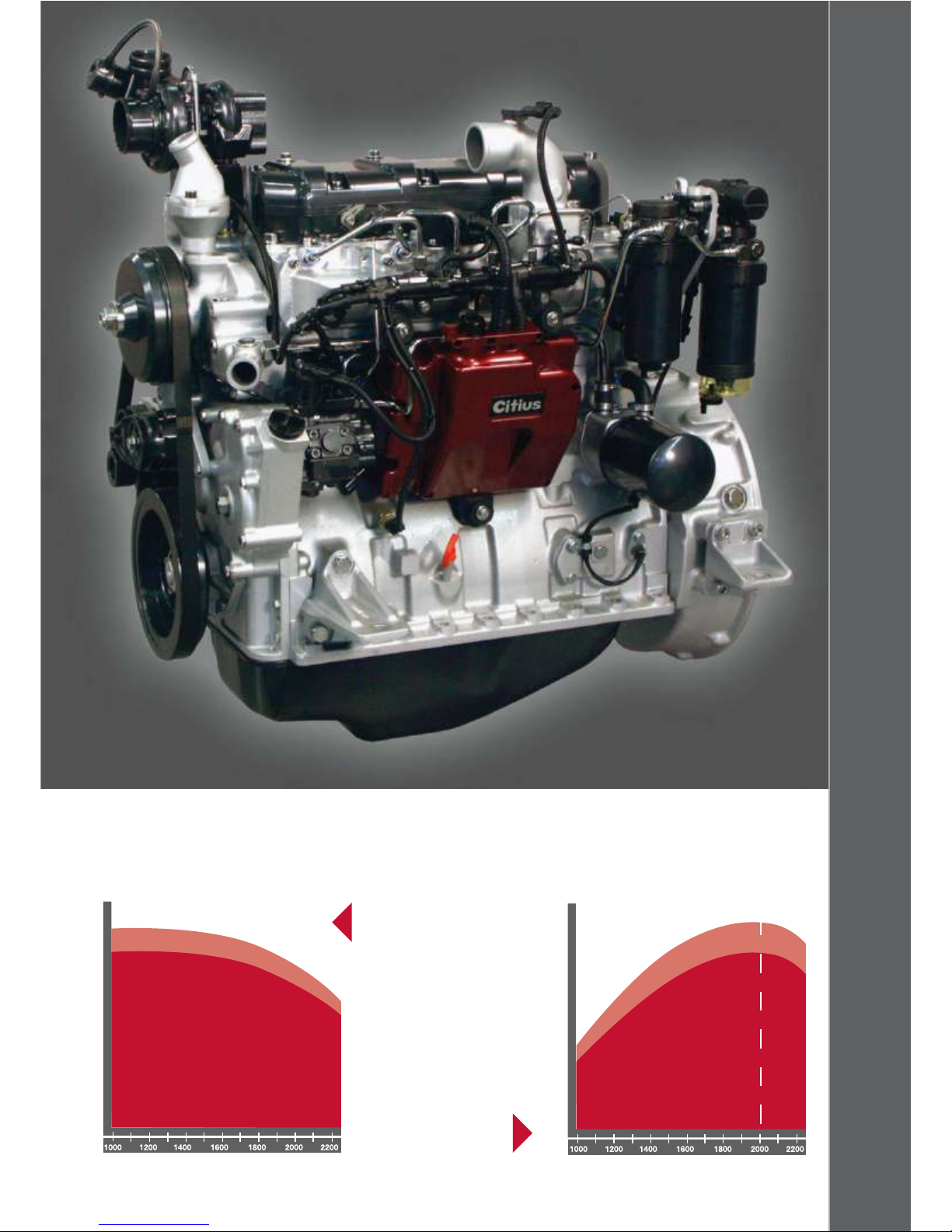

01 Common rail and four valve technology provide Tier III compliance.
Engine speed - rev/min Engine speed - rev/min

08
40
3020151050
4
1
2
3
1400 2200
A
B
C
D
Main Range
02
Field working
range
Dynashift Range
Engine Speed
Forward/Reverse Speed (MF 5470, 18.4R38 tyres)
km/h
Providing optimum field
performance, Dynashift and
range changes can also be made,
without the need to use the clutch
pedal. The left-hand Power Control
lever enables convenient and
simple forward/ reverse shuttle,
powershift changes and fingertip
de-clutching, leaving the right
hand free to control front and
rear implements or a front loader.
The swivelling seat allows excellent
views of both.
The fixed, T-shaped right-hand
gear lever is moved forwards
or back to change up or down
through the four Dynashift ratios.
Range is changed by simply
pressing the range selection
button as the lever is moved,
whereupon speedmatching
automatically selects the correct
Dyna-4 ratio to match
the tractor’s forward speed.
Comfort control
Smooth or fast shuttling – the
choice is yours – just adjust
the Comfort Control knob and
you have the perfect tractor for
loader work.
Creep and Supercreep options
Close control in specialist low-
speed tasks is assured with an
additional eight (creep) or
16 (supercreep) gears, enabling
forward speeds as low as 500m/
hr and 160m/hr respectively to
be achieved.
Such has been the popularity and success of the outstanding
Dyna-4 gearbox that it is now the standard transmission on the
new mid-horsepower MF 5400 Series tractor. The system ensures
an incredibly smooth 4-speed Dynashift change in each of four
gears, giving powershift flexibility over a wide speed range. And
with Power Control, it couldn’t be easier.
New
transmissions, best
in class
01

N
03
04
05
06

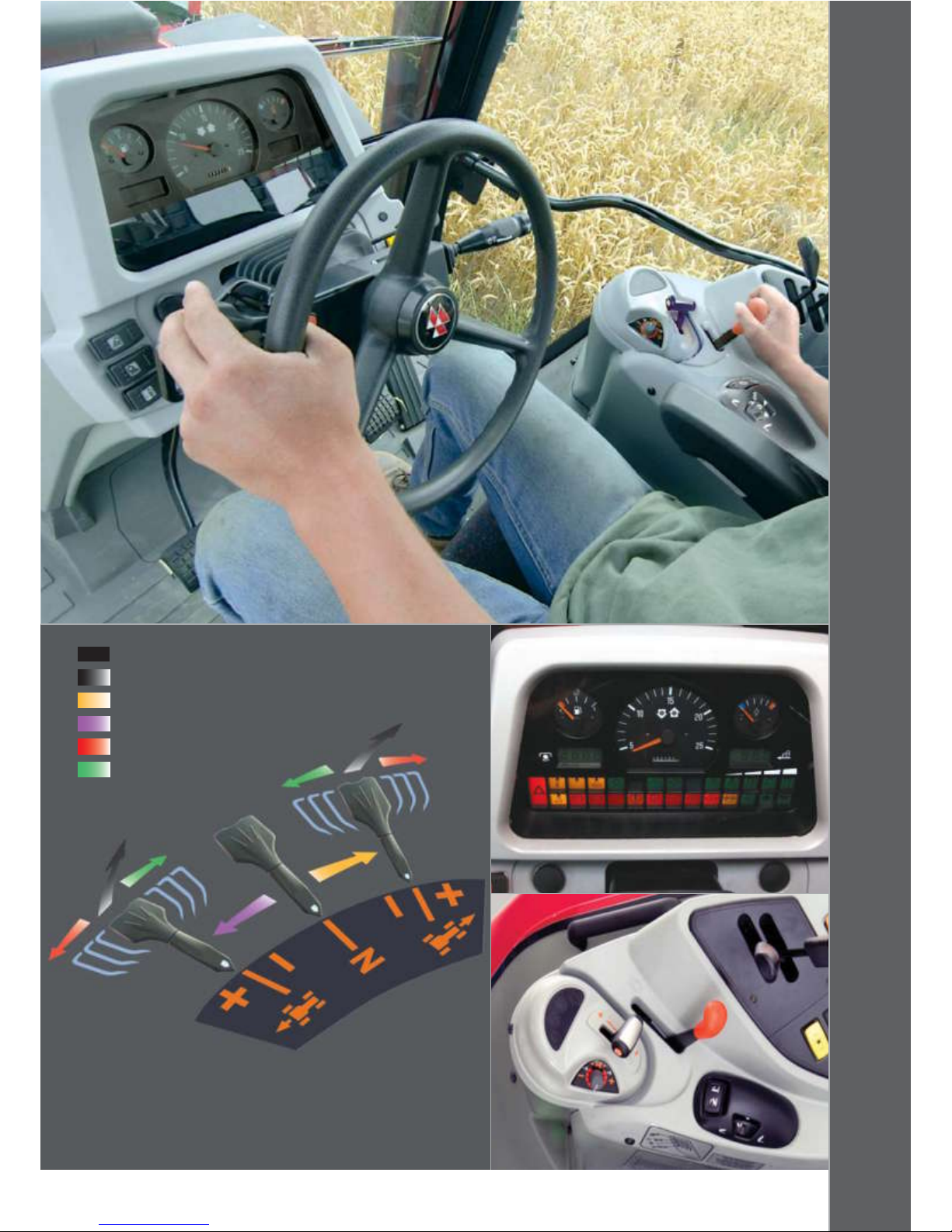

01 The Dyna-4 gearbox offers four Dynashift changes in each range, excellent ground speed ‘overlap’ and 40 km/h maximum speed for efficient haulage operations.
02 Power Control lever. 03 Driving with Dyna-4 and
left-hand Power Control.
04 Simple, multi-function, left-hand Power Control lever.
05 The controls and lights on the instrument panel are clearly visible at all times.
06 Dyna-4 offers left- or right-hand gear selection plus variable, operator-controlled forward/reverse shuttle take-up.
09
Neutral
De-clutch
Forward drive
Reverse drive
Change up ratio
Change down ratio

10
High-spec linkage,
muscular hydraulics
Powerful 3-point linkage
High lift capability ensures that
heavy mounted equipment can be
handled with ease. Linkage height
can be adjusted using switches
conveniently mounted on the
fender, so implements are attached
quickly and easily. Electronic
Linkage Control (ELC) is very
precise and responsive, ensuring
high work quality.
The new MF 5400 Series tractors feature powerful linkages and
Massey Ferguson’s renowned high-capacity hydraulics and PTO
specs. Whatever the job, you’ve got all the dependable power you
need, and some to spare. Strength, reliability and simplicity – you’ll
see them all on the new MF 5400 Series.
Straightforward hydraulics
With 57 litres/minute of oil
available for linkage and external
hydraulic functions, there is more
than enough flow and pressure for
lifting heavy implements or running
ancillary equipment.
100 litre option…
If extra oil flow is required,
customers of the MF 5460, 5465
and 5470 models can specify the
hydraulic boost option, which
combines the flow from two
pumps to provide an impressive
100 litres/minute of oil flow to the
spool valves alone.
…or CCLS
An option on the new
MF 5400 range of tractors is the
Closed Centre Load Sensing
(CCLS) hydraulics system, which
delivers 110 litres/minute on
demand.

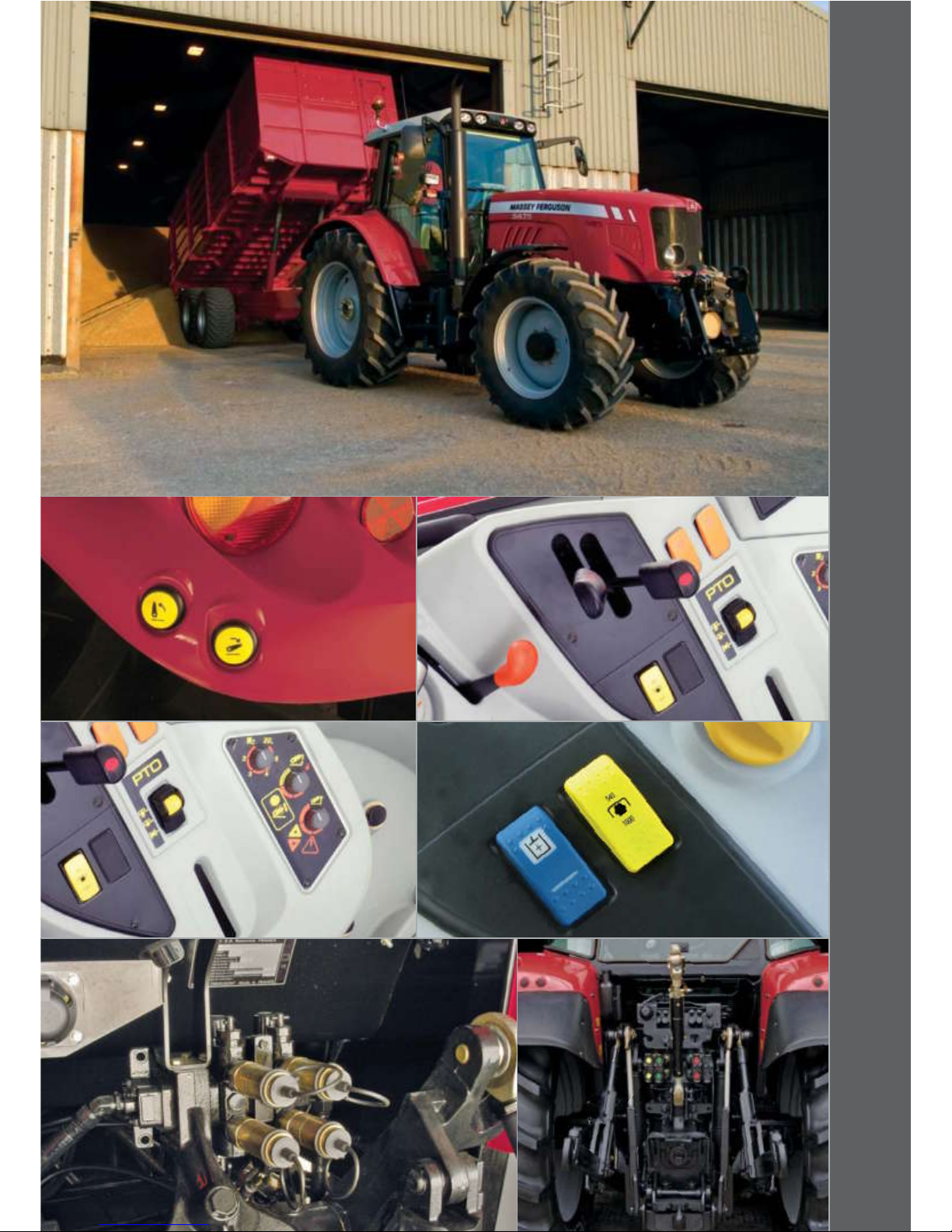

01 02
03 04
05 06
06 Well-specified linkage (UK version shown).
05 Select from a variety of spool valves for differing applications.
02 Up to 4 spool valve levers can be fitted, with a variety of functions.
03 Simple PTO control and selection.
01 Fender-mounted lift/lower switches speed implement attachment.
04 A convenient switch allows selection between linkage or loader combined oil flow.
11

Driveline strength, higher
productivity options
12
Brakes and Diff Locks
Large disc brakes, with constant
pressure lubrication, are housed
in the rear axle and provide
reassuring, fade-free braking.
Heavy-duty front and rear
differential locks ensure rock-solid
traction is maintained at all times.
4-wheel drive axle
All models feature a centre-
mounted drive shaft design
that provides excellent ground
clearance and a tight steering
circle for extra manoeuvrability
and headland agility.
QuadLink front axle
Massey Ferguson’s renowned
QuadLink suspended front axle is
available as an option, significantly
enhancing ride comfort and
control. A compact, simple design,
QuadLink automatically maintains
a constant suspension height,
regardless of the load on the axle,
to give increased stability with
greater comfort, productivity and
safety – in field and on road.
Auto transmission control
A standard feature on all models,
the ‘Transmission Controller’
simplifies operation by partially
automating a number of frequently-
used functions, including gearbox
range selection and control of the
diff-lock and PTO.
Standard or Economy PTO
With five PTO options available,
any farm’s demands can be
matched exactly. Independent
540/1000 rev/min is the standard
system, with an ‘economy’ version
achieving the same output at lower
engine speeds to allow meaningful
savings in fuel and lower in-cab
noise levels. PTO ground speed
can also be specified.
Front linkage and PTO option
Operating a front and rear
implement combination can
produce real time savings –
up to 30 per cent when drilling,
for example.

13

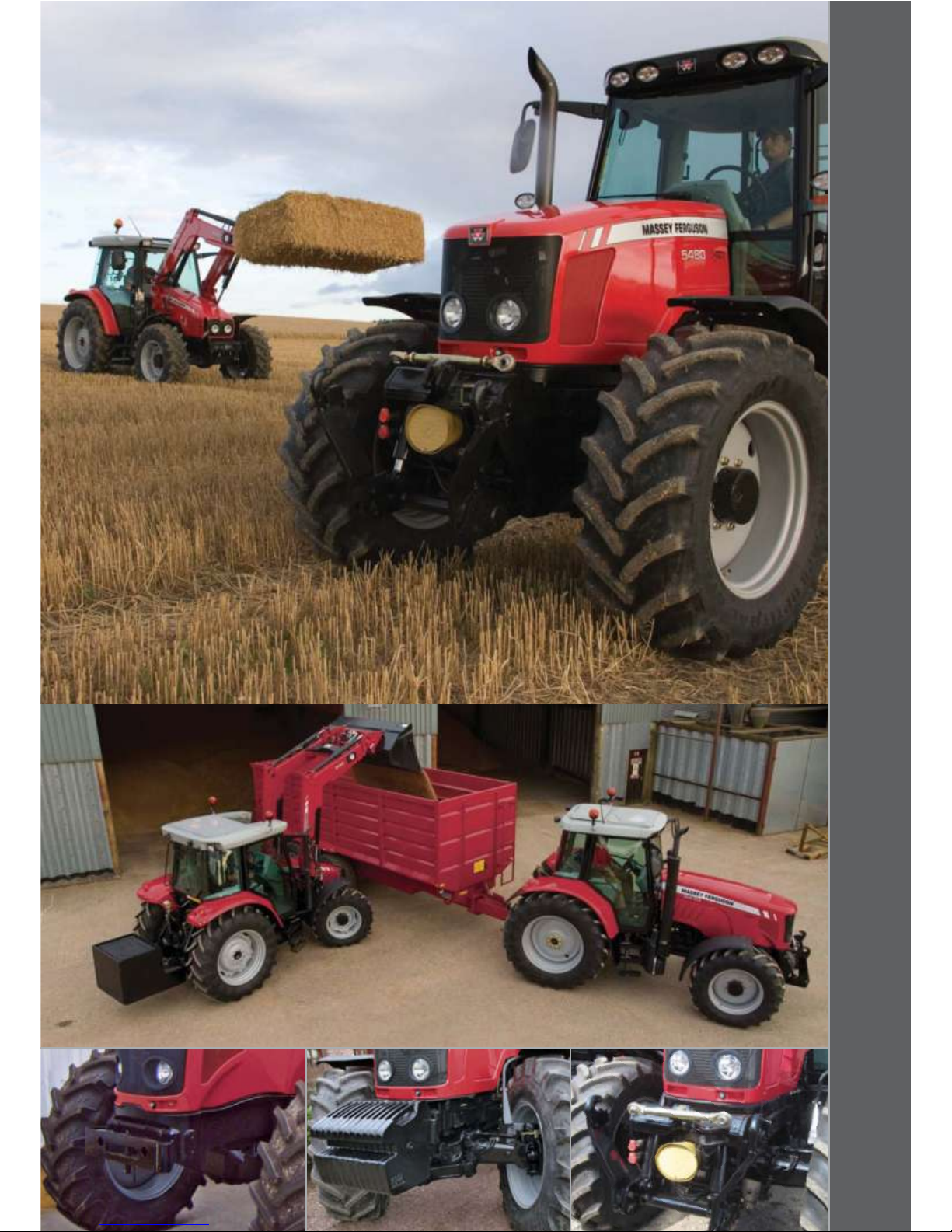

01 02 03
01 Excellent ground clearance from the 4-WD front axle.
02 Maintaining a constant suspension height with QuadLink.
03 Front linkage and PTO can be specified on all models.

01
02 03
04 05

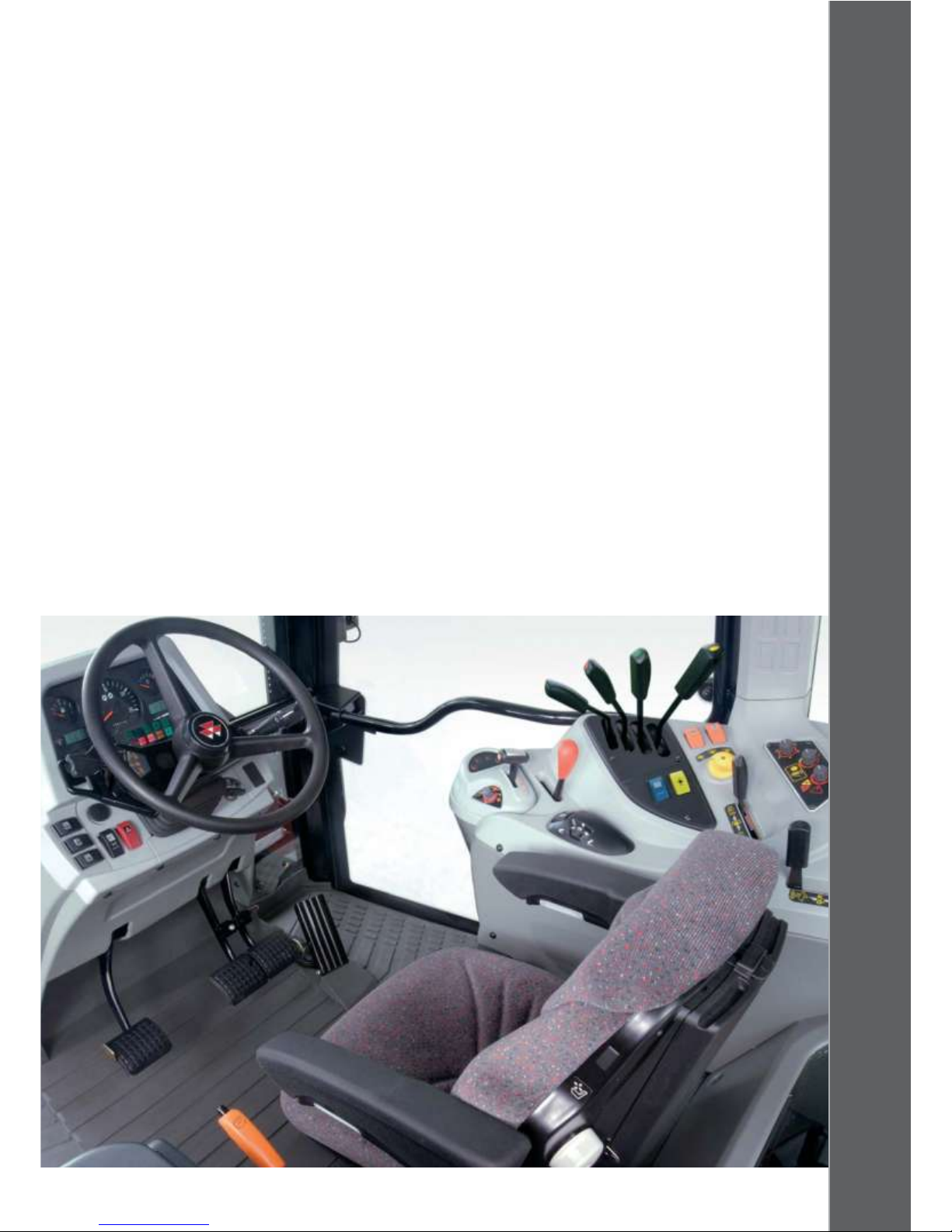

Spacious, comfortable,
practical
Attention to detail and an understanding of the operator’s needs
have produced a superb working environment on the new MF 5400
Series tractors. Uncluttered, logically-positioned controls in a quiet
cab cannot help but boost productivity.
14

06
Standard cab height; standard or
Visio roof model – whichever
MF 5400 Series cab design is
specified, the spacious, well
laid-out interior offers
considerable comfort and
excellent all-round visibility.
With a choice of mechanical
or air suspension (optional)
and a comprehensive range of
adjustments – including 30° swivel
and long, multi-position armrests
– the seat can be tailored to the
operator’s exact preference.
The air suspension option can
be lever-adjusted quickly to
compensate for the weight of
the operator or the terrain being
covered. A useful fold-away
passenger seat is also available.
Active Transport Control (ATC)
This shock-absorbing system
reduces the implement ‘bounce’
that can occur when driving across
headlands or transporting heavy
mounted equipment. A standard
feature on all MF 5400 Series
tractors, ATC is a further boost to
operator comfort and safety by
providing a smoother, faster ride.
01 Mechanical and air suspended seat (shown) available.
02 Folding passenger seat. 03 Excellent access to the
flat-floor cab.
04 Optional single lever controls steering column adjustment.
05 Wide, self-cleaning steps for safe cab access.
15
06 Main controls grouped to the right; shuttle lever to the left and plenty of space.

01
02
05
09
Keeping it
simple and
practical
From the large, easy-to-read
analogue dials and panels to the
ingenious ELC ‘mouse,’ comfort
and simplicity of operation are
paramount considerations with
these tractors.
Remaining cool
A ventilation system with a
four-speed fan and a high capacity
heater are standard on all models.
The heating system relies on six
adjustable and two fixed vents for
rapid warming and de-misting,
while a full air-conditioning option is
also available.
The ‘Visio roof’ option will appeal
to those undertaking regular front
loader work, allowing even high lift
loaders to remain fully visible when
at maximum height. A glass panel,
complete with sunblind, tilts and
opens for additional ventilation.
All the main
instruments and
controls are clear to
view and positioned
exactly where the
operator would want
them to be.
16

03 04
06 07 08
10 11
01 Day or night; outstanding comfort and visibility.
17
02 The ELC ‘mouse’ for quick and easy control of linkage lift height.
03 ‘LED’s indicate linkage lifting and lowering.
04 Clear, comprehensive instrumentation.
05 Roof-mounted heating and ventilation.
06 Visio roof models have side-mounted radio (optional).
08 The optional opening front screen gives extra ventilation.
09-11 Excellent all-round visibility.
07 Ventilation controls.

01
01
More power,
more versatility
The more recent additions to the highly popular MF 5400 Series
range – the MF 5475 and 5480 – offer more power and more
versatility but both are still straightforward, uncomplicated
machines.
18

The MF 5475 and MF 5480 –
straightforward power, delivered
smoothly and efficiently. Tough,
reliable all-rounders for farming in
the new era.
Massey Ferguson has maintained
its position at the forefront of
tractor development for many
years by anticipating trends in
world agriculture and then giving
farmers the tools to make the
most of them. These two tractors
represent a classic example of this
approach.
Mixed farming businesses across
the enlarged EU continue to
increase in size, justifying the use
of ever-larger implements and
creating a demand for more power.
Until now, achieving this leap in
horsepower meant upgrading
to a bigger, more sophisticated
and more expensive tractor, with
features many farmers do not
regard as essential.
The MF 5475 and MF 5480
generate 145 hp at 2,000 rev/min
and both are capable of a wide
range of tasks – around the yard,
in the field and on the road – these
tractors will also find their way
on to numerous, cost-conscious
arable enterprises.
However, in the development of
these models, Massey Ferguson
has taken the opportunity to
introduce a number of design and
engineering improvements with the
aim of lowering running costs and
increasing operational efficiency.
Most significant for many users
will be the new economical, low
emissions, super-efficient diesel
engines – a 6.6 litre six-cylinder in
the MF 5475 and a 4.9 litre four-
cylinder in the MF 5480 – which
put out more power with lower
engine rev/min and provide a
10 hp power boost for 40 Km/h
transport work.
Then there is the highly-acclaimed
Dyna-4 ‘powershift’ transmission,
a standard feature on both tractors
which simplifies the driving
function while reducing power loss.
An upgraded, high performance
hydraulics system ensures all types
of equipment can be operated at
the peak of efficiency. The variable
flow pump only pumps the amount
of oil required, as calculated by the
load sensors, minimising power
and fuel consumption.
New, modern lines and a pivoting
bonnet for ease of access to
engine and key components bring
the appearance of the MF 5400
Series more in line with larger
Massey Ferguson model ranges.
A new cooling package on the
MF 5475 provides easier access
to the radiators and air filter for
cleaning, while the same model
benefits from the new integrated
front linkage.
01 Well-specified 3-point linkage and hydraulics for optimum implement compatibility.
19

Extra power, with no
extra effort
20
The MF 5400 range of medium horsepower tractors offers an
industry leading package; high spec features include common
rail, four valve technology, lower fuel consumption and immediate
responsiveness from the engine as standard.
