MasterCraft 062-3428-8 User manual

INSTRUCTION
MANUAL
with 6 U.S. Gallon (22 L) Tank
SHALLOW WELL JET PUMP
IMPORTANT:
Please read this manual carefully before running
this pump and save it for reference.
model no. 062-3428-8

model no. 062-3428-8 | contact us 1-800-689-9928
2

3
Technical Specifications
Important Instructions
Grounding Instructions
Key Parts Diagram
Parts List
Installation Instructions
Operating Instructions
Maintenance
Troubleshooting
Warranty
TABLE OF CONTENTS
TABLE OF CONTENTS
NOTE:
If any parts are missing or damaged, or if you have any questions, please call our
toll-free helpline at 1-800-689-9928.
SAVE THESE INSTRUCTIONS
This manual contains important safety and operating instructions.
Read all instructions and follow them with use of this product.
4
5
6
7
8
10
12
13
14
15

model no. 062-3428-8 | contact us 1-800-689-9928
4
TECHNICAL SPECIFICATIONS
CAUTION:
This pump has been evaluated for use with water only.
Model Number 062-3428-8
Electrical Rating 120 V / 60 Hz / 5 A
Inlet / Outlet Diameter 1" (2.5 cm) NPT
Maximum Flow 950 U.S. GPH (3596 L/h)
Maximum Suction Lift 26' (7.9 m)
Maximum Delivery Height 100' (30.5 m)
Air Bladder Pressure 23 PSI
Start Pressure 20 PSI
Stop Pressure 35 PSI
Power Cord Length 7' (2.1 m)
Discharge Size 1" (2.5 cm) national pipe thread (NPT)
Suction Size 1 1/4" (3.2 cm) national pipe thread (NPT)
TECHNICAL SPECIFICATIONS
NOT FOR POTABLE WATER
NOTE: Performance of this pump (if powered by line voltage) may vary depending on variations in local line
voltage. Extension cord usage may also affect pump performance.
Before start-up, note the following: The pump can be connected to any shock-proof plug which has been
installed according to regulations. The plug must have a supply voltage of 120 V~, 60 Hz.
Fluid Type: The pump is designed for use with water with a maximum temperature of 77°F (25°C). Do not use
the pump for other fluids, especially not fuels, cleaning fluids, or other chemical products.
0' (0 m) 20' (6.1 m) 40' (12 m) 60' (18.2 m)
950 GPH
(3596 L/h)
825 GPH
(3123 L/h)
650 GPH
(2460 L/h)
475 GPH
(1798 L/h)
80' (24.3 m) 100' (30.5 m)
250 GPH
(946 L/h)
20 GPH
(75.7 L/h)
Max. Head
100'
(30.5 m)
PERFORMANCE

5
IMPORTANT INSTRUCTIONS
IMPORTANT INSTRUCTIONS
For your own safety − before starting to run the pump, please have the following
items checked by an expert:
1. Risk of electric shock −This pump is supplied with a grounding conductor and
grounding-type attachment plug. To reduce the risk of electric shock, connect only
to a properly grounded, grounding-type receptacle.
2. Risk of electric shock −This pump has not been investigated for use in swimming
pool areas.
3. The electrical connections must be protected from moisture.
4. If there is danger of flooding, the electrical connections must be taken to higher
ground.
5. Circulation of caustic fluids, as well as the circulation of abrasive materials, must be
avoided at all costs.
6. The pump must be protected from frost.
7. The pump must be protected from running dry.
8. Access by children should also be prevented with appropriate measures.
9. WARNING: Handling the power cord on this product will expose you to lead, a
chemical known to cause cancer, and birth defects or other reproductive harm.
Wash hands after handling.
10. The warnings, precautions, and instructions discussed in this instruction manual
cannot cover all possible conditions and situations that may occur. It must be
understood by the operator that common sense and caution are factors which
cannot be built into this product but must be supplied by the operator.

model no. 062-3428-8 | contact us 1-800-689-9928
6
GROUNDING INSTRUCTIONS
GROUNDING INSTRUCTIONS
To prevent electric shock and death from incorrect grounding wire connection,
read and follow these instructions:
Check with a qualified electrician if you are in doubt as to whether the outlet is properly
grounded. Do not modify the power cord plug provided with the tool. Never remove the
grounding prong from the plug. Do not use the tool if the power cord or plug is damaged.
If damaged, have it repaired by a service facility before use. If the plug will not fit the
outlet, have a proper outlet installed by a qualified electrician.
125 V~ 3-Prong Plug and Outlet
(for up to 125 V~ and up to 15 A)
Grounding Pin
1. Tools marked with “Grounding Required” have a three-prong cord and three-wire
grounding plug. The plug must be connected to a properly grounded outlet. If the
tool should electrically malfunction or break down, grounding provides a low
resistance path to carry electricity away from the user, reducing the risk of electric
shock.
2. The grounding prong in the plug is connected through the green wire inside the cord
to the grounding system in the tool. The green wire in the cord must be the only
wire connected to the tool’s grounding system and must never be attached to an
electrically “live” terminal.
3. The tool must be plugged into an appropriate outlet, properly installed and grounded
in accordance with all codes and ordinances. The plug and outlet should look like
those in the preceding illustration.
4. This pump is intended for use on a circuit that has an outlet that looks like the one
illustrated above. The pump has a grounding plug that looks like the plug illustrated
above.
5. The outlet must be properly installed and grounded in accordance with all codes and
ordinances.
6. Do not use extension cords with this pump.
7. Do not use an adaptor to connect this pump to a different outlet.

7

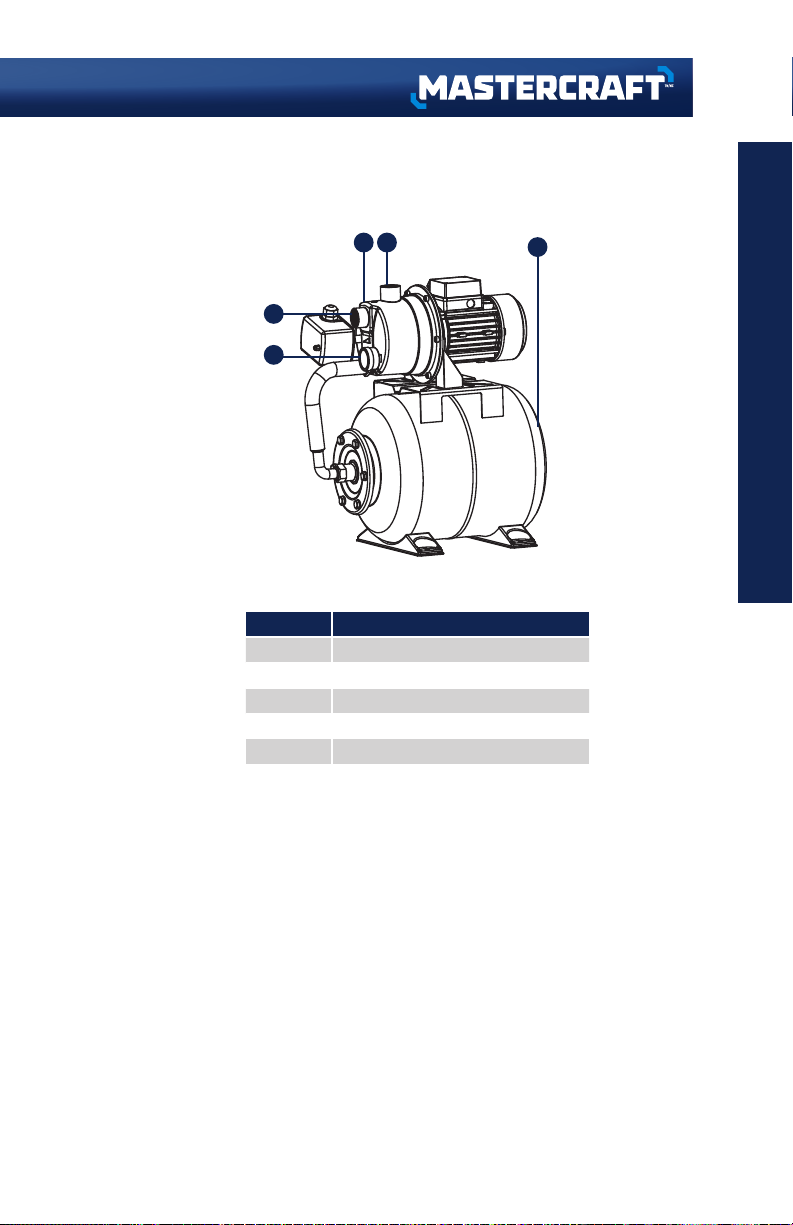

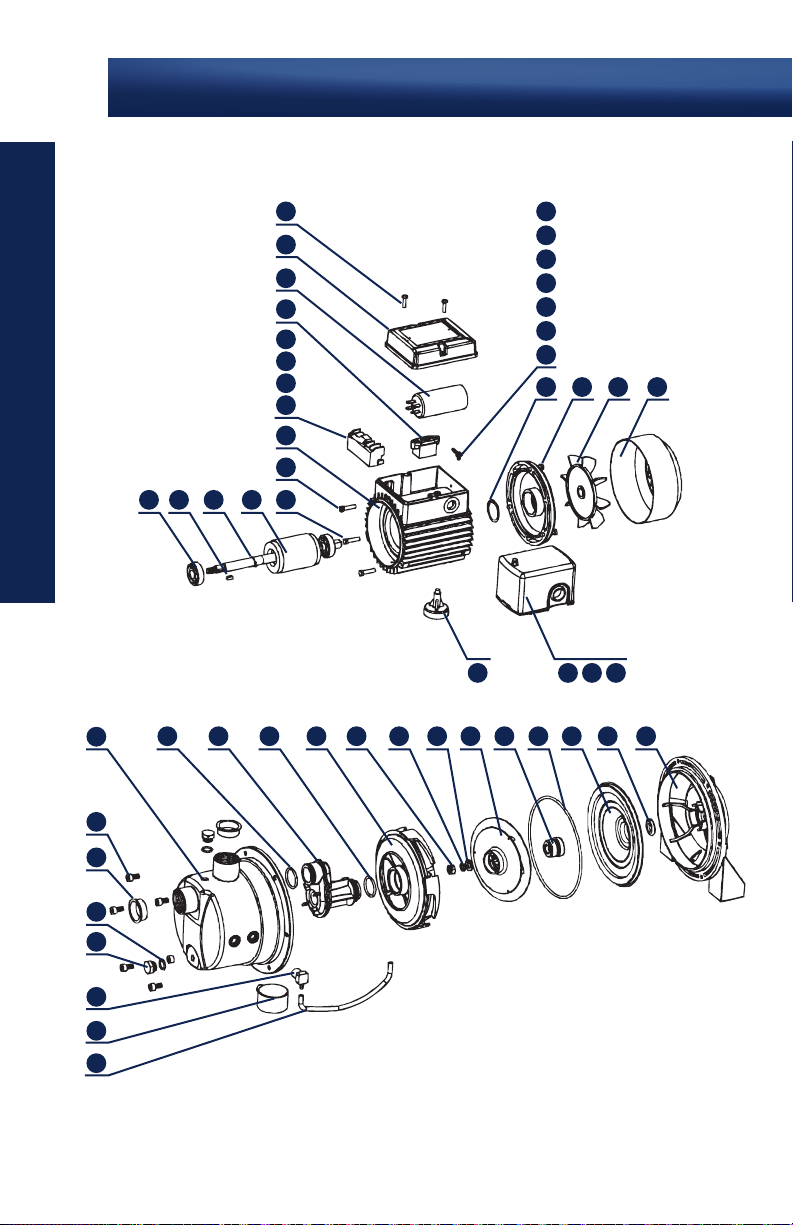

KEY PARTS DIAGRAM
KEY PARTS DIAGRAM
No. Description
1
2
3
4
5
Priming inlet
Discharge
Air valve (hidden)
Intake
Pressure gauge
4
5
13
2

model no. 062-3428-8 | contact us 1-800-689-9928
8
PARTS LIST
PARTS LIST
1
2
3
4
6
5
89 10 11
7
17 18 19 20 2112 13 14 15 16
22 23 24 25 26
27
28
29
30
33
34
35
36 37
38
39
40
31
32
41
42
43
44 45 46 47
48495051

9
PARTS LIST
PARTS LIST
No. Qty.Description
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
Screw 2
Screw 4
Stator 1
Terminal 1
Insulated flexible pipe
Insert spring 3
Screw 2
Double voltage transfer switch 1
Capacitor 1
Terminal cover 1
Screw 2
Screw 1
Spring washer 1
Serrated lock washer 1
Terminal lug 3
Terminal lug 1
Heat shrinkable tube 0.18
Connector 4
Wave spring 1
End plate 1
Fan 1
Fan cover 1
Pressure switch 1
Nut 1
Cable 1
Foot 1
No. Qty.Description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
Flexible pipe 1
Pressure gauge 1
Pipe connection 1
Screw 2
O-ring 2
Dust cover 2
Screw 6
Pump body 1
O-ring 1
Injector 1
O-ring 1
Diffuser 1
Hexangular nut 1
Spring washer 1
Washer 1
Impeller 1
Mechanical seal 1
O-ring 1
Support cover 1
Waterproof ring 1
Motor flange 1
Bearing 2
Shaft key 1
Circlip for shaft 3
Rotor 1

model no. 062-3428-8 | contact us 1-800-689-9928
10
INSTALLATION INSTRUCTIONS
The well motor pump must be installed in a stationary position with a fixed pipeline
and a steady water supply.
Please Note!
1. Remove the screw from the front of the unit to connect the power to the heater.
2. The pump must be installed with an automatic float switch (not included) to
prevent running dry.
Power Supply
1. The pump is equipped with a shock-proof plug according to regulations. The
pump is designed to be connected to 120 V~, 60 Hz safety socket.
2. Make sure that the socket is sufficiently secured and is in excellent condition.
3. When the plug is inserted into the socket the pump will be on standby.
Installation Considerations
This pump is designed for use as a well pump.
INSTALLATION INSTRUCTIONS
NOTE:
a. ONLY pump clean water.
b. Additional components (such as valves and pipes) may be required for installation, but not included.
c. Installation requires skilled workmanship and compliance with local building codes. If you are not
confident in your ability to properly and safely install this pump, have a qualified technician perform
the installation.
d. The water to be pumped must be clean and must be free of sand and grit which will damage the
pump and void the warranty.
WARNING:
If the power cord or plug is damaged, do not use the pump. The power cord or plug may only be repaired
by a certified electrician.
WARNING!
TO PREVENT SERIOUS INJURY FROM ELECTRIC SHOCK:
• Install indoors or in weather-proof well house only.
• This pump is non-submersible.
• Do not plug in the power cord when wet or standing on damp or wet ground.
• Do not plug in the power cord until instructed to do so.

Outlet Water Level
Shallow
Well Pump
Check Valve
Well Seal
Length of Off-set Line
(add when calculating total
suction lift due to friction)
Slope slightly downward to well
Standing Water Level (with well pump off)
Pumping Water Level (with well pump operating)
Head
To Household
Water System
Foot Valve
11
INSTALLATION INSTRUCTIONS
1. The illustration below shows an example of a proper
shallow well pump installation. The total suction lift
(vertical well lift and length of off-set line) must not
exceed the maximum suction lift.
2. Install a foot valve at the
bottom of the suction pipe. The
foot valve must be under the
pumping water level (the level
that the water falls to when the
pump operates).
3. Install a sterile well seal at the
top of the suction pipe to keep
the well clean. Protect from rust
inside a frost-proof enclosure.
NOTE:
• This pump is intended for
shallow well application only
and is not intended to be used
as a booster pump.
• For optimal performance, install
the pump as close to the well
head as possible
CAUTION:
DO NOT insert fittings into the intake hole farther than 1/2" (12.7 mm); this can DAMAGE the pump, diminish pump
functions, and/or STOP water flow.
Pump Setup Example
4. Intake and discharge pipes must be at least 1" (2.5 cm) in diameter.
5. Lay an off-set line from the well to the structure the pump will be installed in. The
off-set line should slope slightly towards the well as shown in the above illustration.
Systems with longer off-set lines should use larger diameter pipe to improve efficiency.
6. Install the pump on a rigid, level, dry platform. This platform must provide a solid, level
surface that is capable of supporting the weight of the pump and attached piping filled
with water. Do not allow water to contact the pump's housing.
7. Keep the head, the height that the pump discharge must push water before discharge,
to a minimum. The vertical well lift and off-set line length added together must be
smaller than the maximum suction lift, and the head must be smaller than the
maximum delivery height, to have flow at output. Effective flow decreases to 0 GPH as
the delivery height reaches its maximum.
8. For your protection, the power outlet used should have a Ground Fault Circuit
Interrupter (GFCI). Have it installed by a qualified electrician. Keep power line away
from water.
9. The inlet and discharge lines should not be wedged or stressed in a way that puts
strain on the pump. Do not support the pump with the inlet or discharge lines.

model no. 062-3428-8 | contact us 1-800-689-9928
12
OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS
1. The compression has a rubber bladder inside. This bladder must be pumped up
to 23 PSI of air at all times. Use a bicycle pump (not included) to inflate the
bladder. On the end of the compression tank, opposite the inlet, is an air valve
located under a cover. Remove the cover over the air valve and periodically
monitor this air valve with an air pressure gauge to ensure that the rubber
bladder maintains the required air pressure.
2. Make sure the intake pipe is fully submerged before continuing.
3. Before starting the pump for the first time, prime it as follows:
a. Fill the suction pipe and pump body through the priming inlet.
b. Close the inlet after verifying that there are no leaks.
c. Open the spigots, faucets and/or taps on the delivery pipe so that air can be
release from the suction cycle.
4. This is a self-starting pump that uses a pressure switch. Once the power cord is
connected, the pump can start at any time. Do not handle or perform
maintenance on the pump if the power cord is plugged in,
5. After reading these instructions, consider the following points before starting the
pump:
a. Verify that the delivery pipe is properly connected.
b. Verify that the electrical connection is 120 V~, 60 Hz.
c. Verify that the electrical socket is in good condition.
d. Verify that water and moisture cannot get near the power supply socket.
e. Verify that the pump is installed so as to prevent running dry.
6. To begin pumping, plug in the power cord. When the line is pressurized, the
pump will go onto standby mode until the pressure falls below its starting
pressure.

13
WARNING
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION: Unplug the pump from its electrical outlet
before performing any inspection, maintenance, or cleaning procedures.
MAINTENANCE
MAINTENANCE
1. Clean the inlet screen on the intake port regularly to remove accumulated debris.
2. Wipe the pump clean with a soft, damp cloth dampened with soapy water. Do not use
solvents. Do not get the electrical components wet.
3. Drain water from pump before storage by disconnecting the water lines and turning
the pump upside down. If storing the pump for a long time, store it in a dry location,
and apply a light layer of oil to the metal parts prior to storage to inhibit rust. Do not
expose to freezing temperatures.
4. After storage, check the impeller to make sure it turns easily and is not oxidized.

model no. 062-3428-8 | contact us 1-800-689-9928
Water pumps
intermittently.
Pump will
not hold
prime.
1. Foot/check valve not installed in
suction line.
2. Foot/check valve leaks water
back to well.
1. Install foot and check valve in suction
line.
2. Replace foot/check valve.
Only a low
volume of
water flows.
Motor
overheats
often.
Pump/motor
cycles rapidly.
Tank bladder
will not hold
pressure.
14
TROUBLESHOOTING
TROUBLESHOOTING
1. No power.
2. Pressure switch disconnected.
3. Thermal protection activated.
4. Blocked impeller.
1. Pump not primed.
2. Lift height exceeded.
3. Inlet tube not submerged.
4. Air in suction pipe.
5. Inlet screen clogged.
The pump
won't start.
The pump
operates but
it won't
discharge
water.
1. Check connections, and breaker/fuse.
2. Check gauge.
3. Allow pump to cool.
4. Free the impeller.
1. Prime pump.
2. Reduce lift height.
3. Submerge the inlet.
4. Check pipe and seals.
5. Clean screen.
Problem Possible Cause Corrective Action
1. Inlet pipe is too small.
2. Liquid is too dirty.
3. Lifting height exceeded.
4. Tank's rubber bladder
under-inflated.
5. Piping corroded, causing friction.
1. Extension cord too long or wire
size too small.
2. Pump cycling too often.
1. Increase pipe diameter.
2. Clean screen frequently.
3. Reduce lifting height.
4. Inflate to 23 PSI.
5. Replace piping with plastic where
possible.
1. Eliminate use of extension cord or use
shorter/heavier gauge cord.
2. Cut-in and cut-out pressure may be set
too close together. Have the pressure
switch adjusted by a qualified technician.
Cut in and cut out pressure may be
set too closely.
1. Air inlet valve is leaking.
2. Bladder is broken.
Have the pressure switch adjusted by
a qualified technician.
Water level is being drawn below
foot valve.
Lower foot valve.
1. Check air tank for leaks using soapy
water and replace bladder if needed.
2. Replace bladder.
• Follow all safety precautions whenever diagnosing or servicing the pump.
• Disconnect power supply before service.
• Do not disassemble the pump or motor as this will damage the water seals.
• All repairs should be performed by a qualified technician.
1. Pumping bubbles temporarily as
air is purged after initial setup.
2. Leak in suction side of pump
system.
3. Well is gaseous.
4. Water level below suction inlet
of foot valve.
Water is full
of bubbles
at outlet.
1. Temporary self-remedying issue.
2. Check for and fix leaks.
3. Install a sleeve in the well.
4. Lower suction line into water and
re-prime. If water is lower than the
maximum suction lift height, a deep
well pump may be needed.

15
TROUBLESHOOTINGWARRANTY
WARRANTY
PLEASE DO NOT ATTEMPT TO OPEN OR REPAIR THE PUMP YOURSELF. DOING SO COULD
VOID THE WARRANTY AND CAUSE DAMAGE OR PERSONAL INJURY.
This Mastercraft product carries a three (3) year LIMITED warranty against defects in
workmanship and materials. This product is not guaranteed against wear or breakage
due to misuse and/or abuse.
Made in China
Imported by
Mastercraft Canada Toronto, Canada M4S 2B8
Pump does
not shut-off.
1. Improper priming.
2. Air leakage.
3. Vertical lift too high.
4. Water level below suction
inlet of foot valve.
5. Frozen pipes.
6. Foot valve in dirt or sand.
7. Foot/check valve clogged.
8. Pressure switch is set too
low.
Motor runs,
but water is
not pumping.
1. Prime the pump by pouring clean water into the
priming inlet.
2. Check all pipes and joints in the suction line for
air leakage using soapy water.
3. Reduce vertical lift to within specifications. See
specifications on page 4.
4. Lower suction line into water and re-prime. If
water is deeper than the maximum suction lift
height, a deep well pump may be needed.
5. Thaw the pipes. Bury pipes below freeze line
and/or insulate pipes.
6. Raise foot valve to clean water level.
7. Clean or replace foot/check valve.
8. Have the pressure switch adjusted by qualified
technician (20 PSI start; 35 PSI stop).
Problem Possible Cause Corrective Action
1. Pressure switch contacts
welded together.
2. Fixture (toilet, faucet, etc.)
open or leaking.
3. Impeller is clogged.
4. Tank bladder pressure is
too low.
5. Pipeline leakage.
6. Foot/check valve leaks
water back to well.
1. Have the pressure switch replaced by a
qualified technician.
2. Close or repair fixture.
3. Clean impeller.
4. Inflate to 23 PSI.
5. Replace piping.
6. Replace foot/check valve.
