Matco Tools MSC4RFD User manual

MSC4RFD / MSC4BKFD / MSC4BLFD
MSC4SVFDA / MSC4TFD / MSC4SBFD 1 ReV. 10/17/14
MSC4RFD,-BKFD,-BLFD,-SVFDA,-TFD,-SBFD
Full Drawer Service Cart
• Read and follow all instructions in User's Manual
• Do not load carts beyond rated capacity.
• Lock lid and drawers before moving.
• Apply brake on locking casters anytime cart is in place.
• Do not pull cart. Push from handle on end to move.
• Units can tip or fall causing damage or personal injury.
• Do not open more than one loaded drawer at a time.
• Do not stand on or step in drawers.
• Keep children away from unit.
• Wear gloves when lifting edges.
• Cart is designed to roll easily on at surfaces and should not be used on
uneven or inclined surfaces.
• This product may contain one or more chemicals known to the State of
California to cause cancer and birth defects or other reproductive harm.
Wash hands thoroughly after handling.
• Failure to heed these warnings may result in personal injury
and/or property damage.
SERVICE CART WEIGHT CAPACITY
It is the responsibility of the owner to make sure all personnel read this manual prior to using the device. It is also the responsi-
bility of the device owner to keep this manual intact and in a convenient location for all to see and read. If the manual or prod-
uct labels are lost or not legible, contact Matco Tools for replacements. If the operator is not fluent in English, the product and
safety instructions shall be read and discussed with the operator in the operator's native language by the purchaser/owner or
his designee, making sure that the operator comprehends its contents. PLEASE NOTE: Loading cart beyond rated capacity may
cause structural damage to the cart as well as personal and /or property damage. Please educate your customers to the dangers
of overloading.
WARNING
Copyright © Professional Tool Products, 2014
All rights reserved
Overall Load Capacity ..................600 LBS
Top Compartment .....................180 LBS
Drawers......................... 70 LBS each

MSC4RFD / MSC4BKFD / MSC4BLFD
MSC4SVFDA / MSC4TFD / MSC4SBFD 2 ReV. 10/17/14
MSC4RFD,-BKFD,-BLFD,-SVFDA,-TFD,-SBFD
Full Drawer Service Cart
ASSEMBLY INSTRUCTIONS
SWIVEL CASTER with LOCKSWIVEL CASTER
M
A
T
C
O
T
O
O
L
S
M
A
T
C
O
T
O
O
L
S
Mount push handle/brackets assembly
(Part #12, 13) to the same side of the cart
as the swivel locking casters using the four
stove bolts, washers, and nuts provided.
Using 13mm socket completely tighten
all nuts.
#13
TOOLS NEEDED FOR ASSEMBLY:
• 13mmSocketorwrench
#12
#13

MSC4RFD / MSC4BKFD / MSC4BLFD
MSC4SVFDA / MSC4TFD / MSC4SBFD 3 ReV. 10/17/14
MSC4RFD,-BKFD,-BLFD,-SVFDA,-TFD,-SBFD
Full Drawer Service Cart
HARDWARE SPECIFICATIONS
4 pcs.4 pcs. 4 pcs.
TROUBLESHOOTING
Troubleshooting Points for the MSC4FD Series:
Problem: Drawers appear not to fit, do not slide in accurately
and bump the cart sides.
Solution: The roller bearing slides must be fully engaged into
the mounting slots on all drawers. They potentially could fall
out of position during shipment. Check the side of the cart to
determine which slide is out of position.
Remove the drawer that is out of position. The drawer is
removed by the two clips on the actual roller bearing slide.
Simply push the roller bearing slide back down into position.
Insert the drawer back onto the roller bearing slides.
Problem: Back Lock/Unlock Switch does not engage
the drawer.
Solution: The inside Lock/Unlock slide potentially could fall
out of its groove during shipment. Unscrew the four screws
that are holding the Lock/Unlock slide in place.
Once the screws are removed, simply place the latch back
onto the slide and tighten the four screws back down.
Mounting Slots
16 pcs 16 pcs 16 pcs
Handle Hardware
Caster Hardware

Also available:
RSRBSDET8PK Ball Bearing Slide Detents (Pk of 8)
RSMSC4RD Red Touch Up Paint (1oz.)
RSBKP Black Touch Up Paint (1oz.)
RSMSC4BLU Blue Touch Up Paint (1oz.)
RSMSC4TI Titanium Touch Up Paint (1oz.)
RSMSC4SBP Stealth Black Touch Up Paint (1oz.)
Touch Up Paint Not Available For Silver Vein
MSC4FC Set of 2 Fixed 5" x 2" Casters (Optional - Not included)
(Incl. 16 Bolts, 16 Spring Washers, & 16 Flat Washers)
MSC4RFD / MSC4BKFD / MSC4BLFD
MSC4SVFDA / MSC4TFD / MSC4SBFD 4 ReV. 10/17/14
MSC4RFD,-BKFD,-BLFD,-SVFDA,-TFD,-SBFD
Full Drawer Service Cart

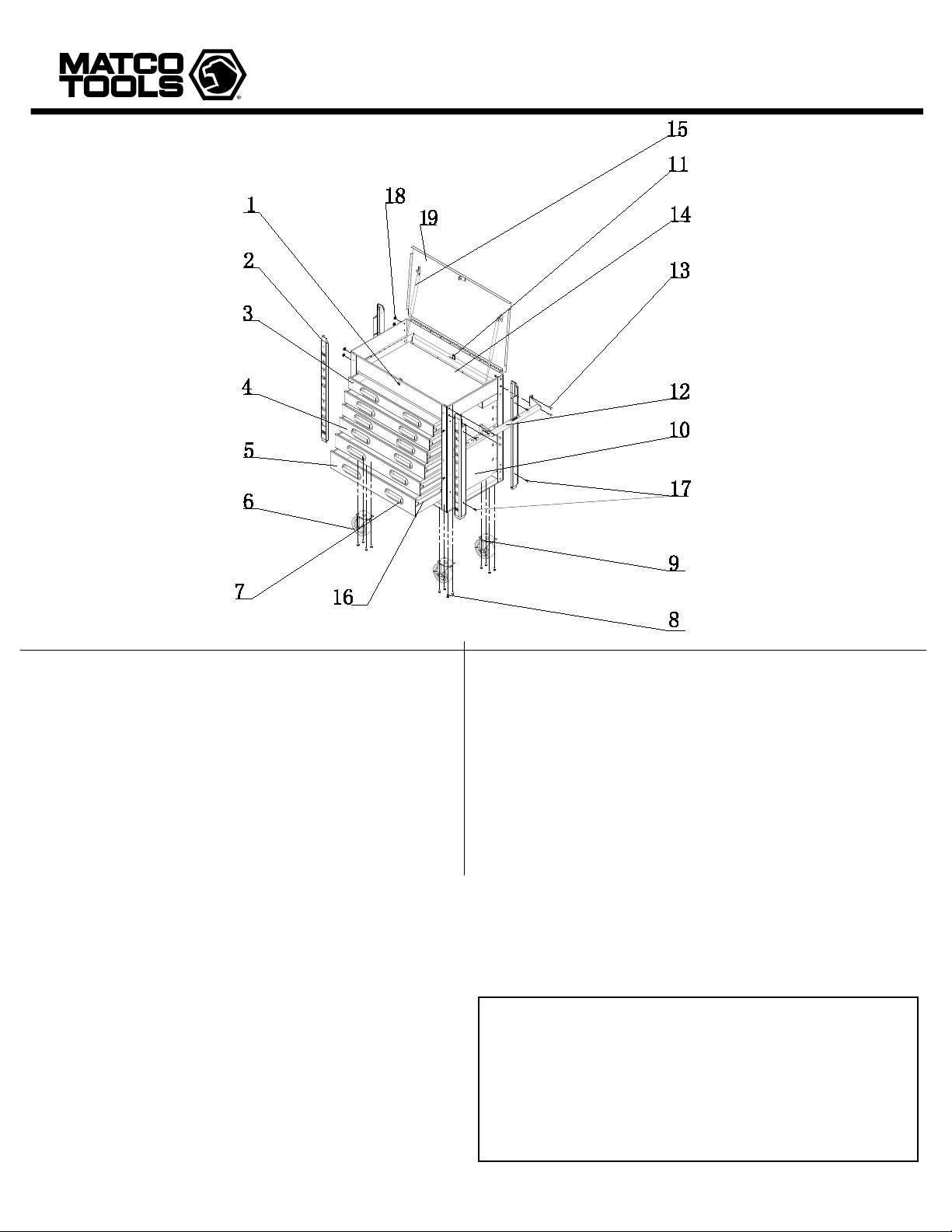

No. Part No. Description Qty
1 RSLKB Lock with Keys 1
2 RSMSC4FDBP Set of 4 Bumpers (Including #17, (16) fasteners) 1
These bumpers are attached to the legs with fasteners and may not be
used on carts which originally did not use these fasteners because the
legs were not made to accommodate them.
3 MSC4FD3R Red 3" Drawer 3
MSC4FD3BK Black 3" Drawer
MSC4FD3BL Blue 3" Drawer
MSC4FD3SVA Silver Vein 3" Drawer
MSC4FD3TI Titanium 3" Drawer
MSC4FD3SB Stealth Black 3" Drawer
4 MSC4FD4R Red 4" Drawer 2
MSC4FD4BK Black 4" Drawer
MSC4FD4BL Blue 4" Drawer
MSC4FD4SVA Silver Vein 4" Drawer
MSC4FD4TI Titanium 4" Drawer
MSC4FD4SB Stealth Black 4" Drawer
5 MSC4FD5R Red 5" Drawer 1
MSC4FD5BK Black 5" Drawer
MSC4FD5BL Blue 5" Drawer
MSC4FD5SVA Silver Vein 5" Drawer
MSC4FD5TI Titanium 5" Drawer
MSC4FD5SB Stealth Black 5" Drawer
6 RSSWCS 5" Swivel Caster / each 2
7 MSC4HC 6 Pc. set Chrome Handles 2
MSC4HBK 6 Pc. set Black Handles (Optional)
MSC4HBL 6 Pc. set Blue Handles (Optional)
MSC4HR 6 Pc. set Red Handles (Optional)
8 RSMSC4FDBK Caster Bolt Kit (M8 x 16) 1
9 RSSWLCS 5" Swivel Locking Caster / each 2
10 Frame 1
No. Part No. Description Qty
11 RSMSC4FDLMR Red Locking Mechanism (Excludes Lock) 1
RSMSC4FDLMBK Black Locking Mechanism (Excludes Lock)
RSMSC4FDLMBL Blue Locking Mechanism (Excludes Lock)
RSMSC4FDLMSVA Silver Vein Locking Mechanism (Excludes Lock)
RSMSC4FDLMTI Titanium Locking Mechanism (Excludes Lock)
RSMSC4FDLMSB Stealth Black Locking Mechanism (Excludes Lock)
12 RSMSC4HDL Push Handle 1
13 RSMSC4HB Handle Brackets/Pr. w/ hardware 1
14 RSMSC4FD7LK EVA Liners for Drawers and Top 1
15 RSGP Gas Piston/each 2
16 RSRBS Roller Bearing Slides/pair 6
17 RSFDFK Fastener (set of 4) 4
18 RSFDPCK Plastic Cap (set of 4) 1
19 MSC4FDLIDR9 Red Lid 1
MSC4FDLIDBK9 Black Lid
MSC4FDLIDBL9 Blue Lid
MSC4FDLIDSV9 Silver Vein Lid
MSC4FDLIDTI9 Titanium Lid
MSC4FDLIDSB9 Stealth Black Lid
Only items identified by part number are available separately.
