Matco Tools Operating Instructions User manual

CART0D-BK 1 REV. 02/28/19
CART0D-BK
Two Self Service Cart, Black
• Read and follow all instructions in User's Manual
• Do not load carts beyond rated capacity.
• Apply brake on locking casters anytime cart is in place.
• Do not pull cart. Push from handle on end to move.
• Units can tip or fall causing damage or personal injury.
• Do not stand on or step in drawers or shelves.
• Keep children away from unit.
• Wear gloves when lifting edges.
• Cart is designed to roll easily on flat surfaces and should not be used on
uneven or inclined surfaces.
• Failure to heed these warnings may result in personal injury
and/or property damage.
SERVICE CART WEIGHT CAPACITY
It is the responsibility of the owner to make sure all personnel read this manual prior to using the device. It is also the responsi-
bility of the device owner to keep this manual intact and in a convenient location for all to see and read. If the manual or prod-
uct labels are lost or not legible, contact Matco Tools for replacements. If the operator is not fluent in English, the product and
safety instructions shall be read and discussed with the operator in the operator's native language by the purchaser/owner or
his designee, making sure that the operator comprehends its contents. PLEASE NOTE: Loading cart beyond rated capacity may
cause structural damage to the cart as well as personal and /or property damage. Please educate your customers to the dangers
of overloading.
WARNING
Copyright © Professional Tool Products, 2019
All rights reserved
Overall Load Capacity ..................350 LBS
Top Shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . . .175 LBS
Bottom Shelf ......................... 175 LBS
WARNING: This product can expose you to chemicals including nickel which is known to the State of California to cause cancer and birth defects or
other reproductive harm. For more information go to www.P65Warnings.ca.gov.
ADVERTENCIA: Este producto le podrá exponer a ciertos químicos, para incluir el níquel, conocidos en el Estado de California por ocasionar cáncer
y defectos congénitos u otros daños a la reproducción. Para mayores informes, visite: www.P65Warnings.ca.gov.
AVERTISSEMENT: Ce produit peut vous exposer à des produits chimiques y compris le nickel, reconnu par l’État de la Californie comme causant le
cancer et des anomalies congénitales ou d’autres effets nuisibles sur la reproduction. Pour de plus amples informations, aller à www.P65Warnings.ca.gov.

CART0D-BK 2 REV. 02/28/19
CART0D-BK
Two Self Service Cart, Black
ASSEMBLY INSTRUCTIONS
Items Needed for Assembly:
#2 Phillips®head screwdriver, 10mm wrench, (2) 14mm wrench
Assembly Instructions:
1. Remove the 4 stove bolts with a #2 Phillips®head screwdriver from the side of the cart
without the push handle.
2. Using the 10mm size wrench, Phillips®head screwdriver, and part #7 (short round
bolt kit -16 pieces of the 24 bolts, nuts and washers), attach part #5 (4 legs) to
part #2 (bottom shelf).
3. Using the 10mm size wrench, Phillips®head screwdriver, and part #7 (short round
bolt kit - remaining 8 pcs. of the 24 bolts, nuts, and washers) attach part #1 (top
shelf) to the legs and bottom shelf.
(Note:Inordertoplacethehandleinthenextstep,leavethe8
outsideholesopenonbothendsof thecart.)
4. Using the 10mm size wrench, Phillips®head screwdriver, and part #8 (long round
bolt kit - containing 8 bolts, nuts, and washers) attach parts #6 (handles) to the cart.
Replacement Parts Available:
RS8003BLC Black Locking Caster (ea.)
RS8003BSC Black Non-locking Caster (ea.)
RS8003BHDL Black Handle
8003BT Bottom Tray
8003TT Top Tray
RS8003LGS Set of 4 Black Legs
RS8003BK1 Bolt Kit for Legs
RS8003BK2 Bolt Kit for Handles
RS8003BK3 Bolt Kit for Casters

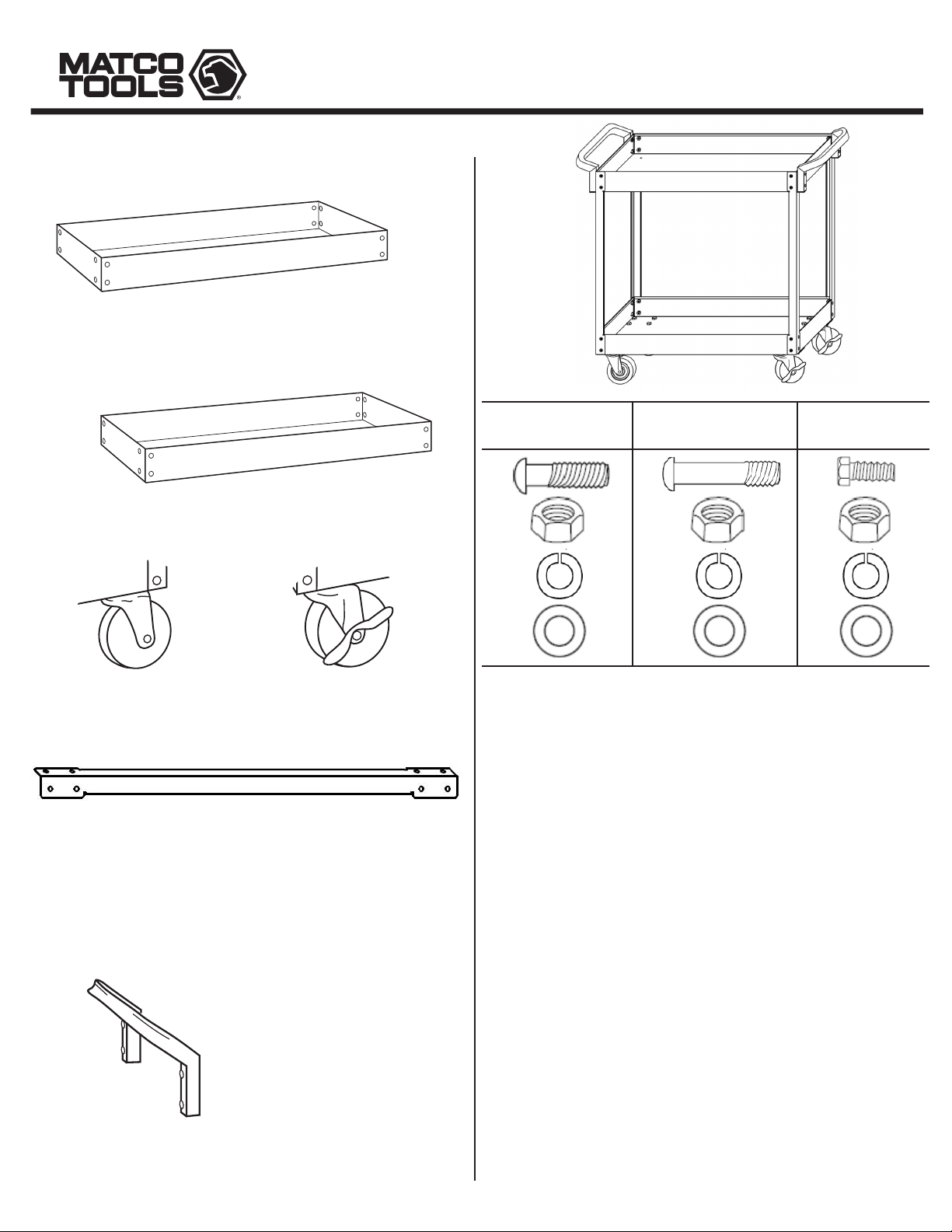

#3. Non-locking #4. Locking
Caster (x2) Caster (x2)
#5. Leg (x4)
#6. Handle (x2)
#7. Bolt Kit contains: 24 short bolts, nuts, and
washers for the legs.
#8. Bolt Kit contains: 8 long bolts, nuts and
washers for the handles.
#9. Bolt Kit contains: 16 short bolts, nuts, and
washers for the casters.
#1. Top Shelf
#7 - 24 Sets
Short Round Bolt Kit
#8 - 8 Sets
Long Round Bolt Kit
#9 - 16 Sets
Short Hex Bolt Kit
#2. Bottom Shelf
(16 pre-drilled holes in bottom of tray for attaching casters)
(x2) (x2) (x2)
