Matco Tools RL200 User manual

RL200 1 Rev. 04/22/02
Capacity . . . . . . . . . . . . . . . . 3/32", 1/8", 5/32",
3/16"
Air Pressure . . . . . . . . . . . . . . 60-90 PSI
Average Air consumption . . . . . 4 CFM
Air Inlet . . . . . . . . . . . . . . . . . 1/4" NPT
Hose Size. . . . . . . . . . . . . . . . 3/8" I.D.
Includes 2 Wrenches and Safety Cap
Operating Instructions • Warning Information • Parts Breakdown
RL200
3/16"
AIR HYDRAULIC
RIVET GUN
SPECIFICATIONS
Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to cause cancer, birth
defects or other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement
and other masonry products, and
• arsenic and chromium from
chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this
type of work. To reduce your exposure to these chemicals: work in a well
ventilated area, and work with approved safety equipment, such as those
dust masks that are specially designed to filter out microscopic particles.
ALWAYS READ
INSTRUCTIONS
BEFORE USING
POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
WEAR HEARING
PROTECTION
AVOID
PROLONGED
EXPOSURE TO
VIBRATION
RL200manual.indd 1 10/4/04 4:22:22 PM

RL200 2 Rev. 04/22/02
on this tool. Failure to do so could
result in injury.
Whip hoses can cause serious inju-
ry. Always check for damaged,
frayed or loose hoses and fittings,
and replace immediately. Do not
use quick detach couplings at tool. See instruc-
tions for correct set-up.
• Air powered tools can vibrate in use. Vibra-
tion, repetitive motions or uncomfortable posi-
tions over extended periods of time may be
harmful to your hands and arms. Discontinue
use of tool if discomfort, tingling feeling or pain
occurs. Seek medical advice before resuming
use.
• Place the tool on the work
before starting the tool.
• Slipping, tripping and/or falling
while operating air tools can be a major cause
of serious injury or death. Be aware of excess
hose left on the walking or work surface.
• Keep body working stance balanced and firm.
Do not overreach when operating the tool.
• Anticipate and be alert for sudden changes in
motion during start up and operation of any
power tool.
• Do not carry tool by the hose. Protect the hose
from sharp objects and heat.
• Do not lubricate tools with flammable or vola-
tile liquids such as kerosene, diesel or jet fuel.
• Don't force tool beyond its rated capacity.
• Do not remove any labels. Replace damaged
labels.
This Instruction Manual Contains
Important Safety Information.
Read THIS INSTRUCTION MANUAL
Carefully and understand ALL
INFORMATION Before Operat-
ing THIS Tool.
• Always operate, inspect and maintain this
tool in accordance with American Nation-
al Standards
Institute Safety Code of Portable Air Tools
(ANSI B186.1) and any other applicable
safety codes and regulations.
• For safety, top performance and maximum
durability of parts, operate this tool at 90
psig 6.2 bar max air pressure with 3/8"
diameter air supply hose.
• Always wear impact-resistant
eye and face protection when oper-
ating or performing maintenance
on this tool. Always wear hearing
protection when using this tool.
• High sound levels can cause
permanent hearing loss. Use hear-
ing protection as recommended
by your employer or OSHA reg-
ulation.
• Keep the tool in efficient operat-
ing condition.
• Operators and maintenance personnel
must be physically able to handle the bulk,
weight and power of this tool.
• Air under pressure can cause
severe injury. Never direct air
at yourself or others. Always turn
off the air supply, drain hose of
air pressure and detach tool from
air supply before installing, removing or
adjusting any accessory on this tool,
or before performing any maintenance
▲WARNING!
FAILURE TO OBSERVE THESE WARNINGS COULD RESULT IN INJURY.
!
RL200manual.indd 2 10/4/04 4:22:23 PM

RL200 3 Rev. 04/22/02
Air Supply…
Tools of this class operate on a wide range of air pressures.
It is recommended that air pressure of these tools measure
90 PSI at the tool while running free. Higher pressure and
unclean air will shorten the tool’s life because of faster wear
and could cause injury.
Always use clean, dry air. Dust, corrosive fumes and/or
water in the air line will cause damage to the tool. Drain
the air tank daily. Clean the air inlet filter screen on at least a
weekly schedule. The recommended hookup procedure can
be viewed in the above figure.
The air inlet used for connecting air supply has standard
1/4" NPT. Line pressure should be increased to compensate
for unusually long air hoses (over 25 feet). Minimum hose
diameter should be 3/8" I.D. and fittings should have the
same inside dimensions and be tightly secured.
Lubrication…
Lubricate the tool daily with a good grade of air tool oil. If
no air line oiler is used, run a teaspoon of oil through the
tool. The oil can be squirted into the tool air inlet, or into the
hose at the nearest connection to the air supply, then run the
tool. Overfilling will cause a reduction in the power of the
tool. A rust inhibitive oil is acceptable for air tools.
Nipple
TroubleShooting…
Other factors outside the tool may cause loss of
power or erratic action. Reduced compressor output,
excessive drain on the air line, moisture or restric-
tions in air pipes or the use of hose connections of
improper size or poor conditions may reduce air
supply. Grit or gum deposits in the tool may cut
power and may be corrected by cleaning the air
strainer and flushing out the tool with gum solvent
oil or an equal mixture of SAE #10 and kerosene.
If outside conditions are in order, disconnect tool
from hose, and take tool to your nearest authorized
service center.
Operating Instructions • Warning Information • Parts Breakdown
Air
Inlet
RL200manual.indd 3 10/4/04 4:22:25 PM

RL200 4 Rev. 04/22/02

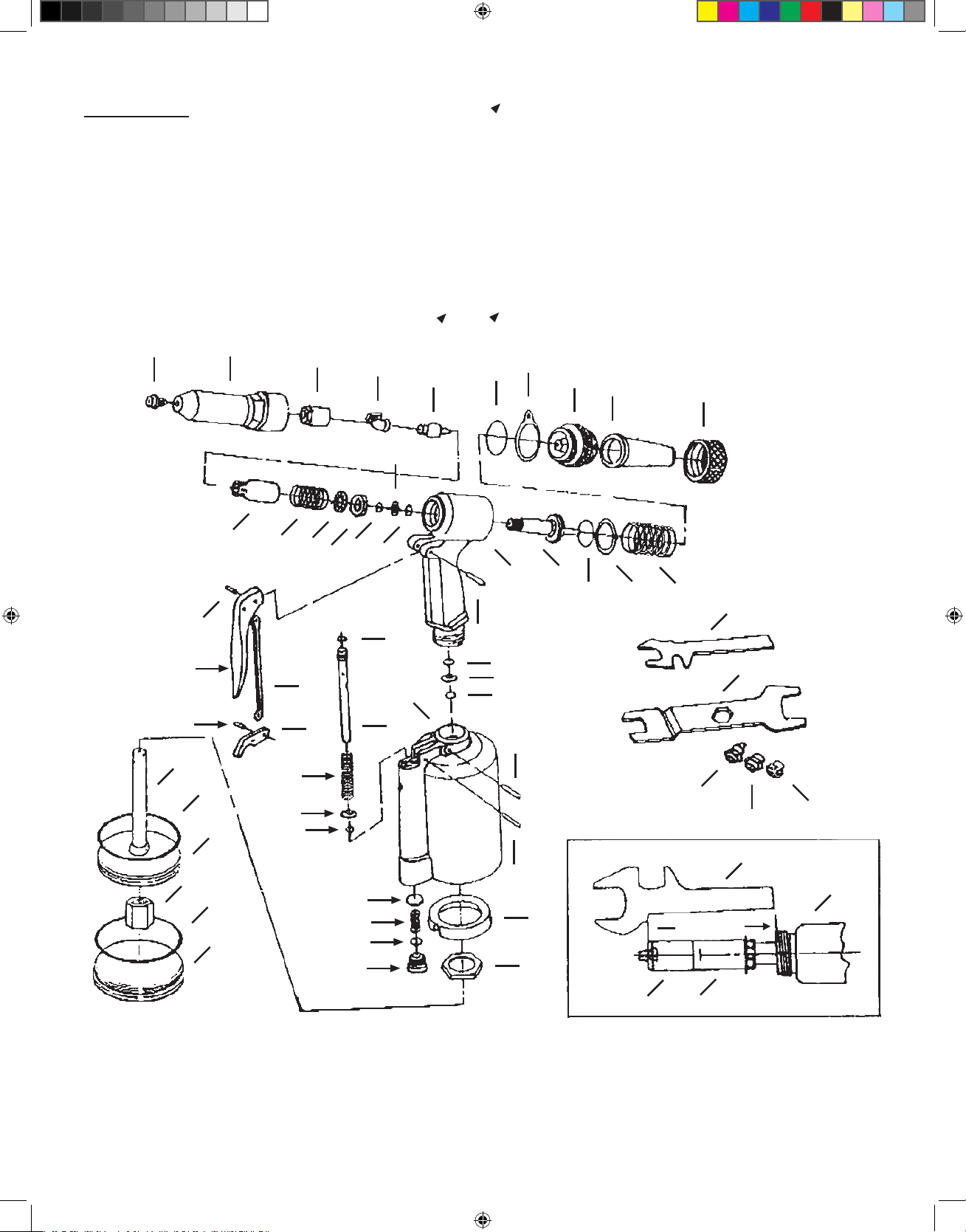

RL200
3/16" Air
Hydraulic Rivet Gun
1A
11
6-1
78
10A 20
21
23
22
15
17 18
19
35
36
1B
1C
35 Spanner Gauge
15 Frame
69 70
6-1 6-2
1D
38
25
26
25
24
43
28
27
16
6-2
37
40
41
30-1
31
30-2
30-3
32
33
45
46
51
52
44A
45A
45B
39
42 44
43A
29
10 9
12 14
13
14
RL200manual.indd 4 10/4/04 4:22:27 PM

RL200 5 Rev. 04/22/02
Warranty...
Matco warrants its air tools for a period of 1 year to the consumer. We will repair any air tool covered under
this warranty which proves to be defective in material or workmanship during the warranty period. In order to
have your tool repaired, return the tool to any Warranty Center, freight prepaid. Please include a copy of your
proof
of purchase and a brief description of the problem. The tool will be inspected and if any part or parts are found
to be defective in material or workmanship, they will be repaired free of charge and the repaired tool will be
returned to you freight prepaid.
This warranty gives you specific rights. You may also have other rights which vary from state to state.
The foregoing obligation is Matco's sole liability under this or any implied warranty and under no circumstanc-
es shall Matco be liable for any incidental or consequential damages.
Note: Some states do not allow the exclusion or limitation of incidental or consequential damages so the above
limitation or exclusion may not apply to you.
RL200 Parts List...
Please note: optional nosepieces are stored in the base of the gun.
Ref. # Item # DESCRIPTION QTY
1A 273-1A Nosepiece 3/16” (Standard) 1
1B 273-1B Nosepiece 5/32” (Optional) 1
1C 273-1C Nosepiece 1/8” (Optional) 1
1D 273-1D Nosepiece 3/32” (Optional) 1
6-1 273-06-1 Jaw Case Front Tart 1
6-2 273-06-2 Jaw Case End Tart 1
7 273-07 Jaw 2
8 273-08 Jaw Pusher 1
9 38309 Case Washer Ring 1
10 273-10 Jaw Pusher Spring 1
10A 273-10A Frame Cap O-Ring 1
11 273-11 Frame Head 1
12 38312 Case Lock Nut 1
13 38313 Back-Up Ring 1
14 38314 Back-Up O-Ring 2
15 273-15R Frame 1
16 273-16 Oil Piston 1
17 273-17 Oil Piston O-Ring 1
18 273-18 Back-Up Ring 1
19 273-19 Return Spring 1
20 273-20 Hanging Clip 1
21 273-21 Frame Cap 1
22 273-22 Frame Cap Nut 1
23 27323R Safety Cap 1
24 273-24 Setting Screw Pin 1
25 38325 Back-Up O-Ring 2
26 38326 Back-Up Ring 1
Ref. # Item # DESCRIPTION QTY
27 38327 Frame Lock Nut 1
28 273-28 Rubber Cushion 1
29 273-29R Air Cylinder 1
30-1 273-30-1 Air Piston Stem 1
30-2 273-30-2 Air Piston 1
30-3 273-30-3 Air Piston Lock Nut 1
31 273-31 Air Piston O-Ring 1
32 273-32 Cylinder O-Ring 1
33 273-33R Cylinder Cap 1
35 273-35 Spanner Gauge 1
36 273-36 Spanner 1
37 38337 Trigger Pin 1
38 273-38 Connector 1
39 273-39 Trigger Rod 1
40 38340 Trigger 1
41 38341 Connector 1
42 38342 Trigger Lever 1
43 273-43 Lever Pin 1
43A 273-43A Valve Pusher O-Ring 1
44 273-44 Valve Pusher 1
44A 273-44A Valve Spring 1
45 38345 Valve 1
45A 273-45A Valve Collar 1
45B 273-45B Collar O-Ring 1
46 38346 Valve Spring 1
51 38351 Valve Cap O-Ring 1
52 38352 Valve Cap 1
RL200manual.indd 5 10/4/04 4:22:27 PM

RL200 6 Rev. 04/22/02
Troubleshooting for the Head
of the Rivet Gun
1. Make sure that there is no air flow going to
the Rivet Gun.
2. Use the spanner to remove the head from the
frame. (Fig. 1)
3. Use the spanner to remove the Jaw Housing,
Jaws, Jaw Pusher, and the Pusher Spring.
(Fig. 2)
4. Thoroughly clean the inside of the Frame
Head. (Fig. 3)
5. Use a light gauge machine oil to lubricate
the
parts shown in figure 4.
6. Re-assemble the Rivet Gun and check the
length of the Rivet Gun Head by using the
spanner as shown in figure 5.
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
RL200manual.indd 6 10/4/04 4:22:29 PM
