Matrix G7-S33 User manual

OWNERS MANUAL
ULTRA Single-Station Strength
G7-S33 Lat Pulldown

Table Of Contents
Safety, General Care & Maintenence ....................................................................................................................3
Getting Started (Product Specifications).............................................................................................................5
Assembly Information .............................................................................................................................................6
Markings ....................................................................................................................................................................7
Parts List ...................................................................................................................................................................8
Installation & Assembly: Value Line
Part 1 Weight Stack & User Frame Assembly....................................................................................... 10
Part 2 CAM/Cable Assembly................................................................................................................... 15
Part 3 Arm Assembly ............................................................................................................................... 18
Part 4 Pad Assembly ................................................................................................................................24
Part 5 Plastics Assembly.........................................................................................................................26

3
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INFORMATION
It is the sole responsibility of the purchaser of Matrix products to instruct all individuals, whether they are the end user or
supervising personnel on proper usage of the equipment.
It is recommended that all users of Matrix exercise equipment be informed of the following information prior to its use.
PROPER USAGE
Do not use any equipment in any way other than designed or intended by the manufacturer. It is imperative that Matrix
equipment be used properly to avoid injury.
Keep hands and feet clear at all times from moving parts to avoid injury.
CHECK FOR DAMAGED PARTS
1. DO NOT use any equipment that is damaged and or has worn or broken parts. Use only replacement parts supplied by
your country’s local Matrix dealer.
2. MAINTAIN LABELS AND NAMEPLATES: Do not remove labels for any reason. They contain important information.
If unreadable or missing, contact your Matrix dealer for a replacement.
3. SECURING EQUIPMENT: All equipment MUST be secured to the floor to stabilize and eliminate rocking or tipping over.
This must be performed by a licensed contractor.
4. MAINTAIN ALL EQUIPMENT: Preventative maintenance is the key to smooth operating equipment as well as keeping
your liability to a minimum. Equipment needs to be inspected at regular intervals.
5. Ensure that any person(s) making adjustments or performing maintenance or repair of any kind is qualified to do so.
Matrix dealers will provide service and maintenance training at our corporate facility upon request.

4
IMPORTANT SAFETY INSTRUCTIONS
WARNING:This product contains chemicals known to the State of California
to cause cancer and birth defects or other reproductive harm.
WARNING:SERIOUS INJURY CAN OCCUR ON THIS EQUIPMENT. FOLLOW
THESE PRECAUTIONS TO AVOID INJURY!
1. Never allow children on strength training equipment. Teenagers must be supervised at all times while using this
equipment.
2. All warnings and instructions should be read and proper instruction obtained prior to use.
3. Use this equipment for its intended purposes only.
4. NEVER allow resistance straps, ropes or other means be attached to this equipment, as this may result in serious
injury.
5. NEVER use this equipment for support during stretching, as this may result in serious injury.
6. Cease exercise if you feel faint or dizzy. Obtain a medical exam before beginning an exercise program.
7. Keep body, hair, clothing and accessories free and clear of all moving parts.
8. Inspect the machine before use. DO NOT use machine if it appears damaged or inoperable.
9. Check to see that the selector pin is completely inserted into the weight stack.
10. NEVER use this machine with the weight stack pinned in an elevated position.
11. NEVER use dumbells or other means to incrementally increase the weight resistance. Only use the means provided
directly from the manufacturer.
12. This equipment should only be used in supervised areas where access and control are regulated by the owner.

5
GETTING STARTED
EXERCISE PLACARD | PRODUCT SPECIFICATIONS | MAINTENANCE CHECKLIST

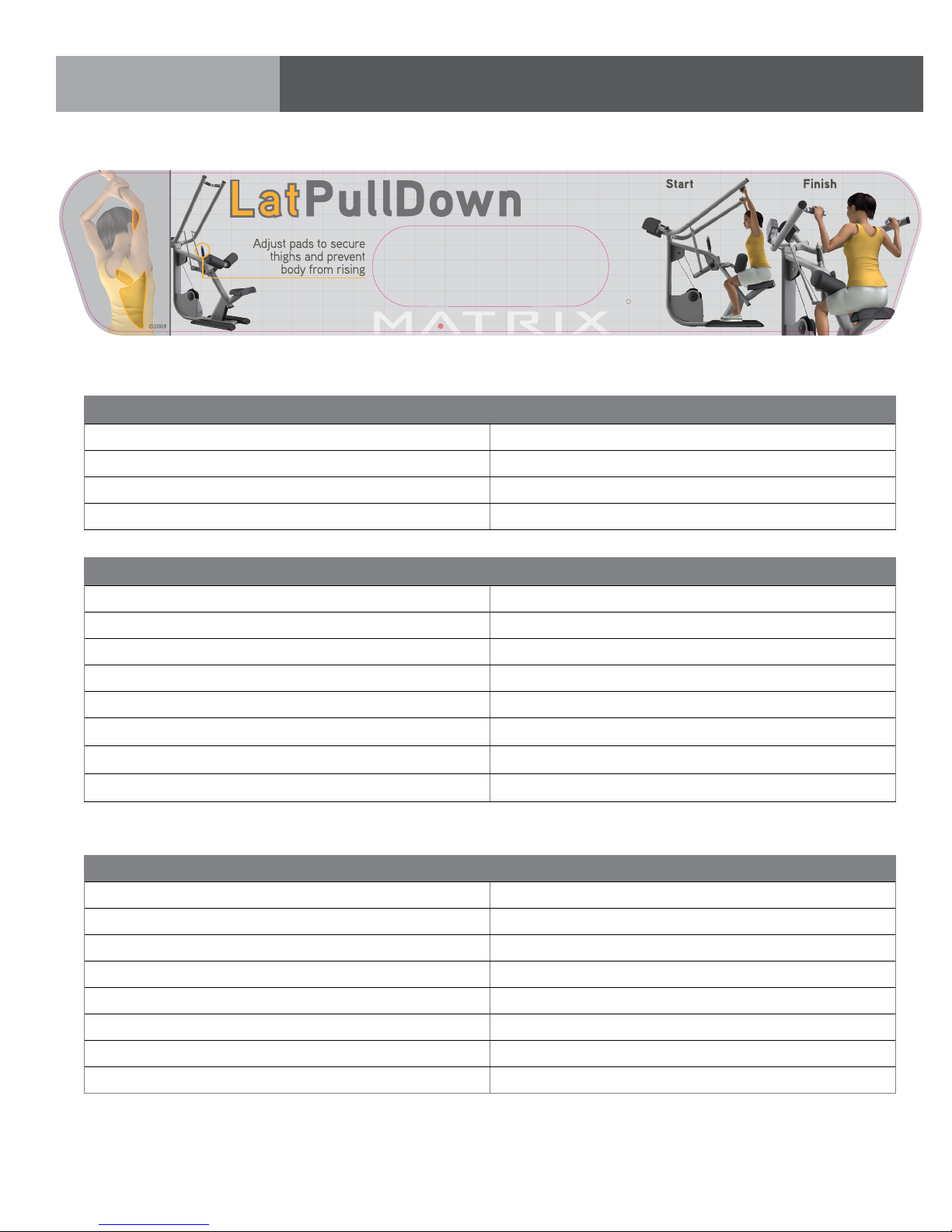

EXERCISE PLACARD
PRODUCT SPECIFICATIONS
TECH SPECS
Maximum User Weight 136 kg / 300 lbs.
Maximum Training Weight 109 kg / 240 lbs.
Product Weight 398 kg / 878 lbs.
Overall Dimensions (L x W x H) 154.9 x 151.9 x 196.8 cm / 61.0" x 59.8" x 77.5"
WARRANTY (Valid in USA only)
Frame (not coatings) 10 years
Weight stacks 5 years
Pulleys 5 years
Pivot bearings 5 years
Any items not specified 3 years
Labor (excluding upholstery/cables/grips) 3 years
Upholstery/cables/grips/springs 1 year
Accessories 6 months
MAINTENANCE CHECKLIST
ACTION FREQUENCY
Clean Upholstery Daily
Inspect Cables Daily
Clean Guide Rods Monthly
Inspect Hardware Monthly
Inspect Frame Bi-Annually
Clean Machine As Needed
Clean Grips As Needed
Lubricate Guide Rods As Needed
Upholstery & Grips should be cleaned with a non-ammonia based cleaner or a mild soap and water. Guide rods should be
lubricated with Teflon based lubricant. Apply the lubricant to a cotton cloth and then apply up and down the guide rods.

6
ASSEMBLY
UNPACKING | TOOLS REQUIRED
UNPACKING
Thank you for purchasing a Matrix product. This machine is an EN957-1 and EN957-2 compliant Class S product. Your
Matrix product is inspected before it is packaged. It is shipped in multiple pieces to facilitate the compact packaging of the
machine. Prior to assembly, confirm all the components by matching them with the exploded diagrams. Carefully unpack
the unit from this box and dispose of the packing materials in accordance with your local laws.
CAUTION
The weight of the product is 858 lbs. (389 kg) not including the weight stack. The weight stack for this machine is 240
lbs. (109 kg). To avoid injury to yourself and prevent damage to the frame components, be sure to have proper assistance
removing the frame pieces from this box. Please be sure to install the equipment on a stable base, properly level the
machine and leave at least two feet of clearance to enter and exit the machine. Maximum user weight for this machine is
300 lbs.

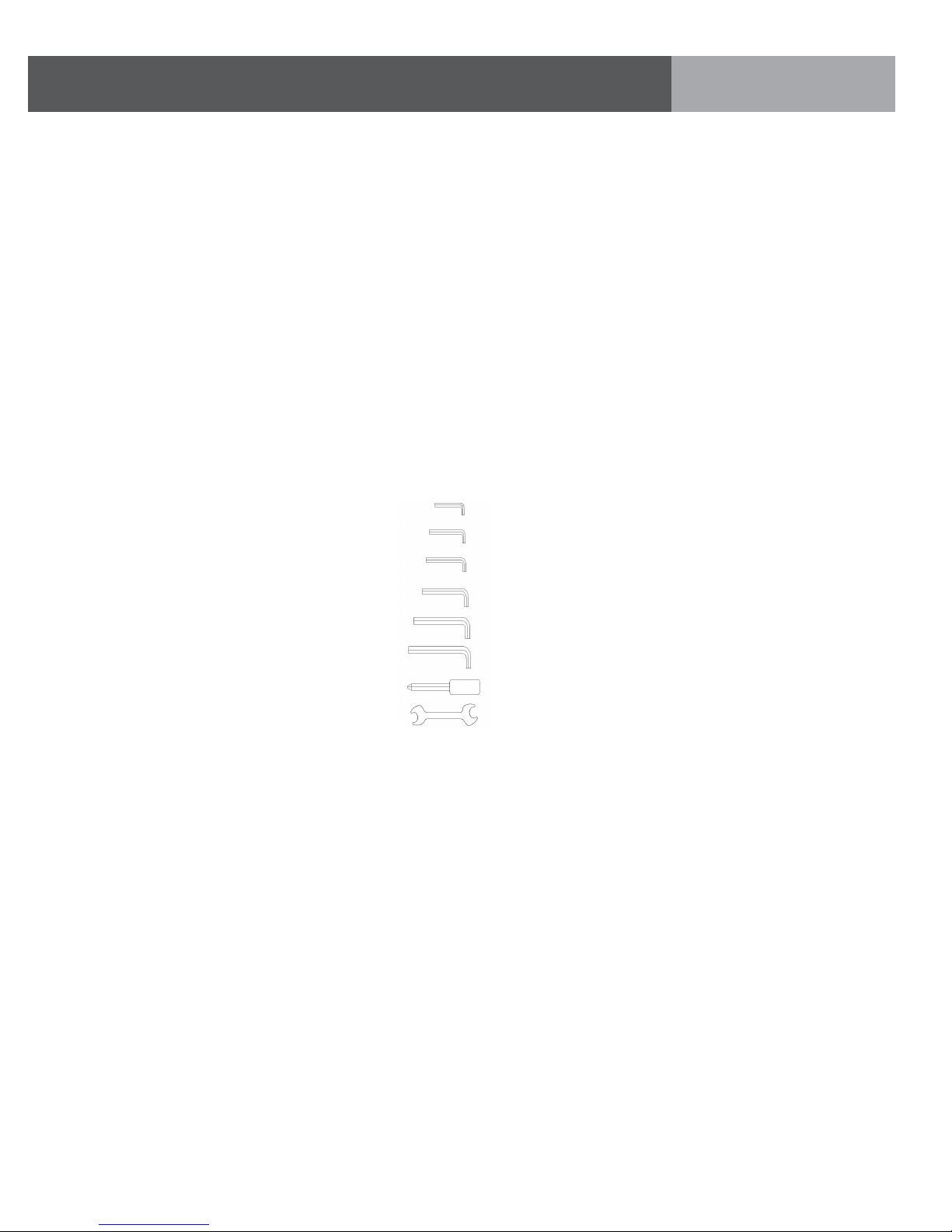

TOOLS REQUIRED FOR ASSEMBLY
3MM L-Shaped Allen Wrench
4MM L-Shaped Allen Wrench
5MM L-Shaped Allen Wrench
6MM L-Shaped Allen Wrench
8MM L-Shaped Allen Wrench
10MM L-Shaped Allen Wrench
Phillips & Standard Screwdrivers
8MM Open-End Wrench
13MM Open-End Wrench
17MM Open-End Wrench.
19MM Open-End Wrench
Adjustable Wrench
Blue Locktite 242 must be used on all fasteners that are not assembled with Nylock Nuts.

7
MARKINGS

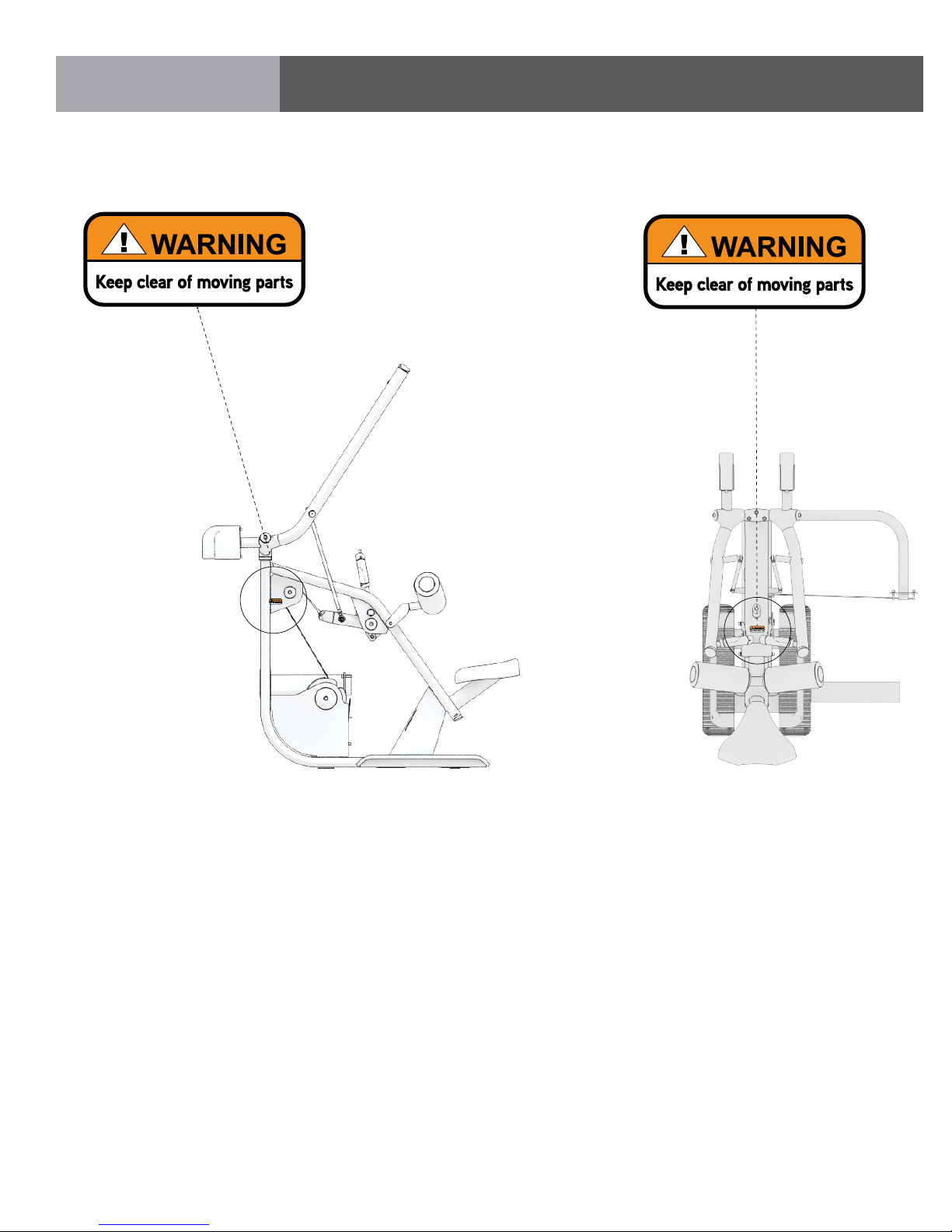

WARNING LABEL LOCATIONS

8
Parts List
ID DESCRIPTION QTY
1 User Frame 1
2 Right Footpad Frame 1
3 M10 X 30L Hex Head Bolt 6
4 M10 Saddle Washer 10
5 Left Footpad Frame 1
6 M10 X 30L Socket Head Cap Screw 8
7 M10 Flat Washer 16
8 Weight Stack 1
9 M10 Nylock Nut 7
10 M10 X 75L Socket Head Cap Screw 4
11 Connecting Tube 1
12 M10 X 110L Socket Head Cap Screw 1
13 Large Pivot Cap 1
14 CAM 1
15 Weight Stack Cable 1
16 M10 X 50L Socket Head Cap Screw 1
17 Pulley 1
18 User Frame Cable (Preassembled to CAM) 1
19 Swingarm 1
20 Small Pivot Cap 3
21 M10 X 105L Socket Head Cap Screw 1
22 M6 Nylock Nut 1
23 M6 Shoulder Bolt 1
24 M10 X 55L Socket Head Cap Screw 4
25 Pivot Block Assembly 1
26 M6 X 12L Socket Head Cap Screw Seat 4
27 M6 Flat Washer 4
28 Tie Rod 2
29 M10 X 15L Socket Head Cap Screw 2
30 Snap Ring 2
31 Left Arm 1
32 Wave (Spring) Washer 2
33 Right Arm 1

9
ID DESCRIPTION QTY
34 Counter Weight 2
35 M8 Flat Washer 6
36 M8 X 15L Socket Head Cap Screw 4
37 Axle 1
38 M8 X 25L Socket Head Cap Screw 2
39 Thigh Pad Assembly 1
40 Pad 1
41 M10 X 20L Button Head Cap Screw 4
42 Left Front Shroud 1
43 Right Front Shroud 1
44 Rear Shroud 1
45 M8 X 60L Socket Head Cap Screw 4
46 Top Cap 1
Parts List

10
3
4
1
2
PART 1: USER FRAME ASSEMBLY
STEP 1 | USER FRAME INSTRUCTIONS & NOTES
ID DESCRIPTION QUANITY
1 User Frame 1
2 Right Footpad Frame 1
3 M10 X 30L Hex Bolt 2
4 M10 Saddle Washer 2
ASSEMBLY
Tip frame as shown to access hardware.
DO NOT FULLY TIGHTEN
View A
Orient the saddle washer
as shown

11
PART 1: USER FRAME ASSEMBLY
STEP 2 | USER FRAME INSTRUCTIONS & NOTES
ID DESCRIPTION QUANITY
3 M10 X 30L Hex Bolt 4
4 M10 Saddle Washer 4
5 Left Footpad Frame 1
ASSEMBLY
5
4
3
Tip frame as shown to access hardware.
DO NOT FULLY TIGHTEN

12
PART 1: USER FRAME ASSEMBLY
STEP 3 | USER FRAME INSTRUCTIONS & NOTES
ID DESCRIPTION QUANITY
4 M10 Saddle Washer 2
6 M10 X 30L SHC 2
ASSEMBLY
6
4
Tip frame as shown to access hardware.
DO NOT FULLY TIGHTEN

13
• Rotate user frame onto foot pads
• Ensurethattheuserframeandweightstackarelevelwithalloorpadscontactingtheoor
equally
• Torque all M10 Frame Hardware on pages 10 - 13 to: 77 N-m/57 ft-lbs.
PART 1: USER FRAME ASSEMBLY
STEP 4 | USER FRAME INSTRUCTIONS & NOTES
ID DESCRIPTION QUANITY
6 M10 X 30L SHC 4
7 M10 Flat Washer 4
8 Weight Stack 1
ASSEMBLY
7
6
8

14
Torque all to: 77 N-m/57 ft-lbs.

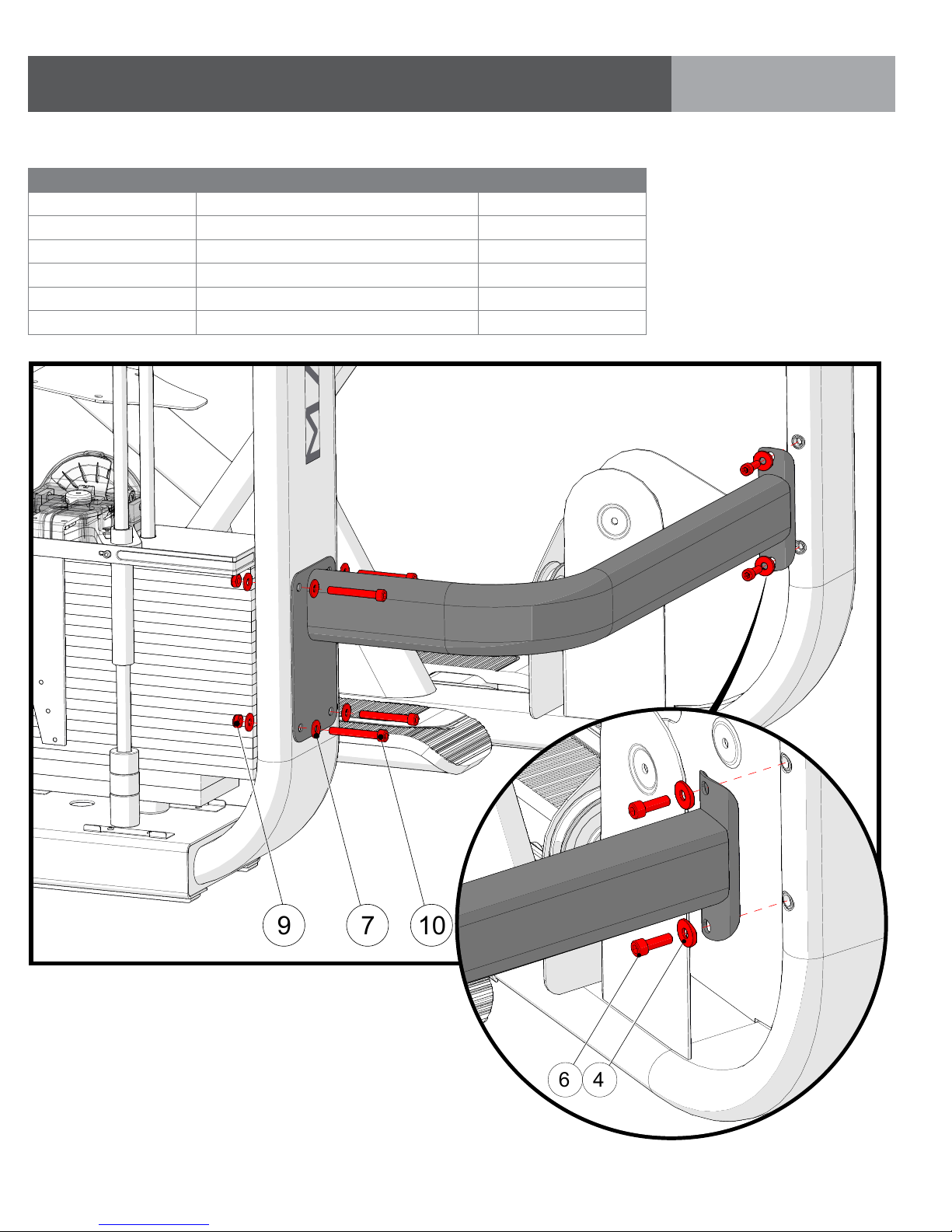

STEP 5 | WEIGHT STACK CABLE INSTRUCTIONS & NOTES
ID DESCRIPTION QUANITY
4 M10 Saddle Washer 2
6 M10 X 30L SHC 2
7 M10 Flat Washer 8
9 M10 Nylock Nut 4
10 M10 X 75L SHC 4
11 Connecting Tube 1
ASSEMBLY
PART 1: USER FRAME ASSEMBLY
9
7
10
6
4

15
STEP 1 | CAM & CABLE ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANITY
7 M10 Flat Washer 1
9 M10 Nylock Nut 1
12 M10 X 110L SHC 1
13 Large Pivot Cap 1
14 CAM 1
15 Weight Stack Cable 1
ASSEMBLY
PART 2: CAM/CABLE ASSEMBLY
Assemble CAM as shown, locat-
ing the larger CAM away from
the weight stack. Tighten to 77
N-m/57 ft-lbs.
7
9
13
14
12
15
Separate CAM to assemble
weight stack cable as shown.
Capture cable with forked clip
and orient as shown. Tighten to
16 N-m/142 in-lbs.

16

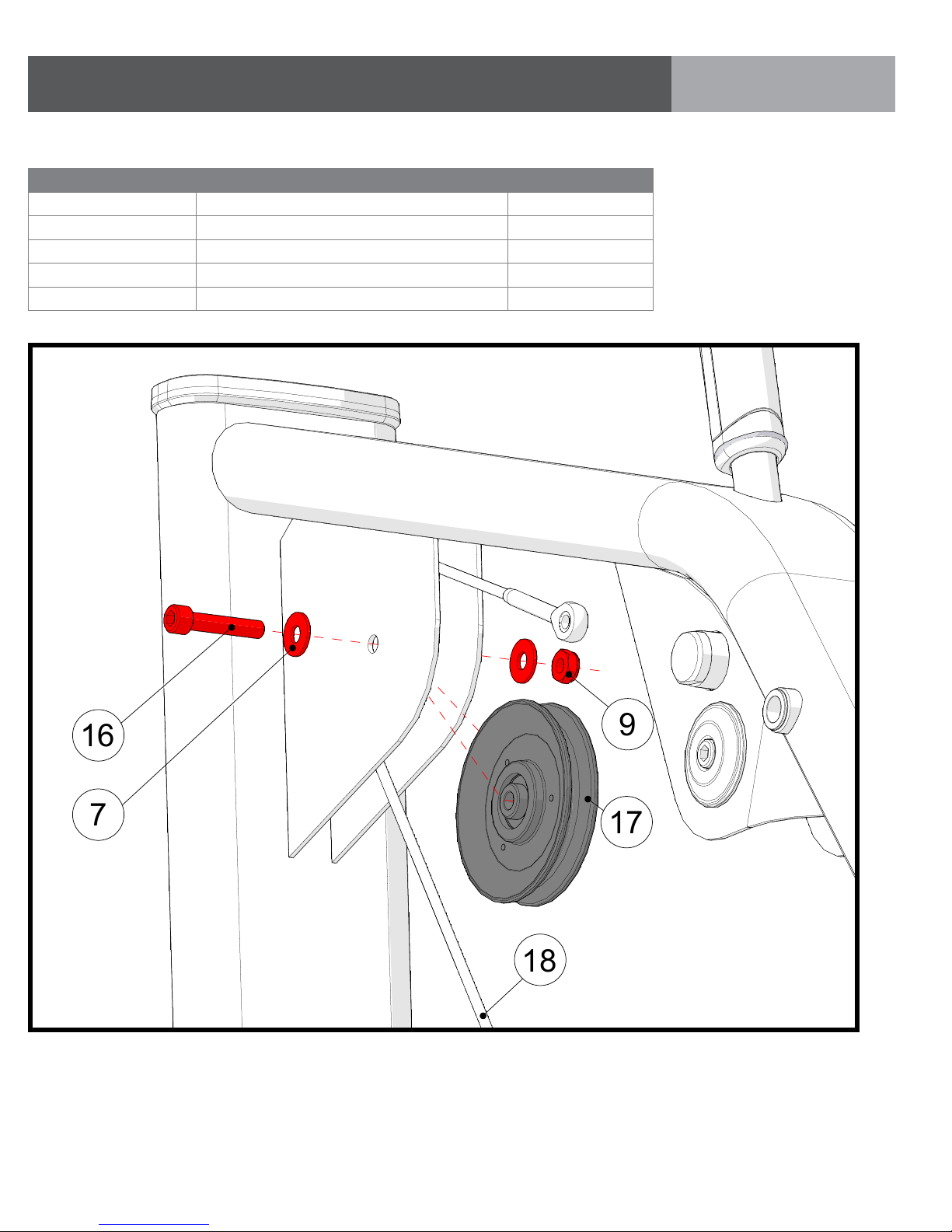

STEP 2 | USER FRAME CABLE INSTRUCTIONS & NOTES
ID DESCRIPTION QUANITY
7 M10 Flat Washer 2
9 M10 Nylock Nut 1
16 M10 X 50L SHC 1
17 Pulley 1
18 User Frame Cable (Preassembled to CAM) 1
ASSEMBLY
PART 2: CAM/CABLE ASSEMBLY
Torque to: 77 N-m/57 ft-lbs.
9
7
16
17
18

17
STEP 3 | SWINGARM ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANITY
7 M10 Flat Washer 1
9 M10 Nylock Nut 1
19 Swingarm 1
20 Small Pivot Cap 1
21 M10 X 105L SHC 1
22 M6 Nylock Nut 1
23 M6 Shoulder Bolt 1
Tighten M10 to 77 N-m/57 ft-lbs.
ASSEMBLY
PART 2: CAM/CABLE ASSEMBLY
Assemble cable into swingarm and tighten M6 to 16 N-m/142 in-lbs.
22
23
9
7
20
19
21

18
PART 3: ARM ASSEMBLY
STEP 1 | PIVOT BLOCK ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANITY
24 M10 X 55L SHC 4
25 Pivot Block Assembly 1
ASSEMBLY
25
24
Hand thread M10 bolts and leave loose
***Note: Pivot Block is symmetrical***
Axles must be red Loctited (Loctite 272) and
torqued to: 180 N-m/133 ft-lbs.

19
ASSEMBLY

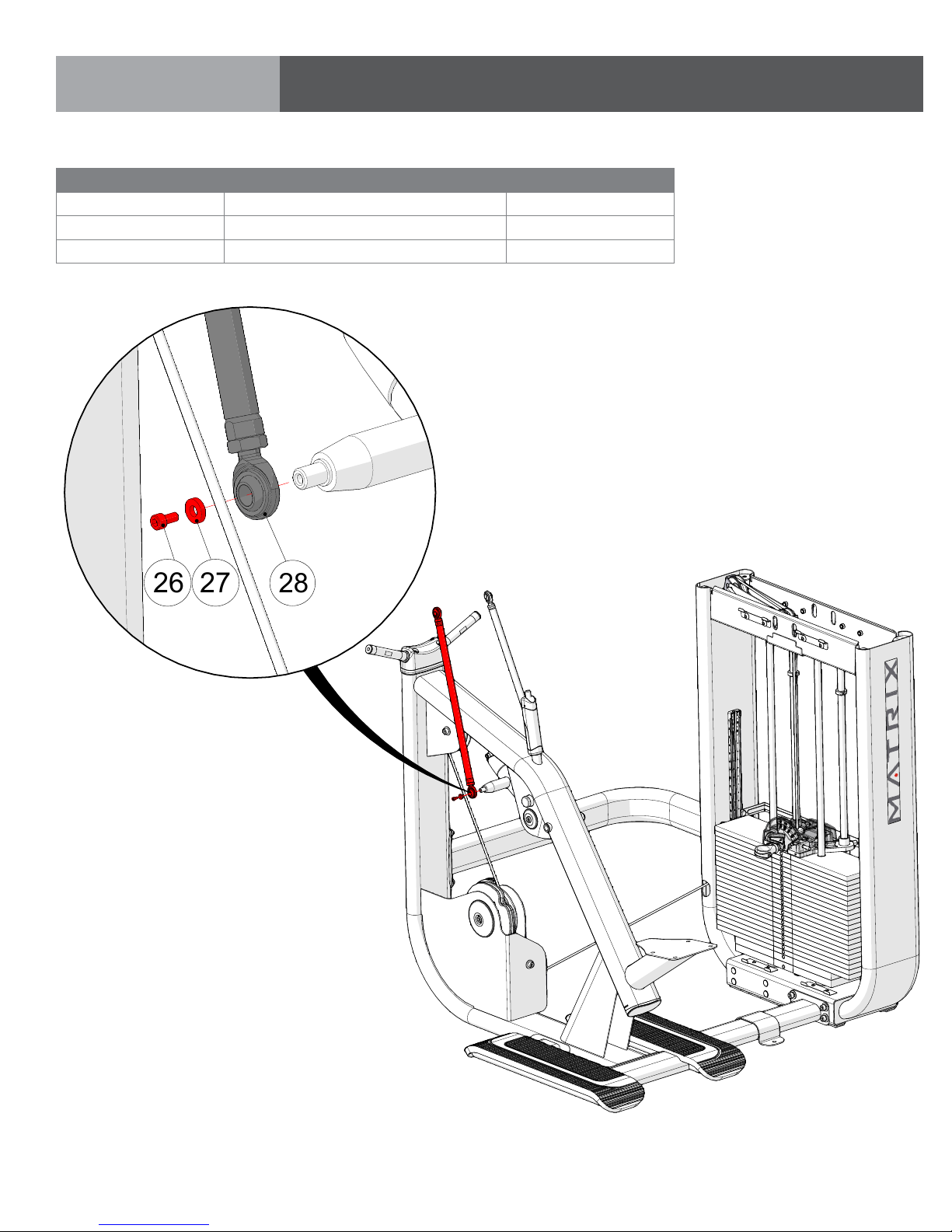

STEP 2 |TIE RODTOSWINGARM ASSEMBLYINSTRUCTIONS&NOTES
PART 3: ARM ASSEMBLY
ID DESCRIPTION QUANITY
26 M6 X 12L SHC (Right Side Not Shown) 2
27 M6 Flat Washer (Right Side Not Shown) 2
28 Tie Rod (Right Side Not Shown) 2
28
27
26
Torque to 16 N-m/142 in-lbs.
Hand thread M10 bolts and leave loose
***Note: Pivot Block is symmetrical***

20

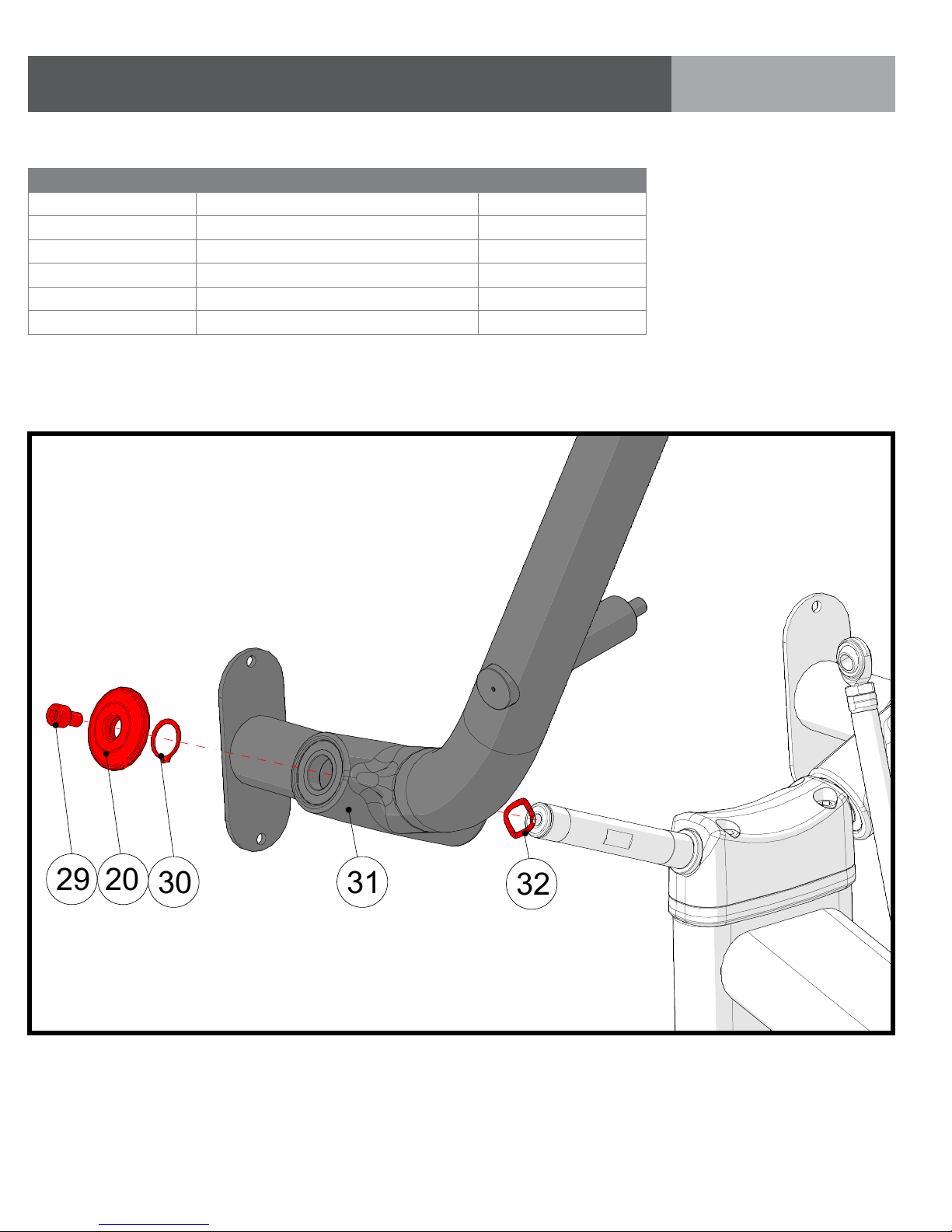

STEP 3 | LEFT AND RIGHT* ARM ASSEMBLY INSTRUCTIONS & NOTES
ASSEMBLY
PART 3: ARM ASSEMBLY
ID DESCRIPTION QUANITY
20 Small Pivot Cap 2
29 M10 X15L SHC 1
30 Snap Ring 2
31 Left Arm 1
32 Wave (Spring) Washer 2
33 Right Arm 1
Apply blue Loctite 242 and tighten to 77 N-m/57 ft-lbs.
*Only left arm is shown
31
32
30
20
29
