Matrix TF30 User manual

JOHNSON
Issue date
2016-09-27
Edition
01
Doc No.
SM-TM-AF-003
Revision
2017-10-19
Edition time
01
Page
28
date
Johnson Industries (Shanghai) Co., Ltd
TF30/T30/TF50/T50/T70/T75
Service Manual
Approval
Review
Editor
Kyle Schweitzer
Eileen Li
1

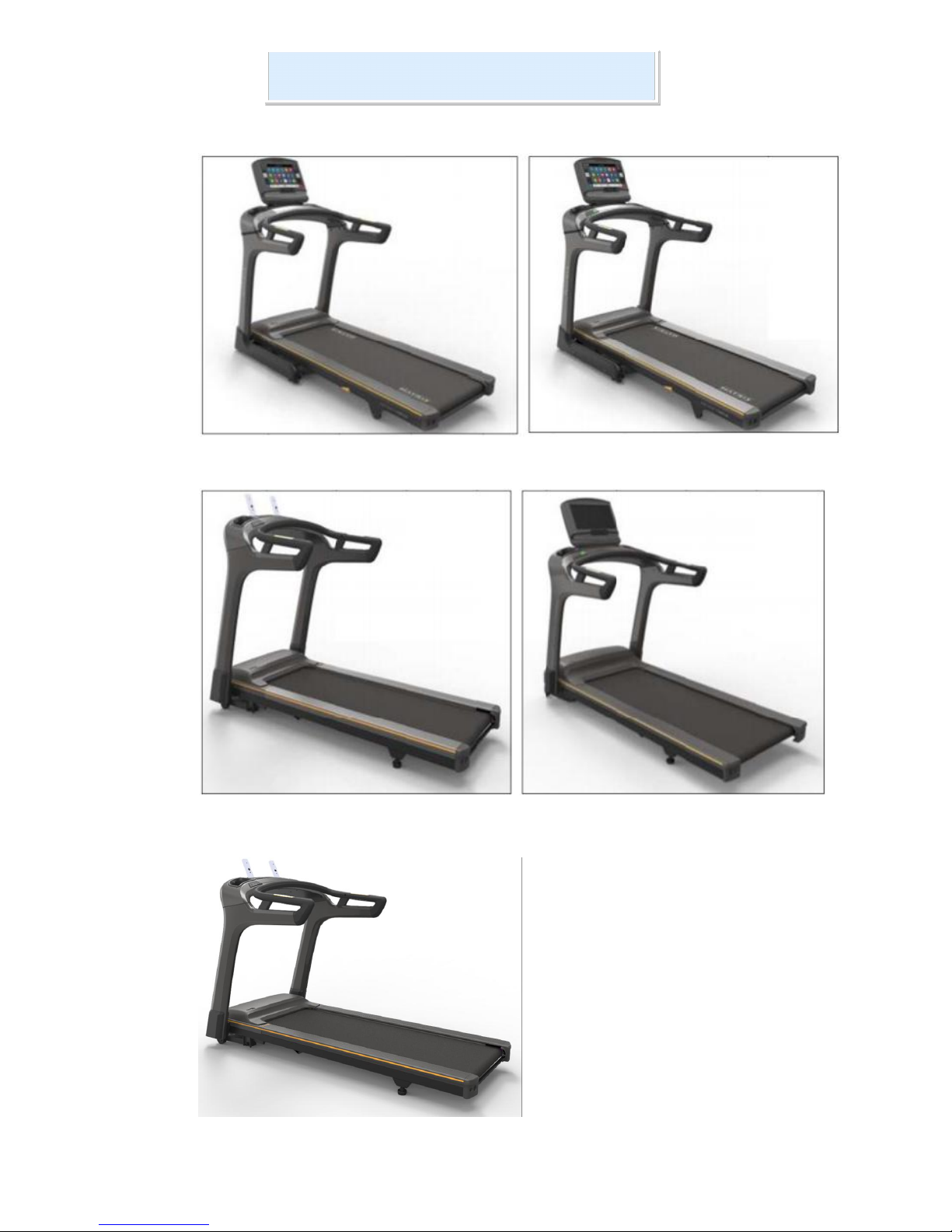

Product Browse
Matrix Retail TF30 Matrix Retail TF50
Matrix Retail T50 Matrix Retail T70/T75
Matrix Retail T30
2

Contents
CHAPTER 1: SERIAL NUMBER LOCATION............................................................................................................. 4
CHAPTER 2: TROUBLESHOTING
2.1 Electrical Diagram……………………………………………………………………………………………… 5
2.2 MCB instructions……………………………………….……………………………….…………………….......8
2.3.1 Troubleshooting - No Function For Safety Key.............................................................................................. 14
2.3.2 Troubleshooting - No Response For Machine When Pressing Start…………………………………….. 15
2.3.3 Troubleshooting - Incline Motor Issues........................................................................................................... 16
2.3.4 Troubleshooting - Noise Issues........................................................................................................................ 17
2.3.5 Troubleshooting - Heart Rate Function Issues.............................................................................................. 18
CHAPTER 3: PART REPLACEMENT GUIDE
3.1 Motor Replacement............................................................................................................................................... 19
3.2 Side Rail Replacement..........................................................................................................................................21
3.3 Rear Roller Replacement..................................................................................................................................... 22
3.4 Running Deck Replacement................................................................................................................................ 23
3.5 Front Roller Replacement.....................................................................................................................................24
3.6 Running Belt Replacement...................................................................................................................................25
3.7 Motor Control Board (MCB) Replacement......................................................................................................... 26
3.8 Incline Motor Replacement................................................................................................................................... 27
3.9 Console Replacement...........................................................................................................................................28
3

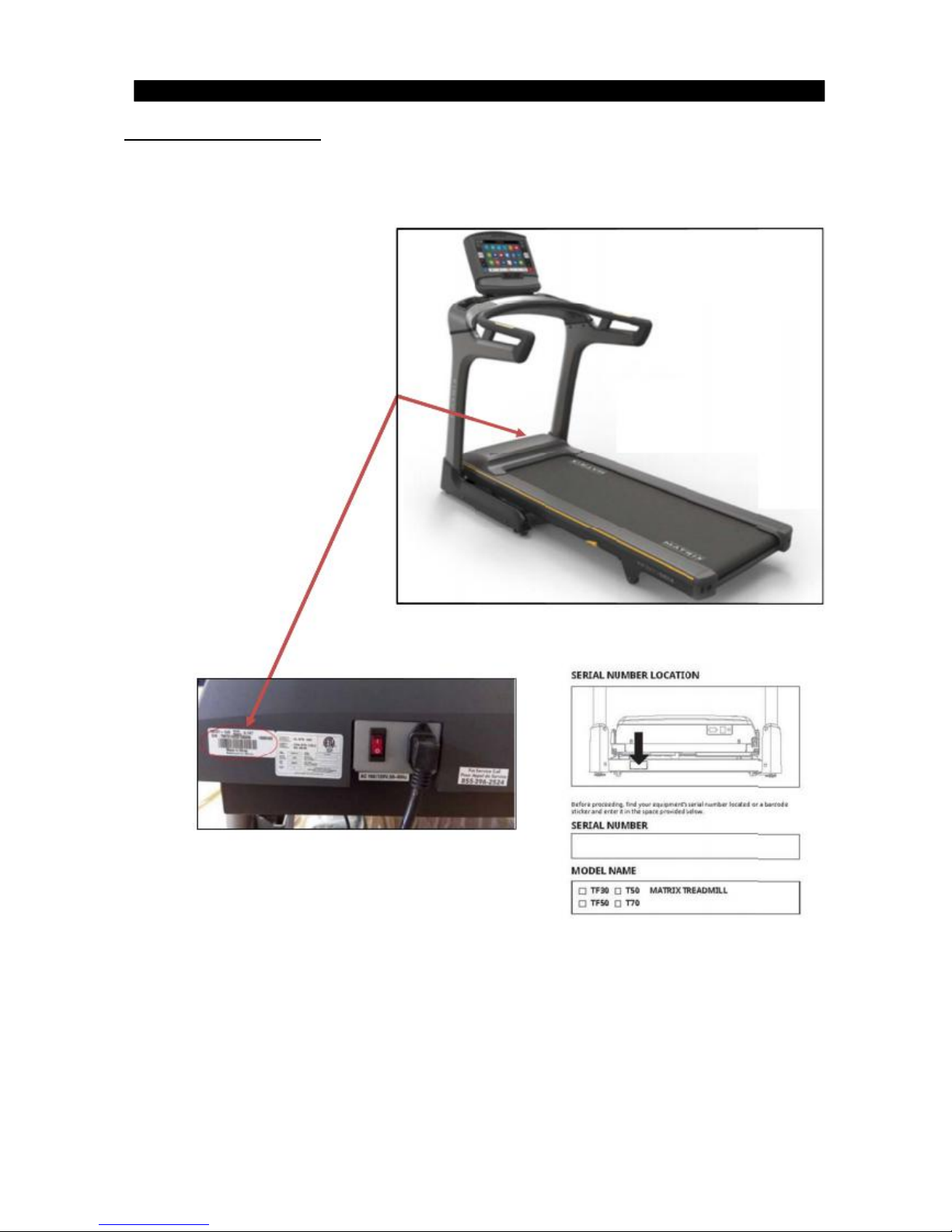

CH APTER 1: Serial Number Location
Serial Number Location
4

CHAPTE 2: Troubleshooting
2.1 ELECTRICAL DIAGRAM
1. MCB ELECTRIC AL DIAGRAM---TF30/T30/TF50/T50
Fig-1 The MCB TO CONSOLE PIN LAYOUT Fig- 2 The MCB TO SPEED SENSOR P IN LAYOUT
Fig-3 The MCB TO INCLINE MOTOR THE PIN VOLTAGE INFORMATION
PIN LAYOUT
5

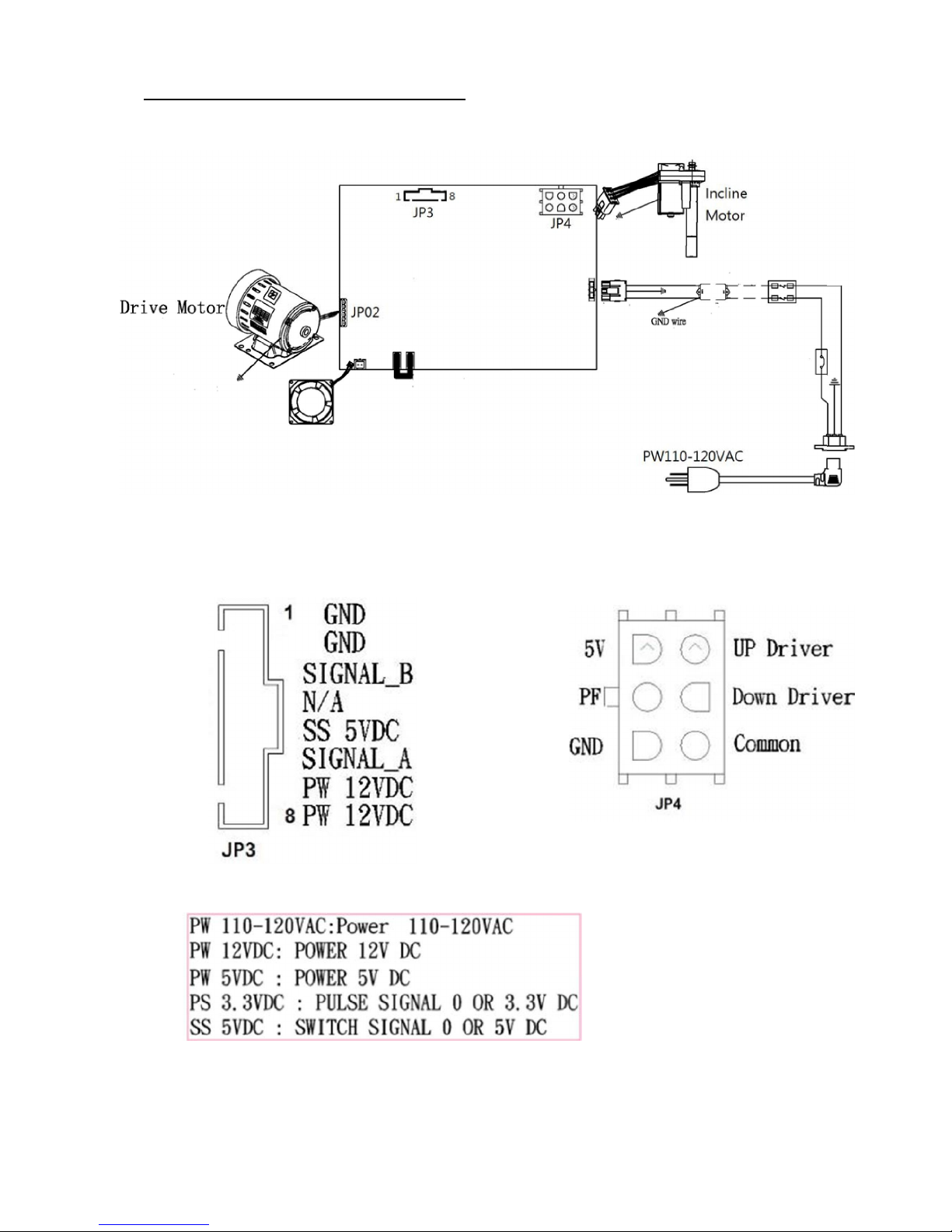

2. MCB ELECTRICAL DIAGRAM---T70/T75
Fig-1 MCB TO CONSOLE IN LAYOUT Fig -2 MCB TO INCLINE PIN LAYOUT
Fig-3 The PIN VOLTA GE INFOR MATION
6

3. CONSOLE ELECTRICAL DIGRAM---TF30/T30
CONSOLE ELECTRICAL DIAGRAM---TF50/T50/T70/T75
7

2.2. MCB instructions
1. TF30/T30/TF50/T50
CN1
Power Line in terminals
CN2
Incline motor power cable socket
CN3
Drive motor cable terminals
CN4
Speed sensor cable socket
CN5
Console cale socket
CN6
Software burning cable socket
8

2. MCB LED’s function indicator (TF30/T30/TF50/T50)
Table1-MCB LED FUNCTION
LED No
Color
Active
inactive
Function
Symptom
LED1
Red
light on
light off
Driver Motor active
Not voltage to drive motor
LED2
Green
light on
light off
MCB Power indicator
Not voltage output
LED4
Green
flash
＿＿
MCU status see Table2
See Table2
LED5
Green
light on
light off
Incline down indicator
Relay not active MCB fail
LED6
Green
light on
light off
Incline up indicator
Relay not active MCB fail
Table2-MCU STATUS (LED4)
9

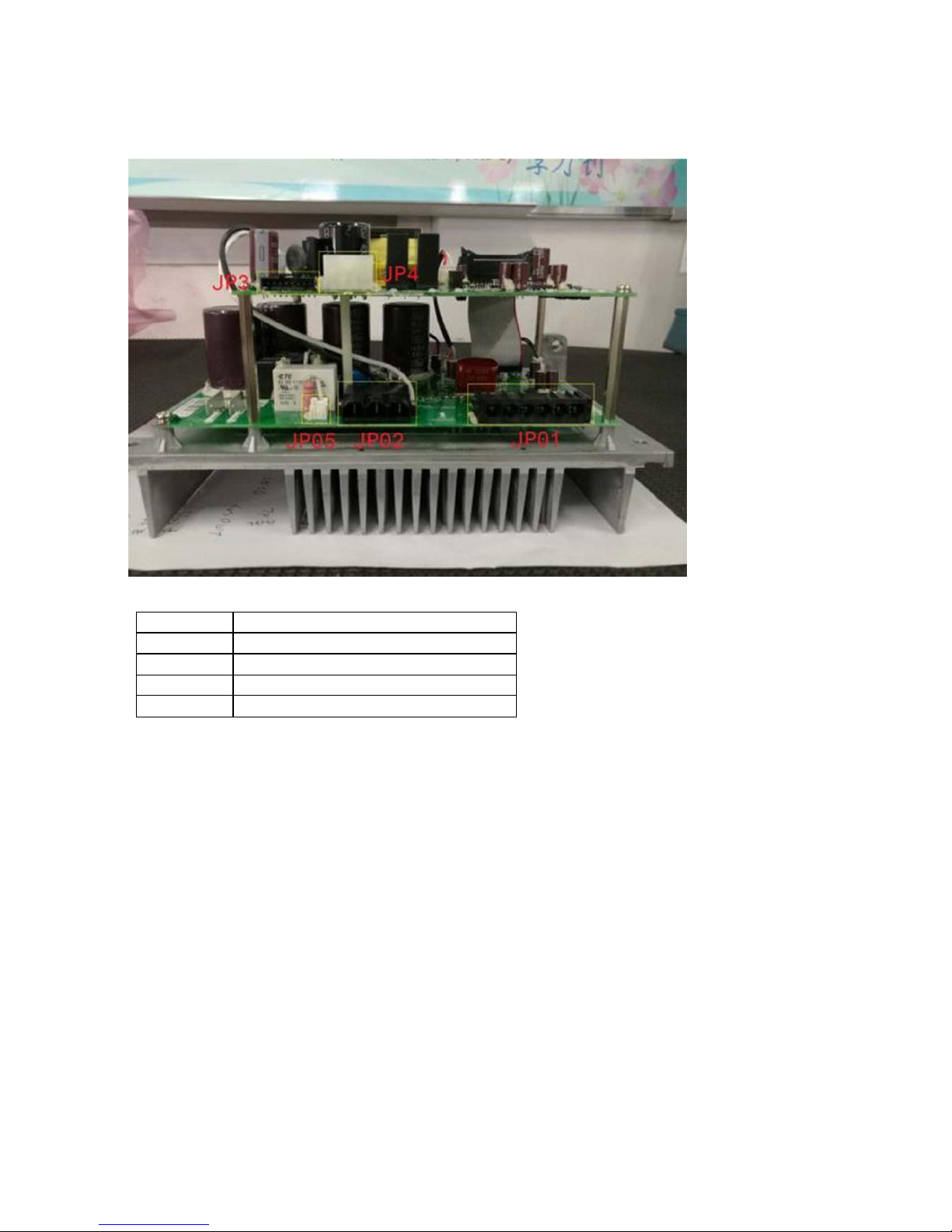

3. MCB CIRCUIT BOARD INSTRUCTIONS (T70/T75) (110V)
10
JP01
Drive motor cable socket
JP02
Power Line in socket
JP3
Console set cable socket
JP4
Incline motor cable socket
JP05
Fan cable socket

4. MCB LED’s function indicator -T70/T75 (Fig1&Fig2) (110V)
Table1-MCB LED FUNCTION
11

5. MCB CIRCUIT BOARD INSTRUCTIONS (T70/T75) ( 220V)
Fig-2
CN9
AC motor cable socket
CN1
Input power cable socket
CN13
External fan cable socket
CN7
Digital communication cable socket
CN6
Elevation motor cable socket
CN8
Adaptor power cable socket (only for T1xe / T3xe)
12

6. MCB LED’s function indicator -TF70/T75（220V）
Table1-MCB LED FUNCTION
13

CHAPTER 2: Troubleshooting
2.3.1. TROUBLESHOOTING – NO FUNCTION FOR SAFETY KEY
SOLUTION:
a. Check if the safety key is totally inserted into the console.
- If not, remove and insert again.
b. Check if the safety key is oxidized or damaged.
- If yes , try cleaning it or replace it.
c. If the safety key is not damaged, check the alignment of the reed switch (safety key sensor)
and wire connection in the console.
14

CHAPTER 2: Troubleshooting
2.3.2 TROUBLESHOOTING – NO RESPONSE FOR MACHINE When Pressing Start
SOLUTION:
a. Check if the console beeps when all keys are pressed. If no, replace the keypads
b. Enter Engineering Mode, and scroll to ENG 1 (Hardware Test). Press the “ENTER” key first and
then the key “START”.
- When press the key “SPEED + / -“, if the data on windows “TIME” & “DISTANCE” change,
the Console is ok. If not, replace the UCB.
c. Verify the motor or running belt spins freely - remove any obstructions from under the running
belt or motor compartment that may cause a block in movement.
d. Check the console cable connection. Also, console cable continuity can be tested with Ohms
on each wire of the cable.
e. Test the drive motor.
1. 30/50 series short test - Disconnect power from the unit. Remove the motor cover. Remove
the red and black motor wires from the MCB. Using a jumper wire (or metal paper clip), make
the connection between the red and black leads of the motor. Without the jumper wire, the running
belt will move freely with little to no resistance. With the jumper wire in place there will be a great
amount of resistance when trying to push the running belt. If there is resistance, the motor is good.
30/50 series battery test - Disconnect power from the unit. Remove the motor cover. Remove the
red and black motor wires from the MCB. Using a DC battery from a cordless drill or other device,
touch the red on the positive lead of the battery and the black to the negative lead. If the motor runs,
the motor is good.
2. 70 series windings test - Disconnect power from the unit. Remove the motor cover. Remove the
motor connection from the MCB. With an Ohm meter test the resistance level between the
motors three phases; pin 1 and pin 2, pin 1 and pin 3, then pin 2 and pin 3. If all three resistance
levels are the same, the motor is good. If one or more are different, replace the motor.
f. If the drive motor is ok. Then,
- Check the connection of the speed sensor (encoder disk group) at the MCB.
- Remove the speed sensor from the motor and clean it, then re-test.
- If the speed sensor is clean and has a good connection but still will not operate, replace the speed
sensor.
- Replace the MCB as the last step if machine does still not run after to take above actions.
15

CHAPTER 2: Troubleshooting
2.3.３TROUBLESHOOTING - INCLINE MOTOR ISSUES
SOLUTION:
a. While using the machine press the "INCLINE" keys, the console should beep and display incline
change, if no, replace the key pad.
b. Enter Engineering Mode, and scroll to ENG 1 (Hardware Test). Press the “ENTER” key
first and then the “START” key.
c. Press the “INCLINE ▲/▼” key.
If can hear clicks from two relays and LED light (see table 2.2.2 and 2.2.4) at the MCB,the MCB is
ok. Then check the connection of the elevation motor at the MCB. First try to unplug and re-plug
connection . If this does not resolve the issue, replace the elevation motor.
If there is no clicks from these two relays or LED light, MCB is defective and replace the MCB.
16

CHAPTER 2: Troubleshooting
2.3.4 TROUBLESHOOTING - NOISE ISSUES
SOLUTION:
a.Thumping noise twice per rotation on new machine.
This noise is from the roller or running belt.
- If this is a new unit, some noise is normal as the running belt forms around the rollers.
- Check that the belt is centered and tensioned correctly.
- Remove and clean the rollers if needed.
- Replace the rollers or running belt as needed.
b. High pitched “bell-like” sound from under the motor cover.
This sound is likely a moving component.
- Remove the motor cover and check the drive belt for alignment and make sure it is not slipping or
is frayed / cut in any way. Replace the drive belt if needed.
- Make sure the optic disk on the motor is not rubbing the speed sensor.
- Turn the motor by hand to see if motor bearings are rubbing. Replace the motor if needed.
- Check the front and rear rollers, replace if needed.
c. Rubbing / grinding noise.
This sound is likely caused by the optic disk.
- Check that the optic disk is tight on the motor and not rubbing the speed sensor.
d. Banging or clunking sound/slapping / squeaking sound with each footstep.
The sound is likely due to the unit not being level.
- Check that all levelers are touching the ground.
- Move the treadmill to another flat surface. -
This sound is from the running deck / belt.
- Remove the side rails and tighten the deck bolts and elastomers.
- Check the deck shocks for disintegration or crumbling. Replace if needed.
e. Rubbing sound underneath the treadmill.
This sound is likely due to the air shock.
- Lubricate or replace the air shock as needed.
f. Squeaking / grinding noise when using elevation.
This sound is likely from the incline motor.
- Check that the incline motor and incline rack connection points to the main frame are tight.
Replace Teflon washers on the frame as needed.
- Lubricate the incline motor worm screw and connection points with grease.
- Replace the incline motor.
17

CHAPTER 2: Troubleshooting
2.3.5 TROUBLESHOOTING- HEART RATE FUNCTION ISSUE
SOLUTION:
a.Telemetric heart rate:
1. Re-center the chest strap below the user's pectoral muscle and check again.
2. Replace the battery in the chest strap
.
b.Heart rate grip:
1. Wet the user's hand, and then reestablish contact with the HR grip.
2. Replace new HR grip if console can display proper HR rate.
With a multi-meter set for DC voltage, place one terminal on each of the HR grip plates. The HR
Grip should give a voltage reading of between 0.5 and 2.0VDC. If the voltage is not between
0.5 And 2.0VDC, remove the screws holding the HR grip together and check the connection of
the HR grip wiring.
3. Check a-d. If still cannot work, Suggest install new console.
18

C HAPTER 3 : Part Replacement Guide
3.1 MOT OR REPL CEMENT

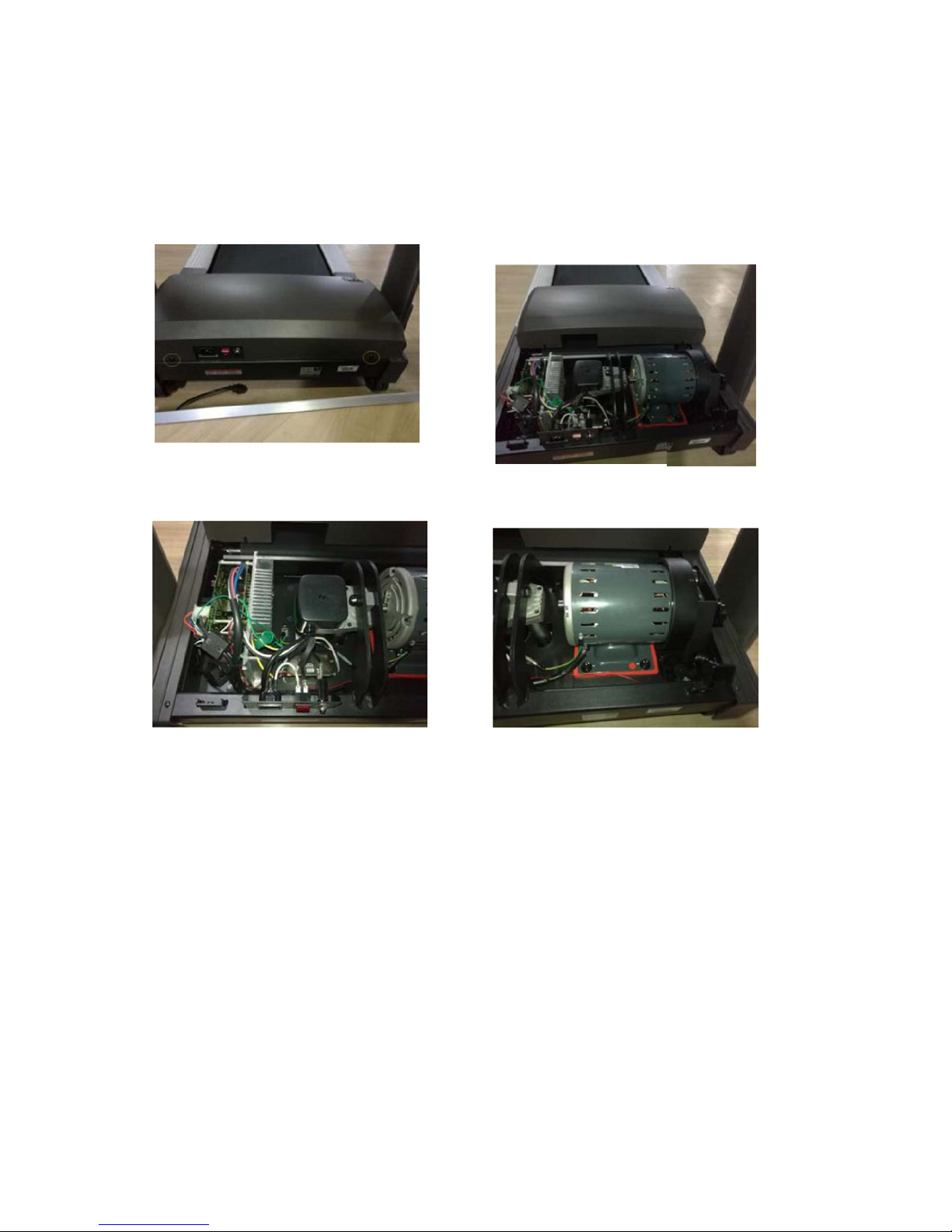

1.TF30/T30/TF50/T50
1) Disconnect power cord.
2) Remove the 2 screws holding t e motor cover to the frame (Fig-1)
3) The cover is secured to the frame with Velcro so you will have to pull up with some force (Fig -2)
Fig-1 Fig -2
4) Fig-3 & Fig-4 shows the motor M CB area with the motor cover removed. (Fig-3 & Fig-4)
Fig-4
Fig-3
5) Unplug the motor connector from LCB, speed sensor, cut any wire tie s as needed.
6) Remove the drive belt by spinning the flywheel (or running belt) and walking the drive belt off toward
the outer edge of the treadmill.
7) Remove the four motor bolts and remove motor.
8) Reverse steps to install motor. When installing Flexonic drive belt, start with belt on inside of front roller
pulley. Install belt on drive motor pulley. Then by rotating the front roller pulley while applying pressure on
the drive belt, roll the belt on. Continue to walk belt on until centered on both pulleys.
10) Test at various speeds.
19

MOTOR REPLACEMENT (Cont'd)
2. T70/T75 ONLY
1) Disconnect power cord.
2) Remove the 2 screws holding the motor cover to the frame (Fig-1).
3) Note. The cover is secured to the frame with Velcro so you will have to pull up
Fig-1
3) Disconnect motor wires and grounds, cut any wire ties as needed.
Fig-3
4) Remove spring from the belt tensioner. Re move drive belt from motor pulley. 5)
Remove 4 bolts securing motor and remove motor from drive compartment.
with some force (Fig-2)
Fig-2
Fig-4
6) Revers e steps to install motor. replace any wire ties that were removed.
Note: when installing the drive bet, rotate by hand several rotations, make sure it is aligned with the front
roller pulley.
7) Test at various speeds
20
