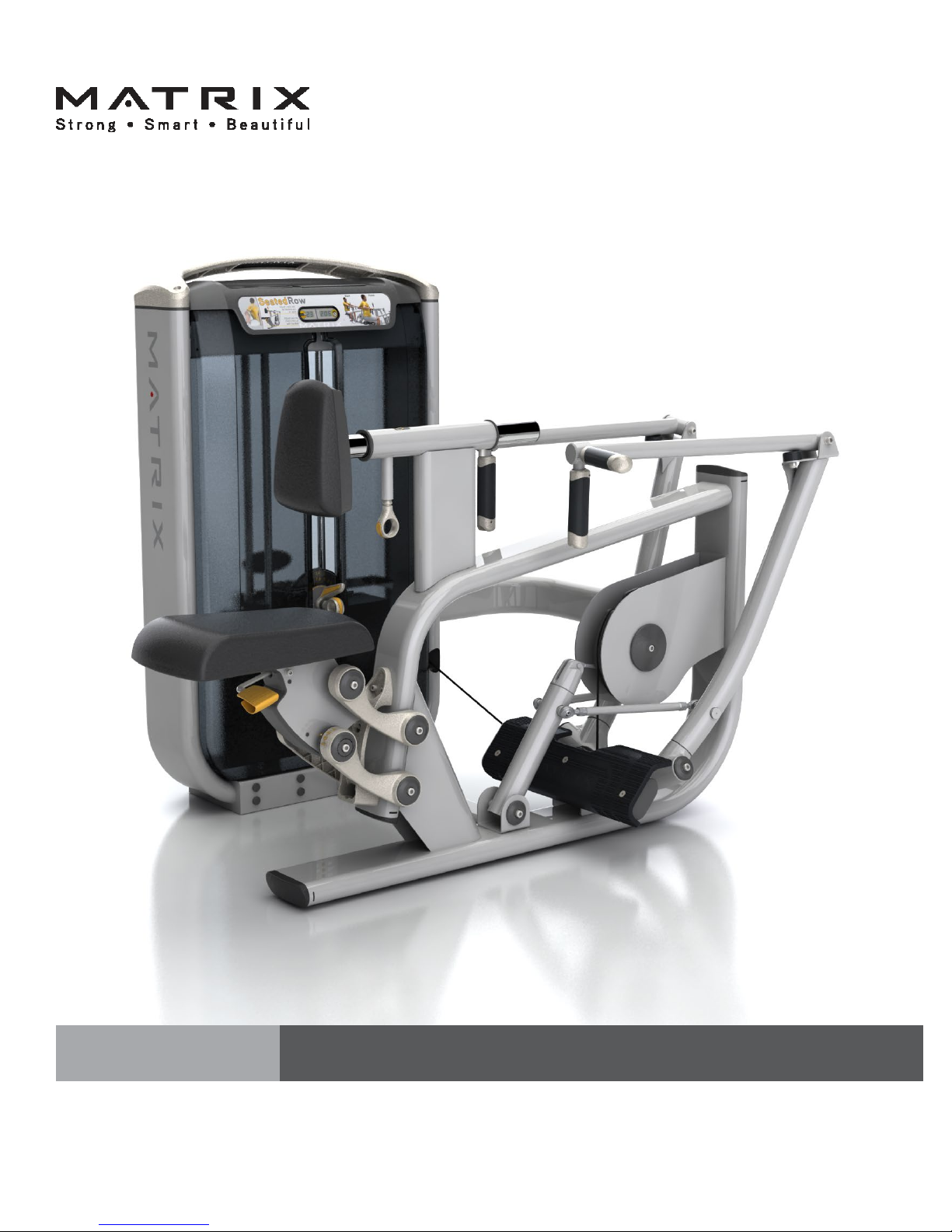

Matrix G7-S34 User manual

OWNERS MANUAL
ULTRA Single-Station Strength
G7-S34 Seated Row

Table Of Contents
Safety, General Care & Maintenence ....................................................................................................................3
Getting Started (Product Specifications).............................................................................................................5
Assembly Information .............................................................................................................................................6
Markings ....................................................................................................................................................................7
Parts List ...................................................................................................................................................................8
Installation & Assembly: Value Line
Part 1 Weight Stack & User Frame Assembly....................................................................................... 10
Part 2 Seat Assembly............................................................................................................................... 13
Part 3 Pivot Block Assembly................................................................................................................... 15
Part 4 Foot Rest Assembly ...................................................................................................................... 16
Part 5 CAM/Cable Assembly ................................................................................................................... 17
Part 6 Arm Assembly ............................................................................................................................... 18
Part 7 Pad Assembly.................................................................................................................................24
Part 8 Plastics Assembly.........................................................................................................................26

3
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INFORMATION
It is the sole responsibility of the purchaser of Matrix products to instruct all individuals, whether they are the end user or
supervising personnel on proper usage of the equipment.
It is recommended that all users of Matrix exercise equipment be informed of the following information prior to its use.
PROPER USAGE
Do not use any equipment in any way other than designed or intended by the manufacturer. It is imperative that Matrix
equipment be used properly to avoid injury.
Keep hands and feet clear at all times from moving parts to avoid injury.
CHECK FOR DAMAGED PARTS
1. DO NOT use any equipment that is damaged and or has worn or broken parts. Use only replacement parts supplied by
your country’s local Matrix dealer.
2. MAINTAIN LABELS AND NAMEPLATES: Do not remove labels for any reason. They contain important information.
If unreadable or missing, contact your Matrix dealer for a replacement.
3. SECURING EQUIPMENT: All equipment MUST be secured to the floor to stabilize and eliminate rocking or tipping over.
This must be performed by a licensed contractor.
4. MAINTAIN ALL EQUIPMENT: Preventative maintenance is the key to smooth operating equipment as well as keeping
your liability to a minimum. Equipment needs to be inspected at regular intervals.
5. Ensure that any person(s) making adjustments or performing maintenance or repair of any kind is qualified to do so.
Matrix dealers will provide service and maintenance training at our corporate facility upon request.

4
IMPORTANT SAFETY INSTRUCTIONS
WARNING:This product contains chemicals known to the State of California
to cause cancer and birth defects or other reproductive harm.
WARNING:SERIOUS INJURY CAN OCCUR ON THIS EQUIPMENT. FOLLOW
THESE PRECAUTIONS TO AVOID INJURY!
1. Never allow children on strength training equipment. Teenagers must be supervised at all times while using this
equipment.
2. All warnings and instructions should be read and proper instruction obtained prior to use.
3. Use this equipment for its intended purposes only.
4. NEVER allow resistance straps, ropes or other means be attached to this equipment, as this may result in serious
injury.
5. NEVER use this equipment for support during stretching, as this may result in serious injury.
6. Cease exercise if you feel faint or dizzy. Obtain a medical exam before beginning an exercise program.
7. Keep body, hair, clothing and accessories free and clear of all moving parts.
8. Inspect the machine before use. DO NOT use machine if it appears damaged or inoperable.
9. Check to see that the selector pin is completely inserted into the weight stack.
10. NEVER use this machine with the weight stack pinned in an elevated position.
11. NEVER use dumbells or other means to incrementally increase the weight resistance. Only use the means provided
directly from the manufacturer.
12. This equipment should only be used in supervised areas where access and control are regulated by the owner.

5
GETTING STARTED
EXERCISE PLACARD | PRODUCT SPECIFICATIONS | MAINTENANCE CHECKLIST
EXERCISE PLACARD
PRODUCT SPECIFICATIONS
TECH SPECS
Maximum User Weight 136 kg / 300 lbs.
Maximum Training Weight 109 kg / 240 lbs.
Product Weight 311 kg / 685 lbs.
Overall Dimensions (L x W x H) 158.1 x 142.8 x 129.6 cm / 62.3" x 56.2" x 51.0"
WARRANTY (Valid in USA only)
Frame (not coatings) 10 years
Weight stacks 5 years
Pulleys 5 years
Pivot bearings 5 years
Any items not specified 3 years
Labor (excluding upholstery/cables/grips) 3 years
Upholstery/cables/grips/springs 1 year
Accessories 6 months
MAINTENANCE CHECKLIST
ACTION FREQUENCY
Clean Upholstery Daily
Inspect Cables Daily
Clean Guide Rods Monthly
Inspect Hardware Monthly
Inspect Frame Bi-Annually
Clean Machine As Needed
Clean Grips As Needed
Lubricate Guide Rods As Needed
Upholstery & Grips should be cleaned with a non-ammonia based cleaner or a mild soap and water. Guide rods should be
lubricated with Teflon based lubricant. Apply the lubricant to a cotton cloth and then apply up and down the guide rods.

6
ASSEMBLY
UNPACKING | TOOLS REQUIRED
UNPACKING
Thank you for purchasing a Matrix product. This machine is an EN957-1 and EN957-2 compliant Class S product. Your
Matrix product is inspected before it is packaged. It is shipped in multiple pieces to facilitate the compact packaging of the
machine. Prior to assembly, confirm all the components by matching them with the exploded diagrams. Carefully unpack
the unit from this box and dispose of the packing materials in accordance with your local laws.
CAUTION
The weight of the product is 685 lbs. (311 kg) not including the weight stack. The weight stack for this machine is 240
lbs. (109 kg). To avoid injury to yourself and prevent damage to the frame components, be sure to have proper assistance
removing the frame pieces from this box. Please be sure to install the equipment on a stable base, properly level the
machine and leave at least two feet of clearance to enter and exit the machine. Maximum user weight for this machine is
300 lbs.

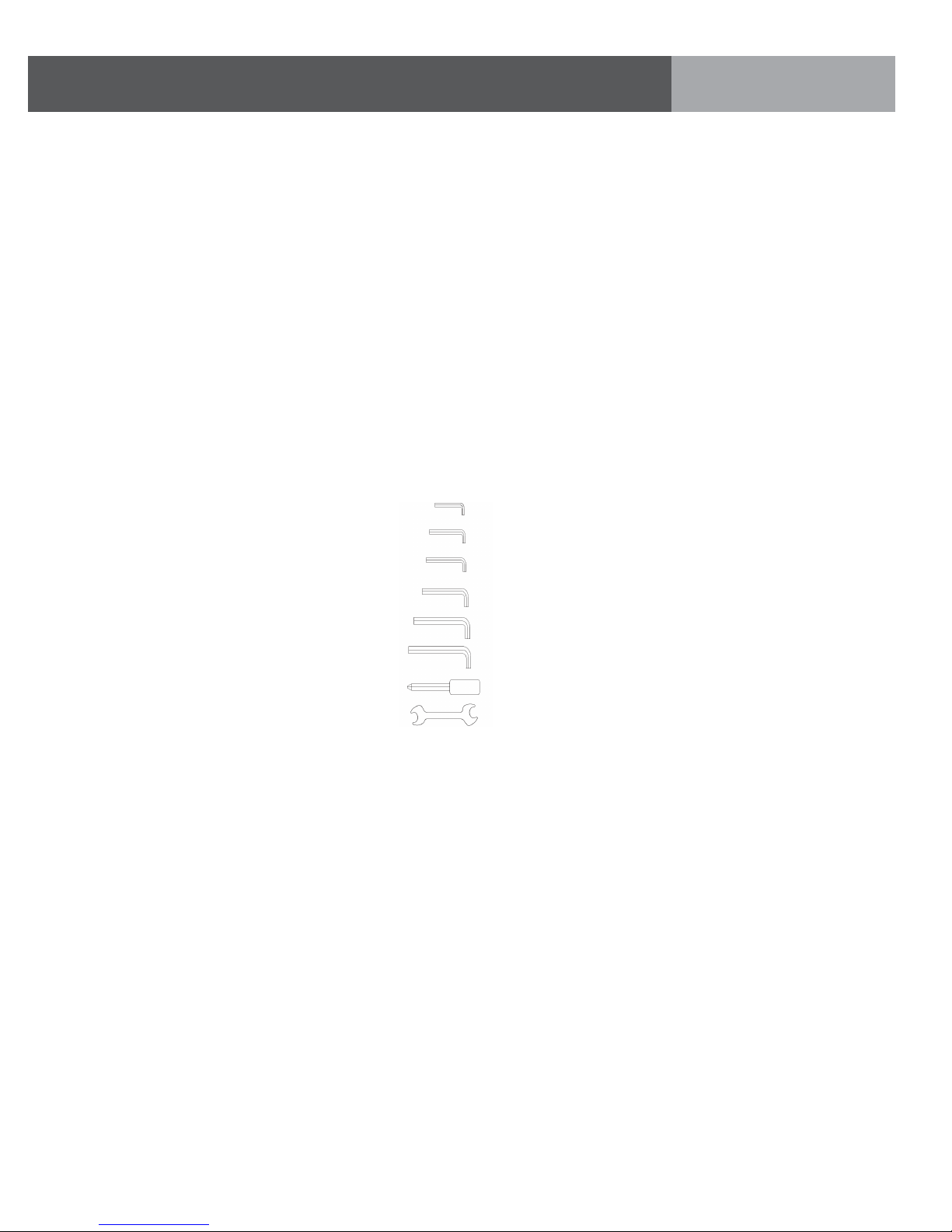

TOOLS REQUIRED FOR ASSEMBLY
3MM L-Shaped Allen Wrench
4MM L-Shaped Allen Wrench
5MM L-Shaped Allen Wrench
6MM L-Shaped Allen Wrench
8MM L-Shaped Allen Wrench
10MM L-Shaped Allen Wrench
Phillips & Standard Screwdrivers
8MM Open-End Wrench
13MM Open-End Wrench
17MM Open-End Wrench.
19MM Open-End Wrench
Adjustable Wrench
Blue Locktite 242 must be used on all fasteners that are not assembled with Nylock Nuts.

7

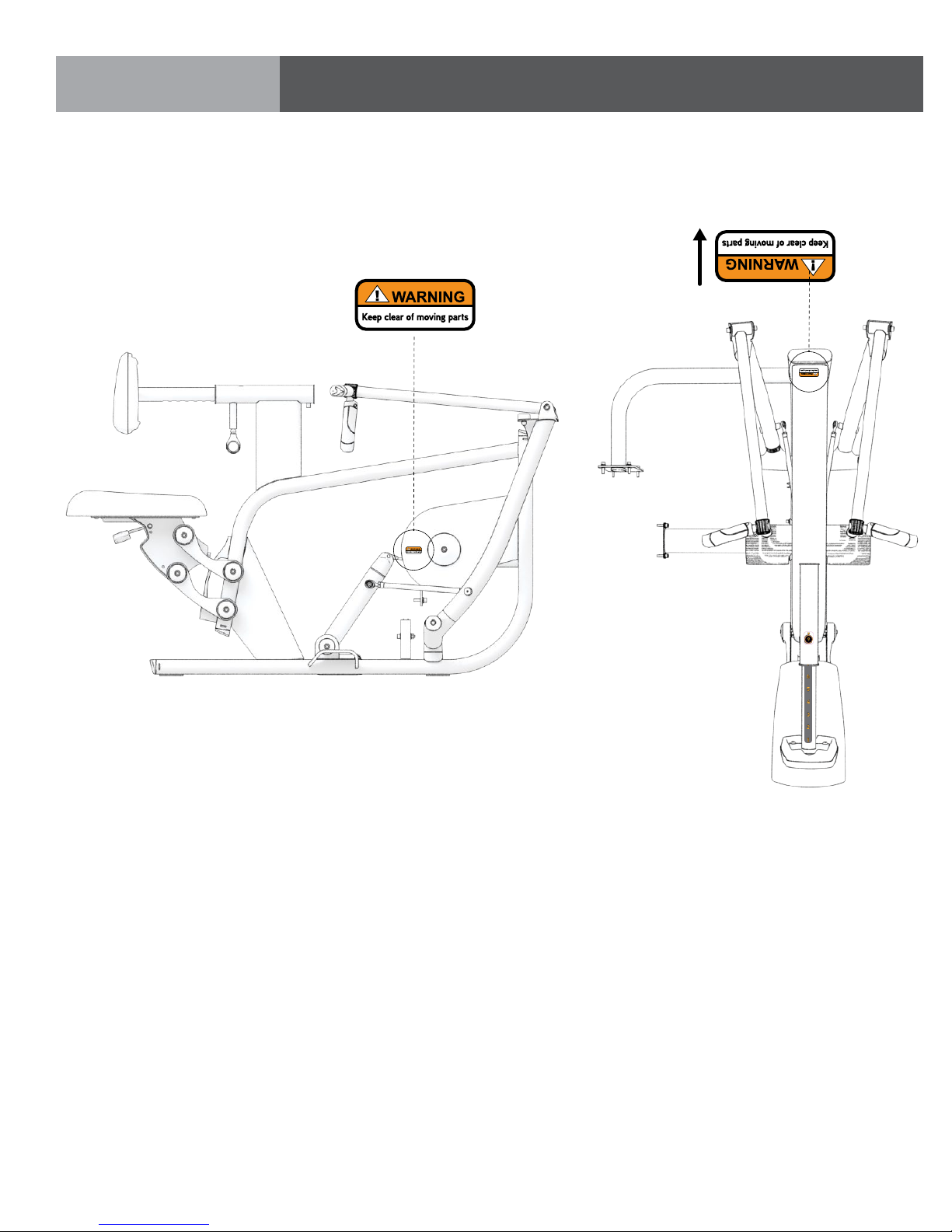

MARKINGS
WARNING LABEL LOCATIONS

8
Parts List
ID DESCRIPTION QTY
1Lower Connecting Tube 1
2 M10 X 30L Socket Head Cap Screw 8
3 M10 Flat Washer 19
4 Weight Stack 1
5 M10 Nylock Nut 8
6 M10 X 75L Socket Head Cap Screw 4
7Upper Connecting Tube 1
8 M10 Saddle Washer 4
9 User Frame 1
10 M10 X 50L Socket Head Cap Screw 1
11 Pulley 1
12 M8 X 25L Socket Head Cap Screw 8
13 Medium Pivot Cap 8
14 Seat Link 4
15 Axle 4
16 Spring 3
17 Seat Mechanism 1
18 Pivot Block Assembly 1
19 M10 X 55L Socket Head Cap Screw 4
20 Rubber Footpad 1
21 M10 X 20L Flat Head Cap Screw 3
22 Foot Plate 1
23 CAM 1
24 Large Pivot Cap 1
25 M10 X 105L Socket Head Cap Screw 2
26 Swingarm 1
27 M6 Nylock Nut 1
28 M6 Shoulder Bolt 1
29 Small Pivot Cap 3
30 Tie Rod 2
31 M6 Flat Washer 4
32 M6 X 12L Socket Head Cap Screw Seat 4

9
ID DESCRIPTION QTY
33 Wave (Spring Washer) 2
34 Right Lower Arm 1
35 Snap Ring 2
36 Left Lower Arm 1
37 M10 X 15L Socket Head Cap Screw 2
38 Left Upper Arm 1
39 Right Upper Arm 1
40 M10 X 95L Socket Head Cap Screw 2
41 Chest Pad Assembly 1
42 M10 X 25L Button Head Cap Screw 4
43 Pad 1
44 M10 X 25L Hex Bolt 4
45 Left Front Shroud 1
46 Rear Shroud 1
47 Right Front Shroud 1
48 M8 X 60L Socket Head Cap Screw 4
49 Top Cap 1
Parts List

10
PART 1: USER FRAME ASSEMBLY
STEP 1 | USER FRAME INSTRUCTIONS & NOTES
ID DESCRIPTION QUANITY
1Lower Connecting Tube 1
2 M10 X 30L SHC 4
3 M10 Flat Washer 12
4 Weight Stack 1
5 M10 Nylock Nut 4
6 M10 X 75L SHC 4
7Upper Connecting Tube 1
ASSEMBLY
Tip frame as shown to access hardware.
DO NOT FULLY TIGHTEN
5
3
4
2
1
6
7

11
PART 1: USER FRAME ASSEMBLY
STEP 2 | USER FRAME INSTRUCTIONS & NOTES
ID DESCRIPTION QUANITY
2 M10 X 30L SHC 4
8 M10 Saddle Washer 4
9 User Frame 1
ASSEMBLY
Tip frame as shown to access hardware.
DO NOT FULLY TIGHTEN
View A
Orient the saddle
washer as shown
8
2
9

12
PART 1: USER FRAME ASSEMBLY
STEP 3 | WEIGHT STACK CABLE INSTRUCTIONS & NOTES
ID DESCRIPTION QUANITY
3 M10 Flat Washer 1
10 M10 X 50L SHC 1
11 Pulley 1
ASSEMBLY
11
3
10
Torque all to: 77 N-m/57 ft-lbs.

13
PART 2: SEAT ASSEMBLY
STEP 1 | SEAT LINK INSTRUCTIONS & NOTES
ID DESCRIPTION QUANITY
12 M8 X 25L SHC 2
13 Medium Pivot Cap 2
14 Seat Link 1
15 Axle 2
16 Spring 1
17 Seat Mechanism 1
ASSEMBLY
Outer tab of spring must be secured behind
frame reaction bar
Tighten to 39 N-m/29 ft-lbs.
Ensure bottom links are assembled correctly by
testing spring tension
12
13
15
16
14
17

14
Torque all to: 39 N-m/29 ft-lbs.
STEP 2 | SEAT ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANITY
12 M8 X 25L SHC 6
13 Medium Pivot Cap 6
14 Seat Link 3
15 Axle 2
16 Spring 2
ASSEMBLY
PART 2: SEAT ASSEMBLY

15

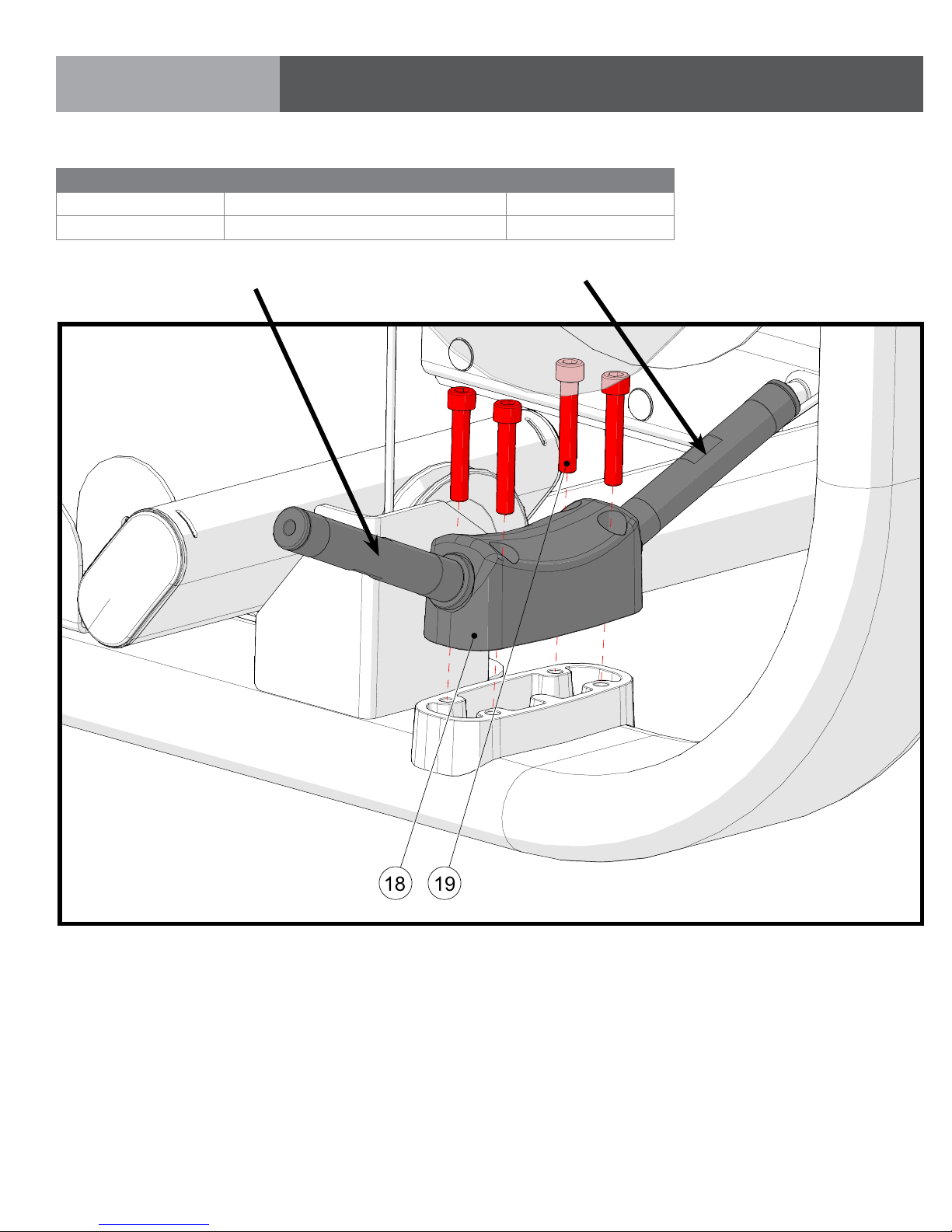

STEP 1 | PIVOT BLOCK ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANITY
18 Pivot Block Assembly 1
19 M10 X 55L SHC 4
ASSEMBLY
PART 3: PIVOT BLOCK ASSEMBLY
19
18
Hand thread - do not fully tighten
***NOTE: Pivot Block is symmetrical***
Axles must be red Loctited (Loctite 272) and torqued to: 180 N-m/133 ft-lbs.

16
STEP 1 | FOOT PLATE INSTRUCTIONS & NOTES
ID DESCRIPTION QUANITY
20 Rubber Footpad 1
21 M10 X 20L FHCS 3
22 Foot Plate 1
ASSEMBLY
PART 4: FOOT REST ASSEMBLY
Torque to: 56 N-m/41 ft/lbs.
20
22
21

17
STEP 1 | CAM ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANITY
3 M10 Flat Washer 1
5 M10 Nylock Nut 1
23 CAM 1
24 Large Pivot Cap 1
25 M10 X 105L SHC 1
ASSEMBLY
PART 5: CAM/CABLE ASSEMBLY
5
3
24
25
23
Assemble CAM as
shown, locating the
smaller CAM towards
the weight stack.
Tighten to 77 N-m/57
ft-lbs.
Separate CAM to
assemble weight
stack cable as shown.
Capture cable with
forked clip and orient
as shown. Tighten to
16 N-m/142 in-lbs.

18
PART 6: ARM ASSEMBLY
STEP 1 | SWINGARM ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANITY
3 M10 Flat Washer 1
5 M10 Nylock Nut 1
25 M10 X 105L SHC 1
26 Swingarm 1
27 M6 Nylock nut 1
28 M6 Shoulder Bolt 1
29 Small Pivot Cap 1
ASSEMBLY
5
3
29
27
25
26
28
Assemble cable into swingarm and tighten M6 to 16 N-m/142 in-lbs.
Tighten M10 to 77 N-m/57 ft-lbs.

19
ASSEMBLY

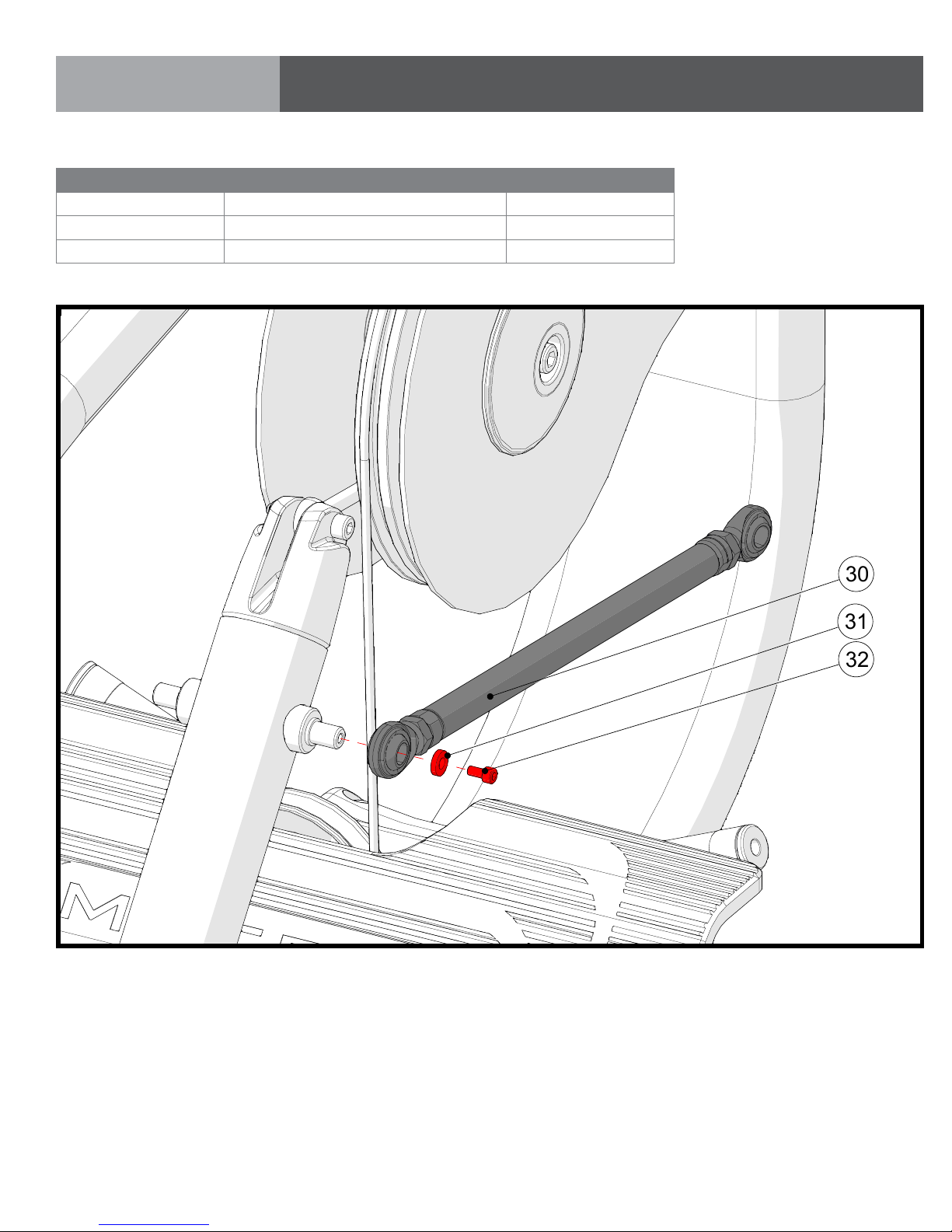

STEP 2 |TIERODTOSWINGARM ASSEMBLYINSTRUCTIONS&NOTES
PART 6: ARM ASSEMBLY
ID DESCRIPTION QUANITY
30 Tie Rod (Left Side Not Shown) 2
31 M6 Flat Washer (Left Side Not Shown) 2
32 M6 X 12L SHC (Left Side Not Shown) 2
Torque to 16 N-m/142 in-lbs.
30
31
32

20

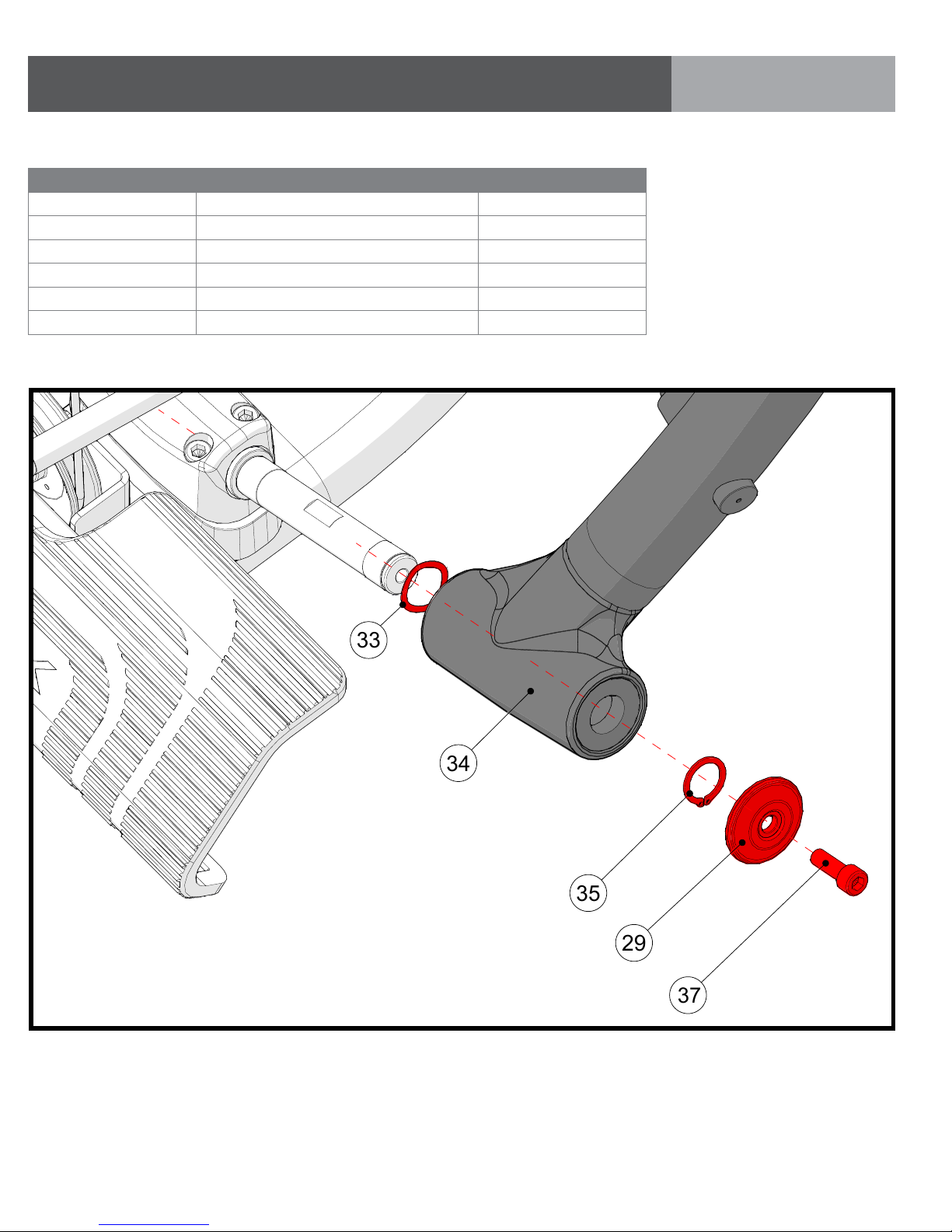

STEP3|LEFTANDRIGHT*LOWERARMASSEMBLYINSTRUCTIONS&NOTES
ASSEMBLY
PART 6: ARM ASSEMBLY
ID DESCRIPTION QUANITY
29 Small Pivot Cap* 2
33 Wave (Spring) Washer* 2
34 Right Lower Arm 1
35 Snap Ring* 2
36 Left Lower Arm* 1
37 M10 X15L SHC* 2
Apply blue Loctite 242 and tighten to 77 N-m/57 ft-lbs.
*Only right arm is shown
34
35
29
37
33
