Max EH-70F User manual

1
ELECTRONIC
STAPLER
INSTRUCTION MANUAL
● Prior to using, read this instruction manual.
● Keep this instruction manual.
● It is prohibited to reproduce the contents of this manual without permission.
● The information herein is subject to change without prior notice.

1
BEFORE USE
SAFETY INSTRUCTIONS
■INDICATIONS
This instruction manual uses various indications to help you use this instrument safely and
properly.
The following describes those indications.
WARNING: Negligence could lead to serious injury or death.
CAUTION:
Negligence could lead to an injury, damage of your property, or
cause loss of created data.
Describes operations that may cause damage to the instrument and require a
condition of the instrument.
Describes the points of operation and tips.
Describes a functional precaution.
■SYMBOLS
Denotes “What you should be aware of.”
Denotes “What you must not do.” An indication in or near this symbol shows a
specific prohibition.
Denotes “What you must do.” An indication in this symbol shows a specific
instruction.
WARNING
●Never touch a switch (white) by hand. It could cause an injury when the stapler is
abruptly activated.
●Never disassemble or modify this instrument. It could cause a fire, electric shock,
or other problems.
1
repair, or operations that require resetting the machine, etc., to restore the

WARNING
●Do not insert foreign substances such as fingers, pens, or wire into this instrument.
It could damage the instrument or cause a fire or an injury.
●Obtain power directly from a single plug socket. Avoid connecting many wires to
one plug socket. It could lead to a fire.
●Do not place any heavy material on a power cord. It could cause damage or a fire.
●Do not connect/disconnect a power plug with a wet hand. It could cause an electric
shock.
●Do not insert your fingers into this instrument. It could cause an injury when the
stapler is abruptly activated.
●Do not splash water or chemicals on the instrument. It could damage the
instrument or cause a fire.
●Keep a staple cartridge on the place where children can not touch it. If children
take a staple, contact a doctor soon.
●Use correct supply voltage. Other voltage level could damage the instrument or
cause a fire or an electronic shock.
●Use only specified AC adapter (AC100-240V, 50-60Hz) appended to the instrument.
●If water gets inside the instrument, disconnect a power plug immediately from a plug
socket and contact your dealer/distributor for a repair. It could damage the
instrument or cause a fire or electric shock.
●Do not operate the instrument, if it is out of order. If it is operated in an out-of-order
state, such as it is smoking, emitting an abnormal sound, or smelling funny, it could
cause a fire or electric shock. Disconnect a power plug immediately from a socket
and contact your dealer/distributor for a repair.
●Disconnect the power cord when replacing the staple cartridge or clearing jammed
staples. It could cause an injury when the stapler is abruptly activated.
CAUTION
●Do not insert the fingers into the stapling area. It could cause an injury.
●Do not touch a motor when replacing a staple cartridge. It is very hot just after
stapling and you could get burned.
●Do not share the electronic outlet with equipment (air conditioner, refrigerator,
microwave, office automation equipment and so on) that requires a large capacity.
The voltage drops and the instrument could malfunction.
●Do not put paper or cloth on the instrument. It could damage the instrument or
cause a fire.
●Do not staple any other paper except PPC paper. It could damage the instrument.
●When the instrument is not used for a long period of time, be sure to disconnect a
power plug from a power socket for safety.
●When moving the instrument be sure to disconnect a power plug from a power
socket for safety. Or the cord could be broken and cause a fire or electric shock.
2

CAUTION
●Clean a power cord plug regularly. Dust on the plug could cause a fire.
●When disconnecting a power cord, be sure to hold a power plug. Do not pull on the
power cord, or the cord could be broken and cause a fire or electric shock.
●Do not install the instrument on the place that is not level or that is subject to
vibration. It could damage the instrument or cause an injury because it might fall
or drop.
●Wash your hands / body immediately with soap if the grease is attached on them
when replacing a staple cartridge.
●Use only specified AC adapter (AC100-240V, 50-60 Hz) appended to the instrument.
●Use the instrument indoor dry location. It could cause an electric shock or damage
the instrument when operating it in the high humidity place.
In order to prevent problems with the instrument, observe the following
precautions.
●Install this instrument away from the following places:
1. Any place that catches direct sunlight or is located close to a heat source.
2. Any place that has dust or high humidity.
3. Any place that is not level or that is subject to vibration.
4. Any place that the temperature goes below 0 /32 or over 40 /104 .
●Use only MAX No. 70FE Staple Cartridge.
●Use a dry cloth to clean dirt of the instrument. Do not use solvents (alcohol,
benzene, thinner, etc.) or a damp cloth.
●This machine does not staple when Case cape is opened because of safety.
Close Case cap correctly when stapling.
3

CONTENTS
PACKAGE CONTENTS････････････････････････････････ 5
NAME OF EACH SECTION･････････････････････････････ 6
LOADNG THE STAPLE CARTRIDGE････････････････････ 7
STAPLING AUTOMATICALLY･･････････････････････････ 9
STAPLING MANUALLY････････････････････････････････ 10
STAPLING ON THE CORNER･･････････････････････････ 11
REPLACING THE STAPLE CARTRIDGE････････････････ 12
CLEARING JAMMED STAPLES････････････････････････ 14
SPECIFICATIONS･････････････････････････････････････ 15
4

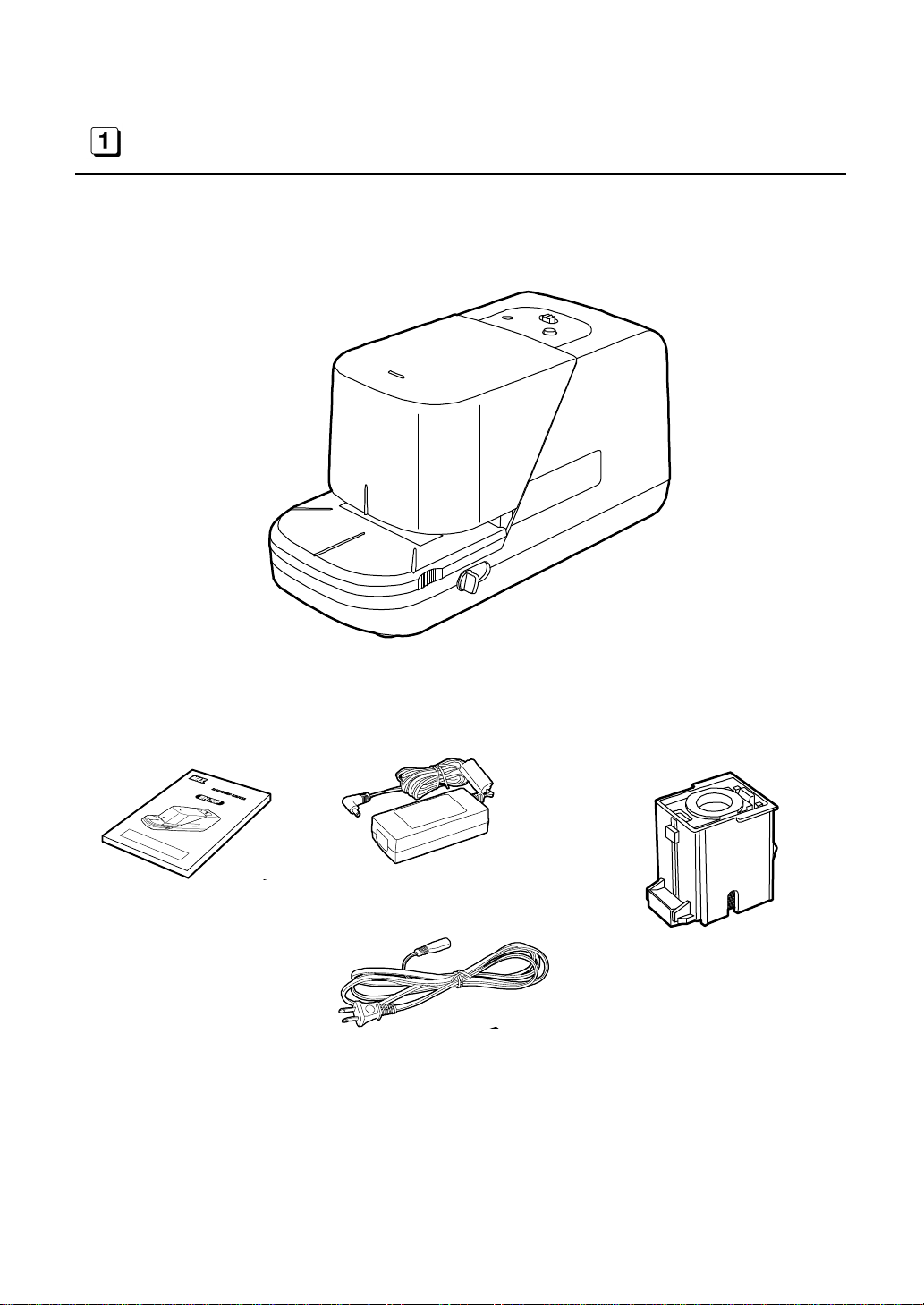

PACKAGE CONTENTS
EH-70F(1pc)
Instruction manual(1pc)
AC adopter(1pc) No.70FE Staple cartridge(1pc)
Power cord (1pc)
(This cord is for USA model.
The plug is different depends
on each model.)
5

ol slider
NAME OF EACH SECTION
Depth contr
6
Case cap
Center position
LED lamp
Selector switch
Manual button
Warning label
Caution label
Serial number label
Serial number is shown
with bar code.
Selector switch
LED lamp
Green: Activate
Red: No staple
Manual button
Paper table
Warning label, Caution label

LOADNG THE STAPLE CARTRIDGE
Prior to loading the staple cartridge into the machine, prepare and check it.
(1) As shown in the figure, pull the
stopper attached below the staple
cartridge in the arrow direction to
remove it.
(2) If a staple sheet is come out of the
cartridge, push it into the cartridge.
It could cause a jammed staple.
WARNING
Disconnect the power cord when loading the staple cartridge or clearing
jammed staples. It could cause an injury when the stapler is abruptly
activated.
7

Disconnect the power cord from a plug socket.
(1) Open the case cap.
(2) Load the staple cartridge in the arrow
direction.
(3) Close the case cap.
(4) Connect the power cord to the plug
socket.
8

STAPLING AUTOMATICALLY
WARNING
Never touch the white-colored switch. It could cause an injury when the
stapler is abruptly activated.
(1) Slide the selector switch to the
“Auto,” which is located on top of
the main body.
(2) Stapling depth is adjustable within a
range of approx. 6 to 18 mm (1/4” to
3/4”) for parallel stapling. Loosen
the depth control knob and move it
back and forth to adjust to your
desired depth.
Front Rear
approx.6mm approx.18mm
(approx. 1/4”) (approx. 3/4”)
(3) The mark on the front of the machine
is the center of the horizontal
stapling position. Move the paper
to the right and left to set your
desired position.
Be sure to turn the depth control knob to the “LOCK”
position after adjusting the slider.
Fixing the slider in the “UNLOCK” position could
cause the stapling sensor to malfunction or break.
9
Depth control slider
Center position

STAPLING MANUALLY
When stapling the paper on the edge (stapling depth: 3 to 6 mm, 1/8” to
1/4”), use the Manual button.
(1) Slide the selector switch to the
“Manual,” which is located on top
of the main body.
(2) Pull out the paper table to the near
side.
(3) Insert the paper and press the
Manual button to staple it.
10
Paper table
Manual button

STAPLING ON THE CORNER
(1) When stapling on the corner, insert
the corner of the paper.
(2) If the stapling depth is set to 6 mm
(1/4”), the paper will be stapled at the
position of about 12 mm (1/2”) from
its edge.
When the machine is used for the first
time, it will perform a few (5 – 7) idle
strokes without actually stapling papers.
This is normal and occurs while the
staples are being fed to the stapling
position.
12mm (1/2”)
11

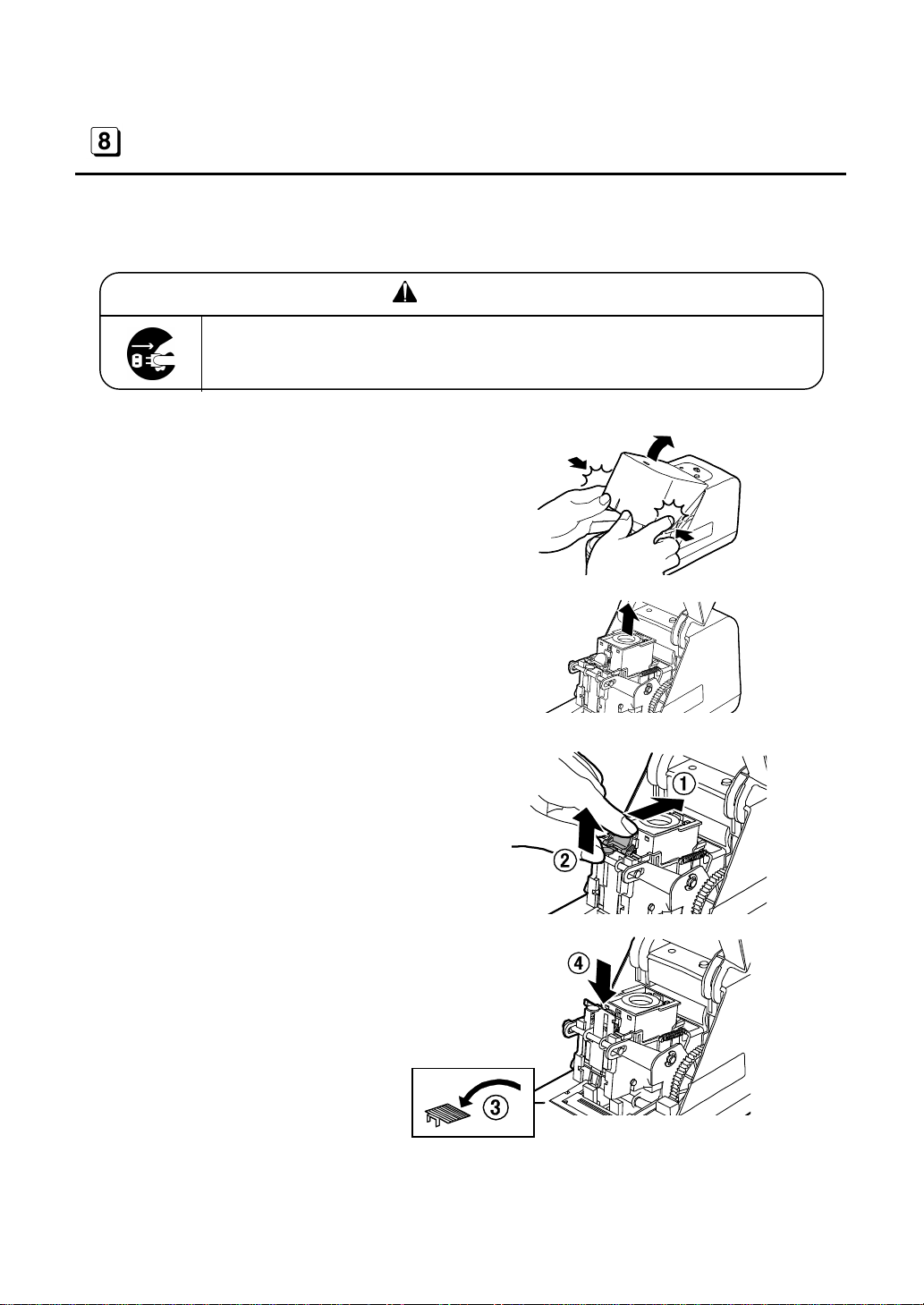

REPLACING THE STAPLE CARTRIDGE (No. 70FE)
If the staples run out in the cartridge, the LED lamp on top of the machine
will be illuminated in red in order to inform of replacement of cartridge.
In this case, the paper cannot be stapled, even if it is inserted.
Replace the cartridge as instructed below.
WARNING
Disconnect the power cord when loading the staple cartridge. It could
cause an injury when the stapler is abruptly activated.
(1) Disconnect the power cord from a
plug socket.
(2) Open the case cap.
(3) Hold the cartridge and pull it upward
to detach it.
(4) Load a new cartridge.
12

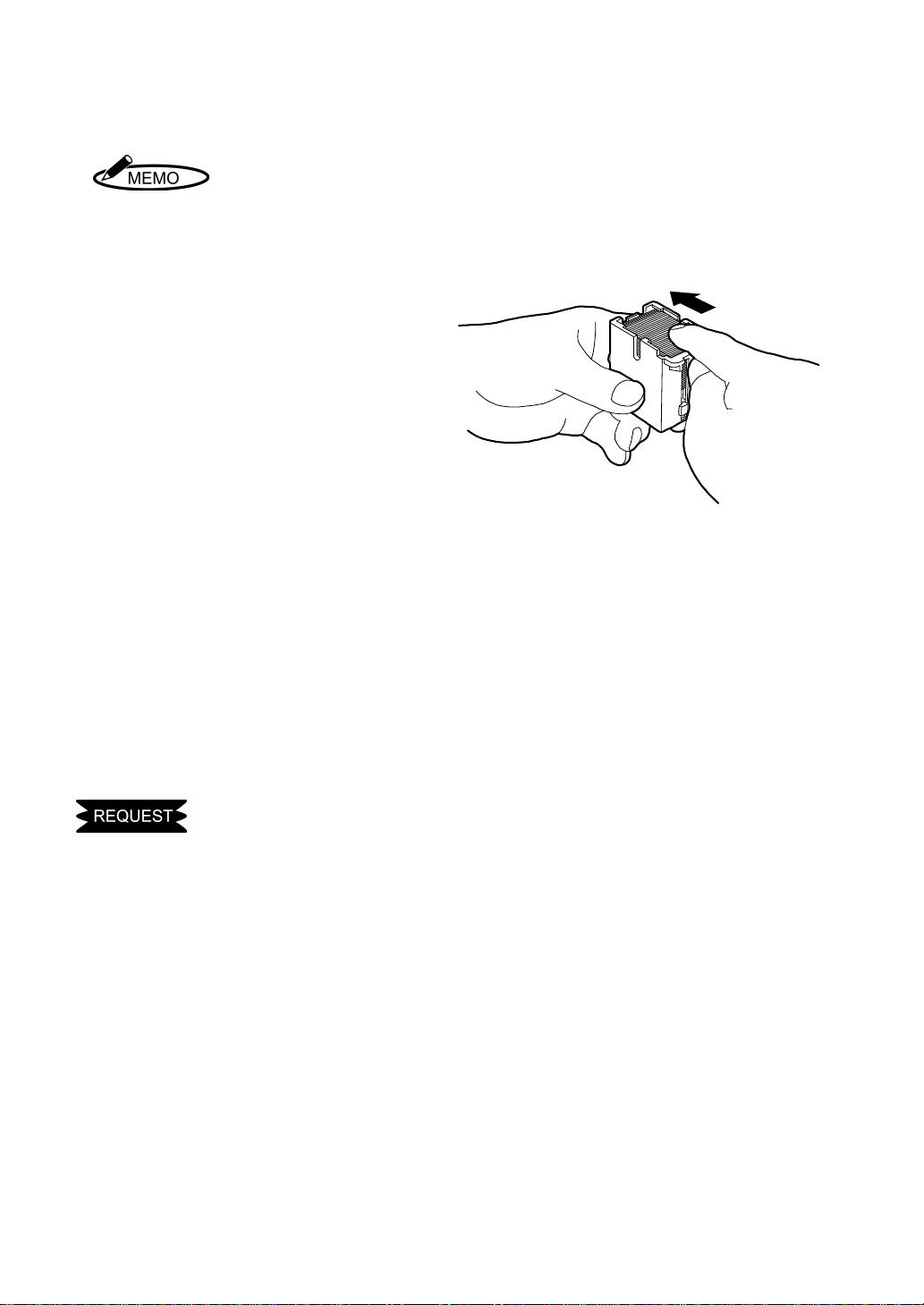

If you have removed the cartridge before it runs out of the staples, the
following condition may occur in the cartridge. Seeing the following,
load the cartridge again.
(1) The staple sheet is exposed from the
cartridge.
In this case, push the staple sheet
into the cartridge.
1. Use MAX genuine staple cartridge “No.70FE.”
2. Do not set the broken and shortened staples into the cartridge or load them into the
machine to reuse them. They could cause a trouble or staple jam.
3. Do not touch the staple sensor or feeding roller of staple when removing staples from the
machine.
13

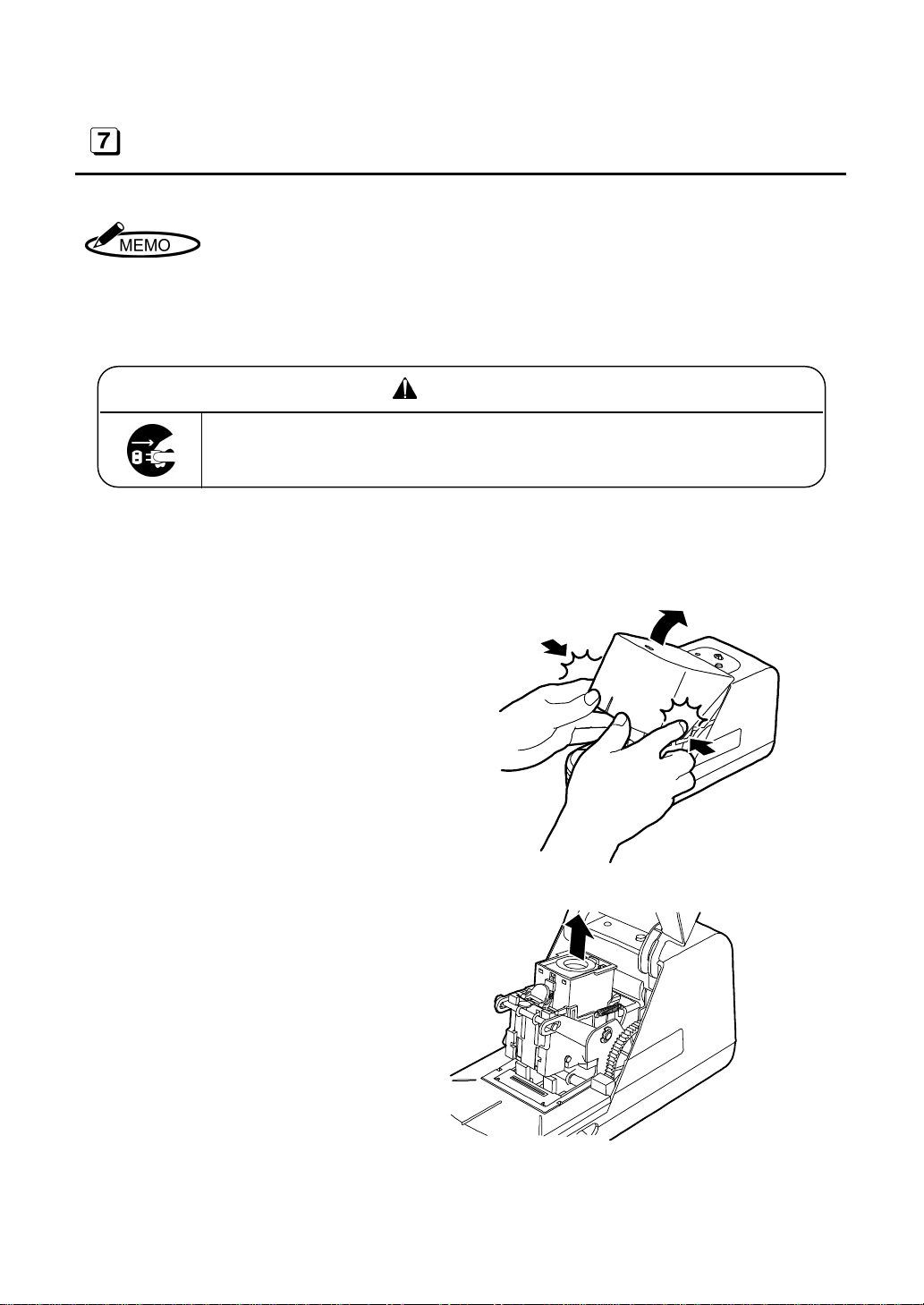

CLEARING JAMMED STAPLES
If the staples jam, eliminate them as follows:
WARNING
Disconnect the power cord when clearing jammed staples. It could
cause an injury when the stapler is abruptly activated.
(1) Disconnect the power cord from a
plug socket.
(2) Open the case cap.
(3) Hold the cartridge and pull it upward
to detach it.
(4) Pushing inside the green lever
located on the front of the main body,
pull up the opener handle.
(5) Remove the jamming staples.
And then, push down the opener
handle to its original position.
14

SPECIFICATIONS
Model name MAX Electronic Stapler EH-70F
Capacity 2 – 70 sheets (64gsm, 55kg / 16-lb.bond paper)
Stapling speed 2 staples per second
Stapling system Motor driven link mechanism with automatic feed
Throat depth Auto stapling: Adjustable approx. 6 to 18 mm (1/4” to 3/4”)
Manual stapling: Adjustable approx. 3 to 18 mm (1/8” to 3/4”)
Dimensions 100mm (4”) (W) x 112mm (4-1/2”) (H) x 210mm (8-1/4”) (L)
Weight 1.2Kg (2.7 lbs)
Power consumption Approx. 13W
Power source DC24V, 2.08A
Use only specified AC adapter (AC100-240V, 50-60 Hz) appended
to machine.
Working Temp. and 5 /41 – 35 /95 ,Below 80% RH (non-condensation)
Humidity ranges
Staple cartridge MAX No.70FE staple cartridge
Contains a guaranteed minimum of 5,000 staples.
1. Stapling capacity depends on the kind of paper. The machine might not staple up to 70
sheets in the other kind of paper. In this case, do not staple it forcibly.
2. In case of stapling continually for a long time, the machine might not staple because the
motor would be very hot. In this case, stop operating for 30 minutes or more to cool motor.
And then, start to operate again.
3. Operate less than 70 sheets (55kg / 16-lb.bond paper). It could cause damage the
machine when operating the machine over the specification.
4. Contact your dealer or distributor with telephone or e-mail if machine would be out of order
or you have any problem.
15

The following statement is only effective for the USA market.
FCC Notice
(Class B: EH-70F)
Note: This equipment has been tested and found to comply with the limits for Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
MAX USA CORP.
ADDRESS : 257 East 2nd Street Mineola, NY 11501, U.S.A.
PHONE : [phone] FAX : [phone]

18
This instruction manual is subject to change without notice due to functional enhancement.
6-6, NIHONBASHI HAKOZAKI-CHO, CHUO-KU, TOKYO, JAPAN
POST CODE: #103-8502
TELEPHONE: [phone] FAX: [phone]
URL: http://www.max-ltd.co.jp/int/ (GLOBAL Site)
http://www.maxusacorp.com (USA Site) N166G Vol.4
