Maxtang WL10 User manual

WL-10 Mini ITX Motherboard

Copyright
© 2022 Shenzhen Maxtang Computer Co., Ltd. All rights reserved. No part of this publication may be
reproduced, copied, stored in a retrieval system, translated into any language or transmitted in any
form or by any means, electronic, mechanical, photocopying, or otherwise, without the prior written
consent of Shenzhen Maxtang Computer Co., Ltd (hereinafter referred to as “Maxtang”).
Disclaimer
Maxtang reserves the right to make changes and improvements to the products described in this
document without prior notice. Every effort has been made to ensure the information in the document
is correct; however, Maxtang does not guarantee this document is error-free.
Maxtang assumes no liability for incidental or consequential damages arising from misapplication or
inability to use the product or the information contained herein, nor for any infringements of rights of
third parties, which may result from its use.
Trademarks
All the trademarks, registrations, and brands mentioned herein are used for identification purposes only
and may be trademarks and/or registered trademarks of their respective owners.

Shenzhen Maxtang Computer Co., Ltd
1
WL-10 Mini ITX Motherboard
User Manual
(Version 1.3)
Version:
No.
Description
Issue Date:
V1.0
Initial version.
2019/10/15
V1.2
Added E_DIS jumper cap switch LVDS/EDP
2020/08/31
V1.3
LAN 1 changed to Intel i219
2022/01/21

Shenzhen Maxtang Computer Co., Ltd
2
Contents
Chapter 1 Product Introduction...................................................................................................... 3
1.1 Brief Introduction ..................................................................................................................... 3
1.2 Parameters................................................................................................................................ 3
1.3 Connector Diagram................................................................................................................... 4
Chapter 2 Hardware........................................................................................................................ 6
2.1 Jumper Setting.......................................................................................................................... 6
2.2 Memory Slots............................................................................................................................ 6
2.3 Display interface ....................................................................................................................... 6
2.3.1 LVDS (screen printing: LVDS, LVDS_ADJ, J3, E_DIS)................................................................ 6
2.3.2 eDP (screen printing: LVDS, LVDS_ADJ, J3, E_DIS)................................................................. 7
2.4 HDMI pin (screen printing: JHDMI)........................................................................................... 9
2.5 Expansion slots (screen printing: M.2_S, M.2_E, PCIe 4X)....................................................... 9
2.6 Storage interface (screen printing: SATA1, SATA2, M.2_S) ....................................................... 9
2.7 USB interface ............................................................................................................................ 9
2.8 LAN.......................................................................................................................................... 10
2.9 Audio interface (screen printing: FP_AUDIO, JAUD, SPDIF).................................................... 10
2.10 COM (screen printing: COM1, COM25, COM6, JCOM2_P, JCOM4_P).................................. 11
2.11 LPT (screen printing: LPT) ..................................................................................................... 12
2.12 GPIO pin (screen printing: GPIO) .......................................................................................... 13
2.13 PS/2 socket (screen printing: PS2_H) ................................................................................... 13
2.14 Board power supply (screen printing: PWR1, PWR3)........................................................... 14
2.15 Switch panel pin (screen printing: JPOWER1) ...................................................................... 14
2.16 Hardware auto start (screen printing: JAT)........................................................................... 15
2.17 CMOS Clearance/Retention (screen printing: JCMOS1)....................................................... 15

Shenzhen Maxtang Computer Co., Ltd
3
Chapter 1 Product Introduction
1.1 Brief Introduction
The WL10 is based on the Intel Whiskey Lake-U platform.
1.2 Parameters
Whiskey Lake-U platform:
⚫i7-8565U--quad core, 1.8 GHz, TDP 15W, supporting Turbo Boost Technology and EIST
⚫i5-8265U--quad core, 1.6GHz, TDP 15W, supporting Turbo Boost Technology and EIST
⚫i3-8145U--dual core, 2.1GHz, TDP 15W, supporting Turbo Boost Technology and EIST
⚫Celeron 4205U--dual core, 1.8 GHz, TDP 15W, supporting EIST
Memory: 2 x SO-DIMM DDR4-2400/2133 MHz slots, supporting dual channels, maximum capacity 64GB
GPU: integrated graphics, 1 x HDMI 1.4, 1 x standard DP, 1 x LVDS (eDP optional)
Storage:1 x M.2 Key B, supporting 2242/2280 SSD (SATA), 2 x standard SATA3.0
USB: 3 x USB3.0 (rear port), 5 x USB2.0 (on-board pin)
Ethernet: on-board 2 x Gigabyte network card (1x intel i219, 1x intel i211)
Audio: high-definition audio chip, supporting speaker-out, Mic-in (rear port), Line-out, Mic-in (front on-board
pin), and power amplifier (on-board pin, connecting passive horn)
I/O: 5 x RS232, 1 x RS485, 1 x LPT (pin), 1 x PS/2 (KB/MS pin)
Expansion: 1 x M.2 key B (supporting NGFF 3G/4G), 1 x M.2 Key E (Type 2230, supporting Wi-Fi card)
Other I/O: 1 x PCIe 4X slot, 8 x GPIO (on-board pin), 1 x PS/2 (pin, KB+MS)
Dimension: 170mm x 170mm
Power: 12V DC-in
Working Temperature: -20℃~60℃

Shenzhen Maxtang Computer Co., Ltd
4
1.3 Connector Diagram
DC_IN
DP
HDMI
USB3.0
LAN1
LAN2
AUDIO
FP-AUDIO
O
JAUD
SATA2
PCIEX4
M.2_SSD/3G/4G
M.2_WIFI
SIM
PWSATA1
PWSATA2
SATA1
COM6
COM1
JAT
COM2_P
COM4_P
JPOWER1
COM25
LPC
SYS_FAN
PS2_H
LPT
USB1
USB2
JGPIO
MEMORY
CPU
EDP/LVDS
J3
EDP/LVDS_ADJ
BKADJ_C
PWR3
CPU_FAN
1*USB3.0
1*USB2.0
E_DIS

Shenzhen Maxtang Computer Co., Ltd
5
MEMORY

Shenzhen Maxtang Computer Co., Ltd
6
Chapter 2 Hardware
2.1 Jumper Setting
Please configure the jumpers according to your requirements before installing the hardware.
How to identify the first header of jumpers and pins: Observe the mark beside the jumper or pins and
find the header marked by “1” or bold line or triangular symbol. Or observe the rear panel and the
header with square solder pad is the first header.

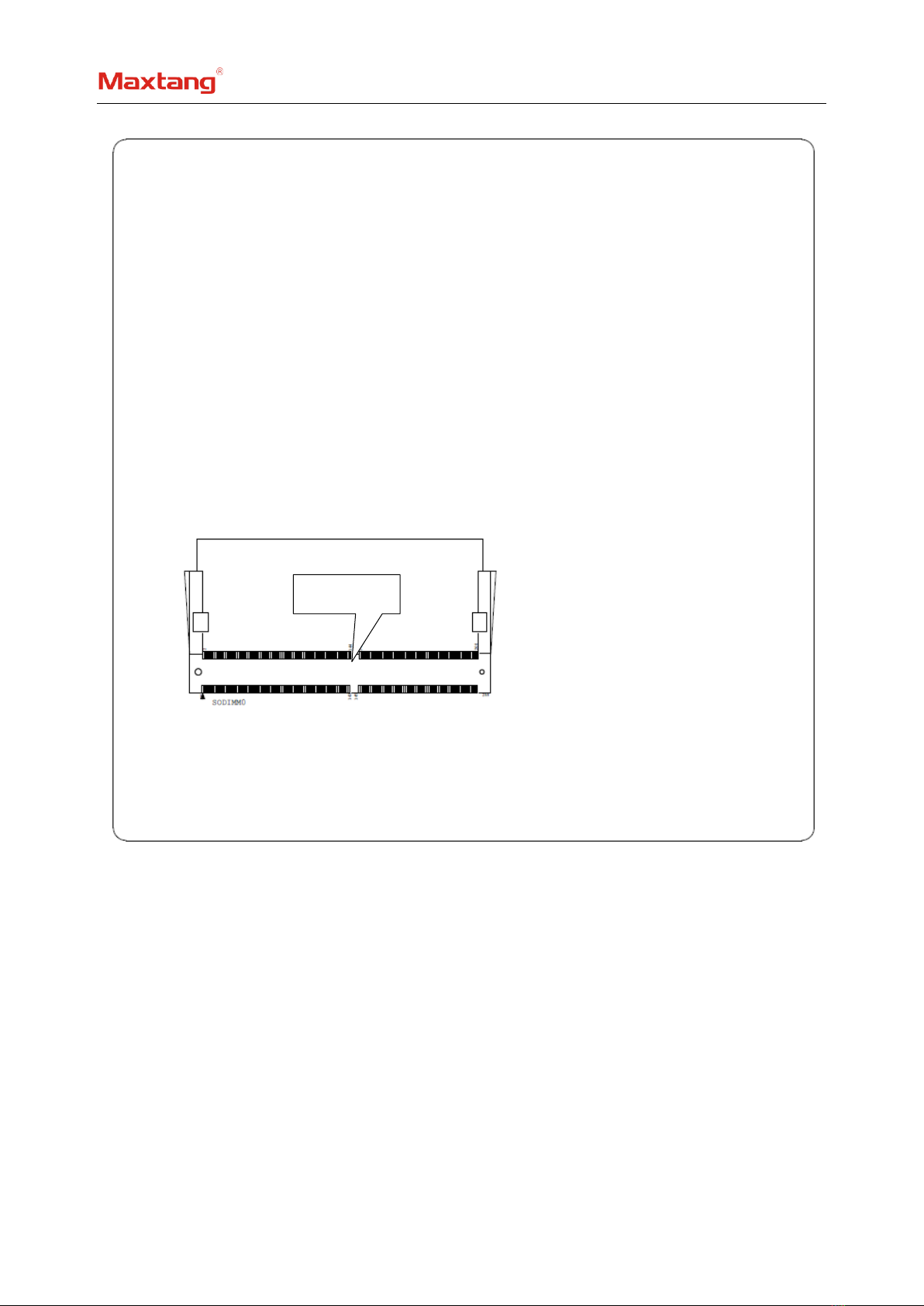

2.2 Memory Slots
On-board 2 x SO-DIMM DDR4-2400/2133 slots, supporting dual channels, maximum capacity 64GB
2.3 Display interface
1 x HDMI1.4 and optional pin as backup display interface (only one can be connected at one time), 1 x DP 1.2,
1 x LVDS (eDP1.3 optional). Trio display, supporting 4K resolution.
2.3.1 LVDS (screen printing: LVDS, LVDS_ADJ, J3, E_DIS)
Dual channel 24bit LVDS interface. The LVDS display power is controlled by the J3 jumper, and the LVDS
backlight power is controlled by the LVDS_ADJ.
Screen printing E_DIS: Works as LVDS Control Switch, disconnect to turn on LVDS, connect to turn off LVDS.
LVDS Data pin (screen printing: EDP/LVDS)
Signal
Pin
Signal
VCC
1
2
VCC
VCC
3
4
GND
GND
5
6
GND
A_DATA0_DN
7
8
A_DATA0_DP
A_DATA1_DN
9
10
A_DATA1_DP
A_DATA2_DN
11
12
A_DATA2_DP
GND
13
14
GND
A_CLK_DN
15
16
A_CLK_DP
A_DATA3_DN
17
18
A_DATA3_DP
B_DATA0_DN
19
20
B_DATA0_DP
B_DATA1_DN
21
22
B_DATA1_DP
B_DATA2_DN
23
24
B_DATA2_DP
GND
25
26
GND
B_CLK_DN
27
28
B_CLK_DP

Shenzhen Maxtang Computer Co., Ltd
7
B_DATA3_DN
29
30
B_DATA3_DP
Display backlight brightness adjustment pin (screen printing: EDP/LVDS_ADJ)
Pin
Signal
1
GND
2
GND
3
LCD_BKL_ADJ
4
LCD_BKL_ON
5
12V
6
12V
LVDS display backlight two-way adjustment jumper (screen printing: BKLADJ_C)
Pin
Settings
Function
1-2
Close
Backlight Control Flip
2-3
Close
Backlight Control Forward
Display power supply jumper (screen printing: J3)
Interface
Settings
Function
1-2
Close
+3.3V
3-4
Close
+5V
Note: The LVDS display power supply is controlled by jumpers. The voltage can be 5V or 3.3V. Don't
short-circuit two or more interfaces with jumper cap.
2.3.2 eDP (screen printing: LVDS, LVDS_ADJ, J3, E_DIS)
This interface is optional, supporting 2 LANE eDP(1.3). When the interface is set as eDP, LVDS doesn’t work.
The display power is controlled by the J3 jumper, and the LVDS backlight power is controlled by the LVDS_ADJ
jumper.
Screen printing E_DIS: Works as eDP Control Switch, disconnect to turn on EDP, connect to turn off eDP.
eDP data pin (screen printing: EDP/LVDS)
Signal
Pin
Signal
VCC
1
2
VCC
VCC
3
4
EDP_HPD
GND
5
6
GND
EDP_AUXN
7
8
EDP_AUXP

Shenzhen Maxtang Computer Co., Ltd
8
Signal
Pin
Signal
N/A
9
10
N/A
EDP_DATA0_P
11
12
EDP_DATA0_N
GND
13
14
GND
N/A
15
16
N/A
EDP_DATA1_P
17
18
EDP_DATA1_N
N/A
19
20
N/A
N/A
21
22
N/A
N/A
23
24
N/A
GND
25
26
GND
N/A
27
28
N/A
N/A
29
30
N/A
eDP Display backlight brightness adjustment pin (screen printing: EDP/LVDS_ADJ)
Pin
Signal
1
GND
2
GND
3
LCD_BKL_ADJ
4
LCD_BKL_ON
5
12V
6
12V
eDP display backlight two-way adjustment jumper (screen printing: BKLADJ_C)
Pin
Settings
Function
1-2
Close
Backlight control flip
2-3
Close
Backlight control forward
eDP display power supply jumper (screen printing: J3)
Interface
Settings
Function
1-2
Close
+3.3V
3-4
Close
+5V
Note: The eDP display power is controlled by jumpers. The voltage can be 5V or 3.3V. Don't short-circuit two
or more interfaces with jumper cap.

Shenzhen Maxtang Computer Co., Ltd
9
2.4 HDMI pin (screen printing: JHDMI)
The board is equipped with pin HDMI interface as backup option. The interface can work with the standard
HDMI interface at the same time.
JHDMI (screen printing: JHDMI)
Signal
Pin
Signal
DATA2_P
1
2
DATA2_N
DATA1_P
3
4
DATA1_N
DATA0_P
5
6
DATA0_N
CLK_P
7
8
CLK_N
SCL
9
10
SDA
5V
11
12
GND
HPD
13
14
GND
2.5 Expansion slots (screen printing: M.2_S, M.2_E, PCIe 4X)
Screen printing M.2_S: M.2 Key B, supporting NGFF 3G/4G module, with standard SIM card slot.
Screen printing M.2_E: M.2 Key E, supporting NGFF Wi-Fi card.
Screen printing PCIEX4: PCIe 3.0/4X slot, for expanded PCIe devices like networking card and graphics
card.
2.6 Storage interface (screen printing: SATA1, SATA2, M.2_S)
Supporting 2 standard SATA3.0 interfaces at most, with transmission rate 6GB/s and two disk power
supply sockets. If the CPU is a Celeron processor, the board can support only one SATA3.0 (SATA1).
M.2 Key B slot (screen printing: M.2_S) supports 2242/2280 SATA SSD.
2.7 USB interface
3 standard USB3.0. 5 x USB2.0, 4 of them being USB2.0 pin on-board, the test one being rear USB2.0
port (screen printing: USB3.0)
USB1 and USB2 (screen printing: USB1, USB2)
Signal
Pin
Signal
VCC 5V
1
2
VCC 5V

Shenzhen Maxtang Computer Co., Ltd
10
USB DATA-
3
4
USB DATA-
USB DATA+
5
6
USB DATA+
GND
7
8
GND
(NC)
9
10
N/A
2.8 LAN
High-performance Gigabyte Ethernet controller, features 1x intel i219 and 1x intel i211, with 2 x RJ45
interfaces. Supporting Magic packet wake up. LAN1 supports PXE network boot.
Interface LED indicators:
LILED (orange)
Function
ACTLED (green)
Function
Always on
Network
connected
Blinking
Data being
transmitted
2.9 Audio interface (screen printing: FP_AUDIO, JAUD, SPDIF)
ALC audio controlling chip. The green interface is for audio output (Speaker_out), and the pink interface
is for Mic input (Mic-in). The JAUD pin is for power amplifier, and the SPDIF pin is for SPDIF_out.
FP_AUDIO (screen printing: FP_AUDIO)
Signal
Pin
Signal
MIC2-L
1
2
AGND
MIC2-R
3
4
AVCC
FRO-R
5
6
MIC2-JD
F-IO-SEN(AGNG)
7
8
(NC)
FRO-L
9
10
LIN2-JD
JAUD (screen printing: JAUD)
Pin
Signal
1
L+
2
L-
3
R-
4
R+

Shenzhen Maxtang Computer Co., Ltd
11
SPDIF (screen printing: SPDIF)
Pin
Signal
1
+5V
2
SPDIF_Out
3
GND
2.10 COM (screen printing: COM1, COM25, COM6, JCOM2_P, JCOM4_P)
It is equipped with 6 COM (2.0mm spacing of built-in pins). COM1 slots are defined by industrial control;
COM1 to COM5 are RS232 mode, and COM6 is RS485 mode. COM2_P and COM4_P provide optional 5V or
12V voltage for COM2 and COM4.
COM1 (screen printing: COM1)
Signal
Pin
Signal
DCD#
1
2
DSR#
RXD
3
4
RTS#
TXD
5
6
CTS#
DTR#
7
8
RI#
GND
9
10
(NC)
COM25 (screen printing: COM25)
Signal
Pin
Signal
DCD#
1
2
RXD
TXD
3
4
DTR#
GND
5
6
DSR#
RTS#
7
8
CTS#
RI#
9
10
N/A
DCD#
11
12
RXD
TXD
13
14
DTR#
GND
15
16
DSR#
RTS#
17
18
CTS#
RI#
19
20
N/A
DCD#
21
22
RXD

Shenzhen Maxtang Computer Co., Ltd
12
TXD
23
24
DTR#
GND
25
26
DSR#
RTS#
27
28
CTS#
RI#
29
30
N/A
DCD#
31
32
RXD
TXD
33
34
DTR#
GND
35
36
DSR#
RTS#
37
38
CTS#
RI#
39
40
N/A
COM6 (screen printing: COM6)
Signal
Pin
Signal
DATA-
1
2
N/A
DATA+
3
4
N/A
N/A
5
6
N/A
N/A
7
8
N/A
GND
9
10
(NC)
COM2_P, COM4_P (screen printing: COM2_P、COM4_P)
Interfac
e
Settings
Function
1-2
Close
5V
3-4
Close
RI
5-6
Close
12V
2.11 LPT (screen printing: LPT)
On-board 1 set of 2X13 pin LPT interface. The adapter cable is needed to transfer the LPT to the standard
parallel interface for use. Users can connect it to equipment like printer according to their actual
requirements.
LPT (screen printing: LPT)
Signal
Pin
Signal
STB
1
2
AFD

Shenzhen Maxtang Computer Co., Ltd
13
LPT_ PPD0
3
4
ERROR
LPT_ PPD1
5
6
INIT
LPT_ PPD2
7
8
SLIN
LPT_ PPD3
9
10
GND
LPT_ PPD4
11
12
GND
LPT_ PPD5
13
14
GND
LPT_ PPD6
15
16
GND
LPT_ PPD7
17
18
GND
ACK
19
20
GND
BUSY
21
22
GND
PE
23
24
GND
SLCT
25
26
(NC)
2.12 GPIO pin (screen printing: GPIO)
The board is equipped with a set of 2 x 5pin as JGPIO pin (2.0mm spacing), supporting 8 programmable I/O
lanes in total.
GPIO (screen printing: JGPIO)
Signal
Pin
Signal
PCH_GPP_C16
1
2
3.3V
PCH_GPP_C17
3
4
PCH_GPP_A18
PCH_GPP_C18
5
6
PCH_GPP_A19
PCH_GPP_C19
7
8
PCH_GPP_A20
GND
9
10
PCH_GPP_A21
2.13 PS/2 socket (screen printing: PS2_H)
The board is equipped with 1 set of 6-pin PS/2 sockets.
P2/2 (screen printing: PS2_H)
Pin
Signal
1
+5V

Shenzhen Maxtang Computer Co., Ltd
14
2
KB_DATA
3
KB_CLK
4
MS_ DATA
5
MS_CLK
6
GND

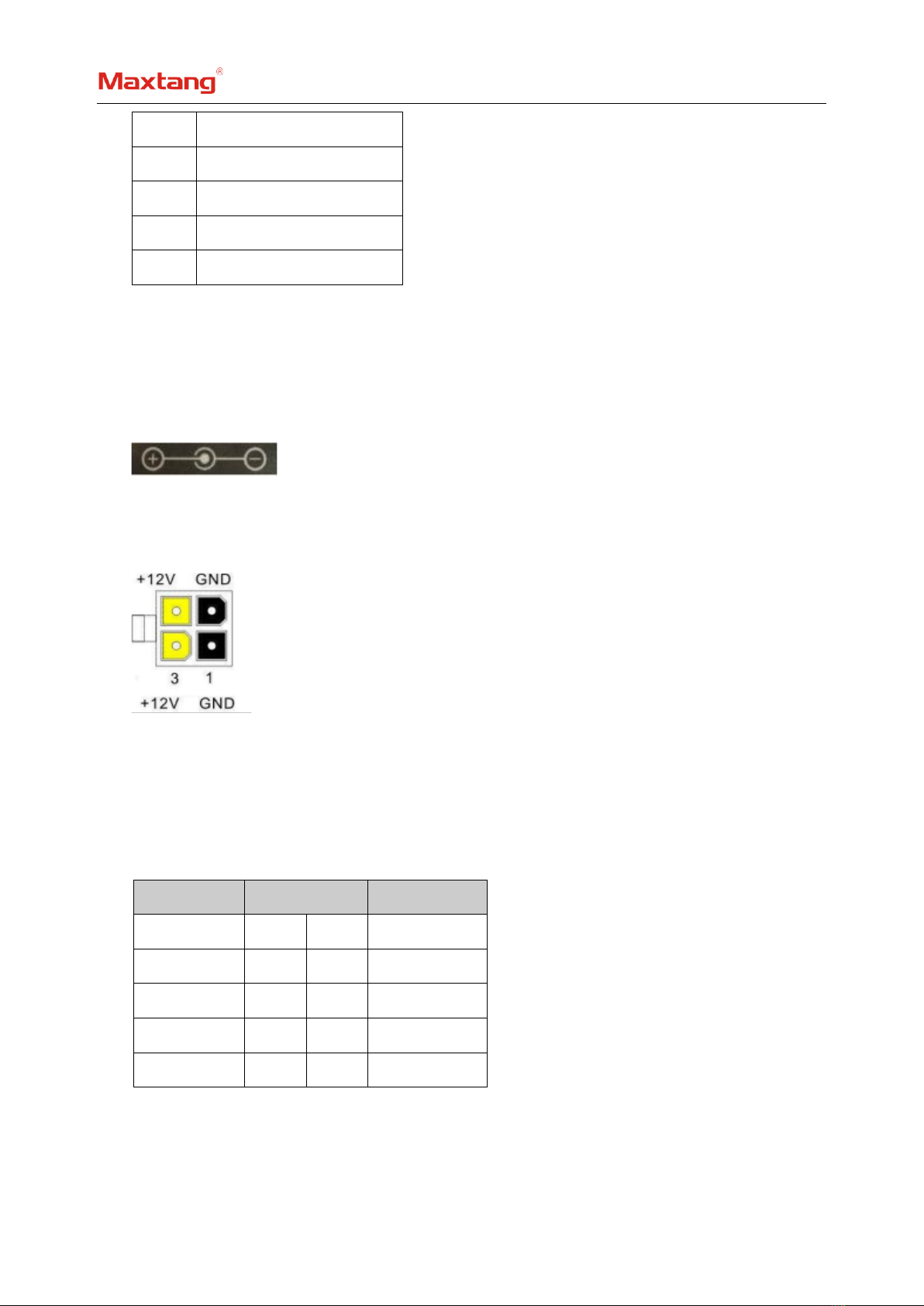

2.14 Board power supply (screen printing: PWR1, PWR3)
It supports 12V DC-in power adapter or ATX 12V supplementary power (2 x 2pin).
PWR1: 12V DC-in power socket
PWR3: ATX12V supplementary power supply socket (2x2PIN)
2.15 Switch panel pin (screen printing: JPOWER1)
The front control panel interfaces are to connect the functional buttons and indicators on the front panel.
JPOWER1 (screen printing: JPOWER1)
Signal
Pin
Signal
HDD_LED+
1
2
PWR_LED+
HDD_LED-
3
4
PWR_LED-
RSTBTN-
5
6
PWR_ON+
RSTBTN+
7
8
PWR_ON-
N/A
9
10
(NC)

Shenzhen Maxtang Computer Co., Ltd
15
2.16 Hardware auto start (screen printing: JAT)
JAT (screen printing: JAT)
Settings
JAT
Close
Hardware auto start
Please note that this jumper function is similar to the "Restore AC power loss" function in BIOS. When the
latter is set to Power on, the device will also start automatically after power is connected.
2.17 CMOS Clearance/Retention (screen printing: JCMOS1)
CMOS is powered by the on-board button batteries. Clearing CMOS will permanently remove the previous
system settings and restore the board to the original (factory settings) system settings.
Step 1: Turn off the PC and disconnect power adapter.
Step 2: Use the jumper cap to connect the 1st and 2nd headers of JCMOS for about 10 seconds and
disconnect.
Step 3: When starting the device, press the <DEL> button to enter the BIOS, load the optimal default value
and save and exit the settings.
JCOMS (screen printing: JCMOS1)
Settings
JCMOS
Close
Clear the CMOS
Don't clear COMS when the PC is connected to power in case the board is damaged.
