Maxtang EHL-35 User manual

EHL-35 Disk Size Motherboard

Copyright
© 2022 Shenzhen Maxtang Computer Co., Ltd. All rights reserved. No part of this publication may be reproduced,
copied, stored in a retrieval system, translated into any language, or transmitted in any form or by any means,
electronic, mechanical, photocopying, or otherwise, without the prior written consent of Shenzhen Maxtang
Computer Co., Ltd (hereinafter referred to as “Maxtang”).
Disclaimer
Maxtang reserves the right to make changes and improvements to the products described in this document without
prior notice. Every effort has been made to ensure the information in the document is correct; however, Maxtang
does not guarantee this document is error-free.
Maxtang assumes no liability for incidental or consequential damages arising from misapplication or inability to use
the product or the information contained herein, nor for any infringements of rights of third parties, which may result
from its use.
Trademarks
All the trademarks, registrations, and brands mentioned herein are used for identification purposes only and may be
trademarks and/or registered trademarks of their respective owners.

Shenzhen Maxtang Computer Co., Ltd
1
EHL35 Motherboard
User Manual
(Version 0.5)
Version:
NO.
Description
Issue Date:
V0.5
Initial Version
2022/05/17

Shenzhen Maxtang Computer Co., Ltd
2
Contents
EHL35 Motherboard ................................................................................................ 1
User Manual............................................................................................................. 1
(Version 0.5)............................................................................................................. 1
Chapter 1 Product Introduction ............................................................................................................................... 4
1.1 Brief Introduction....................................................................................................................................... 4
1.2 Parameters ................................................................................................................................................. 4
1.3 Connector Diagram .................................................................................................................................... 5
Chapter 2 Hardware................................................................................................. 6
2.1 Installations................................................................................................................................................ 6
2.2 Jumper Setting ........................................................................................................................................... 6
2.3 Memory Slots ............................................................................................................................................. 6
2.4 Display Interfaces ....................................................................................................................................... 7
2.5 Storage (Screen Printing: MSATA, SATA1, PWSATA) .......................................................................................... 9
2.6 Expansion Slot .................................................................................................................................................... 9
2.7 USB Interface...................................................................................................................................................... 9
2.8 LAN ..................................................................................................................................................................... 9
2.9 COM.................................................................................................................................................................... 9
2.10 GPIO (Screen Printing: GPIO).......................................................................................................................... 11
2.11 Board Power Supply (Screen Printing: PWR2)................................................................................................ 11
2.12 Switch Button/Light Indicator (Screen Printing: JPOWER) ............................................................................. 11
2.13 Audio Interface............................................................................................................................................... 11
2.14 Hardware Auto Start (Screen Printing: JAT) ................................................................................................... 12
2.15 CMOS Clearance/Retention (Screen Printing: CLR_CMOS) ............................................................................ 12
Chapter 3 BIOS Setup............................................................................................. 13
3.1 Entering the BIOS.............................................................................................................................................. 13
3.2 Main Setup (BIOS info, Date, Time）............................................................................................................... 13
3.3 Advanced Settings ............................................................................................................................................ 14
3.3.1 Power & Performance ........................................................................................................................... 14

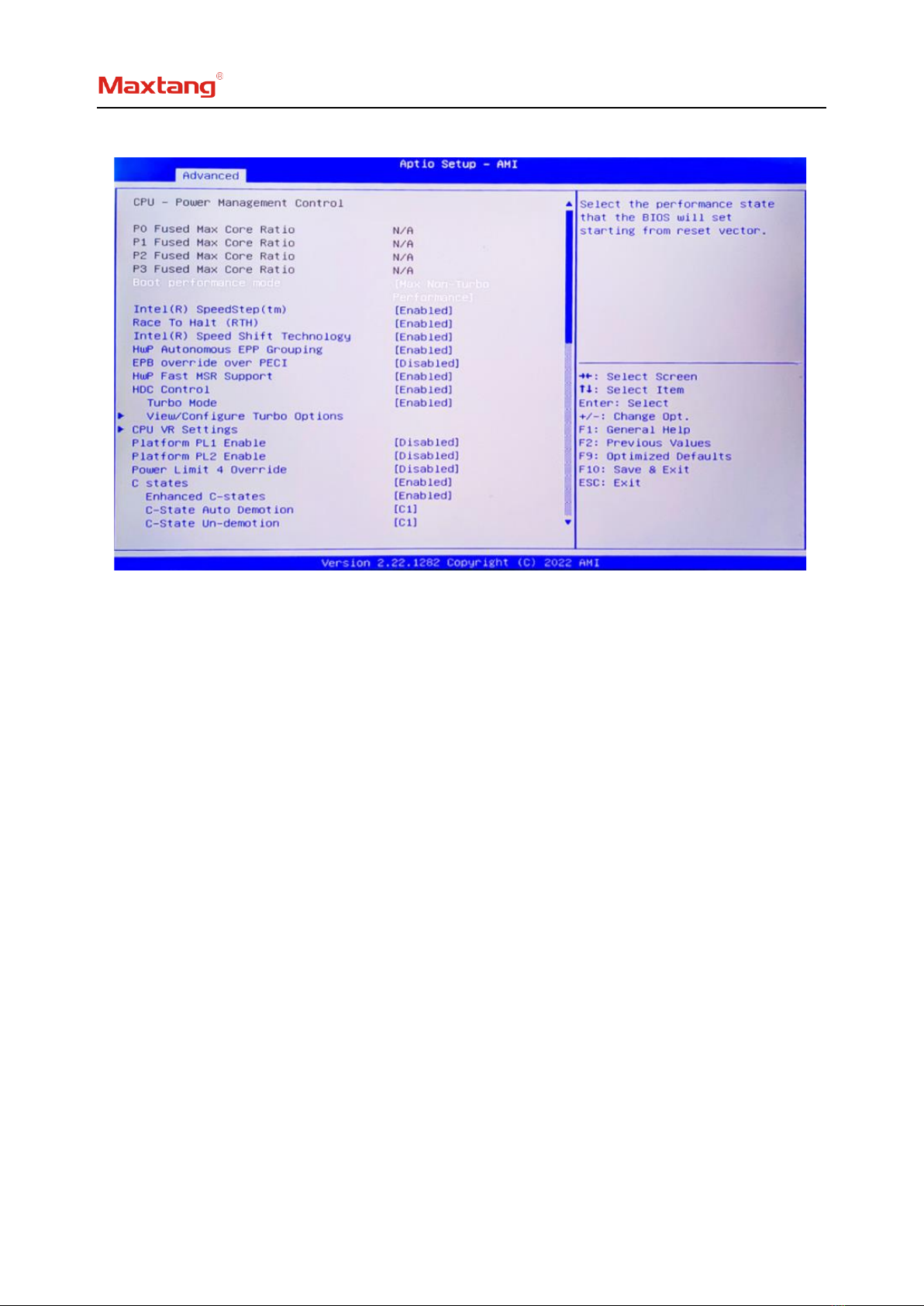

3.3.2 CPU-Power Management Control......................................................................................................... 15

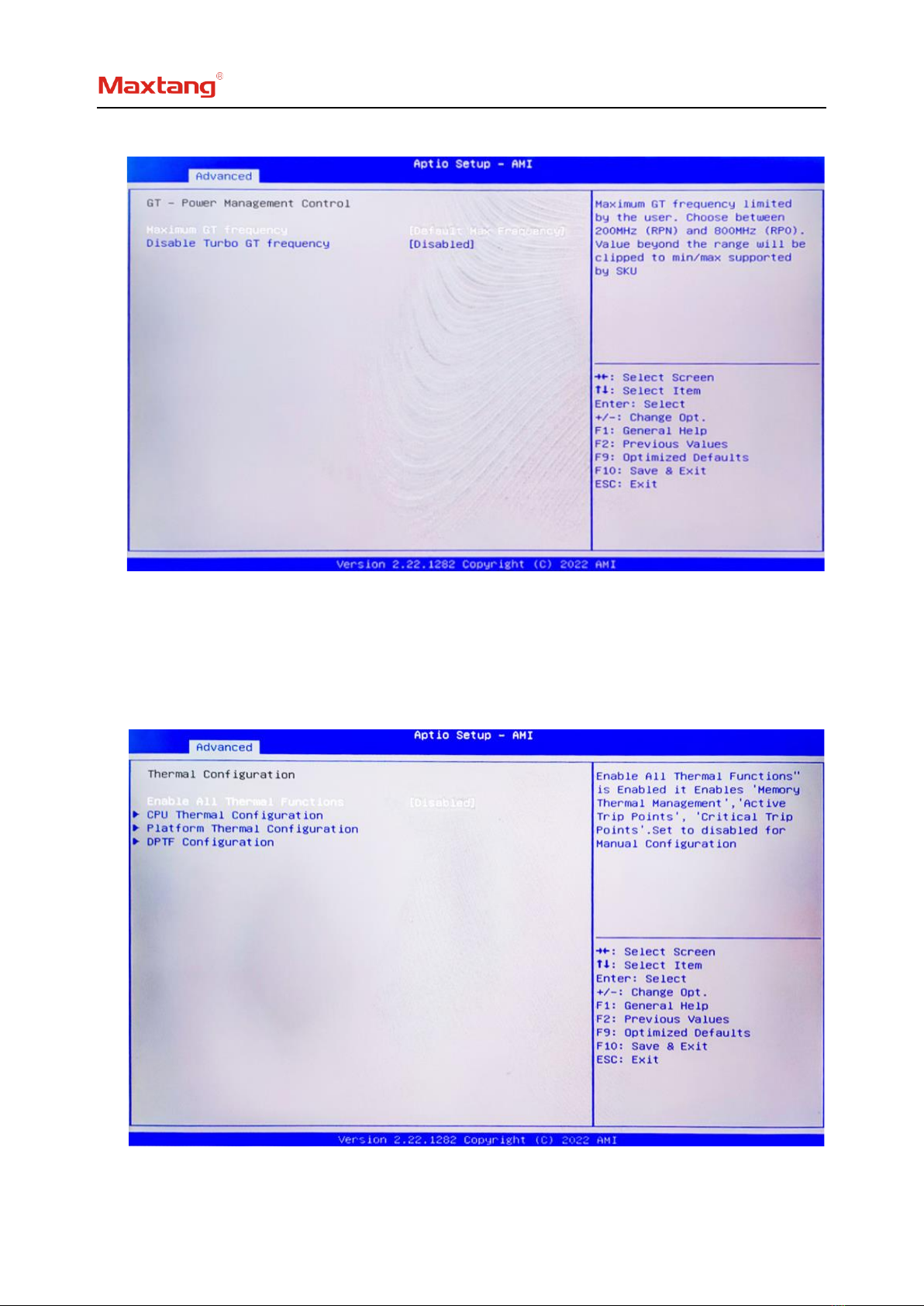

3.3.3 GT-Power Management Control ........................................................................................................... 16
3.3.4 Thermal Configuration .......................................................................................................................... 16
3.3.5 ACPI Settings ......................................................................................................................................... 17

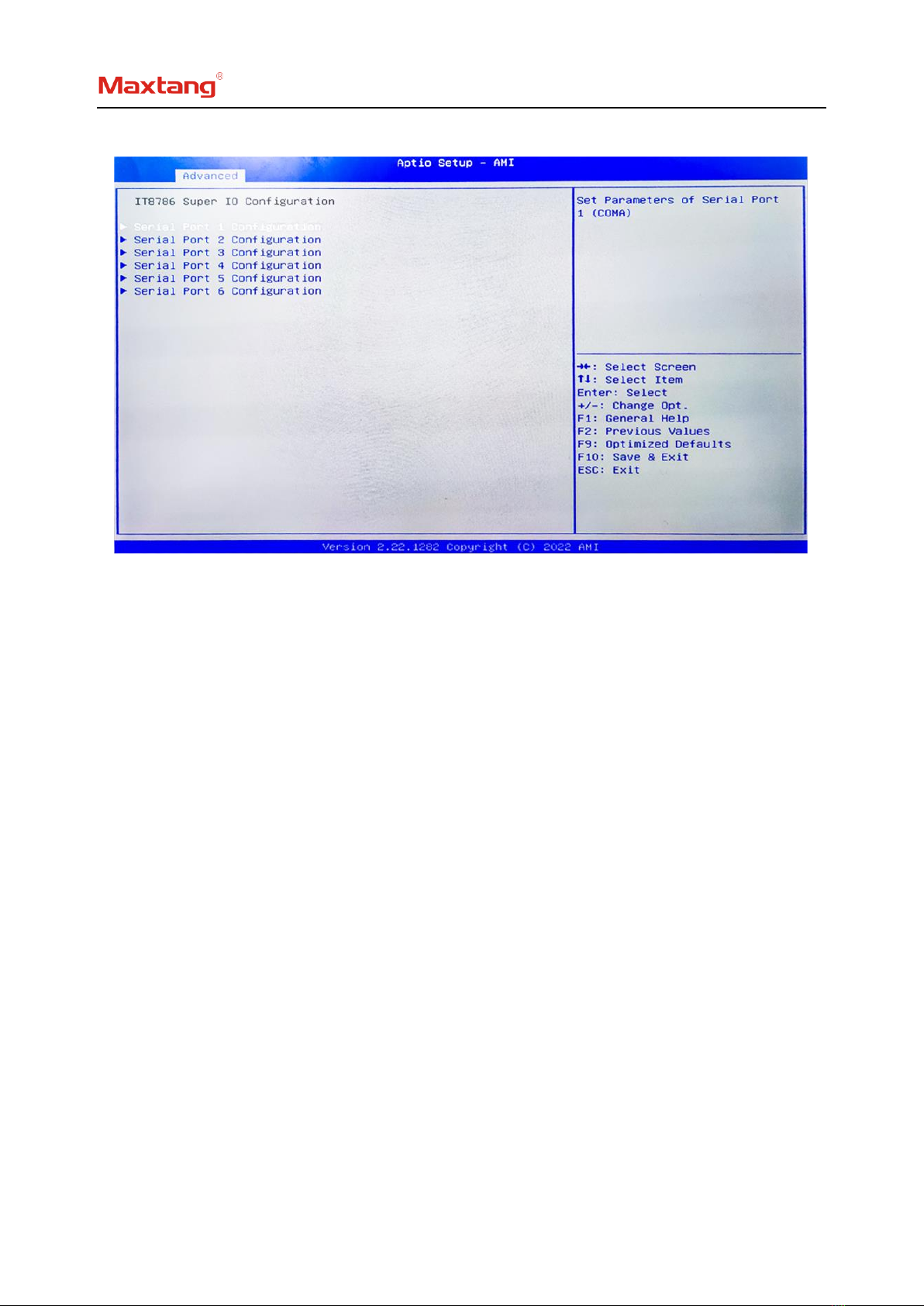

3.3.6 IT8786 Super IO Configuration.............................................................................................................. 18
3.3.7 Hardware Monitor................................................................................................................................. 19
3.3.8 Smart Fan Function ............................................................................................................................... 20

Shenzhen Maxtang Computer Co., Ltd
3
3.3.9 Watch Dog Configuration ...................................................................................................................... 20
3.3.10 S5 RTC Wake Settings .......................................................................................................................... 21
3.3.11 USB Configuration ............................................................................................................................... 21
3.3.12 Network Stack Configuration .............................................................................................................. 22
3.3.13 NVME Configuration............................................................................................................................ 23
3.4 Chipset.............................................................................................................................................................. 23
3.4.1 State After G3........................................................................................................................................ 24
3.5 Security............................................................................................................................................................. 24
3.6 Boot .................................................................................................................................................................. 25
3.7 Save & Exit........................................................................................................................................................ 26

Shenzhen Maxtang Computer Co., Ltd
4
Chapter 1 Product Introduction
1.1 Brief Introduction
The EHL-35 motherboard is a 3.5" SBC (Single Board Computer) based on the Intel Elkhart Lake platform,
which features a small form factor, low power consumption, and high performance.
1.2 Parameters
CPU: Intel® Celeron® Processor J6412, 4Cores 4Threads, Base Frequency: 2.00GHz, Burst Frequency: 2.60 GHz,
TDP 10W
Memory: 1x SO-DIMM DDR4-3200, maximum capacity 32GB
GPU: Integrated Graphics based on CPU, display via 1x HDMI2.0, 1Xdp1.4,1x LVDs (eDP optional)
Storage: 1 x mSATA interface or 4G module. 1 x SATA3.0 standard interface,
USB: 4x USB3.2 Gen 2, 4x USB2.0
Ethernet: 2x Gigabyte Network Controllers on-board (RTL8111H)
Audio: High-Definition Audio Codec, supports 1xCTIA Line_out + Mic_in in one
Serial I/O: 6x RS232 COM (COM5, COM6*RS485 optional)
Other I/O: 1x M.2_Key E for 2230 Wi-Fi & BT, 1xJPOWER, 1xSIM Slot, 1 set of GPIO pins
Dimension: 146mm x 102mm (3.5")
Power: 12V DC-in
Working Temperature: -20℃~60℃

Shenzhen Maxtang Computer Co., Ltd
5
JAT
SO-DIMM
2*USB2.0
LAN2
LAN1
DC_IN
DP+HDMI
SATA
AUDIO
2*USB3.2
2*USB3.2
PWR2
PWSATA
COM1~4
M.2_E 2230 WIFI
CLR_CMOS
2*USB2.0
GPIO
COM5~6
JPOWER
L-BKL
EDP/LVDS
L_VCC/BKL
MSATA
CPU
JAUD
CPUFAN
1.3 Connector Diagram

Shenzhen Maxtang Computer Co., Ltd
6
Chapter 2 Hardware
2.1 Installations
Please refer to the following steps for installations:
1. Read the user manual carefully to make sure all the adjustments on the EHL35 are correct.
2. Installing the Memory:
⚫Press the ejector tab of the memory slot outwards with your fingertips.
⚫Hold the memory module and align the key to the module with that on the memory slot.
⚫Gently push the module into the slot until the ejector levers return completely to the closed
position, holding the module in place when the module touches the bottom of the slot. To
remove the module, press the ejector levers outwards to unseat the module.
3. Installing the expansion cards:
⚫Locate the expansion slots and remove the screw, insert the cards into the slot at a 45-degree
angle then attach the screw to the expansion cards, gently press down on it then install the
screw back.
4. Connect all signal wires, cables, panel control wiring, and power supplies.
5. Start the computer and complete the setup of the BIOS program.
The board's components are integrated circuits and can easily be damaged by Electrostatic Discharge or
ESD; therefore, please follow the instructions:
⚫Hold the board's edge when handing, and do not touch onboard pins, components, or plug
sockets.
⚫When touching integrated circuit components (such as CPU, RAM, etc.), please wear an
anti-static wrist strap/glove to avoid electrostatic discharge damage to the board or other
sensitive components.
⚫Before installing the integrated circuits/sensitive components, place the sensitive components
in anti-static bags to keep them safe from ESD.
⚫Please make sure the power switch is OFF before plugging the power plug.
2.2 Jumper Setting
Please configure the jumpers according to your requirements before installing the hardware.
How to identify the first header of jumpers and pins: Observe the mark beside the jumper or pins and
find the header marked by “1” or bold line or triangular symbol. Or observe the rear panel and the header
with a square solder pad is the first header.
2.3 Memory Slots
The board provides 1 x SO-DIMM DDR4-3200 slot, maximum capacity of 32GB.
Attention: Make sure to hold the memory module and align the key to the module with that on the
memory slot. While choosing a memory module, please make sure the module matches the board’s
specifications.

Shenzhen Maxtang Computer Co., Ltd
7
2.4 Display Interfaces
The board features Integrated Intel UHD graphics, supports 1xHDMI2.0b(HDCP2.3), 1xDP1.4, 4K
resolution at 60Hz. 1x 24bit LVDs (Resolution:1920x1080, eDP optional).
2.4.1 LVDS (Screen printing: EDP/LVDS, L-BKL, L_VCC/BKL)
When it is configured as an LVDS function, the "EDP/LVDS" pin transmits LVDS signals, the " L_BKL" pin is
the backlight adjustment jumper, and the "L_VCC/BKL" pin is the display working voltage adjustment jumper.
LVDS Data Pin (Screen printing: EDP/LVDS)
Signal
Pin
Signal
VCC
1
2
VCC
VCC
3
4
GND
GND
5
6
GND
A_DATA0_DN
7
8
A_DATA0_DP
A_DATA1_DN
9
10
A_DATA1_DP
A_DATA2_DN
11
12
A_DATA2_DP
GND
13
14
GND
A_CLK_DN
15
16
A_CLK_DP
A_DATA3_DN
17
18
A_DATA3_DP
B_DATA0_DN
19
20
B_DATA0_DP
B_DATA1_DN
21
22
B_DATA1_DP
B_DATA2_DN
23
24
B_DATA2_DP
GND
25
26
GND
B_CLK_DN
27
28
B_CLK_DP
B_DATA3_DN
29
30
B_DATA3_DP
LVDS Backlight Adjustment Pin (Screen printing: L-BKL)
Pin
Signal
1
GND
2
GND
3
LCD_BKL_ADJ
4
LCD_BKL_ON
5
12V
6
12V
LVDS Working Voltage Pin (Screen Printing: L_VCC/BKL)
Interface
Setting
Function
1-3
Close
VCC(+3.3V)
3-5
Close
VCC(+5V)
2-4
Close
REV (Backlight control reverse)
4-6
Close
STD (Backlight control standard)
Attention: When setting the LVDS display power supply jumper, it is adjustable between 5V/3.3V. The

Shenzhen Maxtang Computer Co., Ltd
8
customer can use a jumper cap to short-circuit the voltage pin according to the LVDS screen's voltage
parameters. (Please do not short-circuit two or more different voltages pins at the same time).
2.3.2 eDP (Optional)
When it is set as eDP functions, the “EDP/LVDS” pin transmits the eDP signal, the “L-BKL” is for the
backlight adjustment jumper and the “L_VCC/BKL” is for the display working voltage adjustment jumper.
eDP Data Pin (Screen Printing: EDP/LVDS)
Signal
Pin
Signal
VCC
1
2
VCC
VCC
3
4
EDP_HPD
GND
5
6
GND
EDP_AUXN
7
8
EDP_AUXP
N/A
9
10
N/A
EDP_DATA0_P
11
12
EDP_DATA0_N
GND
13
14
GND
N/A
15
16
N/A
EDP_DATA1_P
17
18
EDP_DATA1_N
N/A
19
20
N/A
N/A
21
22
N/A
N/A
23
24
N/A
GND
25
26
GND
N/A
27
28
N/A
N/A
29
30
N/A
eDP Backlight Adjustment Pin (Screen Printing: L-BKL)
Pin
Signal
1
GND
2
GND
3
LCD_BKL_ADJ
4
LCD_BKL_ON
5
12V
6
12V
EDP Working Voltage Pin (L_VCC/BKL)
Interface
Setting
Functions
1-3
Close
VCC(+3.3V)
3-5
Close
VCC(+5V)
2-4
Close
REV (Backlight control reverse)
4-6
Close
STD (Backlight control standard)
Attention: When setting the eDP display power supply jumper it is adjustable between 5V/3.3V.
Short-circuit pins of different voltages at the same time are strictly forbidden.

Shenzhen Maxtang Computer Co., Ltd
9
2.5 Storage (Screen Printing: MSATA, SATA1, PWSATA)
1x mSATA interface SATA2.0 onboard supports 4G module with standard Micro-SIM slot. 1x Standard
SATA interface. 1xPWSATA disk power supply socket (2.0mm spacing).
SATA Power Supply (Screen Printing: PWSATA)
Pin
Signal
1
5V
2
GND
3
GND
4
12V
(Same input voltage at the board)
2.6 Expansion Slot
The board provides 1xM.2 Key_E slot for 2230 Wi-Fi & Bluetooth.
2.7 USB Interface
The board supports 4x USB3.2 Gen2 and 4x USB2.0(2.0mm spacing).
Internal USB2.0 Pin (Screen Printing: USB20, USB21)
Signal
Pin
Signal
VCC 5V
1
2
VCC 5V
USB DATA-
3
4
USB DATA-
USB DATA+
5
6
USB DATA+
GND
7
8
GND
NC
9
10
(N/A)
2.8 LAN
The board features 2xRJ45 interfaces with high-speed Realtek 8111H Gigabit network controllers,
supports Magic packet wake-up, and the LAN1 supports PXE network boot.
LED Status Indicators:
LI_LED Status (Green)
Function
ACT_LED Status (Orange)
Function
Always on
Network Connected
Blinking
Data transfer
2.9 COM
The board provides six RS232 onboard serial port headers (2.0mm spacing), and the COM5 and COM6
are RS485 optional; screen printing COM14 is electrified, and the voltage is the same as the board’s input
voltage.
RS232 COM (Screen Printing: COM14)
Signal
Pin
Signal
DCD#
1
2
RXD
TXD
3
4
DTR#

Shenzhen Maxtang Computer Co., Ltd
10
GND
5
6
DSR#
RTS#
7
8
CTS#
RI#
9
10
VCC (same as board’s input voltage)
DCD#
11
12
RXD
TXD
13
14
DTR#
GND
15
16
DSR#
RTS#
17
18
CTS#
RI#
19
20
VCC (same as board’s input voltage)
DCD#
21
22
RXD
TXD
23
24
DTR#
GND
25
26
DSR#
RTS#
27
28
CTS#
RI#
29
30
VCC (same as board’s input voltage)
DCD#
31
32
RXD
TXD
33
34
DTR#
GND
35
36
DSR#
RTS#
37
38
CTS#
RI#
39
40
VCC (same as board’s input voltage)
COM5_6 RS232 Default (Screen: COM5_6)
Signal
Pin
Signal
NC
1
2
NC
RX5
3
4
RX6
GND
5
6
GND
TX5
7
8
TX6
NC
9
10
(NC)
COM5_6 RS485 Optional (Screen Printing: COM5_6)
Signal
Pin
Signal
COM5_DATA-
1
2
COM6_DATA-
COM5_DATA+
3
4
COM6_DATA+
GND
5
6
GND
NC
7
8
NC
NC
9
10
(NC)

Shenzhen Maxtang Computer Co., Ltd
11
2.10 GPIO (Screen Printing: GPIO)
The board provides a set of 2x5Pin GPIO (2.0mm spacing) 8 programmable I/O lanes in total.
GPIO (Screen Printing: GPIO)
Signal
Pin
Pin
Signal
SIO_GP70
1
2
3.3V
SIO_GP71
3
4
SIO_GP74
SIO_GP72
5
6
SIO_GP75
SIO_GP73
7
8
SIO_GP76
GND
9
10
SIO_GP77
2.11 Board Power Supply (Screen Printing: PWR2)
The board provides a 5.5mm*2.5mm DC power interface, and a 2x2 ATX power supply interface supports
12V DC-in.
PWR2 (Screen Printing: PWR2)
Pin
Signal
1
VCC
2
VCC
3
GND
4
GND
2.12 Switch Button/Light Indicator (Screen Printing: JPOWER)
The board has a set of 2.0mm spacing pins that can be connected to a switch button, a system reset
button, a hard disk read/write indicator, and a power-on indicator.
JPOWER (Screen Printing: JPOWER)
Signal
Pin
Signal
HDD_LED+
1
2
PWR_LED+
HDD_LED-
3
4
PWR_LED-
RSTBTN-
5
6
PWR_ON+
RSTBTN+
7
8
PWR_ON-
NC
9
10
(NC)
2.13 Audio Interface
The board features a Realtek HD audio codec, supports a 3.5mm Line-out/MIC two-in-one combo jack
(CTIA American standard), and a built-in dual-channel power amplifier output socket for connecting passive
speakers.

Shenzhen Maxtang Computer Co., Ltd
12
Two-in-one headphone jack:
JAUD (Screen Printing: JAUD)
Pin
Signal
1
L+
2
L-
3
R-
4
R+
2.14 Hardware Auto Start (Screen Printing: JAT)
JAT (Screen Printing: JAT)
Setting
JAT
Close
Hardware Auto Start
Please note that this jumper’s function is similar to the BIOS’s “State After G3” function. When the latter
is set to “S0 State”, the device will start automatically after being connected to power.
2.15 CMOS Clearance/Retention (Screen Printing: CLR_CMOS)
CMOS is powered by onboard button batteries. Clearing CMOS will permanently remove the previous
system settings and restore the board system to original settings (factory settings).
Step 1: Turn off the PC and disconnect the power adapter.
Step 2: Press CLR_CMOS for 10 seconds then disconnect.
Step 3: Restart the device, press the <DEL> button to enter the BIOS, load the optimal default value,
save, and exit the settings.
CMOS (Screen Printing: CLR_CMOS)
Setting
CLR_CMOS
Close
Clear CMOS
Please do not clear COMS when the PC is connected to power in case board damages.

Shenzhen Maxtang Computer Co., Ltd
13
Chapter 3 BIOS Setup
3.1 Entering the BIOS
1. Turn on the computer and press <Delete> entering the BIOS
2. After the computer is turned on, keep press F11, choose enter Setup
3. BIOS Hotkeys:
F9: Restore to Factory setting; F10: Save and Exit; ESC: Exit
3.2 Main Setup (BIOS info, Date, Time）
When you enter the BIOS Setup utility the first things you will encounter is the Main Setup screen.
Shown below is the Main BIOS Setup screen. You can always return to the Main setup by selecting the Main
tab.
System Date: Sets the date. MM/DD/YY format.
System Time: Set the time. HH:MM: SS format.

Shenzhen Maxtang Computer Co., Ltd
14
3.3 Advanced Settings
Select any of the items in the left frame of the screen. The advanced sections allow you to configure,
improve and set up system features according to the preference of the CPU Configuration. All Advanced BIOS
Setup options are described as follows.
3.3.1 Power & Performance
CPU-Power Management Control
GT-Power Management Control

Shenzhen Maxtang Computer Co., Ltd
15
3.3.2 CPU-Power Management Control
Intel® Speedstep®(TM):
Enhanced Intel SpeedStep® Technology enables the operating system to control multiple frequencies and
voltage points for optimal performance and power efficiency.
Intel® Speed Shift Technology:
An energy-efficient frequency control method by the hardware rather than relying on OS control.
Processor decision is based on the different system constraints for example Workload demand, and thermal
limits while taking into consideration the minimum and maximum levels and activity window of performance
requested by the operating system. Default enabled.
Turbo Mode
The Turbo mode refers to Nehalem’s “Integrated Power Gate” power management technology, which
allows running off some cores and adding power to the others so that they run at a higher frequency. The
capacity of the entire CPU remains unchanged, and the efficiency of the CPU is optimized. Default enabled.
C states
Idle States (C-states) are used to save power when the processor is idle. C0 is the operational state,
meaning that the CPU is doing useful work 100% load. C1 is the first idle state, C2 the second, and so on,
where more power-saving actions are taken for numerically higher C-states. C1 to C3 cuts off the clock inside
the CPU, and C4 to C6 reduces the CPU voltage. Default enabled.
Enhanced C states
C1 to C3 cuts the clock inside the CPU. C4 and C6 mode reduces CPU voltage. Features two way
“Enhanced” mode, enable by default.

Shenzhen Maxtang Computer Co., Ltd
16
3.3.3 GT-Power Management Control
Maximum GT frequency：
Maximum GT Frequency, Default max frequency.
Disable Turbo GT frequency：
Disable Turbo GT Frequency mode, Default disabled.
3.3.4 Thermal Configuration

Shenzhen Maxtang Computer Co., Ltd
17
Enable All Thermal Functions
CPU Thermal Configuration:
Unlocks the temperature setting, the “Tcc Activation Offset” is the temperature adjustment option,
the highest temperature is 105°C. Change the temperature by minus the number of degrees you wish to
change. For example, minus 0(105-0) to set the temperature at 105°C, minus 20(105-20) to set the
temperature at 85°C.
Platform Thermal Configuration
DPTF Configuration
3.3.5 ACPI Settings
Enable ACPI Auto Configuration
Enable or disable BIOS ACPI Auto Configuration.
Enable Hibernation
Enable or disables the ability to hibernate.
ACPI Sleep State
Select the highest ACPI sleep state the system will enter when the SUSPEND button is pressed.

Shenzhen Maxtang Computer Co., Ltd
18
3.3.6 IT8786 Super IO Configuration
Serial Port 1 Configuration
Set parameters of serial port 1.
Serial Port 2 Configuration
Set parameters of serial port 2.
Serial Port 3 Configuration
Set parameters of serial port 3.
Serial Port 4Configuration
Set parameters of serial port 4.
Serial Port 5 Configuration
Set parameters of serial port 5.
Serial Port 6 Configuration
Set parameters of serial port 6.
Serial Port: Enable or disable serial port(COM).
Device Setting (Read-only): Displays serial ports’ interrupt and location.
Change Setting: Change serial port settings and suggest setting “Auto” as default.
