MD SPORTS 57001 User manual

MODEL/MODELO: 57001
Please contact us before returning the product to the store.
Toll Free: 877-885-1635
Por favor póngase en contacto con nosotros antes de
devolver el producto a la tienda.
Número telefónico gratis: 877-885-1635
INSTRUCCIONES DE ARMADO

LIMITED 90 DAYS WARRANTY
1
This product is covered by a limited warranty that is effective for 90 days
from the date of purchase. The warranty covers any defects in parts and
workmanship.
This Limited Warranty gives you specific legal rights and you may also have
other rights which very from one state (province) to another.
If, during the limited warranty period, a part is found to be defective or
breaks, we will offer replacement part at no cost to you, the customer. The
only exceptions to the warranty include main frames, tabletops, playing
surfaces, batteries or tools.
The above warranty will not apply in cases of damages due to improper
usage, alteration, misuse, abuse, accidental damage or neglect.
Attention: Since you build all tables upside down, please inspect table tops
and playing surfaces right away before putting together.
“PLEASE SAVE THESE INSTRUCTIONS
AND PURCHASE RECEIPT!”
A PURCHASE RECEIPT (or other proof of purchase date) will be required
before any warranty service is initiated. All requests for warranty service can
be submitted by email, in writing or by contacting our Consumer service
Department at:
TOLL FREE: 877-885-1635
WEBSITE: www.medalsports.com.tw
*Please do not call our 800 NUMBER as well as email us. This will result in
duplicate orders and charges will occur.
*Please note that all damaged table tops need to be returned to the store.
We do not replace any tabletops or playing surfaces.
PLEASE CONTACT US BEFORE RETURNING THE
PRODUCT TO THE STORE.
THANK YOU VERY MUCH!

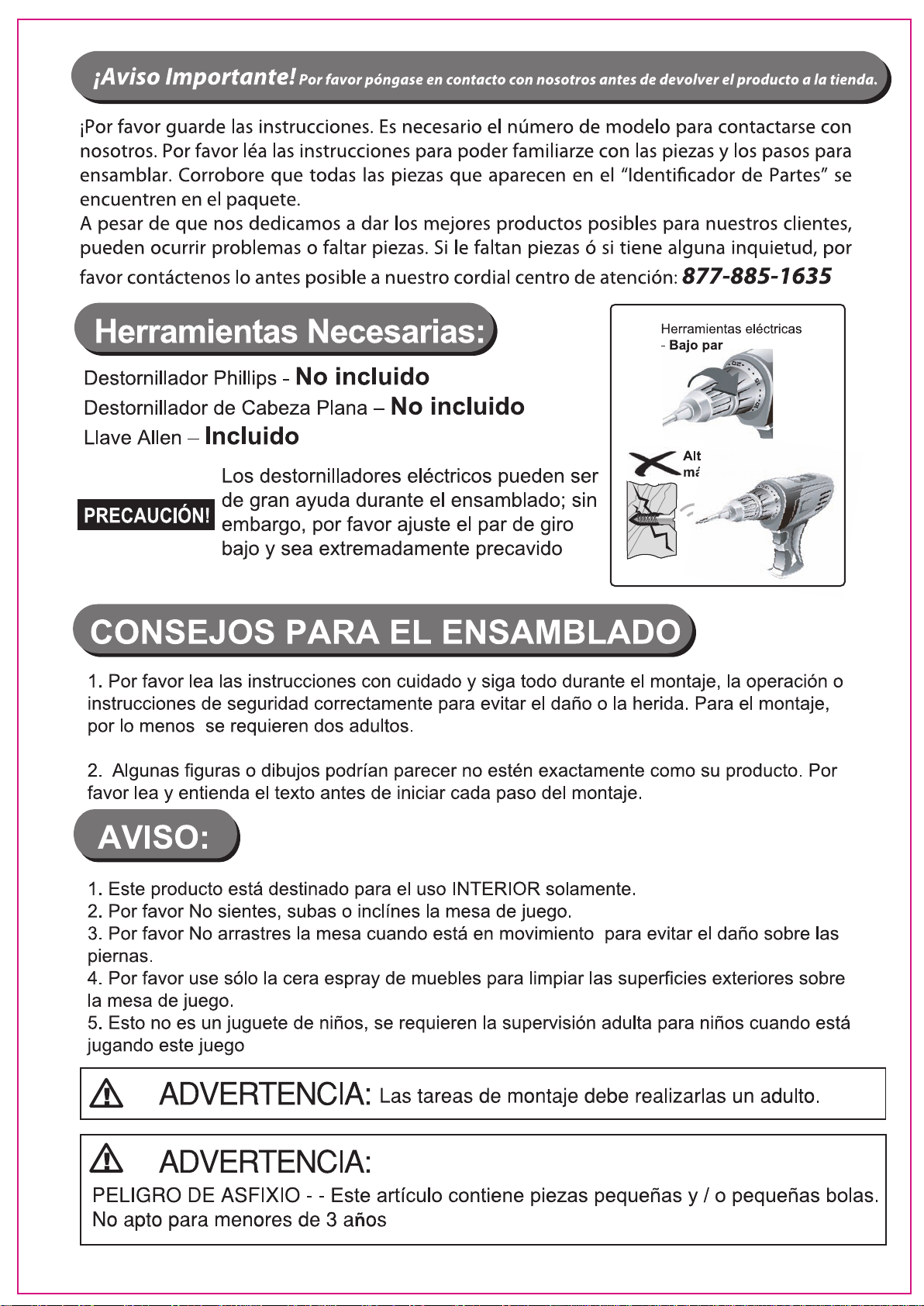

Phillips Screwdriver – Not Included
Standard (Flat Head Screwdriver) – Not Included
Allen Wrench - Included
TOOLS REQUIRED:
ASSEMBLY TIPS:
:

!



!
2
IMPORTANT NOTICE! Please contact us before returning the product to the store.
Please read the instructions carefully, and follow all assembly, operation or safety instructions
properly in order to avoid damage or injury. For the assembly, at least two adults are required.
Some figures or drawings may not look exactly like your product. Please read and understand
the text before beginning each assembly step.
1 -
2 -
Please Keep Your Instructions! Your Model number is necessary should you need to contact
us. Please read through this instruction manual book to familiarize yourself with all parts and
assembly steps. Kindly refer to the parts identifier below and be sure that all parts have been
included.
Although we dedicated to giving our customers the best product possible, a question may
arise or parts may be missing. If you are missing parts, or, if you have any questions, please
contact our fast and friendly service centre on:
1 - This product is intended for INDOOR use only.
2 - Please Do Not sit, climb or lean on the game table.
3 - Please Do Not drag the table when moving it in order to avoid the damaged on the legs.
4 - Please only use spray furniture polish to clean the exterior surfaces on the game table.
5 - This is not a child's toy, adult supervision is required for children playing this game.
877-885-1635
Power Tools
- Set Low Torgue
High Torque
over tightened
CAUTION !
Electric Screwdrivers may be helpful during
assembly; however, please set a low torque
and use extreme caution.

Pre-installed
3
6
11
2 3 4 51
7 8 9 10
12 13 14 15
16 17 18 19 20
21 22 23 24 25
26 27
34
28 29 30
31 32 33

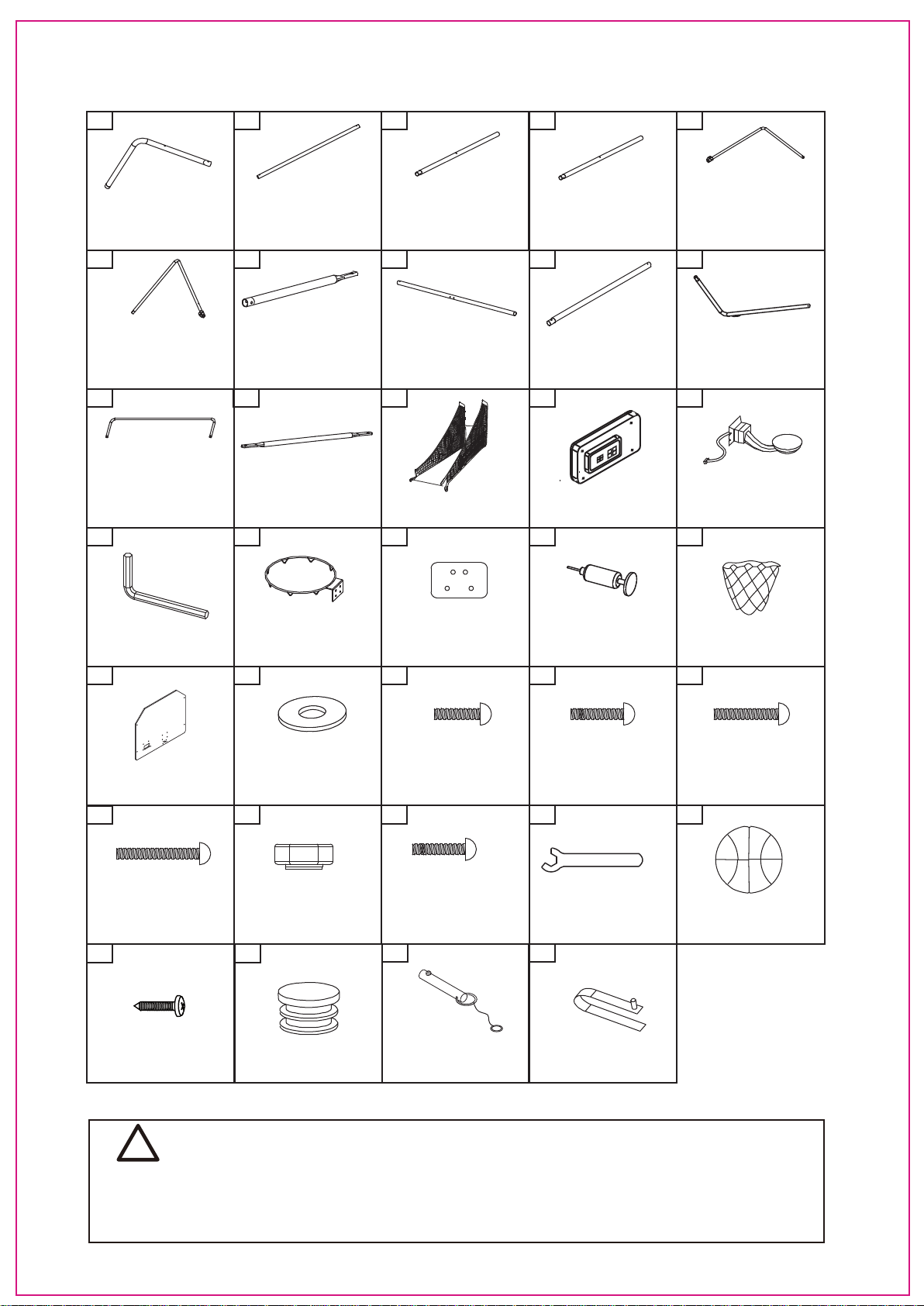

57001 PARTS LIST
Pre-installed
Pre-installed
Wrench
1 Piece
Plastic Pole Insert
2 Pieces
3 x 26mm Screw
4 Pieces
Lock Pin
2 Pieces
Allen Key
1 Piece
Board L Tube
2 Pieces
Board Tube
2 Pieces
Left Tube
1 Piece
Left L Tube
1 Piece
Right L Tube
1 Piece
Support Tube
2 Pieces
Mounting Tube
2 Pieces
Ramp Tube
2 Pieces
Ramp L Tube
2 Pieces
Switch Sensor
1 Piece
Net
1 Piece
Rim Support Plate
1 Piece
Rim
1 Piece
Basketball
2 Pieces
Ramp U Tube
1 Piece
Horizontal Tube
2 Piece
Ramp Net
1 Piece
Electronic Scorer
1 Piece
Backboard
1 Piece
M6 Washer
34 Pieces
M6 x 20mm Bolt
8 Pieces
M6 x 29mm Bolt
6 Pieces
M6 x 35mm Bolt
2 Pieces
M6 x 42mm Bolt
4 Pieces
M6 x 50mm Bolt
4 Pieces
M6 Nut
24 Pieces
Inflation Pump
with Needle
1 Piece
Right Tube
1 Piece
Pre-installed
Spring Lock
9 Pieces
TIME SCORE
WARNING:
!
1) Require 4pcs AA Batteries (Not included).
2) Do not mix old and new batteries.
3) Do not mix alkaline, standard (carbon zinc), or rechangeable (nickel-cadmium) batteries.

4
ASSEMBLY INSTRUCTIONS
FIG. 1 & 2
FIG. 3

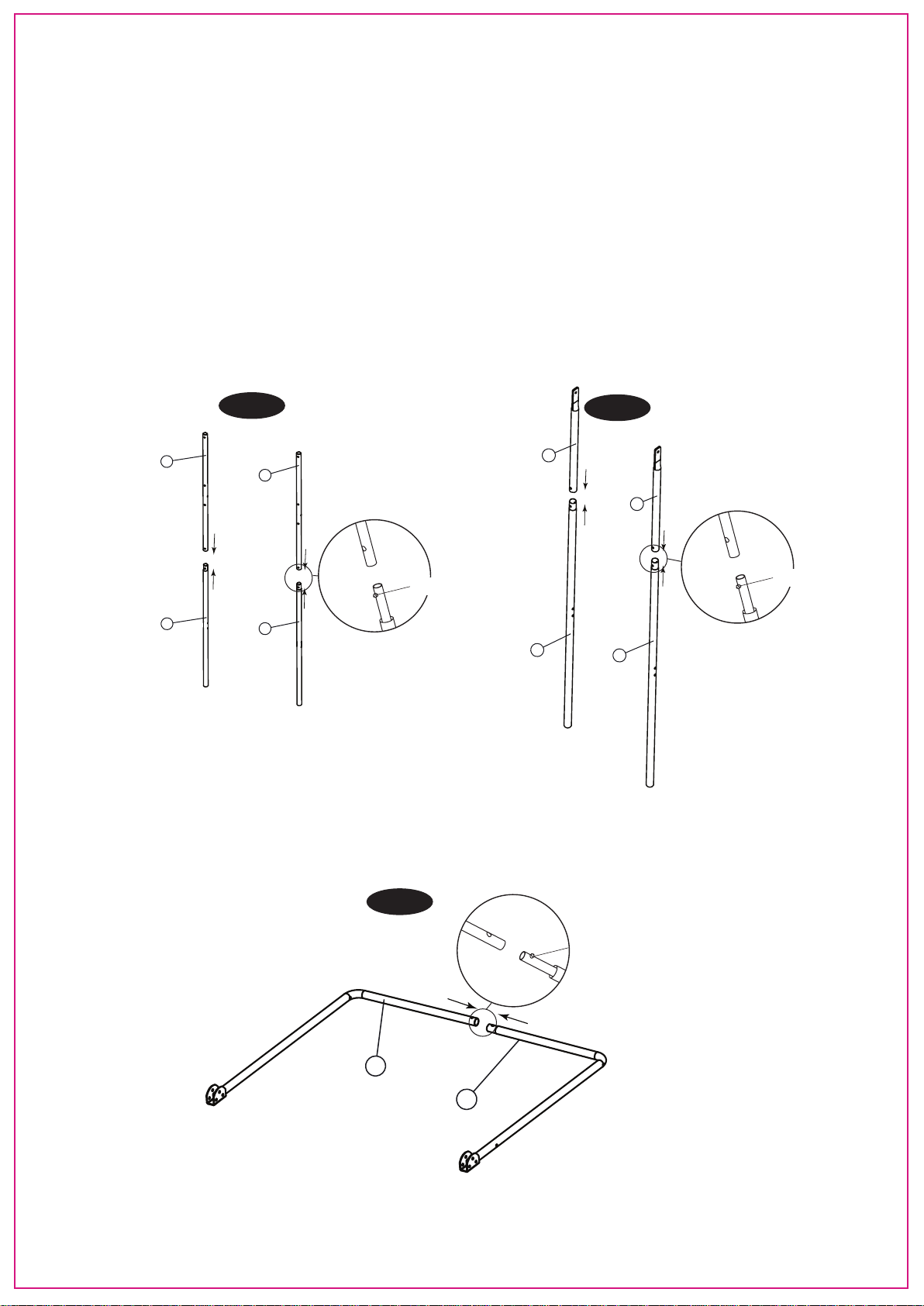

3．Attach the Board Tubes (#2) to the Left and Right Tubes (#3 and #4) using spring
lock as shown in FIG.1.
4. Attach the Support Tubes (#7) to the Mounting Tubes (#8) using spring lock as shown
in FIG.2
5. Attach the Left and Right L Tubes (#5 and #6) together using spring lock as shown in FIG.3
FIG. 1 FIG. 2
22
34
7
7
88
5
6
FIG. 3
Spring Lock
Spring Lock
Spring Lock
1. Find a clean, level place to begin the assembly of your Basketball Game. We recommend that two adults work
together to assembly this basketball game.
2. Remove all the parts from the box and verify that you have all of the listed parts as shown on the Parts List below.
Carefully cut or tear the four corners of the box so that the bottom of the box can be used as your work surface.

24
27
22
27 22
26
FIG. 4
8
7
56
8
7
56
3
4
2
27
26
22
5
FIG. 4
FIG. 5
FIG. 5
12
1
2
27
24
22

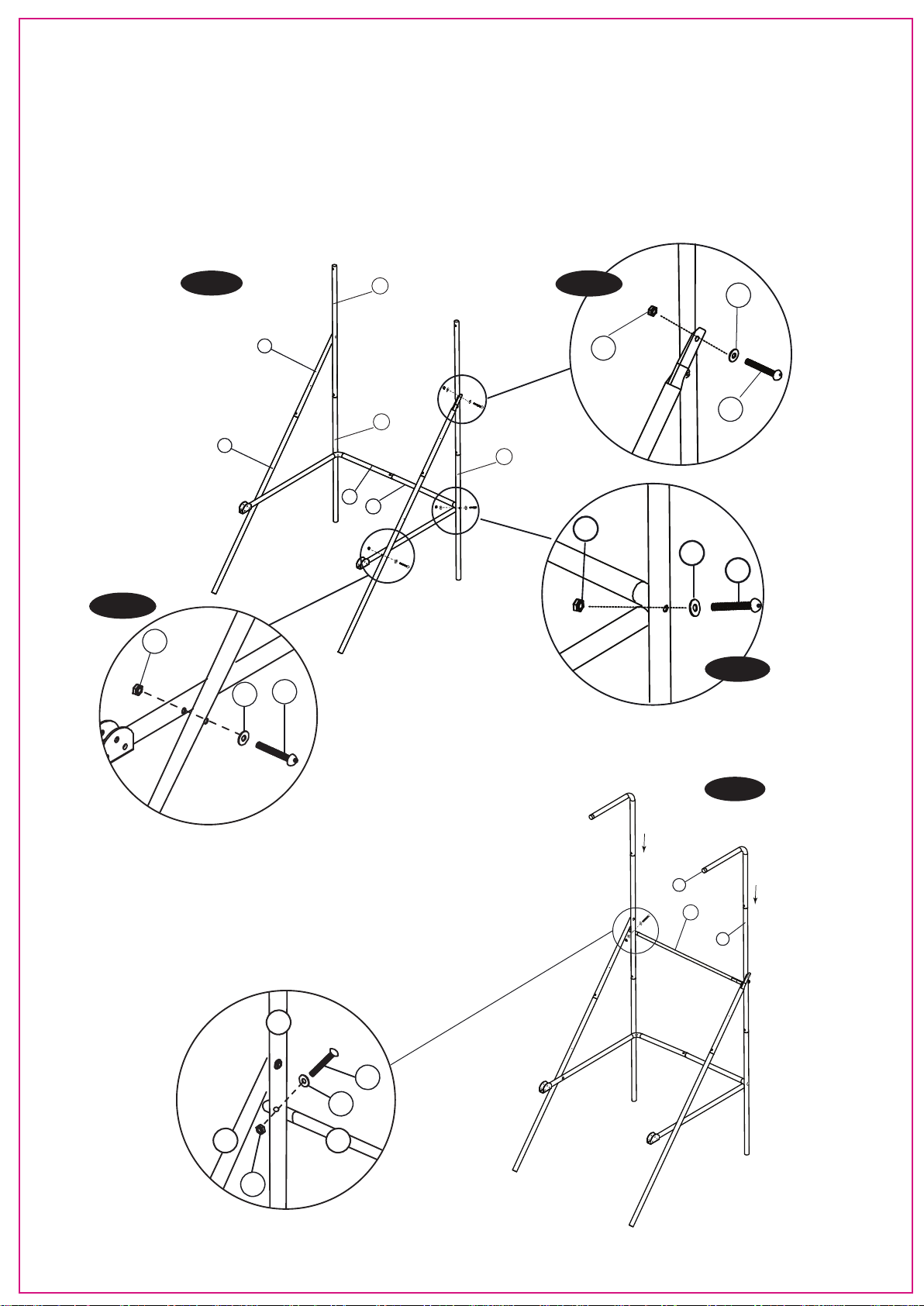

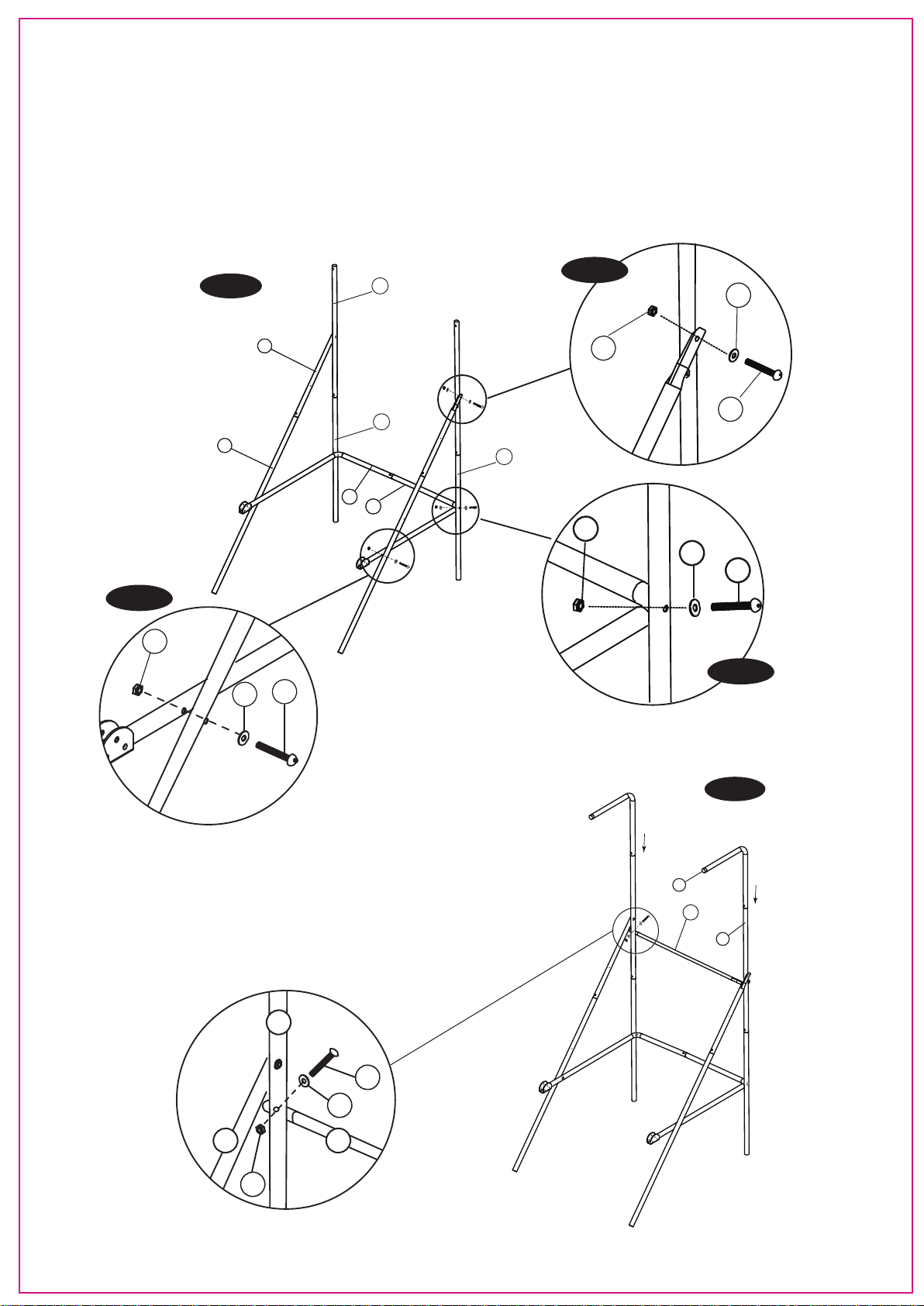

6. Attach the Left and Right L Tubes (#5 and #6) to the Left and Right Tubes (#3 and #4) using Bolts (#26), Washers
(#22)and Nuts (#27), and then attach the Left and Right LTubes (#5 and #6) to the Mounting Tubes (#8) using Bolts
(#26), Washers (#22) and Nuts (#27) as shown in FIG.4A & 4B.
7. Attach the Support Tubes (#7) to the Board Tube (#2) using Bolts (#24), Washers (#22) and Nuts (#27) as shown in
FIG.4C, repeat this step for other side. Note: Make sure the spring lock is face down.
8. Attach the Horizontal Tube (#12) to the Board Tubes (#2) using
Bolts (#24), Washers (#22) and Nuts (#27) as shown in FIG.5.
And then insert the Board LTubes (#1) to the Board Tubes (#2) as
shown in FIG.5.
FIG. 4B
FIG. 4A
FIG. 4C
2
712

6

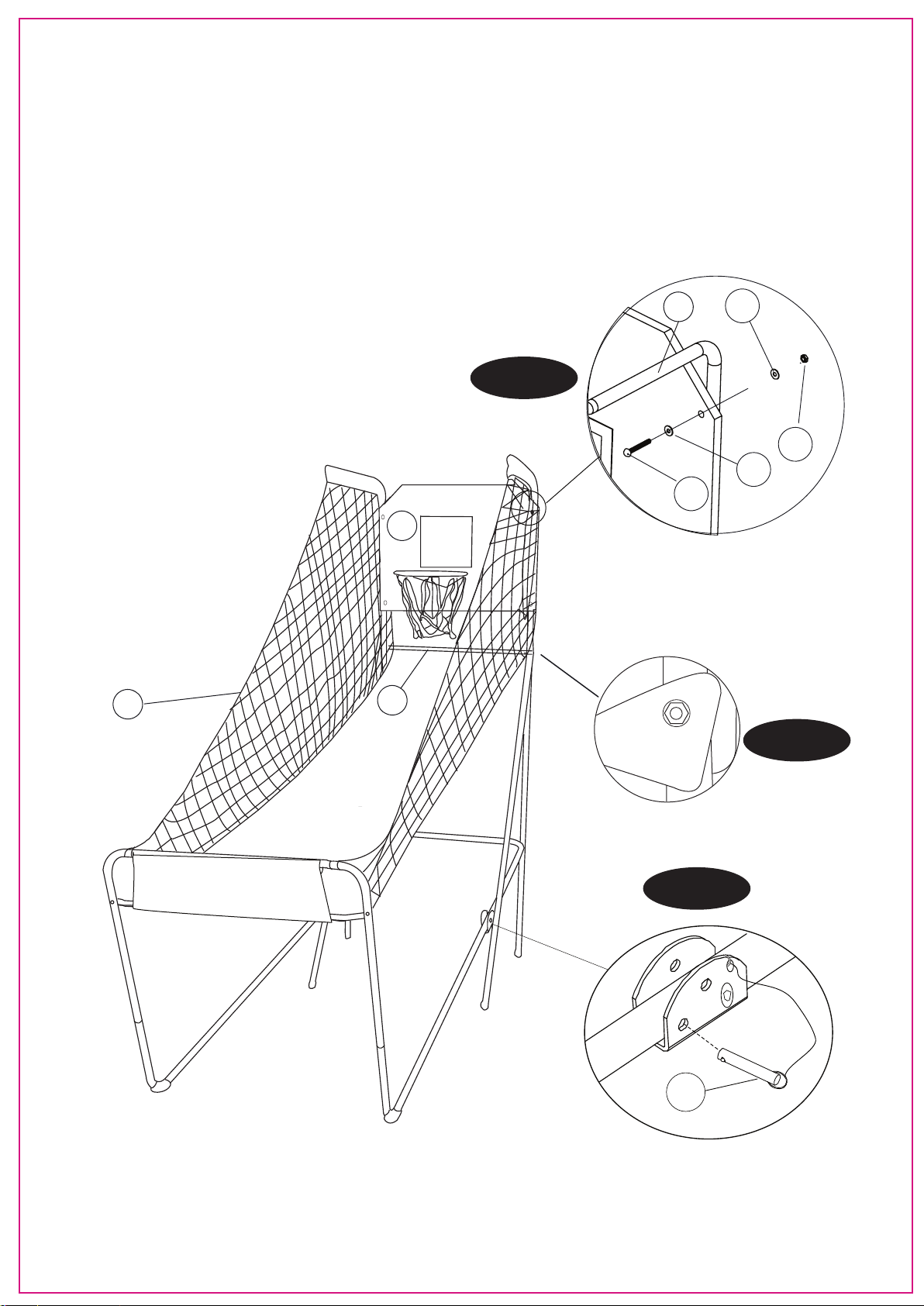

9. Attach the Ramp Tubes(#9) to the Left and Right L Tubes (#5 and #6) using Bolts(#28), Washers(#22)
and Nuts(#27) as shown in FIG 6.
FIG. 6
10. Attach the Ramp L Tubes(#10) to the Ramp Tubes(#9) using spring lock as shown in FIG 7.
FIG. 7
5
6
9
9
FIG. 6
FIG. 7
10
10
#35
Plastic Pole Insert
#34
Spring Lock
22
27
22
28

7
FIG. 8
FIG. 9
FIG. 9 FIG. 9A
FIG. 8
11. Tear off the paper from in front of Electronic Scorer (#14) and stick it to the Backboard (#21). then using four
Screws (#31) as shown in FIG.8.
17
21
14 18
23
22
22
22
27
31
14
14
21
14
15
23
12. Attach the Rim (#17) to the Backboard (#21) using four Bolts (#23) and four Washers (#22), attach the Rim
Support Plate (#18) to the back of backboard using four Nuts (#27) as shown in FIG.9.
13. Attach the Switch Sensor (#15) to the Backboard (#21) using four Bolts (#23), eight Washers (#22) and four
Nuts (#27) as shown in FIG. 9.
14. Connect the wire of the Switch Sensor (#15) to the Electronic Scorer (#14) as shown in FIG.9A.

8
FIG. 10
FIG.10
FIG.10D
FIG.10C
FIG.10A
FIG.10B
13
11
10
11
13
13
FIG.10E
27
12 24
11
22
#34
Spring Lock
15. Slide elastic straps and sleeve of Ball Ramp with Side Netting (#13) onto Top Net Hanger Tubes as shown in
FIG. 10A & 10B.
16. Slide the Ramp U Tube (#11) into the sleeve of Ball Ramp with Side Netting(#13) as shown in FIG. 10C.
17. Connect the Ramp U Tube (#11) to the Ramp L Tubes (#10) using spring lock as shown in FIG. 10D.
18. Slide the Horizontal Tube (#12) in front of the Ball Ramp with Side Netting (#13) and attach it to the Ramp U
Tube (#11) using Bolts (#24), Washers (#22) and Nuts (#27) as shown in FIG.10E.

9
FIG. 11
12
21
Ramp Tab
Back View.
FIG. 11B
13
FIG. 11C
33
22
22 27
25
1
FIG. 11A

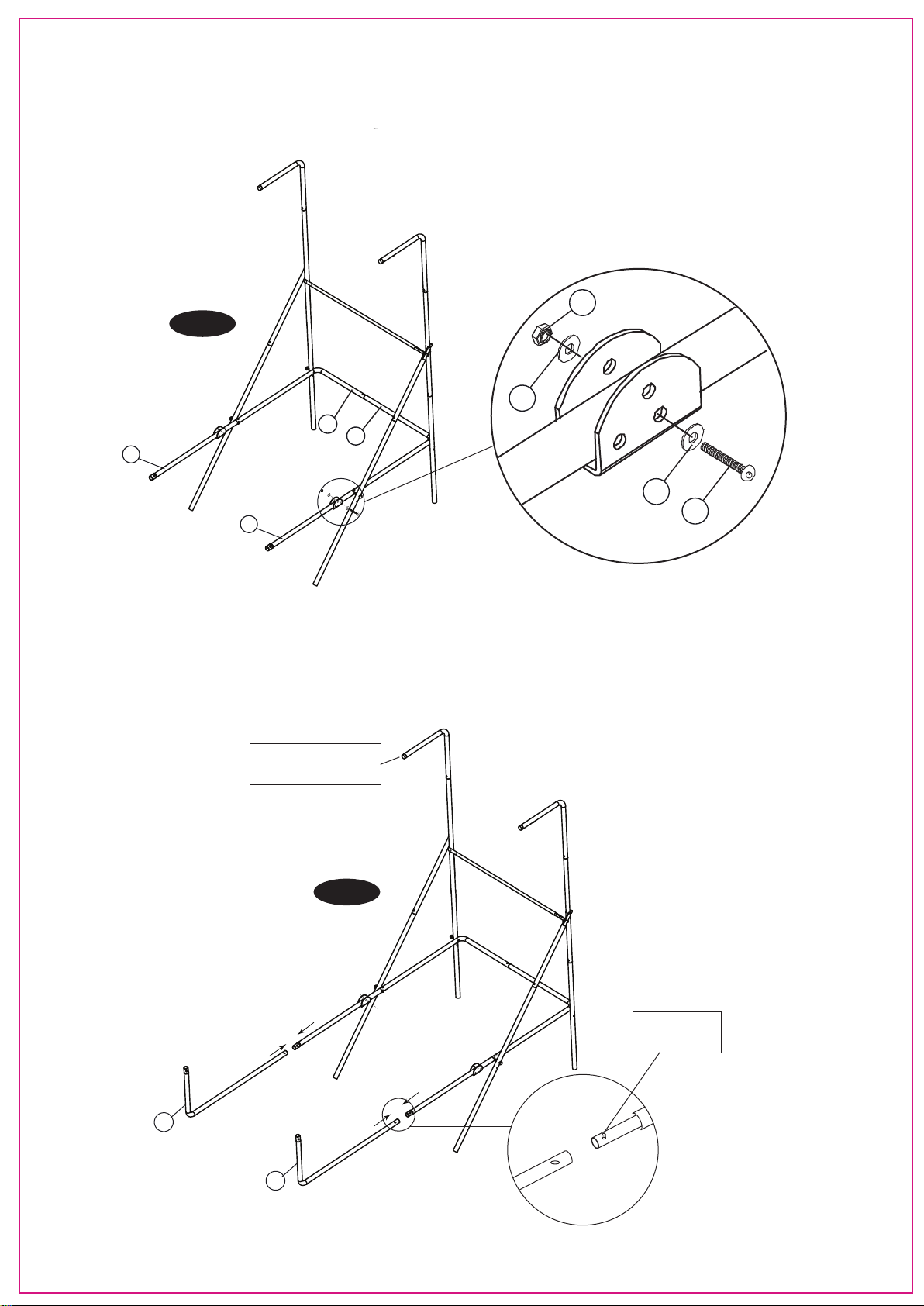

19. With the help of another adult, Attach the Backboard(#21) to the Board L Tubes (#1) using Bolts (#25),Washers
(#22) and Nuts (#27) as shown in FIG.11 A. At each bottom hole of the backboard,attach the ramp tabs of Ball
Return with Netting (#13) using Bolts (#25),Washers (#22) and Nuts (#27) as shown in FIG.11 B .
20. Insert the Lock Pins (#33) to the Left and Right L Tubes (#5 and #6) as shown in FIG. 11C.

FIG. 12
Lock Pin
10
FIG. 12
This device complies with the part 15 of the FCC rules.
Operation is subject to the following two conditions :
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
#16
SOUND
ON/OFF
POWER
ON/OFF
ELECTRONIC SCORER OPERATION
1. Unscrew bolt using a screwdriver and open the battery box. Insert 4 AA
batteries ( not included) in the order of polarity as shown on the inside
cover. Then close the cover using a screwdriver. Turn the power on using
the on/off switch. (if the game will not be used for a long period of the time,
we recommend that the batteries should be removed).
2. Sound ON/OFF – use this switch while the game is on to turn the sound
OFF and ON.
3. While game is in Sleep Mode, if a basketball is scored, the game will turn back on and the score
board will begin the 5 sec. countdown.
4.After finishing the game, Turn OFF the scorer by using the ON/OFF switch. NOTE: The scoreboard
will turn off after 5 minutes, if not in use, however, we recommend turning the ON/OFF switch to
OFF when the game will not be used for an extended period of time.
21. Folding position when not in use the basketball game and insert the Lock Pin (#33) as shown in FIG 12.
NOTE: The lock pin (#33) needs to be removed from its original position when the game is being used before
insertion to the new position when folded.
IMPORTANT NOTICE!
Make sure to use the Lock
Pins (#33) to secure the Ball
Return with Side Netting in
place.

11

12

13
6
11
2 3 4 51
7 8 9 10
12 13 14 15
16 17 18 19 20
21 22 23 24 25
26 27
34
28 29 30
31 32 33
