1. Intended Use / Contraindication / Population 5
2. Meaning of symbols 6
3. Important safety information 8
4. Product description 10
5. Cleaning 12
5.1 Before using for the rst time and after every use 12
5.2 Before using for the rst time and once a day 14
5.3 Cleaning the motor unit 15
6. Preparing for pumping 16
6.1 Mains operation 16
6.2 Battery operation 16
6.3 Assembling the pump set 18
7. Expression 20
7.1 Preparing for single pumping 20
7.2 Pumping 20
7.3 Preparing for hands-free expression with Easy Expression Bustier 22
7.4 Preparing for double pumping 24
8. Storing and thawing breastmilk 26
8.1 Storage 26
8.2 Freezing 26
8.3 Thawing 26
9. Feeding breastmilk 27
10. Troubleshooting 28
11. Warranty / disposal 29
12. Complete care during breastfeeding time 30
13. EMC / Technical description 88
14. Technical specications 95
Table of Contents
4

The intended use of breastpumps
Breastpumps are intended to be used by lactating women in the hospital or home
environment to alleviate the symptoms of engorgement and mastitis by expressing
breastmilk from the breast. It is intended to relieve sore and cracked nipples and
to bring out at or inverted nipples. Breastpumps will provide a means to give
breastmilk to babies who otherwise cannot feed directly at the breast due to
latch-on problems, cleft palate or premature babies.
Intended Patient Population
Adolescent pediatric or adult lactating women. Many women nd it convenient, or
even necessary, to use a breastpump to express and store their breast milk once
they have returned to work, are traveling or are otherwise separated from their baby.
Women are often delighted to learn that a breastpump can be used as a supple -
ment to breastfeeding and that some pumps are designed to mimic the suckling of
a nursing baby.
There are no contraindications for the Swing Maxi breastpump.
1. Intended use / Contraindication / Population
5

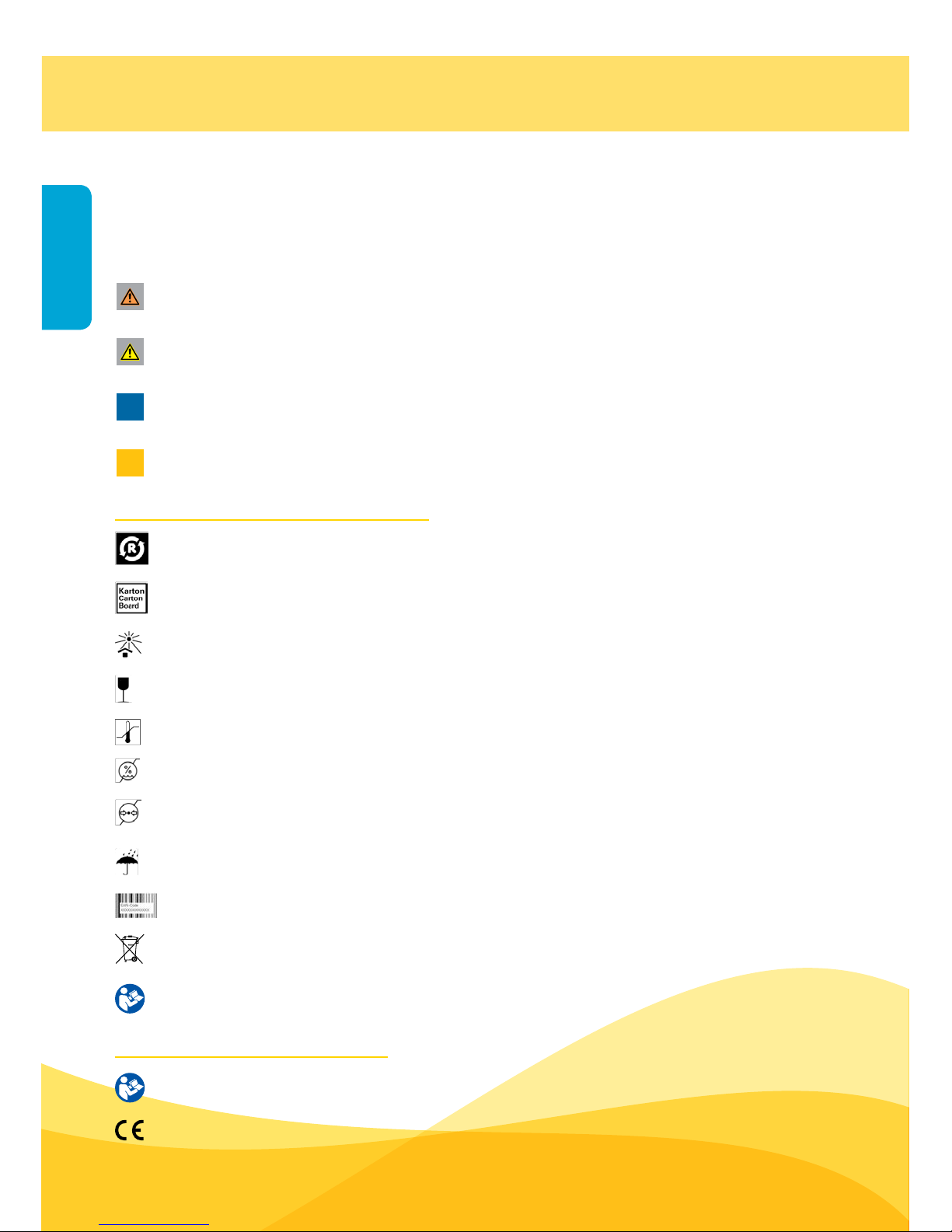

Warning
Can lead to serious injury or death.
Caution
Can lead to minor injury.
Note
Can lead to material damage.
Info
Useful or important information that is not related to safety.
Symbols on the packaging
This symbol indicates that the material is part of a recovery/recycling process.
This symbol indicates a carton package.
This symbol indicates to keep the device away from sunlight.
This symbol indicates to handle the fragile device with care.
°C
This symbol indicates the temperature limitation for operation, transport and storage.
This symbol indicates the humidity limitation for operation, transport and storage.
This symbol indicates the atmospheric pressure limitation for operation,
transport and storage.
This symbol indicates to keep the device dry.
This symbol indicates unique GSI Global Trade Item Numbers (GTIN)
This symbol indicates do not dispose the device together with unsorted municipal
waste (for EU only).
This symbol indicates to follow instructions for use.
Symbols on the device
This symbol indicates to follow instructions for use.
0123 This symbol indicates the compliance with the essential requirements of the Council
Directive 93/42/EEC of 14 June 1993 concerning medical devices.
2. Meaning of symbols
i
The warning symbol identies all instructions that are important for safety. Failure to
observe these instructions can lead to injury or damage to the breastpump!
When used in conjunction with the following words, the warning symbol stands for:
i
6

This symbol indicates the manufacturer.
This symbol indicates do not dispose the device together with unsorted municipal
waste (for EU only).
This symbol indicates the compliance with additional USA and Canada safety
requirements for medical electrical equipment.
This symbol indicates a type BF applied part.
SN This symbol indicates manufacturer's serial number of the device.
+This symbol indicates the positioning of battery cell.
IP22 This symbol indicates the protection against ingress of solid foreign objects and
against harmful effects due to the ingress of water.
This symbol indicates the date of manufacture (four digits for the year and
two digits for the month).
Symbols on the mains adapter
This symbol indicates that the mains adapter is a class II device.
This symbol indicates the compliance with China Compulsory Certication.
This symbol indicates that the mains adapter is safety tested.
This symbol indicates that the mains adapter is for indoor use only.
This symbol indicates the compliance with USA and Canada safety requirements.
This symbol indicates the compliance with Federal Communications Commission
requirements.
This symbol indicates polarity of d.c. power connector.
This symbol indicates the compliance with AUS/NZ regulatory requirements
(Regulaltory compliance mark).
This CE-mark indicates the compliance with the low voltage and electromagnetic
compatibility directive.
This symbol indicates to not dispose the device together with unsorted municipal
waste (for EU only). The solid bar symbol indicates that mains adapter is put on the
market after 13 August 2005.
This symbol indicates the compliance with Japanese safety requirements.
This symbol indicates the compliance with energy efciency requirements.
This symbol indicates alternating current.
This symbol indicates direct current.
–
9 VDC
N136
7

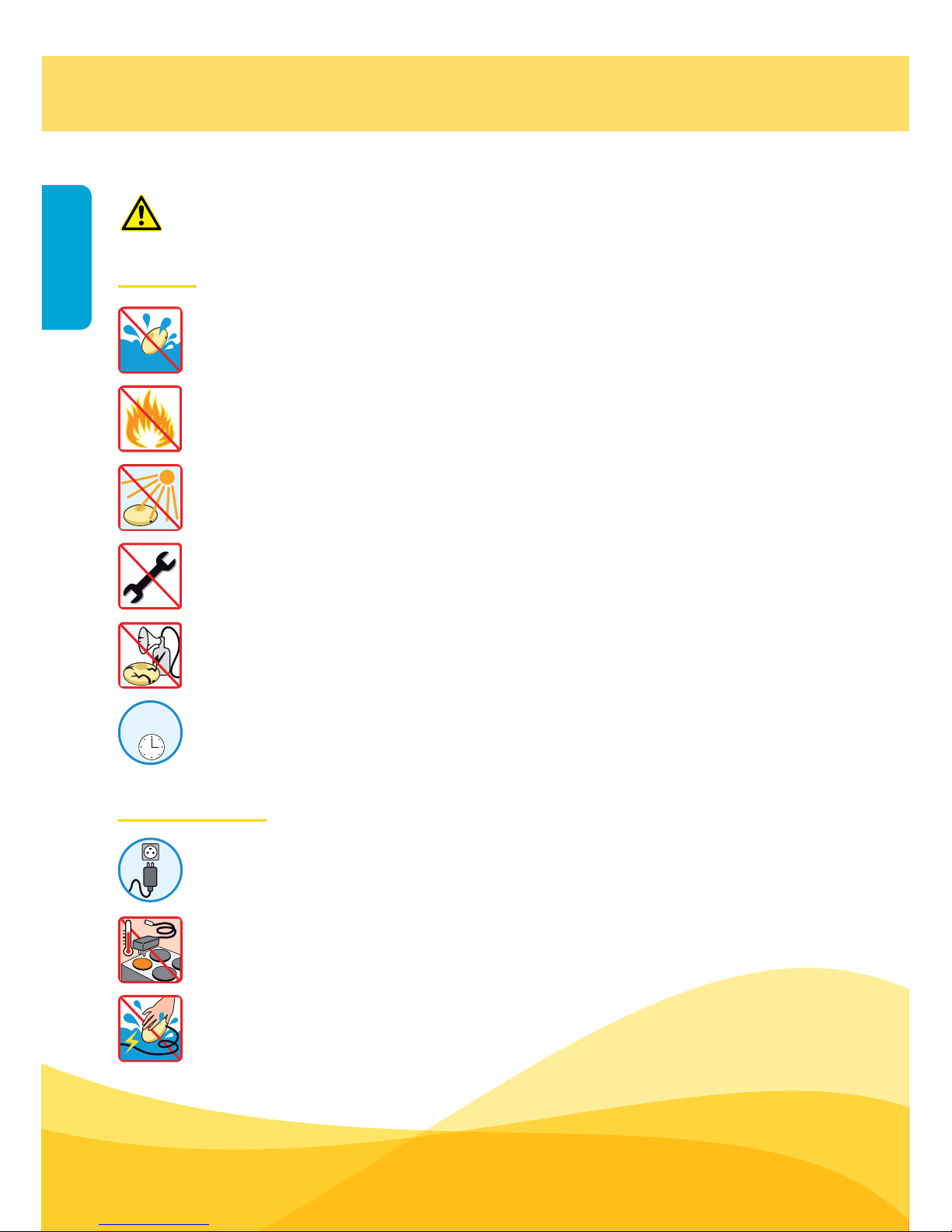

3. Important safety information
Failure to follow these instructions/safety information can lead to danger
from the device. Subject to technical changes.
Device
Danger of electrocution! Keep the device dry! Never immerse in water or
other liquids!
The Swing Maxi breastpump is not heat-resistant: keep away from radiators
and open ames.
Do not expose the motor unit to direct sunlight.
Repairs must be performed only by an authorised service agency
Do not repair yourself! No modications to the device are permitted.
Never use a damaged device. Replace damaged or worn parts.
MAX.
250 h
The operating life of the Swing Maxi breastpump is 250 hours.
The service life is two years.
Electrical use
Separation from the mains is only assured through the disconnection of
the mains adapter from the wall socket outlet.
Keep the mains adapter away from heated surfaces.
Do not reach for any electrical device if it has fallen into water.
Unplug immediately.
8

The breastpump should never be left unattended when plugged into
a power source.
Use
Use the Swing Maxi breastpump only for its intended use as described
in this manual.
Never operate an electrical device if it has a damaged cord or plug, if it is
not working properly, if it has been dropped or damaged, or dropped into
water.
Do not use the Swing Maxi breastpump while bathing or showering.
Do not use the Swing Maxi breastpump while sleeping or overly drowsy.
This is a single user product. Use by more than one person may
present a health risk.
Do not drive whilst hands-free pumping.
Supervision is necessary when the Swing Maxi breastpump is used
in the vicinity of children.
Contact your lactation consultant or physician if you experience
problems or pain.
Portable and mobile radio frequency communications equipment
can affect the Swing Maxi breastpump.
Important: Tray, lids, bags or bottles may become damaged if dropped.
Do not use if components become damaged.
9

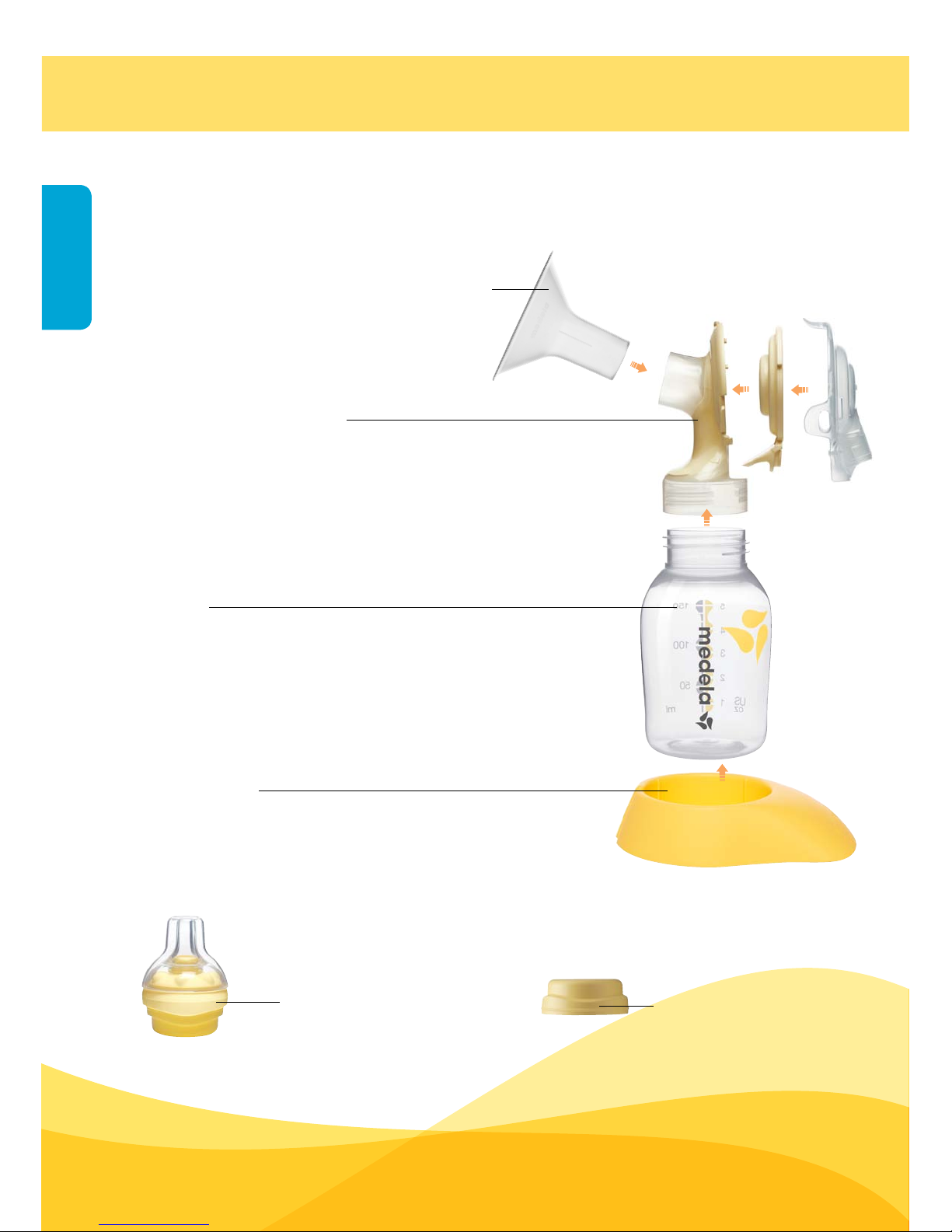

2x PersonalFit™ Breastshield M (24mm)
(for other breast shield sizes
see Chapter 12, page 30)
810.7084
2x Freestyle connectors
(breast shield base, membrane,
transparent cap)
200.1513
2x bottle
811.0021
2x bottle stand
810.0462
2x Calma multi lid
200.2714
1x Calma Solitaire
200.3386
4. Product description
Spare parts and accessories available for order can be found
on page 30
10

2x Calma multi lid
200.2714
Long tubing
1x mains adapter
200.4725 Euro 12V
200.4726 UK and US/JP 12V
200.4727 AUS/NZ 12V
200.4728 Adapter CN 12V

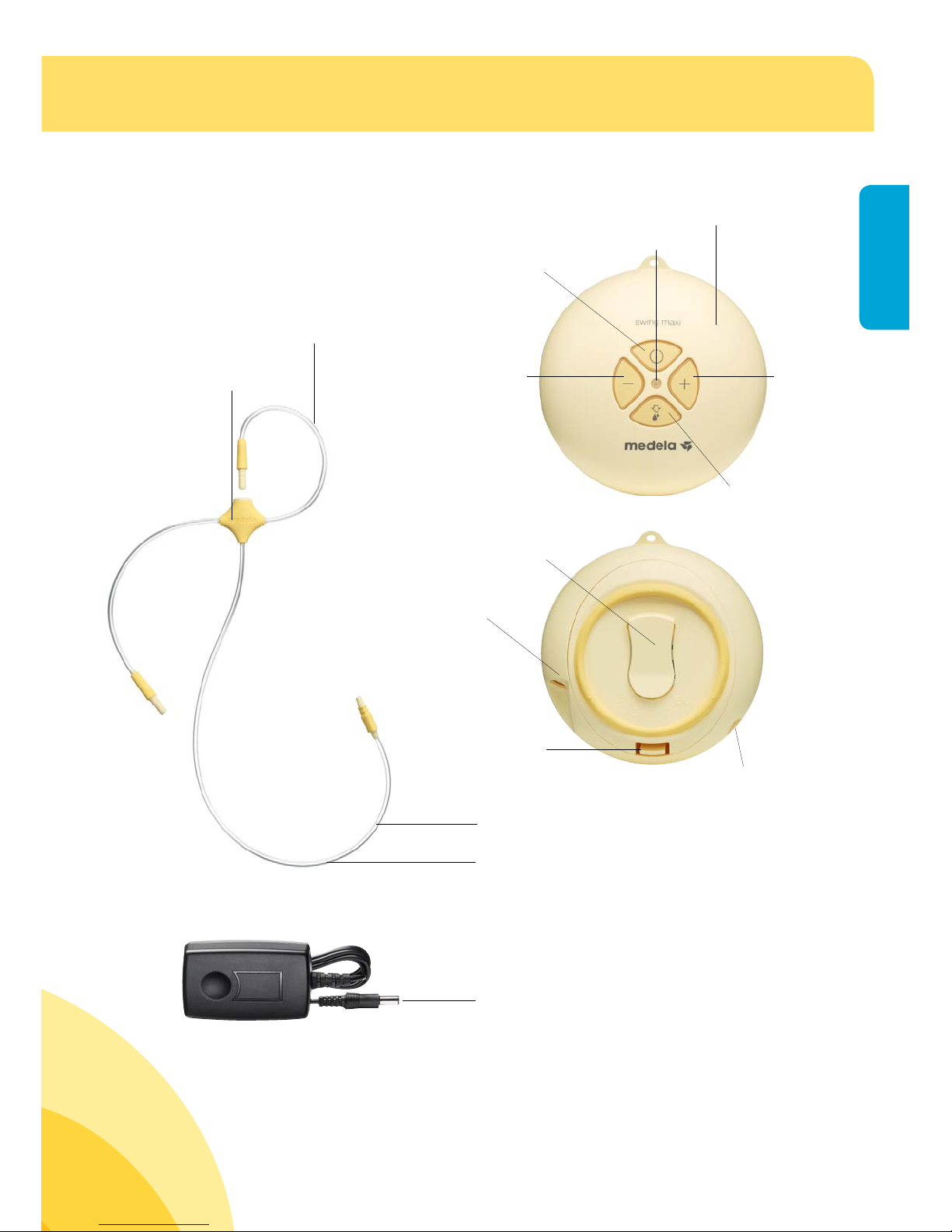

1x motor unit
200.4932
On/Off button
Reduce
vacuum
Increase
vacuum
Let-down
button
LED
1x Swing Maxi tubing
200.5259
Tubing support
Short tubing
Power adapter port
PVC tubing
port
Battery
compartment
Fixing clip
11

4
1
i

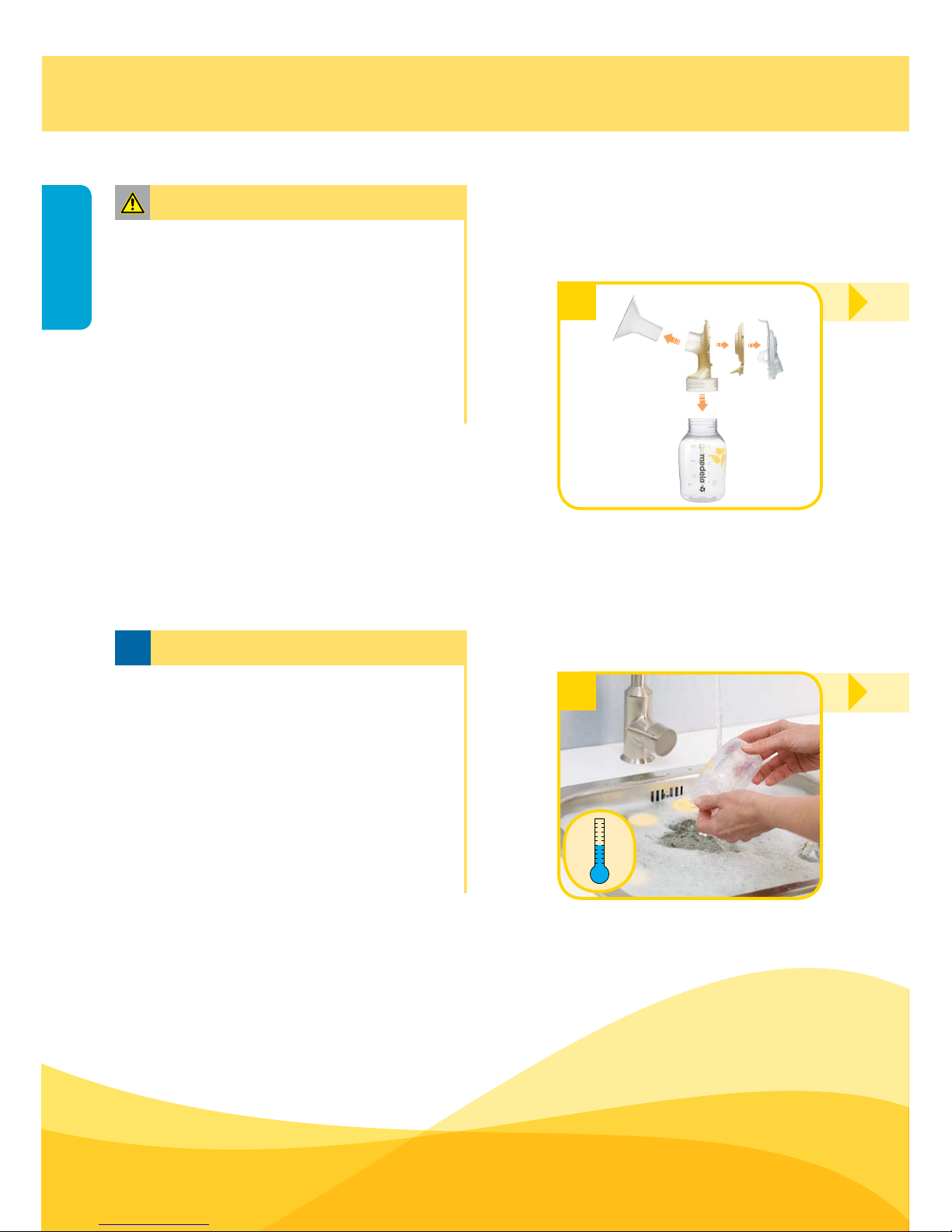

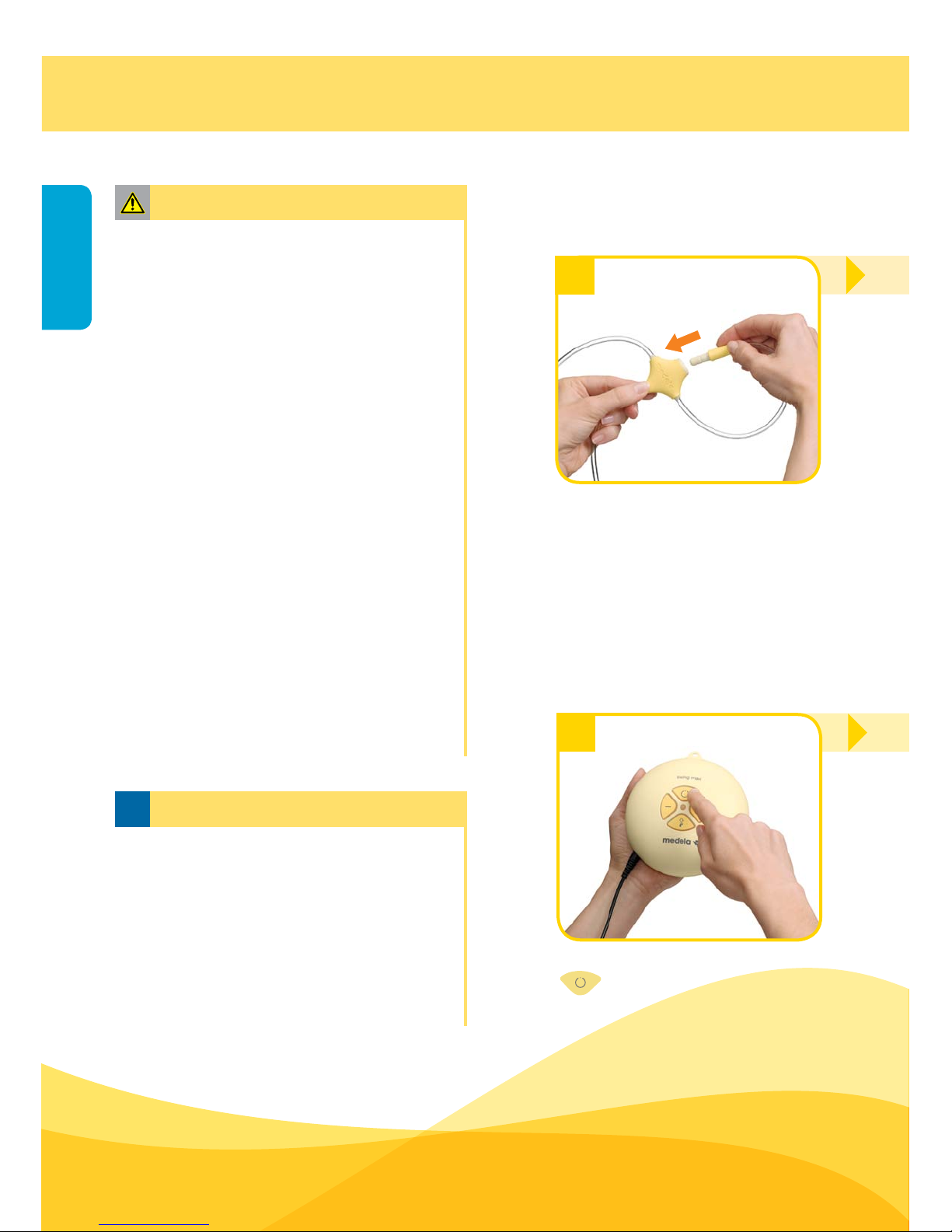

5.1 Before using for the rst
time and after every use
Disassemble the pump set
into individual parts.
Rinse all parts with cold,
clear water (approx. 20 °C)
for 10 – 15 seconds.
l Only use drinking-quality water
for cleaning.
l Take apart and wash all parts that
come in contact with the breast and
breastmilk immediately after use to
avoid dry up of milk residues and to
prevent growth of bacteria.
l The pump set requires no main-
tenance.
l Take care not to damage parts
of the pump set during cleaning.
l If the individual components of the
pump set are cleaned in a dish-
washer parts may be discoloured by
food pigments. This has no impact
on the function.
Note
Caution
5. Cleaning
12

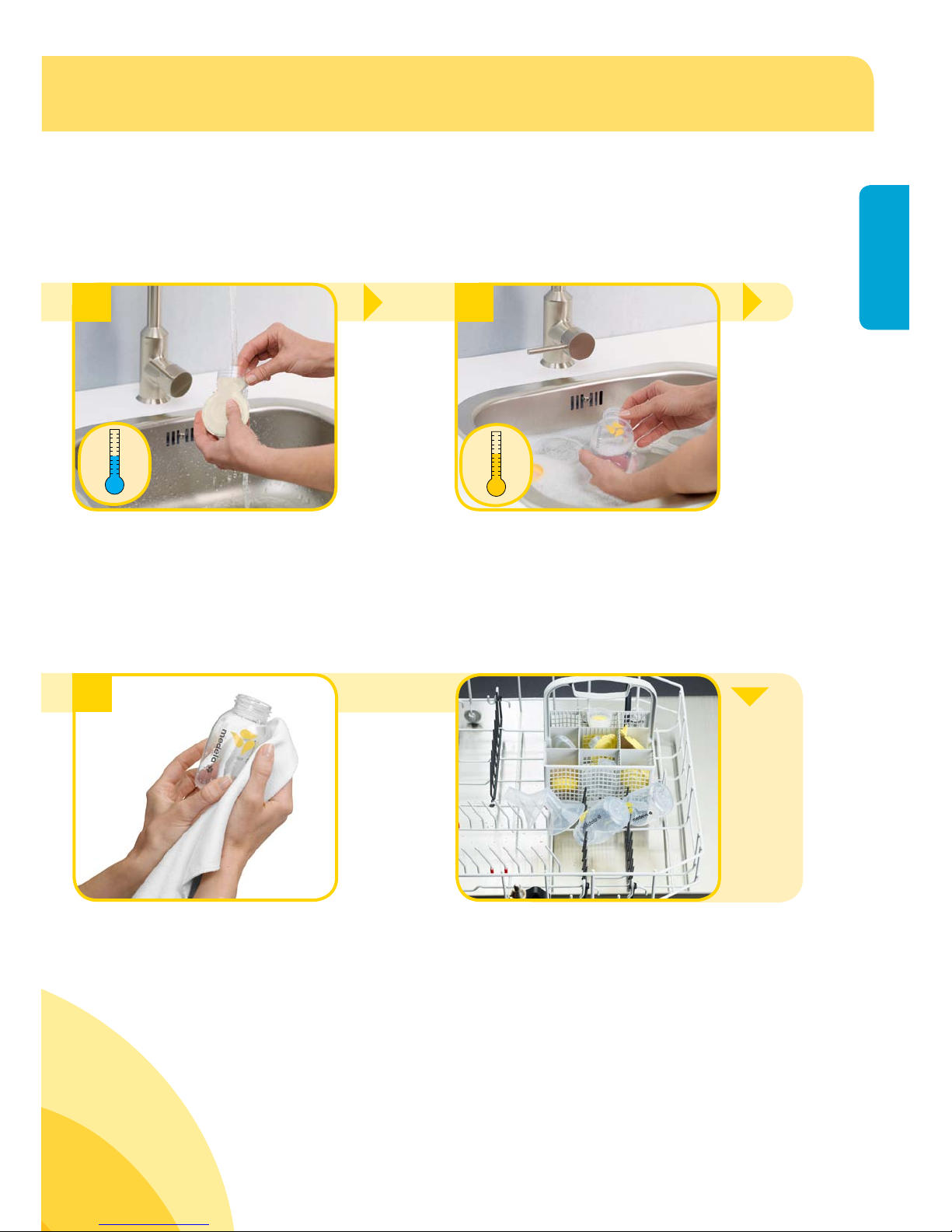

23
5
Rinse all parts with cold,
clear water (approx. 20 °C).
If you clean the individual parts
of the pump set in the dish-
washer, place them on the top
rack or in the cutlery section.
Clean all parts with plenty
of warm soapy water
(approx. 30 °C).
Dry with a clean cloth or leave
to dry on a clean cloth.
As an alternative to steps 2, 3 and 4.
or
13

1
i
2c
More information on page 12, chapter 5.1 steps 2–4

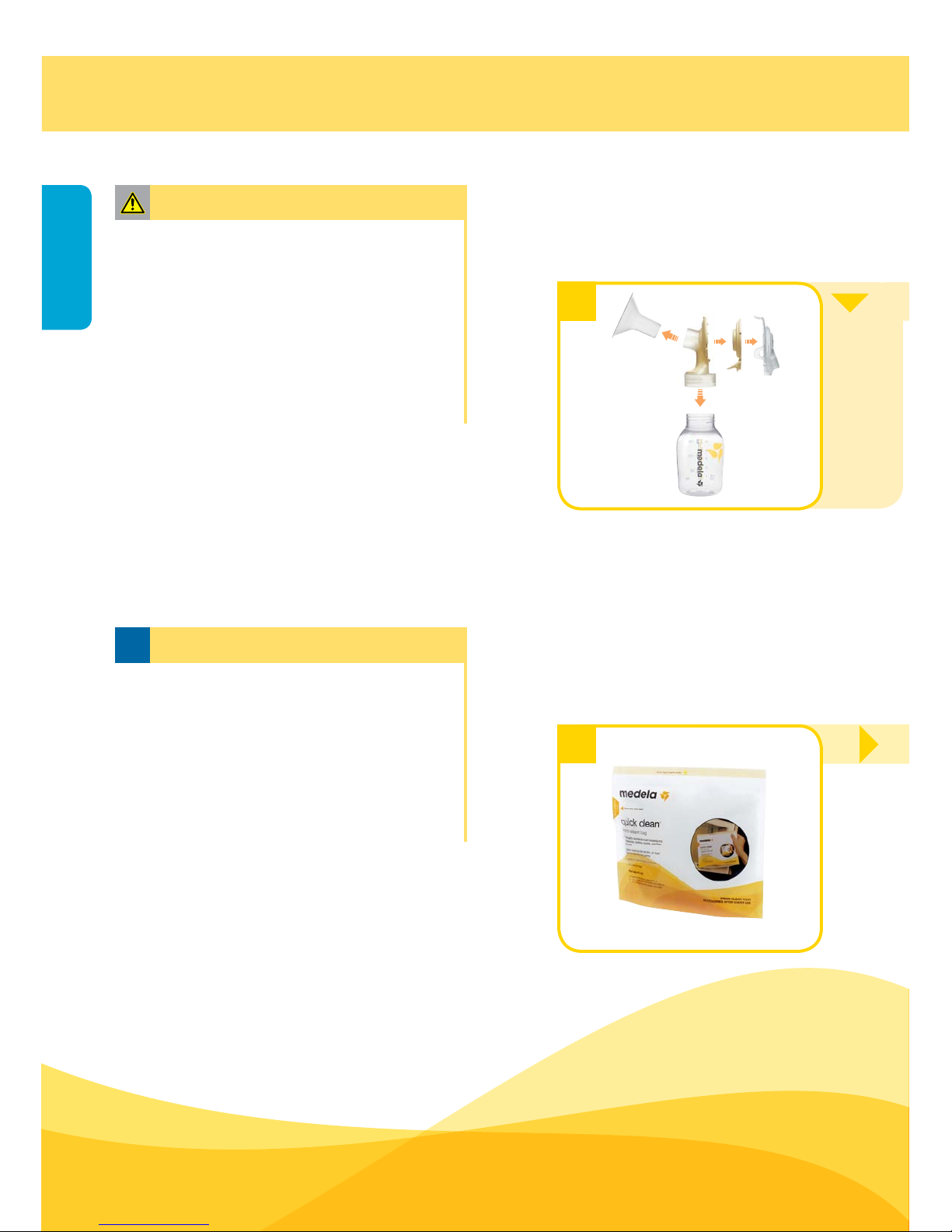

5.2 Before using for
the rst time and
once a day
Disassemble the pump set
into individual parts.
Use QuickClean* bags in the
microwave in accordance with
the instructions.
l Only use drinking-quality water
for cleaning.
l Take apart and wash all parts that
come in contact with the breast and
breastmilk immediately after use to
avoid dry up of milk residues and to
prevent growth of bacteria.
l When boiling, a tea spoon of citric
acid may be added to avoid a build-
up of limescale.
l Store the pump set in a clean bag/
container until next use. Or store it in
clean paper or a cloth.
Caution
Note
5. Cleaning
14

2a 2b
31
Cover all parts with water
and boil for ve minutes.
Use B-Well Steam Steriliser*
in accordance with the
instructions.
or
*More information at www.medela.com
Dry with a clean cloth or leave
to dry on a clean cloth.
Wipe off with a clean, damp
cloth.
5.3 Cleaning
the motor unit
or
15

1
1
i
Plug the mains adapter cord
into the motor unit.
6.1 Mains operation
6. Preparing for pumping
l re 6.2 Battery operation:
The batteries do not need to be
removed when the main adapter
is used for pumping.
l Regularly check the condition of
the batteries in the motor unit.
l If Swing Maxi will remain unused
for a longer period of time, remove
the batteries from the battery
compartment.
l Batteries last for two to three
pumping sessions
(approx. 1 ½ hours pumping time).
6.2 Battery operation
Open the battery compart-
ment on the back in the
direction of the arrow.
l re 6.1 Mains operation:
Follow the exact order of the steps.
l Only use the mains adapter supplied
with the Swing Maxi.
l Make sure the voltage of the mains
adapter is compatible with the
power source.
Info
Warning
16

2

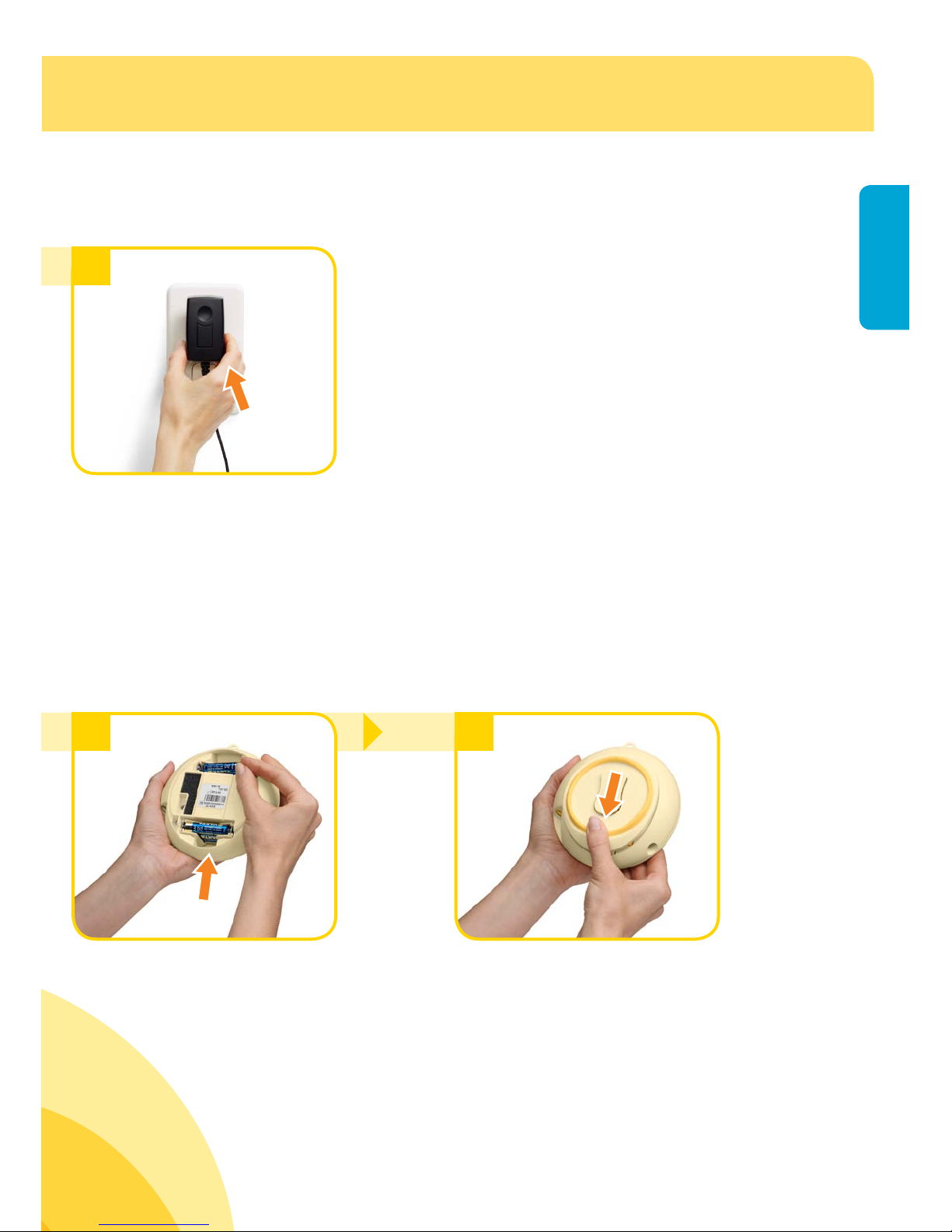

23
6.2 Battery operation
Plug the mains adapter into
the mains socket.
Insert six AAA Micro 1.5 V
batteries.
Close the battery compartment.
17

1
4
i
i
Carefully insert the light yellow
membrane into the base of the
breast shield.
6. Preparing for pumping
l Wash hands thoroughly (at least one
minute) with soap and water before
touching the breast and pump parts.
Screw bottle into connector.
6.3 Assembling
the pump set
l Carry out all the steps with care and
assemble the pump set correctly.
Otherwise a good vacuum may not
be achieved.
l Use Medela original accessories
only.
l Check pump set components for
wear or damage before use and
replace if necessary.
l All components must be completely
dry before use.
Caution
Info
Note
18

5
2
6
3
Fasten the transparent cap
to the connector.
➙ Make sure that all three
snaps (top and side)
are engaged.
Insert the short tubing into
the transparent cap as far
as it will go.
Insert the long tubing into
the motor unit.
Push the breast shield onto
the connector.
19

1
1
7. Expression
Insert the unused short tubing
into the tubing holder.
7.1 Preparing for
single pumping
Switch on the breast pump with
.
➙ The stimulation phase lasts
a maximum of two minutes.
The stimulation phase will
then automatically change
to the expression phase.
7.2 Pumping
l re step 2 (chapter 7.1):
Answer the following questions
to nd out whether the available
breast shield size will t:
l Is your nipple moving freely in
the tunnel?
l Is minimal or no areolar tissue
being pulled into the tunnel of
the breastshield?
l Do you see a gentle, rhythmical
motion in the breast with each
cycle of the pump?
l Do you feel the breast emptying
all over?
l Is your nipple pain-free?
If the answer to any of these ques-
tions is “No” or if you experience
problems or pain during expression,
consult your breastfeeding and
lactation consultant or midwife.
Caution
i
l re step 3 (chapter 7.1):
Do not hold the pump set by the
bottle. This can lead to blockage of
the milk ducts and engorgement.
l Wipe the breast with a warm
washcloth (do not use alcohol).
Note
20
