1. Intended use/Population – Contraindication 5
2. Meaning of symbols 6
3. Important safety information 8
4. Product description 10
5. Cleaning 12
5.1 Before using for the rst time and after every use 12
5.2 Before using for the rst time and once a day 14
5.3 Cleaning the motor unit 15
6. Preparing for pumping 16
6.1 Mains operation 16
6.2 Battery operation 16
6.3 Assembling the pump set 18
7. Expression 20
7.1 Preparing for single pumping 20
7.2 Pumping 20
8. Storing and thawing breast milk 24
8.1 Storage 24
8.2 Freezing 24
8.3 Thawing 24
9. Feeding breast milk 25
10. Troubleshooting 26
11. Warranty /disposal 27
12. Complete care during breastfeeding time 28
13. EMC / Technical description 82
14. Technical specications 88
Table of Contents
4

The intended use and indications of breast pumps
Breast pumps are intended to be used by lactating women in the hospital or home
environment for expressing breast milk. Breast pumps are indicated to alleviate the
symptoms of engorgement by expressing milk. In case of mastitis breast pumps
support the healing process by removing breast milk from the affected breast. Breast
pumps are indicated to relieve sore and cracked nipples and to bring out at or
inverted nipples. Also breast pumps enable mothers to provide breast milk for babies
who cannot feed directly at the breast for a variety of reasons such as latch-on prob-
lems, cleft palate or premature babies.
Intended patient population /user
Adolescent paediatric or adult lactating women. Many women nd it convenient, or
even necessary, to use a breast pump to express and store their breast milk once
they have returned to work, are travelling or are otherwise separated from their baby.
Women are often delighted to learn that a breast pump can be used as a supplement
to breastfeeding and that some pumps are designed to mimic the suckling of a nurs-
ing baby.
Contraindications
There are no known contraindications for the Swing breast pump.
1. Intended use/Population – Contraindication
5

Warning
Can lead to serious injury or death.
Caution
Can lead to minor injury.
Note
Can lead to material damage.
Info
Useful or important information that is not related to safety.
Symbols on the packaging
This symbol indicates that the material is part of a recovery/recycling process.
This symbol indicates a carton package.
This symbol indicates to keep the device away from sunlight.
This symbol indicates to handle the fragile device with care.
°C
This symbol indicates the temperature limitation for operation, transport and storage.
This symbol indicates the humidity limitation for operation, transport and storage.
This symbol indicates the atmospheric pressure limitation for operation,
transport and storage.
This symbol indicates to keep the device dry.
This symbol indicates that the packaging contains products intended
to come in contact with food according to regulation 1935/2004.
This symbol indicates unique GSI Global Trade Item Numbers (GTIN)
This symbol indicates do not dispose the device together with unsorted municipal
waste (for EU only).
This symbol indicates to follow instructions for use.
Symbols on the device
This symbol indicates to follow instructions for use.
0123 This symbol indicates the compliance with the essential requirements of the Council
Directive 93/42/EEC of 14 June 1993 concerning medical devices.
2. Meaning of symbols
i
The warning symbol identies all instructions that are important for safety. Failure to
observe these instructions can lead to injury or damage to the breast pump!
When used in conjunction with the following words, the warning symbol stands for:
i
6

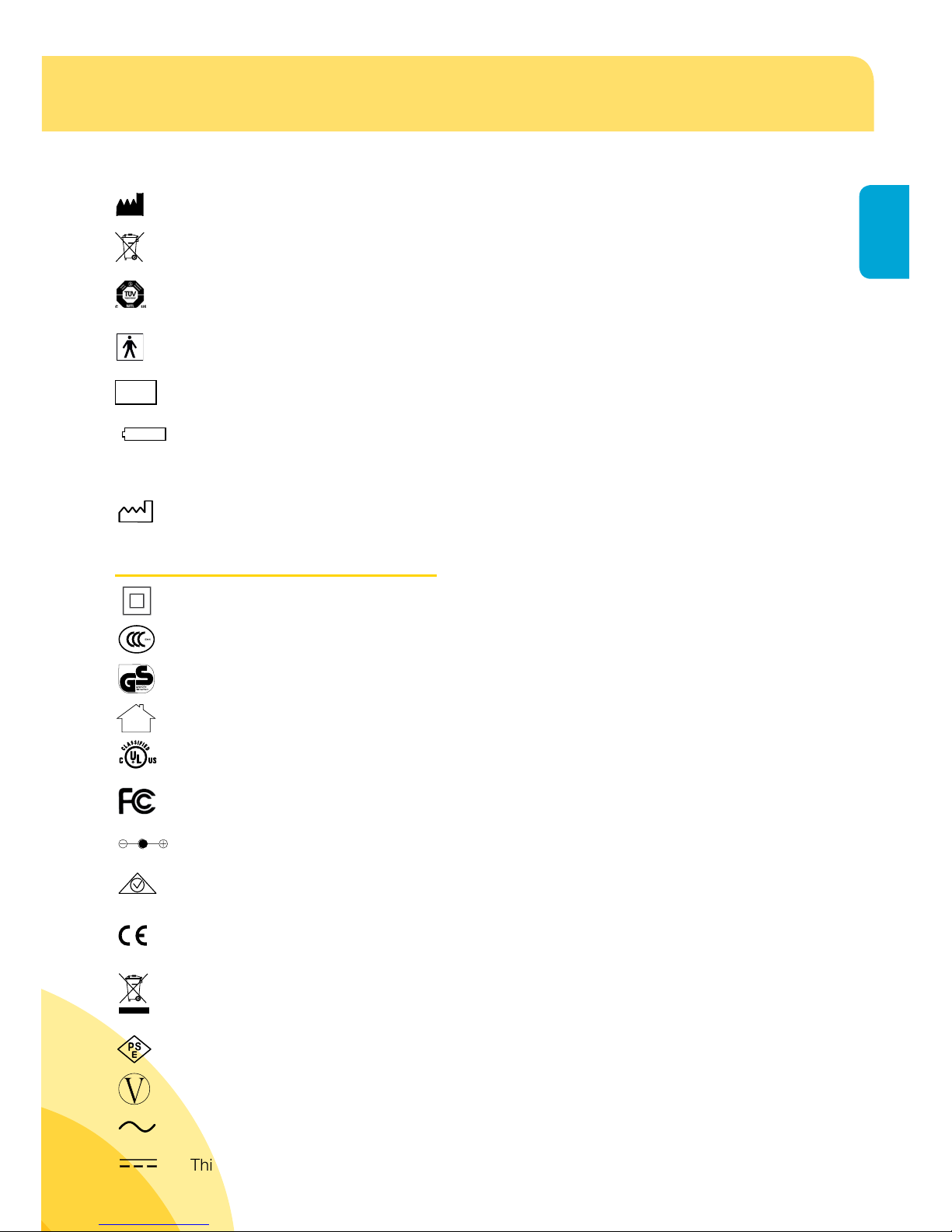

This symbol indicates the manufacturer.
This symbol indicates do not dispose the device together with unsorted municipal
waste (for EU only).
This symbol indicates the compliance with additional USA and Canada safety
requirements for medical electrical equipment.
This symbol indicates a type BF applied part.
SN This symbol indicates manufacturer's serial number of the device.
+This symbol indicates the positioning of battery cell.
IP22 This symbol indicates the protection against ingress of solid foreign objects and
against harmful effects due to the ingress of water.
This symbol indicates the date of manufacture (four digits for the year and
two digits for the month).
Symbols on the mains adapter
This symbol indicates that the mains adapter is a class II device.
This symbol indicates the compliance with China Compulsory Certication.
This symbol indicates that the mains adapter is safety tested.
This symbol indicates that the mains adapter is for indoor use only.
This symbol indicates the compliance with USA and Canada safety requirements.
This symbol indicates the compliance with Federal Communications Commission
requirements.
This symbol indicates polarity of d.c. power connector.
This symbol indicates the compliance with AUS/NZ regulatory requirements
(Regulatory compliance mark).
This CE-mark indicates the compliance with the low voltage and electromagnetic
compatibility directive.
This symbol indicates to not dispose the device together with unsorted municipal
waste (for EU only). The solid bar symbol indicates that mains adapter is put on the
market after 13 August 2005.
This symbol indicates the compliance with Japanese safety requirements.
This symbol indicates the compliance with energy efciency requirements.
This symbol indicates alternating current.
This symbol indicates direct current.
–
9 VDC
N136
7

3. Important safety information
Failure to follow these instructions/safety information can lead to danger
from the device. Subject to technical changes.
Device

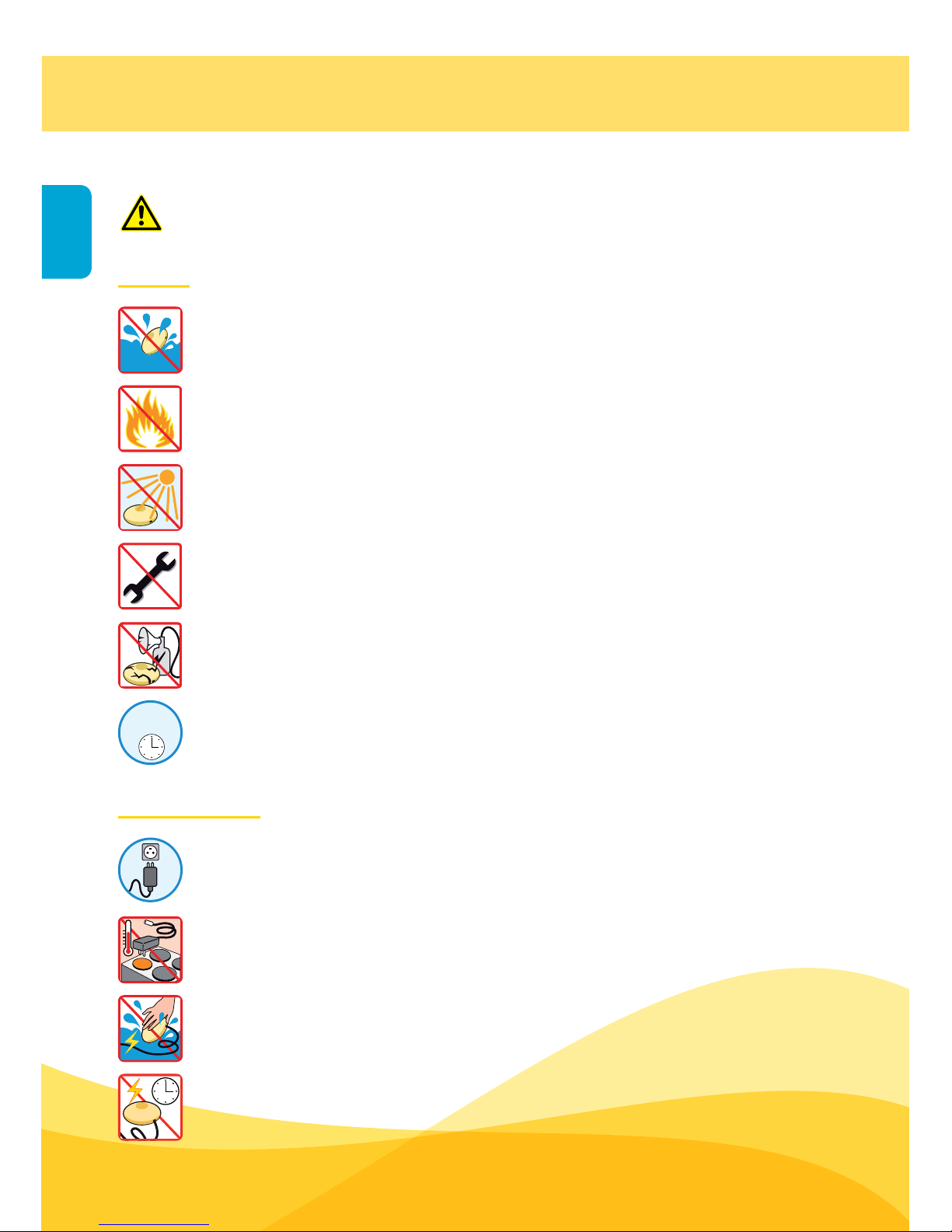

Danger of electrocution! Keep the device dry! Never immerse in water or
other liquids!
The Swing breast pump is not heat-resistant: keep away from radiators and
open ames.
Do not expose the motor unit to direct sunlight.
Repairs must be performed only by an authorised service agency.
Do not repair yourself! No modications to the device are permitted.
Never use a damaged device. Replace damaged or worn parts.
MAX.
275 h
The operating life of the Swing breast pump is 275 hours.
The service life is two years.
Electrical use
Separation from the mains is only assured through the disconnection of
the mains adapter from the wall socket outlet.
Keep the mains adapter away from heated surfaces.
Do not reach for any electrical device if it has fallen into water.
Unplug immediately.
The breast pump should never be left unattended when plugged into
a power source.
8

Use

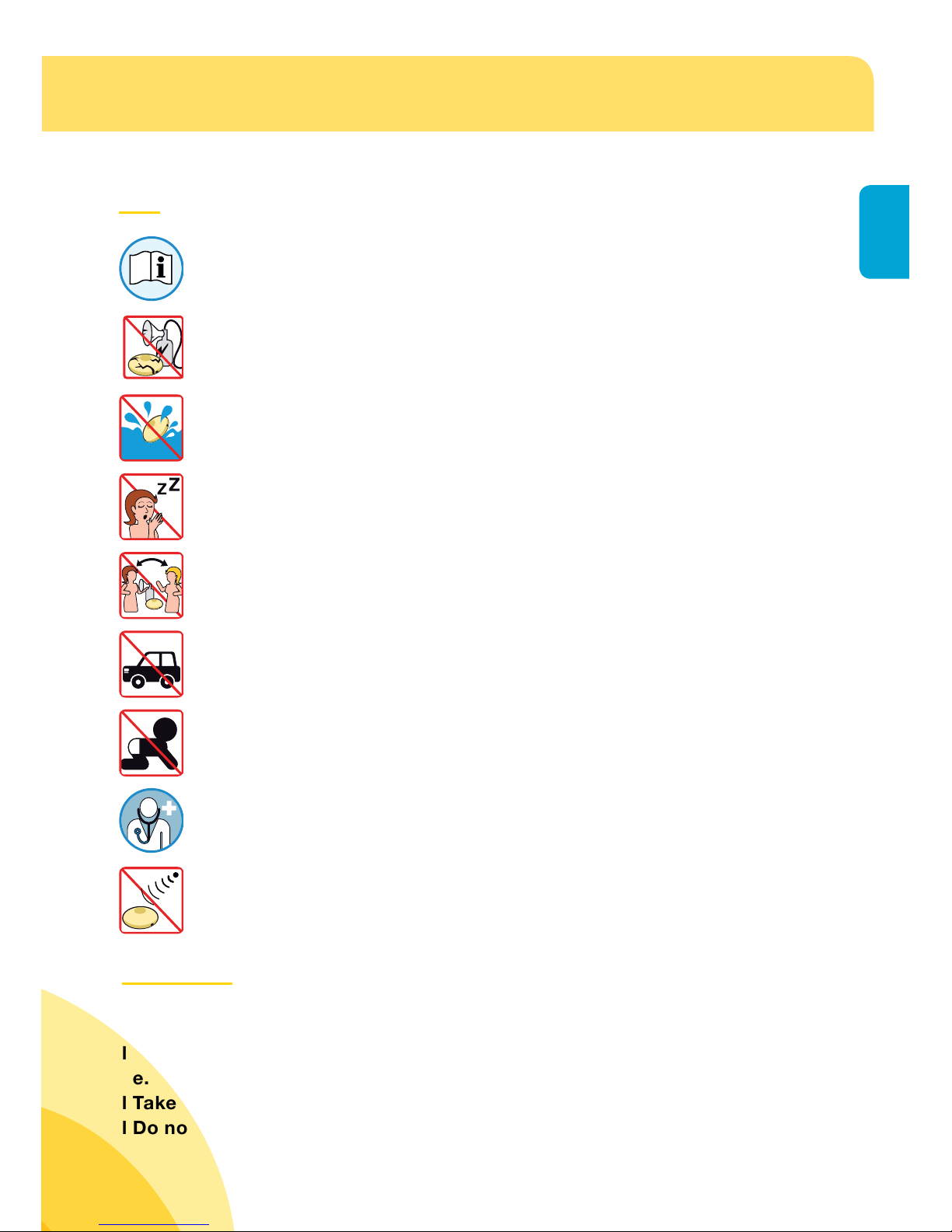

Use the Swing breast pump only for its intended use as described
in this manual.
Never operate an electrical device if it has a damaged cord or plug, if it is
not working properly, if it has been dropped or damaged, or dropped into
water.
Do not use the Swing breast pump while bathing or showering.
Do not use the Swing breast pump while sleeping or overly drowsy.
This is a single user product. Use by more than one person may
present a health risk.
Do not drive whilst hands-free pumping.
Supervision is necessary when the Swing breast pump is used
in the vicinity of children.
Contact your lactation consultant or physician if you experience
problems or pain.
Portable and mobile radio frequency communications equipment
can affect the Swing breast pump.
Important:
l Plastic bottles and component parts become brittle when frozen and may
break when dropped.
l Also, bottles and component parts may become damaged if mishandled,
e.g. dropped, over-tightened, or knocked over.
l Take appropriate care in handling bottles and components.
l Do not use the breast milk if bottles or components become damaged.
9

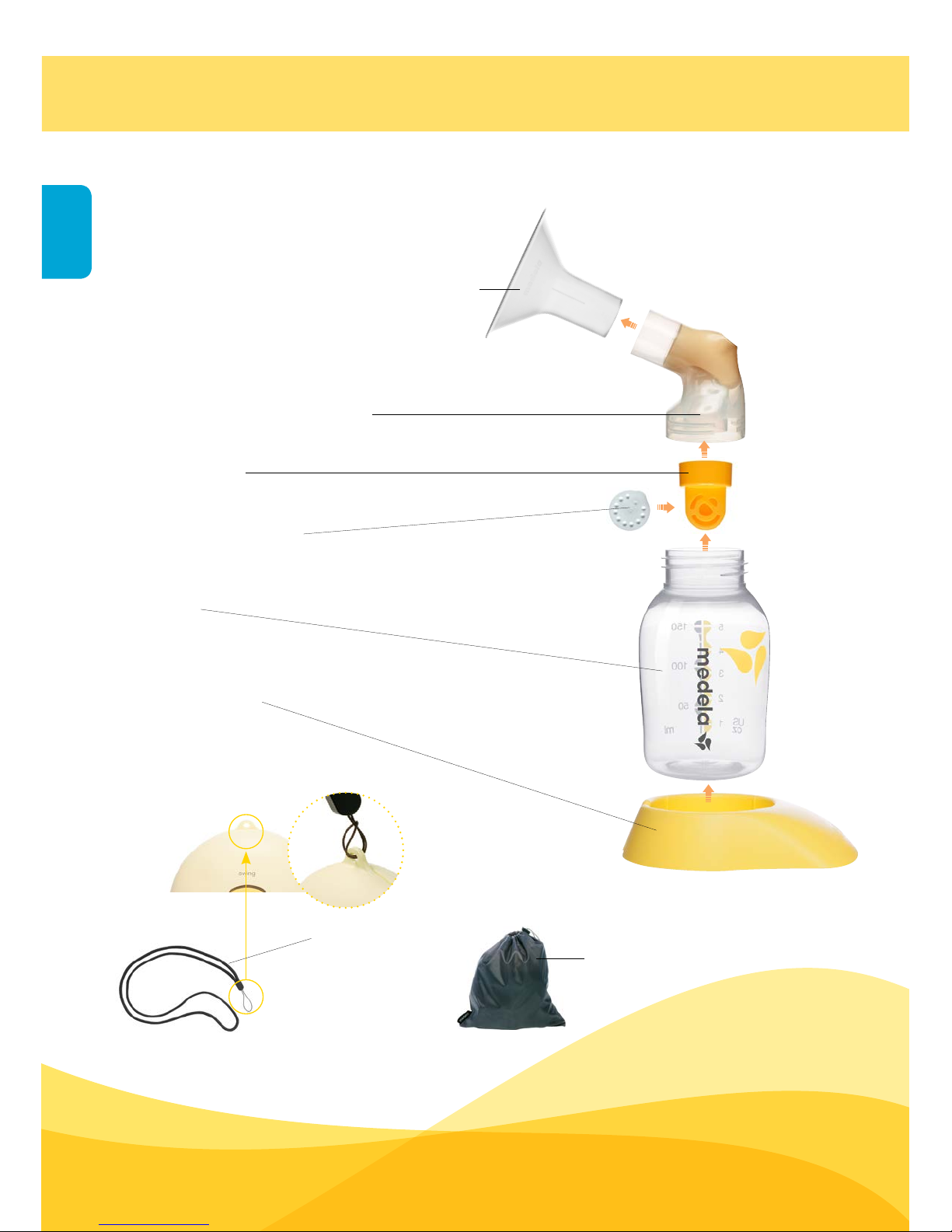

1x PersonalFit breast shield M (24 mm)
(for other breast shield sizes
see Chapter 12, page 28)
1x 2-component connector
1x bottle
1x bottle stand
4. Product description
Spare parts and accessories available for order can be found
on page 28
2x valve membrane
1x sling
1x Swing storage bag
1x valve head
10

1x multi lid
1x mains adapter
1x motor unit
On/Off button
Reduce
vacuum
Increase
vacuum
Let-down
button
LED
Power adapter port
Tubing port
Battery
compartment
Fixing clip
1x Swing tubing 11

4
1
i
5.1 Before using for the rst
time and after every use

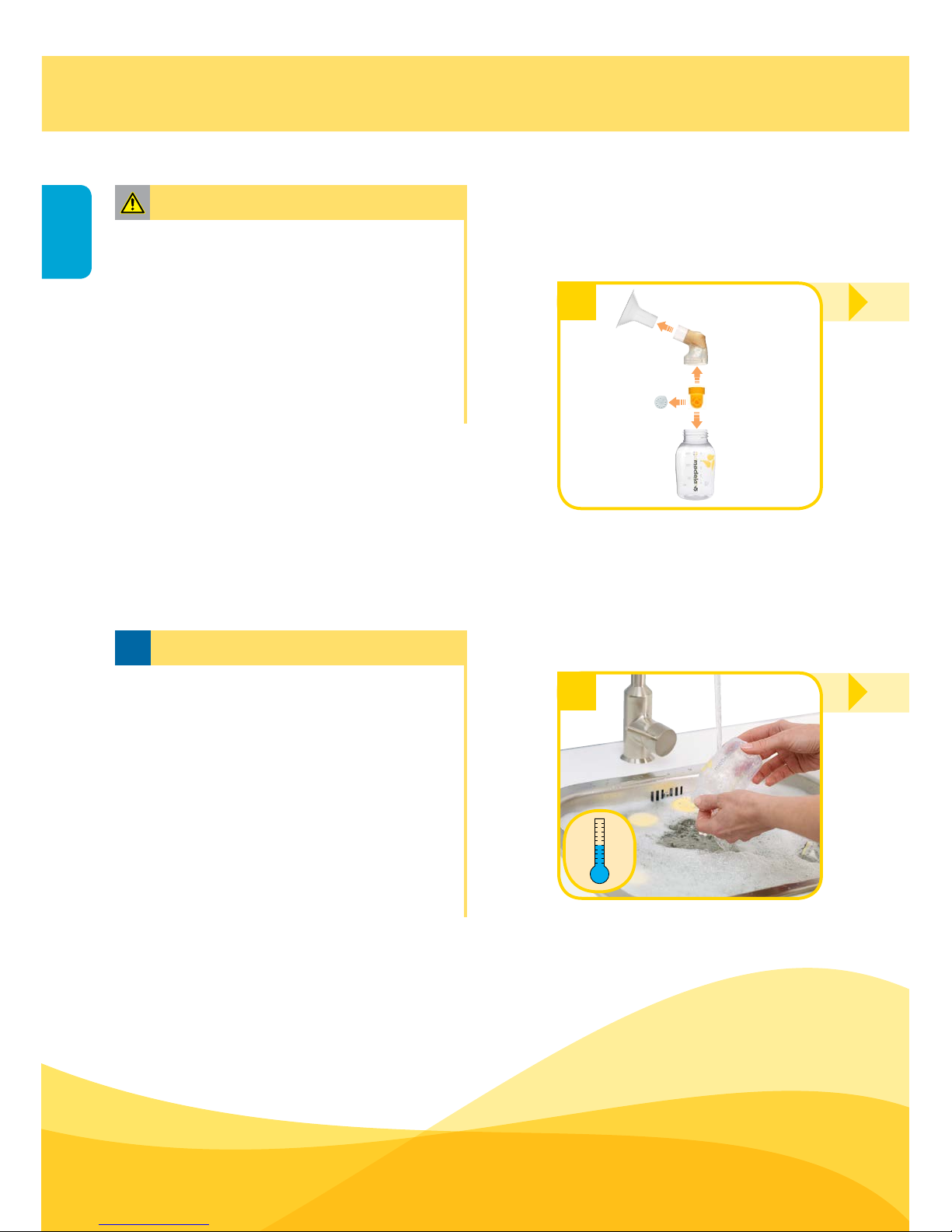

Disassemble the pump set
into individual parts.
Rinse all parts with cold,
clear water (approx. 20°C)
for 10 – 15 seconds.
lOnly use drinking-quality water
for cleaning.
lTake apart and wash all parts that
come in contact with the breast and
breast milk immediately after use to
avoid dry up of milk residues and to
prevent growth of bacteria.
lThe pump set requires no main-
tenance.
lTake care not to damage parts
of the pump set during cleaning.
lIf the individual components of the
pump set are cleaned in a dish-
washer parts may be discoloured by
food pigments. This has no impact
on the function.
Note
Caution
5. Cleaning
12

23
5
Rinse all parts with cold,
clear water (approx. 20°C).
If you clean the individual parts
of the pump set in the dish-
washer, place them on the top
rack or in the cutlery section.
Clean all parts with plenty
of warm soapy water (approx.
30 °C).
Dry with a clean cloth or leave
to dry on a clean cloth.
As an alternative to steps 2, 3 and 4.
or
13

1
i
3
Dry with a clean cloth or leave
to dry on a clean cloth.
More information on page 12, chapter 5.1 steps 2–4
5.2 Before using for
the rst time and
once a day
Disassemble the pump set
into individual parts.
lOnly use drinking-quality water
for cleaning.
lTake apart and wash all parts that
come in contact with the breast and
breast milk immediately after use to
avoid dry up of milk residues and to
prevent growth of bacteria.
lWhen boiling, a tea spoon of citric
acid may be added to avoid a build-
up of limescale.
lStore the pump set in a clean bag/
container until next use. Or store it
in clean paper or a cloth.
Caution
Note
5. Cleaning
14

2a 2b
1
Cover all parts with water
and boil for ve minutes.
Use Quick Clean* microwave
bags in accordance with the
instructions.
or
*More information at www.medela.com
Wipe off with a clean, damp
cloth.
5.3 Cleaning
the motor unit
15

1
1
i
Plug the mains adapter cord
into the motor unit.
6.1 Mains operation
6. Preparing for pumping
lre 6.2 Battery operation:
The batteries do not need to be
removed when the main adapter
is used for pumping.
lRegularly check the condition of
the batteries in the motor unit.
lIf Swing will remain unused
for a longer period of time, remove
the batteries from the battery
compartment.
lBatteries last for two to three pump-
ing sessions (approx. 1 ½ hours
pumping time).
6.2 Battery operation
Open the battery compart-
ment on the back in the
direction of the arrow.
lre 6.1 Mains operation:
Follow the exact order of the steps.
lOnly use the mains adapter supplied
with the Swing.
lMake sure the voltage of the mains
adapter is compatible with the
power source.
Info
Warning
16

2
23
Plug the mains adapter into
the mains socket.
Insert four AA Mignon LR6
batteries.
Close the battery compartment.
17

1
4
i
i
Carefully push the breast shield
onto the connector.
6. Preparing for pumping
lWash hands thoroughly (at least one
minute) with soap and water before
touching the breast and pump parts.
Screw bottle into connector.
6.3 Assembling
the pump set
lCarry out all the steps with care and
assemble the pump set correctly.
Otherwise a good vacuum may not
be achieved.
lUse Medela original accessories
only.
lCheck pump set components for
wear or damage before use and
replace if necessary.
lHold the tubing by the connecting
piece while attaching and detaching it.
lAll components must be completely
dry before use.
Caution
Info
Note
18

5
2
6
3

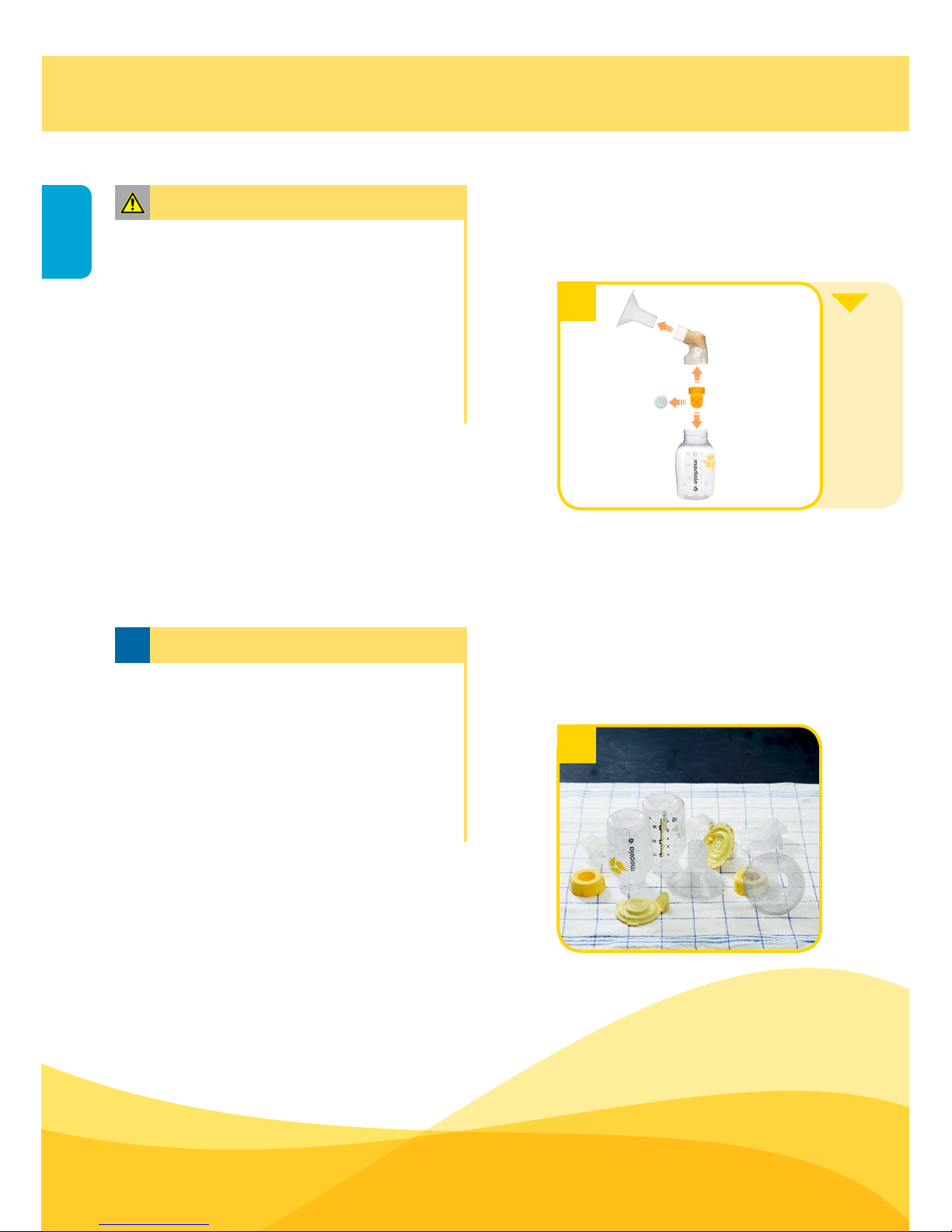

Carefully push the valve
membrane onto the valve
head until it engages.
Push the yellow connecting
piece onto the connector with
a slight twist.
Insert the other end of the
tubing into the motor unit.
Push the valve head and mem-
brane onto the connector.
Position valve head laterally.
19

1
1
7. Expression

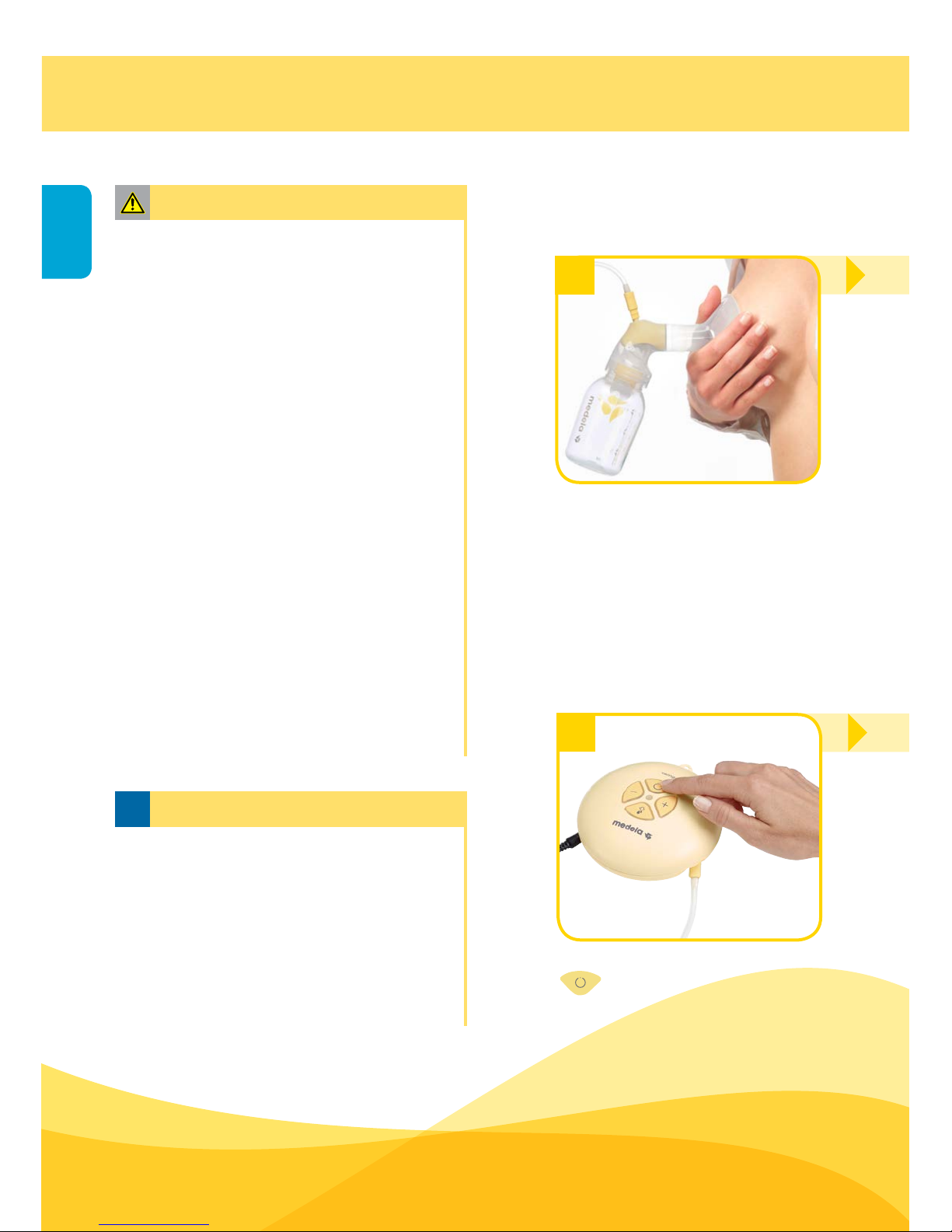

Place the breast shield on your
breast so that your nipple is
properly centred in the tunnel.
7.1 Preparing for
single pumping
Switch on the breast pump with
.
The stimulation phase lasts
a maximum of two minutes.
The stimulation phase will
then automatically change
to the expression phase.
7.2 Pumping
l re step 2 (chapter 7.1):
Answer the following questions
to nd out whether the available
breast shield size will t:
lIs your nipple moving freely in
the tunnel?
lIs minimal or no areolar tissue
being pulled into the tunnel of
the breast shield?
lDo you see a gentle, rhythmical
motion in the breast with each
cycle of the pump?
lDo you feel the breast emptying
all over?
lIs your nipple pain-free?
If the answer to any of these ques-
tions is “No” or if you experience
problems or pain during expression,
consult your breastfeeding and
lactation consultant or midwife.
Caution
i
lre step 2 (chapter 7.1):
Do not hold the pump set by the
bottle. This can lead to blockage of
the milk ducts and engorgement.
lWipe the breast with a warm
washcloth (do not use alcohol).
Note
20
