MegaLite Circa User manual

USER MANUAL
Table of Contents
Safety Information……………………………………...………………2
Specifications………………………………………...…………………3
Main Power Connection…………………………...…………………..4
DMX-512 Connection……………………………..…………………...4
Main Control Menu……………………………………………………..5
Rigging the Fixture……………………………….…………………….7
Accessories……………………………………………………………..7
DMX Profile.....................................................................................7
Cleaning & Maintenance...............................................................11
Parts List.......................................................................................11

Check that the unit has not been damaged during transport
Protection Against Fire
1. Maintain a minimum of 1 foot distance from any type of flame.
3. Replace fuse only with the specified type and rating.
4. Do Not install the unit to close to a heat source.
5. Make sure cable are properly secured away from unit movement.
6. Maximum surface operating temperature 104º.
Protection Against Electrical Damage
1. Disconnect power before lamp replacement or servicing.
2. For connection to main power supply proceed to page 4.
3. This unit must be earthed. (electronically grounded)
4. Do not expose unit to rain or moisture.
5. Unit must not be left on for a long period of time.
Protection Against Mechanical Hazards
1. Use safety chain when hanging unit.
2. Use quality clamps or bolts when positioning unit
3. Do not open unit risk of electrical shock.
2

3
Part Numbers
Fixture Flight Case
5200– Circa Scoop LED CAS-5200-2Dual Road Case
Mechanical Specifications
Fixture Packaged for Shipping
Size: 20.68” x 10.8” x 19.25”
Weight: 18.3 lb
DMX Connectors: 5-pin XLR Connectors
Mounting Yoke: Square Yoke (Accessory Circular Yoke Available)
Power Connectors: Power Con Type
Thermal: Maximum ambient temperature 110° F
Maximum surface temperature 140° F
Fastening System: 1 Quick Release Clamp Mounts
240V 50/60 HZ
Size: 24” x 15.5” x 22.75”
Weight: 30 lb
20.68” (with handles)
7.5”
19.25”
3.80”
Electrical Specifications
DMX 512 Protocol
DMX Modes: Mode 1 2 Channels Dimmer, Macro
Mode 2 3 Channels Dimmer, Warm White, Amber
Mode 3 17 Channels Dimmer, Outer R, G, B, Macro, Macro Speed, Outer Strobe, Inner R, G, B, Macro, Macro Speed, Inner Strobe,
Warm White, Amber, Reflective Center, Center Strobe
Mode 4 52 Channels Dimmer, Outer, RGB x 8, Inner RGB x 8, Warm White, Amber, Reflective Warm White
Mode 5 55 Channels Dimmer, Outer, RGB x 8,Outter Strobe, Inner RGB x 8, Inner Strobe, Warm White, Amber, Reflective Warm
White, Center Strobe
Control Options: Display Control
Control & Programming
LED Quantity: 336 RGB 87 Warm White 45 Warm White + Amber SMD LEDS Watts: 0.8 Watt each
Fuse: 5x20 F5AL250V
LED Angle: 140° (outer ring)
Power Input Voltage: 110V-240 50/60 Hz
Ballast: Electronic auto switching
Power Consumption Watts: 428
Amps: 3.70
LED Lifetime: *60 to 100 thousand hours
Scan Rate: 7000Hz
*LED Manufactures rated average life span
10.8”
7.25”
15.12”
Specifications

4

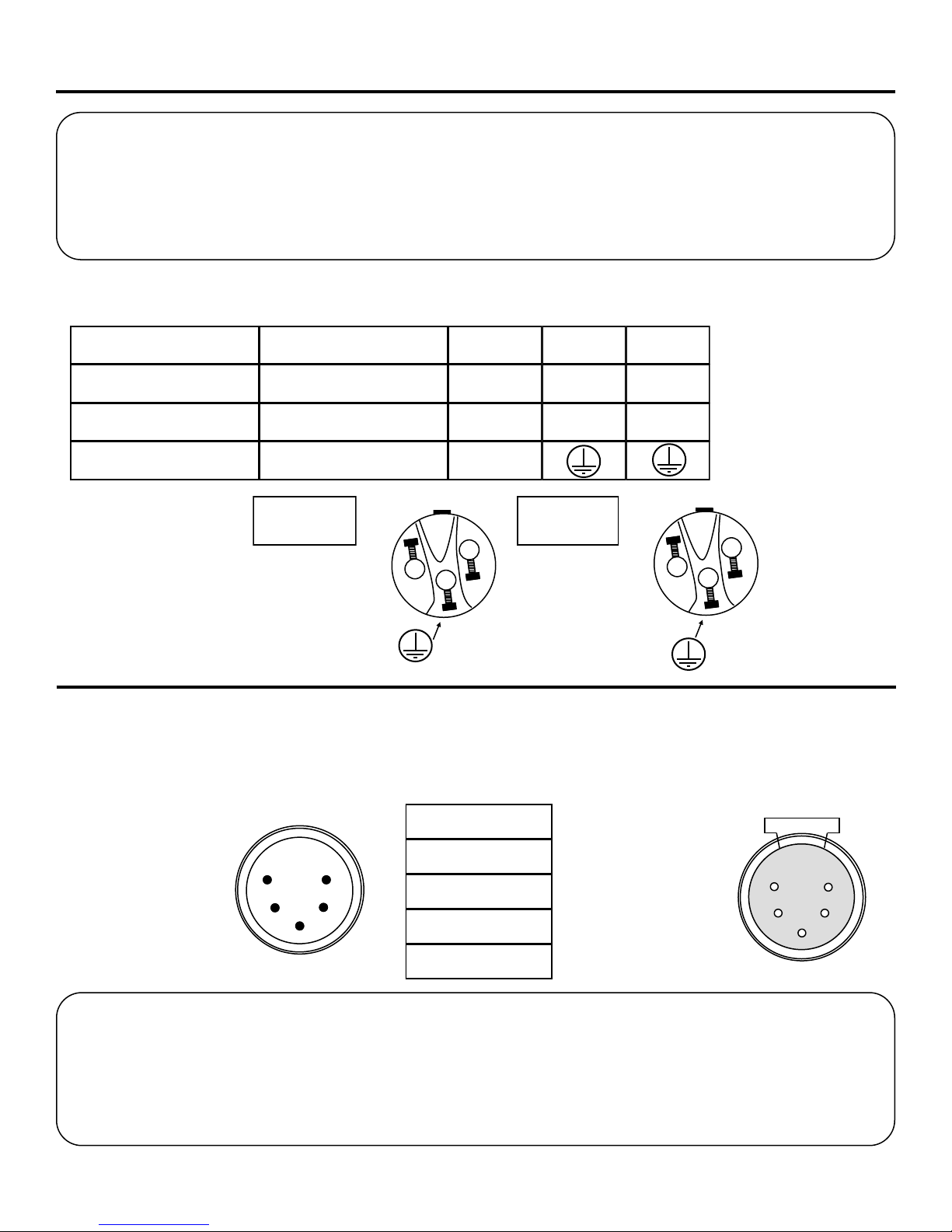

Main Power Connection
Caution!
1. Do not connect fixture to a dimmer system.
2. This unit must be earthed. (electronically grounded)
3. Replace fuse only with the specified type and rating.
4. Power link maximum 4 units at 110V
The occupation of the connection-cable is as follows:
This device is equipped with a auto switching power supply that will allow you to work from 100V-240V 50/60Hz
Caution!
At the last fixture the DMX signal needs to be terminated with a terminator. Solder a
120 Ohm resistor between the (-) and the (+) signal into a 5 pin XLR plug and plug it
in to the last fixture on the signal run. Pre-manufactured terminator plugs are availa-
ble for purchase from your Mega-Lite dealer (P-DMX-T).
Cable (USA) Cable (EU) Pin 110V
Black Brown
White
Green
Light Blue
Yellow/Green
Live
Neutral
Ground
L
N
L
L
220V
L
L
110V
Connection 220V Connection
N
L
DMX-512 Connection
The fixture is equipped with 3 and 5 pin XLR Sockets for DMX input and output. The sockets are wired in parallel. Only
use a shielded twisted pair cable designed for RS-485 and 3 or 5 pin XLR plugs and connectors in order to connect the
controller with the fixture or the fixture with another.
DMX—Input DMX—Output
1. Shield
2. Signal (-)
3. Signal (+)
4. N/A
5. N/A
5
3
4
2
11
2
3
4
5

5
Display Control
17 CH Dimmer, Outer R,G,B, Macro, Macro Speed, Outer Strobe, Inner R,G,B, Macro, Macro Speed, Inner Strobe, Warm White, Am-
ber ,Reflective Center, Center Strobe
3 CH Dimmer, Warm White, Amber
2 CH Dimmer, Macro
52 CH Dimmer, Outer RGBx8, Inner RGBx8,Warm White, Amber, Reflective Warm White
55 CH Dimmer, Outer RGBx8, Outer Strobe, Inner RGBx8, Inner Strobe, Warm White, Amber, Reflective Center, Center Strobe
DMX Address
Press Enter to select the DMX start channel. Use the up/down keys (001 to 512) , Press
Enter to confirm the setting. Press ESC to return to Main Menu. Number in parentheses is
the next available DMX Channel.
(Notes: Display must be on Main Menu for fixture to operate on DMX Mode)
ESC DOWN UP ENTER
Mega Lite
Circa Scoop
V1.2
Address
001
(018)
DMX On
Press Enter to select the DMX Channel mode of operation. Use the up/down
keys to select Channel mode from
Press Enter to confirm the setting. Press ESC to return to Main Menu.
Channel Mode
Main Menu
>Channel Mode
Led Dimmer
Led Strobe
LED Dimmer
Main Menu
Channel Mode
>Led Dimmer
Strobe Mode For LED Dimmer control press Enter. Select from 255 steps. Of the 52 ch. Press ESC to
return to Main Menu.
Auto Mode
Main Menu
>Auto Mode
Auto Speed
Temperature
Press Enter. Select from 6 modes Press ESC to return to Main Menu.
(Note: If you want to have fixture remain on Auto Test do not press ESC and just power off
and on fixture to return to last setting)
Strobe
This function allows you to select a preprogrammed strobe sequences. Press Enter use
the up/down keys to select desired strobe program (15 options). Press Enter to set the
desired sped use the up/down keys (15 options). Press Enter to confirm the settings.
(note; Dimmer of selected intensity must be dimmed prior in Dimmer option)
Main Menu
Channel Mode
Led Dimmer
>Strobe Mode

6
Auto Speed
Main Menu
Auto Mode
>Auto Speed
Temperature
Press Enter. Select from 6 modes Press ESC to return to Main Menu.
(Note: If you want to have fixture remain on Auto Test do not press ESC and just power off
and on fixture to return to last setting)
Setting
Setting Control Options
Main Menu
Dimmer Speed
Temperature
>Setting
Config Menu
>Oled Back Light
DMX Fail
Dimmer Setting
To turn off display screen after 2 minutes of no use select Disable. To enable
screen to remain on when in use select Enable.
Config Menu
LCD Back Light
>DMX Fail
Dimmer Setting
To hold the last DMX command is case of DMX Signal loss select Enable. To have
the fixture DMX Setting at 0 if DMX signal is loss use Disable option.
Config Menu
LCD Back Light
DMX Fail
>Dimmer Setting
Select Dimmer Setting to be used for dimming type when used in Ch3 mode.
Linear
Square Law
Inv. Square Law
S Type
Config Menu
DMX Fail
Dimmer Setting
>Factory Reset
Restore fixture to original factory display settings
Temperature
This fixture is equipped with internal temperature sensors. Once head reaches a tempera-
ture of 96°the IP rated fan will engage
Main Menu
Auto Mode
Auto Speed
>Temperature

7
DMX Profile
Rigging the fixture
Caution!
1. The installations must be carried out by an authorized dealer or trained professional.
2. Unit may cause severe injures if you have doubts concerning the safety do not install.
3. Unit is to be 24inches away from flammable materials (decoration material)
4. Use high quality installation equipment to hang unit.
When rigging a unit it is very important that you follow common safety procedures. Rigging requires extensive experi-
ence including but not limited to calculating working loads, material being used and periodic safety inspections. If you
lack these qualifications, do not attempt the installation yourself, instead use a professional structural rigger.
When rigging the unit always be secured with a secondary safety attachment. The installation location of the projector
has got to be built in the way that it can hold 10 times the weight for 1 hour with out any harming. Installation should be
checked at least one time a year by a skilled person.
Rigging the fixture
Circa Scoop LED 2 Ch Mode
DMX Channel Function Description Value Init
1Dimmer Dimmer Off to Full 0-255 255
No Function 0-41
Macro 1 (slow to fast) 42-83
2Macro Macro 2 (slow to fast) 84-125 0
Macro 3 (slow to fast) 126-167
Macro 4 (slow to fast) 168-209
Macro 5 (slow to fast) 210-255
Circa Scoop LED 3 Ch Mode
DMX Channel Function Description Value Init
1Dimmer Dimmer Off to Full 0-255 255
2LED Color Center & Back Warm White 0-255 255
3LED Color Center Amber 0-255 255
5200-ACC-BAS Removable Floor Base
Accessories

8
Circa Scoop LED 17 Ch Mode
DMX Channel Function Description Value Init
1Dimmer Master Dimmer Off to Full 0-255 255
2LED Color Outer Red LED intensity 0-255 255
3LED Color Outer Green LED Intensity 0-255 255
4LED Color Outer Blue LED Intensity 0-255 255
No Function 0-1
Fade Clockwise 2-24
Fade Counter Clockwise 25-49
Snap Clockwise 50-74
5Outer Ring Snap Counter Clockwise 75-99 0
Macro 2468 then 1357 Fade 100-124
(Select Color) 2468 then 1357 Snap 125-149
Bounce Fade 12345678765432 150-174
Bounce Snap 12345678765432 175-199
Top to Bottom 18,27,34,56,34,27 200-224
Side to Side 23,14,85,76 225-255
6Macro Speed Outer Ring Macro Speed 0-255 0
No Function 0-1
Strobe (slow to fast) 1-127
7Outer Ring Strobe Pulse (slow to fast) 128-170 0
Strobe Random Strobe All (slow to fast) 171-213
Random 1-8 Strobe (slow to fast) 214-255
8LED Color Inner Red LED intensity 0-255 255
9LED Color Inner Green LED Intensity 0-255 255
10 LED Color Inner Blue LED Intensity 0-255 255
No Function 0-1
Fade Clockwise 2-24
Fade Counter Clockwise 25-49
Snap Clockwise 50-74
11 Inner Ring Snap Counter Clockwise 75-99 0
Macro 2468 then 1357 Fade 100-124
(Select Color) 2468 then 1357 Snap 125-149
Bounce Fade 12345678765432 150-174
Bounce Snap 12345678765432 175-199
Top to Bottom 18,27,34,56,34,27 200-224
Side to Side 23,14,85,76 225-255
12 Macro Speed Inner Ring Macro Speed 0-255 0
No Function 0-1
Strobe (slow to fast) 2-127
13 Inner Ring Strobe Pulse (slow to fast) 128-170 0
Strobe Random Strobe All (slow to fast) 171-213
Random 1-8 Strobe (slow to fast) 214-255
14 Warm White Center Warm White 0-255 255
15 Amber Center Amber 0-255 255
16 Warm White Center Reflective Warm White 0-255 255
No Function 0-1
Strobe (slow to fast) 2-127
17 Center Strobe Strobe Pulse (slow to fast) 128-170 0
Random Strobe All (slow to fast) 171-213
Random Strobe 1-3 (slow to fast) 214-255

9
Circa Scoop LED 52 Ch Mode
DMX Channel Function Description Value Init
1Dimmer Master Dimmer Off to Full 0-255 255
2LED Color Outer 1 Red LED intensity 0-255 0
3LED Color Outer 1 Green LED intensity 0-255 0
4LED Color Outer 1 Blue LED intensity 0-255 0
5LED Color Outer 2 Red LED intensity 0-255 0
6LED Color Outer 2 Green LED intensity 0-255 0
7LED Color Outer 2 Blue LED intensity 0-255 0
8LED Color Outer 3 Red LED intensity 0-255 0
9LED Color Outer 3 Green LED intensity 0-255 0
10 LED Color Outer 3 Blue LED intensity 0-255 0
11 LED Color Outer 4 Red LED intensity 0-255 0
12 LED Color Outer 4 Green LED intensity 0-255 0
13 LED Color Outer 4 Blue LED intensity 0-255 0
14 LED Color Outer 5 Red LED intensity 0-255 0
15 LED Color Outer 5 Green LED intensity 0-255 0
16 LED Color Outer 5 Blue LED intensity 0-255 0
17 LED Color Outer 6 Red LED intensity 0-255 0
18 LED Color Outer 6 Green LED intensity 0-255 0
19 LED Color Outer 6 Blue LED intensity 0-255 0
20 LED Color Outer 7 Red LED intensity 0-255 0
21 LED Color Outer 7 Green LED intensity 0-255 0
22 LED Color Outer 7 Blue LED intensity 0-255 0
23 LED Color Outer 8 Red LED intensity 0-255 0
24 LED Color Outer 8 Green LED intensity 0-255 0
25 LED Color Outer 8 Blue LED intensity 0-255 0
26 LED Color Inner 1 Red LED intensity 0-255 0
27 LED Color Inner 1 Green LED intensity 0-255 0
28 LED Color Inner 1 Blue LED intensity 0-255 0
29 LED Color Inner 2 Red LED intensity 0-255 0
30 LED Color Inner 2 Green LED intensity 0-255 0
31 LED Color Inner 2 Blue LED intensity 0-255 0
32 LED Color Inner 3 Red LED intensity 0-255 0
33 LED Color Inner 3 Green LED intensity 0-255 0
34 LED Color Inner 3 Blue LED intensity 0-255 0
35 LED Color Inner 4 Red LED intensity 0-255 0
36 LED Color Inner 4 Green LED intensity 0-255 0
37 LED Color Inner 4 Blue LED intensity 0-255 0
38 LED Color Inner 5 Red LED intensity 0-255 0
39 LED Color Inner 5 Green LED intensity 0-255 0
40 LED Color Inner 5 Blue LED intensity 0-255 0
41 LED Color Inner 6 Red LED intensity 0-255 0
42 LED Color Inner 6 Green LED intensity 0-255 0
43 LED Color Inner 6 Blue LED intensity 0-255 0
44 LED Color Inner 7 Red LED intensity 0-255 0
45 LED Color Inner 7 Green LED intensity 0-255 0
46 LED Color Inner 7 Blue LED intensity 0-255 0
47 LED Color Inner 8 Red LED intensity 0-255 0
48 LED Color Inner 8 Green LED intensity 0-255 0
49 LED Color Inner 8 Blue LED intensity 0-255 0
50 LED Color Center Warm White 0-255 0
51 LED Color Center Amber 0-255 0
52 LED Color Reflective Warm White 0-255 0

Circa Scoop LED 55 Ch Mode
DMX Channel Function Description Value Init
1Dimmer Master Dimmer Off to Full 0-255 255
2LED Color Outer 1 Red LED intensity 0-255 0
3LED Color Outer 1 Green LED intensity 0-255 0
4LED Color Outer 1 Blue LED intensity 0-255 0
5LED Color Outer 2 Red LED intensity 0-255 0
6LED Color Outer 2 Green LED intensity 0-255 0
7LED Color Outer 2 Blue LED intensity 0-255 0
8LED Color Outer 3 Red LED intensity 0-255 0
9LED Color Outer 3 Green LED intensity 0-255 0
10 LED Color Outer 3 Blue LED intensity 0-255 0
11 LED Color Outer 4 Red LED intensity 0-255 0
12 LED Color Outer 4 Green LED intensity 0-255 0
13 LED Color Outer 4 Blue LED intensity 0-255 0
14 LED Color Outer 5 Red LED intensity 0-255 0
15 LED Color Outer 5 Green LED intensity 0-255 0
16 LED Color Outer 5 Blue LED intensity 0-255 0
17 LED Color Outer 6 Red LED intensity 0-255 0
18 LED Color Outer 6 Green LED intensity 0-255 0
19 LED Color Outer 6 Blue LED intensity 0-255 0
20 LED Color Outer 7 Red LED intensity 0-255 0
21 LED Color Outer 7 Green LED intensity 0-255 0
22 LED Color Outer 7 Blue LED intensity 0-255 0
23 LED Color Outer 8 Red LED intensity 0-255 0
24 LED Color Outer 8 Green LED intensity 0-255 0
25 LED Color Outer 8 Blue LED intensity 0-255 0
No Function 0-1
Strobe (slow to fast) 2-127
26 Outer Strobe Strobe Pulse (slow to fast) 128-170 0
Random Strobe All (slow to fast) 171-213
Random Strobe 1-3 (slow to fast) 214-255
27 LED Color Inner 1 Red LED intensity 0-255 0
28 LED Color Inner 1 Green LED intensity 0-255 0
29 LED Color Inner 1 Blue LED intensity 0-255 0
30 LED Color Inner 2 Red LED intensity 0-255 0
31 LED Color Inner 2 Green LED intensity 0-255 0
32 LED Color Inner 2 Blue LED intensity 0-255 0
33 LED Color Inner 3 Red LED intensity 0-255 0
34 LED Color Inner 3 Green LED intensity 0-255 0
35 LED Color Inner 3 Blue LED intensity 0-255 0
36 LED Color Inner 4 Red LED intensity 0-255 0
37 LED Color Inner 4 Green LED intensity 0-255 0
38 LED Color Inner 4 Blue LED intensity 0-255 0
39 LED Color Inner 5 Red LED intensity 0-255 0
40 LED Color Inner 5 Green LED intensity 0-255 0
41 LED Color Inner 5 Blue LED intensity 0-255 0
42 LED Color Inner 6 Red LED intensity 0-255 0
43 LED Color Inner 6 Green LED intensity 0-255 0
44 LED Color Inner 6 Blue LED intensity 0-255 0
45 LED Color Inner 7 Red LED intensity 0-255 0
46 LED Color Inner 7 Green LED intensity 0-255 0
47 LED Color Inner 7 Blue LED intensity 0-255 0
48 LED Color Inner 8 Red LED intensity 0-255 0
49 LED Color Inner 8 Green LED intensity 0-255 0
50 LED Color Inner 8 Blue LED intensity 0-255 0
No Function 0-1
Strobe (slow to fast) 2-127
51 Inner Strobe Strobe Pulse (slow to fast) 128-170 0
Random Strobe All (slow to fast) 171-213
Random Strobe 1-8 (slow to fast) 214-255
52 LED Color Center Warm White 0-255 0
53 LED Color Center Amber 0-255 0
54 LED Color Reflective Warm White 0-255 0
No Function 0-1
Strobe (slow to fast) 2-127
55 Center Strobe Strobe Pulse (slow to fast) 128-170 0
Random Strobe All (slow to fast) 171-213
Random Strobe 1-3 (slow to fast) 214-255
10

Cleaning and Maintenance
Installation Maintenance: The operator has to make sure that the unit is operating safely and has the installations and
electronics checked by an expert every 2 years.
The following points have to be considered during the inspection:
1) All screws used for installing the device or part of the device have to be tightly connected and must not be corroded.
2) There must not be any deformations on the housing, fixation and installation spots (ceiling, suspension, trussing).
3) Mechanically moved parts like axles and other must not show any traces of wearing and must not rotate with unbal-
ances.
4) The electronic power supply cables must not show any damages, material fatigue (e.g. porous cables) or sediments.
Further instructions depending on the installation spot and usage have to be adhered by a skilled installer and any
safety problems have to be removed.
Disconnect from mains before starting maintenance operation!
Caution Danger to life!
We recommend a frequent cleaning of the device. Please use a moist, lint free cloth. Never use alcohol or solvents!
1) The objective lens will require periodic cleaning on usage and environment. Environment with foggers will require
more periodic cleaning as fog fluid tends to build up residues, reducing the light output.
2) The cooling-fans should be cleaned monthly. DO NOT blow high pressure air into fans as incorrect rotation can
damage the fans operation.
3) The gobos, dichroic color filters and internal lenses may be cleaned with soft brush using soapy water.
4) The interior of the fixture should be cleaned using a vacuum.
5) We recommend proper lubrication of the motor wheel. The quantity of the oil must not be excessive in order to avoid
oil run outs when motor wheel rotate
Note: There is no serviceable parts inside the device except for the fuse. Maintenance and service operations are to be
carried out by authorized dealers.
Replacing the fuse: Only replace the fuse with the same type and rating.
Replacing the power cable: If the power cable of this device becomes damaged, it has to be replaced by authorized
dealers only
Should you have further questions , please contact your dealer.
11
Parts List
5200-LED-MOD-ILED Module Inner (segment)
5200-LED-MOD-CLED Module Center
5200-LED-MOD-RLED Module Reflective Ring (half)
5200-LED-MOD-RC LED Module Reflective Center (1/3)
5200-LED-MOD-OLED Module Outer Ring (half)
5200-POW Power Supply
5200-PCB-DRI-APCB Driver A
52000-PCB-DRI-BPCB Driver B
5200-PCB-POW PCB for Power Distribution
5200-BEZ-RIN Outer Ring Milky Diffusion Plastic
5200-BEZ-CEN Center Globe Filter Plastic
5200-PCB-MAI-DIS Display and Main PCB
5200-FAN-X.W X.W-6010M24B Fan
5200-HOU-NET Housing Net
5200-HOU-KNO Housing base for Knob
5200-KNO Knob
5200-FAN-HW5 HW5020B Fan
5200-HOU-QUI Quick Release Clamp Mount
3012-CON-3PI 3 pin XLR In/Out
3012-CON-5PI 5 pin XLR In/Out
3010-CON-POW-FLequin Power Output White
3010-CON-POW-MLequin Power Input Blue

Mega-Lite
18668 Highway 16N
Helotes, TX 78023
Ph 210-684-2600 Fax [phone]
www.mega-lite.com / [e-mail]
Warranty Information
Warranty Conditions
-Unless otherwise stated in writing, your product is covered by a one year parts and labor limited warranty.
-LED’s or Lamp’s are not guaranteed to match in color temperature or output.
-It is the owner’s responsibility to furnish receipts or invoices for verification of purchase, date, and reseller or distributor.
If purchase date cannot be provided, date of manufacture will be used to determine warranty period.
-Goods returned under warranty must follow the proper authorization procedure and must be accompanied by a copy of
the original invoice.
-Goods repaired under warranty will be returned to the owner with the freight prepaid by MSI via the most economical
means of shipment.
-Repair or replacement as provided for under this warranty is the exclusive remedy of the consumer. MEGA SYSTEMS
INC. makes no warranties, express or implied, with respect to any product, and Mega Systems specifically disclaims any
warranty of merchantability or fitness for a particular purpose. Mega Systems shall not be liable for any indirect, inci-
dental or consequential damage, including lost profit, sustained or incurred in connection with any product or caused by
product defect or the partial or total failure of any product regardless of the form of action, weather in contract, tort
(including negligence), strict liability or otherwise, and weather or not such damage was foreseen or unforeseen.
- Warranty is void if the product is misused, damaged, modified in any way, or for unauthorized repairs or parts. This
warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Customer Support
Mega Lite has a customer support line to provide set up help and to answer any question should you encounter a prob-
lem. Please visit our website for any other related technical documents. For service related issue please contact our
service dept.
Monday—Friday 9am to 6pm CST
Voice: 210-684-2600
E-mail: [e-mail]
Specifications in this manual are subject to change.
