MegaLite AXIS CYCLOPS User manual

USER MANUAL
Table of Contents
Safety Information……………………………………...………………3
Specifications………………………………………...…………………4
Main Power Connection…………………………...…………………..5
DMX-512 Connection……………………………..…………………...6
Rigging the Fixture……………………………….…………………….6
Main Control Menu……………..…………………………………..….7
DMX Profile...................................................................................10
Cleaning & Maintenance...............................................................11
Parts List.......................................................................................11

Check that the unit has not been damaged during transport
Protection Against Fire
1. Maintain a minimum of 1 foot distance from any type of flame.
3. Replace fuse only with the specified type and rating.
4. Do Not install the unit to close to a heat source.
5. Make sure cable are properly secured away from unit movement.
6. Maximum surface operating temperature 104º.
Protection Against Fire
1. Disconnect power before lamp replacement or servicing.
2. For connection to main power supply proceed to page 6.
3. This unit must be earthed. (electronically grounded)
4. Do not expose unit to rain or moisture.
Protection Against Mechanical Hazards
1. Use safety chain when hanging unit.
2. Use quality clamps or bolts when positioning unit
3. Do not open unit risk of electrical shock.
3

4
Specifications
Part Numbers
Fixture Lamp Flight Case
1160 - AXIS Cyclops Osram 60W RGBW LED 1160-RC4 4 Unit Road Case
Mechanical Specifications
Fixture Packaged for Shipping
Size: 9.5” x 6” x 12.25”
Weight: 11.5 lb
Pan: Infinite° Tilt: Infinite°
DMX Connectors: 3 and 5-pin XLR connectors
Power Connectors: Power Con type in and out
Thermal: Maximum ambient temperature 100° F
Maximum surface temperature 130° F
Fastening System: Single Quick Release Clamp Mounts
Lens Angle: 4.5º
Electrical Specifications
Power supply: Auto Switch100V-240V 50/60 HZ
Power consumption: Amps .62
Watts 73
Ballast: Electronic
LAMP: Osram 60W RGBW LED
Display: LCD Display
9.5 ” ( with handles )
5”
3.75 ”
7.5 ”
12.25 ”
9.25 ”
Size: 12.75” x 9” x 19”
Weight: 15 lb
6”
3.5 ”

5

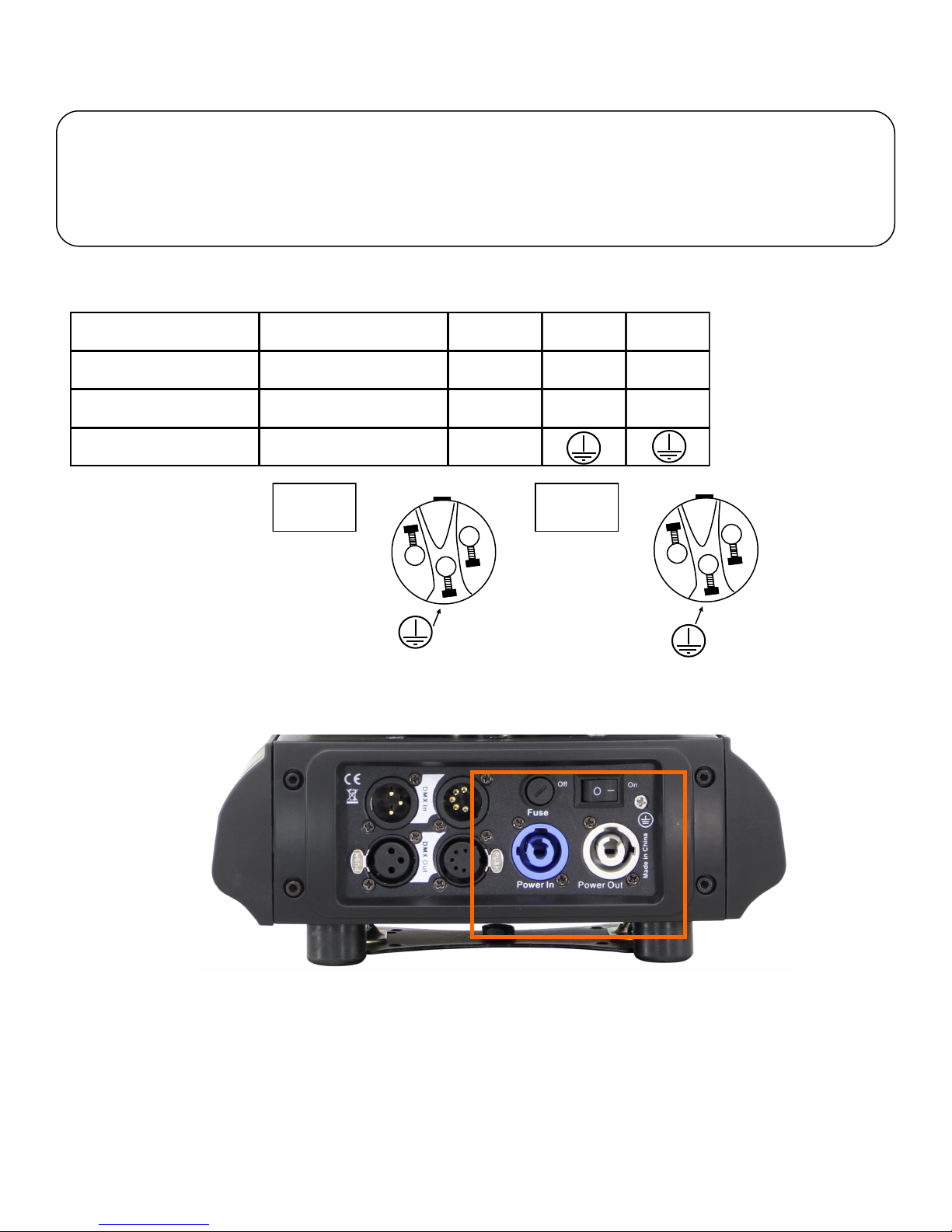

Main Power Connection
Caution!
1. Do not connect fixture to a dimmer system.
2. This unit must be earthed. (electronically grounded)
3. Replace fuse only with the specified type and rating.
The occupation of the connection-cable is as follows:
This device is equipped with a auto switching power supply that will allow you to work from 100V-240V 50/60Hz
Cable (USA) Cable (EU) Pin 110V
Black Brown
White
Green
Light Blue
Yellow/Green
Live
Neutral
Ground
L
N
L
L
220V
L
L
110V
Connec-
220V
Connec-
N
L

6
Rigging the fixture
Caution!
1. The installations must be carried out by an authorized dealer or trained professional.
2. Unit may cause severe injures if you have doubts concerning the safety do not install.
3. Unit is to be 24inches away from flammable materials (decoration material)
4. Use high quality installation equipment to hang unit.
When rigging a unit it is very important that you follow common safety procedures. Rigging requires extensive experi-
ence including but not limited to calculating working loads, material being used and periodic safety inspections. If you
lack these qualifications, do not attempt the installation yourself, instead use a professional structural rigger.
When rigging the unit always be secured with a secondary safety attachment. The installation location of the projector
has got to be built in the way that it can hold 10 times the weight for 1 hour with out any harming. Installation should be
checked at least one time a year by a skilled person.
Rigging the
Caution!
1. The installations must be carried out by an authorized dealer or trained professional.
2. Unit may cause severe injures if you have doubts concerning the safety do not install.
3. Unit is to be 24inches away from flammable materials (decoration material)
4. Use high quality installation equipment to hang unit.
When rigging a unit it is very important that you follow common safety procedures. Rigging requires extensive experi-
ence including but not limited to calculating working loads, material being used and periodic safety inspections. If you
lack these qualifications, do not attempt the installation yourself, instead use a professional structural rigger.
When rigging the unit always be secured with a secondary safety attachment. The installation location of the projector
has got to be built in the way that it can hold 10 times the weight for 1 hour with out any harming. Installation should be
checked at least one time a year by a skilled person.
DMX-512 Connection
The fixture is equipped with 3 and 5 pin XLR Sockets for DMX input and output. The sockets are wired in parallel. Only
use a shielded twisted pair cable designed for RS-485 and 3 or 5 pin XLR plugs and connectors in order to connect the
controller with the fixture or the fixture with another.
Caution!
At the last fixture the DMX signal needs to be terminated with a terminator. Solder a
120 Ohm resistor between the (-) and the (+) signal into a 5 pin XLR plug and plug it
in to the last fixture on the signal run. Pre-manufactured terminator plugs are availa-
ble for purchase from your Mega-Lite dealer (P-DMX-T).
DMX—Input DMX—Output
1. Shield
2. Signal (-)
3. Signal (+)
4. N/A
5. N/A
2
3
15
3
4
2
11
2
3
1
2
3
4
5

7
Main Control Menu
The control board on the fixture base is your interface to access and
control all the functions on the unit. Its LCD display gives you views of
the options and functions. The following will explain each function and
its options. Turn the rotary knob to see options and press the knob to
Enter
Press the knob to select Set Up options.
Setup Menu
1 DMX Address
2 Channel Mode
3 Dimmer Curve
4 Demo Mode
5Manual Control
6Slave Mode
Press the knob to select the DMX start address. Turn knob Left or Right to select desired start address.
DMX Address
DMX Address
Press the knob to select fixture profile operating mode
Channel Mode
9 Ch
(9 Ch)
(15 Ch)
15 Ch
001
1 DMX Address
2 Channel Mode
3 Dimmer Curve
4 Demo Mode
5Manual Control
6Slave Mode
1. Pan
2. Tilt
3. Dimmer
4.Red Intensity
5. Green Intensity
6. Blue Intensity
7. White Intensity
8.Shutter / Strobe
9. Control
1. Pan
2. Pan Fine
3. Tilt
4. Tilt Fine
5. Pan & Tilt Speed
6. Infinity Pan
7. Infinity Tilt
8. Dimmer
9.Red Intensity
10. Green Intensity
11. Blue Intensity
12. White Intensity
13.Shutter / Strobe
14. Color Macro
15. Control
15Ch 54ºC
Press the knob to select fixtures dimming curve from Fastest Mode 1 to Slowest Mode 4
Dimming Curve
1 DMX Address
2 Channel Mode
3 Dimmer Curve
4 Demo Mode
5Manual Control
6Slave Mode
Mega-Lite
Axis Cyclops
Press to Enter
18668 Hwy 16 N., Helotes, TX 78023
866-460-MEGA www.mega-lite.com
DMX
Master
Slave
Sound
Press the knob to select fixtures Pre-recorded demo program Demo Mode 1 or 2 (Note DMX signal must not be connected for this
function to work).
Demo Mode
1 DMX Address
2 Channel Mode
3 Dimmer Curve
4 Demo Mode
5Manual Control
6Slave Mode

Press the knob to select Manual control Functions. Select the fixtures function you would like to manually control . (Note The fixture
will recall the set manual control attributes even after the fixture is turned off and on)
Manual Control
1 DMX Address
2 Channel Mode
3 Dimmer Curve
4 Demo Mode
5Manual Control
6Slave Mode
Press the knob to select Slave mode function
Slave Mode
1 DMX Address
2 Channel Mode
3 Dimmer Curve
4 Demo Mode
5Manual Control
6Slave Mode
Press the knob to select Sound Mode option Select yes or no. Pre Program will change scene to the sound of audio.
Sound Mode
7 Sound Mode
8 Pan Inverse
9 Tilt Inverse
10 DMX Clear
11 P/T Degree
12 P/T Fedback
Press the knob to select Pan Invert option Select yes or no
Pan Invert
7 Sound Mode
8 Pan Invert
9 Tilt Invert
10 DMX Clear
11 P/T Degree
12 P/T Fedback
Press the knob to select DMX Clear. Select yes if you would like to bring DMX attributes to zero if DMX signal is lost. Select no if
you would like DMX attributes to be kept to the last position if DMX signal is lost.
DMX Clear
7 Sound Mode
8 Pan Invert
9 Tilt Invert
10 DMX Clear
11 P/T Degree
12 P/T Fedback
Press the knob to select Pan and Tilt extreme positions from 540 x 270 or 360x360
P/T Degree
7 Sound Mode
8 Pan Invert
9 Tilt Invert
10 DMX Clear
11 P/T Degree
12 P/T Fedback
Press the knob to select yes or no if you would like for the pan and tilt to return to set position after it has been physically moved.
P/T Feedback
7 Sound Mode
8 Pan Invert
9 Tilt Invert
10 DMX Clear
11 P/T Degree
12 P/T Feedback
Press the knob to select the display orientation. Select from Inverted , Auto (will automatically invert the display depending in the
fixtures orientation or Normal (default position)
Display Rotate
13 Display Rotate
14 Back Light
15 Version
16 Factory Set
17 Reset
18 Calibration
8

Press the knob to select the Back Light option yes to leave light on or No to have the back light turn off after no display movement
for 15 seconds
Back Light
13 Display Rotate
14 Back Light
15 Version
16 Factory Set
17 Reset
18 Calibration
Press the knob and select yes to restore the fixture to the factory settings
Factory Setting
13 Display Rotate
14 Back Light
15 Version
16 Factory Set
17 Reset
18 Calibration
Press the knob and select yes to reset the fixture’s motor and dimmer settings
Reset
13 Display Rotate
14 Back Light
15 Version
16 Factory Set
17 Reset
18 Calibration
Press the knob to find out what version of software is being used
Version
13 Display Rotate
14 Back Light
15 Version
16 Factory Set
17 Reset
18 Calibration
This function is for factory trained technician.
Calibration
13 Display Rotate
14 Back Light
15 Version
16 Factory Set
17 Reset
18 Calibration
Press the knob and select yes to have the fixture run throw a built in program testing all functions
Auto Test
13 Display Rotate
14 Back Light
15 Version
16 Factory Set
17 Reset
18 Calibration
19 Auto Test
9

10
DMX Profile
Axis Cyclops 9 Ch Mode
DMX Channel Function Description Value Init Value
Pan Course 0-127
1Pan Forward (fast to slow) 128-191 43
Backwards (slow to fast) 192-255
Tilt Course 0-127
2Tilt Forward (fast to slow) 128-191 64
Backwards (slow to fast) 192-255
3Dimmer Dimmer off to full 0-255 255
4LED Intensity Red Dimmer 0-255 255
5LED Intensity Green Dimmer 0-255 255
6LED Intensity Blue Dimmer 0-255 255
7LED Intensity White Dimmer 0-255 255
No Function 0-6
8Shutter Random Strobe (slow to fast) 7-128 0
Strobe slow to fast 129-255
No Function 0-9
9Control Reset all functions 10-20 0
No Function 21-255
Axis Cyclops 15 Ch Mode
DMX Channel Function Description Value Init Value
1Pan Pan Course 0-255 128
2Pan Fine Pan Fine 0-255 128
3Tilt Tilt Course 0-255 128
4Tilt Fine Tilt Fine 0-255 128
5Pan & Tilt Speed Pan Speed (fast to slow) 0-255 0
No Function 0-15
6Infinity Pan Forward (fast to slow) 16-135 0
Backwards (slow to fast) 136-255
No Function 0-15
7Infinity Tilt Forward (fast to slow) 16-135 0
Backwards slow to fast 136-255
8Dimmer Dimmer off to full 0-255 255
9LED Intensity Red Dimmer 0-255 255
10 LED Intensity Green Dimmer 0-255 255
11 LED Intensity Blue Dimmer 0-255 255
12 LED Intensity White Dimmer 0-255 255
No Function 0-6
13 Shutter Random Strobe slow to fast 7-128 0
Strobe slow to fast 129-255
No Function 0-1
14 Color Macro Color Snap (slow to fast) 2-126 0
Color Fade (slow to fast) 127-255
No Function 0-9
15 Control Reset all functions 10-20 0
No Function 21-255

Cleaning and maintenance
Installation Maintenance: The operator has to make sure that the unit is operating safely and has the installa-
tions and electronics checked by an expert every 2 years.
The following points have to be considered during the inspection:
1) All screws used for installing the device or part of the device have to be tightly connected and must not be corroded.
2) There must not be any deformations on the housing, fixation and installation spots (ceiling, suspension, trussing).
3) Mechanically moved parts like axles and other must not show any traces of wearing and must not rotate with unbal-
ances.
4) The electronic power supply cables must not show any damages, material fatigue (e.g. porous cables) or sediments.
Further instructions depending on the installation spot and usage have to be adhered by a skilled installer and any
safety problems have to be removed.
Disconnect from mains before starting maintenance operation!
Caution Danger to life!
We recommend a frequent cleaning of the device. Please use a moist, lint free cloth. Never use alcohol or solvents!
1) The objective lens will require periodic cleaning on usage and environment. Environment with foggers will require
more periodic cleaning as fog fluid tends to build up residues, reducing the light output.
2) The cooling-fans should be cleaned monthly. DO NOT blow high pressure air into fans as incorrect rotation can
damage the fans operation.
3) The gobos, dichroic color filters and internal lenses may be cleaned with soft brush using soapy water.
4) The interior of the fixture should be cleaned using a vacuum.
5) We recommend proper lubrication of the motor wheel. The quantity of the oil must not be excessive in order to avoid
oil run outs when motor wheel rotates
Note: There is no serviceable parts inside the device except for the fuse. Maintenance and service operations
are to be carried out by authorized dealers.
Replacing the fuse: Only replace the fuse with the same type and rating.
Replacing the power cable: If the power cable of this device becomes damaged, it has to be replaced by author-
ized dealers only
Should you have further questions , please contact your dealer.
11
Parts List
1160-PS Power Supply
1160-MPCB Main PCB
1160-LED Osram LED 60W RGBW
1160-LEDMOD LED on PCB
1160-RC4 4 Unit Road Case
1160-FAN Fan
1160-DMX5 5pin DMX Panel Mount Connector
1160-DMX3 3pin DMX Panel Mount Connector
1160-TSEN Tilt Motor Sensor
1160-MOT Motor
1160-LEN Lens
1160-PSEN Pan Motor Sensor
1160-QR Quick Release Clamp Mount

Mega-Lite
18668 Hwy 16 N., Helotes, TX 78023
Ph 210-684-2600 Fax [phone]
www.mega-lite.com / [e-mail]
Warranty Information
Warranty Conditions
-Unless otherwise stated in writing, your product is covered by a one year parts and labor limited warranty.
-LEDs are not guaranteed to match in color temperature or output.
-It is the owner’s responsibility to furnish receipts or invoices for verification of purchase, date, and reseller or distributor.
If purchase date cannot be provided, date of manufacture will be used to determine warranty period.
-Goods returned under warranty must follow the proper authorization procedure and must be accompanied by a copy of
the original invoice.
-Goods repaired under warranty will be returned to the owner with the freight prepaid by MSI via the most economical
means of shipment.
-Repair or replacement as provided for under this warranty is the exclusive remedy of the consumer. MEGA SYSTEMS
INC. makes no warranties, express or implied, with respect to any product, and Mega Systems specifically disclaims any
warranty of merchantability or fitness for a particular purpose. Mega Systems shall not be liable for any indirect, inci-
dental or consequential damage, including lost profit, sustained or incurred in connection with any product or caused by
product defect or the partial or total failure of any product regardless of the form of action, weather in contract, tort
(including negligence), strict liability or otherwise, and weather or not such damage was foreseen or unforeseen.
-Warranty is void if the product is misused, damaged, modified in any way, or for unauthorized repairs or parts. This
warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
