MegaLite Tuff Baby P-84 User manual

USER MANUAL
Table of Contents
Safety Information…………………………………………………..…3
Specifications…………………………………………………………..4
Main Power Connection…………………………………………….. 5
DMX-512 Connection……………………………………………...... 5
Main Control Menu.........................................................................6
DMX Profile.................................................................................... 9
Rigging the Fixture……………………………...…………………….10
Cleaning & Maintenance................................................................10
Parts List........................................................................................10

Check that the unit has not been damaged during transport
Protection Against Fire
1. Maintain a minimum of 1 foot distance from any type of flame.
3. Replace fuse only with the specified type and rating.
4. Do Not install the unit to close to a heat source.
5. Make sure cable are properly secured
6. Maximum surface operating temperature 140º.
Protection Against Electrical Fire
1. Disconnect power before servicing.
2. For connection to main power supply proceed to page 5.
3. This unit must be earthed. (electronically grounded)
4. This fixture must not be left on for long periods of time.
Protection Against Mechanical Hazards
1. Use safety chain when hanging unit.
2. Use quality clamps or bolts when positioning unit
3. Do not open unit while it is on, risk of electrical shock.
Safety Standards
1. This Products Conforms to USA and Canada ETL Safety Standards. And has been tested for
Stage Lighting Safety Standards UL 1573
3
Ingress Protection
IP 65
The IP rating is commonly expressed as IP (Ingress Protection) is followed by 2 numbers (i.e. 65)
where the numbers define the fixture rating. The first number indicates the size of a particle that can
enter the fixture.. The second number indicates the extent of protection against water entering the
fixture. An IP65 rating in this fixture indicates that dust particles can not enter the fixture. And there is
protection against powerful water spray from entering the fixture from any direction.

Technical Information
4
4100– Tuff Baby P84
Mechanical Specifications
Fixture Packaged
Size: 8.80” x 6.26” x 8.80”
Weight: 6.4lb
Size: 10.25” x 10.25” x 11.5”
Weight: 7.4lb
Electrical Specifications
DMX 512 Protocol
DMX Modes: Mode 1 3 Channels Red, Green, Blue
Mode 2 6 Channels Dimmer, Red, Green, Blue, White, Amber
Mode 3 8 Channels Dimmer, Red, Green, Blue, White, Amber, Strobe, Macro
Control Options: Master Slave
Control & Programming
DMX Connectors: Weather 3 pin XLR connectors in and out
Thermal: Maximum ambient temperature 104°
Maximum surface temperature 140°
Fastening System: Double Mounting Yoke
Display: Digital
Power connection: Weather Seal Screw type
Ip Rating; Ip 65
LED Quantity: 7LED Angle: 25°
Diffusion Beam Angel: 30°
Red: 7Power Input Voltage: 110V-240 50/60 Hz
Green: 7
Blue:7
White: 7Ballast: Electronic auto switching
Amber: 7
Power Consumption Watts: 56
Amps: .84
LED Watts: 12
LED Lifetime: 60 to 100 thousand hours Average
Part Numbers
6.25”
8.80”
8.80”
5.75”

5
Main Power Connection
Caution!
1. Do not connect fixture to a dimmer system.
2. This unit has Auto switching power supply. It will respond to 110V or 220V automatically
3. This unit must be earthed. (electronically grounded)
4. Replace fuse only with the specified type and rating.
The occupation of the connection-cable is as follows:
DMX-512 Connection
This fixture is equipped with an electronic power supply that will let the unit operate from 90V to 240V from 50Hz to
The fixture is equipped with 3 pin XLR Sockets for DMX input and output. The sockets are wired in parallel. Only use a
shielded twisted pair cable designed for RS-485 and 3 pin outdoor XLR plugs and connectors in order to connect the
controller with the fixture or the fixture with another.
Caution!
At the last fixture the DMX signal needs to be terminated with a terminator. Solder a
120 Ohm resistor between the (-) and the (+) signal into a 3 pin XLR plug and plug it
in to the last fixture on the signal run. Pre-manufactured terminator plugs are availa-
Cable (USA) Cable (EU) Pin 110V
Black Brown
White
Green
Light Blue
Yellow/Green
Live
Neutral
Ground
L
N
220V
L
L
110V
Connection
220V
Connection
1
2
3
2
3
1
DMX—input DMX—output
1. Shield
2. Signal (-)
3. Signal (+)
LNLL

Display Menu
6
The control board on the fixture base is your interface to access and
control all the functions on the unit. Its digital display gives you a code
view of the options and functions. The following will explain each func-
tion and its options.
Menu Up Down Enter
CONTROL BOARD
DMX Address
Red Dimmer Green Dimmer Blue Dimmer
Flash
Effects
0-255 0-255 0-255
White Dimmer
0-255
Amber Dimmer
0-255
Dimming Speed
0
1
2
3
Fade Speed 1 Fade Speed 6 Fade Speed 7 Fade Speed 8
Red Strobe
0-15
Green Strobe
0-15
Blue Strobe
0-15
White Strobe
0-15
Amber Strobe
0-15
Yellow Strobe
0-15
Cyan Strobe
0-15 0-15 0-15
Magenta Strobe All Strobe Color Strobe
0-15
001-512 001-512 001-512
A Mode 3 Channels P Mode 6 Channels H Mode 8 Channels
Fade Speed 2 Fade Speed 3 Fade Speed 4 Fade Speed 5
Display on/off
On
Off
Set Color
Fade Speed 10
Fade Speed 9
DMX Address
Press Enter to select the DMX start address channel. The first display will let you know what operation mode you are
in. Use the up/down keys to select the desired mode. Press Enter to confirm. (first Letter will also change depending
on what mode you are in) Use the up/down keys to select the desired start address press Enter to confirm
Set Color Menu
Press Enter to set a color via display control. . Use the up/down keys to select the desired color you would like to ad-
just. Press Enter to confirm. Use the up/down keys to select the desired intensity of the color. Press Enter to confirm.
0-255
Strobe Speed

7

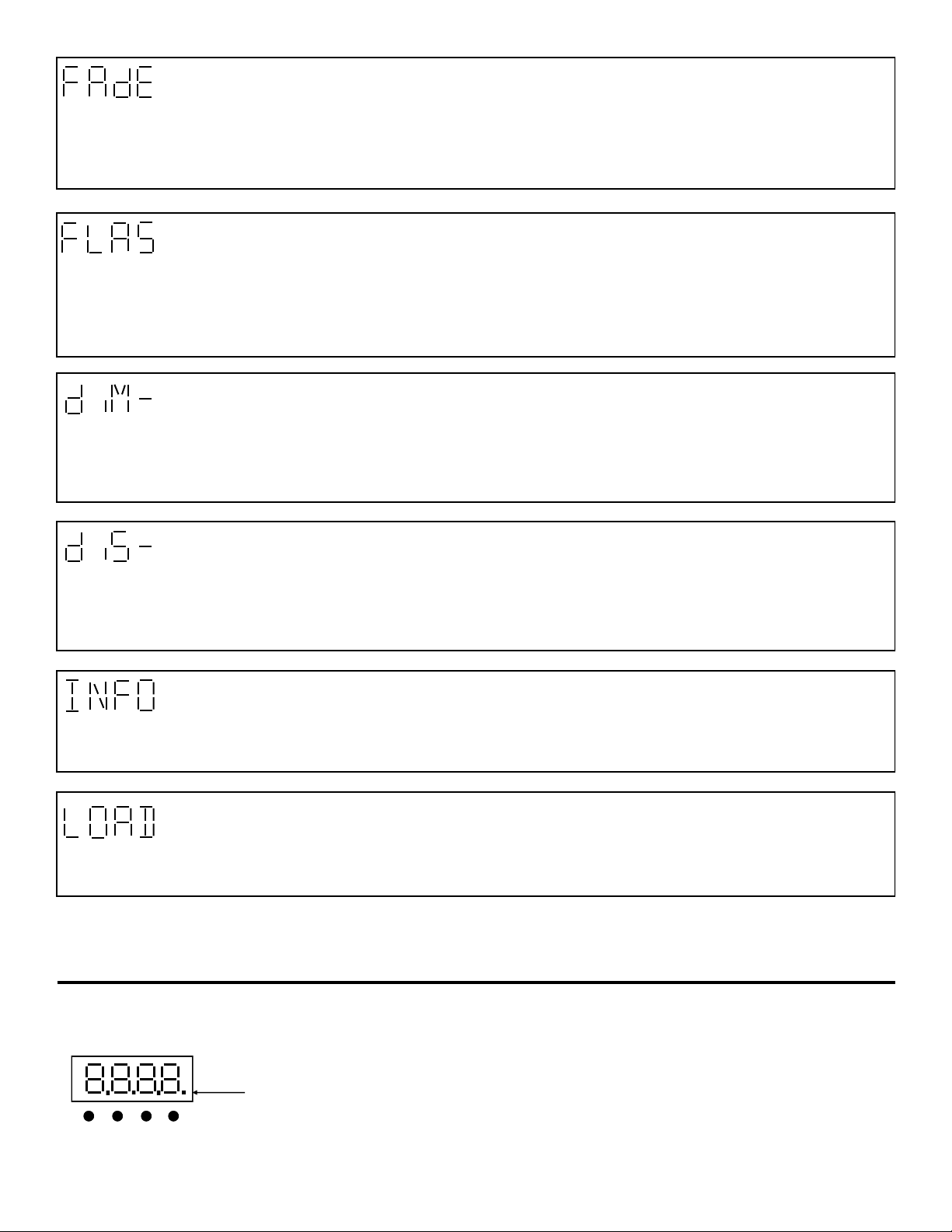

Fade
This function allows you to select a preprogrammed fade sequences. Press Enter use the up/down keys to select de-
sired fade program (15 options). Press Enter to set the desired sped use the up/down keys (15 options). Press Enter
to confirm the settings.
Flash
Dimming Speed
Press Enter to select the desired dimming speed when used with a DMX controler. Use the up/down keys to select
from 0 to 3. 0 speed will be the fastest 4 will be the slowest. Press Enter to confirm.
This function allows you to select a preprogrammed strobe sequences. Press Enter use the up/down keys to select de-
sired strobe program (15 options). Press Enter to set the desired sped use the up/down keys (15 options). Press En-
ter to confirm the settings.
Display Setting
Press Enter to select the desired display setting. Use the up/down keys to select from On for the display to stay on or
Off for the display to turn off after 30 sec of no use. Press Enter to confirm.
Info
Software Version Information
Load
Manufactures Software update function (manufacture personnel only)
Menu Up Down Enter
CONTROL BOARD
DMX Indicator
When DMX Signal is being received the last point on the control board display will flash. If
there is no DMX signal present is will be off.

9
DMX Profile
Tuff Baby P84 Mode A
DMX Chanel Function Description Value
1LED Color Red LED intensity 0-255
2LED Color Green LED Intensity 0-255
3LED Color Blue LED Intensity 0-255
Tuff Baby P84 Mode P
DMX Chanel Function Description Value
1Dimmer Dimmer Off to Full 0-255
2LED Color Red LED intensity 0-255
3LED Color Green LED Intensity 0-255
4LED Color Blue LED Intensity 0-255
5LED Color White LED Intensity 0-255
6LED Color Amber LED Intensity 0-255
Tuff Baby P84 Mode H
DMX Chanel Function Description Value
1Dimmer Dimmer Off to Full 0-255
2LED Color Red LED intensity 0-255
3LED Color Green LED Intensity 0-255
4LED Color Blue LED Intensity 0-255
5LED Color White LED Intensity 0-255
6LED Color Amber LED Intensity 0-255
7Strobe Strobe (slow to fast) 0-196
Random Strobe (slow to fast) 197-255
No Function 0-1
Color fade All (slow to fast) 2-19
Color Snap All (slow to fast) 20-39
Random Color Snap (slow to fast) 40-59
Red fade (slow to fast) 60-79
Green fade (slow to fast) 80-99
8Macro Blue fade (slow to fast) 100-119
White fade (slow to fast) 120-139
Amber fade (slow to fast) 140-159
Macro Effect 1 160-179
Macro Effect 2 180-199
Macro Effect 3 200-219
Macro Effect 4 220-229
Macro Effect 5 230-249
Macro Effect 6 250-255

10
Cleaning and maintenance
Installation Maintenance: The operator has to make sure that the unit is operating safely and has the installations and
electronics checked by an expert every 2 years.
The following points have to be considered during the inspection:
1) All screws used for installing the device or part of the device have to be tightly connected and must not be corroded.
2) There must not be any deformations on the housing, fixation and installation spots (ceiling, suspension, trussing).
3) The electronic power supply cables must not show any damages, material fatigue (e.g. porous cables) or sediments.
Further instructions depending on the installation spot and usage have to be adhered by a skilled installer and any
safety problems have to be removed.
Note: There is no serviceable parts inside the device except for the LED’s. Maintenance and service operations are to
be carried out by authorized dealers.
Replacing the fuse: Only replace the fuse with the same type and rating.
Replacing the power cable: If the power cable of this device becomes damaged, it has to be replaced by authorized
dealers or trained professional only.
Should you have further questions , please contact your dealer.
Parts List
4100-MPCB Main PCB card
4100-PS Power Supply
4100-DIS Display
4100-DF Removable Diffusion Filter
4100-LED Replacement LED
Rigging the fixture
Caution!
1. The installations must be carried out by an authorized dealer or trained profes-
sional.
2. Unit may cause severe injures if you have doubts concerning the safety do not
install.
When rigging a unit it is very important that you follow common safety procedures. Rigging requires extensive experi-
ence including but not limited to calculating working loads, material being used and periodic safety inspections. If you
lack these qualifications, do not attempt the installation yourself, instead use a professional structural rigger.
When rigging the unit always be secured with a secondary safety attachment. The installation location of the fixture has
got to be built in the way that it can hold 10 times the weight for 1 hour with out any harming. Installation should be
checked at least one time a year by a skilled person.
4100-DRI LED Driver PCB
4100-KNOB Knob Set
4100-POW8M 8 Meter Power jumper cable
4100-RL Removable Diffusion Lens
4100-POW1M I Meter Power jumper cable
4100-BD Removable Barn Door

Mega-Lite
18668 Highway 16N
Helotes, TX 78023
Ph 210-684-2600 Fax [phone]
www.mega-lite.com / [e-mail]
Warranty Information
Warranty Conditions
-Unless otherwise stated in writing, your product is covered by a one year parts and labor limited warranty.
-LEDs are not guaranteed to match in color temperature or output.
-It is the owner’s responsibility to furnish receipts or invoices for verification of purchase, date, and reseller or distributor.
If purchase date cannot be provided, date of manufacture will be used to determine warranty period.
-Goods returned under warranty must follow the proper authorization procedure and must be accompanied by a copy of
the original invoice.
-Goods repaired under warranty will be returned to the owner with the freight prepaid by MSI via the most economical
means of shipment.
-Repair or replacement as provided for under this warranty is the exclusive remedy of the consumer. MEGA SYSTEMS
INC. makes no warranties, express or implied, with respect to any product, and Mega Systems specifically disclaims any
warranty of merchantability or fitness for a particular purpose. Mega Systems shall not be liable for any indirect, inci-
dental or consequential damage, including lost profit, sustained or incurred in connection with any product or caused by
product defect or the partial or total failure of any product regardless of the form of action, weather in contract, tort
(including negligence), strict liability or otherwise, and weather or not such damage was foreseen or unforeseen.
- Warranty is void if the product is misused, damaged, modified in any way, or for unauthorized repairs or parts. This
warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
