LED Mosaic Solar Light/LED Solar Light
Introduction
We congratulate you on the purchase of your new device. You have
chosen a high quality product. The instructions for use are part of
the product. They contain important information concerning safety,
use and disposal. Before using the product, please familiarise your-
self with all of the safety information and instructions for use. Only
use the unit as described and for the specified applications. If you
pass the product on to anyone else, please ensure that you also
pass on all the documentation with it.
Proper use
The solar lights are intended for outdoor use. The product is not
intended for commercial use.

7GB/IE
Not suitable for ordinary lighting in household
room illumination (for model A/ B/ G only).
This product is suitable for extreme temperature below -20°C
(for model A/ B/G only).
Description of parts and features
Model A/B:
2Solar Cell housing
3Mosaic Jar
4ON/ OFF switch
5Rechargeable battery
6Battery compartment
Model C/D/E/F/G:
1Decoration attachment (for model E/F only)
4ON/ OFF button
5Rechargeable battery

8 GB/IE
6Battery compartment
7Fastening screws (Ø 2.25 x 8.25mm)
8Battery compartment lid
9Silicone cover
Scope of delivery
1 LED solar lamp and rechargeable battery
1 Decoration attachment (for model E/F only)
1 Assembly instruction
Technical data
Operating voltage: 1.2V
Rechargeable battery: 1 x NiMH rechargeable battery/ AAA/
1.2V / 300mAh
LED: 1 x LED (model A/ B)
2 x LED (model C/ D)

9GB/IE
1 x RGB LED (model E/F)
3 x LED (model G)
Rated power LED: approx. 0.06 W per LED
Protection type: IP44 (splash proof)
Solar cell: approx. 40 x 40 mm (model A/B/G)
approx. 30 x 30 mm (model C/D/E /F)
Lighting time
(with full charge): approx. 8 hours
Safety instructions
PLEASE READ THE INSTRUCTIONS FOR USE PRIOR TO USE!
PLEASE KEEP THE INSTRUCTIONS IN A SAFE PLACE! IF PASS-
ING THIS PRODUCT ON TO A THIRD PARTY ALSO INCLUDE
ALL DOCUMENTS.
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have

10 GB/IE
been given supervision or instruction concerning use of the ap-
pliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
Do not use the article if you detect any kind of damage.
Always switch off the article, when storing it in dark environ-
ment, in order not to discharge the rechargeable battery.
Product-specific safety instructions
Make sure that the solar cell is free of dirt and free of snow
and ice in winter. Otherwise the performance of the solar cell
will diminish.
Cold temperatures have a negative influence on the operating
life of the rechargeable battery. If the solar garden lights are
not going to be used for a long time, e.g. in winter, they should
be taken up, cleaned and stored in a dry, warm room (for model
C/ D/E /F only).

11GB/IE
Safety instructions for
rechargeable batteries
DANGER TO LIFE AND
RISK OF ACCIDENTS FOR INFANTS AND
CHILDREN! Keep batteries out of the reach of
children. Do not leave the batteries lying around. There is a
risk of children or animals swallowing them. Consult a doctor
immediately if a battery is swallowed.
CAUTION! DANGER OF EXPLOSION! Use
only rechargeable batteries of the recommended
type. Other rechargeable or single-use batteries
could explode during charging.
FIRE HAZARD! Do not allow rechargeable bat-
teries to short-circuit. Otherwise the rechargeable
batteries may overheat, become a fire hazard or
explode.
RISK OF EXPLOSION! Never throw rechargea-
ble batteries into fire or water.

12 GB/IE
Chemical fluids that damage the product may leak out of out-
dated or used rechargeable batteries. Remove, therefore, the
rechargeable battery when the lamp is not required for any
length of time.
WEAR PROTECTIVE GLOVES! If they come into
contact with skin, leaked or damaged rechargeable
batteries could cause chemical burns; you should
therefore wear suitable protective gloves at all times if such an
event occurs.
Only use rechargeable batteries of the right size and of the
recommended type (see section on ”Technical data”).
Ensure correct polarity. This is indicated in the battery com-
partment for the rechargeable battery.
Functioning
The solar cell installed in the article converts sunlight into electrical
energy and stores it in 1 NiMH battery. Switches on the light as it
begins to get dark. The in-built light-emitting diodes are a very

13GB/IE
long-life and energy-saving light source. The light duration depends
on the amount of sunlight, the angle of light on the solar cell and
the temperature (the battery capacity is temperature-dependent).
A vertical angle of light at temperatures above the freezing point
is ideal. The battery does not achieve maximum capacity until
after several charge and discharge cycles.
In summer completely drained batteries take about 2 to 4 days to
fully recharge in constant sunlight.
Preparing for use

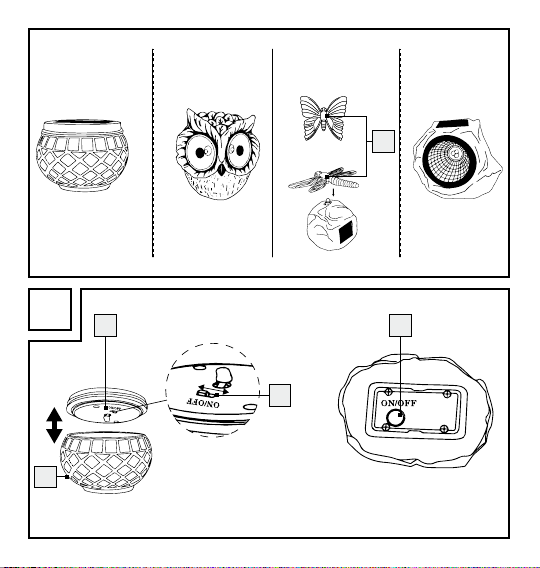

Installing the light (see Fig. A)
Model A/B:
1. Take out the solar cell housing 2from the mosaic jar 3.
2. Move the ON/ OFF switch 4to the ON position to enable
the article switching on during darkness.
3. Put back the solar cell housing to the mosaic jar.
4. Your solar lamp is ready for use.

14 GB/IE
Model C/D/G:
1. Press the ON /OFF button 4to enable the article switching
on during darkness.
2. Your solar lamp is ready for use.
Model E/F:
1. Attach the decoration attachment 1to the product.
2. Press the ON /OFF button 4to enable the article switching
on during darkness.
3. Your solar lamp is ready for use.
Setting up the light
In order to achieve the best result, set the solar garden lamp
up in a place where the solar cell will get direct sunlight for as
long as possible.
Make sure that the solar cell is not influenced by any other
source of light such as yard or street lighting as otherwise the
light will not come on in twilight.

15GB/IE
The light automatically switches on in twilight conditions and
off again when normal outdoor lighting conditions return.
Replacing the rechargeable battery

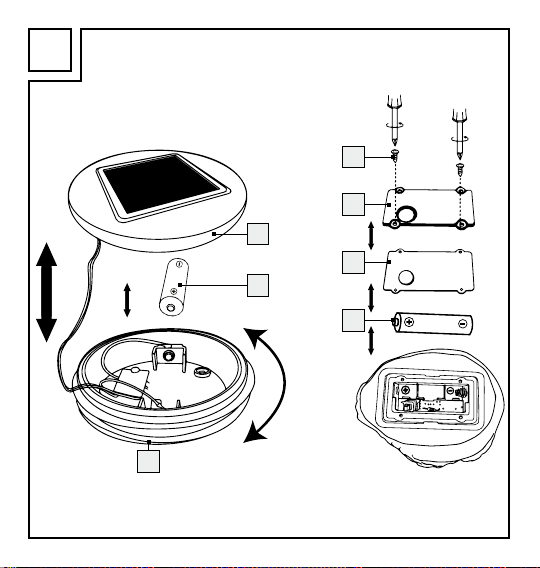

(see Fig. B)
The battery should be replaced every 12 months to ensure
optimum performance.
Model A/B:
1. Separate the solar cell housing 2from the mosaic jar 3.
Move the ON /OFF switch 4to the OFF position to switch
off the lamp.
2. Rotate the battery compartment 6by moving it clockwise
and then lever out the battery compartment. Take care not to
damage the cables and cable connections.
3. Exchange the old rechargeable battery 5to a new one, en-
sure that you do not damage the wiring. Take care to the cor-
rect polarity, when inserting the new rechargeable battery.

16 GB/IE
The polarity is indicated in the battery compartment. The new
rechargeable battery has to have the same technical data like
the old one.
4. Now insert the battery compartment into the solar cell housing
by moving it anti-clockwise. Move the ON/ OFF switch 4to
ON position to enable the article switching on during darkness.
5. Put back the solar cell housing to the mosaic jar.
Model C/D/E/F/G:
1. Turn the lamp upside down. Press the ON/ OFF button 4to
switch off the article. Loosen the fastening screws 7by using
a small cross head screwdriver and then lever out the battery
compartment lid 8with the help of a slot screwdriver.
2. Take out the silicone cover 9.
3. Exchange the old rechargeable battery 5to a new one, en-
sure that you do not damage the wiring. Take care to the cor-
rect polarity, when inserting the new rechargeable battery.
The polarity is indicated in the battery compartment. The new
rechargeable battery has to have the same technical data like
the old one.

17GB/IE
4. Put back the silicone cover 9.
5. Now again fasten the battery compartment lid 8, fasten the
fastening screws 7by using a small cross head screwdriver.
Press the ON/OFF button 4to enable the article
switching on during darkness.
Charging the rechargeable battery
Note that the solar garden light must be switched on when the
battery is charging.
The charging time of the battery when the solar cell is used depends
on the intensity of the sunlight and the angle of incidence of the light
on the solar cell. Place the solar cell as perpendicular as possible
to the angle of incidence of the light. In this way you will receive
the highest light levels.

18 GB/IE
Maintenance and care
The light-emitting diodes cannot be replaced.
The solar lamp is maintenance-free, except for any necessary change
of battery.
Clean the solar lamp regularly with a dry, lint-free cloth. Use a
slightly dampened cloth to remove more stubborn dirt.
Troubleshooting
Note: This appliance has delicate electronic components. This
means that if it is placed near an object that transmits radio signals,
it could cause interference. If you notice that the device is malfunc-
tioning, remove any sources of interference from the area of the device.
Note: Electrostatic discharges may cause device to malfunction.
In the event of such malfunctions, remove the batteries briefly and
reinsert them.

19GB/IE
Error Cause Solution
The light will not
switch on even
though the sun
shone on the lamp
all day.
Artificial sources of
light, e.g. street
lighting, are inter-
fering with the
lamp.
Mount the lamp in a
place where it can-
not be disturbed by
other sources of light.
The light does not
come on or comes
on only briefly.
The rechargeable
battery is broken or
there was not
enough daylight.
Replace the re-
chargeable battery
or mount the lamp in
a place where it can
receive more sunlight.
Disposal
The packaging is made entirely of recyclable materials,
which you may dispose of at local recycling facilities.

20 GB/IE
Contact your local refuse disposal authority for more details of
how to dispose of your worn-out product.
To help protect the environment, please dispose of the
product properly when it has reached the end of its
useful life and not in the household waste. Information
on collection points and their opening hours can be
obtained from your local authority.
Defective or exhausted rechargeable batteries must be recycled in
accordance with Directive 2006 /66/ EC and its amendments.
Return the battery and /or the device through the appropriate
collection facilities.
Pb
Improper disposal of rechargeable batteries
can damage the environment!
Rechargeable batteries must not be disposed of with the house-
hold refuse. They may contain toxic heavy metals and require to
be handled as special waste. The chemical symbols of heavy
