Members Mark Salemo TPGAZ2027 Owner's manual

THIS ASSEMBLY MANUAL CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Customer Assistance (spare/replacement parts):1-800-847-7508
or Email: [email protected]
Item Number: 980241174
Model Number:TPGAZ2027
DISCLAIMER: Supplier is fully responsible for the entire content of the assembly
manual, including all Sam’s Club suggested edits or revisions.
Assembly Instructions & User’s Manual
for
Member’s Mark [12'x12'Salemo Hardtop Gazebo]
TM
1

Table of Contents
Quality Statement ..........................................................................................3
Important Safety Information..........................................................................3
Before Assembly............................................................................................3
Care & Use.....................................................................................................3
Product Information........................................................................................3
Components...................................................................................................4
Hardware........................................................................................................6
Tools...............................................................................................................6
Step 1 – Step 4...............................................................................................7
Warning..................................................................................................20
Danger....................................................................................................20
Care & Use and Storage Instructions.............................................................20
Warranty Information......................................................................................21
Need Assistance? Visit us at: samsclub.com/membersmarkhelp
2

Product Information
Product Dimensions:149.61” x 149.61” x 125.19” (380cm x 380cm x 318cm)
Product Weight Capacity: Supports up to 220lbs(100kg)
Need Assistance? Visit us at: samsclub.com/membersmarkhelp
3
Remove all parts and hardware from the box. Place all items on a carpeted or
scratch-free work surface, as this will avoid damaging parts during assembly.
The shipping box provides an ideal work surface.
To avoid accidentally discarding small parts or hardware, do not dispose of any
packaging or contents of the shipping carton until assembly is complete.
Use the parts and hardware lists below to identify and separate each of the
pieces included.
The use of power tools for assembly is not recommended. Power tools can
damage the hardware and/or split the wood.
Note: Do not fully tighten all bolts until all parts are in place. Failure to follow
these instructions may cause the bolts to misalign during assembly.
Before Assembly
Care & Use
Quality Statement
Important Safety Information
Please read all instructions carefully before assembling this gazebo.
For your safety, assembly by two or more adults is strongly recommended.
Hardware may loosen overtime. Periodically check that all connections are tight.
NOTICE: To prevent injury and property damage from unexpected tipping of
furniture, we highly recommend installation of the anti-tip kit included with this
product.
For cleaning, use a mild detergent solution, rinse with water, and allow to air dry.
Do not use acetone, abrasive, or other special detergents as they would be harmful
to the product’s finish.
Due to the nature of metal, surface oxidation (rusting) will occur if this protective
coating is scratched.
This is a natural process. To minimize this condition, it is recommended that care
be taken when assembling and handling the product in order to prevent the paint
from being scratched.

A1 Left Lintel
Right Lintel
4
A2 4
B
Connector
Corner
cover
4
C1 4
C2 Lintel Cover 4
DConnection
Piece 4
EPost
Base Plate
Base Cover
4
F 4
G 4
HCorner
Connector 4
ISlanting Bar
Connector 4

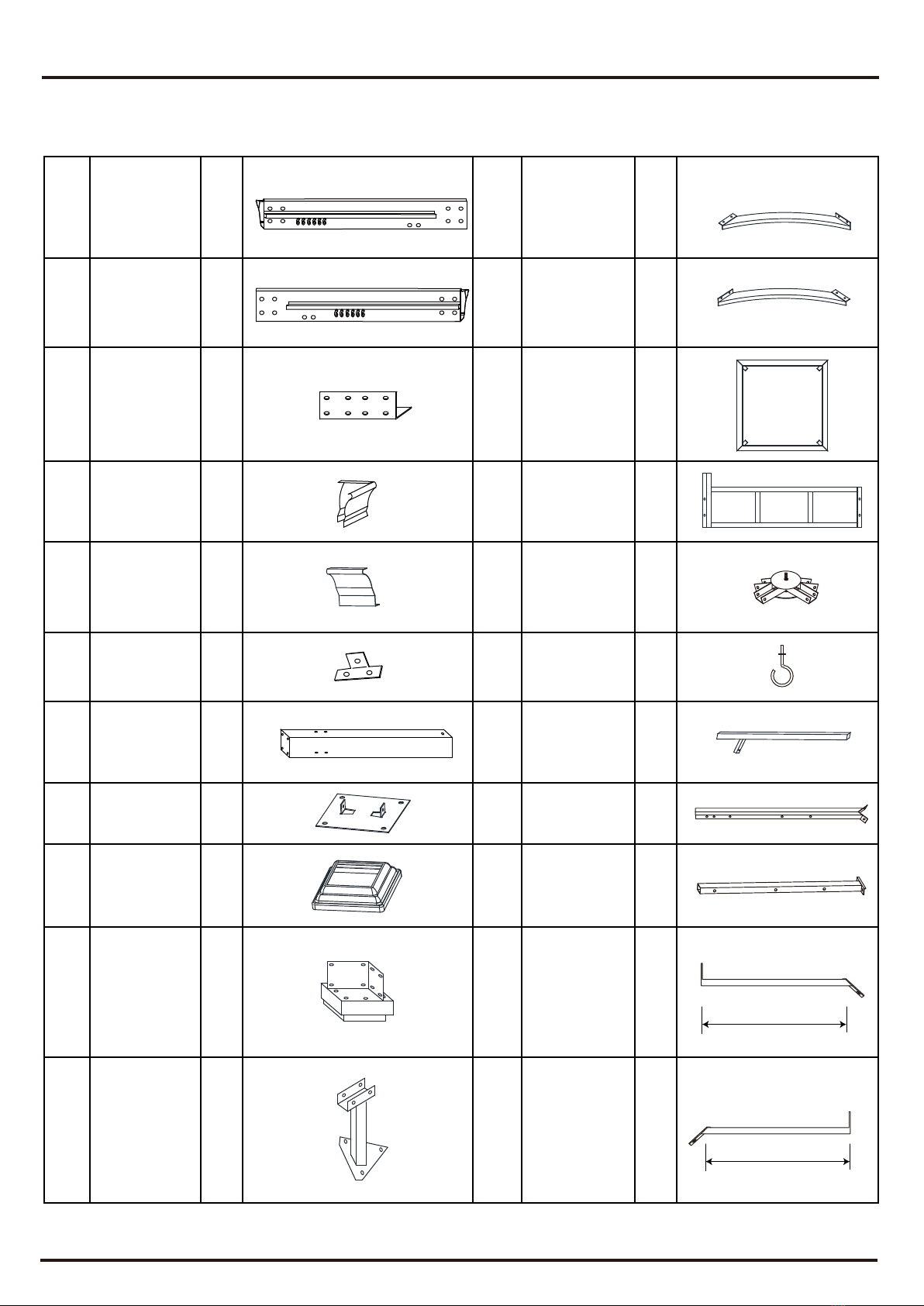

Components
J1 Support Bar
-Left 4
J2 Support Bar
-Right
4
MBig Top
Connector 1
N
Center
Connector
Hook
Small Top
Lintel 4
Q1
Q1 1
R
S
T
UL
UR
Small Top
Support Beam 4
Roof Framing
Beam-Left Top
Roof Framing
Beam-Right
Top
Long-Top Bar
Short-Top Bar 4
4
4
4
Need Assistance? Visit us at: samsclub.com/membersmarkhelp
4
31" / 790mm
31" / 790mm

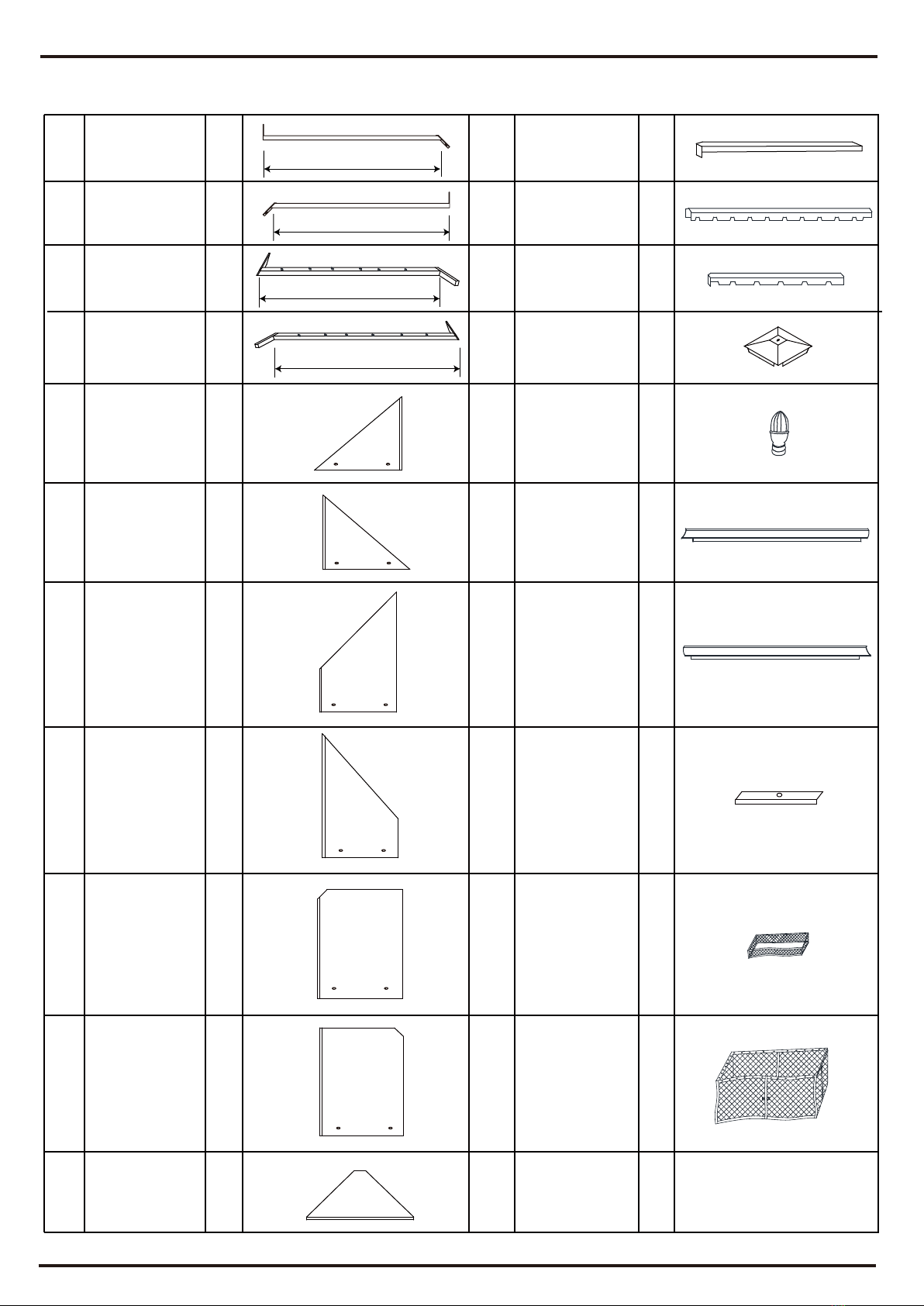

Components
VL
VR
WL
WR
Roof Framing
Beam-
Left Middle
Roof Framing
Beam- Right
Middle
Roof Framing
Beam-
Left Bottom
Roof Framing
Beam-
Right Bottom
4
4
4
4
Need Assistance? Visit us at: samsclub.com/membersmarkhelp
5
AA Big Top Panel 4
4
4
4
AB Big Top Panel
AC Big Top Panel
-Left
(Triangle)
-Right
(Triangle)
-Left
(Trapezium)
AD Big Top Panel
AE Big Top Panel 4
AF Big Top Panel 4
-Right
(Trapezium)
-Middle
(Rectangle)
-Middle
(Rectangle)
AG 4
BA Small Top Roof
Cover 4
Panel Cover
- Big Top
BB 4
Panel Cover
- Big Top
BC 4
Small Top Cover 1
CB Ornament
CA
1
DA E
-Left
dge Cover 4
4
FB Mosquito
Netting
Edge Cove
-Right
DB
EA 8
Air Vent
1
1
FA
“L”Shape Cover
Small Top Panel
(Trapezium)
51" / 1295mm
51" / 1295mm
70" / 1782mm
70" / 1782mm

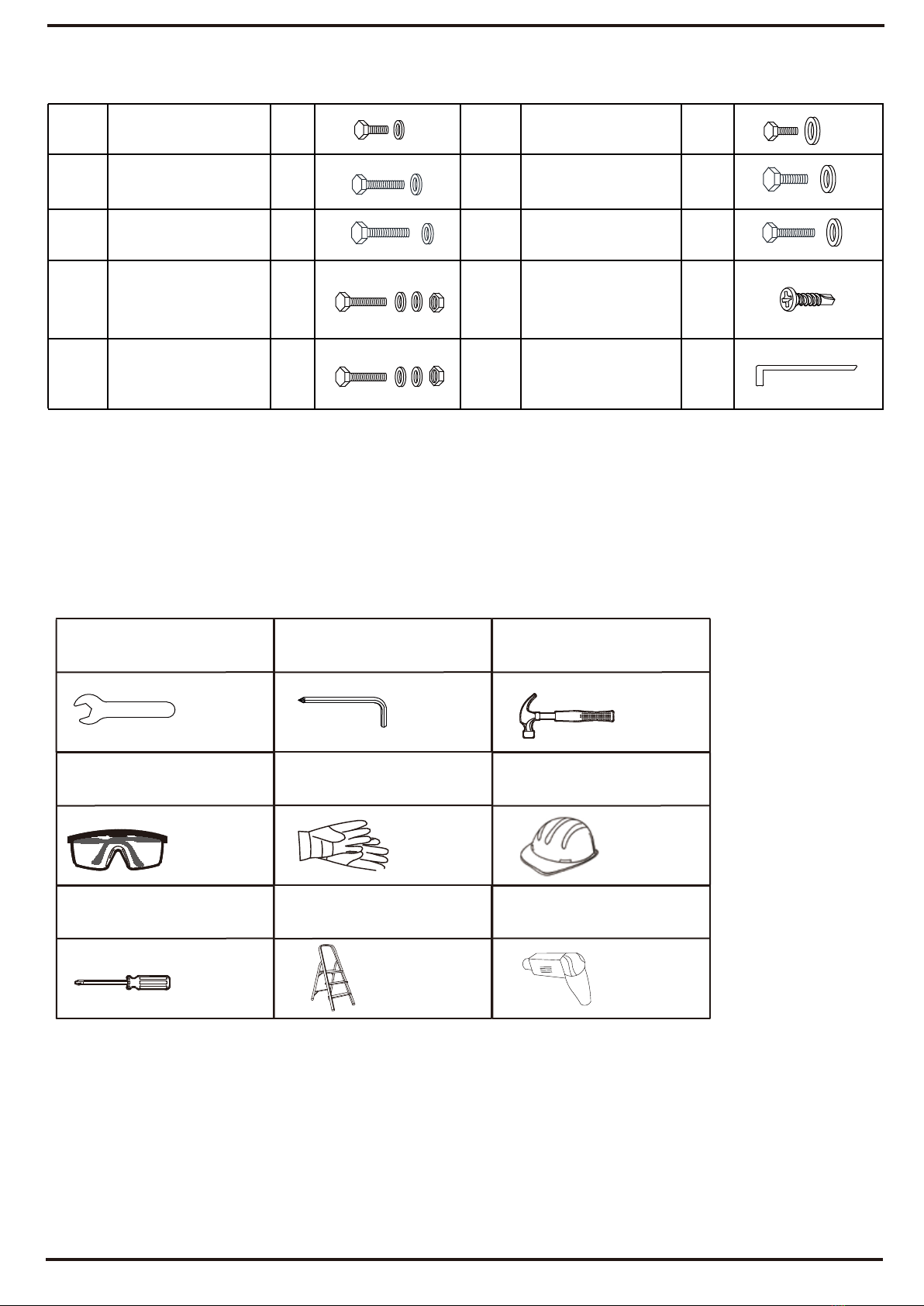

GA Bolt\Flat
Washer (m6*15) 188
Stake
8
16
Bolt\Plastic
Washer (m6*15) 48
40
GB
GC Bolt\Plastic
Washer (m6*35)
8
GD
GE
GF
GG
GH
GI
GL
Bolt\Flat
Washer\ Nut
(m6*35)
8
Bolt\Plastic
Washer (m6*40)
Screw
12
Bolt\Plastic
Washer (m6*20)
Bolt\Flat
Washer\ Nut
(m6*55)
8
Bolt\
Washer (m6*20) 24
Flat
Hardware
Need Assistance? Visit us at: samsclub.com/membersmarkhelp
6
Tools
Part No:GJ
Wrench (Included) Allen Wrench (Included) Hammer(Not Included)
Qty: 2Part No:GK Qty: 1
Safety goggles
(Not Included)
Screwdriver
(Not Included)
Stepladder
(Not Included)
Electric drill
(Not Included)
Gloves
(Not Included)
Hardhat
(Not Included)

GA
GB
GA
FG
E
E
H
GB
GB
EE
HH
Fig 2
Fig 2
Fig 1
Fig 1
G
E
H

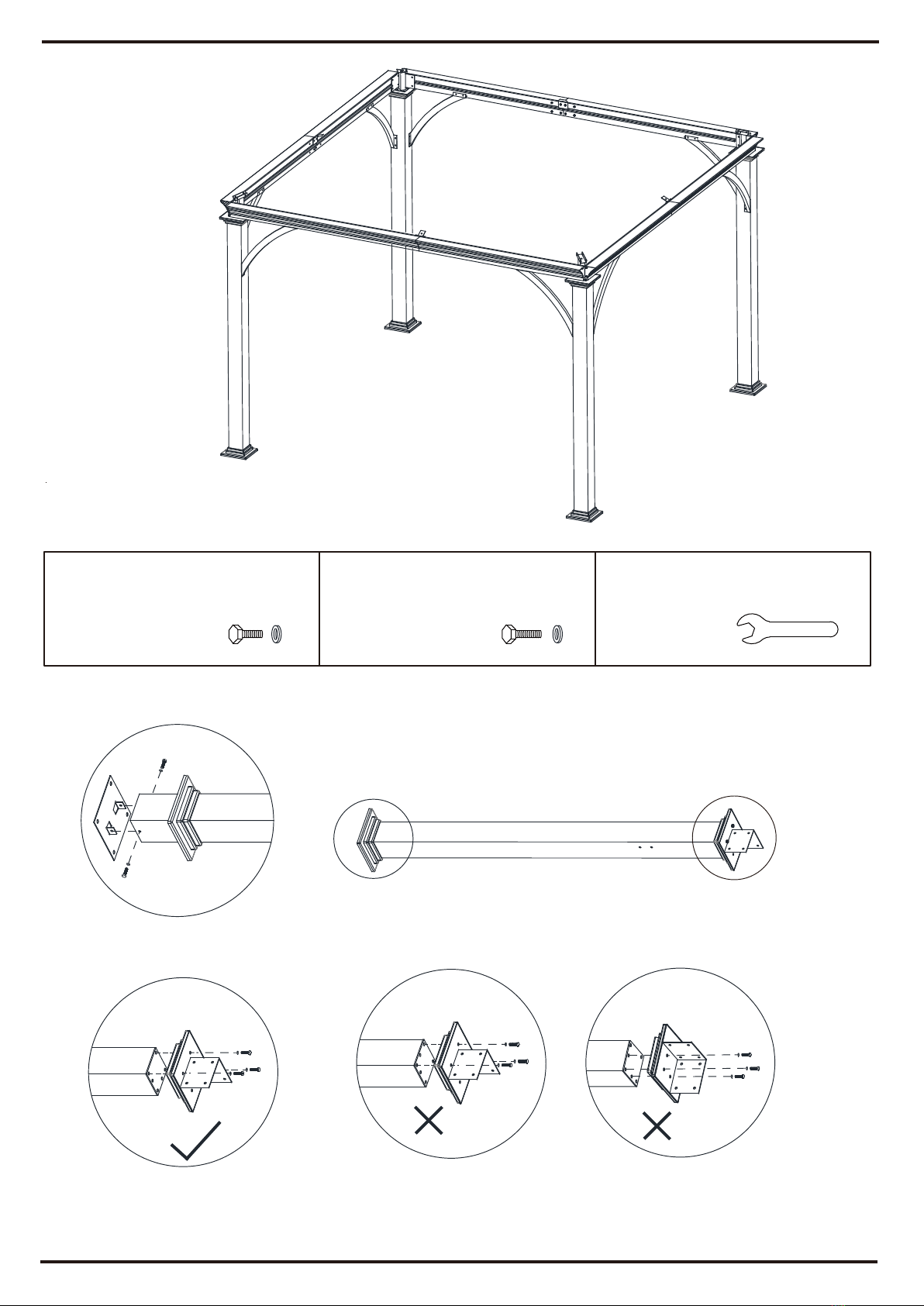

Step 1
1-a . Insert the Post (E) into the Base Cover (G), then connect the Base Plate (F) to the Post (E)
by Bolt\Flat Washer M6*15 (GA), as per Fig 1. Connect the Corner Connector (H) to the Post (E)
by Bolt\Flat Washer M6*20 (GB), as per Fig 2. Connect the other Posts in the same way.
Need Assistance? Visit us at: samsclub.com/membersmarkhelp
(GA)
Bolt\Flat Washer (M6X15) Bolt\Flat Washer (M6X20)
Qty: 108
(GJ)
Wrench
Qty: 1
(GB)
Qty: 24
7

A1
A1
A2
A2
D
B
GA
GA
A2
A2
A2
A1
A1
Fig 3
Fig 3/Fig 4/Fig 5
Fig 4
A2
A1
A1
A1 A2
C2
Fig 5
1-b. Connect the Left Lintel (A1) and Right Lintel (A2) with the Connector (B) by Bolt\Flat Washer M6*15 (GA),
as per Fig 3/Fig 4. Attach the Lintel Cover (C2) to the Lintel (A1/A2) by Bolt\Flat Washer M6*15 (GA),
as per Fig 5. Connect others in the same way.
Need Assistance? Visit us at: samsclub.com/membersmarkhelp
8

1-c. Connect the Lintel (A1/A2) to the Corner Connector (H) by Bolt\Flat Washer M6*15 (GA). Attach the Support Bar
(J1/J2) to the Lintel (A1/A2) and Post (E) by Bolt\Flat Washer M6*15 (GA). Attach the Slanting Bar Connector (I)
to the Post (E) by Bolt\Flat Washer M6*20 (GB), as per Fig.6/Fig.7/Fig.8.
Fig 6 Fig 7 Fig 8
J1 J2
E
H
A2 A1
A1 A2
GA
GA
GA
Need Assistance? Visit us at: samsclub.com/membersmarkhelp
9
GA
GA
GA
Fig 7
Fig 6
Fig 8
Equal diagonal distance
E
E
E
E
J1 A1
A1
A2
A2
A2
A1
A1
A2
J1
J2
J2
J2
J1
J1
E
GB
I

Step 2
Fig 10
Fig 9
S
M
A2
A1
A1 A1
A1
A2
A2
A2
M
A2
A1
GA GA
GE
S
S
Fig 9
Fig 10
2-a. Connect the Long-Top Bar (S) to the Slanting Bar connector (I)
by Bolt\Flat Washer \Nut M6*55 (GE), as per Fig 9.
Connect the Long-Top Bar (S) to the Big Top Connector (M) by
Bolt\Flat Washer M6*15 (GA), as per Fig 10.
Connector the other corners in the same way.
Need Assistance? Visit us at: samsclub.com/membersmarkhelp
(GA)
Bolt\Flat Washer (M6X15) Bolt\Flat Washer \Nut (M6X55)
Qty: 20
(GJ)
Wrench
Qty: 2
(GE)
Qty: 8
10

S
T
M
A2
A1 A1
A1
A2
A2 Fig 11
Fig 12

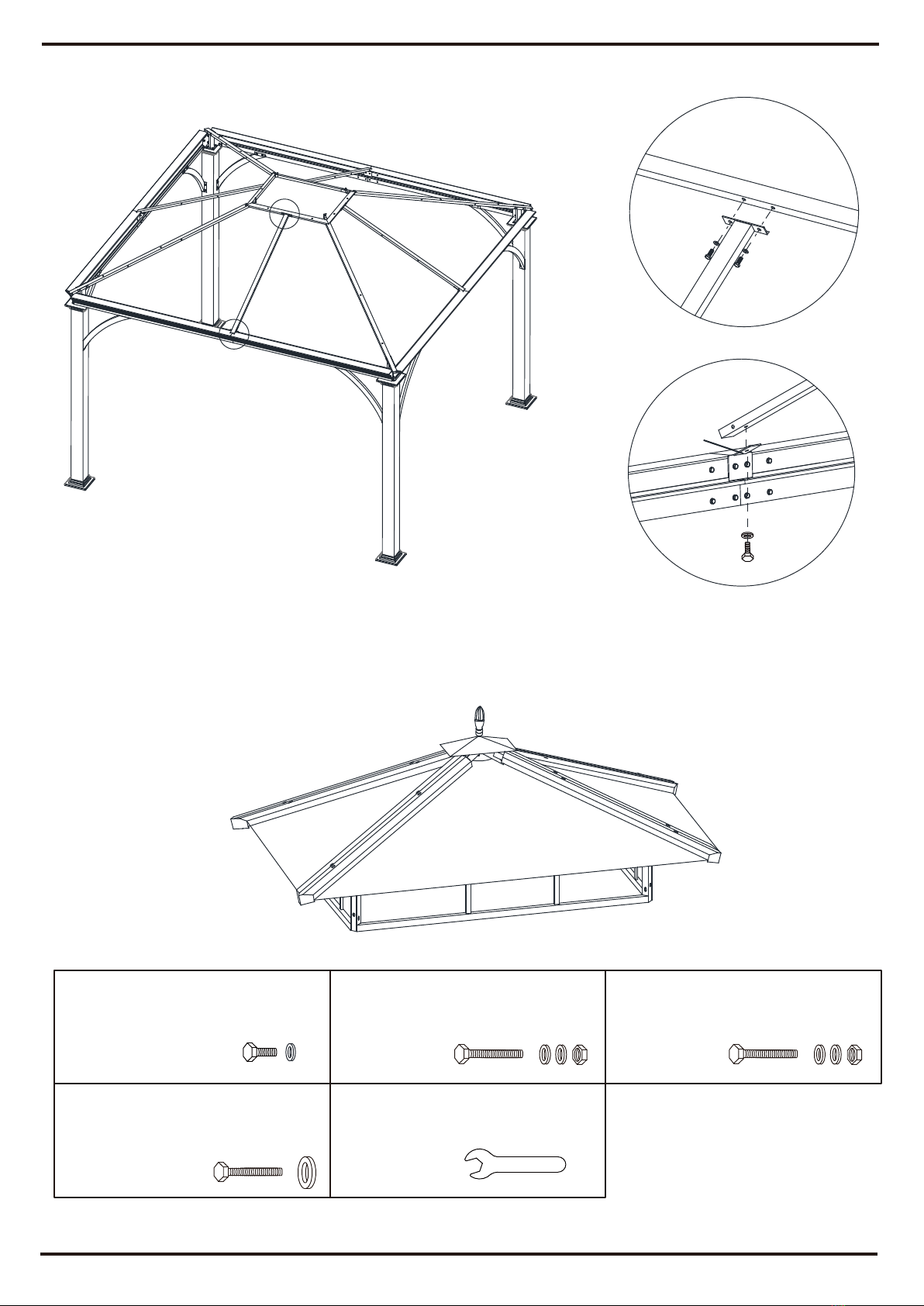

Step 3
T
M
A1/A2
Fig 11
Fig 12
T
D
GA
GA
2-b. Connect the Short-Top Bar (T) to the Big Top Connector (M) by Bolt\Flat Washer M6*15 (GA), as per Fig 11.
Connect the other end of Short- Top Bar (T) to the Connection Piece (D) by Bolt\Flat Washer M6*15 (GA), as per Fig 12.
Connect other sides in the same way.
Need Assistance? Visit us at: samsclub.com/membersmarkhelp
(GA)
Bolt\Flat Washer (M6X15)
Qty: 8
(GH)
Bolt\Plastic Washer (M6X35)
Qty: 8
Bolt\Flat Washer \Nut (M6X35)
(GD)
Qty: 8
Bolt\Flat Washer \Nut (M6X55)
(GE)
Qty: 4
(GJ)
Wrench
Qty: 2
11

R
R
R
R
N
N
Fig 15
Fig 13/Fig 14
Fig 16
GD
GD
Fig 13 Fig 14
3-a . Attach the Small
Top Lintel (N) to the Small Top Lintel (N) by Bolt\Flat Washer \Nut M6*35 (GD), as per Fig 13.
3-b. Screw the Hook (Q1) to the Center Connector (Q), as per Fig 14.
Then connect the other sides in the same way.
Q
Q1
N
N
Fig 15 Fig 16
3-c. Connect the Small Top Suppert Beam (R) with the Center Connector (Q) Bolt\Flat Washer \Nut M6*55 (GE),
as per Fig 15,
Connect others in the same way. Insert the Small Top Support Beam (R) into the Small Top Lintel (N),
stuck by a limit pin, as per Fig 16. Connect others in the same way.
N
N
R
Need Assistance? Visit us at: samsclub.com/membersmarkhelp
R
R
R
R
Q
GE
12

AG
AG
GA
R
R
GA
Fig 17
3-d . Attach the Small Top Panel (AG) to the small top Support Beam (R) by Bolt\Flat Washer M6*15 (GA),
as per Fig 17.
Assemble the others In the same way.
AG
BA
BA
AG
AG
GH
Plastic Washer GH
Fig 18
3-e. Attach the Small Top Roof Cover (BA) to the assembled small top by Bolt\Plastic
Washer M6*35 (GH),as per Fig.18.
AG
AG BA
BA
AG
Q
CB
CA
Fig 19
3-f. Attach the Small Top Cover (CA) to the Center Connector (Q) and then tighten the Ornament
(CB) to the Bolt of the Center Connector (Q), as per Fig 19.
Need Assistance? Visit us at: samsclub.com/membersmarkhelp
13

Step 4
UL
UL UR
VR
WR
VL
WL
UR
VR
VL
WL
WR
Fig 21 Fig 20
Fig 22
Fig 24
Fig 23
Fig 21
Fig 24
Need Assistance? Visit us at: samsclub.com/membersmarkhelp
Fig 20
R
M
M
N
N
GA
(GA)
Bolt\Flat Washer (M6X15)
Qty: 52
(GJ)
Wrench
Qty: 1
14

GA
UL/VL
UR/VR
4-b. Connect the Roof Framing Beam-Right Top (UR) / Roof Framing Beam- Right Middle (VR) and the Roof Framing
Beam-Left Top(UL) / Roof Framing Beam-Left Middle (VL) to the Long-Top Bar (S) by Bolt\Flat Washer M6*15(GA) ,
as per Fig 21.
4-c. Connect the Roof Framing Beam-Left Top(UL) / Roof Framing Beam-Left Middle (VL) and the Roof Framing
Beam-Right Top (UR) / Roof Framing Beam- Right Middle (VR) to the Short Top Bar (T) by Bolt\Flat Washer M6*15(GA) ,
as per Fig 22.
T
GA
Fig 21 Fig 22
GA
UR/VR
UL/VL
S
GA
WL
WR
Fig 24
Fig 23
4-d. Connect the Roof Framing Beam-Right Bottom (WR) and Roof Framing Beam-Left Bottom (WL) to the Long Top
Bar (S) by Bolt\Flat Washer M6*15(GA), as per Fig 23.
Connect the Roof Framing Beam-Left Bottom (WL) and Roof Framing Beam-Right Bottom (WR) to the Short Top Bar
(T) by Bolt\Flat Washer M6*15(GA), as per Fig 24.
GA
GA
A1
A2
GA
WR
WL
S
T
GA
Need Assistance? Visit us at: samsclub.com/membersmarkhelp
4-a . Connect the Big Top Connector (M) with the Small Top Lintel (N) by Bolt\Flat Washer M6*15(GA), as per Fig 20.
15
Step 5

Fig 26
Fig 25
AA AC AE AF AD AB
4pcs 4pcs 4pcs 4pcs 4pcs 4pcs
AA
AA
AC AC
AE
AE
AF
AF
AD
AD
AB
AB
Need Assistance? Visit us at: samsclub.com/membersmarkhelp
16
(GC)
Bolt\Plastic Washer (M6X40)
Qty: 8
(GI)
Screw
Qty: 40
Bolt\Plastic Washer (M6X15)
(GF)
Qty: 48
Bolt\Plastic Washer (M6X20)
(GG)
Qty: 8
(GJ)
Wrench
Qty: 1
(GK)
Allen Wrench
Qty: 1

Fig 25
the connect shape of steel top panel

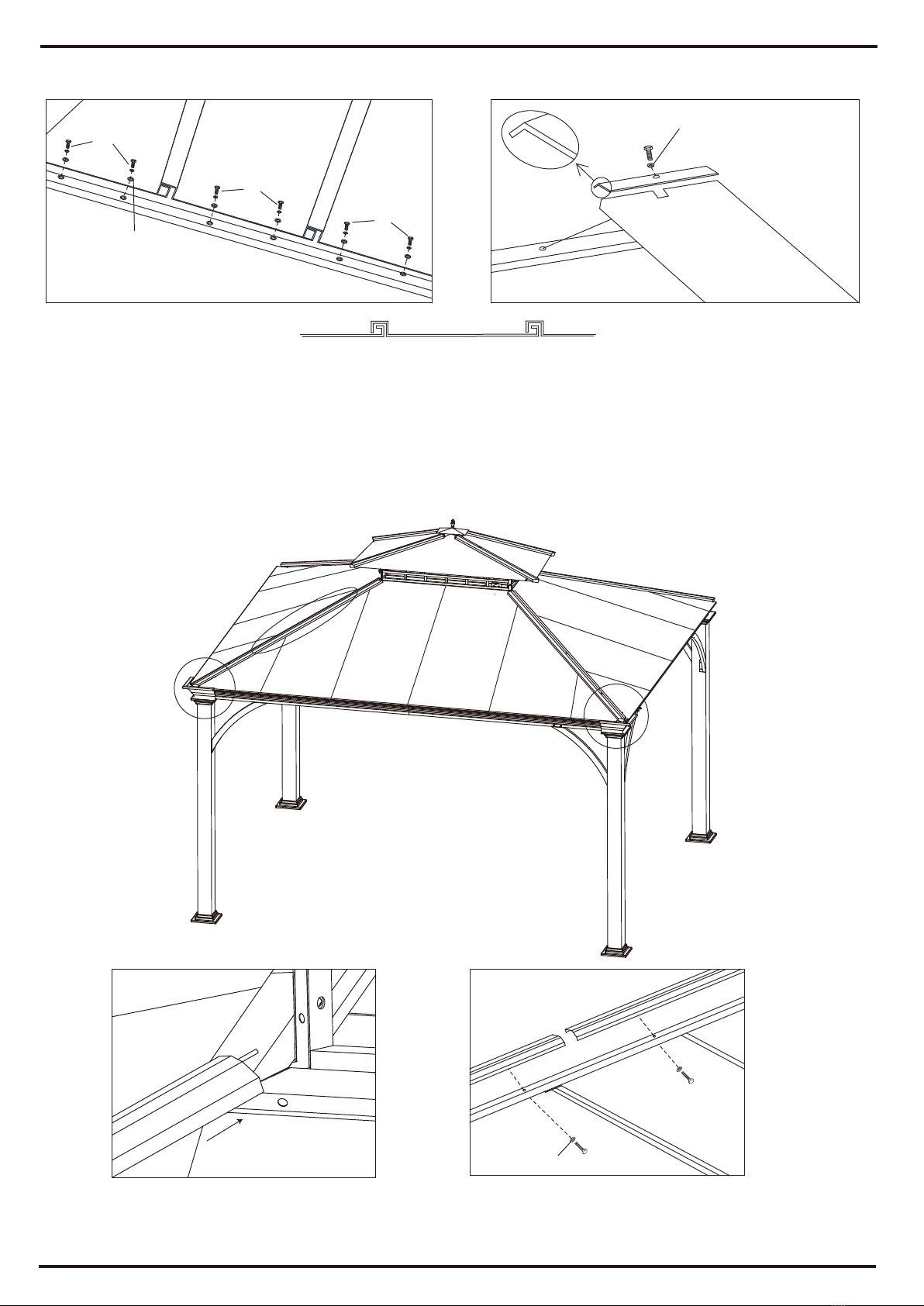

5-a. Attach the Big Top Panel-Left (AA/AC) to the assembled Roof Framing Beam-Left Bottom(WL) by Bolts\Plastic
Washer M6*15 (GF) , Attach the Big Top Panel-Middle (AE) to the assembled Roof Framing Beam-Left Bottom (WL) by
Bolts\Plastic Washer M6*15 (GF) In the same way. See Fig.25.
5-b. Attach the Big Top Panel -Middle (AF) to the assembled Roof Framing Beam- Right Bottom (WR) by Bolts\Plastic
Washer M6*15 (GF) in the same way. Connect the “L” shape connector (EB) and the other end of the big top panel-Middle
(AE/AF) to the Big Top Connector (M) by Bolts\Plastic Washer M6*20 (GG) . See Fig.26.
Fig 26
GF
GF
GF
AA
Plastic Washer
AC AE
WL
AE/AF
M
EA
GG
Fig 27
Fig 28
Fig 29
E
S
S
A1 A2
BB
BC
S
GC
BB
N
GC
Fig 27
5-c. Insert the Panel Cover- Big Top (BB) into the hole of Small Top Lintel #1 (N)/Small Top Lintel #2(O). Then
attach the Panel Cover- Big Top (BB/BC) to Long-Top Bar (S) by Bolts\Plastic Washer M6*40 (GC), as per Fig 30.
Assemble the other corners in the same way.
Need Assistance? Visit us at: samsclub.com/membersmarkhelp
17
Plastic Washer
Plastic Washer

E
C1
A1
A2
GI

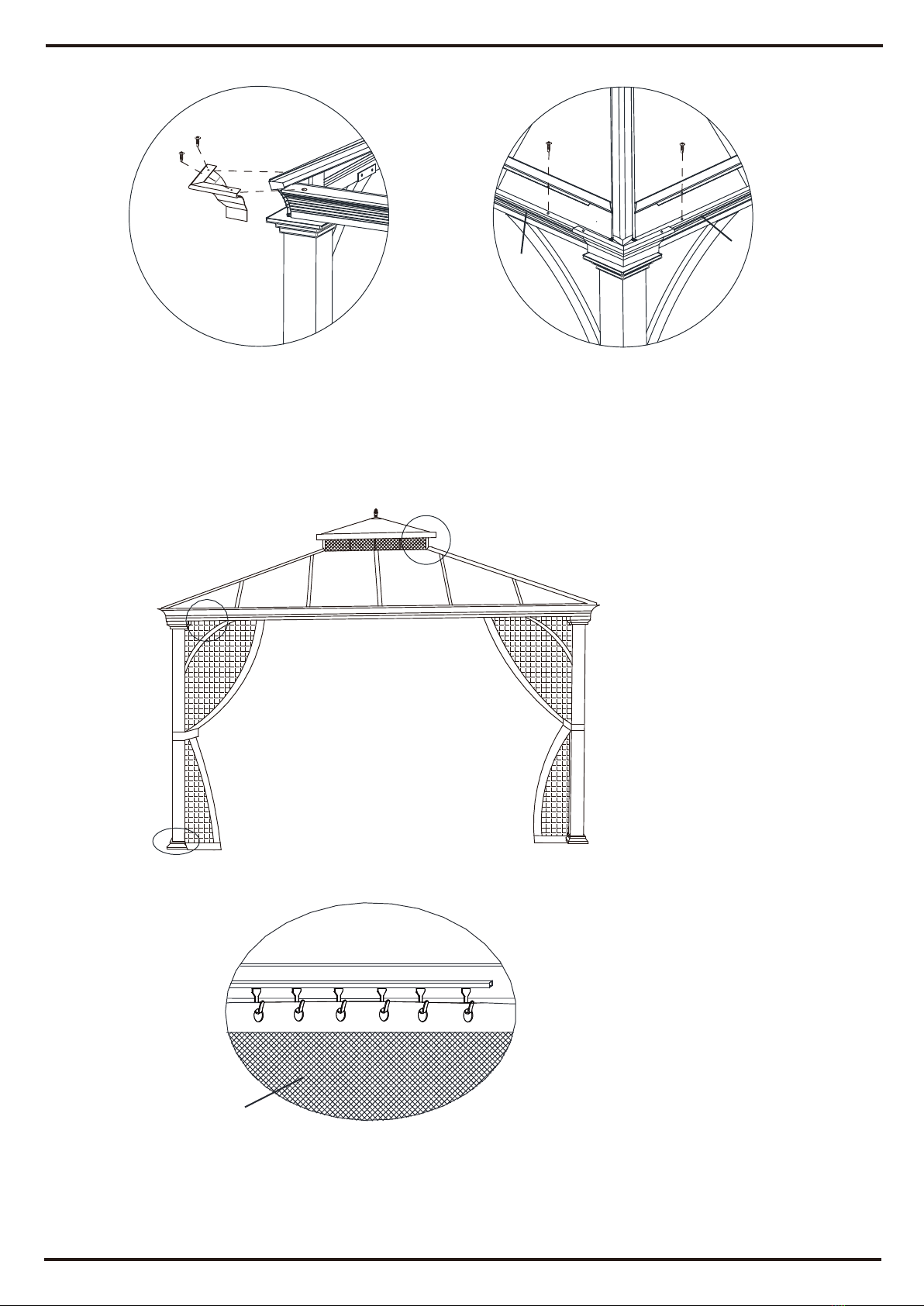

5-d. Attach the Corner cover (C1) to the corner of the Lintel (A1/A2) by Screws (GI). Attach the Edge
Cover- Left (DA) / Edge Cover- Right (DB) to the edge of the Lintel (A1/A2) by Screws (GI), as per Fig.28-29.
DB
A2
A1
DA
GIGI
Fig 28 Fig 29
Note: Keep the end of the Edge Cover (DA/DB) and the outer edge of the cross beam is on the same
line. Attached the others in the same way.
Need Assistance? Visit us at: samsclub.com/membersmarkhelp
Fig 30
5-e. Hang the Mosquito Netting (FB) on the hooks, as per Fig 30.
FB
18
Fig 32
Fig 30
Fig 31

Need Assistance? Visit us at: samsclub.com/membersmarkhelp

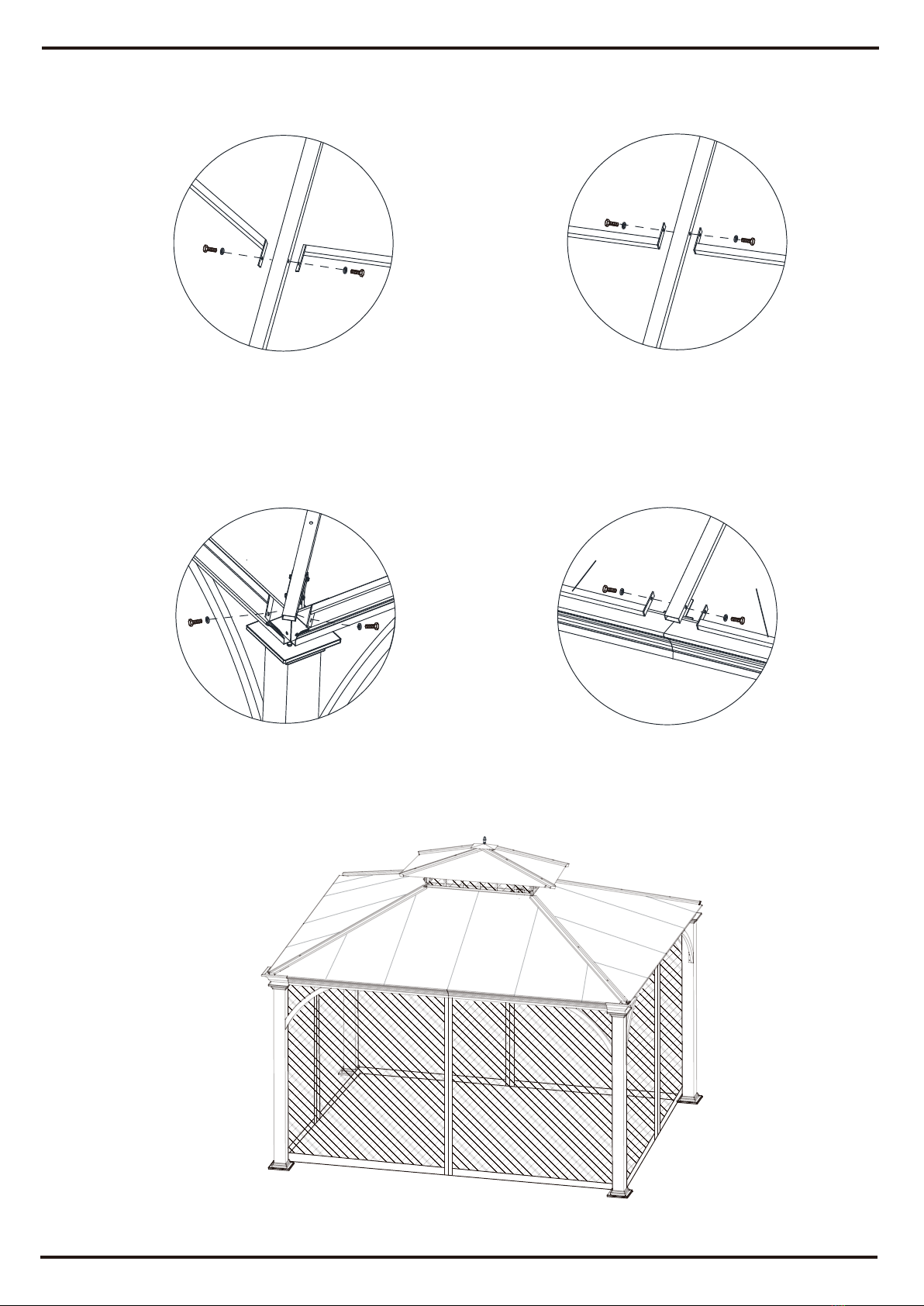

GA Bolt\Flat
Washer (m6*15) 15
2
Bolt\Plastic
Washer (m6*15) 5
5
GB
GC Bolt\Plastic
Washer (m6*35)
2
GD
GE
GF
GG
GH
GI
Bolt\Flat
Washer\ Nut
(m6*35)
2
Bolt\Plastic
Washer (m6*40)
Screw
2
Bolt\Plastic
Washer (m6*20)
Bolt\Flat
Washer\ Nut
(m6*55)
2
Bolt\
Washer (m6*20) 2
Flat
Spare Parts
19
F
E
G2
GL
Fig 32
Fig 31
5-f. Put the Air Vent (FA) inside of the frame and attach the Air Vent (FA) to the Small Top
Lintel (N) using the velcro straps, as per Fig.31.
c. Adjust the position and then insert the Stakes (GL) into each hole of the Base Plate (F),
as per Fig.32.
Your gazebo is now ready for use.
FA N
Hanger 2

Need Assistance? Visit us at: samsclub.com/membersmarkhelp
20
KEEP ALL FLAME AND HEAT SOURCES AWAY FROM THIS TENT FABRIC.
This tent meets the flammability requirements of CPAI-84. The fabric may burn if left in
continuous contact with any flame source. The application of any foreign substance to
the tent fabric may render the flame-resistant properties ineffective.
Danger
• DO NOT use or enter the gazebo under harsh weather (e.g. thunderstorms,
high winds, hail, heavy snow etc.). In these conditions, it might tip over and could
cause serious injury to bystanders. Any damage or injury caused by these conditions
is not covered by the warranty.
• DO NOT install the gazebo adjacent to trees or a sloped roof. Snow and ice may
slide onto the gazebo and cause it to collapse.
• DO NOT use or enter the gazebo if there exist any of the following or of similar
conditions:
1. visible movement of support members, roofing panels or sagging roofline.
2. cracks, fractures or malformation of support member or roof panels.
3. damaged or missing fasteners.
• DO NOT hang any weights on the roof frame.
• DO NOT use ladder leaning against the gazebo or climbing onto the roof.
• Keep away from heat or flame source.
• If the gazebo will not be used for a long period of time (e.g. during winter time),
disassemble and store it in a clean, dry location.
Care&Use Instructions
• Our steel components for gazebo and garden accessories are treated with
rust inhibiting paint that protects it from rusting. However, due to the nature of steel,
surface oxidation (rusting) will occur if these protective coatings are scratched.
This is not a defect and thus not covered by the warranty.
To minimize this condition, we recommend care when assembling & handling the
product to prevent scratching the paint. Should any scratching or damage occur, we
recommend immediate touch-up with rust inhibiting paint.
Surface rust can also be easily removed with a very light application of regular
cooking oil. If surface oxidation (rusting) occurs and if no preventive measure is taken,
the oxidation may start dripping onto deck or patio and caused damaging stains,
which may be difficult to remove.
This damage can be prevented if the above-mentioned measures are taken to keep the
gazebo’s frame from oxidizing.
• Do not use bleach, acid, or other abrasive cleaners on the roof or frame parts.
• Keep instruction manual for future reference.
• Keep the original packaging to store the gazebo.
WARNING
