Members Mark 20802B Owner's manual

for
ItemNumber:990116651
ModelNumber:20802B
CustomerAssistance(spare/replacementparts):1-[phone]
orEmail:[e-mail]
AssemblyInstructions&User’sManual
Member’sMarkHeightAdjustable2-DrawerWorkbench
withPegboardSet
THISASSEMBLYMANUALCONTAINSIMPORTANTSAFETYINFORMATION.
PLEASEREADANDKEEPFORFUTUREREFERENCE.
1page

·TableofContents
QualityStatement
……………………………………………………………………………..
3
ImportantSafetyInformation
…………………………………………………………………………………
3
BeforeAssembly
……………………………………………………………………………………
3
Care&Use
……………………………………………………………………………………………..
3
PackageContents
………………………………………………………………………………
4
PackageContents
………………………………………………………………………………
5
ProductInformation
……………………………………………………………………………………………….
5
Components
…………………………………………………………………………………….
5
Components
…………………………………………………………………………………….
6
Components
…………………………………………………………………………………….
7
Components
…………………………………………………………………………………….
7
Hardware
………………………………………………………………………………………………..
7
Tools
……………………………………………………………………………………………………….
7
Step1–Step3
…………………………………………………………………………………………….
8
Step4–Step6
…………………………………………………………………………………………….
9
Step7
…………………………………………………………………………………………….
10
Step8
…………………………………………………………………………………………….
11
Step9–Step10
…………………………………………………………………………………………….
12
Caution
……………………………………………………………………………………………..
13
Danger
………………………………………………………………………………………..
13
Troubleshooting
……………………………………………………………………………………………….
13
Care&UseandStorageInstructions
…………………………………………………………………………………………
13
WarrantyInformation
………………………………………………………………………………...
13
2page

·
QualityStatement
·
ImportantSafetyInformation

Pleasereadallinstructionscarefullybeforeassemblingthisproduct.
Hardwaremayloosenovertime.Periodicallycheckthatallconnectionsaretight.
Whereapplicable,andforyoursafety,assemblybyTWOadultsis
stronglyrecommended.
Useonlyvendor-suppliedhardwaretoassemblethisitem.Usingunauthorized
hardwarecouldjeopardizethestructuralintegrityoftheitem.
·
BeforeAssembly

Theshippingboxcanprovideanidealworksurfaceifnoneisavailable.
·
Care&Use

Removeallpartsandhardwarefromthebox.Placeallitemsonacarpetedor
scratch-freeworksurface,asthiswillavoiddamagingpartsduringassembly.
Usethecomponentsandhardwarelistsbelowtoidentify,inventoryandseparate
eachofthehardwareandcomponentsincluded.
Toavoidaccidentallydiscardingsmallcomponentsorhardware,donotdispose
ofanypackagingorcontentsoftheshippingcartonuntilassemblyiscomplete.
DONOTUSE powertoolsunlessitisexplicitlyidentifiedinthismanual
asrequiredforuseduringassembly.Powertoolscandamagethefasteners,
hardwareand/orcomponents.
Donotfullytightenallfasteners/screwsuntilallpartsareinplace.Failureto
followtheseinstructionsmaycausethefasteners/screwstomisalignduring
assembly.
Ifthewoodtopbecomesscratchedandchippedovertimeorduringassembly,a
Polyurethanefinishcanbeappliedtohelprestorethewood'snaturaltexture,as
wellasprotectthesurfacefromfuturedamage.WhenapplyingaPolyurethanewellasprotectthesurfacefromfuturedamage.WhenapplyingaPolyurethane
coating,pleasefollowthemanufacturer'sinstructionontheproductfor
application.

3page

4page
·
PackageContents
4page

·
Contents
Component Quantity
(pcs) Component Quantity (pcs)
(#1) 1 (#20-3) 2
(#3-B) 1 (#20-4) 2
(#5-C) 1 (#20-5) 2
(#5-D) 1 (#19) HANDLE 2
(#48-1) 1 (#18) DRAWERMAT 2
(#48-2) 1 (#2-D) PEGBOARDPANEL 2
(#48-3) 1 (#4) SPACER 8
(#47) 4 (#6-1) LEVELINGFEET 4
(#20-1) 2 (#45) 1
(#19-2) 2 (#70) 1
·
ProductInformation
ProductDimensions:
Workbench-60”Wx20”Dx37.5”~41.5”H(152.4cmx50.8cmx95.3~105.4cm)
Pegboard(setof2):30"Wx24"Heach(76.2cmx61cmeach)
ProductTotalWeightCapacity:1200lbs.(544.3kg)evenlydistributedaslistedbelow
Workbench:940lbs.(426.4kg)
Drawer(each):30lbs.(13.6kg)
Pegboards:200lbs.(91kg)
·Components
LEFTLEGPIECE
PartNo.(#5-C)
Qty:1pc
SMALLDRAWER
RIGHTPANEL
SMALLDRAWER
BACKPANEL
POWERSTRIPWITH
USBPORTS
POWERSTRIP
BRACKET
Description Description
SOLIDHARDWOODBOARD
TOP
BOTTOMCROSSBAR
SMALLDRAWERFRONT
PANEL
DRAWERBASEPANEL
LEFTLEGPIECE
RIGHTLEGPIECE
SMALLDRAWER
LEFTPANEL
"L"BRACKET
SOLIDHARDWOODBOARDTOP
PartNo.(#1)
Qty:1pc
BOTTOMCROSSBAR
PartNo.(#3-B)
Qty:1pc
SMALLDRAWERMIDDLE
SUPPORT
SMALLDRAWERLEFT
SUPPORT
SMALLDRAWERRIGHT
SUPPORT
5page

·Components
PEGBOARDPANEL
PartNo.(#2-D)
Qty:2pcs
POWERSTRIPWITHUSBPORTS
PartNo.(#45)
Qty:1pc
POWERSTRIPBRACKET
PartNo.(#70)
Qty:1pc
SMALLDRAWERBACKPANEL
PartNo.(#20-5)
Qty:2pcs
HANDLE
PartNo.(#19)
Qty:2pcs
DRAWERMAT
PartNo.(#18)
Qty:2pcs
RIGHTLEGPIECE
PartNo.(#5-D)
Qty:1pc
SMALLDRAWERMIDDLESUPPORT
PartNo.(#48-1)
Qty:1pc
SMALLDRAWERLEFTSUPPORT
PartNo.(#48-2)
Qty:1pc
SMALLDRAWERRIGHTSUPPORT
PartNo.(#48-3)
Qty:1pc
"L"BRACKET
PartNo.(#47)
Qty:4pcs
SMALLDRAWERFRONTPANEL
PartNo.(#20-1)
Qty:2pcs
DRAWERBASEPANEL
PartNo.(#19-2)
Qty:2pcs
SMALLDRAWERLEFTPANEL
PartNo.(#20-3)
Qty:2pcs
SMALLDRAWERRIGHTPANEL
PartNo.(#20-4)
Qty:2pcs
6page

·
Components
·
Hardware
SPACER
PartNo.(#4)
Qty:8pcs
SCREWB(M4x8L)
PartNo.(#15)
WALLANCHOR
PartNo.(#55-A)
SCREWN(M4x10L)
PartNo.(#54)
SCREWM(M6x50L)
PartNo.(#55)
M6LOCKWASHER
PartNo.(#59)
Qty:12pcs
MACHINESCREWJ
PartNo.(#51)
Qty 2pcs
SCREWR(M4x10L)
PartNo.(#71)
Qty 2pcs
SCREWI(M6x15L)
PartNo.(#50)
Qty:52pcs
LEVELINGFEET
PartNo.(#6-1)
Qty:4pcs
·Tools
1”CUREVEDJ-
HOOK
PartNo.(#101)
Qty 8pcs
1.5”STRAIGHTHOOK
PartNo.(#103)
Qty:16pcs
2”DOUBLE
STRAIGHTHOOK
PartNo.(#104)
Qty:4pcs
PartNo.(#15)
Qty 40pcs
2"PLIERHOLDER
PartNo.(#106)
Qty 4pcs
2"MULTI-TOOLHOLDER
PartNo.(#107)
Qty 2pcs
½”CURVEDJ-HOOK
PartNo.(#100)
Qty 8pcs
4”DOUBLECURVEDHOOK
PartNo.(#105)
Qty:4pcs
WRENCH
PartNo.(#25)
Qty 1pc
SCREWDRIVER
PartNo.(#21)
Qty 1pc
PartNo.(#55-A)
Qty:8pcs
PartNo.(#54)
Qty 8pcs
PartNo.(#55)
Qty:8pcs
7page

·
Step1–Step3
Step1. Install(#48-2)SmallDrawerLeftSupportand
(#48-3)SmallDrawerRightSupport
Note:
Attachthe(#48-2)SmallDrawerLeftSupport
tothebottomofthe(#1)SolidHardwood
Board,lineupthescrewholes,use12pcsof
(#50)ScrewIand12pcsof(#59)M6Lock
Washertotighten.
Repeatthissteptoinstallthe(#48-3)Small
DrawerRightSupport.
Openthepackageandmakesureyouhave
alltheparts.Putthemasidethenopenthe
packageoftheSolidHardwoodTop(#1)as
theleftphotoshows.
Donotfullytightenanyofthescrewsuntilall
screwsarepartiallyscrewedinfirst.Thiswill
Front
Back
Step2. Install(#5-C)LeftLegPieceand(#5-D)Right
LegPiece
Note:
Step3. Install(#47)"L"Bracket
Attachthe(#47)"L"BrackettoLegPieceand
SolidHardwoodTop(#1),lineupthescrew
holes,use16pcsof(#50)ScrewItotighten.
PayattentiontothedirectionoftheLeftand
RightLegPiece,thescrewknobsonthelegs
faceouttotheFRONT.
screwsarepartiallyscrewedinfirst.Thiswill
helpyoumakeanyadjustmentsforalignment.
Attachthe(#5-C)LeftLegPieceand(#5-D)
RightLegPiecetotheSmallDrawerLeft&
RightSupport,lineupthescrewholesthen
use12pcsof(#50)ScrewItotighten.
Back
Front
Back
Front
8page

·
Step4–Step6
Step4.
Install(#48-1)SmallDrawerMiddleSupport
Step5.
Attachthe(#48-1)SmallDrawerMiddle
Supporttothe(#1)SolidHardwoodBoard,line
upthescrewholes,use8pcsof(#50)ScrewI
and12pcsof(#59)M6LockWashertotighten.
Install(#3-B)BottomCrossbar/(#6-1)
Front
Back
Step5.
Step6.
Note:
TheleftandrightdirectionsofPowerStrip
canbeinterchangeable.Justtighten
Install(#3-B)BottomCrossbar/(#6-1)
LevelingFeet
Attachthe(#3-B)BottomCrossbartotheback
of(#5)LegPiece,lineupthescrewholes,use
4pcsof(#50)ScrewItotighten.
Attach4pcsof(#6-1)LevelingFeetto(#5)Leg
Pieces,useWrench(#25)totighten.
Install(#45)PowerStriponthe(#70)Power
StripBracket
Attach2pcsofScrewJ(#51)tothe(#70)
PowerStripBracketthentighten.Lineupthe
holesonthebackofthe(#45)PowerStripto
thebracket,installitonthe(#70)PowerStrip
Bracket,pushdownthenpushleft,thenpush
lefttofasten.
canbeinterchangeable.Justtighten
screwsontheothertwoholes.Pushitin
oppositedirectiontofastenafterinstalling
PowerStrip.
9page

·
Step7

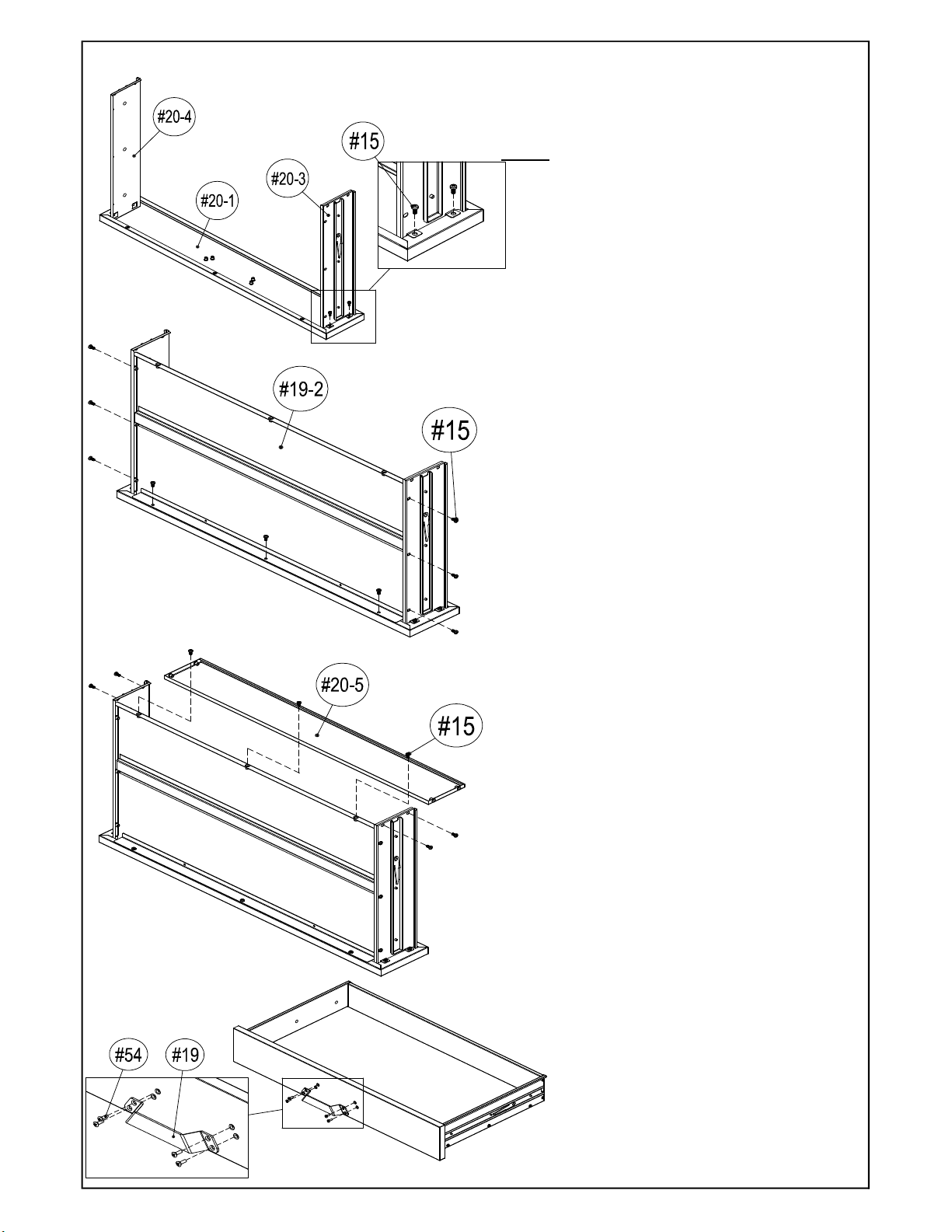

Step7. Install(#20)Drawer
(1).Install(#20-1)DrawerFrontPanel,(#20-3
&#20-4)Left&RightDrawerSidePanels.
Note:
(2).Install(#19-2)DrawerBasePanel
(3).Install(#20-5)DrawerBackPanel
Note: Onceyouadjustallthepartsinposition,
tightenallscrews.
(4).Install(#19)DrawerHandle
Attach(#20-5)DrawerBackPaneltothe(#20-
3&#20-4)Left&RightDrawerSidePanels
and(#19-2)DrawerBasePanel.Lineupthe
screwholesthenuse7pcsof(#15)ScrewBto
tighten.
Attach(#19)DrawerHandletothe(#20-1)
DrawerFrontPanel.Lineupthescrewholes
thenuse4pcsof(#42)ScrewNtotighten.
Repeatabovestepstoassemble2nddrawer.
Attach(#20-3&#20-4)Left&RightDrawer
SidePanelstothe(#20-1)DrawerFront
Panel.Lineupthescrewholesthenuse4pcs
of(#15)ScrewBtotighten.
Donotfullytightenanyofthescrewsuntilall
screwsarepartiallyscrewedinfirst.Thiswill
helpyoumakeanyadjustmentsforalignment.
Attach(#19-2)DrawerBasePanelto(#20-3&
#20-4)Left&RightDrawerSidePanelsand
(#20-1)DrawerFrontPanel.Lineupthe
screwholesanduse9pcsof(#15)ScrewBto
tighten.
10page

·
Step8
Step8.
Insert(#20)Drawer
(1)
.Pulloutthedrawersliderstofulllength
andmovetheballholderoftheslidetothe
front.
(2).AttachandfittheDrawertotheinnertrack
oftheslidersthenslidedrawersinslowly.
(3).Insert(#18)DrawerMatsinsideofdrawer
flatly.
Note:
Minimumheightofworkbench:37.5"
Maximumheightofworkbench:41.5"
Eachadjustedholespacingis:1"
Whenadjustingtheheight,werecommendplacing
workbenchupsidedown.Removethelegscrewknobs, 41.5"Height
37.5"Height
Repeatabovestepsforthe2nddrawer.
workbenchupsidedown.Removethelegscrewknobs,
raiseorlowerthelegsaccordingtoyourneedstheninsert
screwknobsandtighten.
41.5"Height
11page 

·
Step9–Step10
Step9.
Note:
Step10.
Install(#2-D)PegboardPanel
(1).Installthe(#2-D)PegboardPanelaccordingto
theheightofworkbench.
(2).Attachthe(#2-D)PegboardPanelontheedgeof
workbench,markfourholesthatneedtobedrilledon
thewall,thenputin4pcsof(#55-A)WallAnchor.
(3).Removetheprotectivelinerfromthedouble-sided
tapeofthe4pcsof(#4)Spacers,stickittothe
selectedholeonthebackofthePegboardPanel,
thenuse4pcsof(#55)ScrewsMtotighten.
(4).Repeattheabovestepstoinstallanother
PegboardPanelinthesameway.
(5).Place(#100),(#101),(#103),(#104),(#105),
(#106),(#107)HookstoPegboardasyoudesire.
Install(#45)PowerStrip
Adjusttheworkbenchtothedesiredheightbefore
installingthePowerStrip.
Attach(#70)PowerStripBrackettotheSolid
HardwoodTop,choosetheproperposition,use2pcs
of(#71)ScrewRtotighten.
12page

·
Warning
·
Caution
·
Troubleshooting
Donotstandontheworkbench.
Donotmovetheworkbenchwhileloaded.
RecommendusingTWOpeopletoassembletheworkbench.
Problem PossibleCause Prevention/Solution
Notlevel Surfacenotlevel Adjustlevelingfeet
Drawerdoesnotalign Screwsnotadjusted
Loosenscrewspartially,
makeadjustmentsbymoving
up/down/left/right,then
tightenscrews.
·
Care&UseInstructions
·
StorageInstructions
·
WarrantyInformation
ThisproductiscoveredbytheSam'sClubMemberSatisfactionGuarantee.Pleasevisit
samsclub.comformoreinformation.
Thisproduct’scomponentshavea1-yearguaranteeagainstdefectsinmaterialand/or
workmanship.Ifyouhaveanyquestionsregardingthewarrantyorspare/replacement
parts,pleasecallourtoll-freenumber1(800)323-5565oremailusat
[e-mail]
.
Ifthewoodtopbecomesscratchedandchippedovertimeorduringassembly,a
Polyurethanefinishcanbeappliedtohelprestorethewood'snaturaltexture,as
wellasprotectthesurfacefromfuturedamage.WhenapplyingaPolyurethane
coating,pleasefollowthemanufacturer'sinstructionontheproductfor
application.
Useasoft,cleancloththatwillnotscratchthesurfacewhencleaning.
Donotstorethisunitwherethereisexcessivehumidity,directabrasionorexposure
tothenaturalelements.
Care&
Use
NOTE:Pleaseconsiderrecyclingallapplicablepackagingmaterial.
[e-mail]
.
13page

DistributedbySam’sWestInc.
2101SESimpleSavingsDr.
Bentonville,Arkansas72716-0745
MadeinTaiwan
NeedAssistance?Visitusat:samsclub.com/membersmarkhelp
14page
