Mercia Garden Products 01DTSHPN0604SDFW-V1 Instruction manual

REGISTER FOR YOUR
ANTI-ROT
GUARANTEE TODAY
PLEASE SCAN HERE:
**Protim Aquatan T5 (621)**
Your building has been dip treated with Aquatan.
Aquatan is a water-based concentrate which is diluted with water, the building as been treated by the correct
application of Aquatan solution and then allowed to dry.
Aquatan is a decorative nish to colour the wood, which is applied industrially to timber fence panels and
garden buildings.
Aquatan undiluted contains: boric acid, sodium hydroxide 32% solution, aqueos mixture of sodium dioctyl
sulphosuccinat and alcohols: 2, 4, 6-trichlorophenol.
Measure
under the
head
Measure
overall
length
Screws & Nails Bolts To identify the
xings required
for each step use a
measuring tape.
01DTSHPN0604SDFW-V1
DIP TREATED SHIPLAP PENT 6X4 SINGLE DOOR FIXED WINDOW
2mm Drill bit
x2 Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
All buildings should be
erected by two adults
For ease of assembly, you
MUST pilot drill all screw
holes and ensure all screw
heads are countersunk.
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
CAUTION
Every eort has been made during the
manufacturing process to eliminate the
prospect of splinters on rough surfaces of the
timber. You are strongly advised to wear gloves
when working with or handling rough sawn
timber.
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied) including a Phillips screw-
driver, Stanley knife, Wood saw, Step ladder, Hammer and a Drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
LOCATION FOR YOUR GARDEN BUILDING
A minimum of 60cm should be left around the perimeter of your garden building to allow access for maintenance,
annual treatment and to allow air ow around the building.
Where possible you should avoid placing your garden building underneath large trees to prevent the tree causing
damage to the building.
TIMBER
As with all natural materials, timber can be aected during various weather conditions. For the duration of heavy
or extended periods of rain, swelling of the wood panels may occur. Warping of the wood may also occur during
excessive dry spells due to an interior moisture loss. Unfortunately, these processes cannot be avoided but can be
helped. It is suggested that the outdoor building is sprayed with water during extended periods of warm sunshine
and sheltered as much as possible during rain or snow.
Once your garden building has been installed it will need to be treated as soon as possible and annually to prevent
the timber from deteriorating and to waterproof it. This is required to maintain the anti-rot guarantee.
Dip Treated buildings - Require a preservative treatment to protect against rot and decay and a waterproof treat-
ment to prevent water ingress
Pressure Treated buildings - Require a waterproof treatment to prevent water ingress
Log Cabins - Are supplied untreated and require a preservative and waterproong treatment.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual
treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base
dimensions, The base should be slightly smaller than the external measurement of the building, i.e. The cladding
should overlap the base, creating a run o for water. It is also recommended that the oor be at least 25mm above
the surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens
products independently tested to EN71 level, we cannot accept responsibility for your safety whilst erecting or
using this product.
For ease of assembly, you
will need a tape measure to
check dimensions of
components.
P 1
Please retain product label and instructions for future reference
General Instructions

567
20
8
11
12
13
14
15
16
17
18
19
50mm Screw x 56
Felt Tacks x 80
30mm Screw x 84
10
21 22
23 24
1
Door Panel QTY 1
AI-01S11SHSD1180X2012-V1
2
Right Gable QTY 1
AI-01S11SHPGR1130X2011-V1
34
Roof QTY 1
AI-S11MBPR1292X1787-V1
Floor QTY 1
AI-R11MBF1175X1753-V1
Window Panel QTY 1
AI-01S11SH1CW583X2012-V1
Small Plain Panel QTY 1
AI-S11SHPP583X1792-V1
Door QTY 1
AI-S11FBMBZBD661X1780-V1
9
Large Plain Panel QTY 1
AI-S11SHPP1180X1792-V1
Door Beading Strip 12x28x1720mm QTY 2
S1228-1720mm
Window Cover Trims 12x40x513mm QTY 2
S1240-513mm
Window Cover Trims 12x40x583mm QTY 1
S1240-583mm
Cover Trims 12x40x1790mm QTY 3
S1240-1790mm
Cover Trims 12x40x2012mm QTY 3
S1240-2012mm
Fascia 12x70x1292mm QTY 2
S1270-1292mm
Fascia 12x70x1811mm QTY 2
S1270-1811mm
Door Block 28x28x140mm QTY 1
F2828-140mm
Eaves Framing 28x28x1787mm QTY 2
FS2828-1787mm
Felt QTY 1
PI-01-0013
Styrene QTY 1
PI-05-0114
T-Hinge QTY 3
PI-07-0021
Turn Button QTY 2
PI-07-0034
Pad Bolt QTY 1
PI-07-0035
Window Cill QTY 1
PI-08-0012
Left Gable QTY 1
AI-01S11SHPGL1130X2011-V1
P 2
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied) including a Phillips screw-
driver, Stanley knife, Wood saw, Step ladder, Hammer and a Drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
LOCATION FOR YOUR GARDEN BUILDING
A minimum of 60cm should be left around the perimeter of your garden building to allow access for maintenance,
annual treatment and to allow air ow around the building.
Where possible you should avoid placing your garden building underneath large trees to prevent the tree causing
damage to the building.
TIMBER
As with all natural materials, timber can be aected during various weather conditions. For the duration of heavy
or extended periods of rain, swelling of the wood panels may occur. Warping of the wood may also occur during
excessive dry spells due to an interior moisture loss. Unfortunately, these processes cannot be avoided but can be
helped. It is suggested that the outdoor building is sprayed with water during extended periods of warm sunshine
and sheltered as much as possible during rain or snow.
Once your garden building has been installed it will need to be treated as soon as possible and annually to prevent
the timber from deteriorating and to waterproof it. This is required to maintain the anti-rot guarantee.
Dip Treated buildings - Require a preservative treatment to protect against rot and decay and a waterproof treat-
ment to prevent water ingress
Pressure Treated buildings - Require a waterproof treatment to prevent water ingress
Log Cabins - Are supplied untreated and require a preservative and waterproong treatment.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual
treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base
dimensions, The base should be slightly smaller than the external measurement of the building, i.e. The cladding
should overlap the base, creating a run o for water. It is also recommended that the oor be at least 25mm above
the surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens
products independently tested to EN71 level, we cannot accept responsibility for your safety whilst erecting or
using this product.
01DTSHPN0604SDFW-V1
Overall Dimensions:
Width = 1811mm
Depth = 1305mm
Height = 2092mm
Base Dimensions:
Width = 1753mm
Depth = 1175mm
Please retain product label and instructions for future reference
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
Nail Bag
There may be extra screws present in the nail bag

P 3

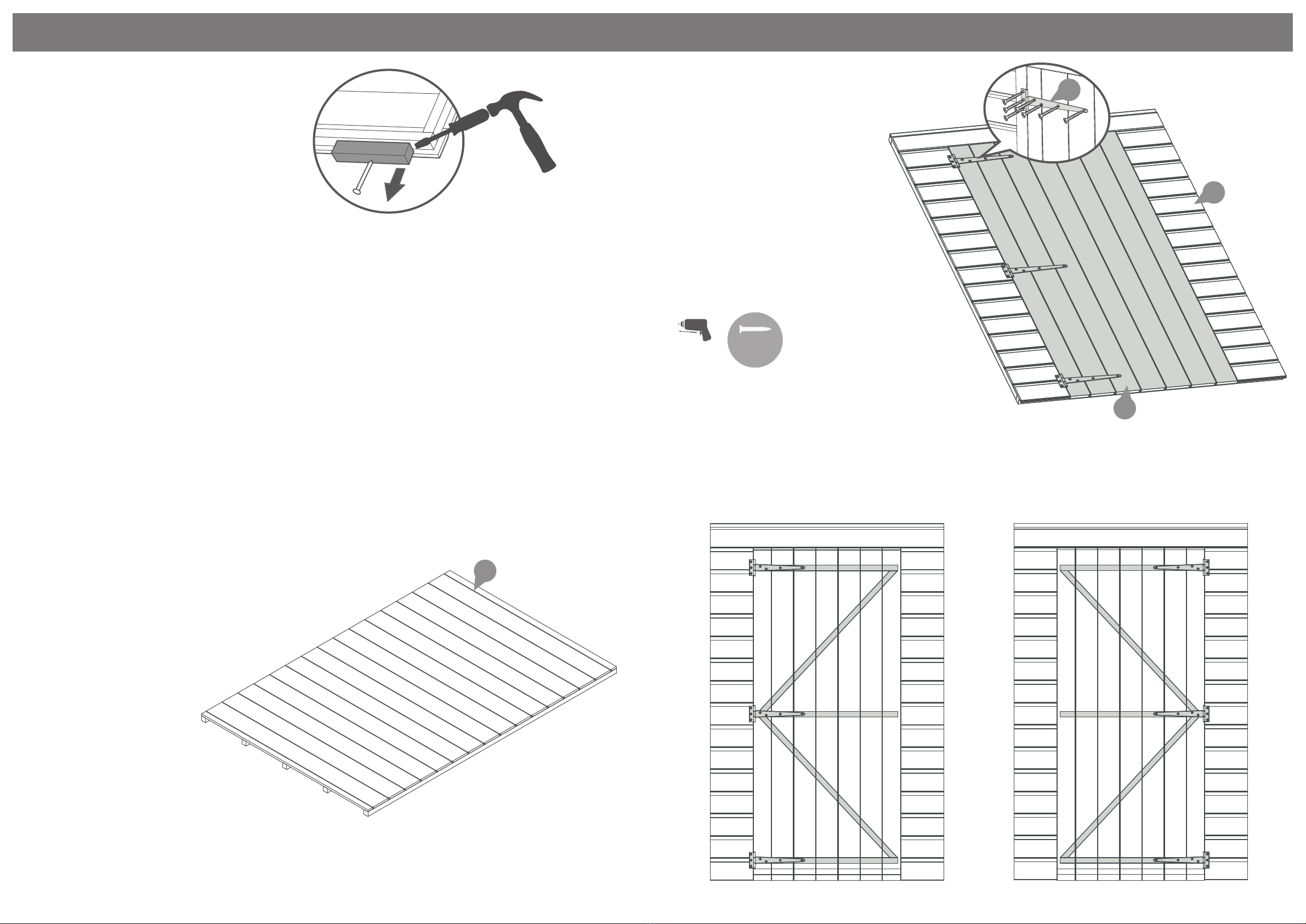

Pre Assembly
Before assembling remove the transportation
blocks from the bottom of each panel.
Take care removing the blocks as to not damage
the panels. Tap with a at headed screwdriver
and hammer.
Dispose of the blocks once removed.
Step 1
Parts needed - No. 5 QTY 1
Place the oor panel (No. 5) onto a rm
and level base. Ensure the base has suitable
drainage, free from areas where standing
water can collect. See front page for base
requirements.
5
Please retain product label and instructions for future reference
Step 2
Parts needed - No. 1 QTY 1
No. 8 QTY 1
No. 21 QTY 3
Place the door (No.8) within the
Door Panel (No. 1). Fix the T Hinges
(No. 21) onto the door and Door
Panel as shown (taking into account
on which side of the Door Panel
opening you want the Door to open).
Ensure that the screws go through the
cladding and into the framing behind.
21x30mm Screws
21
Pre drill
hole
30mm
screw
1
8
Opens from the Left Opens from the Right
**PLEASE NOTE** Before tting the
hinges, ensure the door is in the correct
position depending on which side you
want the door to open. See external
illustrations below which show the doors
internal framing.

37
50mm
screw
Pre drill
hole
P 4

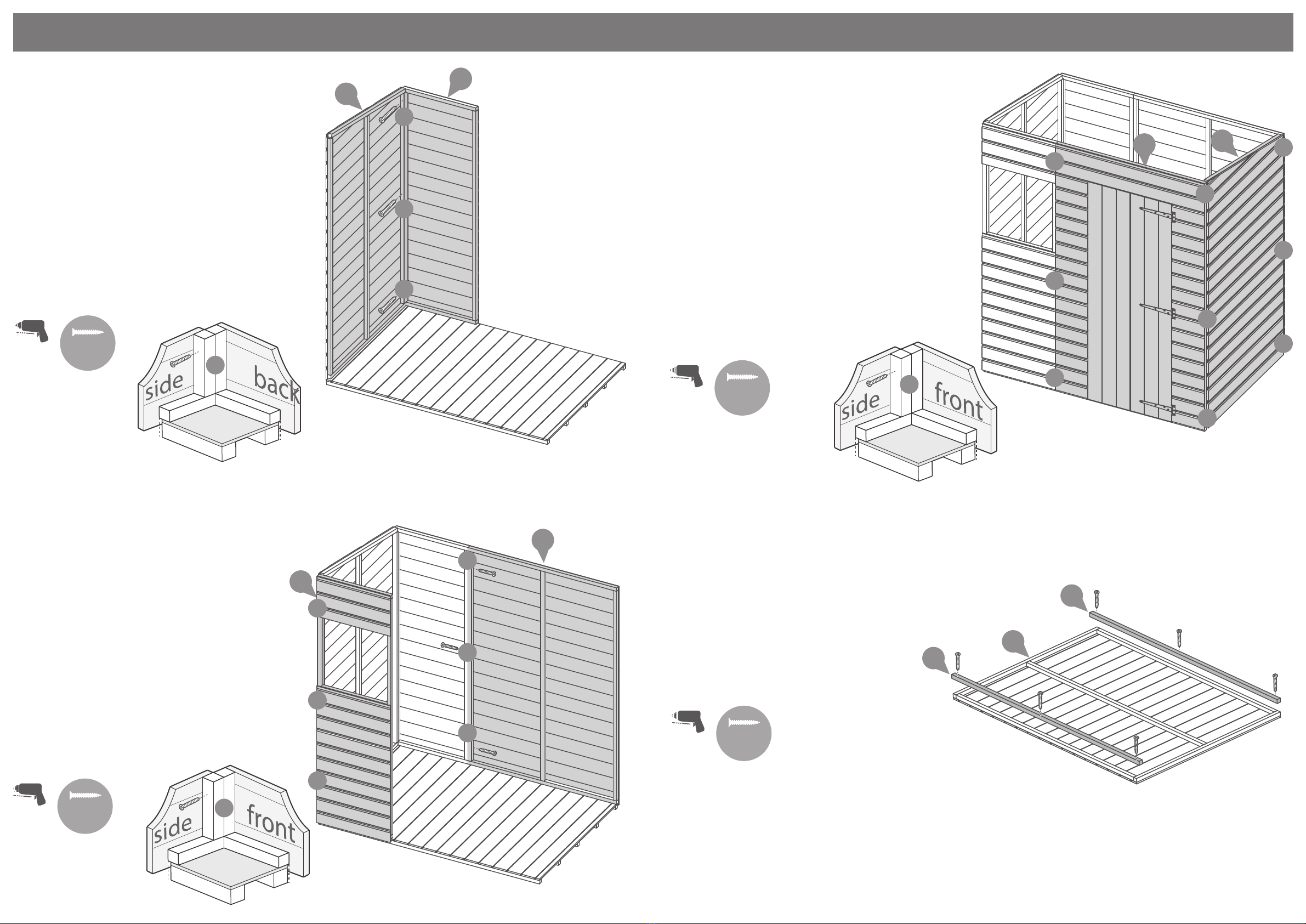

Step 3
Parts needed - No. 3 QTY 1
- No. 7 QTY 1
Place the Left Gable (No.3) and the Small
Plain panel (No.7) onto the oor, Fix the
panels at the corner using 3x50mm Screws
Do not secure the building to the oor
until the roof has been tted.
Position the panels so there is equal
spacing between the oor and cladding on
all sides.
3x50mm Screws
a
a
a
a
a
4
6
50mm
screw
Pre drill
hole
Step 4
Parts needed - No. 4 QTY 1
- No. 6 QTY 1
Fix the corners of the Window panel (No.6)
to the Left Gable using 3x50mm screws.
Fix the end of the Large Plain panel (No.4) to
the Short plain panel using 3x50mm screws.
Do not secure the building to the oor
until the roof has been tted.
Position the panels so there is equal
spacing between the oor and cladding on
all sides.
6x50mm Screws
a
a
a
a
a
a
Please retain product label and instructions for future reference
50mm
screw
Pre drill
hole
Step 5
Parts needed - No. 1 QTY 1
- No. 2 QTY 1
Fix the corners of the Right Gable (No.2) to
the Large Plain Panel and the Door Panel
(No.1) using 6x50mm screws.
Fix the end of the Door panel (No.1) to the
Window panel using 3x50mm screws.
Do not secure the building to the oor
until the roof has been tted.
Position the panels so there is equal
spacing between the oor and cladding on
all sides.
9x50mm Screws
a
a
a
a
a
a
a
a
a
a
2
1
18
18
9
Step 6
Parts needed - No. 9 QTY 1
- No. 18 QTY 2
50mm
screw
Pre drill
hole
Fix the Eaves framing (No.18) to the roof
(No.9) using 3x50mm screws per eaves
framing, screwing through the eaves framing
and into the roof framing.
Ensure the eaves framing is ush to the
edges of the roof framing before securing
6x50mm Screws

P 5
Please retain product label and instructions for future reference
9
50mm
screw
Pre drill
hole
Step 7
Parts needed - No. 9 QTY 1
Place the Roof Panels (No.9) on top of the
building making sure the framing in the roof
panels sits ush with the gable panels and
there is equal spacing at the front and back
of the building.
Secure roof to the building using 12x50mm
along each side of the roof, ensuing the
screws go through the roof framing and into
the panel framing.
12x50mm Screws
50mm
screw
Pre drill
hole

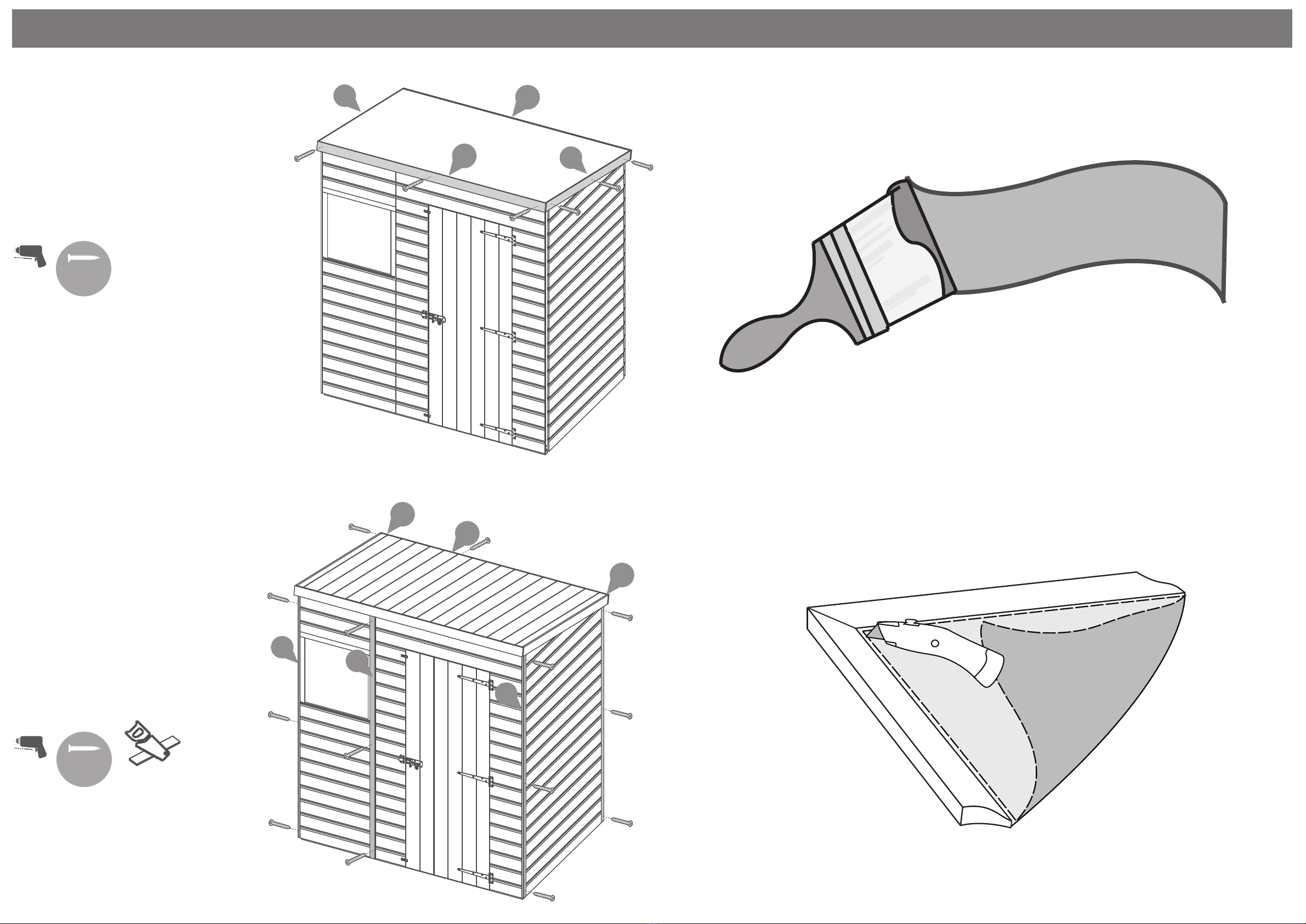

Step 8
Once the roof is xed, attach the building
to the oor with 50mm screws.
Ensure the screws go through the panel into
the oor framing
20x50mm Screws
bbb
b
bbb
b
b
b
HANDLE
WITH CARE
12
3
4
1
2
19
Step 9
Parts needed - No. 19 QTY 1
Cut the felt (No. 19) into two sheets at
1890mm. Lay onto roof as shown in
diagram ensuring there is a 50mm
overhang around the sides.
Apply the felt tacks with a 100mm
space per tack.
80x Tacks

P 6
Please retain product label and instructions for future reference

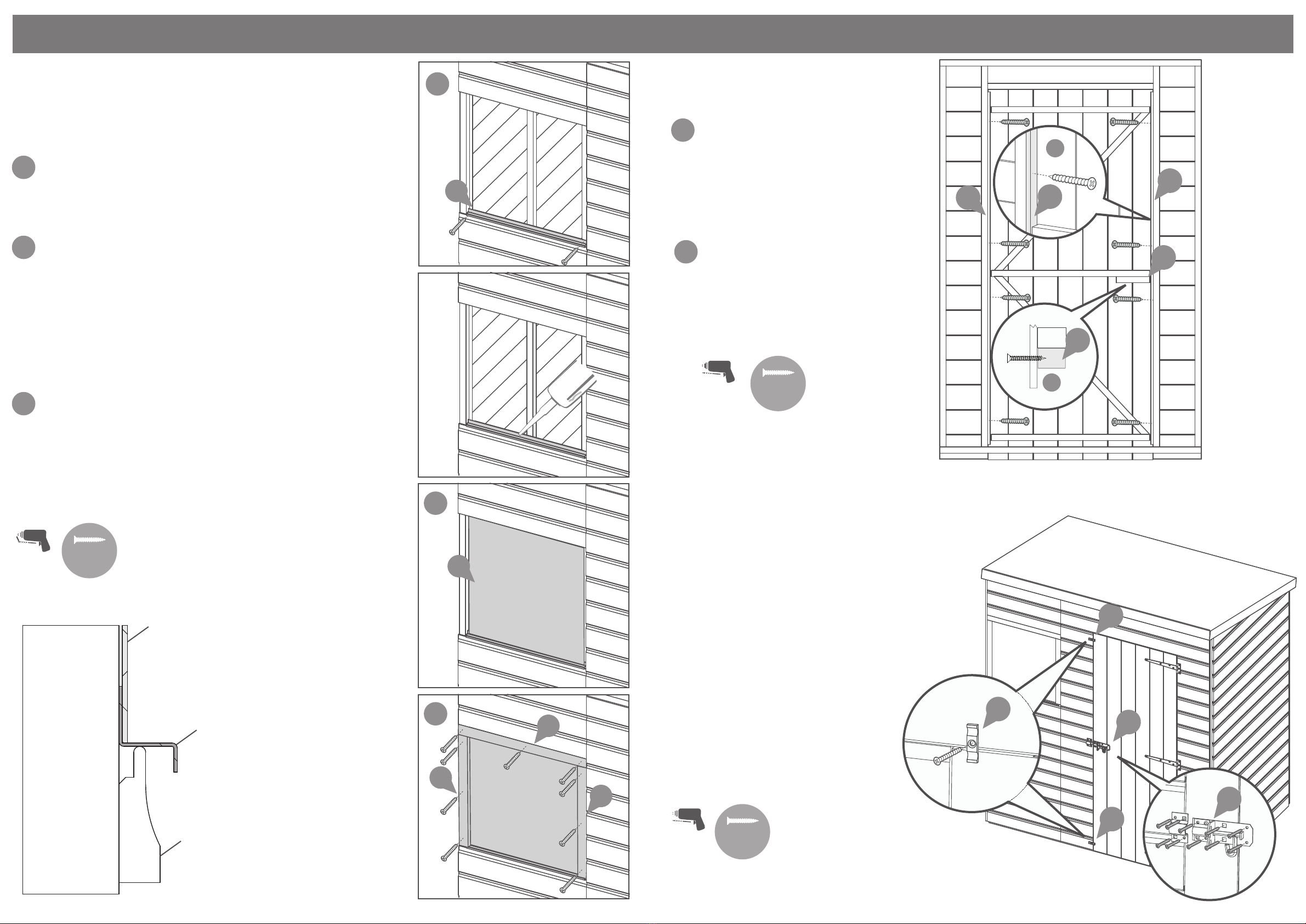

Step 10
Parts needed - No. 11 QTY 2
No. 12 QTY 1
No. 20 QTY 1
No. 24 QTY 1
Place the Plastic Window Cill (No. 24) into the
window panel (No. 6) opening as shown in
the illustration. Fix screws through the cill for
extra support using 2x30mm screws.
Fit the styrene sheets (No. 20) on top of the
Plastic Window Cill (No. 24).
*For added weather protection t your
windows using silicone sealant around
the outside edges.
**When positioning the styrene sheets ensure
there is an equal distance on all sides.
Attach the longer Window Cover trims (No. 12)
along the top of the window opening. Followed
by attaching 2 shorter Window Cover Trims (No.11) to
either side of the windows.
Secure into place using 3x30mm screws per
strip.
11x30mm Screws
Pre drill
hole
30mm
screw
a
b
c
Side View
Styrene
Window Cill
Cladding
SILICONE
SEALANT
24
20
11
11
12
a
b
c
Use 4x30mm Screws to x each
beading strips (No. 10) onto the
insides of the Door Panel (No. 1)
opening. Ensure that the screw is
parallel with the door frame when
xing the strip to the Door Panel as
shown in the close up view.
Attach the Door Block (No. 17) to the
door (No. 8) using 2x30mm screws,
in the positions illustrated. Screw
through the door cladding into the
blocks using 30mm screws
10x30mm Screws
Step 11
Parts needed - No. 10 QTY 2
No. 17 QTY 1
30mm
screw
Pre drill
hole
a
b
10
10
17
17
a
b
10
Step 12
Parts needed - No. 22 QTY 2
- No. 23 QTY 1
Screw the Pad Bolt (No. 23) on to the door
(No. 8) and the retainer to the door panel
(No. 1) using 10x30mm screws. Make
sure that you screw into the framing behind.
Fix the Turn Button (No. 22) onto the
Door Panel (No. 1) using 1x30mm
screw for each one.
*These turn buttons help to keep
your doors straight during high
and low levels of moisture content
in the air.*
12x30mm Screws.
30mm
screw
Pre drill
hole
22
23
22
22
23

*Cut down
trims to t
P 7
Please retain product label and instructions for future reference
Step 14
Parts needed - No. 13 QTY 3
- No. 14 QTY 3
Fit the Cover trims (No.13 and No.14)
over each panel join and corner of
the building as shown using 3x30mm
screws per cover trim.
Pre drill to avoid splitting.
Cover trims may need cutting to size
before tting.
18x30mm Screws.
30mm
screw
Pre drill
hole
Step 13
Parts needed - No. 15 QTY 2
- No. 16 QTY 2
Fit the Fasicas (No.15 and No.16) to the roof
over the felt and secure using 12x40mm
Screws.
Pre drill to avoid splitting
12x30mm Screws.
30mm
screw
Pre drill
hole
16
16
15
15
13
14 14
14
13
13
It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
AFTER TREATMENT:
score around protective
cover on glazing and
carefuly peel
covering back

P 7




















































2





1












3
4

































¡




1




2























¡



