Mercia Garden Products 01PTOSBRA1008SDFW-V1 Instruction manual

01PTOSBRA1008SDFW-V1
10x8 PRESSURE TREATED OSB REVERSE APEX
2mm Drill bit
x2 Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
All building’s should be
erected by two adults
For ease of assembly, you
MUST pilot drill all screw
holes and ensure all screw
heads are countersunk.
For assistance please contact customer care on: 01636 880514
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
CAUTION
Every eort has been made during the
manufacturing process to eliminate the
prospect of splinters on rough surfaces of the
timber. You are strongly advised to wear gloves
when working with or handling rough sawn
timber.
Please retain product label and instructions for future reference

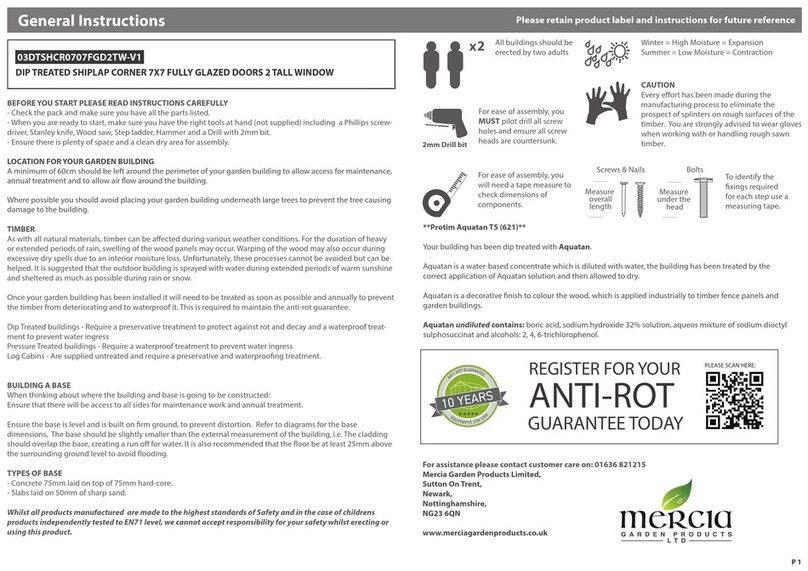

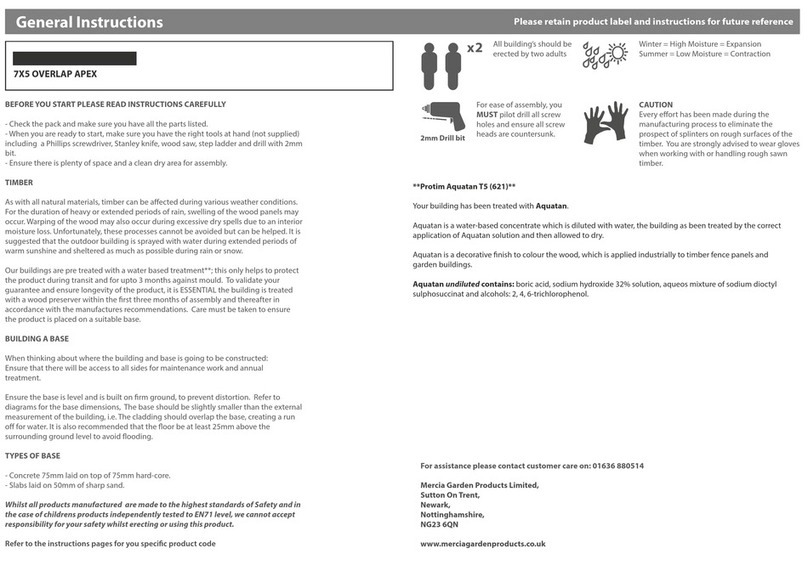

General Instructions
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied)
including a Phillips screwdriver, Stanley knife, wood saw, step ladder and drill with 2mm
bit.
- Ensure there is plenty of space and a clean dry area for assembly.
TIMBER
As with all natural materials, timber can be aected during various weather conditions.
For the duration of heavy or extended periods of rain, swelling of the wood panels may
occur. Warping of the wood may also occur during excessive dry spells due to an interior
moisture loss. Unfortunately, these processes cannot be avoided but can be helped. It is
suggested that the outdoor building is sprayed with water during extended periods of
warm sunshine and sheltered as much as possible during rain or snow.
Our buildings are pre treated with a water based treatment**; this only helps to protect
the product during transit and for upto 3 months against mould. To validate your
guarantee and ensure longevity of the product, it is ESSENTIAL the building is treated
with a wood preserver within the rst three months of assembly and thereafter in
accordance with the manufactures recommendations. Care must be taken to ensure
the product is placed on a suitable base.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual
treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to
diagrams for the base dimensions, The base should be slightly smaller than the external
measurement of the building, i.e. The cladding should overlap the base, creating a run
o for water. It is also recommended that the oor be at least 25mm above the
surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in
the case of childrens products independently tested to EN71 level, we cannot accept
responsibility for your safety whilst erecting or using this product.
Refer to the instructions pages for you specic product code
Pressure Treated Timber
Pressure treating is a chemical process which helps to protect wood against adverse weather which could
lead to rot or insect damage.
The most common chemicals used to pressure treat wood are Alkaline Copper Quaternary (ACQ),
Copper Azole (CA), and Micronized Copper Quaternary (MCQ).
Safety: Always wear gloves, eye protection and a dust mask when handling wood. Due to chemicals in
pressure treated wood, never burn its sawdust or scraps; instead dispose in a landll.

P 12
01PTOSBRA1008SDFW-V1
Overall Dimensions:
Length = 2482mm
Width = 3027mm
Height = 2339mm
Base Dimensions:
Length = 2360mm
Width = 2974mm
Please retain product label and instructions for future reference
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
Building content
Door Panel
12
Window Panel
4
Plain Gable
Qty 2
6
Roof Sheet
Qty 2
78
9
11
12
13
14
15
16
17
18
10
Cover Trim - 1800mm Qty 6
Ridge Bar - 1462mm Qty 2
Door Strip - 1590mm Qty 2
Eaves Frame - 1001mm Qty 6
Fascia - 1333mm Qty 4
Door Block- 140mm Qty 1
Finial Qty 2
T Hinge
Qty 2
Felt
L-Bracket
Qty 2
Turn Button
Qty 2
Pad Bolt
Qty 1
3
Back Panel Floor
Qty 2
5
Door
U Channel
19
20 21
22 23
Truss Support- 302mm Qty 3
Truss- 1262mm Qty 6
Truss Block- 140mm Qty 6
Nail Bag Felt Tacks x 120
20mm Screw x 12
30mm Black Screw x 2
30mm Screw x 162
50mm Screw x 79
40mm Screw x 14
Fix the T Hinges onto the
door and door frame as
shown. Ensure that the
screws go through the
cladding and into the
framing behind.
14x30mm screws
30mm
screw
Pre drill
hole
1
7
18
Remove transportation
blocks from the bottom
of each panel before
beginning assembly. Each
Panel should have two
Pre Assembly

P 13
Please retain product label and instructions for future reference
30mm
screw
Pre drill
hole
Step 1
Place the oor on a rm and level base,
ensure the base has suitable drainage free
from areas where standing water can collect.
See the front page for base requirments.
Fix the two oor panels together using
10x50mm screws alternating sides as shown
in the diagram.
10x50mm screws
55
5
Do not secure the building to the
oor until the roof is tted.
Step 2
Place one of the back panels and
plain gables on the oor and x the
corners with 3x50mm screws as
shown in diagram.
Position the panels so there is equal
spacing between the oor and
cladding on all 4 sides
3
4
3x50mm Screws
Pre drill
hole
50mm
screw
Step 3
Place the remaining back panel
and remaining plain gable on
the oor and x the corners
with 50mm screws as shown in
diagram.
9x50mm Screws
Pre drill
hole
50mm
screw
3
4
Step 4
Place the window panel and
door panel on the oor and x
the panels and corners with
50mm screws as shown in
diagram.
*Please note that these two
panels can be tted either way
round.
9x50mm Screws
Pre drill
hole
50mm
screw
2
1

P 14
For assistance please contact customer care on: 01636 880514
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
10x30mm Screws
8x20mm Screws
Step 5
Position the two parts of the ridge bar
within the U channel and secure from
either side with 3 x 30mm screws and 4 x
30mm screws from underneath.
Place the constructed ridge bar in
between the two gables. Ensure the top
corners of the ridge bar sit ush with the
top points of the gable. Fix the ridge bar
to the gable using one L bracket for each
end. Fix with 4x20mm screws each.
30mm
screw
Pre drill
hole
20
8
20mm
screw
2x50mm Screws
Step 6
Position a truss frame to the ridge bar
sloping down towards the building front,
ensure it is central to the middle upright
of the panel. Fix with 1x50mm screw
through the ridge bar into the truss
frame.
Align the second truss frame with the
rst on the opposite side of the ridge bar
and x with 1x50mm screw at an angle
as illustrated.
20mm
screw
Pre drill
hole
23
40mm
screw
Pre drill
hole
50mm
screw
Pre drill
hole
15
17
17
16
16
iii
ii
i
Please retain product label and instructions for future reference
Step 7
Fix the support block to the side panel
framing with 2 x 50mm screws. Position
the block at the top of the framing with
the angle pointing upwards into the
building, aligning the block centrally
along the join between the side panels
with one screw in each panel.
Fix the support bar to the block using
1x50mm screw.
6x50mm Screws
Step 8
Fix a Truss support between the two truss
frames and x in place using 40mm
screws, ensure you pre-drill holes before
xing together.
4x40mm Screws

P 15
Please retain product label and instructions for future reference
10
7
10
50mm
screw
Pre drill
hole
Step 9
Repeat steps 5,6 and 7 for the two
remaining truss, supports and
blocks. Ensure they are evenly
spaced between the centre truss
and plain gables.
4x50mm Screws
12x50mm Screws
8x40mm Screws
Step 10
Place a roof sheets ontop of the plain
gable and truss making sure the roof
sheet sits ush to the outside edge of
the plain gable and x using 30mm
screws. Before xing the roof sheet to
the truss frame make sure the edge of
the roof sheet sits in the middle of
the truss frame then x.
17x30mm Screws
40mm
screw
30mm
screw
Pre drill
hole
50mm
screw
Pre drill
hole
Step 11
Repeat step 10 for the four
remaining roof panels. Ensure they
sit ush to the centre truss and plain
gables.
51x30mm Screws
Step 12
Fix the eaves frames to the bottom
of the roof panels with 3x30mm
screws per eave frame.
18x30mm Screws
30mm
screw
Pre drill
hole
7
7

Felt
tacks
P 16
Please retain product label and instructions for future reference
HANDLE
WITH CARE
12
3
4
23 23
23
50mm
screw
Pre drill
hole
Step 13
Once the roof os attached the
panels can be xed to the oor
panel using 4x50mm screws per
panel.
24x50mm Screws
Step 14
Cut out three strips of 3128mm felt and
place onto the roof.
Place the felt at onto the roof in the
order that is stated on the diagram
below.
Once the sheets are laid out x them
onto the roof with tacks aprox
100mm apart.
120x felt tacks

9
9
9
9
9
9
Please retain product label and instructions for future reference
30mm
screw
Pre drill
hole
Step 15
Fit the cover trims to the front back
and sides of the building using
3x30mm screws per cover trim.
Ensure the front and back cover
trims are tted centrally in order to
cover the joint between panels.
18x30mm Screws
Step 16
Attach the facias to the roof leaving a
slight overhang at the top.
Fit the facias to the roof over the felt
and secure in place with 40mm
screws as shown.
12x30mm Screws
40mm
screw
Pre drill
hole
30mm
screw
Pre drill
hole
Step 17
Use 4x30mm screws to x each
beading strip onto the door panel.
Ensure that the screw is parallel with
the door frame when xing the strip
to the door panel as shown in the
diagram.
Line up the door block as shown. Fix
with 2x30mm screws by screwing
through the outside of the door and
into the door block.
8x30mm Screws
2x30mm Screws
Step 18
Fix the pad bolt with 6x30mm screws
to the horizontal brace of the door.
Then x the pad bolt retainer to the
door panel framing using 4x30mm
screws.
Fix each tunr button using 1x30mm
black screw. These turn buttons
help to keep your doors straight
during high and low levels of
moisture conten in the air.
10x30mm Screws
2x30mm Black Screws
30mm
screw
Pre drill
hole
12
12
14
14 12
12
13
11
11 11
30mm
screw
19
20

Please retain product label and instructions for future reference
It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
AFTER TREATMENT:
score around protective
cover on glazing and
carefuly peel
covering back
