Mercia Garden Products 03DTSHPN0409DSHPB-V1 User manual
2mm Drill bit
x2
¡
¢
¡
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
Overall Dimensions:
Width = 1205mm
Depth = 2913mm
Height = 2157mm
Base Dimensions:
Width = 1133mm
Depth = 2800mm
Nail Bag
There may be extra screws present in the nail bag
Door Panel QTY 1
AI-01S11SHDD1135X2099-V1
Back Panel QTY 1
AI-S11SHPP1135X1940-V1
Side Panel QTY 2
AI-S11SHPPTOV1375X1687-V1
Floor QTY 2
AI-R11MBF1133X1400-V1
Roof QTY 2
AI-S11MBPR1143X1444-V1
Door QTY 2
AI-S11FBMBZBD479X1680-V1
Front Gable Top QTY 1
AI-S21SHDBPGT1375X451-V1
9
Back Cover Trim - 12x40x1909mm QTY 1
S1240-1909mm
10
Front Cover Trim - 12x40x2055mm QTY 2
S1240-2055mm
11
Fascia Trim - 12x95x1143mm QTY 2
S1295-1143mm
12
Door Cover Trim - 12x60x770mm QTY 2
S1260-770mm
1 2 3 4
568
13
Roof Framing - 28x28x1143mm QTY 2
FS2828-1143mm
17 19
15
16
Door block - 28x28x140mm QTY 4
FS2828-140mm
Floor Joining block - 28x28x250mm QTY 3
FS2828-250mm
18
14
Gable Framing - 27x44x1345mm QTY 2
F2744-1345mm
Pad Bolt QTY 1
PI-07-0035
T-hinge QTY 6
PI-07-0021
Turn Button QTY 4
PI-07-0034
Felt
PI-01-0013
20
50mm Screw x 72
Felt Tacks x 50
30mm Screw x 78
60mm Screw x 12
40mm Screw x 28
20mm Screw x 6
Rear Gable Top QTY 1
AI-S21SHDBPGT1375X374-V1
7
Contents:
Pre Assembly
Before assembling remove the transportation
blocks from the bottom of each panel.
Take care removing the blocks as to not damage
the panels. Tap with a at headed screwdriver
and hammer.
Dispose of the blocks once removed.
Pre Assembly
Follow the instructions for the 9x9 Corner
Summerhouse (03DTSHCR0909FGD4TW),
however DO NOT attach the Felt, Rear
Cover Trims or the Fascia Trims.
Not attaching these parts allows the
extension to be xed in place.
Your building should look as shown.
1
6
6
17
12
Pre drill
hole
30mm
screw
20mm
screw
17
Step 1
Parts Needed - No.1 QTY 1
- No.6 QTY 2
- No.12 QTY 2
- No.17 QTY 6
Fix the T-hinges (No.17) to each of the
Doors (No.6) with 4x30mm screws per
hinge making sure to screw into the
framing on the rear of the Doors.
Once the T-hinges are xed into position
lay the Door Panel (No.1) at on the
ground x the door in position using
3x30mm screws per hinge.
To create a Master and Secondary door
x the Door Trims (No.12) to one of the
doors overlapping with the other door
as shown using 3x20mm screws per
trim.
6x20mm Screw
42x30mm Screws
12
IMPORTANT: Pre-drill before xing screws.
IMPORTANT: Pre-drill before xing screws.
Secure the oor (No. 4) to the
Floor Blocks (No.16) using 6x30mm
screws per oor.
6x30mm Screws
Pre drill
hole
30mm
screw

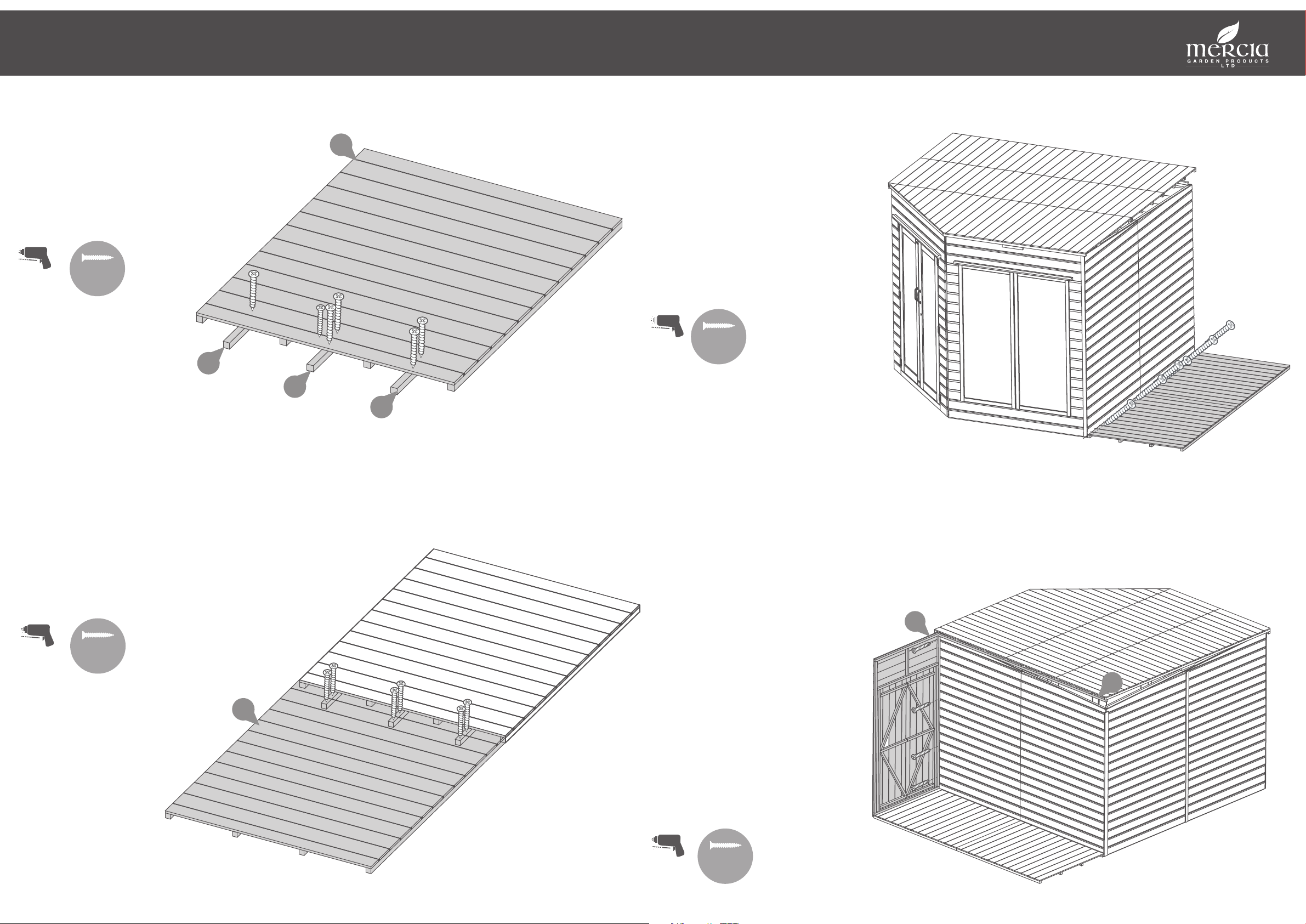

Step 2
Parts Needed - No. 4 QTY 1
- No. 16 QTY 3 4
16
16
16
Pre drill
hole
30mm
screw
Step 3
Parts Needed - No. 4 QTY 1
Secure the oor (No. 4) to the assembly
from Step 2, using 6x30mm screws per
oor.
6x30mm Screws
4
IMPORTANT: Pre-drill before xing screws.
Step 4
Place the two asembled Floors (No.4)
up against the 9x9 Corner
Summerhouse on a at, level surface.
Fix into position using 4x60mm screws
as shown.
**To position the side shed on the
left, position the oor on the left and
x in the same way shown.
4x60mm Screws
Pre drill
hole
60mm
screw
IMPORTANT: Pre-drill before xing screws.
Step 5
Right Side Shed only
Parts Needed- No.23 QTY 1
(9x9 Corner Summer house)
Parts Needed - No.1 QTY 1
Cut down the underhand framing (X)
by 70mm on both ends. It may be
necessary to re-attach the framing and
attach the rest of the side shed
following the same steps.
Fix the side of the Door Panel (No.1)
against the side of the 9x9 Corner
Summerhouse Window Panel as shown
using 4x60mm screws.
Do not secure the building to the
Floor until the roof is tted.
4x60mm Screws
Pre drill
hole
60mm
screw
1
X
**To position the side shed on the
LEFT, you do not need to alter the
under hang framing.
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
60mm
screw
Step 6
Parts Needed- No.2 QTY 1
Fix the side of the Back Panel (No. 2)
against the side of the 9x9 Corner
Summerhouse Back Panel as shown
using 4x60mm screws.
Do not secure the building to the
Floor until the roof is tted.
4x60mm Screws
2
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
50mm
screw
1
2
3
3
Step 7
Parts Needed- No. 3 QTY 2
Fix the two Side panels (No.3) together
using 3x50mm screws. Then x the side
panels to the Door (No.1) and back
panel (No.2) using 3x50mm screws at
each corner.
*9x9 Corner Summerhouse not
shown*
Do not secure the building to the
Floor until the roof is tted.
9x50mm Screws
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
50mm
screw
78
Step 8
Parts Needed- No.7 QTY 1
- No.8 QTY 1
Place the Gable Tops (No. 7 & 8) on top
of the assembled Side Panels (No. 3)
slotting the boarding of the gable over
the top of the boarding of the side
panel as shown.
Fix with 8x50mm screws per gable top
as shown in diagram.
8x50mm Screws
3
Internal Edge External Edge
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
50mm
screw
7 8 1
2
IMPORTANT: Pre-drill before xing screws.
Step 9
Secure the Gable Tops (No.7 & No.8)
in place against the Door Panel
(No.1) and Back Panel (No.2) using
2x50mm screws per Gable Top.
4x50mm Screws
¡
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
50mm
screw
14 14
14 14
Step 10
Parts Needed- No.14 QTY 2
Place the Gable Framing (No.14) on the
top of the Gables, ensuring they are
ush with either end of the gables,
leaving a gap between the two piece of
framing as shown.
Fix with 3x50mm screws per Gable Top.
6x50mm Screws
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
30mm
screw
5
5

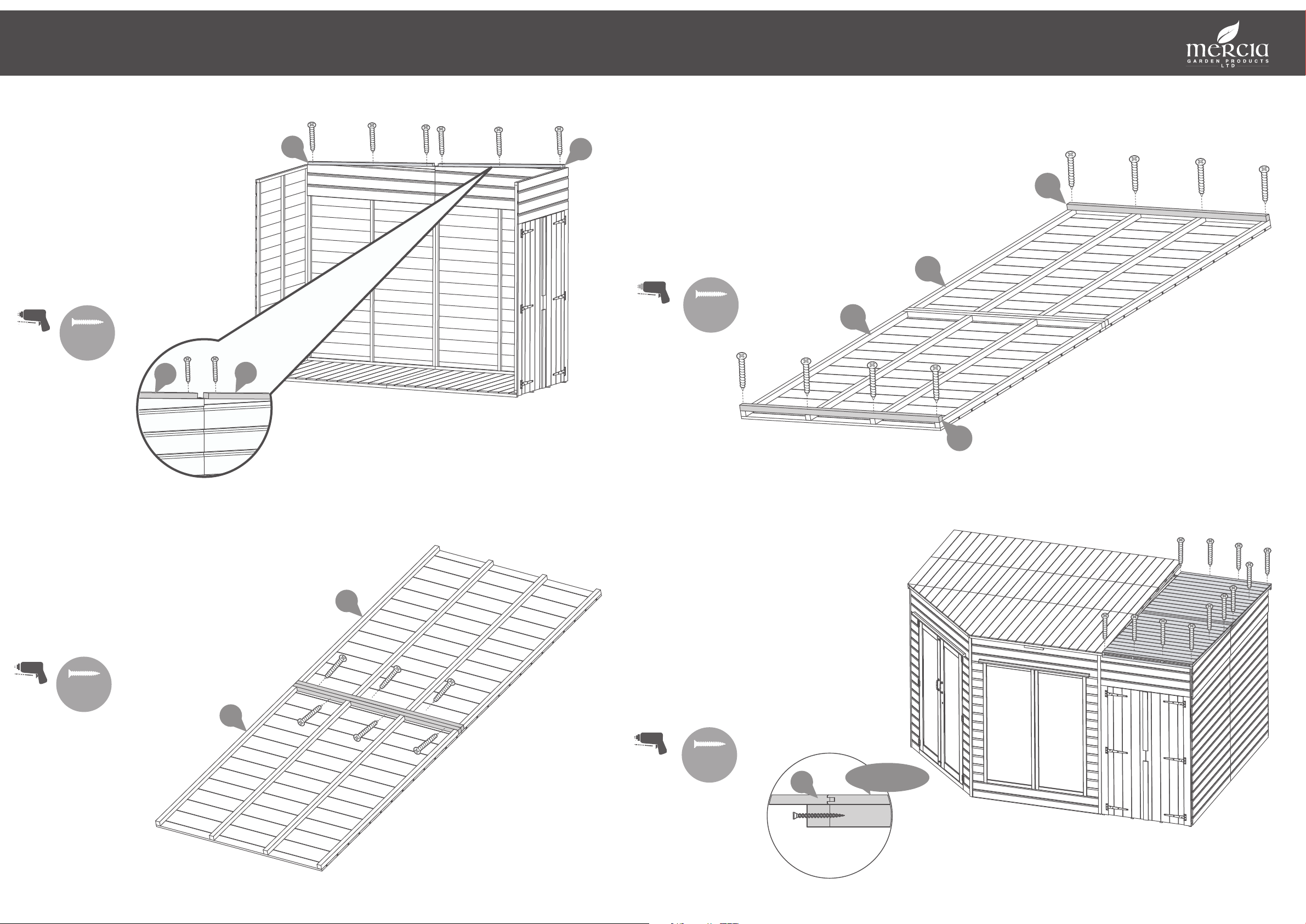

Step 11
Parts Needed- No.5 QTY 2
Place the two Roof Panels (No. 5) at,
in-line and upside down. Secure them
together along the central bearings using
6x50mm screws, ensuring to stagger the
screws so they do not collide.
6x50mm Screws
Pre drill
hole
50mm
screw
5
5
13
13
IMPORTANT: Pre-drill before xing screws.
Step 12
Parts Needed- No.13 QTY 2
Before placing the Roof (No.5) on the
building, place the roof upside down
and attach the Roof Trim pieces (No. 13)
ush to the end, perpendicular to the
roof bearers. Fix in place as shown with
4x50mm screws per roof trim.
8x50mm Screws
Pre drill
hole
50mm
screw
5
Summerhouse roof
IMPORTANT: Pre-drill before xing screws.
Step 13
Place the Roof Panel (No.5) on top of the
building, ensure the Roof Framing (No.13)
slot over each side.
Fix the roof panel onto the extension using
12x50mm screws as shown. Ensure there is
no more than 300mm between each screw.
Secure the roof to the Summerhouse roof
internally, using 3x50mm screws through
the roof bearers.
15x50mm Screws
50mm
screw
Pre drill
hole
Step 14
Once the Roof is in position the
extension can be xed in position.
Fix the building in place by using
16x50mm screws.
16x50mm Screws
IMPORTANT: Pre-drill before xing screws.
Felt
tacks
2004
4029
5000
4475
2918
1000
1000
1000
1000
1000
4
1
2
3
5
Step 15
Parts Needed- No. 20 QTY 1
- No. 30 QTY 1 (9x9 Corner Summer House)
Cut ve strips from the roll of felt, 1X2918mm (5), 1x4475mm
(4), 1x5000mm (3), 1x4029mm (2) and 1x2004mm (1) in
length. Place felt on top of the roof panels and align as
shown in the diagram, ensuring strip 5overhangs the front
by 50mm and strip 1overhangs the back by 200mm, with
equal spacing at each corner.
*Ensure strip 1 is the rst piece placed down, then lay
sheet 2, then sheet 3, then sheet 4 and nally sheet 5.
Make sure each sheet overlaps the next by at least
100mm, creating a run o.
Use a Fascia as a guide to mark out the angled cuts, including
50mm overhang.
Cut the sides as shown in the diagram at the dotted lines,
using Fascia width as a cutting guide. Cut the triangle with
50mm overhang, again using a Fascia as a guide.
150 x Felt Tacks
HANDLE
WITH CARE
1 2
3
4
100mm
9
10
10
Step 16
Parts Needed - No.9 QTY 1
- No.10 QTY 2
Fix the Cover Trims (No.9 and No.10)
plus the remaining cover trims from
the 9x9 Corner Summerhouse into
place using 3x40mm screws per Trim.
Fix the Cover Trim (No.17 & 25) from
the 9x9 Summer House using 3x40mm
screws per Trim. Ensure that they are
equally spaced across the panels, and
covering the panel join. One of the
Cover Trims will need to be cut to t
over the gables and side panels.
15x40mm Screws
40mm
screw
Pre drill
hole
25
17
*Cut down
trims to t
IMPORTANT: Pre-drill before xing screws.
11
11
Step 17
Parts Needed - No.11 QTY 2
Fix the Fascia Trims (No.11) plus the
remaining Fascia Trims from the 9x9
Corner Summerhouse into place
using 3x40mm screws per Trim.
27x40mm Screws
40mm
screw
Pre drill
hole
IMPORTANT: Pre-drill before xing screws.
Step 18
Parts Needed- No. 15 QTY 2
- No. 19 QTY 1
Fix two Door blocks (No.15) to the
back of the Doors (internally) with
2x30mm screws per block going
through the front of the door
boards and into the block behind.
Fix the Pad Bolt (No.19) to one of
the Doors (No.6) using 12x30mm
screws.
16x30mm Screws
30mm
screw
Pre drill
hole
19
15 15
IMPORTANT: Pre-drill before xing screws.
IMPORTANT: Pre-drill before xing screws.
18
15
Step 19
Parts Needed- No.15 QTY 2
- No.18 QTY 2
Fix the Door blocks (No.15) to the top
and bottom of the Doors (internally)
with 2x30mm screws per block going
through the front of the door boards
and into the block behind
Fix one Turn Button (No.18) to each of
the Door blocks (No.15) using
1x30mm screw per turn button.
6x30mm Screws
30mm
screw
Pre drill
hole
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
30mm
screw
18
Step 20
Parts needed - No. 18 QTY 2
Fix the Turn Buttons (No.18) above each
of the Doors using 1x30mm screw per
turn button.
2x30mm Screws
*These turn buttons help to keep your
doors straight during high & low levels
of moisture content in the air.

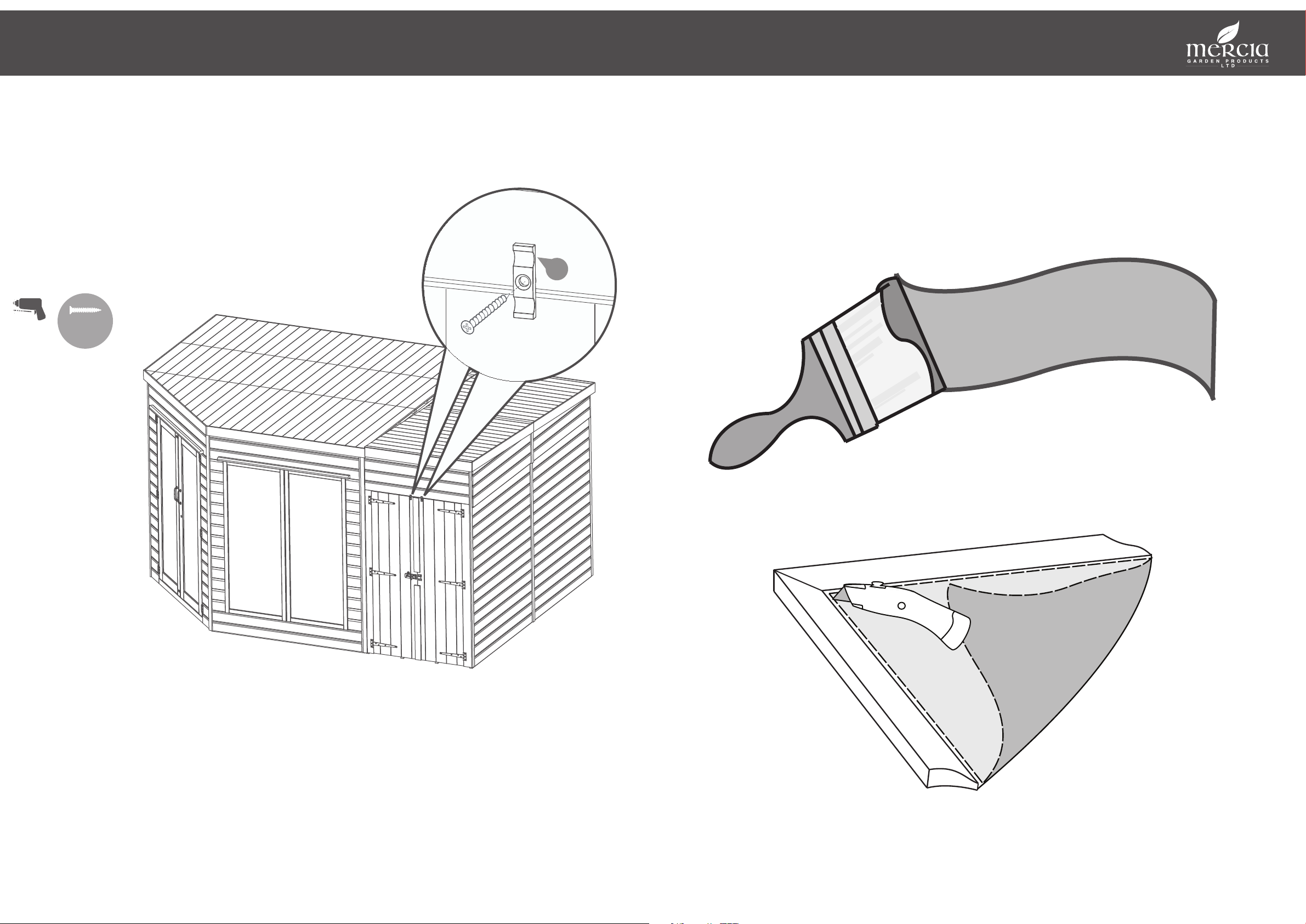

It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
AFTER TREATMENT:
score around protective
cover on glazing and
carefuly peel
covering back
¡
¡
¡
¡
¡
¢
¡
¡¡
¢
£
¢
£
¤¥
¢
¤
1
2
3
4
5
6
7
8
9
¦
§
¥¡
2
1
¨
3
4
¦
¡
§
¡
¡
¤
¨
¢
§
12
¡
¡
¡
¤
¨
¢
Table of contents
Other Mercia Garden Products Garden House manuals
Mercia Garden Products
Mercia Garden Products 01PTOSBRA0604SDFW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products Tulip Playhouse 02TUL411411-V4-PEFC Instruction manual
Mercia Garden Products
Mercia Garden Products 05DTMBPN0503DD-V1 User manual
Mercia Garden Products
Mercia Garden Products 0628LOG131-V4 Instruction manual
Mercia Garden Products
Mercia Garden Products 0634LOG174-V4 Instruction manual
Mercia Garden Products
Mercia Garden Products 0644AXNE0503HGDD2MW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 03HEL0808DDFW-V1 User manual
Mercia Garden Products
Mercia Garden Products 03DTSHPN0806FGD1TW-V1 User manual
Mercia Garden Products
Mercia Garden Products 01DTSHAX0608SDFW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 06LOG003-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 0634RASH0302FBSDNW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 01SHPWOR1610DDOW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 01RAW1010DDOW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 04LEAN0804-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 01OVLPA0806SDFW-V2 User manual
Mercia Garden Products
Mercia Garden Products 10DTDRK0806-V2 Instruction manual
Mercia Garden Products
Mercia Garden Products 01PTSHPWOR1010DDOW-V4 Instruction manual
Mercia Garden Products
Mercia Garden Products 01DTOVRA0604SDFW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 03HEL1008DDFW-V3 Instruction manual
Mercia Garden Products
Mercia Garden Products 04GREEN0806SD-V6 Instruction manual
Mercia Garden Products
Mercia Garden Products 03BRN0705-V4 Instruction manual
Mercia Garden Products
Mercia Garden Products 03TGCORSE0409-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 01PTOSBA1008DDFW-V1 User manual
Mercia Garden Products
Mercia Garden Products 0644LOG213-V4 Instruction manual
Popular Garden House manuals by other brands
Finn Art Blockhaus
Finn Art Blockhaus Double grillkota Assembly instructions
Asgard
Asgard Secure Store Assembly instructions
habitat et jardin
habitat et jardin Victor manual
Arrow Storage Products
Arrow Storage Products SBVVCS85 Owner's manual & assembly guide
Sentry Buildings
Sentry Buildings Camp Reynolds Assembly Book
Gartenpro
Gartenpro SMART MINI 15MM G4600441 Assembly instructions
Waltons
Waltons 12x8 COMBI SUMMERHOUSE V7 General instructions
Palmako
Palmako FRC28-4040 installation manual
USP
USP DURAMAX 15.5 Ft x 8 Ft Apex Pro Assembly instructions
OLT
OLT 12x12 SpaceMaker Garden Shed Assembly manual
Lemeks
Lemeks Palmako PA44-3535 Assembly, installation and maintenance manual
Lemeks
Lemeks PALMAKO FR44-5540-3 Assembly, installation and maintenance manual
Palmako
Palmako FR28-3929-1 Assembly, installation and maintenance manual
Palmako
Palmako FRJ70-4738 installation manual
Sealey
Sealey GSS1515.V2 instructions
Outdoor Life Products
Outdoor Life Products NOL2828+ manual
Lemeks
Lemeks Palmako Nova PAV-4236-1KI-1 Assembly, installation and maintenance manual
Forest garden
Forest garden FGHFV2FP quick start guide
