Mercia Garden Products 03DTSHPN0806PA-V1 Instruction manual

REGISTER FOR YOUR
ANTI-ROT
GUARANTEE TODAY
PLEASE SCAN HERE:
**Protim Aquatan T5 (621)**
Your building has been dip treated with Aquatan.
Aquatan is a water-based concentrate which is diluted with water, the building has been treated by the
correct application of Aquatan solution and then allowed to dry.
Aquatan is a decorative nish to colour the wood, which is applied industrially to timber fence panels and
garden buildings.
Aquatan undiluted contains: boric acid, sodium hydroxide 32% solution, aqueos mixture of sodium dioctyl
sulphosuccinat and alcohols: 2, 4, 6-trichlorophenol.
Measure
under the
head
Measure
overall
length
Screws & Nails Bolts To identify the
xings required
for each step use a
measuring tape.
03DTSHPN0806PA-V1
DIP TREATED SHIPLAP PENT 8X6 PATIO AREA
2mm Drill bit
x2 Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
All buildings should be
erected by two adults
For ease of assembly, you
MUST pilot drill all screw
holes and ensure all screw
heads are countersunk.
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
CAUTION
Every eort has been made during the
manufacturing process to eliminate the
prospect of splinters on rough surfaces of the
timber. You are strongly advised to wear gloves
when working with or handling rough sawn
timber.
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied) including a Phillips screw-
driver, Stanley knife, Wood saw, Step ladder, Hammer and a Drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
LOCATION FOR YOUR GARDEN BUILDING
A minimum of 60cm should be left around the perimeter of your garden building to allow access for maintenance,
annual treatment and to allow air ow around the building.
Where possible you should avoid placing your garden building underneath large trees to prevent the tree causing
damage to the building.
TIMBER
As with all natural materials, timber can be aected during various weather conditions. For the duration of heavy
or extended periods of rain, swelling of the wood panels may occur. Warping of the wood may also occur during
excessive dry spells due to an interior moisture loss. Unfortunately, these processes cannot be avoided but can be
helped. It is suggested that the outdoor building is sprayed with water during extended periods of warm sunshine
and sheltered as much as possible during rain or snow.
Once your garden building has been installed it will need to be treated as soon as possible and annually to prevent
the timber from deteriorating and to waterproof it. This is required to maintain the anti-rot guarantee.
Dip Treated buildings - Require a preservative treatment to protect against rot and decay and a waterproof treat-
ment to prevent water ingress
Pressure Treated buildings - Require a waterproof treatment to prevent water ingress
Log Cabins - Are supplied untreated and require a preservative and waterproong treatment.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base
dimensions, The base should be slightly smaller than the external measurement of the building, i.e. The cladding
should overlap the base, creating a run o for water. It is also recommended that the oor be at least 25mm above
the surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens
products independently tested to EN71 level, we cannot accept responsibility for your safety whilst erecting or
using this product.
For ease of assembly, you
will need a tape measure to
check dimensions of
components.
P 1
Please retain product label and instructions for future reference
General Instructions

P 2
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied) including a Phillips screw-
driver, Stanley knife, Wood saw, Step ladder, Hammer and a Drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
LOCATION FOR YOUR GARDEN BUILDING
A minimum of 60cm should be left around the perimeter of your garden building to allow access for maintenance,
annual treatment and to allow air ow around the building.
Where possible you should avoid placing your garden building underneath large trees to prevent the tree causing
damage to the building.
TIMBER
As with all natural materials, timber can be aected during various weather conditions. For the duration of heavy
or extended periods of rain, swelling of the wood panels may occur. Warping of the wood may also occur during
excessive dry spells due to an interior moisture loss. Unfortunately, these processes cannot be avoided but can be
helped. It is suggested that the outdoor building is sprayed with water during extended periods of warm sunshine
and sheltered as much as possible during rain or snow.
Once your garden building has been installed it will need to be treated as soon as possible and annually to prevent
the timber from deteriorating and to waterproof it. This is required to maintain the anti-rot guarantee.
Dip Treated buildings - Require a preservative treatment to protect against rot and decay and a waterproof treat-
ment to prevent water ingress
Pressure Treated buildings - Require a waterproof treatment to prevent water ingress
Log Cabins - Are supplied untreated and require a preservative and waterproong treatment.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base
dimensions, The base should be slightly smaller than the external measurement of the building, i.e. The cladding
should overlap the base, creating a run o for water. It is also recommended that the oor be at least 25mm above
the surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens
products independently tested to EN71 level, we cannot accept responsibility for your safety whilst erecting or
using this product.
03DTSHPN0806PA-V1
16x6 Pent & Right Side Patio Area
Overall Dimensions:
Width = 4774mm
Depth = 2331mm
Height = 2170mm
Base Dimensions:
Width = 4673mm
Depth = 1787mm
16x6 Pent & Left Side Patio Area
Overall Dimensions:
Width = 4774mm
Depth = 2331mm
Height = 2170mm
Base Dimensions:
Width = 4673mm
Depth = 1787mm
18x6 Pent & Right Side Patio Area
Overall Dimensions:
Width = 5334mm
Depth = 2331mm
Height = 2170mm
Base Dimensions:
Width = 5234mm
Depth = 1787mm
18x6 Pent & Left Side Patio Area
Overall Dimensions:
Width = 5334mm
Depth = 2331mm
Height = 2170mm
Base Dimensions:
Width = 5234mm
Depth = 1787mm
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
Pack Requirement:
03DTSHPN0806FGD1TW-V1
03DTSHPN0406PA-V1
Pack Requirement:
03DTSHPN1006FGD2TW-V1
03DTSHPN0406PA-V1
Pack Requirement:
03DTSHPN1006FGD2TW-V1
03DTSHPN0406PA-V1
Pack Requirement:
03DTSHPN0806FGD1TW-V1
03DTSHPN0406PA-V1
Please retain product label and instructions for future reference

P 3
03DTSHPN0806PA-V1
Back Panel QTY 2
AI-S11SHPPBF1078X1810-V1
Side Panel QTY 1
AI-S11SHPPBF1637X1810-V1
Roof QTY 2
AI-S11MBPR1147X2305-V1
Front Panel QTY 1
AI-S11SHPPTBF2231X190-V1
Under Roof QTY 1
AI-S11MBURF2294X484-V1
1 2
4
3
5
6
7
Fascia Trim - 12x95x2294mm QTY 2
S1295-2294mm
Rear Post - 75x75x2078mm QTY 2
PI- 04-0067
Front Post - 75x75x2138mm QTY 1
PI- 04-0068
8
9
10
Roof Framing - 28x28x1147mm QTY 2
FS2828-1147mm
Felt
PI-01-0013
Ridge Bar - 27x44x2219mm QTY 1
F2744-2219mm
11 12
Corner Brace QTY 2
PI-07-0012
Please retain product label and instructions for future reference
Nail Bag
There may be extra screws present in the nail bag
50mm Screw x 23
Felt Tacks x 100
30mm Screw x 75
70mm Screw x 38
8x6 Pent Summerhouse
03DTSHPN0806FGD1TW-V1
10x6 Pent Summerhouse
03DTSHPN0806FGD2TW-V1
Follow the instructions for the 8x6 Pent
Summerhouse (03DTSHPN0806FGD1TW)
or the the 10x6 Pent Summerhouse
(03DTSHPN1006FGD2TW), however DO
NOT attach the Felt, Rear Cover Trims or
the Fascia Trims.
Not attaching these parts allows the
extension to be xed in place.
Your building should look as shown.
Contents

P 4
Please retain product label and instructions for future reference

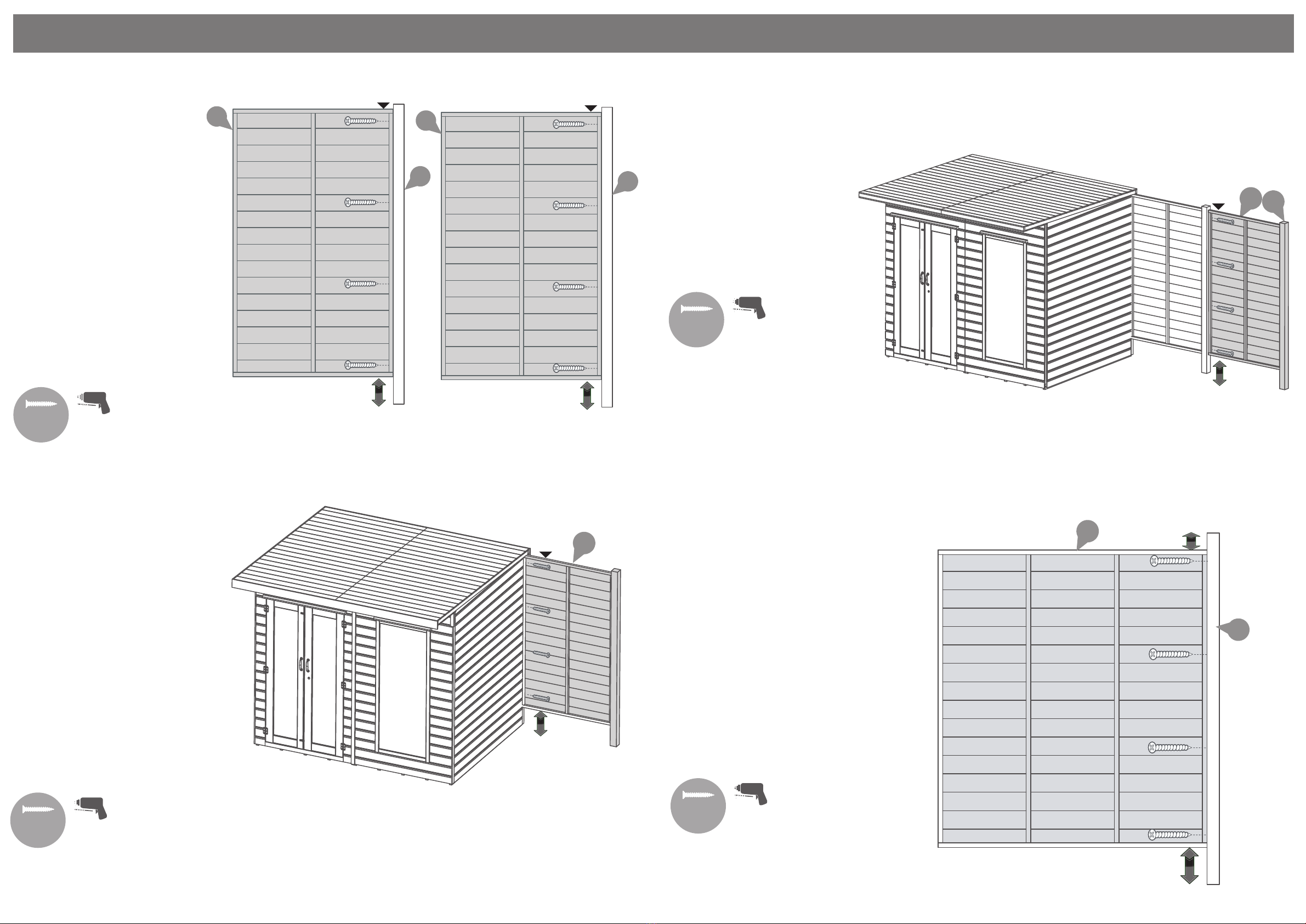

Step 4
Parts needed - No. 2 QTY 1
- No. 6 QTY 1
Lay the Side panel (No.2) on the
oor and place the Front (No.6)
Post. Make sure that you have a
225mm space between the bottom
of the Side Panel and the Posts.
Fix in position using 4x70mm
screws either side as shown.
*8x6 & 10x6 Pent Summerhouse
not shown*
4x70mm Screws
103mm
225mm
Step 1
Parts needed - No. 1 QTY 2
- No. 7 QTY 2
Lay the Back panels (No.1) on the
oor and place the Back Posts
(No.7) to the right side of the back
panels. Make sure that you have a
225mm space between the bottom
of the Side Panel and the Posts.
Fix in position using 4x70mm
screws either side as shown.
Hint: if you are having your patio
on the left side of your building,
attach the posts to the left side of
the Back panels
8x70mm Screws
Step 2
Parts Needed- No. 1 QTY 1
Place the Back Panel (No.1) up
against the Pent Summerhouse.
Make sure that there is a Approx
225mm space between the bottom of
the Panel and the ground. Also make
sure that the cladding lines up with
the panels on the existing Summer-
house. Fix into position using
4x50mm screws as shown.
**To position the shelter on the left,
position the panel on the left and x
in the same way shown.**
4x50mm Screws
2
6
1
225mm
**The 8x6 Pent Summerhouse has been used
to illustrate the construction of this product.
The steps are the same throughout these
instructions regardless of the size of the
Summerhouse.**
17
Pre drill
hole
50mm
screw
Pre drill
hole
50mm
screw
225mm
1
7
225mm
1
43mm 43mm
7
43mm
225mm
43mm
Step 3
Parts needed - No. 1 QTY 1
Locate the back panel (No.1) next
to the standing back panel, ensure
that it sits at the same height as
the standing panel.
Secure using 4x70mm screws
going through the back panel
framing and into the back post as
shown
4x70mm Screws
Pre drill
hole
70mm
screw
Pre drill
hole
70mm
screw

P 5
Please retain product label and instructions for future reference
1

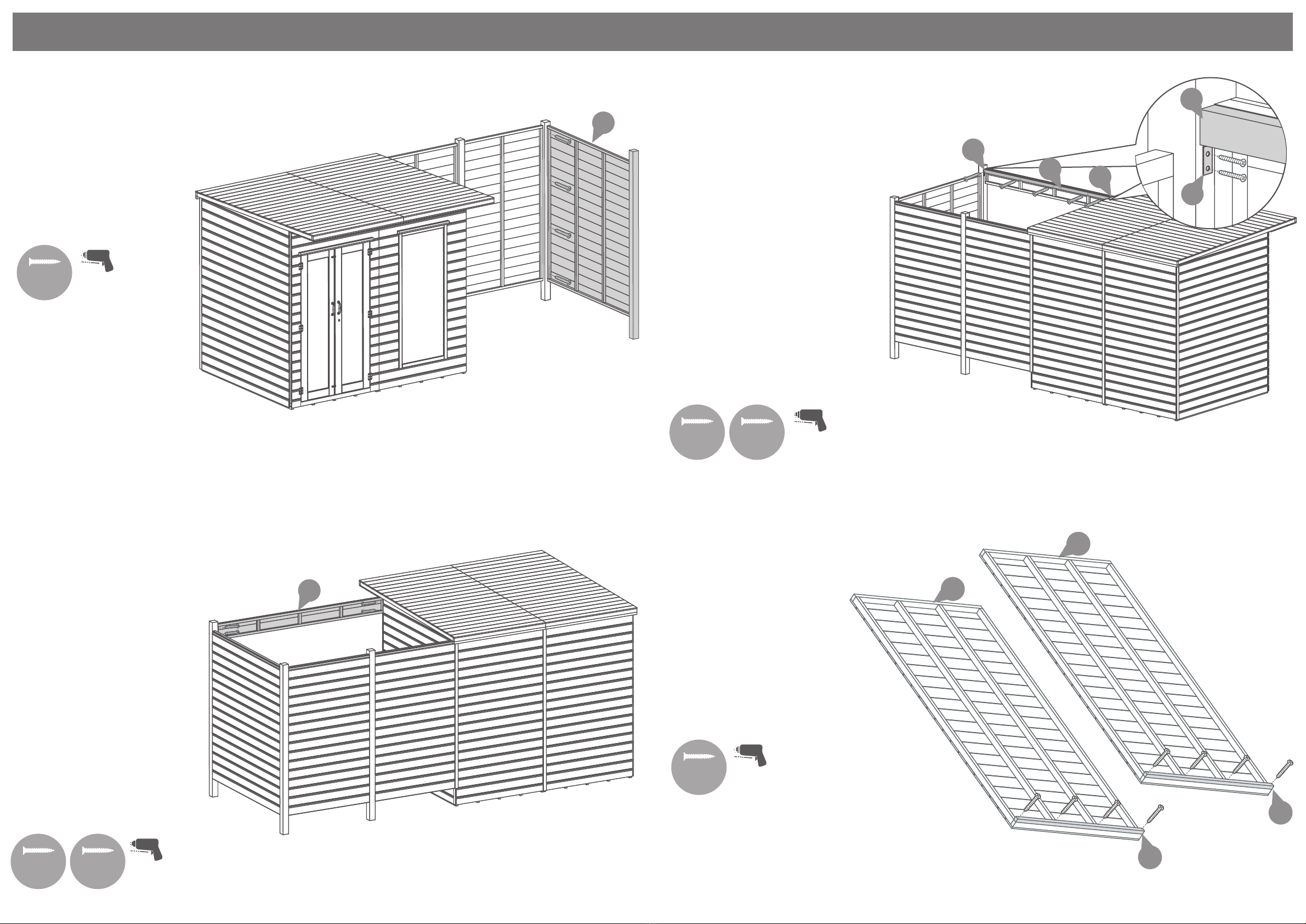

Step 5
Parts needed - No. 2 QTY 1
Stand the Side Panel (No.2)
and the Front Post (No.6) to the
Back post, ensuring the bottom
of the side panel sits 225mm
above the oor. Secure using
4x70mm screws
4x70mm Screws
Pre drill
hole
70mm
screw
Pre drill
hole
50mm
screw
Step 6
Parts Needed- No.5 QTY 1
Fix the Front Panel (No.5)
between the side of the 8x6 Pent
Summerhouse or 10x6 Pent
Summerhouse Side Panel (as
shown using 2x50mm screws)
and the Front Post (No.6) (as
shown using 2x70mm screws).
Ensure the panel is square and
level with the building before
xing into place
Make sure that the cladding lines
up with the panels on the existing
Summerhouse.
2x50mm Screws
2x70mm Screws
5
70mm
screw
Step 7
Parts Needed- No.10 QTY 1
- No.12 QTY 2
Fix the corner braces (No.12) to each
end of the ridge bar (No.10) using
2x30mm screws per corner brace
Place the Ridge Bar (No.10) between
the summer house and the front post,
ensure the ridge bar is ush to the
roof framing. Secure using 2x30mm
screws per corner brace
Fix the ridge bar (No.10) the the front
panel (No.5) using 5x50mm, ensuring
to go through the ridge bar and into
the front panel framing behind
8x30mm Screws
5x50mm Screws
Pre drill
hole
30mm
screw
50mm
screw
12
10
12
12
10
Step 8
Parts needed - No.3 QTY 2
- No.9 QTY 2
50mm
screw Pre drill
hole
Fix the Roof Framing (No.9) to
the roof (No.3) using 4x50mm
screws, screwing through the
Roof Framing and into the roof
below.
Ensure the Roof Framing is
ush to the edge of the roof
before securing.
8x50mm Screws
9
3
9
3

P 6
Please retain product label and instructions for future reference
Step 10
Parts needed - No.4 QTY 1
Place the Under Roof Panel (No.4) into
position, making sure it is ush to the front
of the building. Using a pencil mark on the
under roof panel where the roof panel framing
is to use as a guide for xing into place.
Fix in place making sure to screw through
in to the Roof framing. Pre-drill holes rst.
21x30mm Screws
Pre drill
hole
30mm
screw
50mm
screw
Pre drill
hole
Step 9
Parts Needed- No.3 QTY 2
Place the Roof Panels (No.3) on
top of the building, ensure the
Roof framing (No.9) slots over
the back panel.
Fix the roof panel onto the
extension using 8x70mm
screws as shown.
Secure the roofs together
internally using 4x50mm
screws per join through the
roof bearers, as shown in the
diagram.
8x50mm Screws
16x70mm Screws
3
70mm
screw
3
9
9
4
HANDLE
WITH CARE
12
3
4
Step 11
Parts needed - No. 11 QTY 3
Cut the felt to 3 strips of 5000mm
Lay the Felt (No.11) onto the roof.
Starting at the back and working
towards the front.
*Ensure there is approximately
50mm of overhang around the
building.
Fix into place using Felt Tacks at
100mm intervals.
100xFelt tacks
Felt
tacks
1.
2.
3.
11
**For the 8x6 Summerhouse, cut the Felt Strips each at 5000mm.**
**For the 10x6 Summerhouse, cut the Felt Strips each at 5550mm.**

Please retain product label and instructions for future reference
P 7

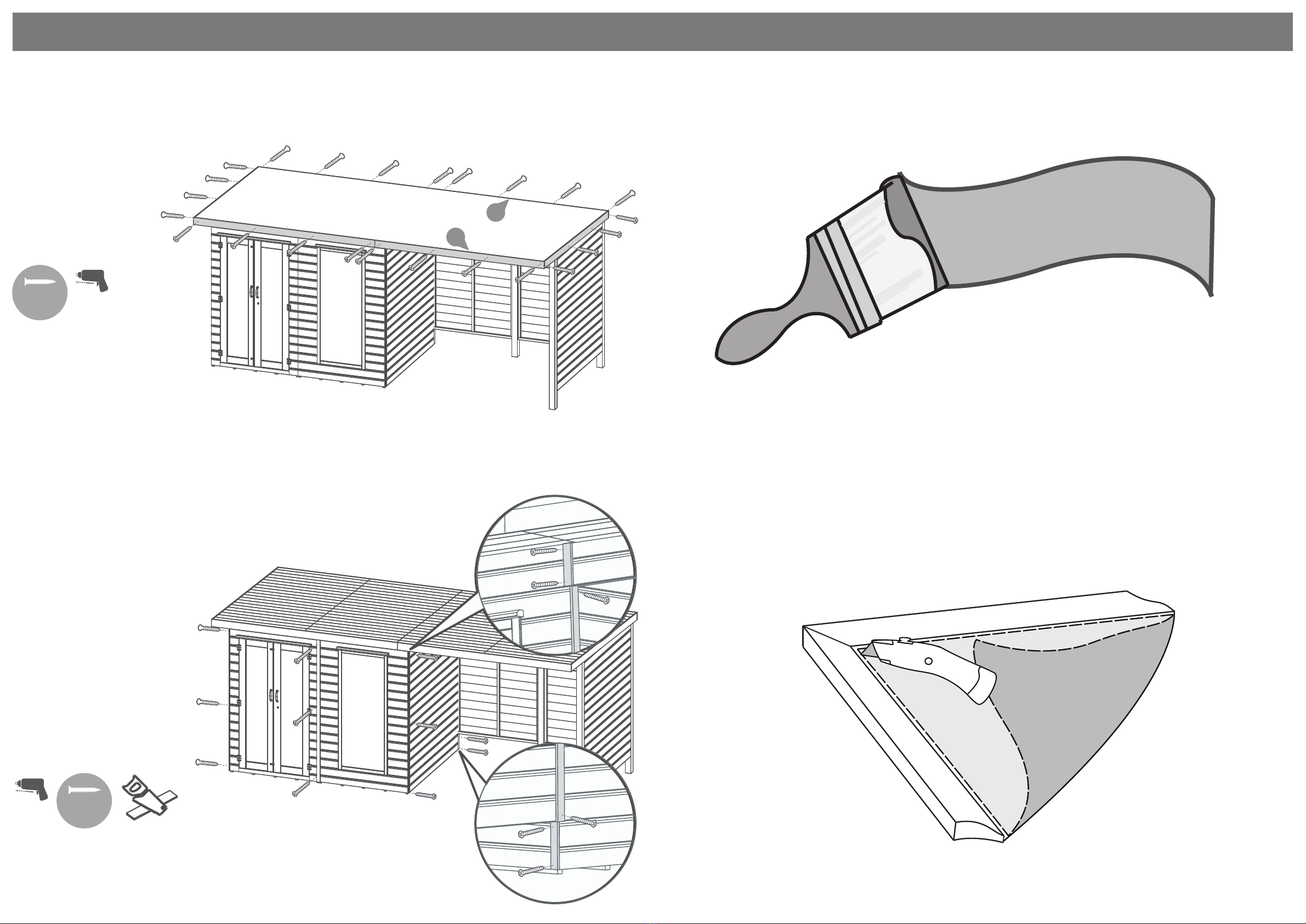

Step 13
Fix the remaining Cover Trims
from the 8x6 Pent Summer-
house or the 10x6 Summer-
house into place over the
panel joins using 3x30mm
screws per Trim.
Cut down the last two Cover
Trims and place over the panel
joins as shown in the illustra-
tion using 3x30mm screws per
large Trim and 2x30mm
screws per short Trim.
22x30mm Screws
30mm
screw
Pre drill
hole
*Cut down
trims to t
30mm
screw Pre drill
hole
8
8
Step 12
Parts Needed - No. 8 QTY 2
Fix the Fascia Trims (No.8)
plus the remaining Fascia
Trims from the 8x6 Pent
Summerhouse or the 10x6
Summerhouse into place
using 4x30mm screws per
Trim.
24x30mm Screws
It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
AFTER TREATMENT:
score around protective
cover on glazing and
carefuly peel
covering back





















































2





1












3
4

































¡




1




2























¡



