Mercia Garden Products 0634RASH0302FBSDNW-V1 Instruction manual

P 1
2mm Drill bit
Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
All buildings should be
erected by two adults
For ease of assembly, you
MUST pilot drill all screw
holes and ensure all screw
heads are countersunk.
CAUTION
Every eort has been made during the
manufacturing process to eliminate the
prospect of splinters on rough surfaces of the
timber. You are strongly advised to wear gloves
when working with or handling rough sawn
timber.
Please retain product label and instructions for future reference
General Instructions
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied)
including a Phillips screwdriver, Stanley knife, wood saw, step ladder and drill with 2mm
bit.
- Ensure there is plenty of space and a clean dry area for assembly.
TIMBER
As with all natural materials, timber can be aected during various weather conditions.
For the duration of heavy or extended periods of rain, swelling of the wood panels may
occur. Warping of the wood may also occur during excessive dry spells due to an interior
moisture loss. Unfortunately, these processes cannot be avoided but can be helped. It is
suggested that the outdoor building is sprayed with water during extended periods of
warm sunshine and sheltered as much as possible during rain or snow.
BUILDING A BASE
When thinking about where the building and base are going to be constructed:
Ensure that there will be access (60cm) to all sides for maintenance work and annual
treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to
diagrams for the base dimensions. The base should be slightly smaller than the external
measurement of the building, i.e. The cladding should overlap the base, creating a run
o for water. It is also recommended that the oor be at least 25mm above the
surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in
the case of childrens products independently tested to EN71 level, we cannot accept
responsibility for your safety whilst erecting or using this product.
Refer to the instructions pages for your specic product code
For ease of assembly use a
rubber mallet to t the log
boards. Do NOT use a heavy
hammer.
Ensure to measure and check before cutting
boards.
0634RASH0302FBSDNW-V1
34MM LOG CABIN, REVERSE APEX, SHED EXTENSION, CORNER LODGE (PLUS), 5M X 3M, HALF
GLAZED DOUBLE DOORS, TWO SHORT WINDOWS, ONE FULLY BOARDED SINGLE DOOR.
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
It is advisable to use a hand
saw when cutting roof and
oor boards.
To ensure log boards are even, use a spirit
level to check each layer has been installed
correctly.
Measure
under the
head
Measure
overall
length
Screws & Nails Bolts
To identify the xings
required for each step use a
measuring tape.

P 2
0634RASH0302FBSDNW-V1
90
91
89
92
93
94
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
Overall Dimensions:
Width = 5078mm
Depth = 3172mm
Height = 2742mm
Base Dimensions:
Width = 4809mm
Depth = 2808mm
Please retain product label and instructions for future reference
Log Board - 34x120x2000mm QTY 21
LB34-B-2000
Finisher Board - 34x66x2000mm QTY 2
LB34-BH66-2000 (66mm height board)
Log Board - 34x120x2000mm QTY 1
LB34-BD-2000 (1 x Window Notch cut out)
Log Board - 34x120x587mm QTY 18
LB34-B-587
Bearer - 44x58x1884mm QTY 11
F4458-1884-PT
Roof Purlin - 45x120x3522mm QTY 1
F45120-AE-3522
Roof Board - 16x121x2000mm QTY 32
MB16-2000
Log Board - 34x120x587mm QTY 18
LB34-C-587
Finisher Board - 34x80x70mm QTY 2
LB34RG80-C-70
Finisher Board - 34x80x886mm QTY 4
LB34RG80-C-886
Floor Board - 16x121x2736mm QTY 19
MB16-2736
Double Storm Brace - 16x120x2110mm QTY 4
S16120-2110
**All components and the nail bag from 3m x 3m corner cabin
(0634CSNE0303HGDD2SW-V1)
will be required to construct the 5m x 3m corner lodge.**
These components are shown in the 3m x 3m corner cabin
instructions.
83
84
85
86
87
88
Fully Boarded Single Door Contents:
Left Handed Right Handed
75
Fully Boarded Single
Door QTY 1
AI-06LOGFBD750X1900-V1
Door Frame Left Upright - 71x70x2065mm QTY 1
AI-0634LOGDUFL-V3
Door Frame Right Upright - 71x70x2065mm QTY 1
AI-0634LOGDUFR-V3
Door Frame Top - 84x125x884mm QTY 1
AI-0634LOGSDTF-V3
Door Frame Bottom - 71x70x764mm QTY 1
AI-0634LOGSDBF-V3
Storage Door
Handle QTY 1
PI-07-0033
81 82
Dead Lock
QTY 1
PI-07-0200
Rain Guard QTY 1
RG2844-780 (28x44x780mm)
5x3 Log Cabin Contents:
80
79
78
77
76

P 3
Please retain product label and instructions for future reference

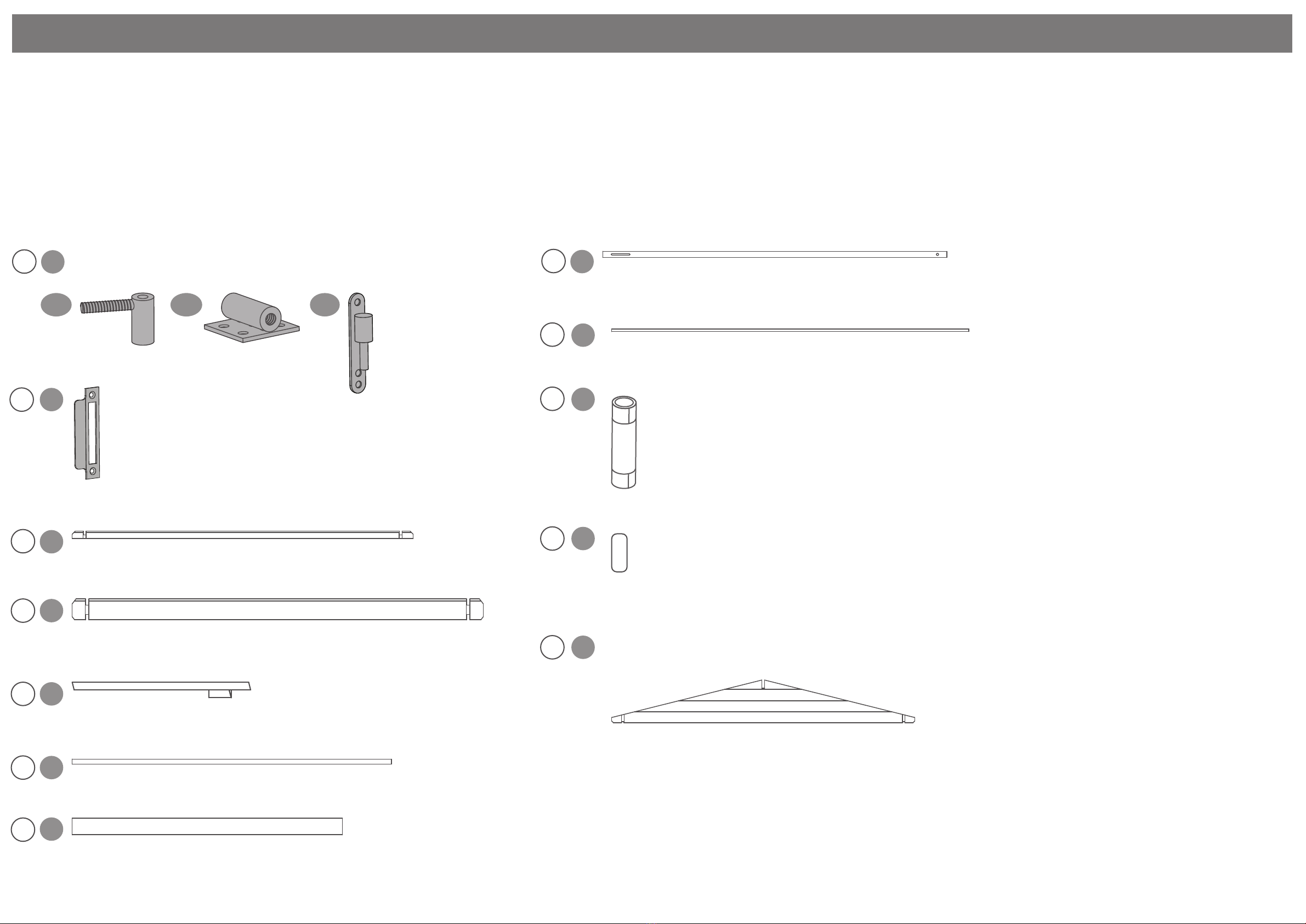

41
48
67
68
66
Log Board - 34x120x3000mm QTY 20 - Combined Total Required x 60
LB34-A-3000
Roof Truss A- 40x140x1604mm QTY 6 - Combined Total Required x 11
AI-06LOGC3RTA-V1
Bearer - 44x58x2808mm QTY 2 - Combined Total Required x 3
F4458-2808-PT
Storm Brace - 27x44x2000mm QTY 6 - Combined Total Required x 14
F2744-2000
Closure Trim - 16x28x2400mm (approx length) QTY 10 - Combined Total Required x 24
S1628-2400
Felt
Gable QTY 1 - Combined Total Required x 2
AI-0634LOGC3-G-V1
53
*Please note
The components listed below are featured in both contents lists for the 3m x m3 Corner Cabin
(0634CSBE0303HGDD2SW) as well as the 5m x 3m Corner Lodge.
The component numbers listed below are the same component numbers as listed in the 3m x 3m
Corner Cabin instructions, some numbers may be out of chronological order or skipped to satisfy this.
Please see the total combined quantity required for the 5m x 3m Corner Lodge
(3m x 3m Corner + 3m x 2m Pack B) listed next to the components below.
74
40 Log Board - 34x66x3000mm QTY 1 - Combined Total Required x 2
LB34RT66-A-3000
64
Fascia - 16x120x2000mm QTY 2 - Combined Total Required x 4
S16120-2000
Roof Spacers QTY 5 - Combined Total Required x 10
PI-07-0208 (20x100x2mm)
69
Adjustable Hinge QTY 6 - Combined Total Required x 9
PI-07-0209
17
17a 17c17b
Key Plate QTY 1 - Combined Total Required x 2
20

P 4
Please retain product label and instructions for future reference
Nail Bag
There may be extra screws present in the nail bag
Felt Tacks x 850
90mm Screw x 58
40mm Screw x 415
30mm Screw x 69
120mm Screw x 8
70mm Screw x 28
80mm Bolt Set x 28
80mm Screw x 8
90mm Bolt Set x 8
60mm Screw x 26
Pre-assembly
*Please note:
Each board interlocks at either end in a staggered pattern.
Before securing ensure that the boards are tted properly in their respective
tongues and grooves.
Pre - Assembly
*Please note
To construct the 5m x 3m Corner Lodge, all components
from the 3m x 3m Corner Cabin (0634CSNE0303HGDD2SW)
will be required as well as all components from this set of
instructions.
Components for the 3m x 3m Corner Cabin can be found in
the contents of the 3m x 3m Corner Cabin instructions.
**DO NOT CONSTRUCT USING THE 3M X 3M CORNER CABIN
INSTRUCTIONS IF YOU ARE CONSTRUCTING THE 5M X 3M
CORNER LODGE.**

P 5
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
Please retain product label and instructions for future reference
Pre drill
hole
90mm
screw
Step 1
Parts needed - No. 53 QTY 1
No. 54 QTY 1
No. 59 QTY 1
No. 60 QTY 1
No. 61 QTY 1
Lay the bearers (No. 53, 54, 59, 60 &
61) onto a rm and level surface (free
from areas where standing water can
collect) as shown in the illustration.
*Ensure the 58mm side of the bearer
is laying on the base, so that you can
screw the bearers together on the
44mm side.
Fix the bearers together at each
corner using 2x90mm screws,
ensuring the frame is ush.
Once fully assembled, ensure the
bearers are square by measuring from
corner to corner, as illustrated, making
sure they are an equal measurement.
If the bearers are not alligned equally,
unscrew and adjust and re-align
accordingly.
10x90mm Screws
IMPORTANT: Pre-drill before xing screws.
Example picture
2 screws per bearer per end.
54
53
60 59
61
36
Pre drill
hole
90mm
screw
Step 2
Parts needed - No. 54 QTY 5
No. 55 QTY 1
No. 56 QTY 1
No. 57 QTY 1
No. 58 QTY 1
Arrange the remaining framing
(No. 54, 55, 56, 57, 58) as shown in
the illustration.
*Ensure there is an equal amount
of space between each frame.
Secure each of the frames in place
using 2x90mm screws for each end
of each bearer, ensuring the bearers
remains level.
36x90mm Screws
IMPORTANT: Pre-drill before xing screws.
54
54
54
54
54
54
55
56
57
58
35

P 6
Please retain product label and instructions for future reference
Pre drill
hole
90mm
screw
Step 3
Parts needed - No. 53 QTY 2
No. 91 QTY 2
Lay the bearers (No. 53 & 91) onto a
rm and level surface as shown in the
illustration.
Fix the bearers together at each
corner using 2x90mm screws,
ensuring the frame is ush.
Once fully assembled, ensure the
bearers are square by measuring from
corner to corner, as illustrated, making
sure they are an equal measurement.
If the bearers are not alligned equally,
unscrew, adjust and re-align
accordingly.
8x90mm Screws
Example picture
2 screws per bearer per end.
91
53
91
53
Step 4
Parts needed - No. 91 QTY 9
Arrange the remaining bearers (No. 91)
inside the assembled frame.
*Ensure there is an equal amount of
space between each frame.
Secure each of the frames in place using
2x90mm screws for each end of each
bearer, ensuring the bearers remain
level.
Once fully assembled, ensure the
bearers are square by measuring from
corner to corner, as illustrated, making
sure they are an equal measurement.
If the bearers are not alligned equally,
unscrew, adjust and re-align
accordingly.
36x90mm Screws
91
91
91
91
91
91
91
91
91
91
Pre drill
hole
90mm
screw

P 7
Please retain product label and instructions for future reference
Step 5
** Please Note:
Your log cabin can be either Right
Handed or Left Handed, dependant on
your wants and needs. (See Contents
for image reference)
Please ensure to construct your Log
Cabin by following either the ‘Left
Handed’ or ‘Right Handed’ instructions
dependant on which side you choose.
Align the two bases together by the
longest bearer as shown in the
illustration.
Secure the base sections together using
10x70mm screws, ensuring to stagger
the screws so they do not collide.
10x70mm Screws
Pre drill
hole
70mm
screw
Left Handed
35 53
Right Handed

P 8
Please retain product label and instructions for future reference
Left Handed
Pre drill
hole
Step 6 - Left Handed
Parts Needed - No. 22 QTY 1
No. 32 QTY 1
No. 36 QTY 1
No. 40 QTY 2
No. 41 QTY 1
No. 83 QTY 2
Place the starter boards (No. 22, 32 & 40) on to the assembled base frame and place the rst four log boards
(No.36, 41 & 83) sitting in the notches as shown.
Ensure the boards sit square on the base using the same method used in Step 1. Measure from corner to
corner and ensure they are equal in measurement.
Once the boards are square, x the starter boards (No. 22, 32 & 40) in place, lift up the log boards (No.36,
41 & 83) and x each starter board in place using 1x70mm screw per notch.
Fix the log boards to the starter boards by screwing through the notch into the frame with 1x70mm screw
as shown in the illustration.
Secure boards (No.83) in place by screwing at an angle through the side of the log board into the end of the
starter boards (No.40 & 32) next to them,as shown in the illustration.
8x70mm Screws
70mm
screw
IMPORTANT: Pre-drill before xing screws.
40
36
22
41
32
83
83 40
Right Handed
40
36
22
40
32
41
83
83
*Ensure boards sit ush
Rubber Mallet
may be required
to t parts.
Pre drill
hole
Step 6 - Right Handed
Parts Needed - No. 22 QTY 1
No. 32 QTY 1
No. 36 QTY 1
No. 40 QTY 2
No. 41 QTY 1
No. 83 QTY 2
Place the starter boards (No. 22, 32 & 40) on to the assembled base frame and place the rst four log boards
(No.36, 41 & 83) sitting in the notches as shown.
Ensure the boards sit square on the base using the same method used in Step 1. Measure from corner to
corner and ensure they are equal in measurement.
Once the boards are square, x the starter boards (No. 22, 32 & 40) in place, lift up the log boards (No.36,
41 & 83) and x each starter board in place using 1x70mm screw per notch.
Fix the log boards to the starter boards by screwing through the notch into the frame with 1x70mm screw
as shown in the illustration.
Secure boards (No.83) in place by screwing at an angle through the side of the log board into the end of the
log boards (No.41 & 36) next to them,as shown in the illustration.
8x70mm Screws
70mm
screw Rubber Mallet
may be required
to t parts.
IMPORTANT: Pre-drill before xing screws.
22
32
22
32
41
40
83
*Ensure boards sit ush
83
40
41

P9
Please retain product label and instructions for future reference
Step 7
Parts needed - No. 25 QTY 1
Make the log cabin level by
adding another board (No. 25)
as shown in the diagram. Fix
using 1x70mm screw.
**Ensure to stagger the screws
so as not to collide with the
previous screw.
1x70mm Screws
Pre drill
hole
70mm
screw
25
IMPORTANT: Pre-drill before xing screws.
Left Handed
Right Handed
25
Step 8
Parts needed - No. 23 QTY 6
No. 24 QTY 6
No. 33 QTY 6
No. 36 QTY 5
Lay the rst 6 boards (No. 23, 24, 33, 36, 41, 83, 86 & 87) onto the starter boards to create your rst level, follow-
ing the method as shown in the illustrated.
Please note the right hand side of the door will be slightly higher. This will even out when the rest has been
assembled.
*Ensure that the boards are level and ush with each other as you lay each one.
Ensure the boards (No.83 & 87) are level, ush and in line with the boards next to them.
Secure every other board (No. 83 & 87) in place by screwing through the side of the board at an angle into the
end of the board next to it (No. 41 & 33 left handed & 36 right handed), using 1x60mm screw per board.
6x60mm Screws
41
24
23
41
36
33
83
87
86 41
Left Handed
Right Handed
41
83
87
86
41
24
23
41
36
33
Rubber Mallet
may be required
to t parts.
No. 41 QTY 17
No. 83 QTY 5
No. 86 QTY 5
No. 87 QTY 5
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
80mm
screw

P 10
Step 9
Parts Needed - No. 11 QTY 1
No. 12 QTY 1
No. 13 QTY 1
No. 14 QTY 1
For the Double Door frame, arrange the left,
right, top & bottom door frames (No’s. 11, 12,
13 & 14) onto a level surface.
Secure the top and bottom frames to the
uprights using 2x80mm screw per corner,
ensuring the screws do NOT protrude through
the front of the door framing.
8x80mm Screws
Pre drill
hole
80mm
screw
13
14
11
12
IMPORTANT : Pre-drill before xing screws.
The internal lip of the door
frame should be positioned on
the inside of the building.
14 12
IMPORTANT : Pre-drill before xing screws.
79 77
76
79
77
78
Pre drill
hole
80mm
screw
Step 10
Parts Needed - No. 76 QTY 1
No. 77 QTY 1
No. 78 QTY 1
No. 79 QTY 1
For the Fully boarded single door frame,
arrange the left, right, top & bottom door
frames (No’s. 76, 77, 78 & 79)) onto a level
surface.
Secure the top and bottom frames to the
uprights using 2x80mm screw per corner,
ensuring the screws do NOT protrude through
the front of the door framing.
8x80mm Screws
The internal lip of the door
frame should be positioned on
the inside of the building.
Please retain product label and instructions for future reference

P 11
17a
Pre drill
hole
30mm
screw
9
10
17
Step 11
Parts Needed - No. 9 QTY 1
No. 10 QTY 1
No. 17 QTY 9
No. 75 QTY 1
The Adjustable Door Hinge
(No.17) comes in three parts.
Fasten No. 17a into 17b as shown in
the illustration.
Once the roof is xed, place the
master and secondary doors (No.9 &
10) and the Fully boarded single door
(No.75) onto a at surface.
Fix 3 x Adjustable door hinges
(No.17c) to each door using 3x30mm
screws per hinge.
Fix 3 x Adjustable Door Hinges (No.
17a&b) into position onto each door
frame using 4x30mm screws per
hinge.
*Ensure the hinges are tted to the
external of the door frame so the
doors open outwards from the log
cabin.
Locate the doors into the hinges Place
the doors on the hinges ensuring
there is equal spacing on each side
between the door and door frame, and
the doors open & close freely without
restriction.
It is important to t the doors within
the frames at this stage so that you can
establish the position of the hinges.
The hinges come in three parts.
Remove th doors from the frme after
tting.
*Ensure to screw into the framing and
not into the channel.
63x30mm Screws
a
b
17b
a
b
b
17
75
IMPORTANT: Pre-drill before xing screws.
17a
Step 12
To adjust and align your doors:
1. Lift up the doors to separate the two
parts fo the hinge.
2. Turn the rotating barrel (No.17a) in /
out to move the postion of the doors
either in or away from each other.
3. You can then place the door(s) back
on to the hinge and check the whether
they require more / less adjustments, if
further adjustments are required repeat
number 2.
Step 13
Once you have laid 6 log boards (o of the starter)
up the door section, slide the assembled door
frames over the boards resting the frame on top
of the starter board
(if you have not yet assembled the door frames
refer to steps 9 &10)
*Please note: This image is for illustrative purposes
and may dier from your choice in product
(regarding door position). Nevertheless the
process of tting the door frame is the same.
Please retain product label and instructions for future reference

P 12
Step 14
Parts needed - No. 23 QTY 6
No. 24 QTY 6
No. 29 QTY 12
No. 30 QTY 6
No. 31 QTY 6
Lay the next 6 boards (No. 23, 24, 29, 30, 31, 41, 83, 86 & 87) onto the log cabin to create your
second level, following the method as shown in the illustration.
*Ensure that the boards are level and ush with each other as you lay each one.
Ensure the boards (No.83 & 87) are level, ush and in line with the boards next to them.
Secure every other board (No. 83 & 87) in place by screwing through the side of the board at an
angle into the end of the board next to it (No. 41 & 29), using 1x60mm screw per board.
6x60mm Screws
Left Handed
Right Handed
24
23
41
29
83
87
86
41
41
83
87
86
41
41
29
29
41
23 24
30
31
29
30
31
Rubber Mallet
may be required
to t parts.
No. 41 QTY 18
No. 83 QTY 6
No. 86 QTY 6
No. 87 QTY 6
Pre drill
hole
80mm
screw
IMPORTANT : Pre-drill before xing screws.
2
4
IMPORTANT : Pre-drill before xing screws.
Step 15
Parts Needed - No. 2 QTY 2
No. 3 QTY 2
No. 4 QTY 2
No. 5 QTY 2
Arrange the left, right, top & bottom window
frames (No’s. 2, 3, 4,& 5) onto a rm and level
surface. Secure the top and bottom frames to
the uprights using 2x80mm screw per corner,
ensuring the screws do NOT protrude through
the front of the window framing.
Use this method to construct 2 window
frames.
16x80mm Screws
Pre drill
hole
80mm
screw
5
3
53
The internal lip of the window
frame should be positioned on
the inside of the building.
Please retain product label and instructions for future reference

P 13
Please retain product label and instructions for future reference
Pre drill
hole
30mm
screw
1
7
7
7
IMPORTANT: Pre-drill before xing screws.
Step 16
Parts Needed - No. 1 QTY 2
No. 7 QTY 4
Position the window (No. 1) so that it
sits centrally within the window
frame. Fix the female part of the ag
hinge (No. 7) to the window using
4x30mm screws, attach the male part
of the ag hinge (No. 7) to the
window frame using 4x30mm screws
ensuring that the window can open
and close freely.
Repeat this method for both windows
It is important to t the windows
within the frame at this stage so that
you can establish the position of the
hinges. The hinges came in two parts.
Remove the widnows from the frame
after tting.
*Ensure to attach the hinge to the
horizontal frame of the window*
32x30mm Screws
Step 17
Once you have laid the second level of
boards onto the log cabin slide the
windows between the smaller boards
and rest on to the longer board (if you
have not yet assembled the window
frames refer to step 13)
*Ensure the boards are level with each
end.
*Please note: This image is for illustrative
purposes and may dier from your choice
in product (regarding window position).
Nevertheless the process of tting the
window is the same
Step 18
Parts needed - No. 23 QTY 6
No. 24 QTY 5
No. 29 QTY 12
No. 30 QTY 6
No. 31 QTY 6
Lay the next layer of boards (No. 23, 24, 29, 30, 31, 41, 83, 86 & 87) onto the log cabin, following the method
as shown in the illustration, bringing the board level to the top of the window and door frames.
Please note when you get to the top of the boards the right hand boards will be slightly lower, and the
shed area boards will be slightly higher.
**Ensure that the boards are level and ush with each other as you lay each one.
Ensure the boards (No.83 & 87) are level, ush and in line with the boards next to them.
Secure every other board (No. 83 & 87) in place by screwing through the side of the board at an angle into the
end of the board next to it (No. 41 & 29), using 1x60mm screw per board.
6x60mm Screws
Left Handed
Right Handed
23
41
29
83
87
86
41
41
83
87
86
41
41
29
29 41
23
24
30
31
29
30
31
Rubber Mallet
may be required
to t parts.
24
Pre drill
hole
80mm
screw
No. 41 QTY 18
No. 83 QTY 6
No. 86 QTY 7
No. 87 QTY 7
IMPORTANT: Pre-drill before xing screws.

P 14
Please retain product label and instructions for future reference
Step 19
Parts needed - No. 26 QTY 1
Make the log cabin level by
adding another right hand
board (No. 26) as shown in the
illustration.
26
26
Right Handed
Rubber Mallet
may be required
to t parts.
Left Handed
Step 20
Parts needed - No. 28 QTY 1
No. 35 QTY 1
No. 37 QTY 1
No. 41 QTY 3
No. 83 QTY 1
No. 85 QTY 1
Lay the remaining boards (No. 28, 35, 37, 41, 83 & 85) onto the log cabin, following the
method as shown in the illustration, bringing the board level above the window and
doors.
*Ensure that the boards are level and ush with each other as you lay each one.
41
41
28
83
85
37
41
Left Handed
Right Handed
41
41
37
28 35
83
41
85
35
Rubber Mallet
may be required
to t parts.

P 15
Step 21
Parts needed - No. 27 QTY 1
No. 34 QTY 1
No. 36 QTY 1
Lay the remaining boards (No. 27, 34, 36, 41 & 83) onto the log cabin, following the method as shown
in the illustration, bringing the boards level.
*Ensure that the boards are level and ush with each other as you lay each one.
Ensure the boards (No.83 & 85) are level, ush and in line with the boards next to them.
Secure the top board (No. 83 & 85) in place by screwing through the side of the board at an angle into
the end of the board next to it (No. 41 & 29), using 1x60mm screw per board.
2x60mm Screws
Left Handed
Right Handed
41
36
34
27
41
36
34
27
41
83
41
83
41
41
IMPORTANT: Pre-drill before xing screws.
Rubber Mallet
may be required
to t parts.
Pre drill
hole
80mm
screw
No. 41 QTY 3
No. 83 QTY 1
Step 22
Parts needed - No. 38 QTY 1
No. 39 QTY 1
No. 84 QTY 2
Lay the Finisher boards (No. 38, 39 & 84)onto the log cabin.
Fix into position by screwing through the notches using
70mm screws.
*Ensure that the boards are level and ush with each
other as you lay each one.
6x70mm Screws
39
IMPORTANT: Pre-drill before xing screws.
38
Pre drill
hole
70mm
screw
84
84
Left Handed
Right Handed
38
84
84
39
Rubber Mallet
may be required
to t parts.
Please retain product label and instructions for future reference

P 16
Step 23
Parts needed - No. 94 QTY 2
Place the double storm braces (No.94) on either side of the log cabin, (Internally and externally) ensuring to
locate them centrally over where the middle log boards sit ush, as shown in the illustration.
*Ensure the storm braces are secured at the highest point possible on each side.
The storm braces will need to be altered during the buildings life as the moisture content within the log boards
changes. The boards will expand during periods of high moisture (Winter) and shrink during periods of low
moisture (Summer.)
**Storm braces will help your building expand and contract properly.
***It is important that each bolt is tightened using a washer so as not to damage the log boards.
Secure the double storm braces into position from the inside of the cabin using 4x90mm bolts per 2 storm
braces (2 at the top, 2 at the bottom), making sure the washer & nut are tightened from the outside of the log
cabin. Ensure the bolts go through both the internal and external double storm brace.
8x90mm Bolts
Pre drill
hole
90mm
bolt
IMPORTANT: Pre-drill before xing screws.
Right Handed
Left Handed
94
94
94
94

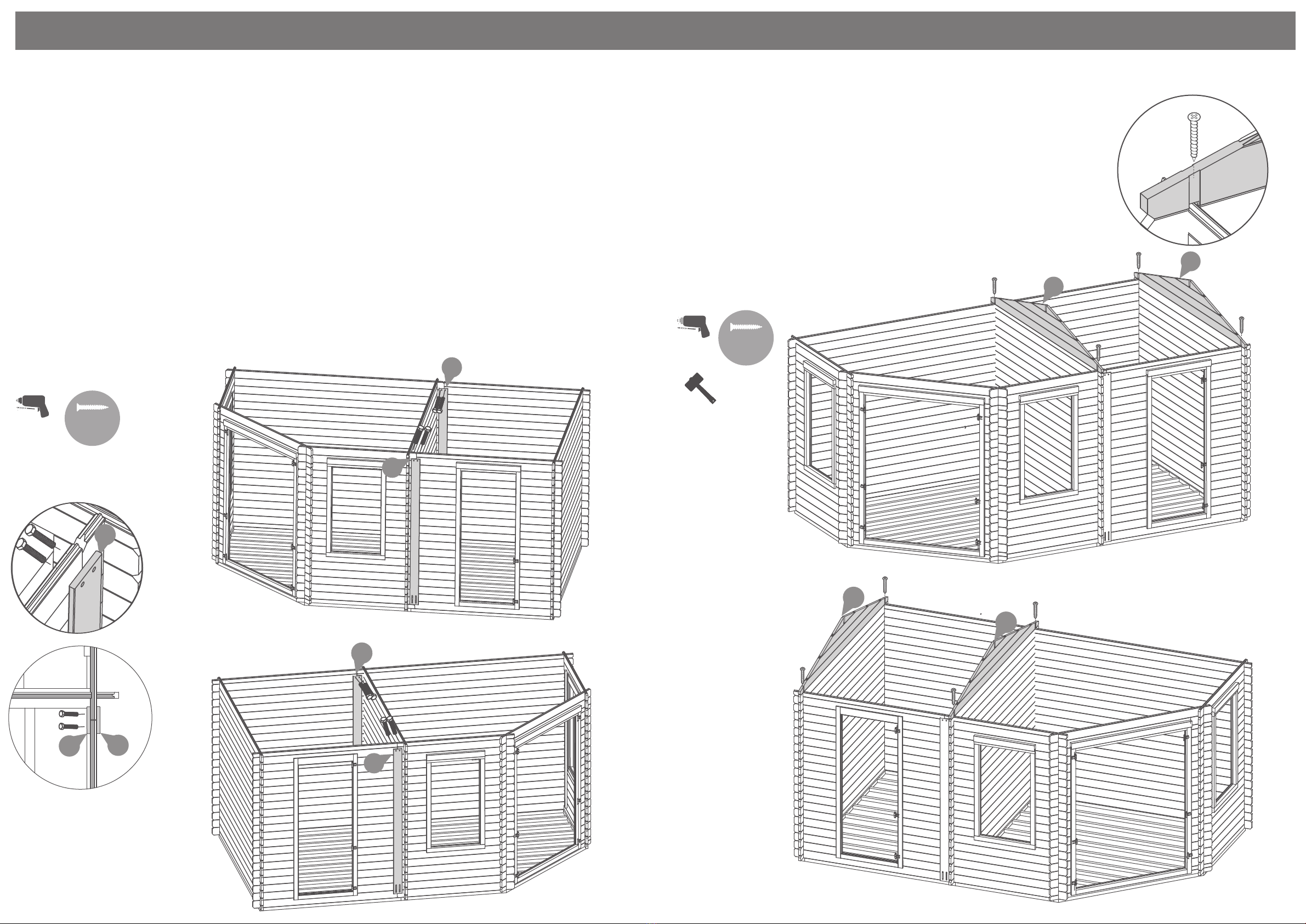

Step 24
Parts needed - No. 74 QTY 2
Place the gable tops (No. 74) onto the assembly.
Fix into position by screwing through the notches as
shown in the illustration.
*Ensure that the boards are level and ush with each
other as you lay each one.
**Ensure to stagger the screws so as not to collide with
the previous screw.
4x120mm Screws
Pre drill
hole
120mm
screw
74
74
Left Handed
Right Handed
74
74
IMPORTANT: Pre-drill before xing screws.
Rubber Mallet
may be required
to t parts.
94
94
94
Please retain product label and instructions for future reference

P 17
Step 25
Parts needed - No. 50 QTY 1
No. 51 QTY 1
No. 90 QTY 1
Align the Roof Purlin (No. 90) into the cut out slots on
the gables, ensuring the purlin interlocks the boards.
Secure the roof purlin in place by screwing into the
gable boards at an angle using 4x90mm screws.
4x90mm Screws
Pre drill
hole
90mm
screw
IMPORTANT: Pre-drill before xing screws.
Left Handed
90
Rubber Mallet
may be required
to t parts.
90
Step 26 - Left Handed
Parts needed - No. 48 QTY 1
No. 50 QTY 1
No. 51 QTY 1
Place the Central roof Truss Roof Truss
C(No.50) ush to the end of the Roof
Purlin (No. 90)
Place Roof Truss D (No.51) and Roof
Truss A (No.48) onto either side of the
Roof Purlin (No.90) ensuring they sit
ush to the end, creating a ’T’shape as
shown in the illustration.
Fix in place by screwing through the
truss into the Purlin at an angle, as
shown in the illustration using
1x90mm screw per truss.
3x90mm Screws
Step 26 - Right Handed
Parts needed - No. 48 QTY 1
No. 50 QTY 1
No. 51 QTY 1
Place the Central roof Truss ‘ Roof
Truss D (No.51) ush to the end of the
Roof Purlin (No. 90)
Place Roof Truss C (No.50) and Roof
Truss A (No.48) onto either side of the
Roof Purlin (No.90) ensuring they sit
ush to the end, creating a ’T’ shape
as shown in the illustration.
Fix in place by screwing through the
truss into the Purlin at an angle, as
shown in the illustration using
1x90mm screw per truss.
3x90mm Screws
Pre drill
hole
90mm
screw Rubber Mallet
may be required
to t parts.
Pre drill
hole
90mm
screw Rubber Mallet
may be required
to t parts.
51
50
90
48
51
50
90
48
Right Handed
Left Handed
Please note: You can adjust the
blocks attached to the roof
truss’ if necessary.
IMPORTANT: Pre-drill before xing screws.
50
51
48
90
50
51
90
48
Right Handed
Please retain product label and instructions for future reference

Right Handed

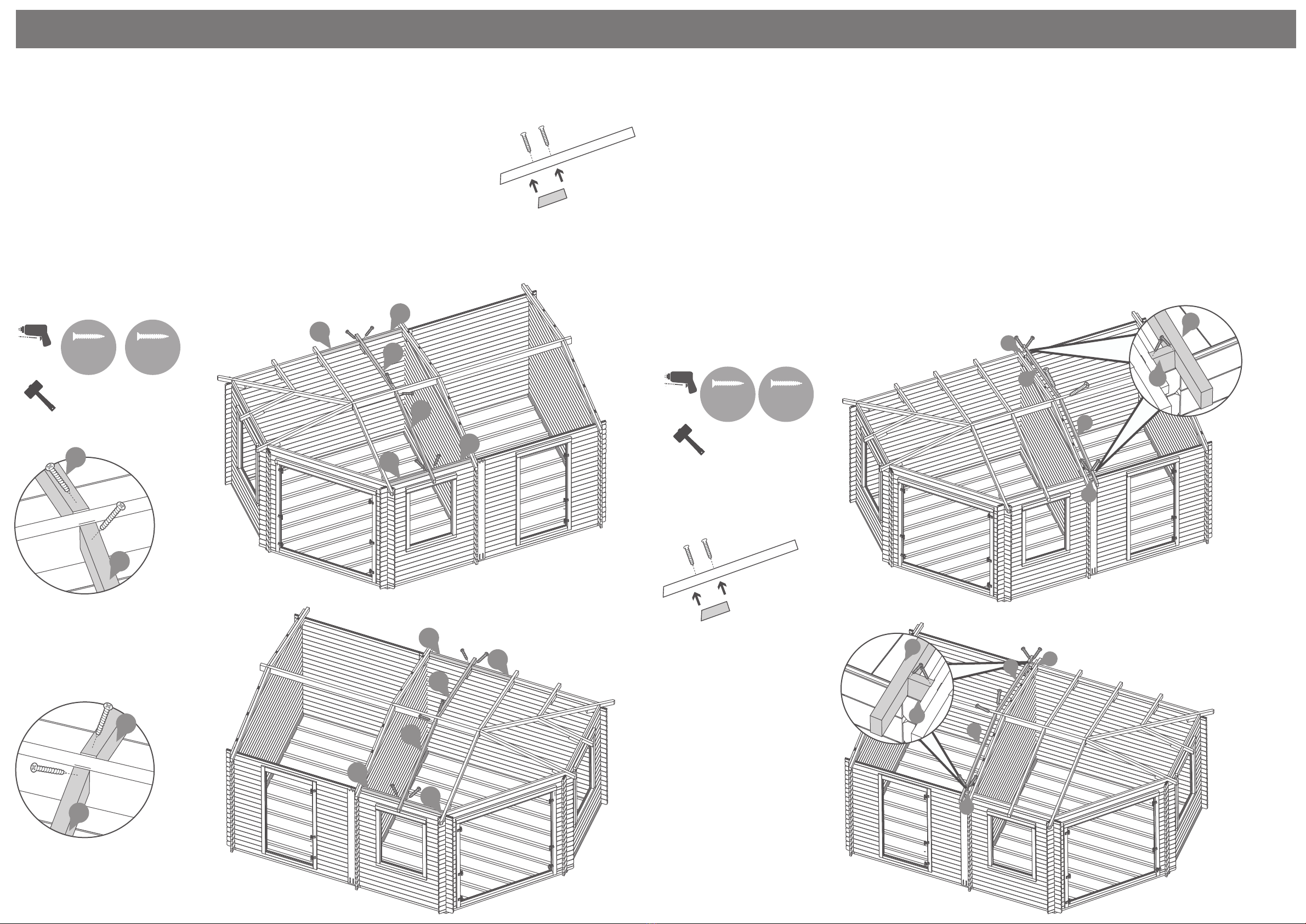

Step 27
Parts needed - No. 49 QTY 1
Place ‘Roof Truss B’ (No. 49) between Roof Truss A (No.48) and
the Central Roof Truss (Truss D for Roof Assembly 1, and Truss C
for Roof Assembly 2) as shown in the illustartion.
Fix in place by screwing into the purlin at an angle as shown in
the illustration using 1x90mm screw.
1x90mm Screws
IMPORTANT: Pre-drill before xing screws.
49
90mm
screw
Left Handed
Right Handed
49
50
51
50
51
Please note: You can adjust the
blocks attached to the roof
truss’ if necessary.
Please note: You can adjust the blocks
attached to the roof truss’ if necessary.
Rubber Mallet
may be required
to t parts.
50 51
48
49
51
50
49
48
48
90
48
90

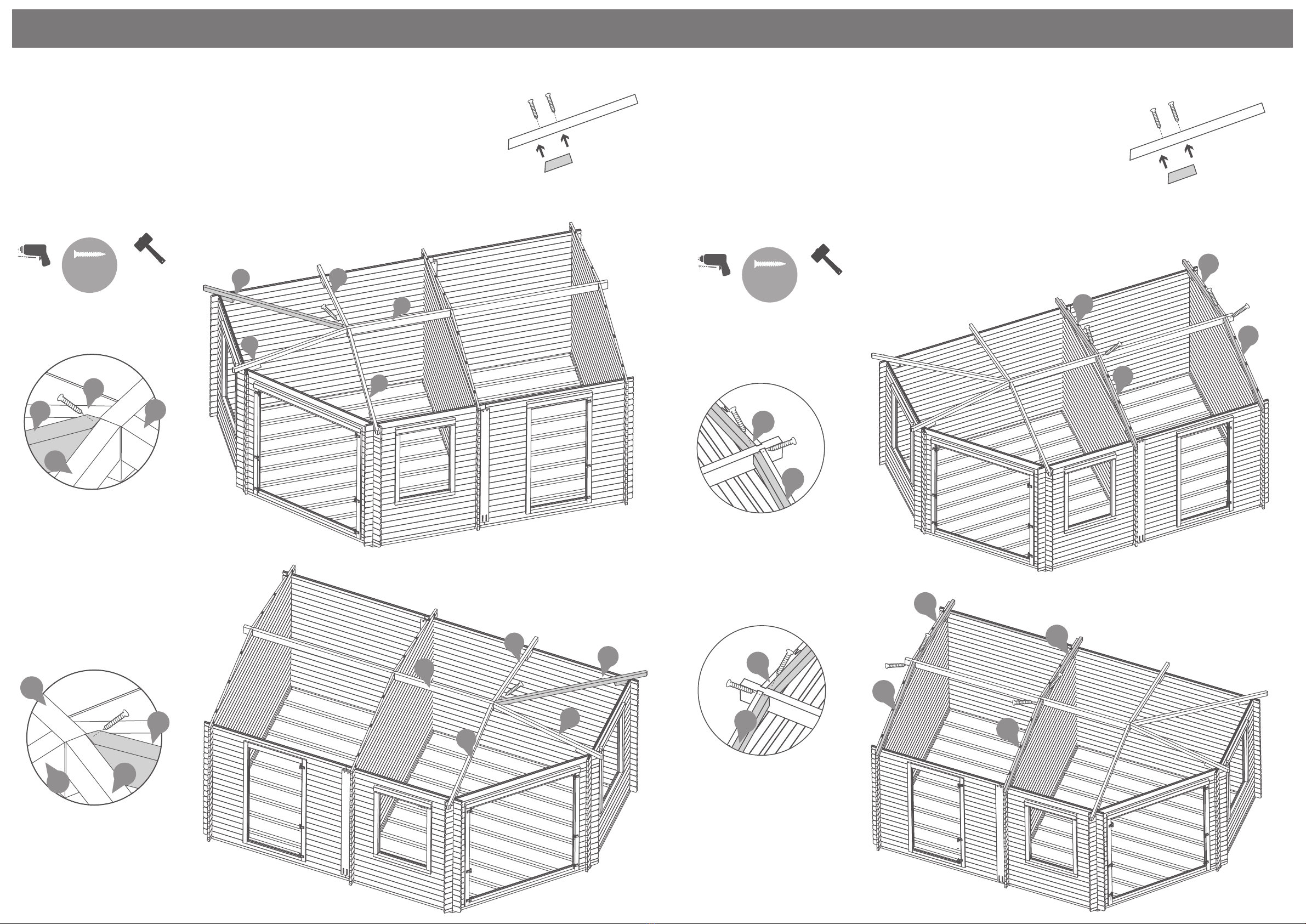

Step 28
Parts needed - No. 48 QTY 4
Place 2x‘Roof Truss A’(No. 48) ush to the inside of the back
gable and 2x‘Roof Truss A’(No. 48) to the inside of the gable
in the middle of the log cabin.
Fix in place by screwing into the purlin at an angle as shown
in the illustration using 1x90mm screws per Roof Truss.
4x90mm Screws
90mm
screw
Pre drill
hole
48
Left Handed
IMPORTANT: Pre-drill before xing screws.
Rubber Mallet
may be required
to t parts.
48
48
48
48
48
48
48
48
48
48
48
P 18
Pre drill
hole
Please retain product label and instructions for future reference

Please retain product label and instructions for future reference
Please note: You can adjust the
blocks attached to the roof
truss’ if necessary.
IMPORTANT: Pre-drill before xing screws.
Step 29
Parts needed - No. 46 QTY 1
No. 47 QTY 1
Secure the shortest Roof Truss’ (No. 46 & 47) to ‘Roof Truss B’
(No.49) as shown in the illustration using 1x70mm screws per
truss.
*Ensure the angled side of the short truss is ush with the
side of the long truss. Then make sure the block under the
short truss is ush against the wall of the building.
2x90mm Screws
Pre drill
hole
90mm
screw
46
47
Left Handed
Right Handed
Rubber Mallet
may be required
to t parts.
46
47
46
47 46
47
IMPORTANT: Pre-drill before xing screws.
Step 30
Parts needed - No. 42 QTY 1
No. 43 QTY 1
No. 44 QTY 1
No. 45 QTY 6
Place the nisher boards (No. 42, 43, 44 & 45) around the front of the log cabin,
locating each board ush to the truss’.
*Please Note: there should be a gap between boards No. 45 & 45 on either side of the log
cabin, with enough space to locate a Roof Truss.
Some adjustment may be required to ensure the roof structure rests correctly.
Secure each board by screwing through the board into the Roof Truss using 70mm
screws, ensuring to stagger the screws to avoid colliding.
14x70mm Screws
Pre drill
hole
70mm
screw
45
Left Handed
Right Handed
45
45
45 45
43
44
45
42
42
43
45
Please note: You can adjust the blocks
attached to the roof truss’ if necessary.
45
45
45
44
45
42mm
42mm
Rubber Mallet
may be required
to t parts.
45
P 19

P 20
Please retain product label and instructions for future reference
Pre drill
hole
Please note: You can adjust the blocks
attached to the roof truss’ if necessary.
90mm
screw
Step 31
Parts needed - No. 48 QTY 2
Locate two ‘Roof Truss A’ (No. 48) into the gaps between the nisher boards on either
side of the log cabin as shown in the illustration.
Some adjustment may be required to ensure the roof structure rests correctly.
Fix in place by screwing into the purlin at an angle as shown in the illustration using
1x90mm screws per Roof Truss.
Secure each Finisher board (No.45) in place by screwing through the board into the
Roof Truss using 70mm screws, ensuring to stagger the screws to avoid colliding.
2x90mm Screws
4x70mm Screws
48
48
48
48
70mm
screw
Left Handed
Right Handed
IMPORTANT: Pre-drill before xing screws.
Rubber Mallet
may be required
to t parts.
45
45
45
45
48
48
45
45
45
45
48
48
Step 32
Parts needed - No. 48 QTY 2
No. 89 QTY 2
Place the Finisher boards (No. 89) either side of the log cabin, locating each board ush to the central gable.
Locate two ‘Roof Truss A’ (No. 48) ush to the nisher boards on either side of the log cabin, as shown in the illustra-
tion.
Some adjustment may be required to ensure the roof structure rests correctly.
Fix the Truss (No. 48) in place by screwing into the purlin at an angle, as shown in the illustration using 1x90mm
screws per Roof Truss.
Secure each Finisher board (No.89) in place by screwing through the board into the Roof Truss and gable using
70mm screws, ensuring to stagger the screws to avoid colliding.
2x90mm Screws
4x70mm Screws
70mm
screw
90mm
screw
Pre drill
hole
Please note: You can adjust the blocks
attached to the roof truss’ if necessary.
Left Handed
Right Handed
48
89
48
89
48
48
89
89
48
89
48
89

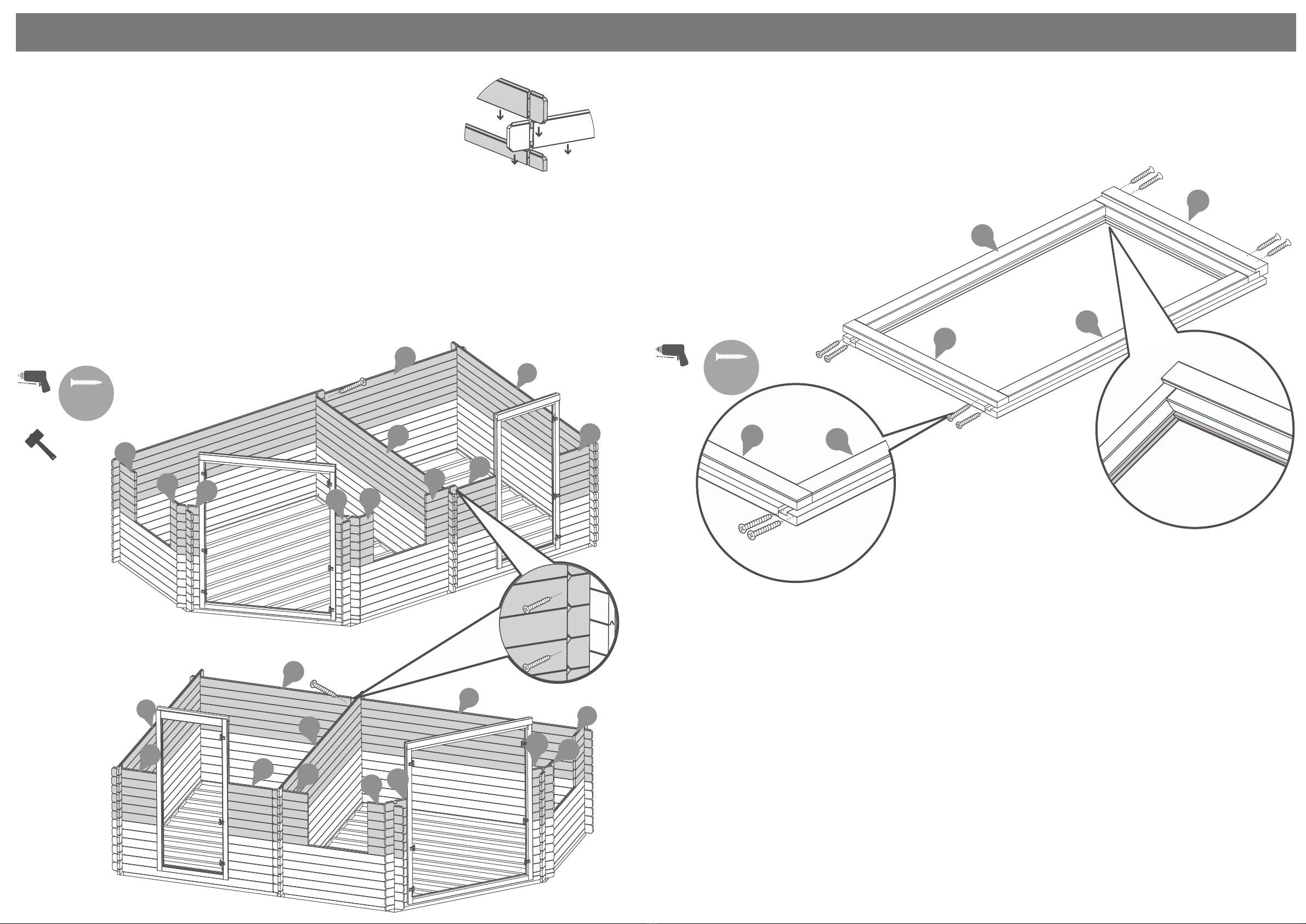

IMPORTANT: Pre-drill before xing screws.
Rubber Mallet
may be required
to t parts.
