Mercia Garden Products 01DTSHRAX0604SDFW-V1 Instruction manual

REGISTER FOR YOUR
ANTI-ROT
GUARANTEE TODAY
PLEASE SCAN HERE:
**Protim Aquatan T5 (621)**
Your building has been dip treated with Aquatan.
Aquatan is a water-based concentrate which is diluted with water, the building as been treated by the correct
application of Aquatan solution and then allowed to dry.
Aquatan is a decorative nish to colour the wood, which is applied industrially to timber fence panels and
garden buildings.
Aquatan undiluted contains: boric acid, sodium hydroxide 32% solution, aqueos mixture of sodium dioctyl
sulphosuccinat and alcohols: 2, 4, 6-trichlorophenol.
Measure
under the
head
Measure
overall
length
Screws & Nails Bolts To identify the
xings required
for each step use a
measuring tape.
01DTSHRAX0604SDFW-V1
DIP TREATED SHIPLAP REVERSE APEX 6X4 SINGLE DOOR FIXED WINDOW
2mm Drill bit
x2 Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
All buildings should be
erected by two adults
For ease of assembly, you
MUST pilot drill all screw
holes and ensure all screw
heads are countersunk.
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
CAUTION
Every eort has been made during the
manufacturing process to eliminate the
prospect of splinters on rough surfaces of the
timber. You are strongly advised to wear gloves
when working with or handling rough sawn
timber.
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied) including a Phillips screw-
driver, Stanley knife, Wood saw, Step ladder, Hammer and a Drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
LOCATION FOR YOUR GARDEN BUILDING
A minimum of 60cm should be left around the perimeter of your garden building to allow access for maintenance,
annual treatment and to allow air ow around the building.
Where possible you should avoid placing your garden building underneath large trees to prevent the tree causing
damage to the building.
TIMBER
As with all natural materials, timber can be aected during various weather conditions. For the duration of heavy
or extended periods of rain, swelling of the wood panels may occur. Warping of the wood may also occur during
excessive dry spells due to an interior moisture loss. Unfortunately, these processes cannot be avoided but can be
helped. It is suggested that the outdoor building is sprayed with water during extended periods of warm sunshine
and sheltered as much as possible during rain or snow.
Once your garden building has been installed it will need to be treated as soon as possible and annually to prevent
the timber from deteriorating and to waterproof it. This is required to maintain the anti-rot guarantee.
Dip Treated buildings - Require a preservative treatment to protect against rot and decay and a waterproof treat-
ment to prevent water ingress
Pressure Treated buildings - Require a waterproof treatment to prevent water ingress
Log Cabins - Are supplied untreated and require a preservative and waterproong treatment.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual
treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base
dimensions, The base should be slightly smaller than the external measurement of the building, i.e. The cladding
should overlap the base, creating a run o for water. It is also recommended that the oor be at least 25mm above
the surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens
products independently tested to EN71 level, we cannot accept responsibility for your safety whilst erecting or
using this product.
For ease of assembly, you
will need a tape measure to
check dimensions of
components.
P 1
Please retain product label and instructions for future reference
General Instructions

17 18 19 20
21 22
50mm Screw x 46
20mm Screw x 8
40mm Screw x 34
30mm Screw x 88
60mm Screw x 10
Felt Tacks x 66
23 24
P 2
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied) including a Phillips screw-
driver, Stanley knife, Wood saw, Step ladder, Hammer and a Drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
LOCATION FOR YOUR GARDEN BUILDING
A minimum of 60cm should be left around the perimeter of your garden building to allow access for maintenance,
annual treatment and to allow air ow around the building.
Where possible you should avoid placing your garden building underneath large trees to prevent the tree causing
damage to the building.
TIMBER
As with all natural materials, timber can be aected during various weather conditions. For the duration of heavy
or extended periods of rain, swelling of the wood panels may occur. Warping of the wood may also occur during
excessive dry spells due to an interior moisture loss. Unfortunately, these processes cannot be avoided but can be
helped. It is suggested that the outdoor building is sprayed with water during extended periods of warm sunshine
and sheltered as much as possible during rain or snow.
Once your garden building has been installed it will need to be treated as soon as possible and annually to prevent
the timber from deteriorating and to waterproof it. This is required to maintain the anti-rot guarantee.
Dip Treated buildings - Require a preservative treatment to protect against rot and decay and a waterproof treat-
ment to prevent water ingress
Pressure Treated buildings - Require a waterproof treatment to prevent water ingress
Log Cabins - Are supplied untreated and require a preservative and waterproong treatment.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual
treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base
dimensions, The base should be slightly smaller than the external measurement of the building, i.e. The cladding
should overlap the base, creating a run o for water. It is also recommended that the oor be at least 25mm above
the surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens
products independently tested to EN71 level, we cannot accept responsibility for your safety whilst erecting or
using this product.
01DTSHRAX0604SDFW-V1
Overall Dimensions:
Width = 1313mm
Depth = 1838mm
Height = 2159mm
Base Dimensions:
Width = 1175mm
Depth = 1753mm
Please retain product label and instructions for future reference
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN

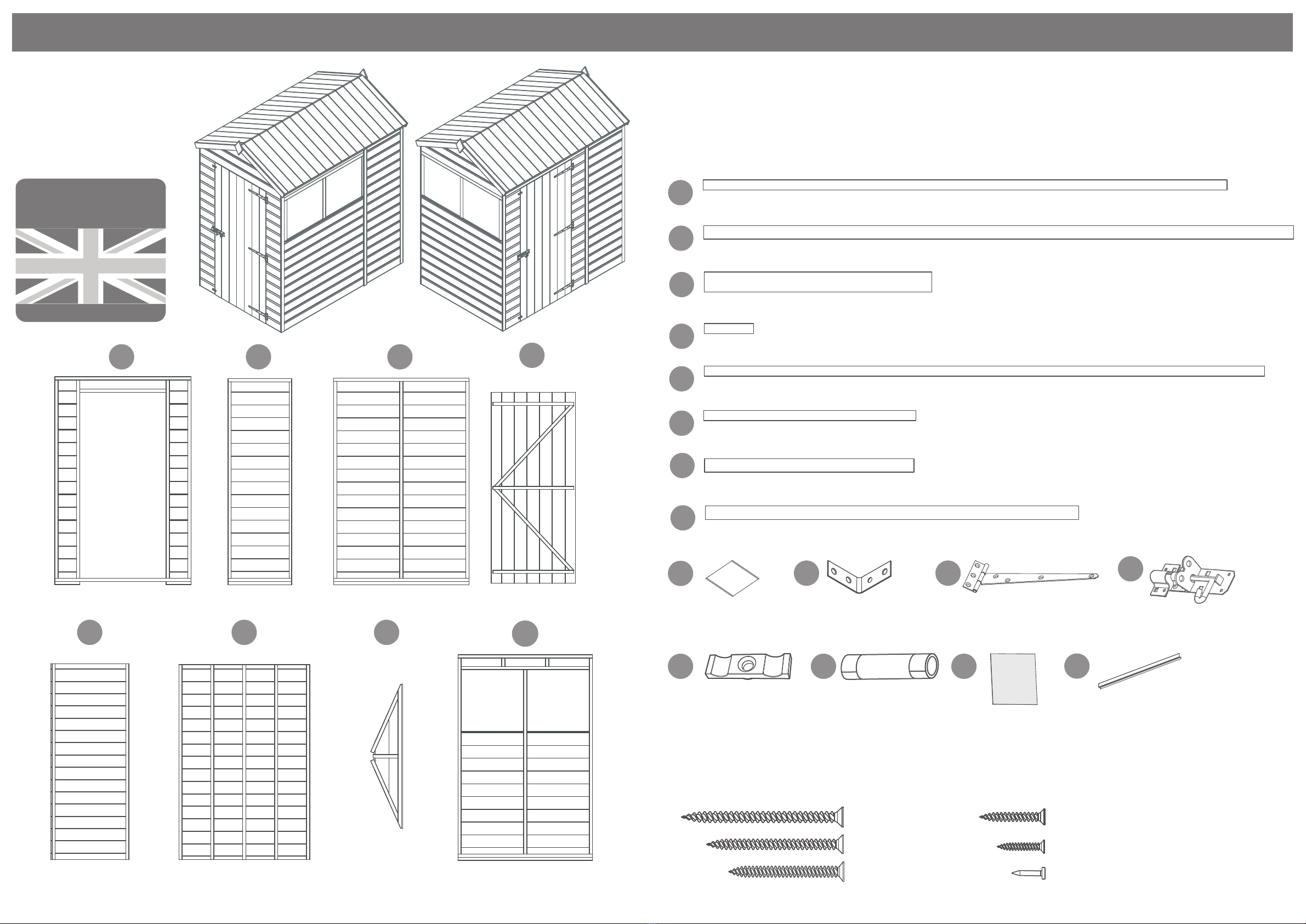

Nail Bag
There may be extra screws present in the nail bag
The building that you have purchased can be built
as an Apex or a Reverse Apex. Also you can choose
in which arrangement you wish to have your panels
set up. See these images on display to give you an
idea of which set up is most suitable for you.
2
134
567
Door Panel QTY 1
AI-01S11SHSD1180X1802-V1
Plain Panel 1 QTY 2
AI-S11SHPPTF524X1802-V1
Plain Panel 2 QTY 2
AI-S11SHPPTF1180X1802-V1
Door QTY 1
AI-S11FBMBZBD743X1680-V1
Roof QTY 2
AI-S11MBOHAR712X1790-V1
Floor QTY 1
AI-R11MBF1175X1753-V1
Gable Top QTY 2
AI-S11SHAGT1180X262-V1
9
Door Beading Strip 12x28x1590mm QTY 2
S1228-1590mm
10
Cover Trims 12x40x1792mm QTY6
S1240-1792mm
11
Fascias 12x60x690mm QTY 4
S1260-690mm
12
Door Block 28x28x150mm QTY 1
FS2828-150mm
13
Ridge Bar 28x28x1704mm QTY 1
FS2828-1704mm
14
Window Strip 12x28x550mm QTY 4
S1228-550mm
15
Window Cover trims 12x40x513mm QTY 3
S1260-690mm
16
Window Cover trims 12x40x1180mm QTY 1
S1240-1180mm
Shed diamond
Finial QTY 2
Shed diamond Finial
Corner Brace QTY 2
PI-07-0012
T-Hinge QTY 3
PI-07-0021
Turn Button QTY 2
PI-07-0034
Felt QTY 1
PI-01-0013
Pad Bolt QTY 1
PI-07-0035
Window Panel QTY 1
AI-01S11SH2CW1180X1802-V1
8
Styrene QTY 2
PI-05-0114
Cilled Window QTY 1
PI-08-0013

P 3
Please retain product label and instructions for future reference

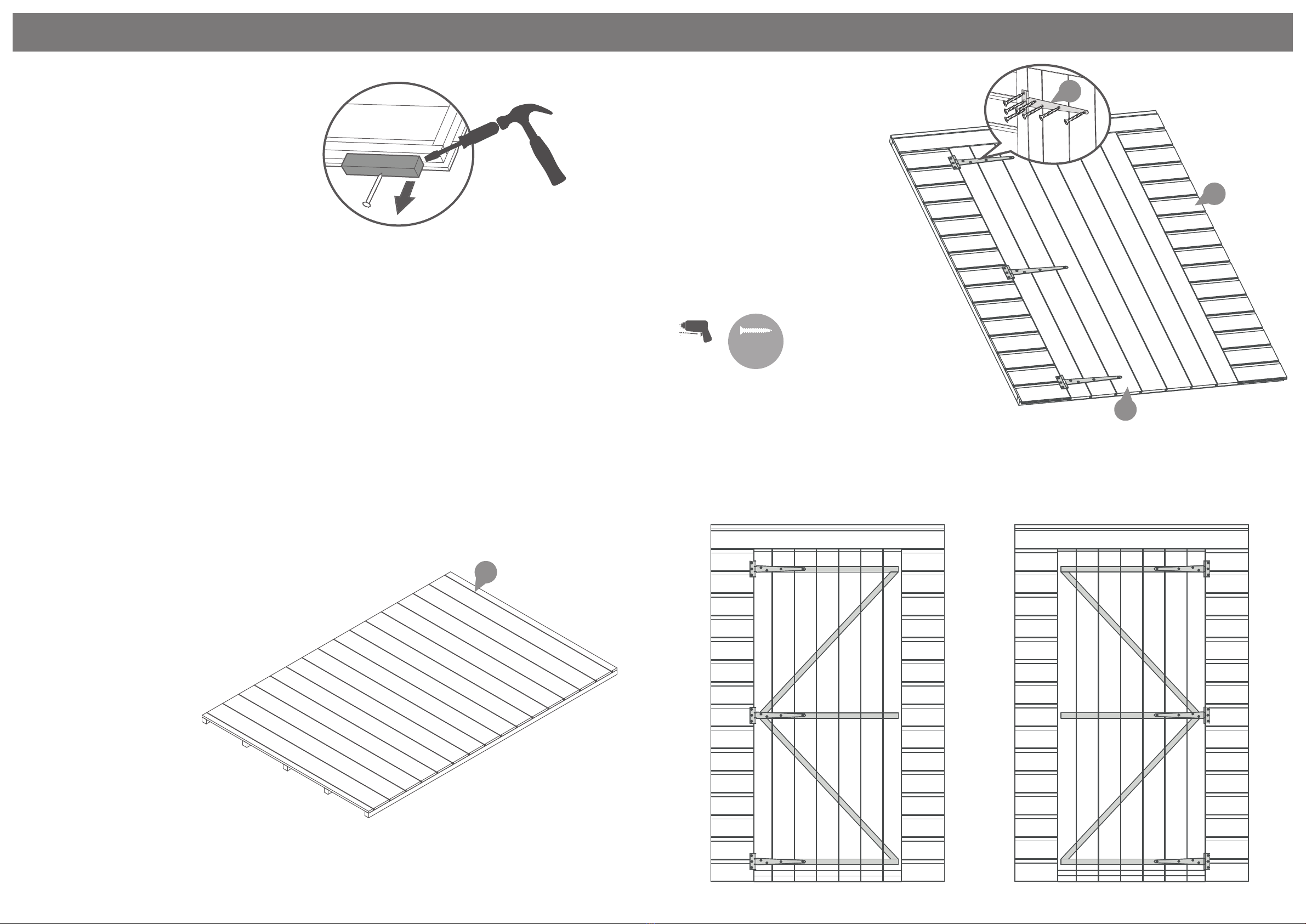

Pre Assembly
Before assembling remove the transportation
blocks from the bottom of each panel.
Take care removing the blocks as to not damage
the panels. Tap with a at headed screwdriver
and hammer.
Dispose of the blocks once removed.
Step 1
Parts needed - No. 6 QTY 1
Place the oor panel (No. 6) onto a rm
and level base. Ensure the base has suitable
drainage, free from areas where standing
water can collect. See front page for base
requirements.
6
Step 2
Parts needed - No. 1 QTY 1
No. 4 QTY 1
No. 19 QTY 3
Place the door (No. 4) within the
Door Panel (No. 1). Fix the T Hinges
(No. 19) onto the door and Door
Panel as shown (taking into account
on which side of the Door Panel
opening you want the Door to open).
Ensure that the screws go through the
cladding and into the framing behind.
21x30mm Screws
19
Pre drill
hole
30mm
screw
1
4
Opens from the Left Opens from the Right
**PLEASE NOTE** Before tting the
hinges, ensure the door is in the correct
position depending on which side you
want the door to open. See external
illustrations below which show the doors
internal framing.

P 4
Please retain product label and instructions for future reference

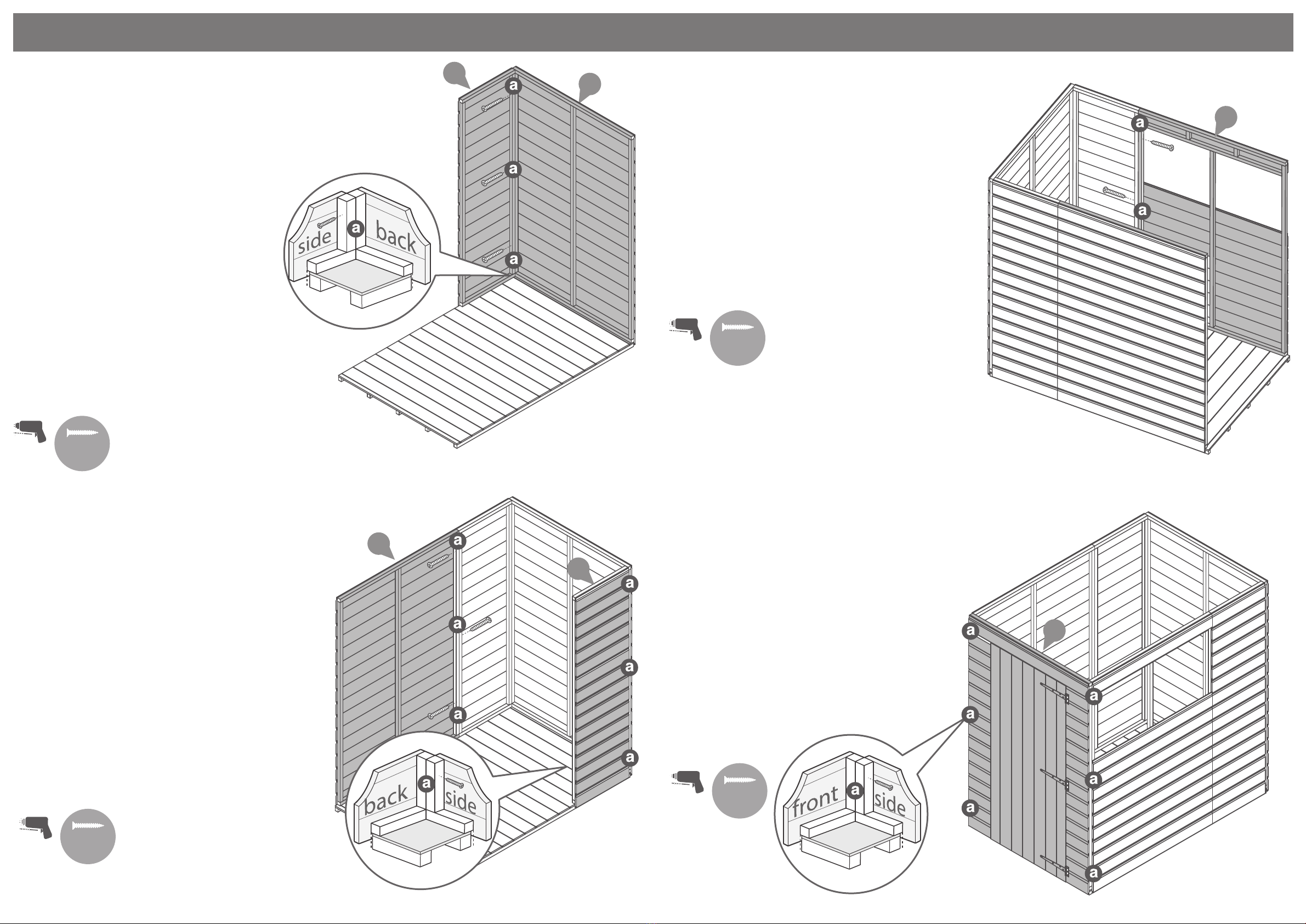

Step 3
Parts needed - No. 2, (or 1, or 3, or 8) QTY 1
No. 3 (or 8) QTY 1
**Please note: The side panels are all
interchangeable and can be posititioned in
a variety of congurations. Decide which
works best before assembly. See Page 2 for
suggested options.**
Fix the corners of the Plain panel 2 (No. 3)
and a Plain Panel 1 (No. 2) (or panel
of your choice) with 50mm screws as shown
in diagram.
Do not secure the building to the oor until the
roof has been tted,
Position the panels so there is equal spacing
between the oor and cladding on all sides.
3x50mm Screws
50mm
screw
Pre drill
hole
3
2
Step 4
Parts needed - No. 2, (or 1, or 3, or 8) QTY 1
No. 3, (or 1, or 8) QTY 1
Fix the corners of the Plain panel 1
(No. 2)(or panel of your choice) and the Plain panel 2
with 50mm screws as shown in diagram.
Fix the end of the Plain Panel 2 (No. 3) (or
panel of your choice) to the already standing chosen
panel with 50mm screws as shown in diagram.
Do not secure the building to the oor until the
roof has been tted,
Position the panels so there is equal spacing
between the oor and cladding on all sides.
6x50mm Screws
50mm
screw
Pre drill
hole
3
2
Step 5
Parts needed - No. 8 QTY 1
Fix the end of the Window Panel (No. 8) (or
panel of your choice) to the already standing
chosen panel with 50mm screws as shown in
diagram.
Do not secure the building to the oor until
the roof has been tted,
Position the panels so there is equal spacing
between the oor and cladding on all sides.
3x50mm Screws
50mm
screw
Pre drill
hole
8
1
Step 6
Parts needed - No. 1, (or 3, or 8) QTY 1
Fix the corners of the Door Panel
(No. 1) (or panel of your choice) to the
plain panels (No. 2 or 3) with 50mm
screws as shown in diagram.
Do not secure the building to the
oor until the roof has been tted,
Position the panels so there is equal
spacing between the oor and
cladding on all sides.
6x50mm Screws
50mm
screw
Pre drill
hole

P 5
Please retain product label and instructions for future reference

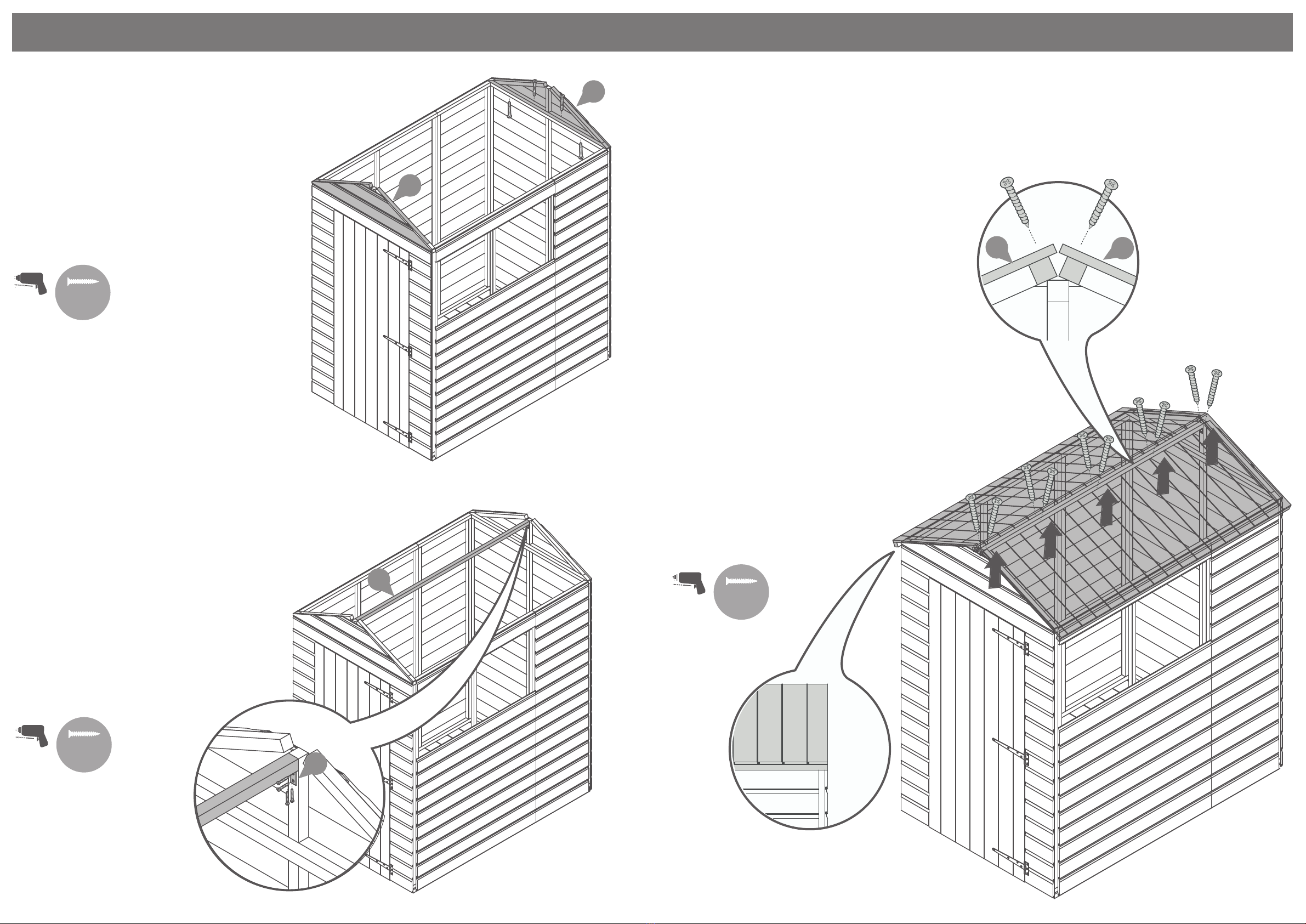

Step 7
Parts needed - No. 7 QTY 2
Place the Gable Tops (No. 7) central over the
end panels. Make sure that the cladding
slots together and x into position using
50mm screws.
Fix together using 8x50mm screws
staggering the screws so they don’t collide.
8x50mm Screws
50mm
screw
Pre drill
hole
7
7
Step 8
Parts needed - No. 13 QTY 1
No. 18 QTY 2
Place the ridge bar (No. 13) in between the
Gable Tops (No. 7) in line with the central
framing of the gable tops.
Fix the ridge bar to the gable using one
L bracket (No. 18) for each end. Fix with
4x20mm screws each.
8x20mm Screws
20mm
screw
Pre drill
hole
13
18
Step 9
Parts needed - No. 5 QTY 2
Place the Roof Panels (No. 5) on top of the
building making sure the framing in the roof
panels sits rmly within the Gable Tops (No. 7)
and on top of the Ridge Bar (No. 13).
**Make sure that you have got the roof panels
the correct way round with the recess at the top
of the apex as shown in the diagram.**
**The edges of the roof panels must be ush
with the outer cladding of the Gable Tops
(No. 7).**
From the top, x directly through the roof panels
(No. 5) and into the ridge bar (No. 13) below
using 5x60mm screws per roof panel .
It is essential that the ridge bar (No. 13) and roof
panel (No. 5) framing pull together when xed
with 60mm screws. You may require another person
pushing the ridge bar (No. 13) up from below to
achieve this.
HINT - Follow the nailing line of the framing on
the roof panel so that you are more likely to
x into the ridge bar below.
10x60mm Screws
60mm
screw
Pre drill
hole
5
5

P 6
Please retain product label and instructions for future reference
Step 12
Parts needed - No. 14 QTY 4
No. 15 QTY 3
No. 16 QTY 1
No. 23 QTY 2
No. 24 QTY 1
Fix 4x Inner Window Strip (No. 14) to the sides
of the framing exposed in the window gap of
the Window Panel (No. 8) using 3x30mm
screws per Strip .
Place the Plastic Window Cill (No. 24) into the
window panel (No. 1) opening as shown in
the illustration. Fix screws through cill for
extra support using 3x30mm screws.
Fit the styrene sheets (No. 23) on top of the
Plastic Window Cill (No. 24).
*For added weather protection t your
windows using silicone sealant around
the outside edges.
**When positioning the styrene sheets ensure
there is an equal distance on all sides.
Attach 1x Outer Window Strip (No. 16) along
the top of the window opening. Followed by
attaching 3x Outer Window Strips (No. 15) to
either side of the windows and the centre.
Secure into place using 3x30mm screws per
strip. **You may need to cut these to t.**
Repeat this process for the other Window Panel
27x30mm Screws
Pre drill
hole
30mm
screw
a
b
c
14
14
14
14
24
a
b
c
d
d
SILICONE
SEALANT
15 15
15
23
23
Side View
Styrene
Window Cill
Cladding
16
*Cut down
trims to t
Pre drill
hole
40mm
screw
Step 10
Use 40mm screws to x the roof (No. 5)
down the sides and at the bottom being
sure that the screws attach into the framing
below.
18x40mm Screws
Step 11
Once the roof is xed, attach the building
to the oor with 50mm screws.
Ensure the screws go through the panel into
the oor framing
20x50mm Screws
50mm
screw
Pre drill
hole

19 19
HANDLE
WITH CARE
12
3
4
Step 15
Parts needed - No. 11 QTY 4
No. 17 QTY 2
Fit the Fascias (No. 11) to the roof over
the felt and secure in place with 40mm
screws as shown. Pre drill to avoid
splitting.
Followed by adding the Finials (No. 17)
over the Fascias using x2 40mm screws
per Finial.
16x40mm Screws
40mm
screw
Pre drill
hole
11
11
17
11
17
11
P 7
Please retain product label and instructions for future reference
Felt
tacks
Step 13
Parts needed - No. 22 QTY 1
Cut the felt (No. 22) into two sheets at
1900mm. Lay onto roof as shown in
diagram ensuring there is a 50mm
overhang around the sides.
Apply the felt tacks with a 100mm space
per tack.
66x Tacks
22
10
Step 14
Parts needed - No. 10 QTY 6
Fit the Cover Trims (No. 10) over each
panel join and corner of the building
as shown in the illustration using
30mm screws. Pre drill to avoid
splitting.
18x30mm Screws
30mm
screw
Pre drill
hole
10
10
10

P 7
Please retain product label and instructions for future reference
P 8
Use 4x30mm Screws to x
each beading strips (No. 9)
onto the insides of the Door
Panel (No. 1) opening.
Ensure that the screw is
parallel with the door frame
when xing the strip to the
Door Panel as shown in the
close up view.
8x30mm Screws
Attach the Inner Door Block (No.
12) to the door (No. 4) using
2x30mm screws, in the positions
illustrated. Screw through the
door cladding into the blocks
using 30mm screws
2x30mm Screws
Step 16
Parts needed - No. 9 QTY 2
No. 11 QTY 1
30mm
screw
30mm
screw
Pre drill
hole
Pre drill
hole
Step 17
Parts needed - No. 20 QTY 1
Screw the Pad Bolt (No. 20) on to the door
(No. 4) and the retainer to the door panel
(No. 1) using 10x30mm screws. Make
sure that you screw into the framing behind.
10x30mm Screws.
Pre drill
hole
30mm
screw
20
Step 18
Parts needed - No. 21 QTY 2
Fix the Turn Button (No. 21) onto the
Door Panel (No. 1) using 1x30mm
screw for each one.
*These turn buttons help to keep
your doors straight during high
and low levels of moisture content
in the air.*
2x30mm Screws
30mm
screw
Pre drill
hole
21
a
b
9
9
12
b
a
b

Please retain product label and instructions for future reference
P 9

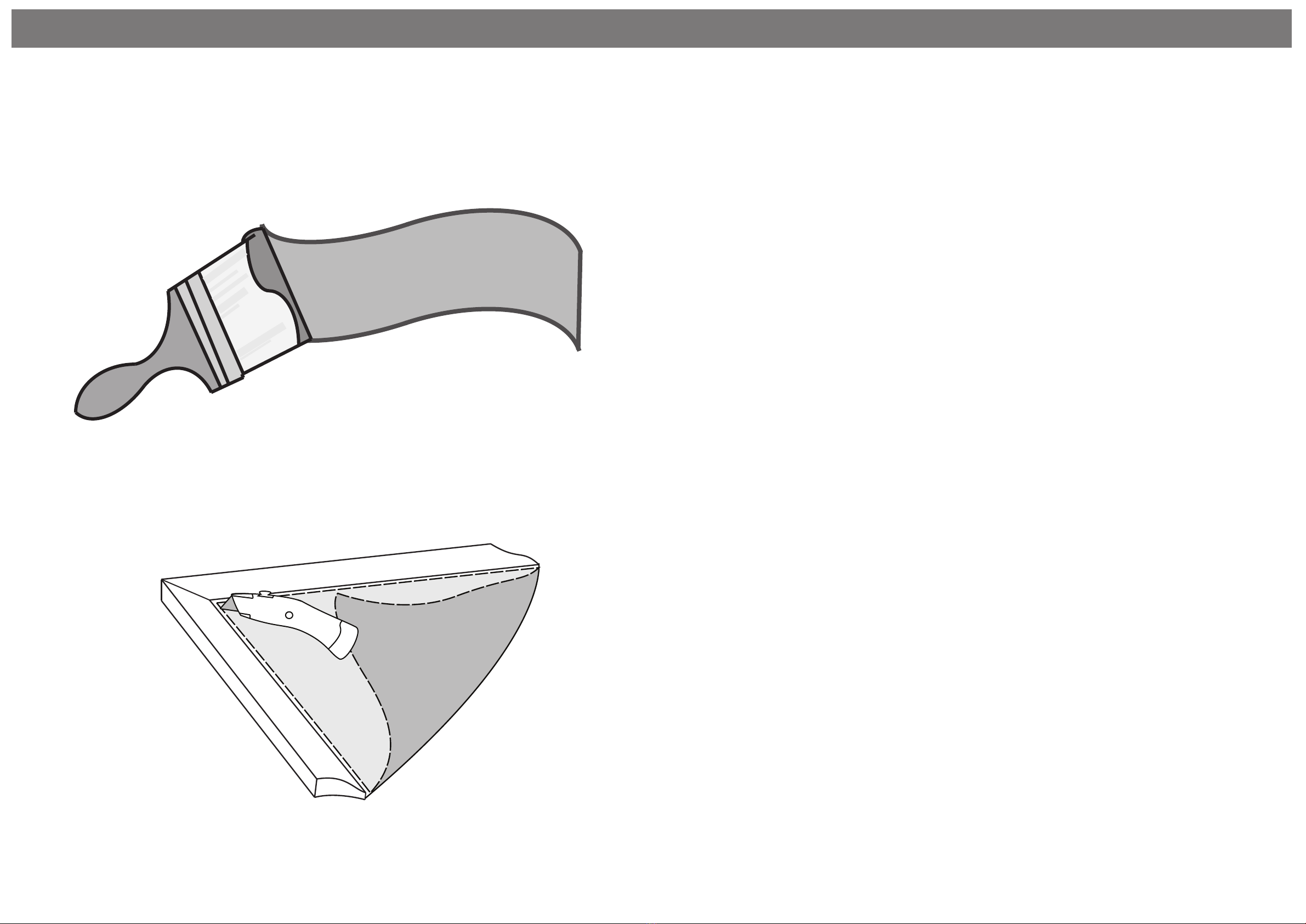

It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
AFTER TREATMENT:
score around protective
cover on glazing and
carefuly peel
covering back
P 8

P 9




















































2





1












3
4

































¡




1




2























¡



