Metcalfe EP10 Manual

t 01766 830 456 e [e-mail] wwww.metcalfecatering.com
Metcalfe EP10, NA10, EP15 & NA15
10lb (4.5kg) & 15lb (6.8kg)
Bench Mounted Peelers
Installation & Operating Instructions
EP10
NA15

1

2
Index
Your Peeler .................................................................................................... 3
Technical Data ……………………..…………………..................................................... 4-5
Optional Extras ............................................................................................... 6-7
Installation .................................................................................................... 8
-Trolley Installation ......................................................................... 8
-Pedestal Installation ...................................................................... 8
-Water Supply Connection ................................................................ 9
-Waste Outlet Connection ................................................................ 9
-Installation Kit ………….................................................................... 10
-Waste Disposal Adaptor …………......................................................... 10
-External Interceptor …………………………………………………………………….. 11
-Tundish ......................................................................................... 11
Operation ....................................................................................................... 12
Cleaning ......................................................................................................... 12
Maintenance ................................................................................................. 13
-How to Adjust Door Cam .................................................................... 13
Spare Parts & Service Contact Details ........................................................... 13
Warranty ...................................................................................................... 14
Other Products In Our Portfolio .................................................................... 15

3

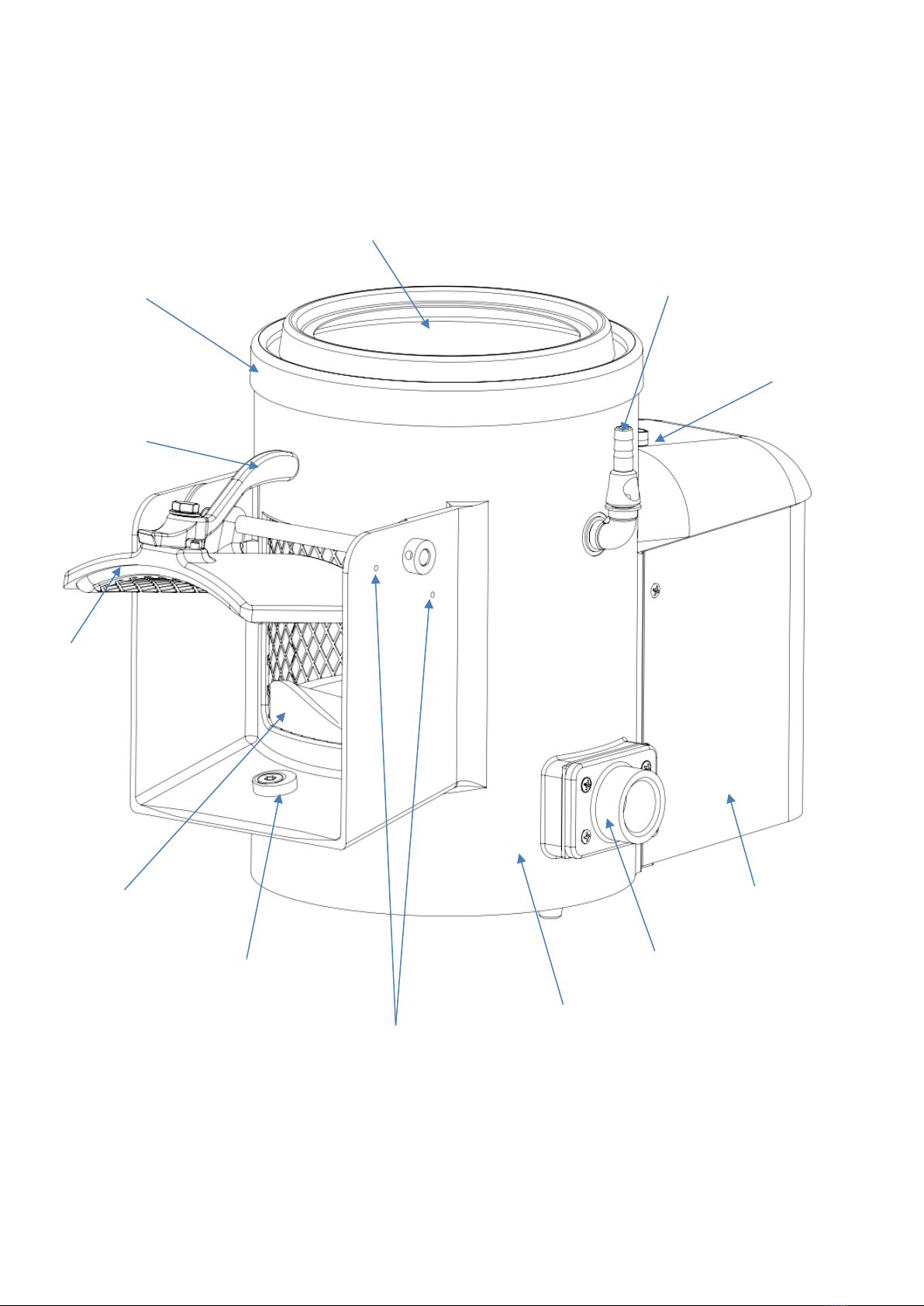

Your Peeler
Water Inlet
Aluminium
Lid
On / Off
Switches
Rubber Door
Gasket
Rotor/Peeling
Plate
Door Cam
Motor Casing
Cover
Waste Outlet
Peeling
Chamber
Guarded Chute
Attachment Holes
(optional extra)
Door
Handle
Rubber Lid

4
Metcalfe Bench Potato Peeling Machines
The Metcalfe 10lb (4.5Kg) and 15lb (6.8Kg) potato peeling machines are constructed from food grade,
non-corrosive aluminium alloy castings, with the spindle housing and chute cast integrally, eliminating
joints and possible leakage.
Features
•Available in natural aluminium or a grey hammer paint finish
•Sink-top / counter-top, pedestal or trolley mounted
•Optional pedestal is 90cm high, making the discharge chute 94cm (37”) high (sink height)
•Complies with all relevant safety standards and designed for ease of maintenance and cleaning
•All bearings are grease packed and permanently sealed therefore no lubrication required
•V-belt driven for noiseless transmission, with provision for belt tensioning if required
•Rotor plate coated on both sides, doubling its life. Fine grained abrasive for new potatoes on one
side and coarse grained for regular potatoes on the other
•Inside wall of peeling chamber has patented cast-in abrasive serrations which dispenses with the
need for abrasive coating. Consequently, there is less potato loss during both peeling and boiling
and the efficiency of the serrations will last the life of the machine
•Lid removable without tools so that the rotor plate can be lifted out for cleaning. To clean the
chamber, turn on water and the whole chamber is flushed clean. Cleaning should be carried out
daily.
•Water inlet: hose union with nozzle and provision for fitting on either side
•Waste/water outlet: tapped 1½” BSP ready for waste pipe to be connected. Provision for fitting
on either side
•CE Approved
Technical Specifications
Model Capacity
(Kg)
Phase
(Ø)
Motor
(Volt)
Frequency
(Hz)
AMP
(A)
Power
(kW / hp)
EP10 & NA10 4.5 1 220 50 2.8 0.25 / 0.33
EP15 & NA15 6.8 1 220 50 2.8 0.25 / 0.33
Dimensions | Shipping Information
Model Overall Dimensions
D x W x H (mm)
Net Weight
(Kg)
Packed Dimensions
D x W x H (mm)
Packed
Weight (Kg)
Volume
(m3)
EP10 & NA10 576 x 339 x 365 27 665 x 265 x 480 30 0.04
EP15 & NA15 576 x 339 x 416 30 665 x 265 x 480 34 0.04

5
EP10 & NA10 Drawing
EP15 & NA15 Drawing

6
Optional Extras
Guarded Discharge Chute
Product Code
(Painted Finish) 9T19
(Stainless Steel) 9T24
The Guarded Discharge Chute protects the
operator by allowing the door to the chamber
to be opened which stops hand access through
the door aperture whilst the machine is
working.
Sink Skip
Product Code TS06
Metcalfe sink skip designed for use with both
the 4.5kg & 6.8kg potato peelers.
Prevents potato peelings from going down the
drain.
Length of Waste Pipe,
Elbow & Coupling
Product Code 9T18
Metcalfe waste pipe elbow & coupling
designed for use with both the 4.5kg or 6.8kg
potato peelers.
Allows discharge of waste and water from
machine.
3ft Length Water Inlet Hose
& Tap Connector
Product Code 9P64
Metcalfe 3ft inlet hose & tap connector
designed for use with both the 4.5kg and 6.8kg
potato peelers.
Provides water supply into the machine.
Installation Kit
Product Code 9T28
Comprises: Sink Skip, Length of Waste Pipe,
Elbow & Coupling, 3ft Length Water Inlet Hose
& Tap Connector
Small External Interceptor
Product Code 9T22
Small external interceptor with tank and
basket.

7

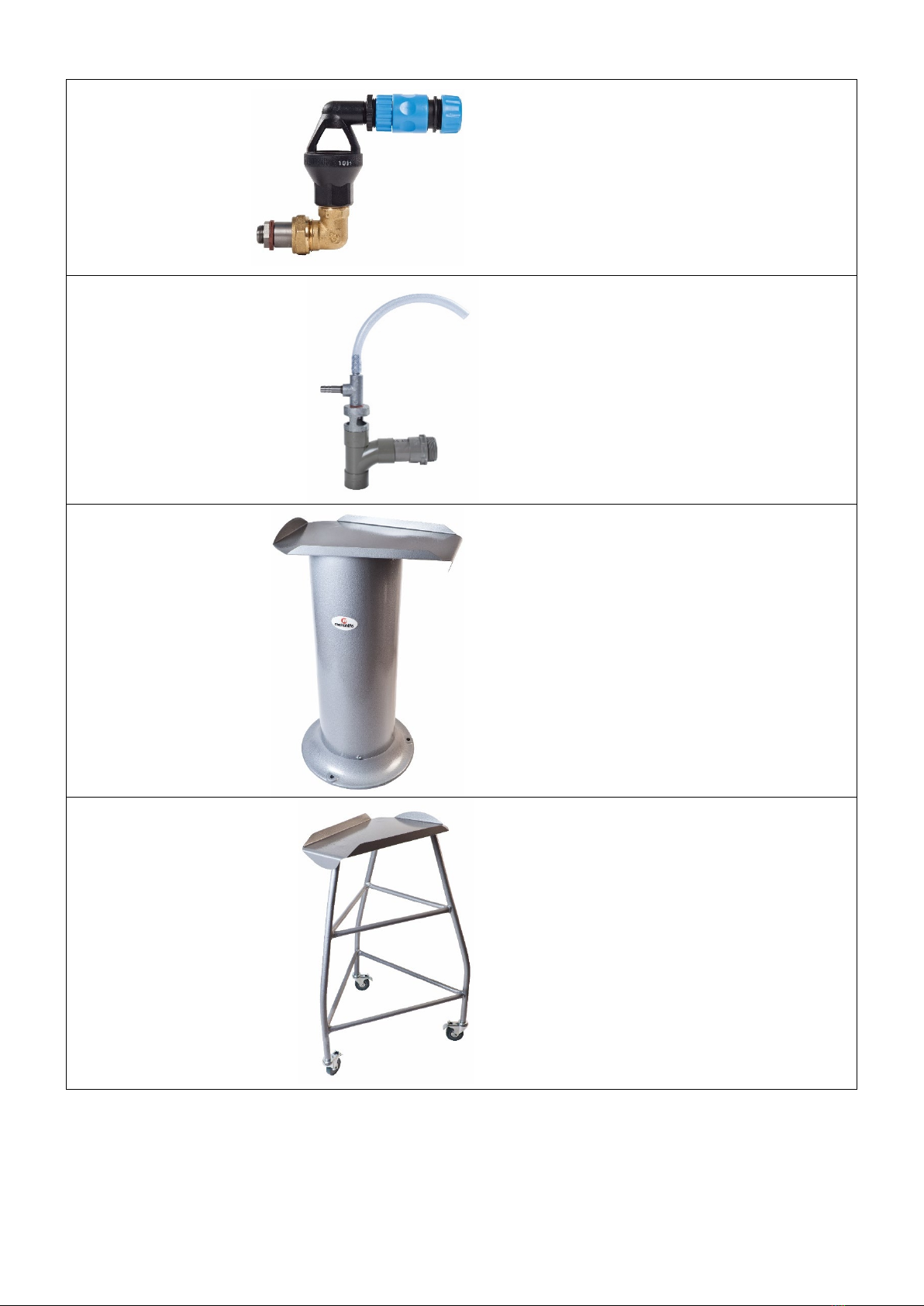

Tundish
Product Code 9T25
The tundish is fitted in place of the standard
water inlet supplied with all Metcalfe peelers.
The use of a tundish meets the requirements
of water regulations G19.1, G19.3 & G19.4
contained in “The Water Supply Regulations
1999” and the “Water Byelaws 2000
(Scotland)”
Small Waste Disposal Adaptor
Product Code 9T17
The waste disposal adaptor enables the waste
pipe to be connected direct to the drain. It
gives an additional water supply to the waste
outlet to flush away the sludge.
Pedestal
Product Code 9T20
Designed specifically for the Metcalfe 4.5kg &
6.8kg potato peelers, the Metcalfe pedestal
provides a permanent stable location for your
commercial potato peeler. Perfect for freeing
up valuable counter space the pedestal is
designed to hold the peeler safely and
securely, at the ideal height.
900mm high (sink height discharge)
Mobile Trolley
Product Code 9T21
Designed specifically for the Metcalfe 4.5kg &
6.8kg potato peelers, the Metcalfe mobile
trolley allows convenient placement and
storage, freeing up valuable counter space
within your kitchen. The trolley features
robust, lockable castors and is designed to
hold the peeler safely and securely at the ideal
height.
900mm high (sink height discharge)
If you wish to purchase any of the accessories detailed here please contact
our sales department, see contact details on page 13.

8
Installation
Unpacking
Unpack the peeler immediately after receipt. Please inspect the peeler to ensure there is no damage and
that all parts are included i.e. water inlet, rubber lid etc. If the machine is found to be damaged, keep all
the packaging and contact us, or your supplier of the equipment, immediately.
You should receive with your peeler:
1 x Box Spanner
1 x Water Inlet Nozzle
1 x Lifting Hook
1 x Instruction Manual
If any of the above items were not received with your peeler, please refer to page 13 for contact details
and inform us immediately for replacements.
The machine should be placed on a bench/worktop or draining board with the discharge chute
overlapping a sink.
If supplied with a pedestal or trolley, please follow these instructions to install your peeler securely.
Trolley Installation
•Once the trolley is in place ensure that the castors
are locked to prevent the trolley moving during
operation.
•Place the peeler onto the top of the trolley. (If
required the peeler can be secured to the trolley by
removing the rubber feet and drilling holes in the top
of the trolley to secure the peeler into place).
Pedestal Installation
If the peeler is to be mounted onto a pedestal it must be secured to the
floor as follows:
•Place the pedestal in the desired position. Put the peeler on the
pedestal to check the position is correct.
•Once you are happy that the location is right, remove the peeler from
the top of the pedestal and mark through the fixing holes at the base
of the pedestal, onto the floor.
•Remove the pedestal and drill holes at these marks.
•Secure the pedestal to the floor using M12 rawl bolts (not supplied
by Metcalfe Catering Equipment Ltd).

9
Water Supply Connection
The water inlet nozzle connector is supplied and should be fitted to the outside
of the machine facing upwards. It has two possible inlet locations, one on either
side of the machine, whichever is more convenient for your installation.
1. Thread the water inlet valve (1) onto the elbow joint (2), ensuring a fibre
washer (4) is placed between the two.
Ensure the valve is tightened securely to eliminate leakages.
2. Take the water inlet bush (3) with a fibre washer (4) placed over it and feed
through the chamber wall from the inside.
3. Place another fibre washer (4) onto the water inlet bush on the exterior side of the chamber. Take
the assembly from step 1 and thread the remaining elbow joint opening onto the water inlet bush.
Ensure the assembly is tightened securely to eliminate leakages. Also ensure the water inlet
valve is pointing directly upwards, otherwise the air gap does not function correctly.
Connect the water supply pipe to the water inlet, connect the other end of the supply pipe to a cold water
tap or shut off valve that can be used to supply a sufficient water flow into the machine.
Waste Outlet Connection
The waste outlet is screwed onto the right-hand side of the machine but can be
used on either side of the machine to suit your installation. Pipe work for the
waste outlet can be purchased from a hardware store, or we can supply as an
optional extra a waste pipe, elbow and coupling. This is to be fitted to the waste
outlet casting to discharge the waste into a sink.
Having connected the water inlet, waste outlet and the electrical supply, the machine is ready for
operation.
1
3
4
2

10
Installation of Optional Extras
Installation Kit (optional extra)
Comprises a Sink
Skip, Length of
Waste Pipe, Elbow &
Coupling, 3ft Length
Water Inlet Hose &
Tap Connector.
This image shows a typical installation utilising the kit.
Waste Disposal Adaptor (optional extra)
The waste disposal adaptor enables the waste pipe to be connected direct to
the drain. It gives an additional water supply to the waste outlet to flush
away the sludge.
The waste disposal adaptor fits onto the waste outlet
on the side of the peeler. Ensure that the waste
disposal adaptor is vertical and securely in place.
Two adjusting screws and lock nuts are provided to
adjust the water flow through the machine. The top
one controls the flow through the peeler and the
lower one controls the flow to the waste pipe.

11

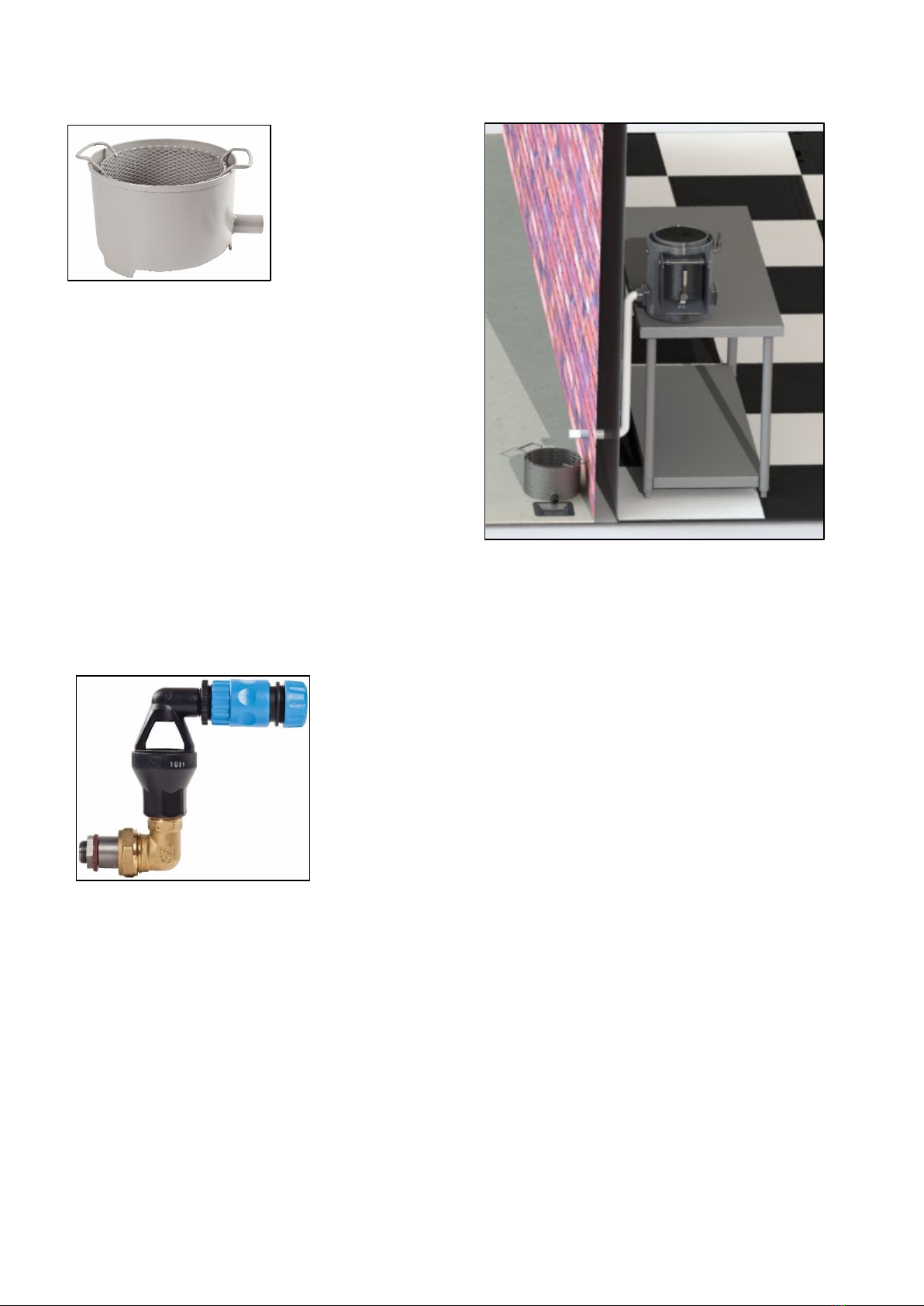

Small External Interceptor (optional extra)
This image shows a typical external interceptor
installation.
Tundish (optional extra)
The use of a tundish meets the requirements of water regulations
G19.1, G19.3 & G19.4 contained in “The Water Supply Regulations
1999” and the “Water Byelaws 2000 (Scotland)”.
The tundish can be fitted instead of the standard water inlet nozzle
supplied with all Metcalfe peelers.

12
Operation
Full operational instructions can be found on the side of each peeler.
The machine works off 230volt 50Hz 1 Phase supply and comes fitted with a 3-pin 13amp fused plug.
1. Ensure that the chute door is closed.
2. Turn on the machine by pressing the green start button.
3. Turn on the water supply.
4. Remove the rubber lid and load the potatoes through the top of the peeler and replace the lid.
DO NOT load the potatoes before running the unit as this will damage the bearings, shaft
assembly & motor and will void the warranty.
5. Carefully remove rubber lid to check peeling progress.
6. Once peeled, open the door whilst the machine is still running to discharge the potatoes into a sink
or bucket.
7. Once empty, you can then switch the machine off.
DO NOT at any point put your hand or any implement into the machine, whilst it is in
operation.
Cleaning Instructions
Daily cleaning should be considered mandatory for all equipment used in the preparation of food. Once
your peeler has made contact with any food product, the entire peeler, including removable parts must
be thoroughly cleaned. This process is to be repeated essentially at least once a day, or at the end of
each operation period. If the machine has not been used for a while it must be cleaned before use as
well.
1. Switch off unit at socket.
2. Remove metal lid.
3. Unscrew the fixing screw securing the rotor plate using the box spanner provided.
4. Lift out the rotor plate using the lifting hook provided.
5. Turn on cold water supply to clean the inside of the chamber with a nylon brush.
6. To clean the rotor plate, wash in cold water ONLY using a nylon brush.
NEVER wash the plate in hot water or in a dishwasher as this will remove the coating.
7. Use a damp cloth to wipe the outside of the unit.
DO NOT use cleaning materials containing abrasives or bleaches.

13
Maintenance

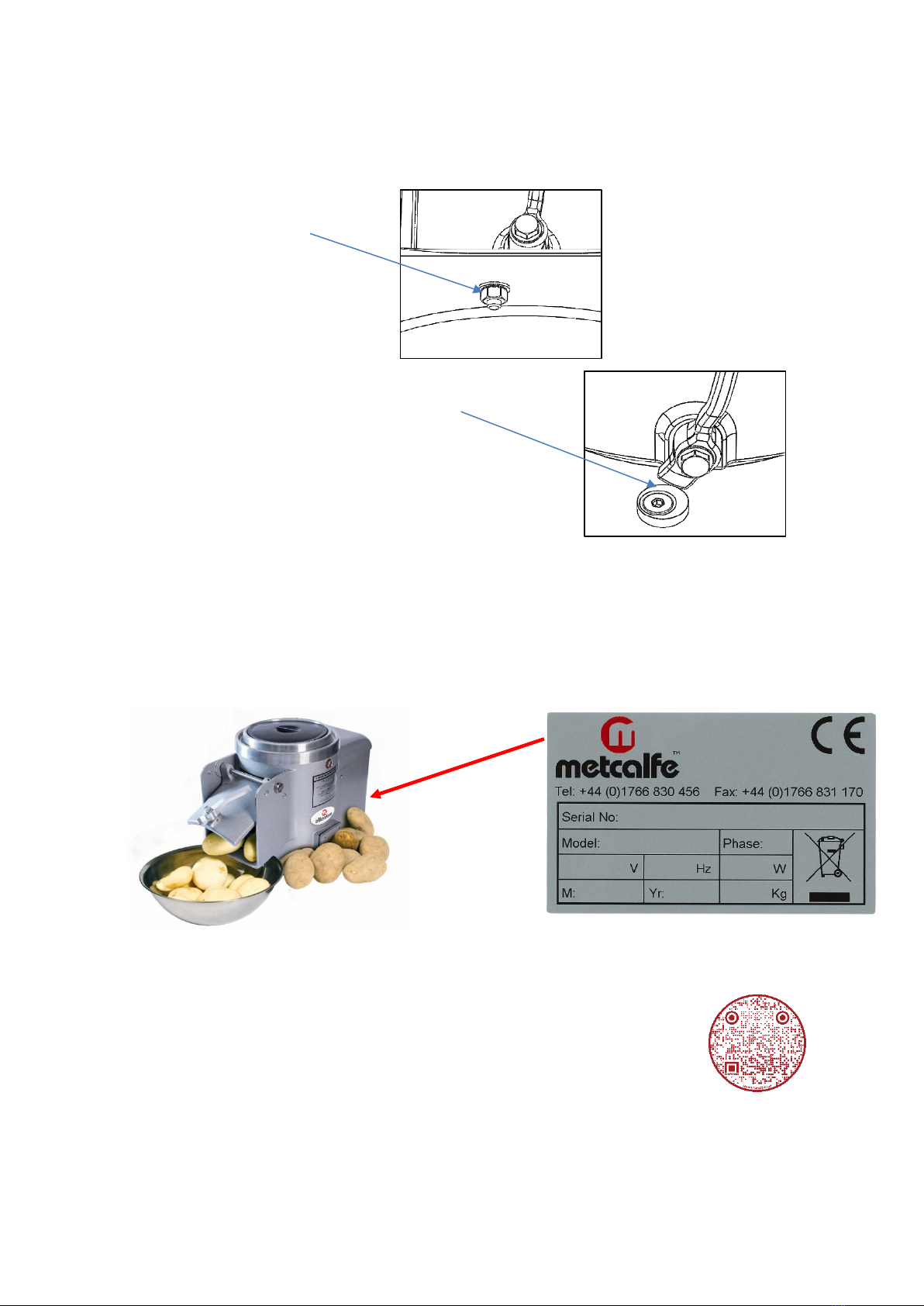

How to Adjust Door Cam
Over time the door may loosen slightly. If this happens a door cam has been fitted to enable the
operator to retighten the door.
1. Undo the nut underneath the chute
to loosen the cam.
2. Turn the door cam into position so that the door handle can
be locked in place securely.
3. Retighten the nut to secure the door cam into its new and
correct position.
Spare Parts and Service
For more information on Metcalfe spare parts, accessories and service support, including breakdown
drawings and parts lists please contact us on the details below.
Please always quote the Serial Number of the machine. This can be found on the serial number plate
which is located on the rear of the motor cover.
Metcalfe Sales & Spares Department [e-mail]
Metcalfe Service Department [e-mail]
Metcalfe Website www.metcalfecatering.com
Metcalfe Telephone Number 01766 830 456
Additional copies of this instruction manual can be obtained by either visiting our website or contacting
the sales department.
EPU0/1234/7B
EP10
220 - 240
April
2017
30,00
250
50
1

14
Metcalfe Warranty
All Metcalfe products are guaranteed against defects in material and workmanship for a period of one
year from date of Invoice, except where specially noted.
The Company's obligation under this warranty is limited to repairing or replacing, without charge, any
part or parts found to be defective under normal use, in accordance with the specified operations manual
and capacity ratings.
On all return to factory warranty items, it is the responsibility of the purchaser to return the entire unit to
the factory, in a clean condition, properly packed and labelled.
All repairs, alterations or replacement of materials or parts not authorised by Metcalfe will automatically
void all warranties in their entirety.
All Metcalfe slicers (except Simple Line) are covered by a 2-year warranty (1st year parts and labour, 2nd
year parts only) and full after sales service.
All Metcalfe SP mixers are covered by a 3-year warranty (1st year parts and labour, 2nd & 3rd year
parts only) and full after sales service.
There is a limited 6-month warranty on the following:
•Mixer attachments (beater, whisk and dough hook)
•Parts purchased or supplied for the repair of Metcalfe equipment
This warranty does not cover the following:
•Failure due to neglect, abuse, careless handling or misuse of machine
•Failure caused due to improper maintenance
•Blender clutches
•Knives and gears on can openers
•Sharpening of slicer blades
•General wear and tear
Metcalfe and its suppliers reserve the right to make changes in design and specification to any product
without prior notification.

15
Some other products in the Metcalfe portfolio:
NS Slicer Range Mixer Range
Ceado Roband
3/2021
Metcalfe Catering Equipment Ltd
Haygarth Park
Blaenau Ffestiniog
Gwynedd, LL41 3PF
t 01766 830 456 e [e-mail] wwww.metcalfecatering.com
