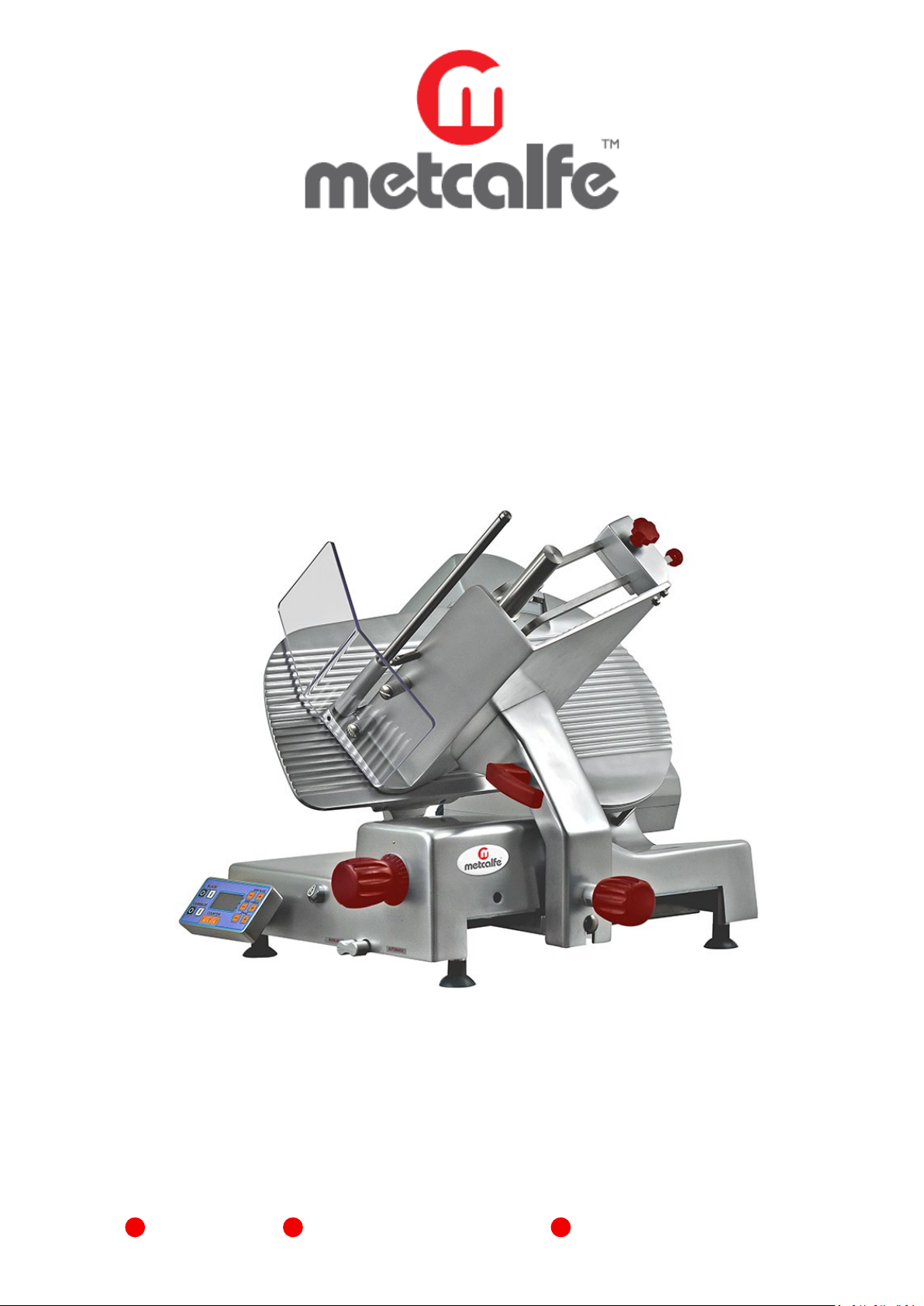

Metcalfe NS350A Manual

Metcalfe Automatic Gravity Feed Slicer
NS350A
Installation & Operating Instructions
t 01766 830 456 e [e-mail] wwww.metcalfecatering.com

1
Index
Your Slicer ……..………….……………………………….………………………. 2
Technical Data ……………………………………………………..………………….. 3
Optional Extras ………….……………………………………………………………… 4
Installation
Suitable Products for Slicing ………..……………….……………… 5
Unpacking ……………………………………………………………………. 5
Installation …………..……………………………………………………….. 5
Operation
Manual Use …………………………………………………………………… 6
Automatic Use (without slice counter) ………………………….. 6
Automatic Use (with slice counter) …………………………….. 7
Cleaning Instructions
Disassembly ………………….…………..………………………………….. 8
Cleaning …………..………..……………..………………………………….. 9
Reassembly after Cleaning …….……………………………………… 10
Sharpening the Knife ……………….……………………………………………… 11
Lubricating your Slicer …………….………………………………………………. 12
Slicer Safety Tips …………..…………………………………………………………. 12
Troubleshooting …………………………………………………………………..…. 13
Maintenance ……………..……………………………………………………………. 13
Spare Parts & Service ………………………..……………………………………… 14
Product Information …………….…………………………………………………… 14
Warranty ……………..………………………….………………………………………. 15

2

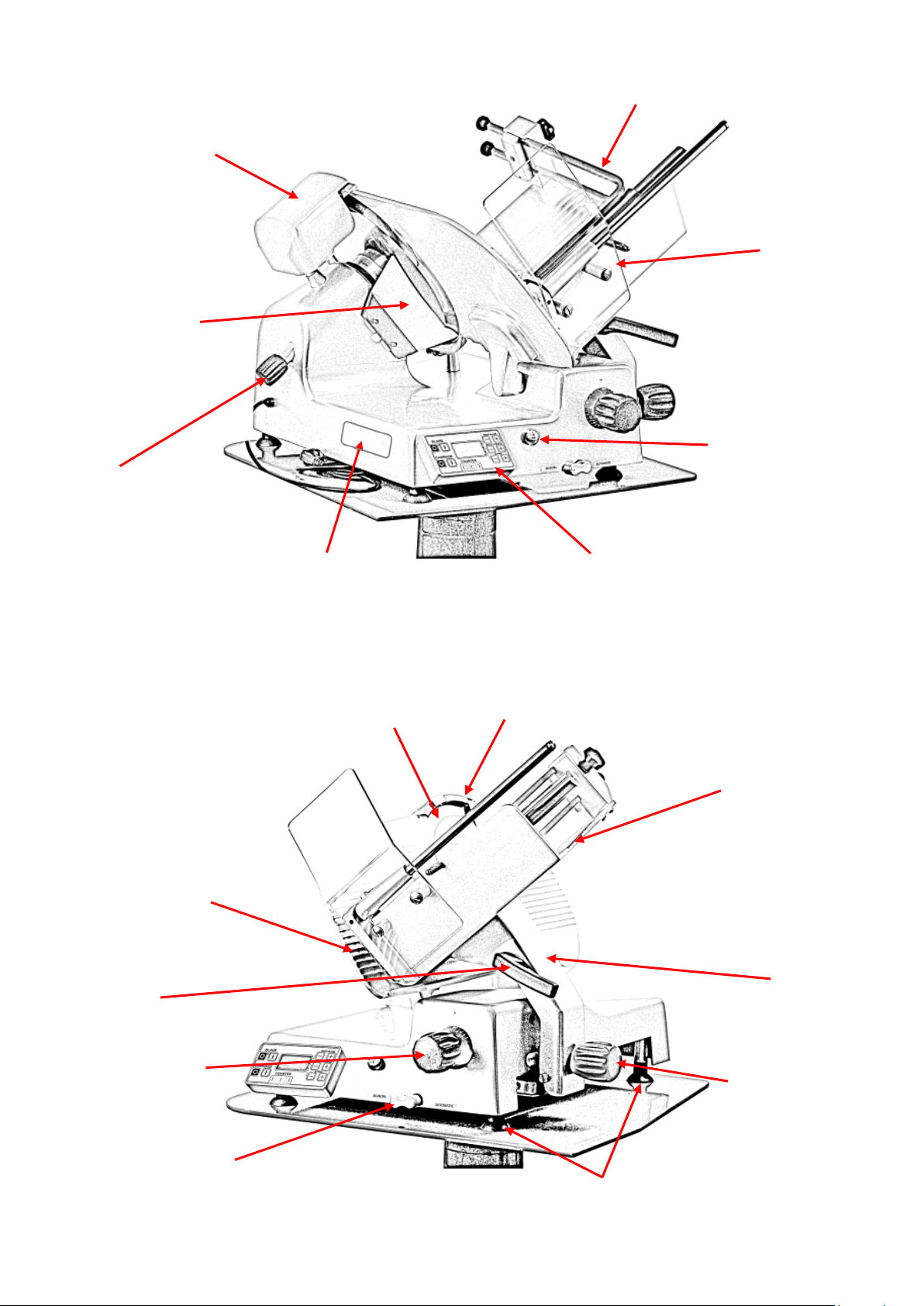

Your Slicer
(Image may differ to actual slicer)
Sharpening
Attachment
Product Fences
Perspex
Guard
Push Button
Control Panel
Centre Plate
Spindle Knob
Slice
Deflector
Knife
Table
Centre Plate
Table Support
Arm
Fence Plate
Table Locking
Knob
Rubber Feet
Thickness
Selection Knob
Table
Handle
Lubricating Screw
Identification plate,
technical data & CE marking
Function Mode
Selector Knob
(manual/automatic)

3
Metcalfe NS350A Heavy Duty Automatic Slicer
Features
•Automatic slicer designed to cut large quantities of food. Suited to large restaurants, supermarkets, delis,
butchers and central production kitchens / canteens, where high volume of meat types is required, and
precise control of the automatic slicing feature is necessary
•Two independent motors (one for blade and one for carriage movement)
•Can be used as a fully automatic slicer or switches to manual
•Simple, intuitive touch control panels allow for the selection of multiple slicing options
•Hollow ground chromed carbon steel blade
•Easy set thickness control allows for precision slicing
•Made from high polished, anodised food grade aluminium for durability and hygiene
•Large base to ensure slicer has a large capacity to cope with large products
•Ergonomic design with smooth, rounded edges to allow for fast and easy cleaning and improved levels of
hygiene
•Fully interlocked and safe guarded for full compliance of CE legislation. This ensures all-round blade
protection for the ultimate user safety during cleaning
•Built-in, self-aligning sharpening and de-burring unit
•Table / carriage, blade cover, blade and sharpening unit are detachable for easy, safe cleaning
•CE Approved
Specifications
Model Blade
(mm) / (Inch)
Phase
(Ø)
Motor
(Volt)
Frequency
(Hz)
Current
(Amp)
Power
(kW)
NS350A 350 /14 1 220 50 2.59 0.57
Capacity
Model Cutting Capacity
(mm)
Carriage Movement
(mm)
Max Slice Thickness
(mm) Slices Per Min
NS350A ● 260 □210 x 275 365 20 Min 25 – Max 86
Dimensions | Shipping Information
Model Overall Dimensions
D x W x H (mm)
Net Weight
(kg)
Packed Dimensions
D x W x H (mm)
Packed
Weight (kg)
Volume
(m3)
NS350A 890 x 1030 x 850 50 720 x 840 x 760 57 0.46

4

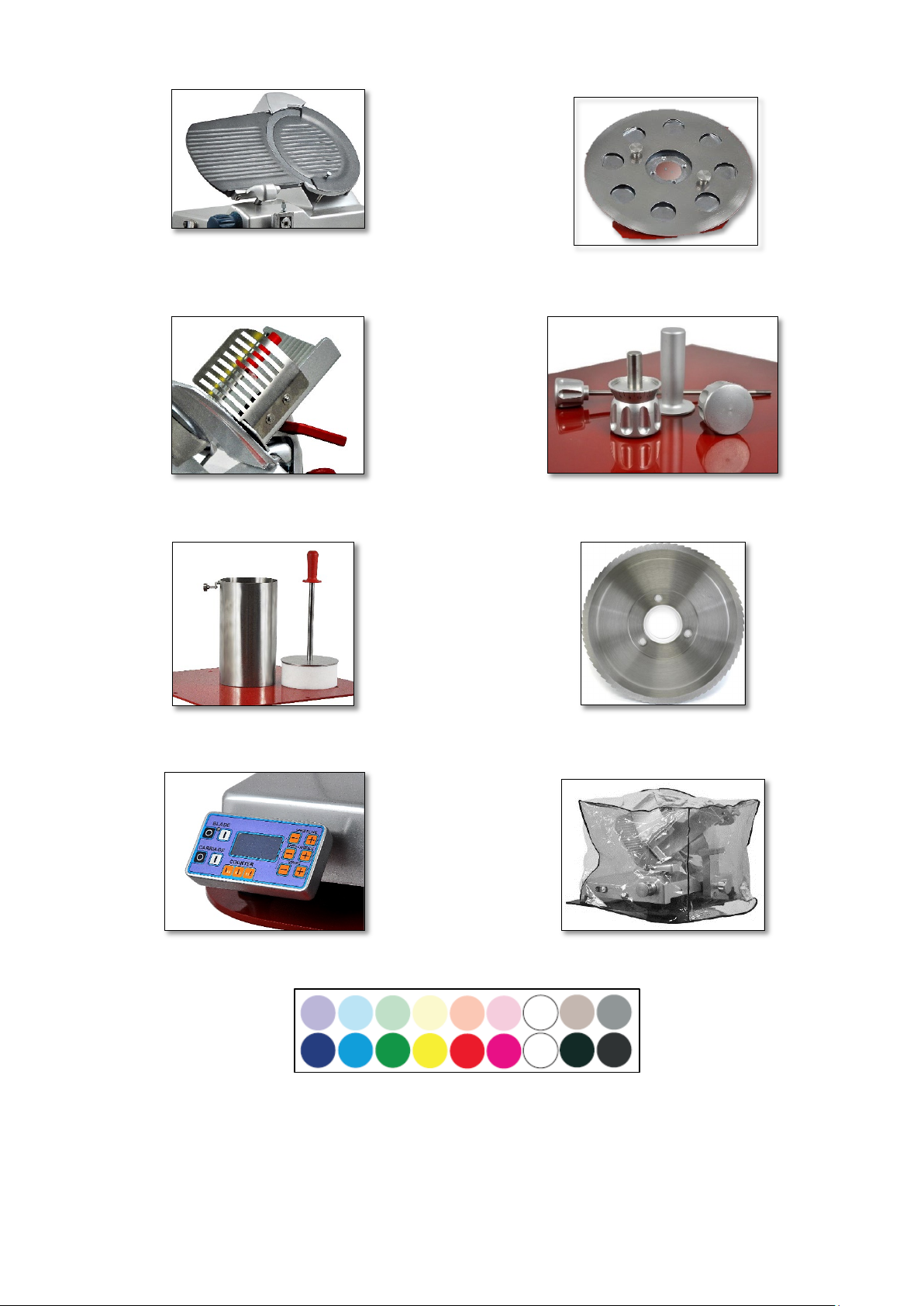

Optional Extras
Teflon Coated Parts, 20%
increased in gliding property
Stainless Steel Knife Remover
Stainless Steel Guard
Aluminium Knobs Kit
Vegetable Cutting Tube
Serrated Blade
Slice Counter
Plastic Cover
Painting Customisation
For more information and prices please contact the sales department (see page 14).

5
Installation
Suitable Products for Slicing
The following are products that can be sliced:
•All types of cold cuts (cooked, raw, smoked)
•Boneless meat (cooked or raw at a temperature of no lower than +3°C)
•Small quantities of cured meats (Bresaola, Parma Ham, Serrano Ham & Salami etc)
•Bread and cheese (those that can be sliced, such as Gruyere, Fontina, etc.)
The following are products that cannot be sliced because they could cause damage to the machine:
•Frozen food (Only with Serrated Blade see page 4)
•Deep-frozen food
•Food with bones (meat & fish)
•Vegetables
•Any other products not meant for consumption
Unpacking
Unpack the slicer immediately after receipt. Please inspect the slicer to ensure there is no damage and that all
parts are included i.e. Knobs, Feet and Knife Removing Tool. If the machine is found to be damaged, keep all the
packaging material and contact us or contact your source of the equipment immediately.
You should receive with your slicer: 1 x Metcalfe Tasteless Oil 1 x Flat Head Screwdriver
1 x Instruction Manual 1 x Knife Removing Tool
If any of the above items were not received with your slicer, please refer to page 14 for contact details and inform
us immediately for replacements.
Please ensure that you complete the product information section on page 14.
Installation
1. Read this manual thoroughly before installation and operation. DO NOT proceed with any installation nor
operation if you have any questions or do not understand anything in this manual. Please see Metcalfe
Catering Equipment Ltd contact details on page 14 to resolve any queries you may have.
2. Make sure to clean and sanitise the entire slicer before use (see Cleaning Instructions on Pages 8-10).
3. Select a location for the slicer that is level, smooth, solid, dry, non-skid and suitable to withstand the weight
of the slicer plus the food to be sliced.
4. Before connection ensure that the features of the electric power supply system are the same as those
indicated on the data plate of the machine.

6
Operation
Manual Use
1. Ensure the slicer is turned off and that the thickness selection knob is set to “0”.
2. Turn the function mode selector knob anti-clockwise to Manual.
3. Pull back the carriage completely (towards the operator) to the loading position.
4. Lift the end device up, into the rest position.
5. Place product onto the table, the product will press against the fence plate because of its weight. Block it
with the end device by lowering it onto the product and pressing down slightly.
6. Rotate the thickness selection knob anti-clockwise to the desired setting.
7. Turn the slicer on by pushing the start button. The power indicator light, which is located between the on
and off switches, will illuminate.
DO NOT hold the food product with your hand. Never put your hand on or around the table while the slicer
is on. The end device handle is the only part of the slicer you should touch while slicing.
8. Grip the handle attached to the meat table support and manually push the carriage back and forth. This
handle and the end device handle are the only part of the slicer you should touch while slicing. DO NOT
catch slices with your hands, let slices drop onto the receiving area.
If a product needs to be adjusted during slicing, first turn the slicer off and then pull the table all the way
towards you.
9. When the weight or size of the product does not allow a proper slice, use the end device handle and apply
some pressure to the product.
10. After the last slice stroke, pull the carriage all the way towards you. Turn the slicer off by pressing the stop
button, the power indicator light will go out. Turn the thickness selection knob clockwise until it stops to close
the slicer table.
11. You can now unload the product from the table.
Automatic Use (Control Panel without Slice Counter)
1. Ensure the slicer is turned off and that the
thickness selection knob is set to “0”.
2. Turn the function mode selector clockwise to
the Automaticposition.
3. Pull back the carriage completely (towards
the operator) to the loading position.
4. Lift the end device up, into the rest position.
5. Place product onto the table, the product will
press against the fence plate because of its
weight. Block it with the end device by
lowering it onto the product and pressing
down slightly.

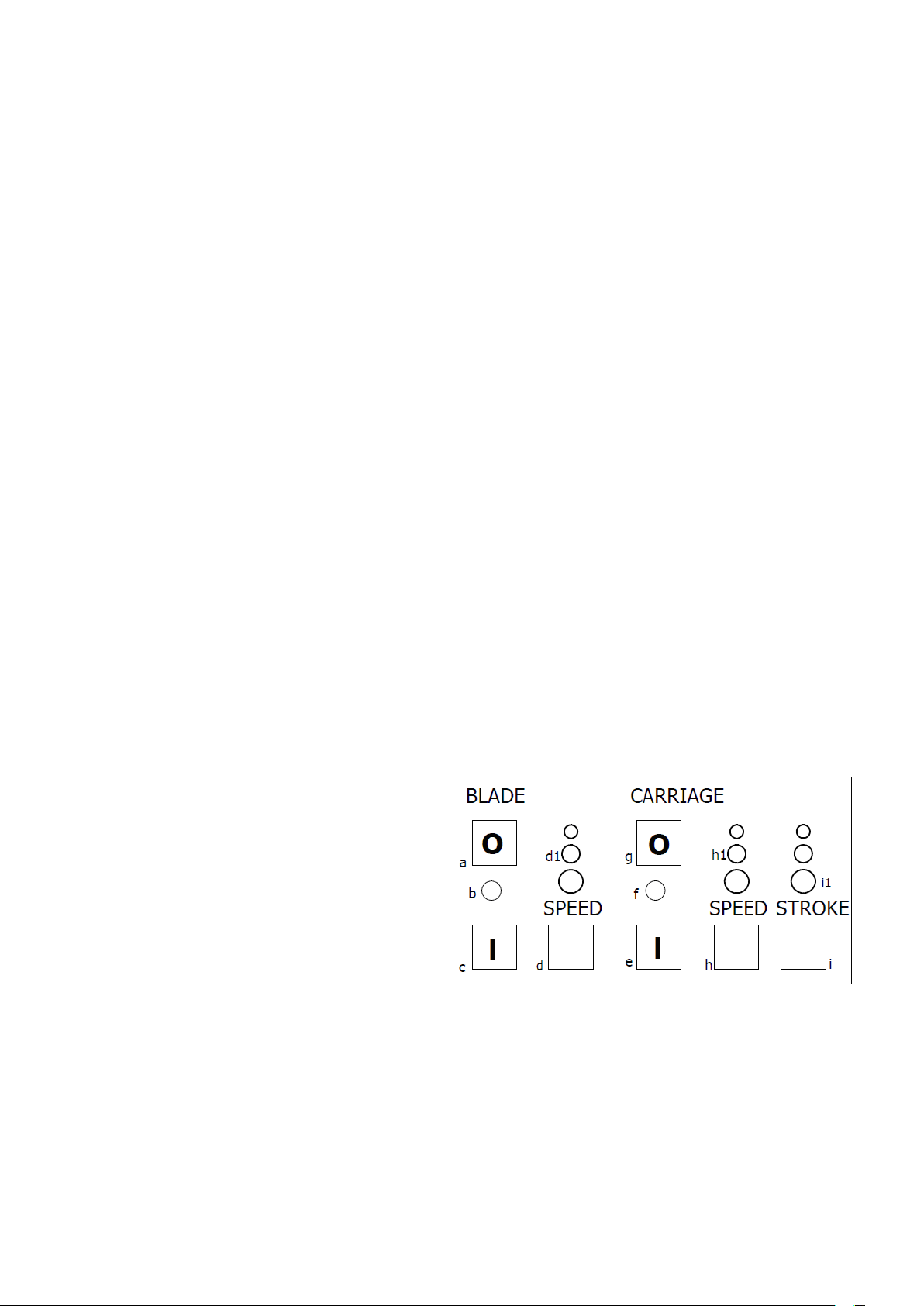

6. Start the blade by pressing the I button of BLADE (c). The light (d1) will illuminate; this shows the normal
speed of the blade. Press (d) to increase or decrease the speed (3 different speeds).
7. Regulate the thickness of the slice required and then start the carriage by pressing the Ibutton of
CARRIAGE (e). The light (f) will illuminate.
8. When the carriage starts moving, the lights that are on are (h1) = medium carriage speed and (i1) = the
longest stroke of the carriage.
9. You can adjust the stroke and the speed of the carriage pushing the button (h) and (i), the corresponding
light will turn on to show the selection you have made.
10. To turn the machine off first push the carriage stop button O(g), so that the carriage can go to its initial
position, and then turn the blade off by pushing the blade stop button O(a).

7
Note: if you accidentally push the start button before selecting the automatic mode, all the lights will turn on
to indicate that you have made an incorrect command.
Automatic Use (Control Panel with Slice Counter)
1. Ensure the slicer is turned off and that the thickness selection knob is set to “0”.
2. Turn the function mode selector clockwise to the Automatic position.
3. Pull back the carriage completely (towards the operator) to the loading position.
4. Lift the end device up, into the rest position.
5. Place product onto the table, the product will press against the fence plate because of its weight. Block it
with the end device by lowering it onto the product and pressing down slightly.
6. Start the blade by pressing the I button of BLADE (a).
7. Regulate the thickness of the slice required and then start the carriage by pressing the Ibutton of
CARRIAGE (c)
8. To stop the carriage and blade you must push the Obuttons (a) and (c).
Regulate different parameters:
•Change the speed of the blade by pushing the + or – (h)
You can increase the speed of the blade pushing the button +. You can see the effect of this action on
the panel (h1), you can see the number 1 to 9 (1 is the lowest speed, 9 is the highest speed).
•Change the speed of the carriage by pushing the + or – (i)
You can increase the speed of the carriage blade by pushing the button +. You can see the effect of this
action on the panel (i1), you can see the number from 1 to 9 (1 is the lowest speed, 9 is the highest
speed).
•Change the number of stroke per minute by pushing the + or – (l)
You can increase the number of stroke by pushing the + button. You can see the effect of this action on
the panel (l1), you can see the number from 1 to 9 (1 being 26 stroke/minute, 9 being 87
stroke/minute)
You can adjust these parameters also while the machine is working.
Number of slices
You can set the number of slices pushing the button (d) for units, the button (e) for tens and the button (f)
for hundreds, you can see the result of this actions on display (d1, f1 and e1)
Example: If you want to set 65 slices, you must push button (d) five times and button (e) six times.
While the machine is working you can see how many slices the slicer has done on the display (g).

8
Cleaning Instructions
Daily cleaning should be considered mandatory for all equipment used in the preparation of food. When using a
meat slicer and with the possibility of cross contamination, these units should be cleaned before slicing each new
product. Once your slicer makes contact with any food product, the entire slicer, including removable parts, must
be thoroughly cleaned. This process is to be repeated at the end of each working day. If the machine has not been
used for a while it must be cleaned before use.

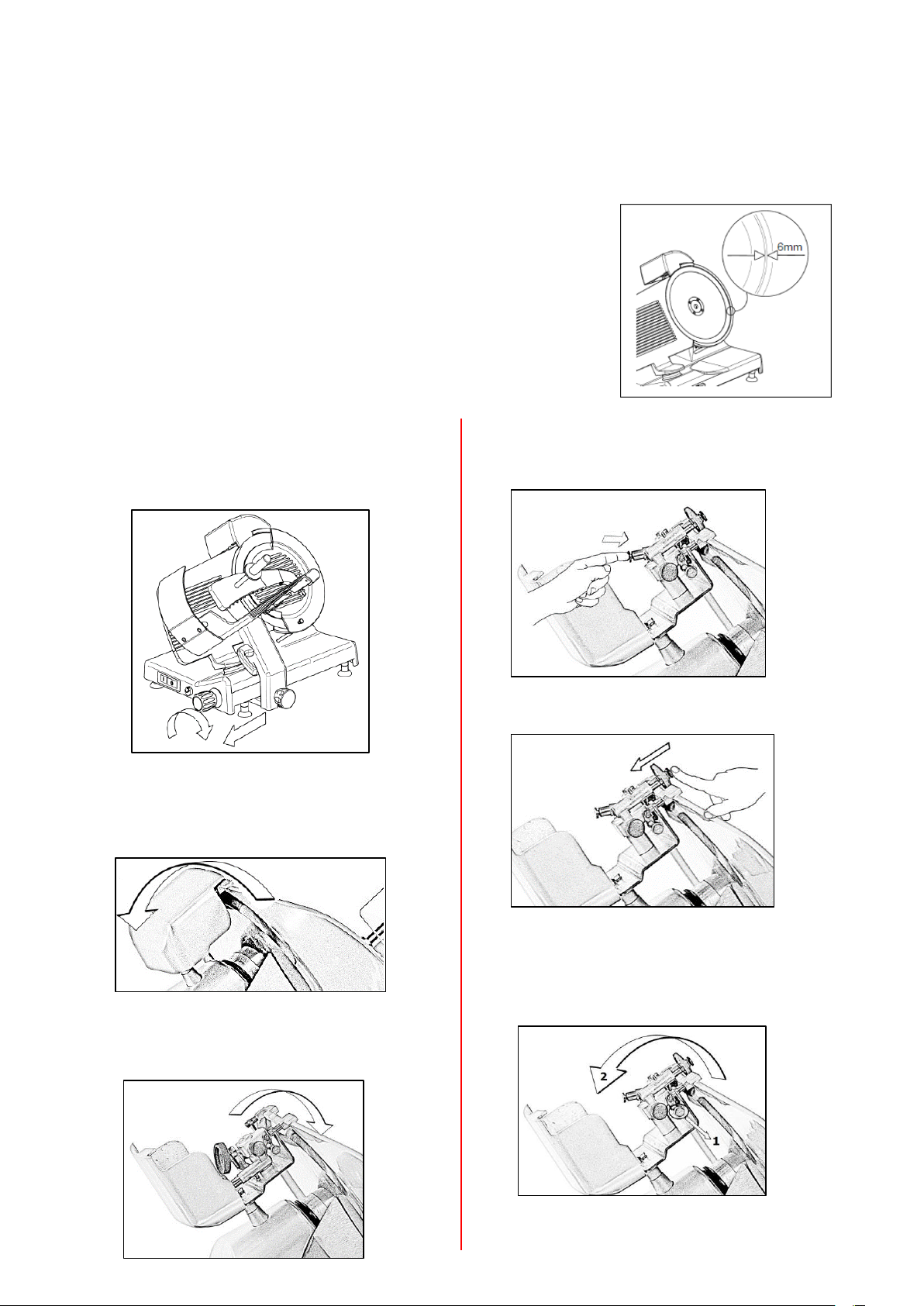

In order to ensure the slicer is cleaned properly and to avoid damage, the instructions below should be followed.
Disassembly
Turn slicer off and unplug from mains.
Turn the thickness selection knob clockwise past “0” until it stops so the fence plate covers the blade.

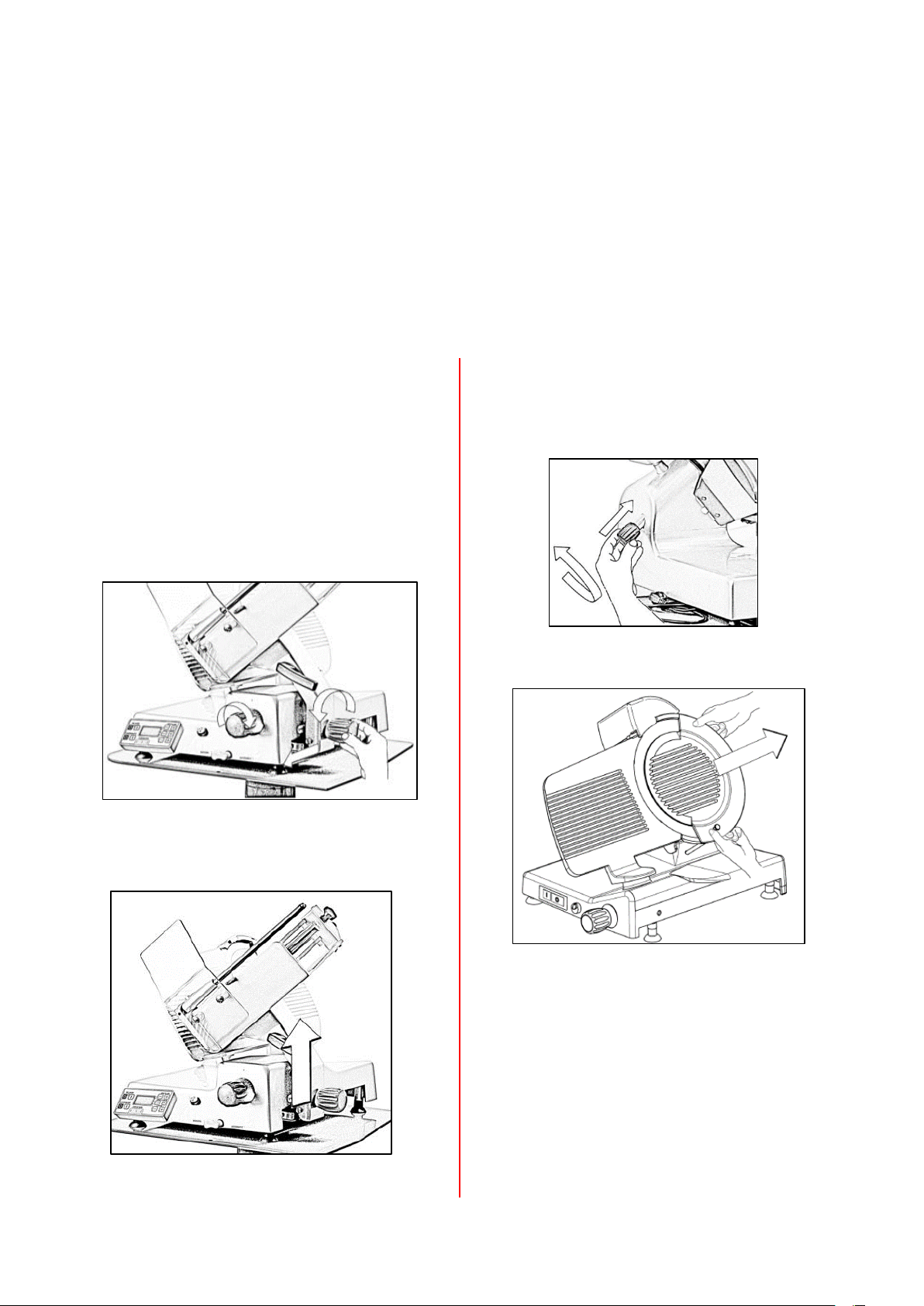

Disassembling the table
•With the thickness selection knob on “0” pull
back the carriage all the way to the left.
•Whilst supporting the table, turn the table
locking knob anti-clockwise all the way until
you hear the click of the pin locking into place.
It may be necessary to move the thickness
selection knob 1-2mm over the ‘0’ position at
the same time.
•Once fully unscrewed lift the whole of the table
and carriage from the machine.
Disassembling the centre plate (blade cover)
•Unscrew the centre plate spindle knob (anti-
clockwise) and remove from the rear of the
machine.
•Lift the centre plate using the knob located at
the bottom.
Disassembling the knife
•Fit the knife removing tool (supplied with
machine) over the knife and secure it by
tightening the two knobs.
•Once the knife removing tool is secure loosen
the four screws securing the knife to the pulley.
•Pull off the knife removing tool with the knife
ALWAYS REMOVE HOLDING THE KNOBS.

9
Disassembling the slice deflector
•Squeeze the tab and remove the slice deflector
in the direction as shown below.
Disassembling the sharpener
•Lift the sharpener cover.
•Loosen the side knob of the sharpener block
and remove it.
•Then remove the whole sharpener by pulling
it upwards from the slicer.
Cleaning
•Only use warm water and a mild detergent to
clean all parts, using a soft, spongy cloth and
nylon brush.
•Do not use other metal products to scrape or
remove stubborn deposits of sliced product.
•Never leave any leftover product on the slicer
(Clean at least once a day).
•DO NOT clean the unit, or any parts of the unit
in a dishwasher.
•Rinse all parts after cleaning with clean water
and dry with a soft cloth.
•Do not use abrasive cleaners, acids, steel wool
or high-pressure water jets which might
damage the machine.
Cleaning the knife
•To clean the knife whilst still on the machine,
use a damp cloth on the blade and move it
slowly from the centre outwards to the edge.
•Dry the knife in the same way.
Cleaning the back knife guard
•To clean the back knife guard, pass a damp cloth
between the blade and the back knife guard.
Cleaning the machine body
•Clean the machine body with a damp cloth or
sponge, rinsing frequently with hot water. Dry
carefully.

10
Reassembly After Cleaning
Reassembling the sharpener
•Reposition the sharpener by inserting the
locking tie rod (1) and turn screw until tight
(2)
•Close the sharpener cover (3)
Reassembling the slice deflector
•Carefully return the slice deflector to its
original position, fitting it in the plastic
support.
Reassembling the centre plate
•Insert the centre plate over the knife and
ensure that the square section joint is in its
proper place.
•Insert the centre plate spindle completely and
rotate clockwise to secure.
Reassembling the table
•Insert the table on the carriage
•Tighten the table locking knob
•Check that the table moves freely from left to
right
•Check that the thickness selection knob works
correctly

11
Sharpening the Knife
When and How Often to Sharpen the Knife
•Symptoms of a dull knife are excess waste on the unsliced portion.
•The blade needs to be sharpened periodically to provide consistent slices and maximum food product.
•Sharpening the blade lightly every few days is more effective than heavy sharpening at less frequent intervals.
•WARNING: The blade can be sharpened up until the distance between
the cutting edge of the blade and the inside border of the blade guard ring
is no more than 6 mm, corresponding to a decrease of about 10 mm of
the size of the original diameter. Once this value has been reached, it is
NECESSARY TO REPLACE THE BLADE.
Sharpening the Knife
NOTE: Before starting check that the grindstones have been cleaned.
•Turn the slicer off and rotate the thickness
selection knob clockwise until it stops and
the slicer fence plate covers the knife.
•Pull back the carriage all the way to the left.
•Clean and dry both sides of the blade before
sharpening. Please refer to cleaning
instructions.
•Lift the sharpener cover.
•Turn the sharpener towards the blade. The
sharpener is now in the correct position.
•Plug in and select the start button on the slicer.
•Push the sharpening stone button and keep it
pressed for 10-15 seconds
•Press the deburring button for 2-3 seconds
(more could damage the blade edge).
•TURN SLICER OFF before inspecting.
•Pull the fixing sharpener knob (1) in order to
unhook the sharpener from the sharpening
position and turn the body (2).
•Close the cover.
•Clean the entire slicer.

12
Lubricating Your Slicer
NOTE: Use only the tasteless oil provided or white Vaseline oil. Do not use vegetable oils!
Lubricating the bottom runner guide bars (weekly)
•Move the carriage as close as possible to the
operator
•Insert the oiler in the special hole/lubricating
screw
•Squeeze the oiler so that a small amount of oil
goes into the hole
•Remove the oiler and slide the carriage 3 to 4
times.
Lubricating the transversal guide rods of the table
and end device (weekly)
•Put a small amount of oil on the rod and slide
the group 3 to 4 times.
•Clean as necessary removing any excess oil.
Slicer Safety Tips
To avoid serious personal injury:
•NEVER touch the slicer without training and authorisation from your supervisor or if you are under the age of
18. Read this instruction manual first.
•ONLY install the slicer on a level, non-skid surface that is non-flammable and located in a clean, well-lit work
area and away from children and visitors.
•NEVER HOLD THE FOOD PRODUCT WHILE SLICING. Hold only the end device handle while slicing.
•BEFORE CLEANING, SHARPENING, SERVICING, OR REMOVING ANY PARTS always turn the slicer off, turn the
thickness selection knob clockwise until it stops and unplug power cable.
•NEVER touch rotating knife.
•ALWAYS keep hands clear of all moving parts.
•ALWAYS turn slicer off, turn the slicer thickness selection knob clockwise until it stops.
•NEVER place the power cord over the unit.

13
Troubleshooting
If the slicer is not working correctly please check the list below before contacting an engineer or Metcalfe
Catering Equipment Ltd.
Problem Possible Causes Action Required
Pressing the start button does not start
the machine. No electricity. Check that the plug is correctly inserted.
Pressing the start button the machine
starts but the working light does not
come on.
Light is defective.
Do not use the machine if the light does
not work.
Contact Service for assistance.
The machine starts but the motor heats
up too much and gives off a bad odour. Defective motor. Do not use the machine.
Contact Service for assistance.
The machine vibrates. Defective transmission. Contact Service for assistance.
Excessive resistance in cutting the
product. The blade is not sharp. Sharpen the blade.
The blade slows or stops under stress. Loose belt. Contact Service for assistance.
Sharpening is no longer regular.
Grindstones are excessively
dirty. Clean the grindstones.
Grindstones are worn out. Replace the grindstones.
Contact Service for assistance.
The sliced product is frayed and
irregular.
The blade is not sharp. Sharpen the blade.
The blade is excessively used.
Replace the blade.
Contact Service for assistance.
The machine does not stop when the
button is pressed. Control circuit is defective.
Pull out the plug to stop the machine
immediately and contact Service for
assistance.
If the problems persist and the assigned solution does not remedy the problem, please call our Service Department.
Maintenance
Only the maintenance listed below is recommended for the operator to carry out, all other maintenance should
be done by an approved engineer:
•Knife sharpening.
•Lubrication of the bottom runner guide bars and end device (weekly).
•Check the condition of the electrical cable and the cable gland on the base of the machine (periodically).
•Replace Knife.
•Replacing the sharpening stone.
Maintenance to be carried out by engineer only:
•Replacing the components of the electrical system under the base.
•Repairing the structural parts, repairing and/ or replacing components under the base.

14
Spare Parts and Service
For more information on Metcalfe spare parts, accessories, and service support, including breakdown drawings
and parts lists please contact us on the details below.
Please always quote the Serial Number of the machine. This can be found on the serial number plate which is
located on the right-hand side of the machine’s base.
Metcalfe Sales & Spares Department [e-mail]
Metcalfe Service Department [email protected]
Metcalfe Website www.metcalfecatering.com
Metcalfe Telephone Number 01766 830 456
Additional copies of this instruction manual can be obtained by either visiting our website or contacting the sales
department.
Product Information
Please complete the below details and keep in a safe place. Ensure that you complete the Model No & Serial No
sections for future reference when enquiring about spare parts and technical assistance.
Company Name: ___________________________________________________________________________
Company Address: _________________________________________________________________________
_________________________________________________________________________
_________________________________________________________________________
Model No: ________________ Serial No: _______________________ Date of Purchase: ___________________
Name of Dealer: ______________________________________________________________________________
Please retain this information for your records

15
Metcalfe Warranty
All Metcalfe products are guaranteed against defects in material and workmanship for a period of one year from
date of Invoice, except where specially noted.
The Company's obligation under this warranty is limited to repairing or replacing, without charge, any part or parts
found to be defective under normal use, in accordance with the specified operations manual and capacity ratings.
On all return to factory warranty items, it is the responsibility of the purchaser to return the entire unit to the
factory, in a clean condition, properly packed and labelled.
All repairs, alterations or replacement of materials or parts not authorised by Metcalfe will automatically void all
warranties in their entirety.
All Metcalfe slicers (except Simple Line) are covered by a 2-year warranty (1st year parts and labour, 2nd year parts
only) and full after sales service.
All Metcalfe SP mixers are covered by a 3-year warranty (1st year parts and labour, 2nd & 3rd year parts
only) and full after sales service.
There is a limited 6-month warranty on the following:
•Mixer attachments (beater, whisk and dough hook)
•Parts purchased or supplied for the repair of Metcalfe equipment
This warranty does not cover the following:
•Failure due to neglect, abuse, careless handling or misuse of machine
•Failure caused due to improper maintenance
•Blender clutches
•Knives and gears on can openers
•Sharpening of slicer blades
•General wear and tear
Metcalfe and its suppliers reserve the right to make changes in design and specification to any product without
prior notification.
3/2021
Metcalfe Catering Equipment Ltd
Haygarth Park
Blaenau Ffestiniog
Gwynedd, LL41 3PF
t 01766 830 456 e [e-mail] wwww.metcalfecatering.com
