Metos KT-PK User manual

User manual
Meat tenderizer
Metos KT-PK
2021066
10.03.2011

1
LIST OF CONTENTS
1. General description.....................................2
1.1 Technical specifications ........................2
2. Installation ...................................................2
2.1 Unpacking..............................................2
2.2 Location..................................................2
2.3 Electrical connection.............................3
2.3.1 Note..................................................3
2.3.2 Direction of rotation.......................3
3. Operation .....................................................4
3.1 Safety......................................................4
3.2 Using the machine .................................4
4. Cleaning........................................................5
4.1 Removing the blade set.........................5
4.2 Washing..................................................6
4.2.1 Recommended detergents..............6
4.3 Installing the blade set ..........................6
5. Maintenance.................................................6
5.1 Fault finding...........................................6
6. Noise emission values..................................6
ANNEX 1. Dimensional drawing...................7
ANNEX 3. Circuit diagram............................14

2
1. General description
KT-PK meat tenderizer is designed specifically for retail and industrial uses. It is made for
tendering boneless meat, chicken and skinless fish. Frozen products and products with bones are
not suitable to be processed with KT-PK meat tenderizer.
The product is dropped between two blade sets, which are used by an electric motor. The
rotating blades will tender the product. The machine is equipped with a safety switch, which
prevents the usage of the machine when the cover is not in place. The frame of the machine is
made of stainless steel with features of pretty appearance, well endurance and easy cleaning.
KT-PK/SK Mini-slicer blade set for the machine is available as an option. You may use it to
slice meat and fish.
Read these instructions before use and ensure that all users, technicians and cleaners have
also read these instructions. Chapter 3.1, which deal with safety must be read with
particular attention.
Keep this manual in a safe place for further and regular reference and for ordering spare parts.
1.1 Technical specifications
Rotational speed of blades:
90 rpm (110 rpm for 110 – 120 V)
Power of motor:
0,37 kW (0,55 kW for 110 – 120 V)
Rotational speed of motor 2800 rpm (3380 rpm for 110 – 120 V)
Overall weight:
32 kg
Weight of blade set:
3,4 kg
Weight of slicer blade set:
3,6 kg
External dimensions
Width:
460 mm
Depth:
435 mm
Height:
395 mm
2. Installation
2.1 Unpacking
Lift the machine from the package. If the machine or the package has been damaged during the
transport, please contact the retailer, importer or manufacturer.
2.2 Location
The meat tenderizer must be installed in a place where there is sufficient room to work around
the machine and enough light to allow safe working. The machine may be installed on a solid
level table. Never incline the machine more than 30 degrees, it may tip over and hurt someone
seriously. The machine must be cleaned thoroughly before use (see the cleaning instructions,
chapter 4).

3
2.3 Electrical connection
2.3.1 Note
1. Ensure that the supply voltage corresponds with the voltage marked on the rating label.
2. The machine must be CORRECTLY EARTHED.
3. Only a competent electrician may connect the electrical supply to the machine and carry
out electrical servicing work.
4. Ensure that the electrical supply has been properly disconnected (the power cable is
unplugged) before any electrical connections are made, or maintenance work is carried
out.
2.3.2 Direction of rotation
Before using the machine, check the direction of rotation of the blades. The correct direction of
rotation is showed in picture 1. If the direction of rotation is incorrect, ask an authorized
electrician to change it. The circuit diagram of the machine is to be found in Annex 3.
Picture 1. Correct direction of rotation.

4
3. Operation
3.1 Safety
When using the meat tenderizer, pay attention to the following matters:
1. Don’t push your hand or fingers into the feeding hopper or into the outlet opening.
2. It is forbidden to use the machine, if the machine parts relating to safety is not in
their places or do not work properly.
3. Do not open the cover, before the blade has been fully stopped.
4. The machine should not work if the front cover is not in place. If this happens, the use
of the machine must be stopped immediately. Contact the service mechanic, retailer,
importer or manufacturer.
5. Do not insert foreign objects into the feeding hopper.
6. When using the machine, focus to the process. Do not talk to other people.
7. If a foreign object drops between the blade sets, stop the machine immediately by
pushing the emergency stop button. Remove the foreign object and ensure that the
machine has not been damaged, before you continue using the machine. Unplug the
power cable before removing the foreign object.
8. If the machine has been damaged, contact a service mechanic, retailer, importer or
manufacturer.
9. The start and stop buttons must not be damaged.
10. Only a proficient person may use, clean and service the machine.
11. Never leave a running machine unattended.
12. Do not wear loose fitting clothes or jewelry as they may get caught in moving parts of the
machine.
3.2 Using the machine
1. Before starting up the machine, ensure that the front cover is placed correctly.
2. Start the machine by pressing the start button, located at the right side of the machine.
3. The machine should run with full speed before inserting any meat to it. The meat to be
treated should be free of any bone chips.
4. Insert the meat to the feeding hopper.
5. Do not push your fingers to the feeding hopper!!!
6. The blades will pull the meat inside the machine, and the finished product will come out
from the outlet opening below the blade sets.
7. Let the product drop to a sufficient tray. Do not push your fingers to the outlet
opening!
8. The machine may be stopped by pushing the stop button or the emergency stop button
located at the right side of the machine.
9. Clean the machine after every use (see chapter 4).

5
4. Cleaning
4.1 Removing the blade set
1. Unplug the power cable!
2. Remove the front cover by pulling it.
3. Grab the handle of the blade set.
4. Loosen the support bearings located at the right side of the machine by pushing and
rotating them.
5. Remove the blade set by lifting it.
6. Open the blade set by detaching the handle.
7. Remove the combs.
8. Place the blade set to the cleaning stand.

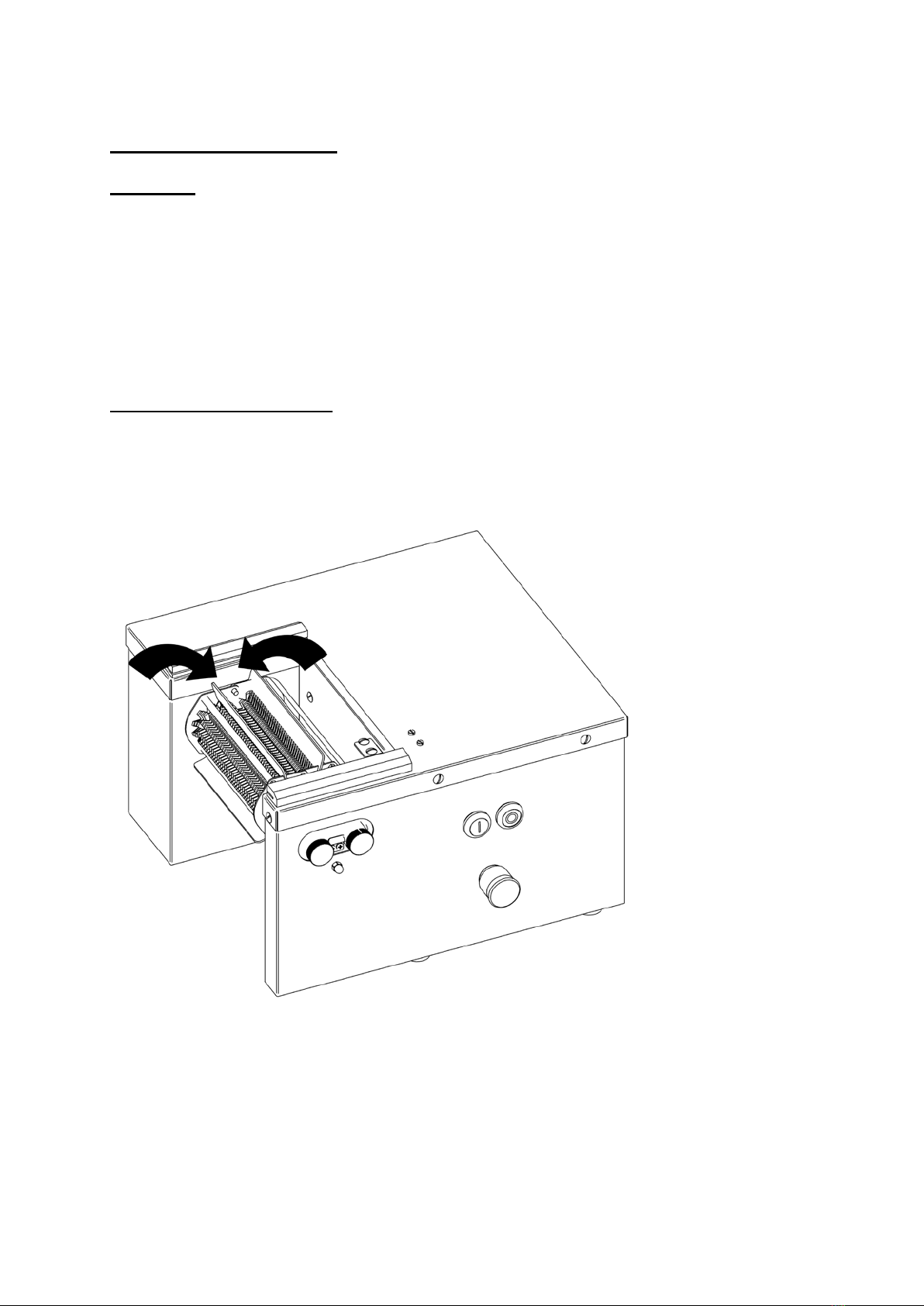

Picture 2. Removing the blade set.

6
4.2 Washing
You can wash the machine components by hand or in a purpose built washing machine. The
machine may be washed with warm water and detergent using a brush. Always rinse after
washing. Do not use pressurized water. Do not wet the push buttons. Dry the machine
thoroughly after rinsing.
4.2.1 Recommended detergents
Clean and degrease the parts using any approved detergent for food equipment, for example
Kärcher RM 81
or
Eco-Lab – Oasis 133 – All Purpose Cleaner and Degreaser Concentrate
4.3 Installing the blade set
1. Reinstall the combs.
2. Attach the handle.
3. Lift the blade set to its place.
4. Place the left end of the blade set shafts into the drive shafts.
5. Push the support bearings located on the right side of the machine to the blade set shafts and
lock them by rotating.
6. Push the cover to its place. Be careful with the key of the safety switch, so it doesn’t get bent.
5. Maintenance
The meat tenderizer does not have any parts, which need maintenance. Monitor the condition
and wearing of the parts. Worn out parts must be replaced with new parts.
5.1 Fault finding
Fault Cause / remedy
The product sticks to the blades. The combs are missing from the blade set. Install the combs.
The product doesn’t go through or sticks to
the blades.
The product is too thick.
Motor is running but the blades don’t
rotate. Change the belt.
Support bearings (part 370011) don’t
tighten the blade set.
The spring inside the support bearing has been stuck. Release
the spring, or replace the support bearings.
The combs will not install correctly.
The comb has been corrupted or the knives are damaged.
Replace the damaged parts.
6. Noise emission values
The A-weighted emission sound pressure level at workstation does not exceed 70 dB(A).

7
ANNEX 1. Dimensional drawing

14
ANNEX 3. Circuit diagram

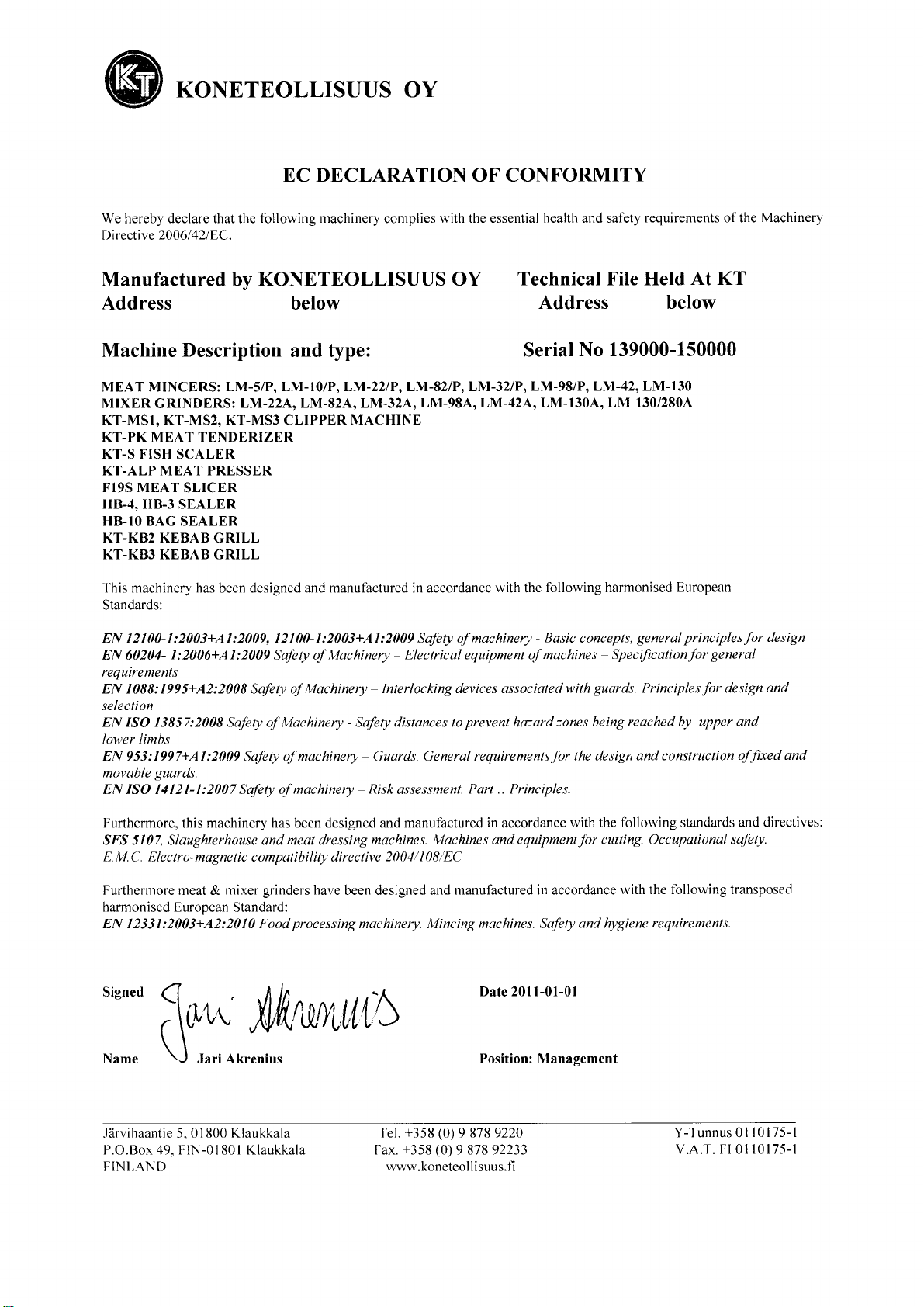

KONETEOLLISUUSOY
