Metos WD-100GR User manual

POTWASHER WITH GRANULATE WD-
100GR
(translation of the original documentation)
Installation and user manual
S/N: Validfrom:01.05.2012Rev.:3.0
4197805,4197807, 4197817

WD-100GR Rev. 3.0 (201205)
1
Dear Customer,
Congratulations on deciding to choose a Metos appliance for your kitchen activi-
ties. You made an excellent choice. We will do our best to make you a satisfied
Metos customer like thousands of customers we have around the world.
Please read this manual carefully. You will learn correct, safe and efficient work-
ing methods in order to get the best possible benefit from the appliance. The in-
structions and hints in this manual will give you a quick and easy start, and you
will soon note how nice it is to use the Metos equipment.
All rights are reserved for technical changes.
You will find the main technical data on the rating plate fixed to the equipment.
When you need service or technical help, please let us know the serial number
shown on the rating plate. This will make it easier to provide you with correct serv-
ice.
For your convenience, space is provided below for you to record your local Metos
service contact information.
METOS TEAM
Metos service phone number:.........................................................................
Contact person:.............................................................................................

WD-100GR Rev.
1
1. General information ......................................................................... 1
1.1 Symbols used in this manual ........................................................................... 1
1.2 Symbols on the dishwasher ............................................................................. 1
1.2.1 Machine marking ...................................................................................... 2
1.3 Checking that the machine and the manual correspond .................................. 2
2. Safety instructions ........................................................................... 3
2.1 General information ......................................................................................... 3
2.2 Transport .......................................................................................................... 3
2.3 Installation ........................................................................................................ 3
2.4 Detergent and drying agent ............................................................................. 4
2.5 Operation ......................................................................................................... 4
2.5.1 Hot water .................................................................................................. 4
2.5.2 Crushing risk ............................................................................................. 4
2.5.3 Risk of slipping .......................................................................................... 4
2.6 Cleaning ........................................................................................................... 4
2.6.1 Pressure washing ..................................................................................... 4
2.6.2 The outside of the machine ...................................................................... 5
2.6.3 Cleaning the floor ...................................................................................... 5
2.7 Repairing and servicing the dishwasher .......................................................... 5
2.7.1 Safety instructions if the machine is not functioning ................................. 5
2.8 Recycling the machine ..................................................................................... 5
3. Installation ........................................................................................ 6
3.1 General information ......................................................................................... 6
3.2 Requirements for the installation site ............................................................... 6
3.2.1 Lighting ..................................................................................................... 6
3.2.2 Ventilation ................................................................................................. 6
3.2.3 Drains ....................................................................................................... 6
3.2.4 Space for servicing ................................................................................... 7
3.3 Transport and storage ...................................................................................... 7
3.4 Preparing for the installation ............................................................................ 7
3.5 Unpacking ........................................................................................................ 8
3.5.1 Removing packaging ................................................................................ 8
3.6 Recycling the packaging .................................................................................. 9
3.7 Installation ........................................................................................................ 9
3.7.1 Positioning the machine ............................................................................ 9

WD-100GR Rev.
2
3.8 Connections ................................................................................................... 10
3.8.1 Electrical connection ............................................................................... 11
3.8.2 Water connection .................................................................................... 11
3.8.3 Drain connection ..................................................................................... 11
3.8.4 Ventilation ............................................................................................... 11
3.9 Installing auxiliary equipment ......................................................................... 12
3.10 Installing detergent and drying agent equipment ......................................... 13
3.10.1 Electrical connection of the equipment ................................................. 13
3.10.2 Detergent dosing system ...................................................................... 14
3.10.3 Drying agent dosing system ................................................................. 14
3.11 Trial operation .............................................................................................. 14
3.11.1 Start-up schedule .................................................................................. 14
3.12 Technical documentation ............................................................................. 16
4. Instructions for use ........................................................................ 17
4.1 Preparations ................................................................................................... 18
4.1.1 The machine's design ............................................................................. 18
4.1.2 Preparations before filling ....................................................................... 20
4.1.3 Filling the machine .................................................................................. 20
4.1.4 Positioning the items in the cassette ...................................................... 20
4.2 Using the machine ......................................................................................... 36
4.2.1 Washing .................................................................................................. 36
4.2.2 Starting the wash programme – washing ............................................... 38
4.2.3 Guaranteed final rinse ............................................................................ 39
4.2.4 Checking the washed items .................................................................... 39
4.2.5 Stopping the machine during operation .................................................. 40
4.2.6 Changing the water ................................................................................. 40
4.3 After use – cleaning ....................................................................................... 42
4.3.1 Daily cleaning ......................................................................................... 42
4.3.2 Periodic cleaning .................................................................................... 47
4.3.3 Periodic servicing .................................................................................... 49
4.3.4 Operating problems ................................................................................ 50
5. Technical information .................................................................... 53

WD-100GR Rev. 3.0 (201205)
General information
1
1. General information
Read the instructions in this manual carefully as they contain important informa-
tion regarding the correct, effective and safe installation, use and servicing of the
dishwasher.
Keep this manual in a safe place so that it can be used by other operators of the
dishwasher.
The electronics in the machine are RoHS compatible.
1.1 Symbols used in this manual
This symbol warns of situations where a safety risk may arise. The instructions
given should be followed in order to prevent injury.
This symbol on a component is a warning of electrical equipment. The machine
is sensitive to electrostatic discharge (ESD), which is why a static electricity wrist-
band must be used when handling the electronics.
This symbol explains the correct way to perform a task in order to prevent poor
results, damage to the dishwasher or hazardous situations.
This symbol identifies recommendations and hints to help you to get the best per-
formance from the machine.
This symbol explains the importance of careful and regular cleaning of the ma-
chine to meet hygiene requirements.
1.2 Symbols on the dishwasher
This symbol on a component is a warning of electrical equipment. The component
may only be removed by a qualified electrician. The machine is sensitive to elec-
trostatic discharge (ESD), which is why a static electricity wristband must be used
when handling the electronics.

WD-100GR Rev. 3.0 (201205)
General information
2

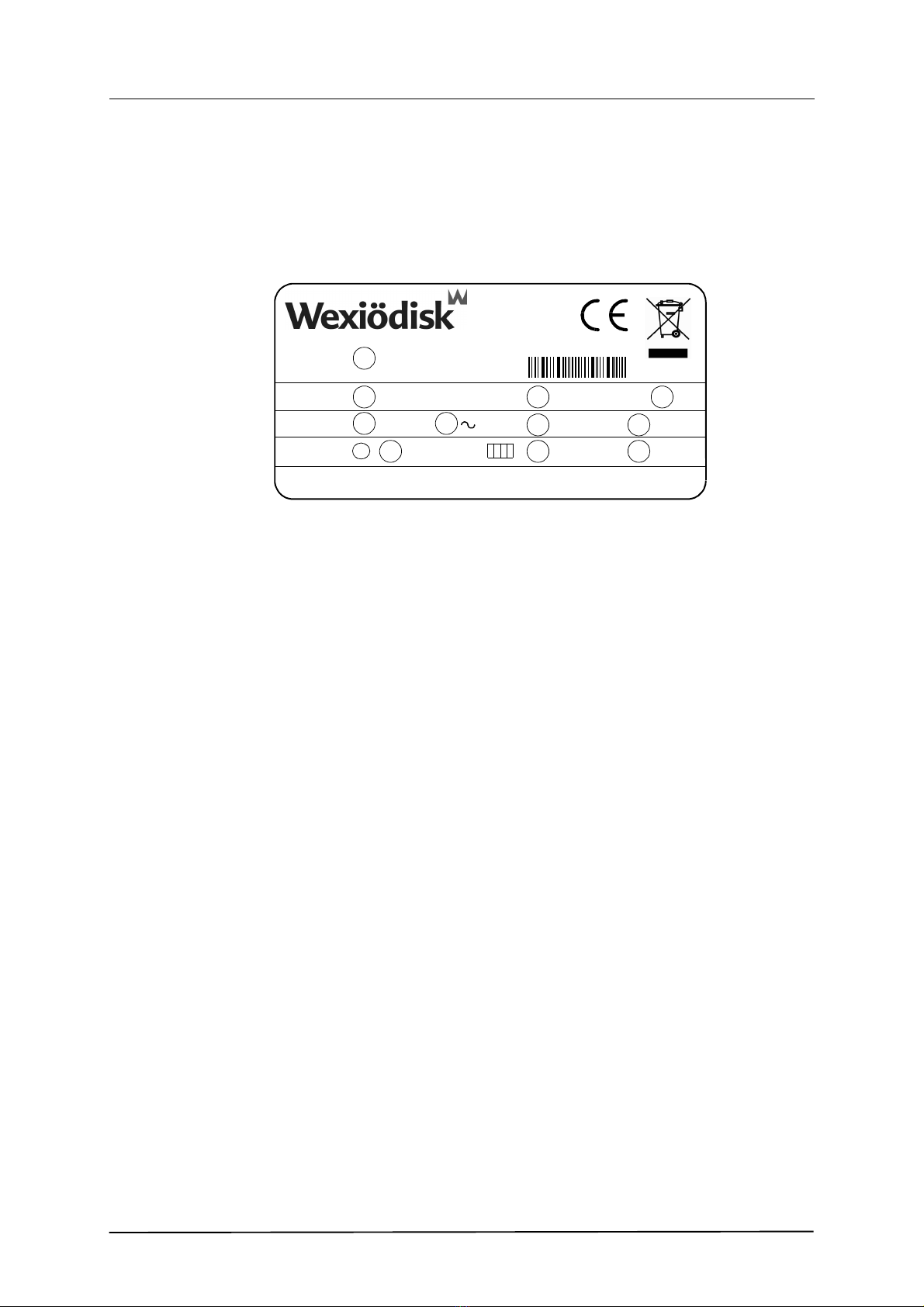

1.2.1 Machine marking
The machine has two rating plates, one of which is placed at the bottom of one
side of the machine and the other in the electrical cabinet. The technical informa-
tion on the plates is also included on the machine's wiring diagram. The various
rating fields show:
1. Machine type
2. Machine serial number
3. Year of manufacture
4. Enclosure protection class
5. Voltage
6. Number of phases with or without zero
7. Frequency
8. Main fuse
9. Motor output
10. Electrical heat output
11. Max. output
1.3 Checking that the machine and the manual correspond
Check that the type description on the rating plate corresponds with the type de-
scription on the front of the manual. If manuals are missing, it is possible to order
new ones from the manufacturer or the local distributor. When ordering new man-
uals, it is important to quote the machine number found on the rating plates.
S/N:
VHz A
kW kW kW
Type
Mårdvägen 4, S-352 45 VÄXJÖ SWEDEN
M
IP
1
marks_SAP
2
5
9
6
4
8
11
3
7
10

WD-100GR Rev. 3.0 (201205)
Safety instructions
3
2. Safety instructions
2.1 General information
The machine is CE marked, which means that it complies with the requirements
of the EU machinery directive with regard to product safety. Product safety means
that the design of the machine will prevent personal injury or damage to property.
Modifying the equipment without the approval of the manufacturer invalidates the
manufacturer’s product liability.
To further improve safety during installation, operation and servicing, the operator
and the personnel responsible for installing and servicing the machine should
read the safety instructions carefully.
Switch off the machine immediately in the event of a fault or malfunction. The ma-
chine must only be serviced by trained engineers. The regular checks described
in the manual must be carried out in accordance with the instructions. The ma-
chine must be serviced by a person authorised to do so by the manufacturer. Use
original spare parts. Contact an authorised service company to draw up a pro-
gramme of preventative maintenance. Dangerous situations may arise if the in-
structions above are not followed.
Before using the machine, ensure that personnel are given the necessary training
in operating and maintaining the machine.
2.2 Transport
Handle the machine with care during unloading and transport to avoid the risk of
it tipping over. Never lift or move the machine without using the wooden packag-
ing to support the stand.
2.3 Installation
This symbol on a component is a warning of electrical equipment. The machine
is sensitive to electrostatic discharge (ESD), which is why a static electricity wrist-
band must be used when handling the electronics.
Water and steam pipes must only be connected by authorised personnel.
Water pipes must be connected in a way that complies with the current regula-
tions of the local water supply authority. Check that the water and steam connec-
tions are tight before operating the machine.
Make sure that the mains voltage is the same as that indicated on the machine's
rating plate. The machine should be connected to a lockable mains switch.

WD-100GR Rev. 3.0 (201205)
Safety instructions
4
2.4 Detergent and drying agent
Only detergent and drying agent intended for industrial dishwashing machines
must be used. Ordinary washing-up liquid must not be used in the machine or for
soaking. Contact your detergent supplier regarding the choice of a suitable deter-
gent.
Be aware of the risk of handling washing and drying agents. Protective gloves and
safety glasses should be used when handling dishwasher detergent. Read the
warning text on the detergent and drying agent containers as well as the deter-
gent supplier's regulations.
2.5 Operation
2.5.1 Hot water
The temperature of the wash and rinse water is 58°C and 85°C. Do not open the
door until the wash and rinse phases have finished.
2.5.2 Crushing risk
Take care when opening and closing the doors, as there is a risk of body parts
being crushed between the door and the tank, and at the top of the machine be-
tween the door and the cover plate.
2.5.3 Risk of slipping
In order to prevent the risk of people slipping if granulate has been spilled on the
floor, this must be regularly swept up. Keep the floor dry and mop up any water
which has been spilled.
2.6 Cleaning
The temperature of the water in the tank is approx. 58°C and contains detergent.
Be careful when draining and cleaning the tank. Use protective gloves.
2.6.1 Pressure washing
The machine must not be cleaned with a pressure washer. If pressurised water is
directed at the electrical cabinet, the water may penetrate the cabinet and dam-
age the electrical equipment, which may affect the safety of the machine.
In order to satisfy current requirements, electrical components of approved enclo-
sure classes are used. There is no enclosure class capable of withstanding high
pressure.

WD-100GR Rev. 3.0 (201205)
Safety instructions
5
2.6.2 The outside of the machine
Pressure washers and hoses must not be used to wash the outside of the ma-
chine. Water can penetrate into the electrical cabinet and the control panel and
damage the equipment, which may affect the safety of the machine.
2.6.3 Cleaning the floor
When the floor is being cleaned using a pressure washer, water can splash up
under the machine and damage the components. These have not been designed
to withstand being washed with water. Never use a pressure washer to clean the
floor within 1 metre of the dishwasher without the special protective covers that
are available to prevent splashing. Problems with splashing can also occur when
using ordinary hoses.
2.7 Repairing and servicing the dishwasher
Disconnect the power supply before removing the front panel. Avoid touching hot
pipes and the booster heater.
2.7.1 Safety instructions if the machine is not functioning
Check the following:
• Has the machine been used according to the instructions?
• Are all the removable parts in the correct place?
• Is the mains switch in the ON position?
• Are the fuses in the electrical cabinet undamaged? Ask the service person-
nel to check the fuses.
If this does not solve the problem, ask authorised service personnel to check the
machine.
2.8 Recycling the machine
When the dishwasher has reached the end of its service life, it must be recycled
in accordance with current regulations. Contact professionals who specialise in
recycling.

WD-100GR Rev. 3.0 (201205)
Installation
6
3. Installation
3.1 General information
The machine must be installed by authorised personnel only.
Read these instructions carefully as they contain important information regarding
the correct installation method.
The instructions should be used together with the machine’s wiring diagram and
flow diagrams for water and steam.
The machine is CE marked. The CE mark is only valid for machines that have not
been modified. If the machine is damaged as a result of the instructions not being
followed, this invalidates the supplier’s warranty and product liability.
3.2 Requirements for the installation site
3.2.1 Lighting
In order to ensure the best possible working conditions during installation, opera-
tion, servicing and maintenance, make sure that the machine is installed in a well-
lit room.
3.2.2 Ventilation
The machine produces heat and steam when in operation. In order to ensure the
best possible working conditions, a certain air change rate is required in the dish-
washing room. The ventilation requirements for the room should be calculated on
the basis of current standards.
3.2.3 Drains
There must be a floor drain with an effective trap for the machine's waste water
and for water used for cleaning. The drain should be located under the machine's
loading bench. The floor drain capacity can be found in the TECHNICAL SPECI-
FICATIONS.

WD-100GR Rev. 3.0 (201205)
Installation
7
3.2.4 Space for servicing
A 1-metre area should be left clear in front of the machine for servicing purposes.
The area above the machine must not contain any equipment which could pre-
vent the fitting, servicing and replacement of parts.
3.3 Transport and storage
Always transport the machine in an upright position.
Take care during transport, as there is a risk of the machine tipping over.
NOTE: The machine must not be transported without a pallet or other support.
Some form of support beam must always be used along the sides of the machine
during transport, otherwise the machine may be damaged. When transporting the
machine without a normal wooden pallet, always check that none of the compo-
nents underneath the machine can be damaged.
A=Pumps
B=Spacers
If the machine is not being installed immediately, it must be stored in a frost-free
area where the air is dry.
3.4 Preparing for the installation
The machine supplied with a height for transport purposes of 2300 mm.
Check that there is sufficient height available to transport the machine to its instal-
lation site.
Check that the overheating protection on booster heaters and tank elements is
set to zero.

WD-100GR Rev. 3.0 (201205)
Installation
8
3.5 Unpacking
Check against the delivery note that all the units have been delivered.
Remove the packing material. Inspect the machine for any transport damage.
3.5.1 Removing packaging
The packaging consists of a frame on which the machine rests, beams that hold
the frame together, two beams as protection for the pumps and two thin boards
that hold the spacer blocks in place.
The packaging is screwed together using wooden screws. This is why a battery-
powered screwdriver is recommended.
1. Remove the two thin boards (35).
2. Remove the external beam on the electrical cabinet side (33).
3. Remove all the screws (36) on the internal beam by the machine’s electri-
cal cabinet side.
4. Unscrew the beam at the rear of the machine (33).
5. Remove both of the protective beams for the pumps (34).
6. Lift the machine (from the rear) using a truck and remove the beams at the
sides of the machine (31).
7. Place the machine on its feet.
Inspect the machine for any transport damage.
demont
32
33
32
34
36
31
33
32
32
35
31
35
32

WD-100GR Rev. 3.0 (201205)
Installation
9
3.6 Recycling the packaging
Packaging must be disposed of or recycled in accordance with local regulations.
3.7 Installation
3.7.1 Positioning the machine
Remove the protective plastic on the sides which will be put against the wall.
Loosen the detergent hose on the back of the machine before putting the machine
against the wall. Hang the hose up in such a way that it is easily accessible for
the detergent supplier.
Put the machine in position and check that it is horizontal using a spirit level. Lat-
eral tilt: Place a spirit level on the body of the machine at the infeed and outfeed.
The machine’s longitudinal direction: Place the spirit level across the body of the
machine.
Once the machine has been filled with water, check that it is level.
Adjust the height using the machine's legs.

WD-100GR Rev. 3.0 (201205)
Installation
10
3.8 Connections
*) The condensing fan runs for 10 seconds at the start of the wash cycle and for
50 seconds from 10 seconds after the final rinse has started.
1. Cold water connection
2. Hot water connection
3. Electrical connection
4. Steam connection (Option)
5. Condensation connection (Option)
6. Drain connection
7. Connection for detergent hose
8. Ventilation requirements of the machine

WD-100GR Rev. 3.0 (201205)
Installation
11
3.8.1 Electrical connection
This symbol on a component is a warning of electrical equipment. The part may
only be removed by a qualified electrician or trained personnel.
Information about electrical connections can be found on the machine's wiring di-
agrams. The wiring diagrams are inside the electrical cabinet door. Store the di-
agrams in the electrical cabinet after installation.
The machine must be connected to a lockable mains switch. This should be po-
sitioned on the wall where it is protected from the water and steam which may be
released when the door is opened.
The machine is equipped with a phase sequence detector. The machine will not
start if the phase sequence is incorrect. If the phase sequence is incorrect, the
display will show POWER SUPPLY FAILURE CHECK THE EMERGENCY
SWITCH.
The connection in the electrical cabinet is at (3).
3.8.2 Water connection
Connect the cold and hot water pipes according to the labels by the connection
points (1,2). If the machine is connected to a hose, the internal diameter of the
hose must be at least 12 mm.
The hot water connection is fitted with a filter. The cold water connection is fitted
with a filter, non-return valve and vacuum valve. The connections have an internal
thread.
A stopcock must be installed on the water supply pipes.
It is important that the water supply has sufficient pressure to ensure the correct
flow of water to the machine. The required pressure can be found in the TECH-
NICAL SPECIFICATIONS. If the water pressure is too low, a booster pump must
be fitted.
3.8.3 Drain connection
The waste water system connected to (6) must have 50 mm metal pipes that will
withstand collision or 50 mm plastic pipes. The waste water pipe must be con-
nected to a floor drain and the opening of the pipe must be above the water level.
The capacity of the floor drain must be 3 litres/second.
3.8.4 Ventilation
The machine has a condensing battery connected to an exhaust fan to reduce the
amount of steam released. Extractor fans for extracting steam can be installed
above the infeed and outfeed openings, as well as above the area of the machine
where steam is emitted from the condensing fan.
If a hood is fitted over the machine, it must cover both the infeed and the outfeed.
The front of the hood must be positioned at least 500 mm in front of the machine
to allow access for service and repairs.

WD-100GR Rev. 3.0 (201205)
Installation
12

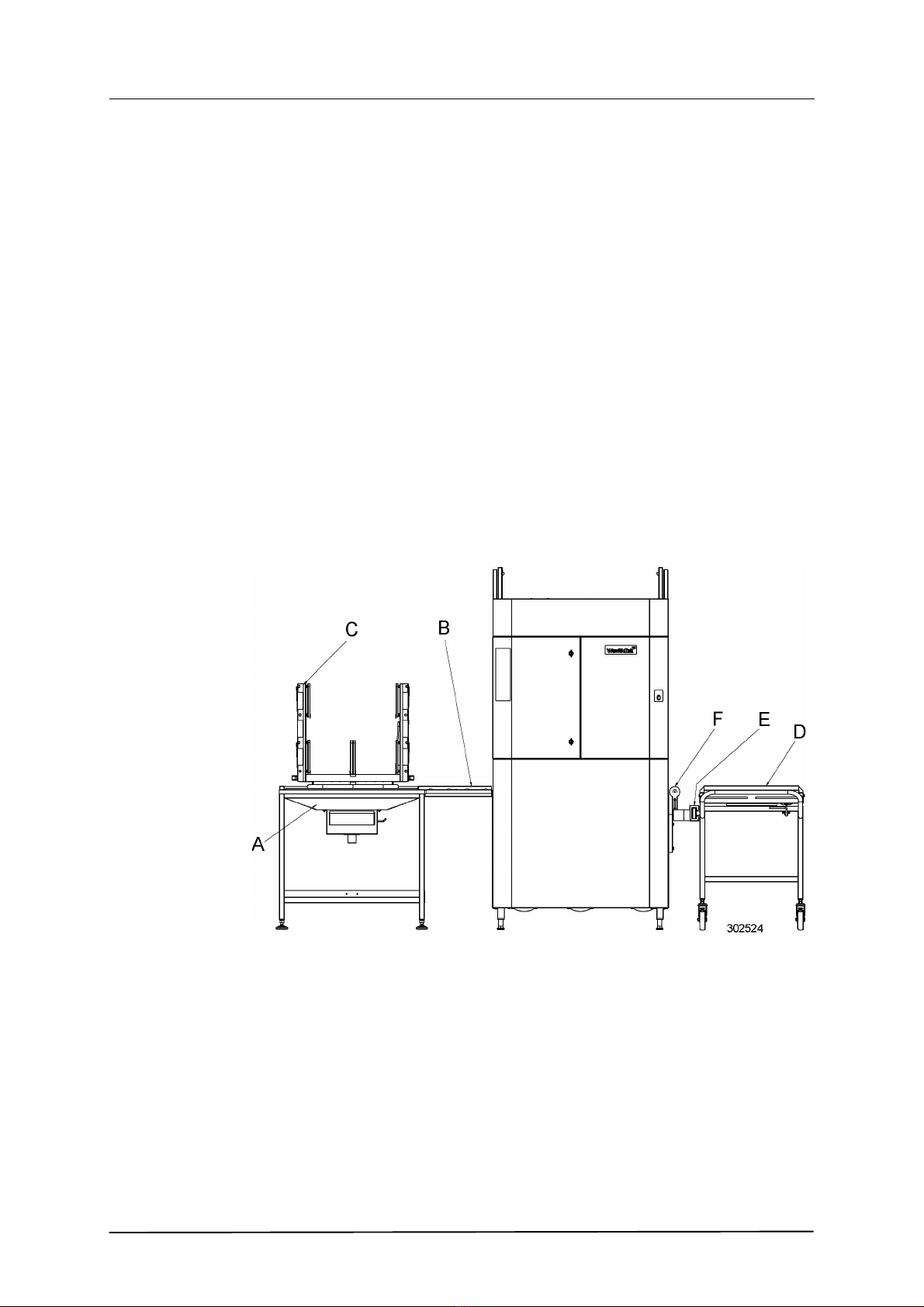

3.9 Installing auxiliary equipment
Once the machine is in place and adjusted horizontally and vertically, the auxiliary
equipment can be fitted.
• The loading bench (A) and extension bench (B) can be put in place. The
height of the extension bench (B) can be adjusted where it connects to the
machine. When the water and electricity supplies etc. have been connect-
ed and it is possible to open the doors, check that the cassette (C) can eas-
ily be slid into the machine.
• If necessary, fix two of the legs on the loading bench to the floor. Drill
through the rubber plate.
• Adjust the height of the trolley (D) and check that the cassette can easily
be transferred from the trolley to the loading bench.
• If necessary, the outfeed opening can be adjusted so that it is slightly high-
er than the infeed opening.
• Guide the plastic wheel on the side of the trolley into the guide rail (E) on
the console under the outfeed opening.
• Adjust the height of the roller (F) between the trolley and the machine.
Auxiliary equipment
• A=Bench
• B=Extension bench
• C=Cassette
• D=Trolley
• E=Guide rail
• F=Roller

WD-100GR Rev. 3.0 (201205)
Installation
13
3.10 Installing detergent and drying agent equipment
The machine comes ready for fitting detergent and drying agent equipment, but
this is not included with the machine.
To avoid making unnecessary holes in the machine, the equipment should be
placed on the wall behind the machine on the outfeed side.
Connecting detergent and drying agent
• A=Water outlet for detergent
• B=Drying agent connection
• C=Junction box
3.10.1 Electrical connection of the equipment
• Remove the cover plate under the electrical cabinet. The panel is fixed with
screws at the bottom edge under the stand.
• The terminal block for connecting the dosing equipment is in the junction
box (C) inside the cover plate. The FU/DM circuit breaker for the equipment
is in the electrical cabinet. (For connection information, see the wiring dia-
gram).
• A hole for fitting a measuring cell can be found in the tank. Remove the
sealing plug and insert the measuring cell into the existing hole.

WD-100GR Rev. 3.0 (201205)
Installation
14
3.10.2 Detergent dosing system
• The water outlet (A) for the detergent dosing system is on the incoming hot
water pipe.
• The hose on the back of the machine is connected to a container for deter-
gent. The hose, which is supplied with the machine, is connected to the
wash tank.
3.10.3 Drying agent dosing system
The connection for drying agent (B) is located next to the booster heaters.
3.11 Trial operation
Prepare the machine for trial operation by following the INSTRUCTIONS FOR
USE. The instructions describe the measures that must be taken to prepare the
machine for operation.
3.11.1 Start-up schedule
This should be completed and signed by the customer on start-up.
Machine type:
Machine serial number:
Installation date:
Customer:
Address for visitors:
Postcode + Town/City:
Telephone:
Contact:
Dealer:
Telephone:
Contact:
Installation company:
Telephone:
Contact:
Service company:
Telephone:
Detergent supplier:
Telephone:
End user’s signature:
Name in block capitals:

WD-100GR Rev. 3.0 (201205)
Installation
15
Read the installation and user manuals carefully. Then check the following points:
1. Check:
• That the wires to the doors are properly seated on all wire wheels.
• Water and drain connections.
• That the machine is evenly balanced.
• That the cassette can easily be moved in and out of the machine.
• Detergent and drying agent.
• That the pump filters, level pipe and tank filter are in position.
• That the FU21, FU41 and FU42 mini-switches are in the off position.
• The machine is connected with the correct phase sequence. NOTE: The
machine will not start if the phase sequence is incorrect. If the phase se-
quence is incorrect (QM15 must be switched on), the display will show
“POWER SUPPLY FAILURE CHECK THE EMERGENCY SWITCH”.
• The pump’s direction of rotation. NOTE: If the direction of rotation is wrong,
the phase must be inverted on the terminal block for the incoming electrical
cable.
• That there is the right quantity of granulate in the machine.
• The overheating protection is set to zero.
2. Filling the machine:
• Turn on the power switch.
• Close the doors.
• Fill the machine with water in accordance with the maintenance instruc-
tions. NOTE: There must not be a cassette in the machine.
• When "HEATING IN PROGRESS TEMPERATURE IN TANK" appears on
the display, FU21, FU41 and FU42 are switched on.
3. Check the setting of the reference values:
• Check the functioning of the booster pump, where applicable.
• All the reference values are set to the recommended values on delivery.
4. Run a number of washes complete with loads and check that:
• There are no water leaks.
• The switch for the doors is working.
• The anti-crushing mechanism is working.
• The water temperatures are maintained.
• The washed items are clean.
• There is no granulate sticking to the washed items.
• The washed items are dried.
• There is an adequate water flow to the machine. Recommended setting: 6
l/wash cycle Flow: 15 l/min. This can be checked in the machine's refer-
ence values and diagnostics function.
5. Final check: Empty the machine and turn off the power using the power switch.
• Re-tighten all the connections on the circuit breakers and relays.
• Set all the circuit breakers to the on position
• Inform the customer if the water flow and the water pressure are too low.
• Display the maintenance instructions supplied with the machine.
6. Train the dishwashing staff

WD-100GR Rev. 3.0 (201205)
Installation
16
3.12 Technical documentation
To ensure that the machine is used correctly, it is essential that the documenta-
tion supplied with the machine is made available to the staff who will be using the
machine. The installation and user manuals should be kept near the machine.
If the service manual is supplied with the machine, it should be given to the serv-
ice engineer who is responsible for the machine.
If the spare parts manual is supplied with the machine, it should be given to the
service engineer who is responsible for the machine.
If the WEB Tool manual is supplied with the machine, it must be kept near the ma-
chine.
