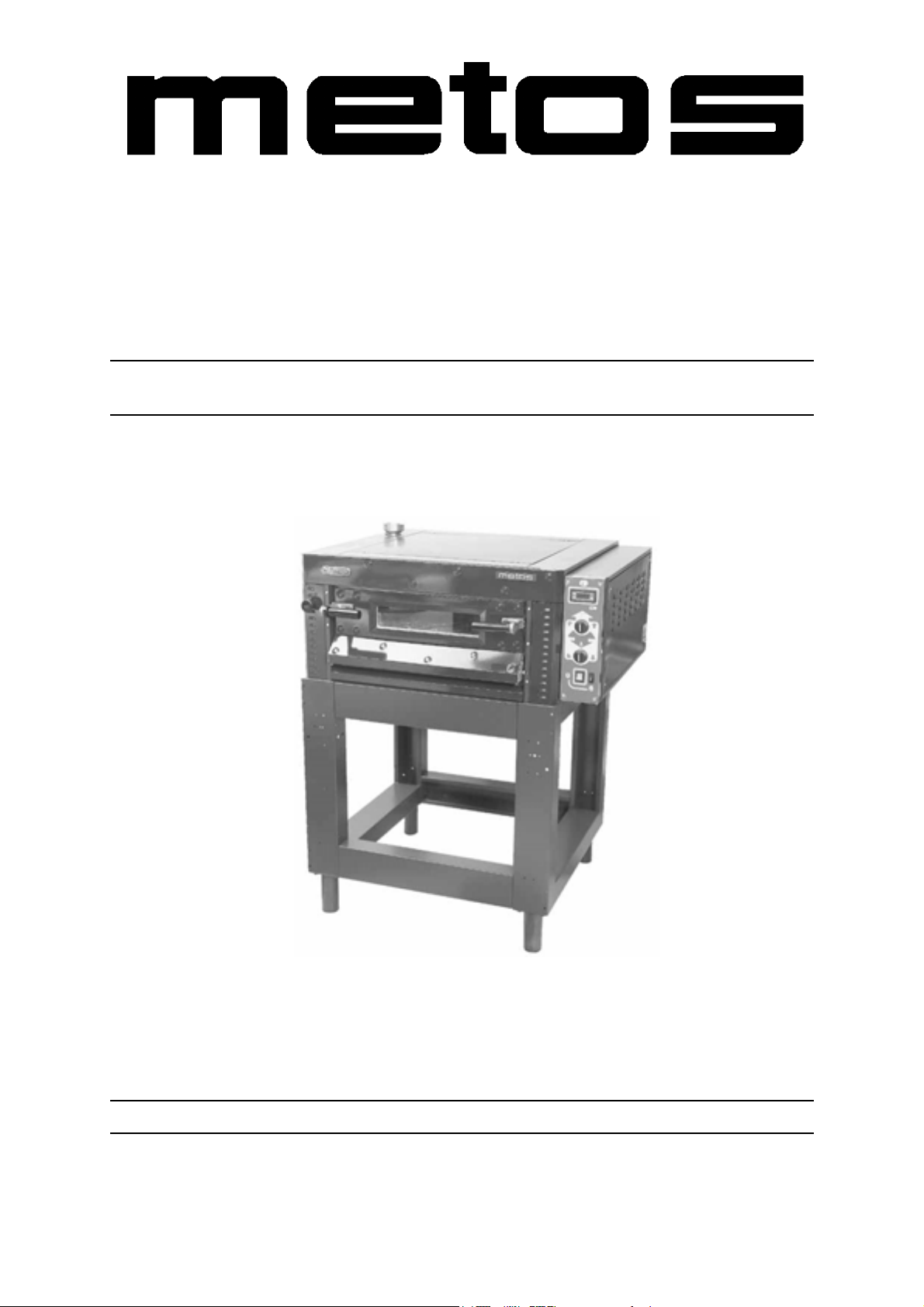

Metos MF2 User manual

3,==$29(1
TYPE: MF2, MF4CL, MF8CL
,QVWDOODWLRQDQG2SHUDWLRQ0DQXDO
S/N: Rev.: 2.0

 5HY
3
Dear Customer,
Congratulations on deciding to choose a Metos appliance for your kitchen activities. You
made an excellent choice. We will do our best to make you a satisfied Metos customer
like thousands of customers we have around the world.
Please read this manual carefully. You will learn correct, safe and efficient working meth-
ods in order to get the best possible benefit from the appliance. The instructions and hints
in this manual will give you a quick and easy start, and you will soon note how nice it is
to use the Metos equipment.
All rights are reserved for technical changes.
You will findthe main technical data on the rating plate fixed to the equipment. When you
need service or technical help, please let us know the serial number shown on the rating
plate. This will make it easier to provide you with correct service.
For your convenience, space is provided below for you to record your local Metos service
contact information.
METOS TEAM
Metos service phone number:...............................................................................................
Contact person:....................................................................................................................

 5HY
4

 5HY
5
*HQHUDO  
1.1 Symbols used in the manual .......................................................................................... 7
1.2 Symbols used on the appliance ...................................................................................... 7
1.3 Checking the relation of the appliance and the manual ................................................. 7
6DIHW\ 
2.1 Safe use of the appliance ............................................................................................... 8
2.2 Safety instructions in case of malfunction ..................................................................... 8
2.3 Disposal of the appliance ............................................................................................... 8
)XQFWLRQDOGHVFULSWLRQ 
3.1 General .......................................................................................................................... 9
3.2 Light inside the chamber (MF4CL, MF8CL) ................................................................ 9
3.3 Steams outlet chimney (MF4/CL, MF8/CL) ................................................................. 9
3.4 Control board ............................................................................................................... 10
3.4.1 MF2 ...................................................................................................................... 10
3.4.2 MF4-8CL ............................................................................................................. 11
2SHUDWLRQLQVWUXFWLRQV  
4.1 Before using the appliance .......................................................................................... 12
4.2 Operation procedures ................................................................................................... 12
4.2.1 Ignition ................................................................................................................. 12
4.2.2 Pizza baking ......................................................................................................... 12
4.2.3 Safety System ...................................................................................................... 13
4.3 Cleaning ....................................................................................................................... 13
4.3.1 External cleaning ................................................................................................ 13
4.3.2 Baking plate cleaning ........................................................................................... 13
4.3.3 Maintenance ........................................................................................................ 13
,QVWDOODWLRQ 
5.1 General ........................................................................................................................ 14
5.2 Electric connection ...................................................................................................... 14
6SDUHSDUWV  
 HFKQLFDOVSHFLILFDWLRQV 

 5HY
6

 5HY
*HQHUDO
7
 *HQHUDO
Carefully read the instructions in this manual as they contain important information re-
garding proper, efficient and safe installation, use and maintenance of the appliance.
Keep this manual in a safe place for eventual use by other operators of the appliance.
The installation of this appliance must be carried out in accordance with the manufactur-
er’s instructions and following local regulations. The connection of the appliance to the
electric and water supply must be carried out by qualified persons only.
Persons using this appliance should be specifically trained in its operation.
Switch off the appliance in the case of failure or malfunction. The periodical function
checks requested in the manual must be carried out according to the instructions. Have the
appliance serviced by a technically qualified person authorized by the manufacturer and
using original spare parts.
Not complying with the above may put the safety of the appliance in danger.
 6\PEROVXVHGLQWKHPDQXDO
This symbol informs about a situation where a safety risk might be at hand.Given instruc-
tions are mandatory in order to prevent injury.
This symbol informs about the right way to perform in order to prevent bad results, appli-
ance damages or hazardous situations.
This symbol informs about recommendations and hints that help to get the best perform-
ance out of the appliance.
 6\PEROVXVHGRQWKHDSSOLDQFH
This symbol on a part informs about electrical terminals behind the part. The removal of
the part must be carried out by qualified persons only.
 &KHFNLQJWKHUHODWLRQRIWKHDSSOLDQFHDQGWKHPDQXDO
The rating plate of the appliance indicates the serial number of the appliance. If the man-
uals are missing, it is possible to order new ones from the manufacturer or the local rep-
resentative. When ordering new manuals it is essential to quote the serial number shown
on the rating plate.

 5HY
6DIHW\
8
 6DIHW\
 6DIHXVHRIWKHDSSOLDQFH
The oven has to be used by trained personnel only
Never leave food products in the oven unattended; the fat in the food may catch fire if
cooked too long.
Never put flammable materials in the oven
 6DIHW\LQVWUXFWLRQVLQFDVHRIPDOIXQFWLRQ
If the oven doesn’t work properly or in case of malfunction, turn off the power and call
for service. In emergency turn off the power with the general cut out switch.
 'LVSRVDORIWKHDSSOLDQFH
The destroying of the appliance when its economical lifetime has been reached may be
harmful to the environment if not properly handled. Utilization of materials that are reus-
able is best done by professional personnel specialized in recycling

 5HY
)XQFWLRQDOGHVFULSWLRQ
9
 XQFWLRQDOGHVFULSWLRQ
 *HQHUDO
The Metos OEM pizza ovens are supplied with a heat storing cooking plate made of re-
fractory bricks, the oven is insulated with evaporated rock wool. The oven is fitted with
protected heating elements. Temperature can be thermostatically adjusted between 0-400
ºC. Top and bottom heat independently adjustable. The oven chamber is fitted with light-
ing and an exhaust chimney. All models (except MF2) supplied with glass windows and
door handles with thermal insulation. Oven front of stainless steel. Frame and stand of
powder coated steel. The ovens are stackable.
 /LJKWLQVLGHWKHFKDPEHU0)&/0)&/
To switch on the chamber light, turn the internal light switch. We suggest not to keep the
light on at all times, use it when you chek the baking only. This will increase the lamp
duration.
 6WHDPVR WOHWFKLPQH\0)&/0)&/
Don’t undervalue the the importance to use the chimney; in fact if you keep the discharge
valve closed while you cook pizza, you will see the steams going out from the oven door.
Further more the upper heating element action will be remarkably slowed down by the
steam: Pizza will burn on the base and will not bee cooked on the top. If you connect the
chimney direct to a mechanical aspirator it will collect too much heat from the oven com-
promising the performance: Pizza will be too dry and burnt on the base. Therefore it is
very important to connect the chimney with a good draught flue or under a suction hood.

 5HY
)XQFWLRQDOGHVFULSWLRQ
10
 &RQWUROERDUG
 0)
1 Lower owen cut out switch
2 Temperature setting 0-400ºC
3 Thermostat warning light
4 OFF/ON switch

 5HY
)XQFWLRQDOGHVFULSWLRQ
11

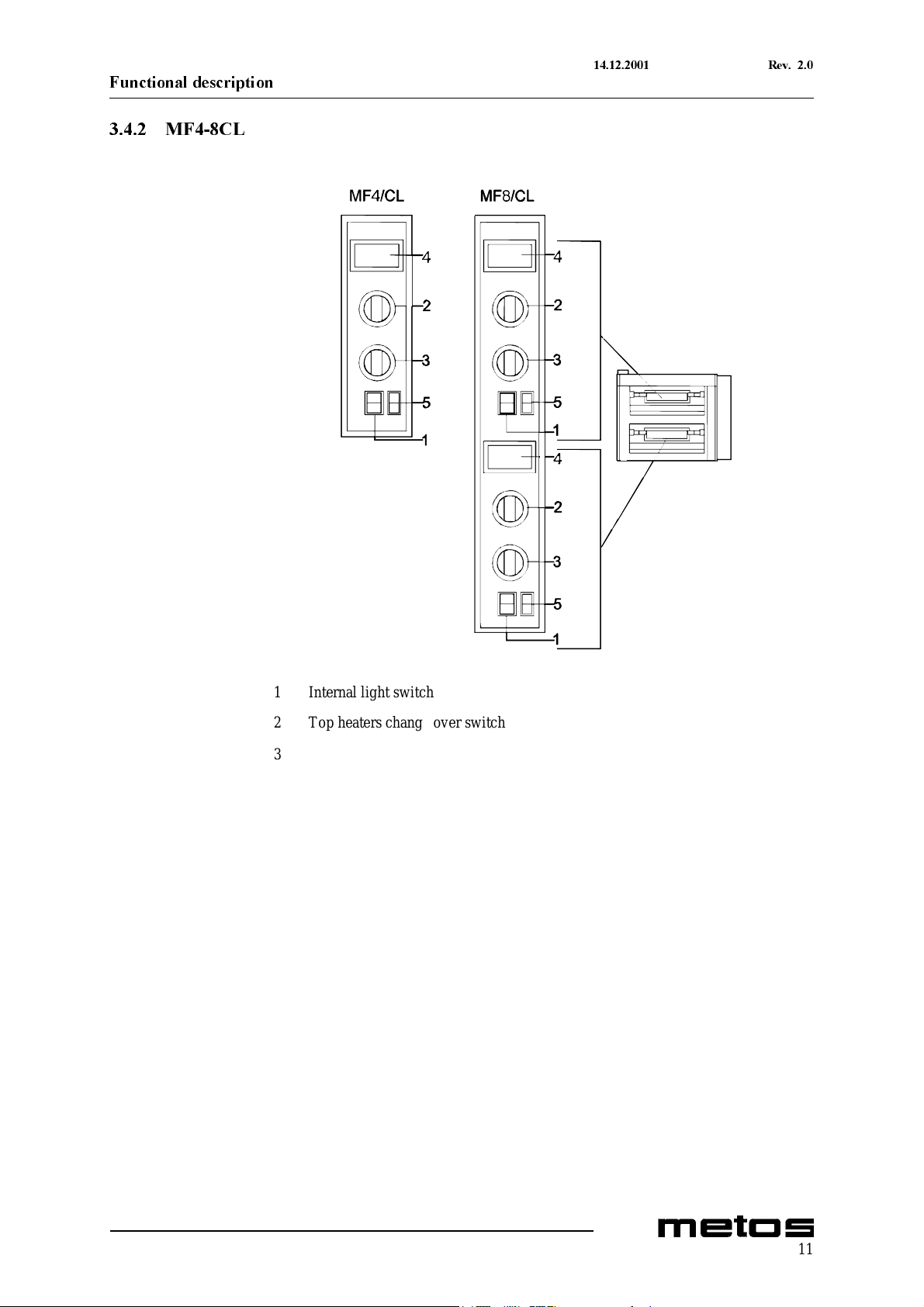

 0)&/
1 Internal light switch
2 Top heaters change over switch
3 Bedplate heaters change over switch
4 Digital temperature setting 0-400ºC
5 OFF/ON switch

 5HY
2SHUDWLRQLQVWUXFWLRQV
12
 2SHUDWLRQLQVWUXFWLRQV
 %HIRUHXVLQJWKHDSSOLDQFH
The first starting of the oven:
• Turn on the power to the oven from the general cut out switch
• Switch on the oven with the OFF/ON -switch.
• Adjust the thermostat to 400ºC
• MF4 - 8 /CL -Turn the top heating element and the lower heating element to max
-Open the fumes delivery pulling the knob
• Keep the oven in function for at least 1 hour till the dissapearance of fumes and
smells due to paint and to the refrectory bricks.
 2SHUDWLRQSURFHGXUHV
 ,JQLWLRQ
• Turn on the oven with the OFF/ON -switch
• Turn the thermostat to the temperature desired.
• MF2 The lower owen can be turned off with the lower owen cut out switch accord-
ing to the needs.
• MF4 - 8 /CL Turn on the top heating element (2) and the lower heating element (3)
according to the needs of the chosen cooking system. To illuminate the chamber
press the internal light switch
• When the desired temerature in the oven is reached the thermostat warning light
will go off (MF2)
 3L]]DEDNLQJ
For the cooking of the pizza directly on the brick plate we recommend to adjust the oven
to the cooking temperature of 350º-380ºC For MF4- 8 /CL: Turn the top heating element
in the maximun position and the lower heating element in the minimum position.

 5HY
2SHUDWLRQLQVWUXFWLRQV
13
 6DIHW\6\VWHP
The ovens are equipped with safety thermostats which cuts the power to the heating ele-
ments in case of overheating due to a fault component or improper use (the baking cham-
ber not cleaned). In this case, turn off the power to the oven from the general cut out
switch and call for service
 &OHDQLQJ
Before any cleaning or maintenace operations, disconnect the oven from the electric net-
work with the general cut out switch installed close to the oven.
Do not wash the oven with direct water jets because it may compromise the regular func-
tioning of the equipmant and safety system
 ([WHUQDOFOHDQLQJ
Daily clean the oven with warm water and soap, rince it well and dry with care. Never use
steel wool, brushes or steel scrapers. Do not use abrasive materials or products.
 %DNLQJSODWHFOHDQLQJ
Clean the refractory plate with a special brush or heat the plate to a high temperature with
the lower heating resistance and use a vacuumcleaner (after the oven has cooled down) to
remove the residues from under the refractory plate.
 0DLQWHQDQFH
No special maintenance operations are needed, but we recommend to have the oven care-
fully checked by a qualified technician every three years.

 5HY
,QVWDOODWLRQ
14
 ,QVWDOODWLRQ
 *HQHUDO
Pizza ovens can be installed:
• On a stand already existing at the user’s facilities. In this case the supporting sur-
face must be able to support the ovens weight with a suitable steadiness.
• On supports which can be supplied at request, in this case it is compulsory to fix
the oven bottom by the screws supplied with the support
A minimumdistance of 200mm must be leftaroud the oven,away from any walls in flam-
mable material or adjacent equipment. Also the floor where the oven is positioned must
be uninflammable. It is forbidden to lean flammable objects against the oven.
 (OHFWULFFRQQHFWLRQ
The connection of the appliance to the electricsupply must be carried out by qualified per-
sons only
The equipment must be included in an equipotential system whose effiency nust be ac-
cording to the regulation in force. The connection is carried out by a screw marked
placed in correspondance with the feeding cable inlet.
The oven must be connected to a general cut switch of omnipolar type which interrupts
all the contacts including the neutral one. The switch must have a distance of at least 3
mm between the open contacts, with a safety magneto-thermic device or with protection
fuses. The switch must be installed close to the oven and with an easy access.
Before testing the oven make sure the baking chamber is empty.

 5HY
,QVWDOODWLRQ
15
MF/2
1 Door handle
2 Door
3 Control panel
4 Adjustable feet
5 Technical data plate
6 Supply cable outlet
7 Equipotential board plate

 5HY
,QVWDOODWLRQ
16
MF4/CL
1 OFF-ON switch
2 Top heaters change over switch
3 Bedplate heaters change over switch
4 Digital temperature setting 0-400ºC
5 Internal light switch
6 Chimney valve knob
7 Door handle
8 Door glass
9 Technical data plate
10 Supply cable outlet
11 Equipotentional terminal board plate
12 Chimney
1)
5)
3)
2)
4)
6)
7)
8)
9)
10)
11)
12)

 5HY
,QVWDOODWLRQ
17
MF8/CL
1 OFF-ON switch
2 Top heaters change over switch
3 Bedplate heaters change over switch
4 Digital temperature setting 0-400ºC
5 Internal light switch
6 Chimney valve knob
7 Door handle
8 Door glass
9 Technical data plate
10 Supply cable outlet
11 Equipotentional terminal board plate
12 Chimney
1)
2)
3)
4)
5)
1)
2)
3)
4)
5)
6)
7)
8)
9)
10)
11)
12)

 5HY
,QVWDOODWLRQ
18

 5HY
7HFKQLFDOVSHFLILFDWLRQV
27
 7HFKQLFDOVSHFLILFDWLRQV
&RQQHFWLRQGLDJUDPPRG0)
&RQQHFWLRQGLDJUDPPRG0)&/

Connection diagram mod. MF2
IG. OFF-ON switch
LA. Start warning light
DB. Switch
TR. Thermostat
T. Solenoid switch
R. Heaters
LR3. Oven ready warning light
Ruskea / brun / brown
Valkoinen / vit / white
Sininen
/ blå / blue
Kelt./vihr. / gul/grön /
yellow/green
Sininen / blå / blue
Sininen / blå / blue
Ruskea / brun / brown
Punaien / röd / red
Musta / svart / black
Musta / svart / black
Musta / svart / black
