INSTALLATION INSTRUCTIONS
99-6536
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
•
Touchscreen display for climate and personalization features
• Painted: Bronze - 99-6536BZ
Silver - 99-6536S
KIT COMPONENTS

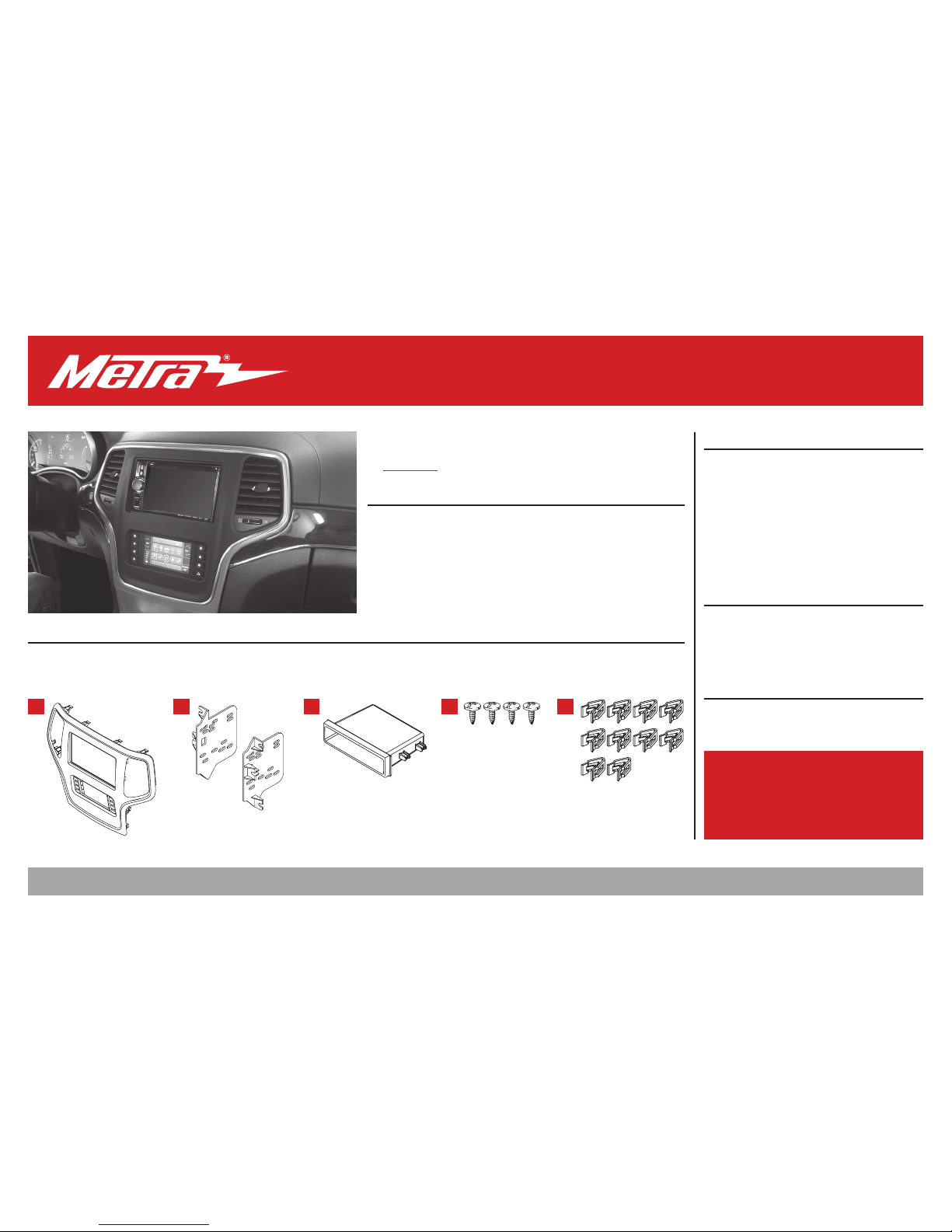

• A) Radio trim panel with touchscreen display • B) Radio brackets • C) Pocket • D) (4) #8 x 3/8” Phillips screws • E) (10) Panel clips
• F) HVAC interface and wiring harness (not shown) • G) Antenna adapter (not shown)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32” Socket wrench • 5.5mm socket wrench
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Preparation .......................................................3
Kit Assembly
–ISO DIN radio provision with pocket ..................4
–ISO DDIN radio provision .....................................4
Axxess Interface Installation ............................ 5-13
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface built into
touchscreen
Antenna Adapter: Included with kit
A B C D E
Jeep Grand Cherokee 2014-2017
Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle
specific applications

1.800.221.0932
|
MetraOnline.com
DASH DISASSEMBLY
2

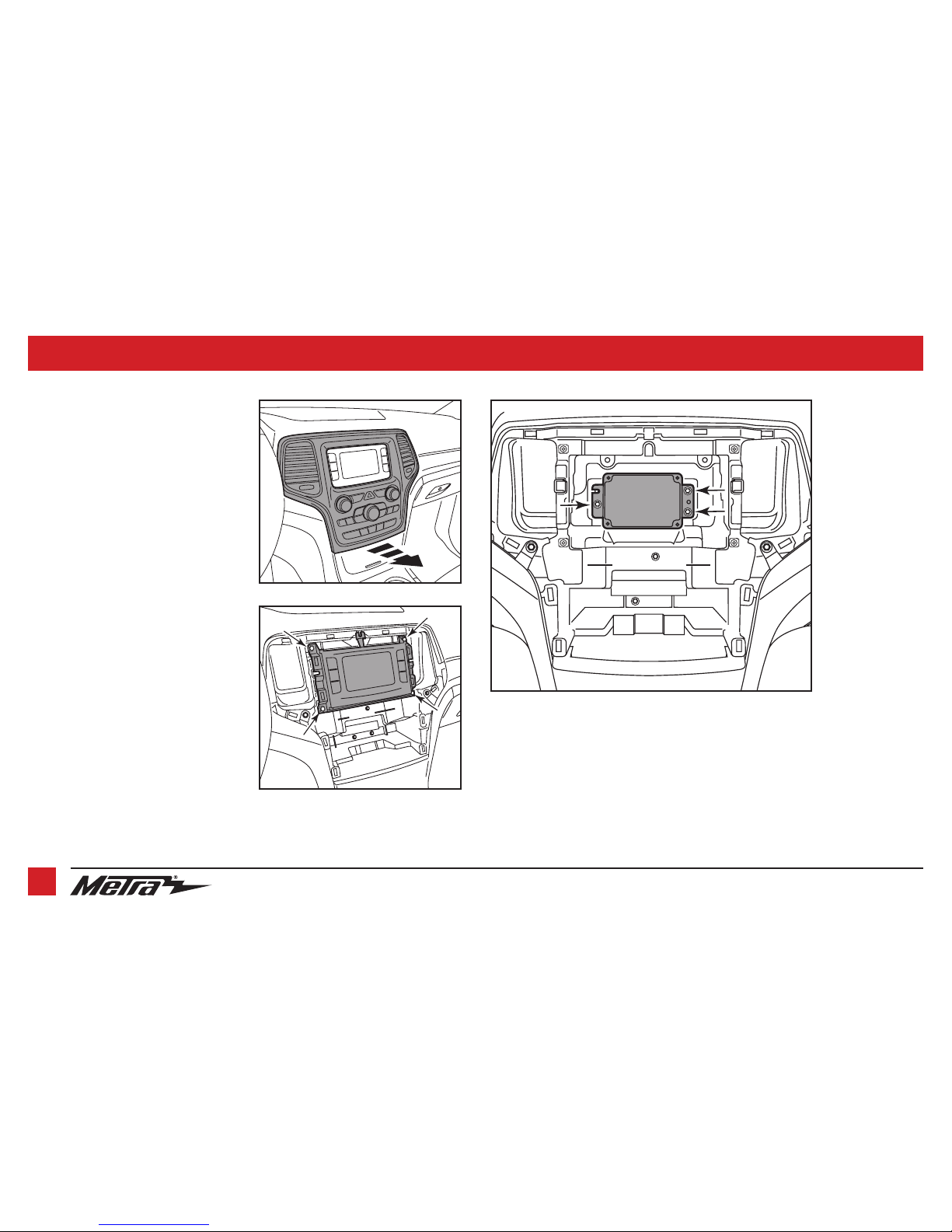

1. Unclip and remove the radio/climate
control panel. (Figure A)
2. Remove the (4) 9/32” screws securing
the radio/display screen, and then
unplug and remove. (Figure B)
3. Remove the (3) 5.5mm screws securing
the black control module in the
sub-dash, and then relocate lower to
allow clearance for the aftermarket
radio. (Figure C)
Continue to Kit Preparation
(Figure B)
(Figure A)
(Figure C)

REV. 11/26/2018 INST99-6536
KIT PREPARATION
3
(Figure A) (Figure B)
From the factory radio/climate control panel:

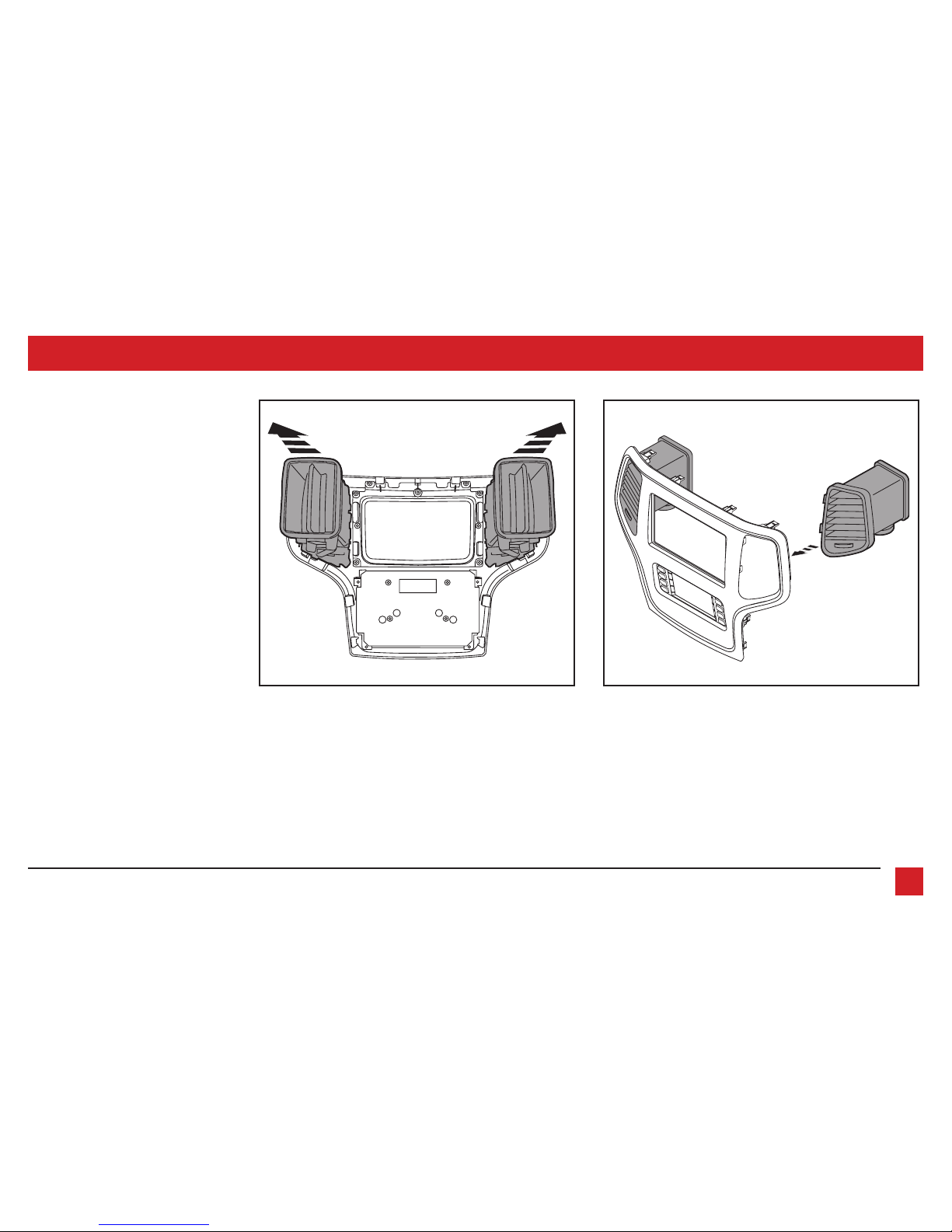

1. Unclip the vents from the back of the
panel. (Figure A)
To the 99-6536 radio trim panel:
1. Attach the vents to the back of the panel.
(Figure B)
2. Attach the (10) panel clips provided.
Continue to Kit Assembly

1.800.221.0932
|
MetraOnline.com
4
KIT ASSEMBLY
(Figure A)
(Figure B)
(Figure A)
ISO DIN radio provision with pocket
1. Attach the pocket to the radio brackets
using the (4) #8 x 3/8” Phillips screws
provided. (Figure A)
2. Remove the metal DIN sleeve and trim
ring from the aftermarket radio.
3. Slide the radio into the bracket/pocket
assembly, and then secure it using the
screws supplied with the radio.
(Figure B)
Continue to Axxess
Interface Installation
ISO DDIN radio provision
1. Attach the brackets to the radio using
the screws supplied with the radio.
(Figure A)
Continue to Axxess
Interface Installation

REV. 11/26/2018 INST99-6536 5
AXXESS INTERFACE INSTALLATION
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (retained accessory power)
• Provides NAV outputs (parking brake, reverse, speed sense)
• Retains audio controls on the steering wheel
• Retains safety chimes
• Retains the factory backup camera
• Retains the factory AUX-IN jack
• Retains balance and fade*
• Micro-B USB updatable
* Non-amplified models only.
INTERFACE FEATURES
• Crimping tool and connectors, or solder gun, solder, and heat shrink
• Tape • Wire cutter • Zip ties
TOOLS REQUIRED
• Axxess interface (built into the touchscreen display)
• 6536 harness
• 16-pin harness with stripped leads
• 4-pin harness with yellow RCA jacks
• Hazard harness
• Female 3.5mm connector with stripped leads
Connections ...............................................................................................................................6-8
Installation ....................................................................................................................................9
Programming ................................................................................................................................9
Final Assembly ..............................................................................................................................9
Touchscreen Display Operation .............................................................................................10-11
Steering Wheel Control Settings ...........................................................................................12-13
Troubleshooting ...........................................................................................................................13
INTERFACE COMPONENTS
TABLE OF CONTENTS

1.800.221.0932
|
MetraOnline.com
CONNECTIONS
6
From the 6536 harness to the aftermarket radio:
• Connect the Black wire to the ground wire.
• Connect the Yellow wire to the battery wire.
• Connect the Gray wire to the right front positive speaker output.
• Connect the Gray/Black wire to the right front negative speaker output.
• Connect the White wire to the left front positive speaker output.
• Connect the White/Black wire to the left front negative speaker output.
• Connect the (2) 4-pin connectors together.
• If retaining the factory backup camera, connect the Yellow RCA jack to the reverse
camera input.
• If the AUX-IN jack in the dash is desired to be used, connect the Red and White RCA jacks to
the audio AUX-IN jacks of the aftermarket radio.
• Disregard the DIN jack, it will not be used in this application.
Continue to 3.5mm jack steering wheel control retention
Attention! This interface will work with models that are either non-amplified, or amplified.
Please follow the instructions carefully for your model vehicle. Failure to do so will result in
either no sound, or low sound. If you are unsure if your vehicle is factory amplified or not,
please contact your local dealership.
For models without a factory amplifier:
From the 16-pin harness with stripped leads to the aftermarket radio:
• Connect the Red wire to the accessory wire.
• If the aftermarket radio has an illumination wire, connect the Orange/White wire to it.
• Connect the Green wire to the left rear positive speaker output.
• Connect the Green/Black wire to the left rear negative speaker output.
• Connect the Purple wire to the right rear positive speaker output.
• Connect the Purple/Black wire to the right rear negative output.
• Tape off and disregard the following (6) wires, they will not be used in this application.
Blue/White, Brown, Gray, Gray/Black, White, White/Black
The following (3) wires are only for multimedia/navigation radios that require these wires.
• Connect the Blue/Pink wire to the VSS/speed sense wire.
• Connect the Green/Purple wire to the reverse wire.
• Connect the Light Green wire to the parking brake wire.

REV. 11/26/2018 INST99-6536
CONNECTIONS (CONT.)
7
The following (3) wires are only for multimedia/navigation radios that require these wires.
• Connect the Blue/Pink wire to the VSS/speed sense wire.
• Connect the Green/Purple wire to the reverse wire.
• Connect the Light Green wire to the parking brake wire.
From the 6536 harness to the aftermarket radio:
• Connect the Black wire to the ground wire.
• Connect the Yellow wire to the battery wire.
• Tape off and disregard the following (4) wires, they will not be used in this application:
Gray, Gray/Black, White, White/Black
• Connect the (2) 4-pin connectors together.
• If retaining the factory backup camera, connect the Yellow RCA jack to the reverse
camera input.
• If the AUX-IN jack in the dash is desired to be used, connect the Red and White RCA jacks to
the audio AUX-IN jacks of the aftermarket radio.
• Disregard the DIN jack, it will not be used in this application.
Continue to 3.5mm jack steering wheel control retention
Attention! This interface will work with models that are either non-amplified, or amplified. Please
follow the instructions carefully for your model vehicle. Failure to do so will result in either no
sound, or low sound. If you are unsure if your vehicle is factory amplified or not, please contact
your local dealership.
For models with a factory amplifier:
From the 16-pin harness with stripped leads to the aftermarket radio:
• Connect the Red wire to the accessory wire.
• Connect the Blue/White wire to the amp turn on wire. This wire must be connected to hear
sound from the factory amplifier.
• If the aftermarket radio has an illumination wire, connect the Orange/White wire to it.
• Connect the Gray wire to the right front positive speaker output.
• Connect the Gray/Black wire to the right front negative speaker output.
• Connect the White wire to the left front positive speaker output.
• Connect the White/Black wire to the left front negative speaker output.
• Connect the Green wire to the left rear positive speaker output.
• Connect the Green/Black wire to the left rear negative speaker output.
• Connect the Purple wire to the right rear positive speaker output.
• Connect the Purple/Black wire to the right rear negative output.
• Tape off and disregard the following (1) wire, it will not be used in this application: Brown

1.800.221.0932
|
MetraOnline.com
8
4-pin harness with yellow RCA jacks:
• If retaining the factory backup camera to the touchscreen display is desired, connect the
Yellow RCA jack labeled “Rearview camera”, to the Yellow RCA jack from the 6536 harness .
Note: If this method is chosen, the backup camera option must be enabled in the Settings
screen .
• Disregard the Yellow RCA jack labeled “AUX video”, it will not be used in this application.
CONNECTIONS (CONT.)
3.5mm jack steering wheel control retention:
The 3.5mm jack is to be used to retain audio controls on the steering wheel.
• For the radios listed below: Connect the
female 3.5mm connector with stripped leads to the
male 3.5mm SWC jack from the 6536 harness. Any remaining wires tape off and disregard .
•
Eclipse: Connect the steering wheel control wire, normally Brown, to the Brown/White
wire from the connector. Then connect the remaining steering wheel control wire,
normally Brown/White, to the Brown wire from the connector
.
•
Metra OE: Connect the steering wheel control Key 1 wire (Gray) to the Brown wire.
•
Kenwood or select JVC with a steering wheel control wire: Connect the Blue/Yellow wire
to the Brown wire.

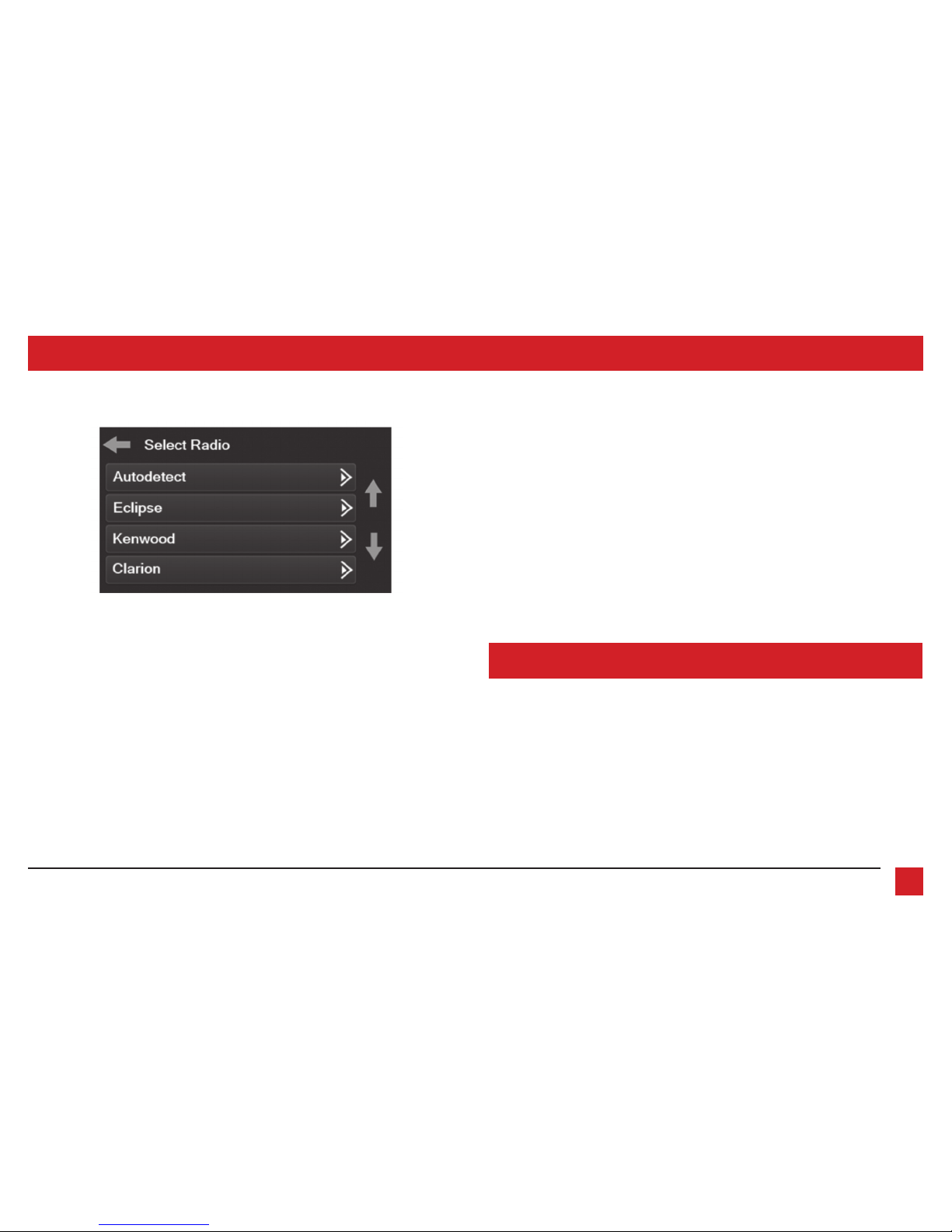

Note: If your Kenwood radio auto detects as a JVC, manually set the radio type to Kenwood.
See the instructions under changing radio type.
• XITE: Connect the steering wheel control SWC-2 wire from the radio to the Brown wire.
•
Parrot Asteroid Smart or Tablet: Connect the 3.5mm jack into the AX-SWC-PARROT (sold
separately), and then connect the 4-pin connector from the AX-SWC-PARROT into the radio .
Note: The radio must be updated to rev. 2.1.4 or higher software.
• Universal “2 or 3 wire” radio: Connect the steering wheel control wire, referred to as Key-A
or SWC-1, to the
Brown wire from the connector. Then connect the remaining steering wheel
control wire, referred to as Key-B or SWC-2, to the
Brown/White wire from the connector. If
the radio comes with a third wire for ground, disregard this wire
.
Note: After the interface has been programmed to the vehicle, refer to the manual provided
with the radio for assigning the SWC buttons. Contact the radio manufacturer for more
information.
• For all other radios: Connect the 3.5mm jack from the 6536 harness to the jack on the
aftermarket radio designated for an external steering wheel control interface. Please refer to
the aftermarket radios manual if in doubt as to where the 3.5mm jack goes to.

REV. 11/26/2018 INST99-6536 9
It is highly advisable to read the following steps beforehand, to ensure a clear understanding of
what is to be expected. The following steps must be done in the order that they are numbered.
With the vehicle completely off:

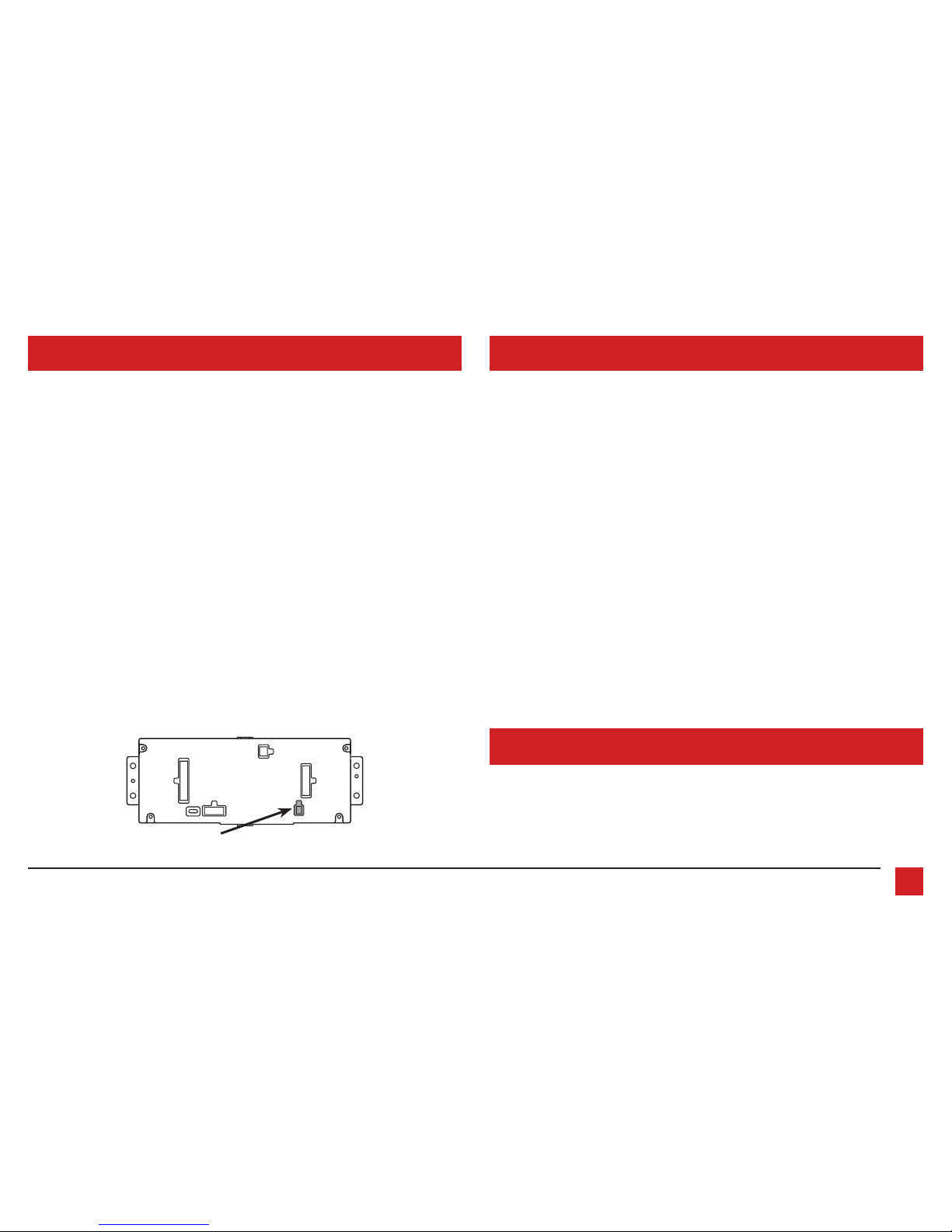

1. Connect the 16-pin harness with stripped leads into port “B” in the touchscreen display.
2. Connect the 6536 harness to the wiring harnesses in the vehicle. These harnesses are the
ones removed in step 7 from dash disassembly. Then insert the 6536 harness into port “A”
in the touchscreen display. But do not install this harness until exactly before step 1 from the
Programming section. This is a timed process.
3. Connect the 4-pin harness with yellow RCA jacks into port “C” in the touchscreen display.
4. Connect the hazard harness into port “D” in the touchscreen display, and then to the wiring
harness in the vehicle.
5. Disregard port “E”, it will not be used in this application.
6. Port “F” is an update port for future firmware upgrades.
7. Locate the factory antenna connector in the dash and complete all necessary connections to
the radio. Use the antenna adapter provided to adapt the factory antenna connector to the
aftermarket radio.
AB
C
E
FD
1. Refer to step 2 from the Installation section.
2. Press the push-to-start button to start the vehicle.
3. Program the kit:
a. Once the touchscreen display loads up, select the vehicle type.
b. Wait until the radio comes on, and the touchscreen display shows SWC Configured.
This process may take up to 3 minutes.
Note: If the touchscreen display does not load up, or the radio doesn’t come on within 3
minutes, and/or the touchscreen display does not show SWC Configured, turn the vehicle off
and disconnect the
6536 harnesse s from port “A” in the touchscreen display. Check all the
connections, reconnect the harness into the touchscreen display, and then try again.
4. Cycle the key off, then back on. If the driver’s door is closed, open and close the door.
5.
Refer to the Settings page within the Touchscreen Display Operation section. Ensure that all
factory features have been selected properly according to the options available for the vehicle .
6. Test all functions of the installation for proper operation, before reassembling the dash.
Note: The clock and compass in the driver’s information center will no longer be functional.
1. Secure the completed assembly to the dash using the factory hardware.
2. Reassemble the dash in reverse order of disassembly to complete the installation.
FINAL ASSEMBLY
INSTALLATION PROGRAMMING
Note: DO NOT CONNECT!

1.800.221.0932
|
MetraOnline.com
10
• This is the climate control screen which will be displayed on the touchscreen display.
This is considered the Main Menu screen.
• The upper left tab with (3) arrows will take you to the Heated/Cooled Seats* screen,
Heated Steering* screen, Mirror Dimming* screen, and also to the screen where the
hard buttons that were on the factory radio panel are now placed.
• The upper right tab with a gear icon will take you to the Settings screen.
• The climate controls will function in the same manner that they did with the factory
climate controls.
• For models with rear climate controls, the button labeled REAR will take you to the
rear climate control menu.
* If applicable.
• This is the Heated/Cooled Seats, Heated Steering, and Mirror Dimming screen which will be
displayed on the touchscreen display.
• The upper left-middle tab with a home icon will take you back to the Main Menu screen.
•
The upper right-middle tab with a gear icon will take you to the Settings screen.
• The upper right tab with a car icon will take you to the screen where the hard buttons that
were on the factory radio panel are now placed.
Continued on the next page
Climate Control screen Heated/Cooled Seats screen
TOUCHSCREEN DISPLAY OPERATION

REV. 11/26/2018 INST99-6536 11
TOUCHSCREEN DISPLAY OPERATION (CONT.)

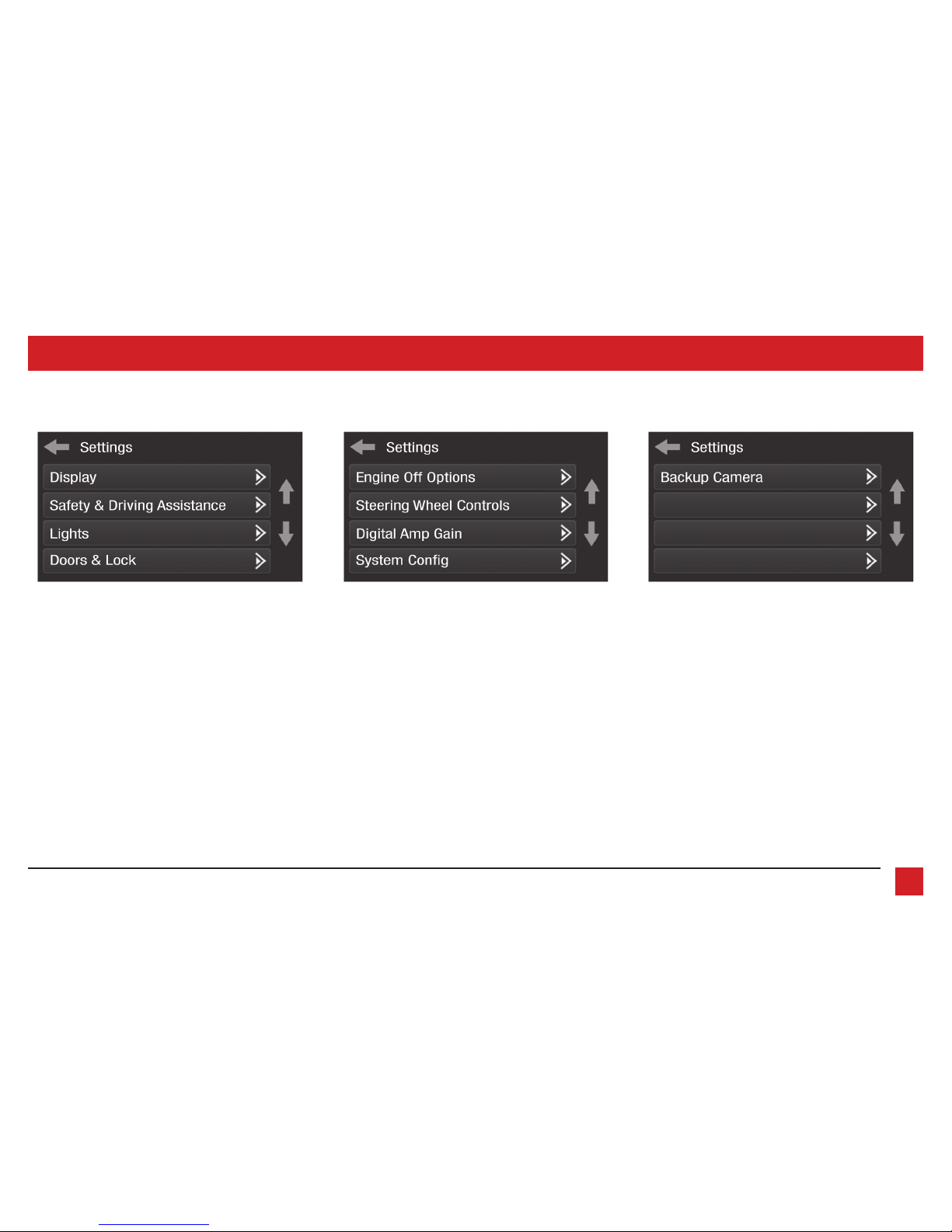

Settings screen
• Display
• Backlight - For controlling the color of the buttons
and back-light intensity.
• Language
• Units
• Safety & Driving Assistance - Factory features
• Lights - Factory features
• Doors & Locks - Factory features
• Engine Off Options - Factory features
• Steering Wheel Controls
• Remap Buttons – For remapping the steering
wheel control buttons
• Dual Assign – For dual assigning the steering wheel
control buttons (long button press)
• Select Radio – For auto detecting the radio, or
changing the radio type
• Digital Amp Gain - For adjusting the output gain
to the amplifier
• System Configuration
• About - Information regarding the software in the kit
• Reset Vehicle Type - To reset the kit to default settings
• Comfort Options Override - Provides the ability to
disable/enable certain factory options
• Backup Camera
• Enable/disables the backup camera image to the
touchscreen display. Disabled by default.

1.800.221.0932
|
MetraOnline.com
12
STEERING WHEEL CONTROL SETTINGS
Remap Button screen Dual Assign screen
• The interface has the ability to change the button assignment for the steering wheel
control audio buttons, except Volume-Up and Volume-Down. Follow the prompts on the
touchscreen display to remap the steering wheel control audio button(s) to your liking.
Note: The aftermarket radio may not have all of these commands. Please refer to the
manual provided with the radio, or contact the radio manufacturer, for specific commands
recognized by that particular radio.
• The interface has the capability to assign two functions to a single button, except
Volume-Up and Volume-Down. Follow the prompts on the touchscreen display to
program the button(s) to your liking.
Note: Seek-Up and Seek-Down come programmed as Preset-Up and Preset-Down
for a long button press.
Continued on the next page

REV. 11/26/2018 INST99-6536 13
Select Radio screen
* Note: If the interface shows an Alpine radio, and you do not have an Alpine radio, that means
the interface does not detect a radio connected it, i.e., an open connection. Verify that the 3.5mm
jack is connected to the correct steering wheel jack/wire in the radio.
** Note: The AX-SWC-PARROT is required (sold separately). Also, the Parrot radio must be
updated to rev. 2.1.4 or higher through www.parrot.com.
† Note: If you have a Clarion radio and the steering wheel controls do not work, change the radio
type to the other Clarion radio type; same for Eclipse.
‡ Note: If you have a Kenwood radio and the touchscreen display shows a JVC radio, change the
radio type to Kenwood.
Eclipse (Type 1) †
Kenwood ‡
Clarion (Type 1) †
Sony / Dual
JVC
Pioneer/Jensen
Alpine *
Visteon
Valor
Clarion (Type 2) †
Metra OE
Eclipse (Type 2) †
LG
• To show which brand radio is “auto detected” to the interface, press the “Autodetect”
button. The radio detected will have a filled in circle. If the incorrect radio is shown,
select the proper radio.
• Following is a list of radio manufacturers that the interface presently acknowledges.
Others may be added at a later date. Universal “2 or 3 wire” radios can show up as any of
these radio manufacturers.
Parrot **
XITE
Philips
JBL
STEERING WHEEL CONTROL SETTINGS (CONT.)
Resetting the interface
1. With the vehicle running, press the Reset Vehicle Type button mentioned in
System Configuration.
2. Refer to Programming, step 2, from this point.
TROUBLESHOOTING

1.800.221.0932
|
MetraOnline.com
14

REV. 11/26/2018 INST99-6536 15

Metra. The World’s Best Kits.®metraonline.com © COPYRIGHT 2018 METRA ELECTRONICS CORPORATION REV. 11/26/18 INST99-6536
INSTALLATION INSTRUCTIONS
99-6536
KNOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
®
Metra recommends MECP
certified technicians
If you are having difficulties with the installation
of this product, contact our Tech Support line
either by phone at 1-800-253-TECH, or email at
[e-mail]. Before
doing so, look over the instruction booklet a
second time and ensure that the installation was
performed exactly as the instruction booklet
is stated. Have the vehicle apart and ready to
perform troubleshooting steps before contacting
Metra/Axxess Tech Support.

Metra. The World’s Best Kits.®metraonline.com © COPYRIGHT 2018 METRA ELECTRONICS CORPORATION REV. 11/27/18 INST99-6536
INSTRUCCIONES DE INSTALACIÓN
99-6536
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
CARACTERÍSTICAS DEL KIT
• Provisión de radio ISO DIN con cavidad
• Provisión de radio ISO DDIN
• Pantalla táctil con clima y características de visualización
• Pintura: Bronce - 99-6536BZ
Plata - 99-6536S
COMPONENTES DEL KIT
• A) Panel de moldura de radio con pantalla táctil • B) Sujetadores de radio • C) Cavidad • D) (4) tornillos Phillips #8 x 3/8”
• E) (10) seguros de panel • F) Interfaz HVAC y arnés de cableado (no se muestra en la imagen) • Adaptador de antena (no mostrado) HERRAMIENTAS REQUERIDAS
• Herramienta para quitar paneles
• Destornillador Phillips • Llave del tubo 9/32”
• Llave del tubo 5.5mm
INDICE
Desmontaje del tablero ........................................2
Preparación del kit .................................................3
Ensamble del kit
– Provisión de radio ISO DIN con cavidad ............4
– Provisión de radio ISO DDIN ...............................4
Instalación de la interfase Axxess ...................5-14
CABLEADO Y CONEXIONES DE ANTENA
Arnés de cables: Interfaz Axxess incorporada
en pantalla táctil
Adaptador de antena: Incluido con el kit
A B C D E
Jeep Grand Cherokee 2014-2017
Visite MetraOnline.com para obtener información más detallada sobre el producto y aplicaciones
actualizadas específicas para vehículos.

1.800.221.0932
|
MetraOnline.com
2
(Figura B)
(Figura A)
(Figura C)
1. Desenganche y quite el panel del control
de radio/clima. (Figura A)
2. Quite los (4) tornillos de 9/32” que
fijan la pantalla/radio para después,
desconectarla y retirarla. (Figura B)
3. Quite los (3) tornillos 5.5 mm que fijan
el módulo de control negro en el tablero
alterno; posteriormente, reubíquelos en
una posición inferior para dar espacio al
radio de mercado secundario. (Figura C)
Continuar la Preparación del Kit
DESMONTAJE DEL TABLERO

REV. 11/26/2018 INST99-6536 3
(Figura A) (Figura B)
Desde el panel de control de clima/radio
de fábrica:
1. Quite las rejillas de la parte posterior
del panel. (Figura A)
Al panel de moldura de radio 99-6536:
1. Fije las rejillas a la parte posterior del
panel. (Figura B)
2. Conecte los (10) ganchos de panel
incluidos.
Continúe con el Ensamble del Kit
PREPARACIÓN DEL KIT

1.800.221.0932
|
MetraOnline.com
4
(Figura A)
(Figura B)
(Figura A)
ENSAMBLE DEL KIT
Provisión de radio ISO DIN con cavidad
1. Sujete una cavidad a los soportes del
radio usando los (4) tornillos Phillips #8
de 3/8” incluidos. (Figura A)
2. Quite la manga de metal DIN y el anillo
de moldura del radio de mercado
secundario.
3. Deslice el radio hacia adentro del
ensamble del soporte/cavidad y después,
sujételo usando los tornillos incluidos con
el radio. (Figura B)
Continúe con la Instalación
de la interfaz Axxess
Provisión de radio ISO DDIN
1. Coloque los soportes en el radio usando
los tornillos que vienen con el radio.
(Figura A)
Continúe con la Instalación
de la interfaz Axxess
