Metra Electronics 99-5834CH User manual

CAUTION! All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
INSTALLATION INSTRUCTIONS
99-5834CH
The World’s best kits.®
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Painted Charcoal
• Touchscreen display for climate and personalization features
Note:
Does not work with Sony amplified systems.
Note: Does not support Pro Trailer Backup Assist™, 10-way power
driver and passenger seats with power lumbar, and massage seats.
KIT COMPONENTS
• A) Radio trim panel with touchscreen display • B) Radio brackets • C) SYNC® module brackets • D) Pocket • E) (4) #8 x 3/8” Phillips truss-head screws
• F) (4) #4 x 1/2” Phillips pan-head screws • G) (7) Panel clips • H) HVAC interface and wiring harness (not shown)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32” Socket wrench • Cutting tool
TABLE OF CONTENTS
Dash Disassembly ...............................................2-3
Kit Preparation .......................................................4
Kit Assembly
– ISO DIN radio provision with pocket .................5
– ISO DDIN radio provision ....................................5
Axxess Interface Installation ............................6-15
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface and wiring
harness included
Antenna Adapter: 40-EU10 (sold separately)
AB C D E F
G
Ford F-150 2015-up
KIT FEATURES

2
DASH DISASSEMBLY
1. For vehicles with a center channel
speaker: Unclip and remove the speaker
grille in the center of the dash above the
radio/climate control panel, and then
remove the (2) 9/32” screws exposed.
(Figure A)
2. For vehicles without a center channel
speaker: Remove the rubber pad in the
shallow pocket above the radio/climate
control panel, and then remove the (2)
9/32” screws exposed. (Figure B)
3. Unclip and remove the panel above the
radio/climate control panel, and then
remove the (2) 9/32” screws from the
top of the radio/climate control panel.
(Figure C)
Ensure that the vehicle is completely off before
proceeding onto the following (5) steps
4. Unclip, unplug, and remove the radio/
climate control panel.
5. Remove the 9/32” screws securing the
display screen; qty. (4) for the 4.2-inch
display screen models, qty. (6) for 8-inch
display screen models, then unplug and
remove. (Figure D)
Continued on the next page (Figure D)
(Figure C)
(Figure A)
(Figure B)

3

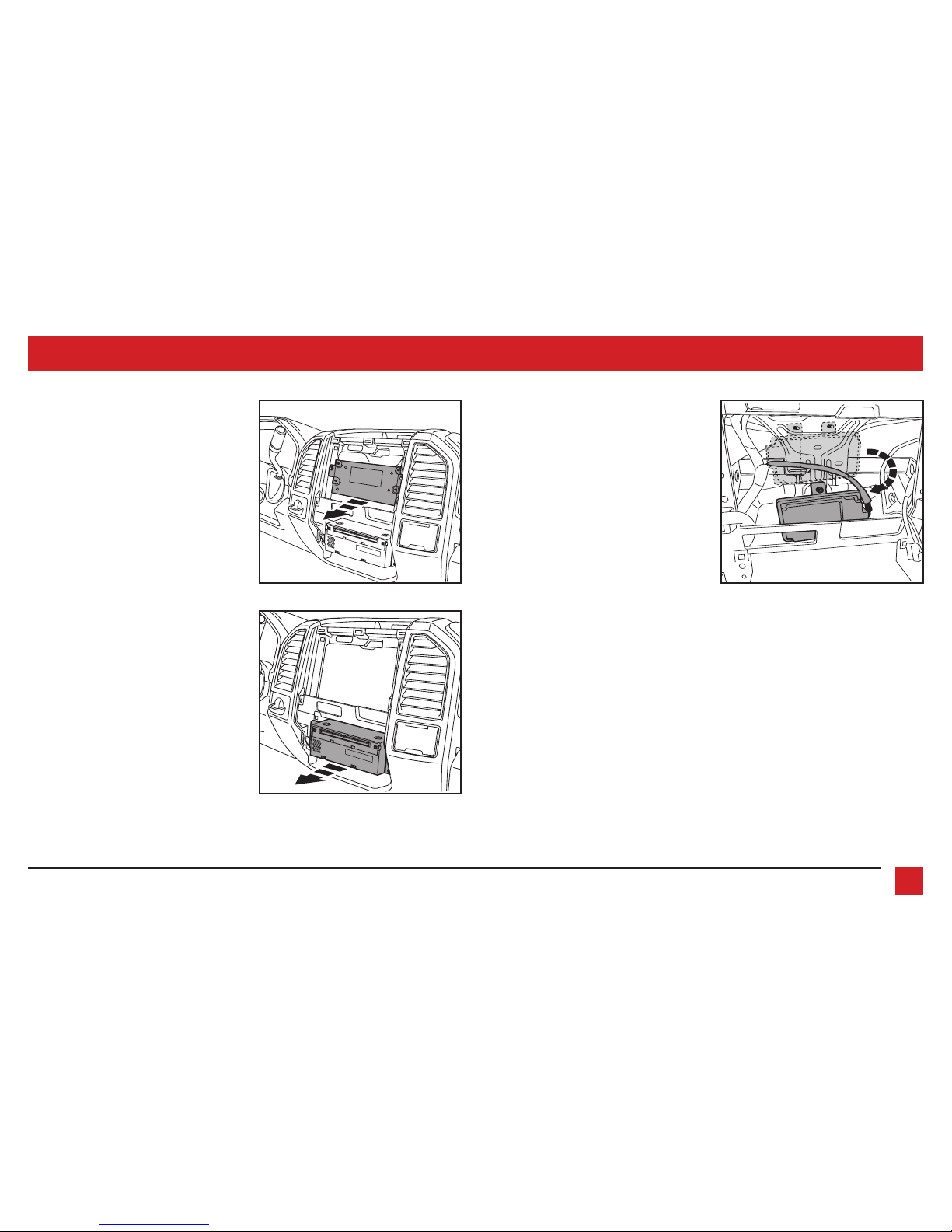

DASH DISASSEMBLY
(Figure G)
(Figure H)
(Figure F)
6. For models with a 4.2-inch display
screen and SYNC®: Remove the (2) 9/32”
screws securing the SYNC® module, then
unplug and remove. (Figure F)
7. Remove the (4) 9/32” screws securing
the radio chassis, then unplug and
remove. (Figure G)
8. For models equipped with a factory
backup camera: Remove the (3) 10mm
nuts securing the camera module, move
the module down onto the lower stud,
and then re-secure using just
(1) 10mm nut. (Figure H)
Continue to Kit Preparation

4
KIT PREPARATION
From the factory radio/climate control panel:
1. Unclip and remove the hazard switch
and traction control buttons.
To the 99-5834CH radio trim panel:
1. Attach the hazard switch and traction
control buttons. (Figure C)
2. Attach the (7) panel clips provided.
(Figure D)
Continue to Kit Assembly
(Figure B) (Figure D)
(Figure A)
For 4.2-inch display screen models only,
and if SYNC® is desired to be retained:
1. Remove the (4) 9/32’ screws securing
the brackets from SYNC® module.
2. Attach the SYNC
®
module brackets to
the SYNC® module using the (4)
#8 x 1/2” Phillips pan-head screws
provided. (Figure A)
3. Secure the module into the lower
sub-dash using the factory hardware
removed in step 7 of dash disassembly.
(Figure B)
(Figure C)

5

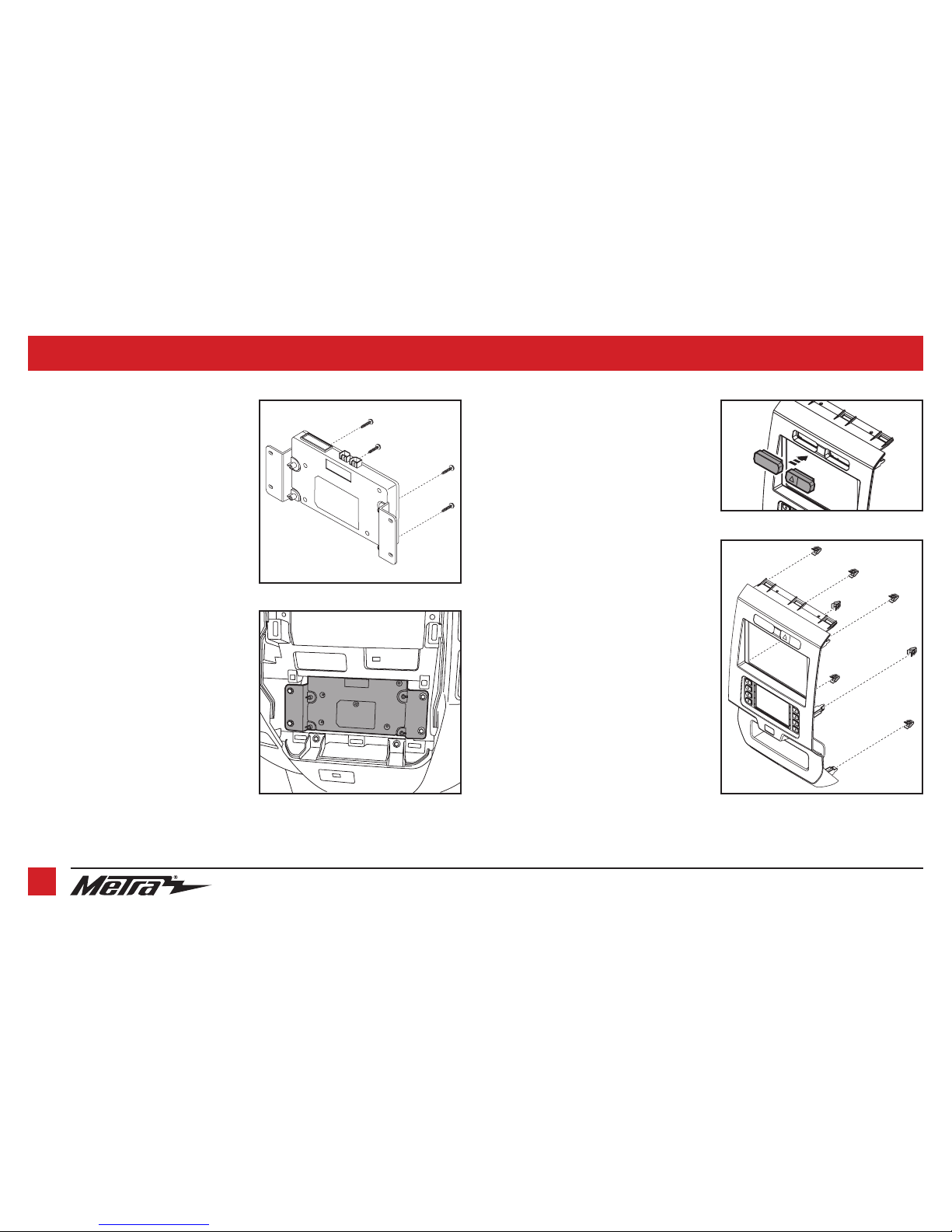

KIT ASSEMBLY
(Figure B)
(Figure A)
ISO DIN radio provision with pocket
1. Attach the pocket to the radio brackets
using the (4) supplied #8 x 3/8” Phillips
truss-head screws. (Figure A)
2. Remove the metal DIN sleeve and trim
ring from the aftermarket radio.
3. Slide the radio into the completed
assembly, and then secure it to the
assembly using screws supplied with
the radio. (Figure B)
(Figure A)
ISO DDIN radio provision
1. Attach the radio brackets to the radio
using screws supplied with the radio.
(Figure A)

6
AXXESS INTERFACE INSTALLATION
INTERFACE FEATURES
INTERFACE COMPONENTS
• Axxess interface (built into the touchscreen display)
• 5834 harness
• HVAC interface
• HVAC interface harness
• 4-pin flat to 4-pin stacked harness
• 16-pin harness with stripped leads
• 54-pin backup camera harness
• 12-pin backup camera harness
• 4-pin harness with yellow RCA jacks
• Male DIN connector with a 6-pin harness
• Female 3.5mm connector with stripped leads
TOOLS REQUIRED
• Wire cutter • Crimp tool • Solder gun • Tape
• Connectors (example: butt-connectors, bell caps, etc.)
TABLE OF CONTENTS
Connections to be made ...........................................................................................................7-8
Installing the interface .................................................................................................................9
Initializing the interface ..............................................................................................................10
Final assembly .............................................................................................................................10
Touchscreen display operation ...............................................................................................11-12
Steering wheel control settings ............................................................................................ 13-14
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (retained accessory power)
• Provides NAV outputs (parking brake, reverse, speed sense)
• Retains audio controls on the steering wheel
• Retains SYNC® (4.2-inch display screen models only)
• Retains the factory backup camera
• Retains balance and fade
• Micro “B” USB updatable

7
CONNECTIONS TO BE MADE
From the 5834 harness to the aftermarket radio:
• Connect the Black wire to the ground wire.
• Connect the Yellow wire to the battery wire.
• Connect the Green wire to the left rear positive speaker output.
• Connect the Green/Black wire to the left rear negative speaker output.
• Connect the Purple wire to the right rear positive speaker output.
• Connect the Purple/Black wire to the right rear negative output.
• Tape off and disregard the following (1) wire, it will not be used in this application: Blue
• For models with a 4.2-inch display screen and SYNC®: Connect the Red and White RCA
jacks labeled “RSE/SYNC/SAT” to the audio AUX-IN jacks of the aftermarket radio.
• For models equipped without SYNC®: Connect the Red and White RCA jacks labeled
“FROM 3.5” to the audio AUX-IN jacks of the aftermarket radio.
Continue to 3.5mm jack steering wheel control retention
From the 16-pin harness with stripped leads to the aftermarket radio:
• Connect the Red wire to the accessory wire.
• If equipped with a factory subwoofer, connect the Blue/White wire to the amp turn on wire.
• If the aftermarket radio has an illumination wire, connect the Orange/White wire to it.
• If the aftermarket radio has a mute wire, and the vehicle is equipped with SYNC®, connect
the Brown wire to it. If the mute wire is not connected, the radio will turn off when SYNC®
is activated.
• Connect the Gray wire to the right front positive speaker output.
• Connect the Gray/Black wire to the right front negative speaker output.
• Connect the White wire to the left front positive speaker output.
• Connect the White/Black wire to the left front negative speaker output.
• Tape off and disregard the following (4) wires, they will not be used in this application:
Green, Green/Black, Purple, Purple/Black
The following (3) wires are only for multimedia/navigation radios that require these wires.
• Connect the Blue/Pink wire to the VSS/speed sense wire.
• Connect the Green/Purple wire to the reverse wire.
• Connect the Light Green wire to the parking brake wire.

8
CONNECTIONS TO BE MADE (CONT.)
Backup camera harness:
For models with a 4.2-inch display screen:
• Use the 12-pin backup camera harness.
For models with an 8-inch display screen:
• Use the 54-pin backup camera harness.
There are two different methods for connecting the factory backup camera.
If retaining the camera to the aftermarket radio is desired:
• Connect the Yellow RCA jack the backup camera input of the aftermarket radio.
If retaining the camera to the touchscreen display is desired:
• Connect the Yellow RCA jack, to the Yellow RCA jack from the 4-pin harness with yellow RCA
jacks labeled “Rearview camera”.
Note:

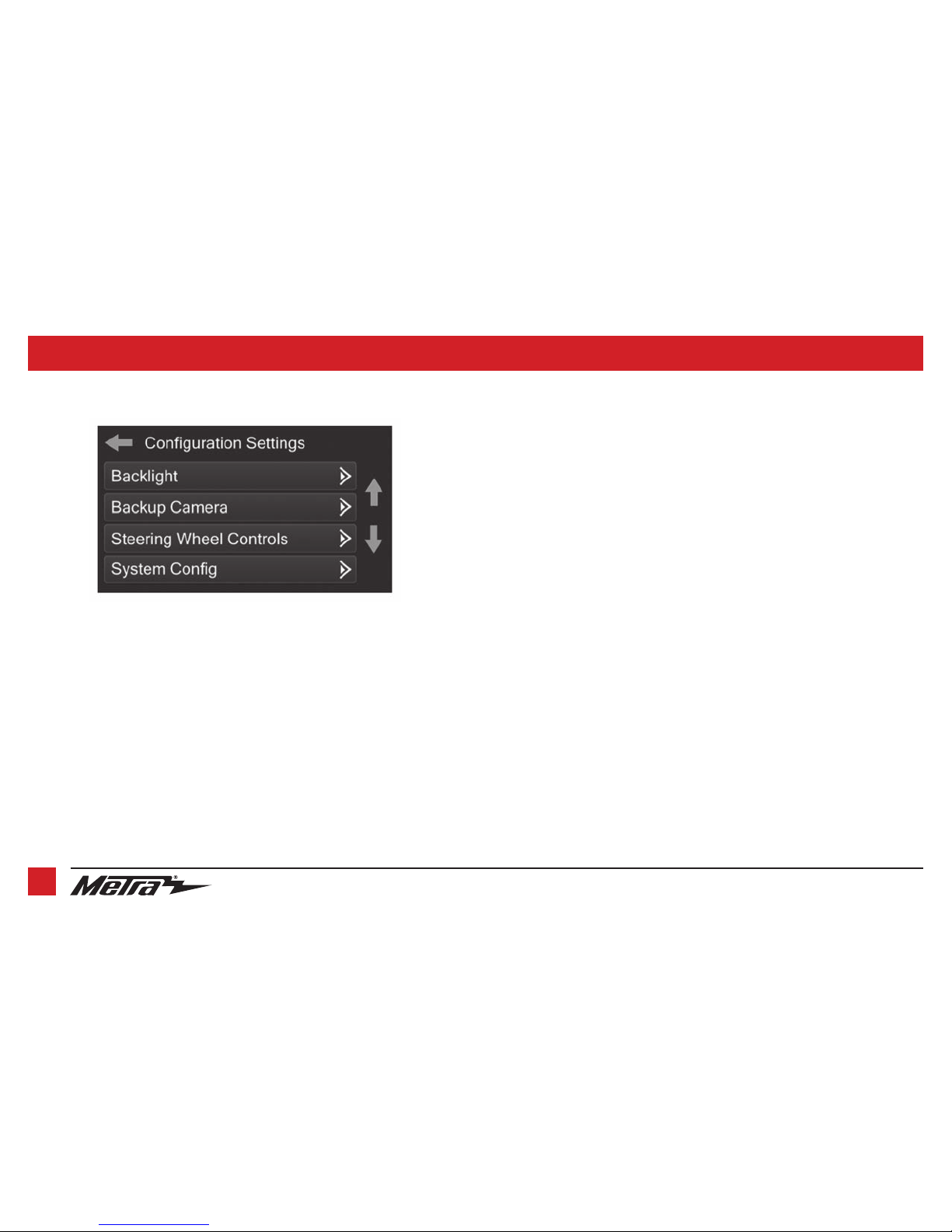

If this method is chosen, the backup camera option must be enabled in the
Configuration Settings Screen.
4-pin harness with yellow RCA jacks:
• If retaining the factory backup camera to the touchscreen display is desired, connect the Yellow
RCA jack labeled “Rearview camera”, to the Yellow RCA jack from the 12-pin or 54-pin backup
camera harness.
• Disregard the Yellow RCA jack labeled “AUX video”, it will not be used in this application.
3.5mm jack steering wheel control retention:
• The 3.5mm jack is to be used to retain audio controls on the steering wheel control.
• For the radios listed below, connect the included
female 3.5mm connector with stripped leads, to
the male 3.5mm SWC jack from the 5834 harness. Any remaining wires tape off and disregard:
•
Eclipse: Connect the steering wheel control wire, normally Brown, to the Brown/White wire of
the connector. Then connect the remaining steering wheel control wire, normally Brown/White,
to the Brown wire of the connector
.
•
Metra OE: Connect the steering wheel control Key 1 wire (Gray) to the Brown wire.
•
Kenwood or select JVC with a steering wheel control wire: Connect the Blue/Yellow wire to
the
Brown wire.
Note: If your Kenwood radio auto detects as a JVC, manually set the radio type to Kenwood.
See the instructions under changing radio type.
• XITE: Connect the steering wheel control SWC-2 wire from the radio to the Brown wire.
•
Parrot Asteroid Smart or Tablet: Connect the 3.5mm jack into the AX-SWC-PARROT (sold separately),
and then connect the 4-pin connector from the AX-SWC-PARROT into the radio
.
Note: The radio must be updated to rev. 2.1.4 or higher software.
• Universal “2 or 3 wire” radio: Connect the steering wheel control wire, referred to as Key-A or
SWC-1, to the
Brown wire of the connector. Then connect the remaining steering wheel control wire,
referred to as Key-B or SWC-2, to the
Brown/White wire of the connector. If the radio comes with a
third wire for ground, disregard this wire
.
Note: After the interface has been programmed to the vehicle, refer to the manual provided with
the radio for assigning the SWC buttons. Contact the radio manufacturer for more information.
• For all other radios: Connect the 3.5mm jack into the port on the radio designated for an external
steering wheel control interface. Refer to the manual provided with the radio if in doubt as to where
the 3.5mm jack goes to.

9
It is highly advisable to read the following steps beforehand, to ensure a clear understanding of
what is to be expected. The following steps must be done in the order that they are numbered.
With the vehicle completely off:
Touchscreen display
1. Connect the 16-pin harness with stripped leads into port “B” in the touchscreen display.
2. Connect the 5834 harness to the wiring harnesses in the vehicle. These harnesses are
the ones removed in step 7 of dash disassembly. Then insert the 5834 harness into port
“A” in the touchscreen display. But do not install this harness until exactly before step 1
of “Initializing the Interface”. This is a timed process.
3. Connect the
4-pin harness with yellow RCA jacks into port “C” in the
touchscreen display.
4. Disregard ports “D” and “E”, they will not be used in this application.
5. Port “F” is an update port for future firmware upgrades.
AB
C
E
FD
HVAC interface
6. Connect the HVAC interface harness into the HVAC interface , and then to the
wiring harnesses in the vehicle. These harnesses are the ones removed in step 4
of dash disassembly.
Note: Disregard the 10-pin harness, it will not be used in this application .
7. Connect the 4-pin flat to 4-pin stacked harness into the HVAC interface , and then to
the passenger airbag light assembly.
8. Connect the male DIN connector with a 6-pin harness , to the female DIN jack from the
5834 harness . It would be best to tape or heat shrink this connector to prevent it from
being disconnected.
a. Then connect the 6-pin harness into the HVAC interface .
b. Disregard the Red wire, it will not be used in this application.
9. (a) For models with a 4.2-inch display screen: Connect the 12-pin backup camera
harness , to the wiring harness in the vehicle. This harness is the one removed in step 5
of dash disassembly.
(b) For models with an 8-inch display screen: Connect the female connector of the
54-pin backup camera harness , to the wiring harness in the vehicle. This connector is
located behind the factory display screen, which was removed in step 5 of
dash disassembly.
Note: Disregard the male connector, it will not be used in this application .
10. Locate the factory antenna connector in the dash and complete all necessary connections
to the radio. Metra recommends using the proper mating adapter from Metra.
INSTALLING THE INTERFACE

10
INITIALIZING THE INTERFACE FINAL ASSEMBLY
Attention! If the interface loses power for any reason, the following steps will need to be
performed again.
1. Refer to step 2 of “Installing the interface”.
2. Press the push-to-start button to start the vehicle.
3. Program the kit:
a. Once the touchscreen display loads up, select the vehicle type; “Ford F-150”.
b. Wait until the radio comes on, and the touchscreen display shows “SWC Configured*”. This
process may take up to 3 minutes.
Note: If the touchscreen display does not load up, or the radio doesn’t come on within 3
minutes, and/or the touchscreen display does not show “SWC Configured*”, turn the vehicle
off and disconnect the 5838 harnesses from port “A” in the touchscreen display. Check all the
connections, reconnect the harness into the touchscreen display, and then try again.
* For models with steering wheel controls.
4. Test all functions of the installation for proper operation, before reassembling the dash.
1. Secure the completed assembly into the upper dash using the factory hardware removed in
step 5 of dash disassembly.
2. Snap the radio trim panel with touchscreen display over the completed assembly, and then
reassemble the dash in reverse order of disassembly.
