Metra Electronics Saddle Tramp BC-DSPX-HD2 User manual

ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
The World’s best kits.® MetraOnline.com © COPYRIGHT 2021 METRA ELECTRONICS CORPORATION REV. 10/15/21 INSTBC-DSPX-HD2
INSTALLATION INSTRUCTIONS
BC-DSPX-HD2
KIT FEATURES
• Saddle Tramp DSP with radio reflash capabilities
• Reprograms the OE radio to a flat frequency response curve
• All settings done via the AXXESS DSP XL application
• BC-9715 pre-wired harness included for ease of installation
• DSP offers 31 adjustable EQ bands per channel
• Up to 10 channels of programmable output
• Fully adjustable crossover
KIT COMPONENTS
• A) Saddle Tramp DSP
• B) BC-9715 Harness
• C) Instruction Sheet
TOOLS REQUIRED
• Panel removal tool
• Phillips screwdriver
• Torx screwdrivers
• Allen wrenches
TABLE OF CONTENTS
Fairing Disassembly
Harley Davidson Street Glide, Electra Glide,
Ultra, and Limited Model 2014-Up .................2
Harley Davidson Road Glide 2015-Up ............3
Reflashing the Radio .........................................4-5
Equipment Installation
Interface Assembly ..........................................6
BC-9715 Harness Assembly ...........................7-8
DSP Setup ..........................................................9-19
Troubleshooting ...................................................20
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Saddle Tramp interface and
harness included
Antenna Adapter: Included
Handlebar control interface: Included
Harley-Davidson Street Glide, Electra Glide,
Ultra, and Limited Models 2014-Up†
Road Glide 2015-Up†
† Non-amplified models only
Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle
specific applications

2386.257.1187
|
MetraOnline.com
FAIRING DISASSEMBLY
Harley Davidson Street Glide, Electra Glide,
Ultra, and Limited models 2014-Up
1. Remove (4) T-27 Torx screws from the
inner fairing. (Figure A)
2. With a firm grip on the windshield,
remove (3) T-27 Torx screws. Remove the
windshield, the outer fairing will also be
loosened. (Figure B)
3. Remove the outer fairing, unplugging
the headlight. (Figure C)
4. Remove (2) T-27 Torx screws to remove
the fairing vent, and then remove the
vent. (Figure D)
Continued on next page
(Figure C)(Figure A)
(Figure D)(Figure B)

3
REV. 10/15/21 INSTBC-DSPX-HD2

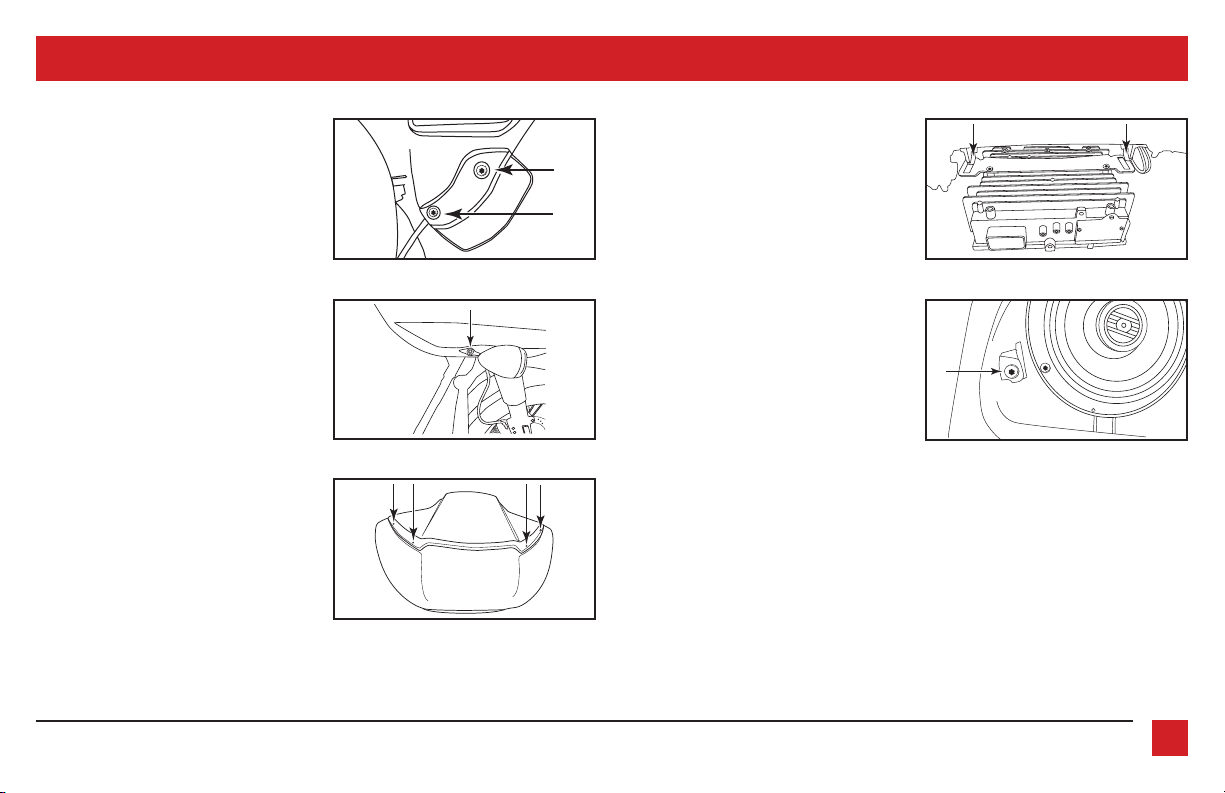

Harley Davidson Road Glide 2015-Up
1. Remove the lower T-27 Torx screws on
either side holding the deflector wings.
(Figure A)
Note: Only the lower (2) need to be
removed.
2. Remove (1) 3/16" Allen screw securing
each turn signal. (Figure B)
3. With a firm grip on the windshield,
remove (4) Phillips screws and set the
windshield aside. (Figure C)
4. Remove the top fairing trim clipped to
the top of the radio. (Figure D)
5. Unplug the turn signals.
6. Remove the speaker grills with a panel
removal tool and remove (1) Torx screw
from each side. (Figure E)
CAUTION: The fairing will be loose at this
point. Have a helper hold it to keep from
damaging it when removing the screws.
7. Remove the fairing and set aside.
8. Remove (4) 3/16" Allen screws from the
sides of the radio.
Note: These screws will be reused in the
Kit Assembly.
CAUTION: Be sure to hold the radio
when removing the last screw so it does
not drop.
9. Unplug and remove the radio.
10. Remove (2) Torx screws securing the
fairing bracket attached to the radio.
Note: This bracket will be reused in
the Kit Assembly. Please note the
orientation of the bracket. The curved
portion faces the rear of the bike.
Continue to Reflashing the Radio
(Figure C)
(Figure B) (Figure E)
(Figure A) (Figure D)
FAIRING DISASSEMBLY (CONT)

4386.257.1187
|
MetraOnline.com
REFLASHING THE OE RADIO
BC-DSPL-HD2
• Reflashes the OE radio curve to a flat response
• Water Tight Saddle Tramp Case
• 31 Band graphic equalizer or 5 Band parametric EQ per channel
• Pre-wired for quick installation when retaining the OE radio
• BC-9715 harness with pre-wired inputs and outputs
• Independent equalization for all outputs
• Independent crossover for all outputs
• Selectable slope (12, 24, 36, or 48db per octave)
• Signal Delay
• Settings adjusted via Bluetooth
®
in a smart device application (tablet or mobile phone),
compatible with both Android™ and Apple
®
devices
• Read, write, and store configurations for future recall
• Password protect feature available in the mobile app
• Micro-B USB updatable
IMPORTANT: This product is not a reflash
tool. The BC-DSP interface stores the OE
radio’s serial number and locks to the
motorcycle vehicle identification number
(VIN) during the programming process.
To move the DSP interface to a different
motorcycle, you must return the original
radio to the OE curve before uninstalling.
This process can be repeated a total of
(3) times before the DSP will no longer
function. Both the Serial number and VIN
numbers are stored in the DSP and cannot
be removed or reprogrammed, except
by the manufacturer. Each DSP that is
returned will be decoded and evaluated.
If Metra suspects inappropriate use, a
credit will not be issued.
BC-9715 Harness
• Add an amp harness 2014-up HD with OE radio and fairing
• Provides pre-terminated input and output wires
• RCA output harnesses included
• Pre-wired rear speaker output, used with BC-9720 backbone harness (sold separately)
• Universal for all amps
• Wire covered in protective cloth tape
Reflashing the OE Radio
Stock non-amplified Harley Davidson’s radios use pre-programmed crossover and equalization
settings that are locked into the OE radio. These setting can’t be adjusted without reflashing your
OE radio. Within the Vehicle Selection page of the AX-DSP-XL app you can reflash your OE radio
to output a flat frequency response curve.

5
REV. 10/15/21 INSTBC-DSPX-HD2
REFLASHING THE OE RADIO (CONT)
Below are images of the Frequency response curves of a stock Harley Davidson non-amplified radio.
Does not work with Touchscreen
Frequency response curve after the Saddle Tramp DSP reflashes the OE radio.
Interface only works with non-touchscreen radios
Works with 4-Button Works with 8-Button

6386.257.1187
|
MetraOnline.com
BC-DSPX-HD2 INTERFACE ASSEMBLY
Cap (with O-ring)
Case
Saddle Tramp DSP
Circuit Board
BC-9715
Harness
16-Pin 20-Pin
Gasket
Zip-tie Mounts
Saddle Tramp WR Box Assembly 1
1. Unsnap the Cap from the case. Insert the
overmolded gaskets from the BC-9715
harness into the respective opening in
the front of the Cap, making sure the
grommets are properly seated.
2. Slide the DSP board out of the case and
plug in the 16 and 20 pin connectors.
3. Reinsert the DSP board into the case and
snap the Cap into place. The arrows on
the Cap should be pointed toward the
Saddle Tramp logo on the case.
4. Find a secure mounting location for
the DSP case. It is recommended that
the cap be installed facing down. The
Zip-tie Mounts on each side of the case
can be used to secure the DSP into place.

7
REV. 10/15/21 INSTBC-DSPX-HD2
BC-9715 HARNESS INSTALLATION
1. Unplug the OE radio connector and
install the BC-9715 t-harness. BC-9715 t-HarnessBC-9715 t-Harness
OE Connector removed from radioOE Connector removed from radio
2. The installation of the pre-wired harness is designed to work with multiple styles of aftermarket amplifiers with different
types of inputs and outputs. Both input (white connectors) and output (black connectors) wires on the BC-9715 harness use
Molex terminals that are pre-crimped onto the speaker leads; loose Molex connectors are included to allow the user to pin the
connectors accordingly.
If the amplifier uses Molex Micro Fit connectors for the inputs and outputs, simply match the amplifier’s speaker configuration
and plug them in using the provided connectors.
If the amp uses RCA inputs, pre-terminated Molex connectors with RCAs already wired are provided. The option to hardwire the
speaker inputs and outputs would be the final option.
3. To get battery power and ground wires up the backbone of the motorcycle use Saddle Tramp’s BC-9703 harness. (Sold
separately)
TIP: If you have pinned the Molex Micro Fit connector improperly, you will need to use a Pin Extraction tool. (See page 22 for
Troubleshooting tips)

8386.257.1187
|
MetraOnline.com
BC-9715 HARNESS INSTALLATION
BC-9720
Rear Audio Backbone Harness
(Sold separately)
Optional 2ch amp input
Added Speakers
4ch amp
placement
Aftermarket Amp 4ch
To speakers
To amplifier
inputs
High level
Input
or
Low level
Input
OE Radio Plug
Radio
output
Not used for
this installation
BC-DSPL-HD2
I N S TA L L A T I O N DIAGRAM
Installation of BC-9715
The diagram shown here provides a
visual representation of how the BC-
9715 harness should be installed.

9
REV. 10/15/21 INSTBC-DSPX-HD2
MOBILE APP
SETUP INSTRUCTIONS
The Saddle Tramp Digital Signal Processor (DSP) uses the AX-DSP-XL app to setup, program, and
control the setup of your DSP.
SETUP INSTRUCTIONS: The General Information tab for installing the interface.
BLUETOOTH CONNECTION
SCAN: Press this button to start the Bluetooth pairing process, then select the interface once it is
found. “Connected” will appear in the top left corner of the app once it is paired.
Note: The interface must be powered during this process.
DISCONNECT: Disconnects the interface from the app.

10 386.257.1187
|
MetraOnline.com

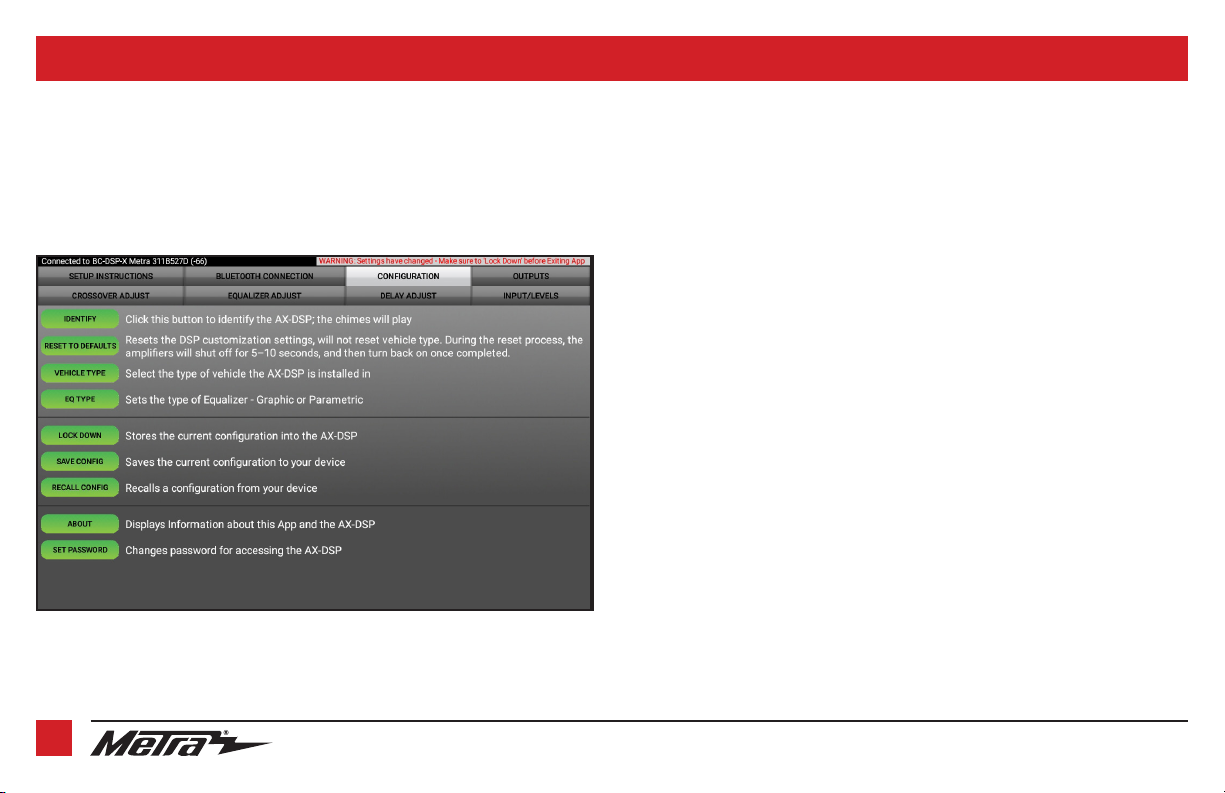

MOBILE APP
CONFIGURATION
IDENTIFY: Click this button to confirm that the interface is connected properly. If so, a chime will
be heard from the front left speaker.*
* Only installations where the interface is connected to a front left speaker.
RESET TO DEFAULTS: Resets the interface to factory settings. During the reset process the
amplifiers will shut off for 5-10 seconds.
VEHICLE TYPE: Select the vehicle type from the drop down box, select EITHER
EQUALIZER (EQ) TYPE: User has the option of optimizing the motorcycle’s sound quality
with a Graphic or Parametric equalizer.

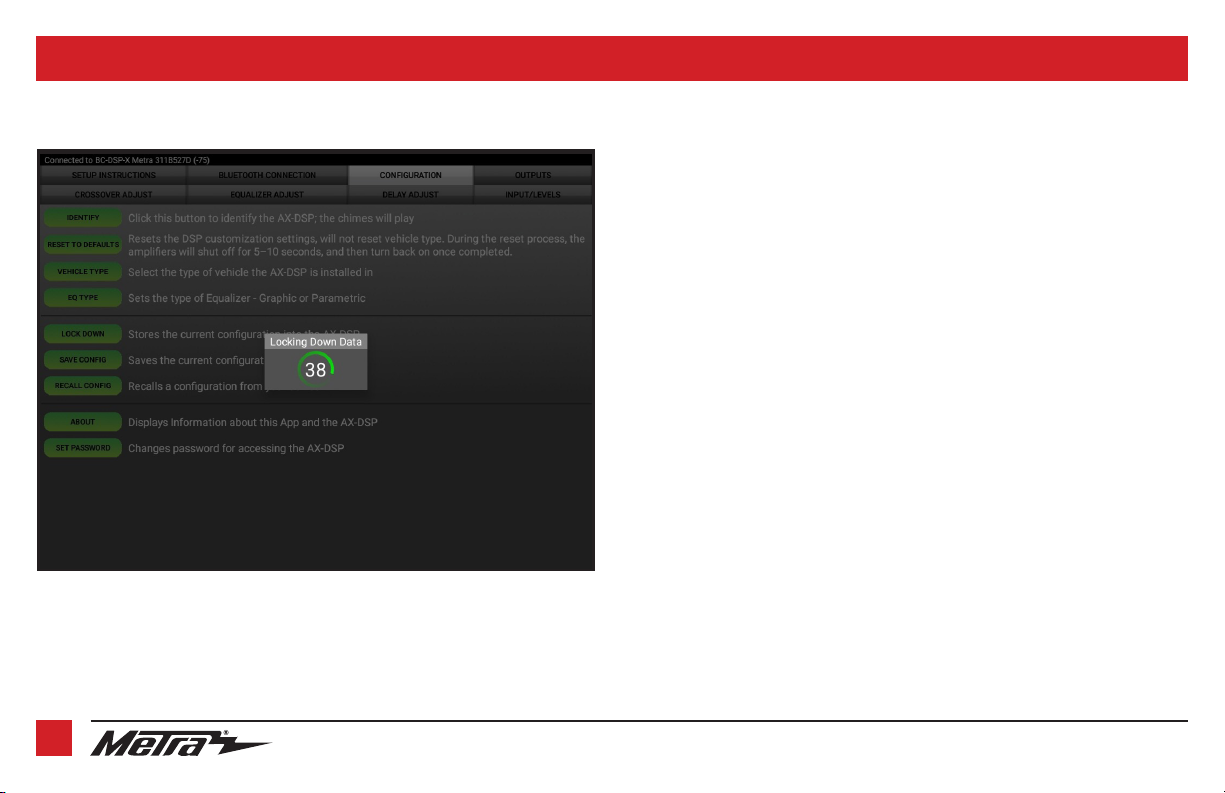

LOCK DOWN: Click this button to save the selected settings.
Attention! This button must be selected before closing the app or cycling the key;
otherwise, all settings will be lost.
SAVE CONFIGURATION: Saves the current configuration to the mobile device.
RECALL CONFIGURATION: Recalls a configuration from the mobile device.
ABOUT: Displays information about the app, vehicle, interface, and mobile device.
SET PASSWORD: Assign a 4-digit password to lock the interface. If no password is desired,
use “0000”. This will clear out any currently set password. It is not necessary to lock down
the interface when setting a password.
Note: A 4-digit only password must be chosen; otherwise, the interface will show
“password not valid for this device”.

11
REV. 10/15/21 INSTBC-DSPX-HD2
MOBILE APP

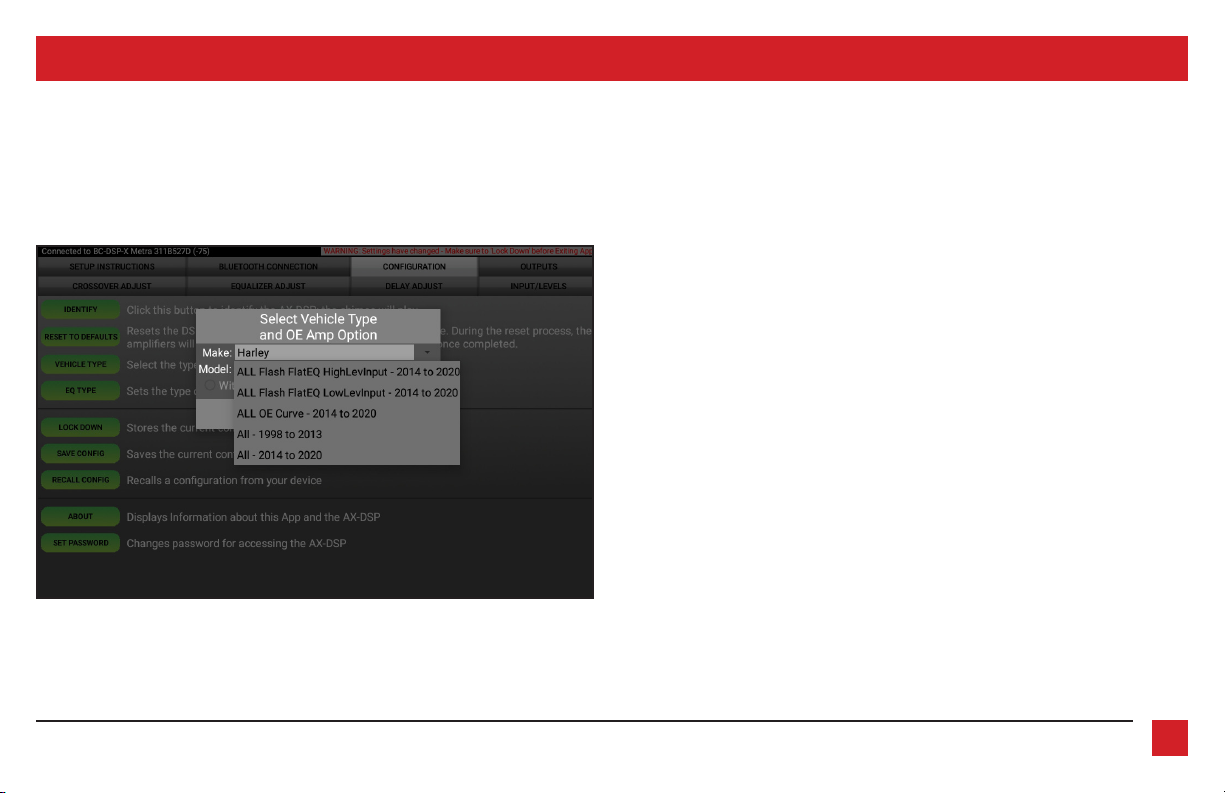

SELECT VEHICLE TYPE
Under the configuration screen is where the user tells the DSP the type of Harley Davidson it is
connected to. This is also the section that will allow you to reflash your radio.
Within the Vehicle Type selection screen are 5 choices.
ALL Flash FlatEQ HighLevInput - 2014-2020
Reflash your factory radio for a flat response.
Output voltage from DSP reduced
ALL Flash FlatEQ LowLevInput - 2014-2020
Reflash your factory radio for a flat response.
Output voltage from DSP increased
ALL OE Curve - 2014-2020
Return your OE radio to the factory curve
All - 1998 to 2013
No reflash required
All - 2014-2020
Use if your Harley Davidson has OE amplifier(s)

12 386.257.1187
|
MetraOnline.com
MOBILE APP
OUTPUTS
Output Channels
Location: Location of speaker.
Group : Used to join channels together for simple equalization.
Example : Left front woofer/midrange and left front tweeter will be considered simply left
front. The letter M denotes the speaker assigned as the married speaker.
Invert: Will invert the phase of the speaker.
Mute: Will mute desired channel(s) for tuning individual channels.

13
REV. 10/15/21 INSTBC-DSPX-HD2
CROSSOVER ADJUST
MOBILE APP
If installing a subwoofer, the front and rear outputs will default to a 100Hz high pass
filter to keep the low frequency signals out. If a subwoofer is not being installed, change
the front and rear crossover points down to 20Hz for a full range signal, or to the lowest
frequency the speakers will play down to.
Selecting High Pass and Low Pass will provide one crossover frequency adjustment. Band
Pass should only be chosen if installing just front speakers, with one dedicated amp for
the woofers/mids, a second dedicated amp for the tweeters, along with a subwoofer.
Select the desired crossover slope, 24db, 36db, or 48 db. Higher is steeper, but it is
recommended that one uses High Pass/24db octave slopes for crossovers on a bike.

14 386.257.1187
|
MetraOnline.com
EQUALIZER ADJUST
Graphic EQ
The front, rear, and sub channels can be adjusted independently within this
tab, with 31 bands of equalization available. It is best to tune this by using
an RTA (Real Time Analyzer).
• The Gain slider on the far left is for the channel selected.
MOBILE APP

15
REV. 10/15/21 INSTBC-DSPX-HD2
MOBILE APP
PARAMETRIC EQ
Each output has a 5 Band parametric EQ per channel. Each band will give the user the
ability to adjust:
Q Factor
Frequency
Gain
The FLAT button above Filter #1 will reset all curves back to flat.

16 386.257.1187
|
MetraOnline.com
MOBILE APP
DELAY ADJUST
Allows a delay of each channel. If a delay is desired, first measure the
distance (in inches) from each speaker to the listening position, then enter
those values to the corresponding speaker. Add (in inches) to the desired
speaker to delay it.

17
REV. 10/15/21 INSTBC-DSPX-HD2
MOBILE APP
INPUTS/LEVELS
Clipping Level - Use this feature to protect sensitive speakers, like tweeters, from being
driven past their capabilities. If the input signal of the DSP clips, the audio will be reduced
by 20dB. Turning down the stereo will allow the audio to come back on at a normal level.
The sensitivity of this feature can be adjusted to the listening preference of the user.
Chime Volume - Not applicable at this time.
Amp Turn On
SignalSense - Will turn the amplifier on when an audio signal is detected, and keep
on for (10) seconds past the last signal. This ensures the amplifier doesn’t shut off
between tracks.
Always On - Will keep the amplifiers on as long as the bike is cycled on.
Turn-on Delay - Can be used to delay amp turn-on to avoid turn-on pops.
Subwoofer Input - For selecting either a dedicated subwoofer input or summed from the
front and rear inputs.

18 386.257.1187
|
MetraOnline.com
MOBILE APP
LOCKING DOWN DATA
Last and the most important...
You MUST lock down your configuration!!!

19
REV. 10/15/21 INSTBC-DSPX-HD2
SPECIFICATIONS
General
• Operating Voltage 10-16-volts
• DC Standby Current Draw 7mA
• Operation Current Draw 150mA
• Adjustments/Controls Application via Bluetooth
• Remote Output 12-volts DC (signal sense or with ignition)
Performance
• Equalizer Type 15 Band Graphic EQ, +/- 10dB
• THD <0.03%
• Frequency Response 20Hz - 20kHz
• Crossover Frequency 3-Way Low pass, Bandpass, High pass
• Crossover Type Linkwitz-Riley
• Crossover Slopes 12, 24, 36, 48
• Sampling 48kHz
• S/N Ratio 105dB @ 5-volts RMS
Inputs
• Input Impedance 1M Ohm
• Input Channels 4
• Input Options High-level or Low-level selectable through Bluetooth app
• Input Type Differential-Balanced
• Input Voltage High Level Range 0 - 28-volts (peak-to-peak)
Low Level Range 0 - 4.9-volts (peak-to-peak)
Outputs
• Output Channels 6
• Output Voltage Up to 5-volts RMS
• Output Impedance 50 Ohms

20 386.257.1187
|
MetraOnline.com
TROUBLESHOOTING
LOCKING TANGS
PUSHED IN
EXTRACTOR
TOOL
HOUSING
TERMINAL
TIP: If you have pinned the Molex Micro fit connector improperly. You will need to use a Pin
Extractor tool.
HOUSING
LOCKING TANGS
PUSHED IN
EXTRACTOR
TOOL
PULL OUT
TERMINAL
AND WIRE
TIP OF TOOL
INSERTED ON THE
SIDE OF TERMINAL
