Metro DataVac MetroSHINGLE Installation guide

Installation Details
MetroSHINGLE
Indicates critical areas of installation
MetroSHINGLE Installation Details 1
©Copyright, all rights reserved, Metro Roof Products, Sept 2009
rev 7/5/13
These install details are provided to demonstrate a recommended
installation method for Metro Roof panels and accessories.
practices used in the United States.
Issued December 29, 2005 Revised July 5, 2013
R
R
Installers of Metro roof panels
and accessories should have knowledge of roof structures, an
understanding of how to work with stone-coated steel panels and
accessories, and be experienced at working on sloped roof
INSTALLATION WARNING!
environments.
R
Metro recommends installers of MetroSHINGLE products use a
Metro Cutter, and have completed a 'SMART-Start On Site installer
Training Orientation Program’ (located at http://www.metroroofs.com/
SmartStartTraining.cfm) for each profile installed. Metro does not
consider its products to be “do-it-yourself’ (D.I.Y) mainly due to
specialized cutting & bending tools used during installation.

Installation Details
MetroSHINGLE
Indicates critical areas of installation
MetroSHINGLE Installation Details 2
©Copyright, all rights reserved, Metro Roof Products, Sept 2009
rev 7/5/13
INTRODUCTION
Installation Tools:
 Metro Installation Kit
- 1-Cutter, 1-Foot Bender*
- 1-Full Panel Bender attachment*
- 12-V Impact Driver
- Red & Green Snips
- 3” Hand Seamers
- Safety Gloves & Safety Glasses
Other Tools:
 Nail Gun
 Hammer
 Tape Measure
 Caulking Gun
 String-Line
General:
These installation details are designed to be used
in conjunction with Metro's SMART-Start On-Site
Installer Training Program.
In cold climate zones with Cathedral Ceilings
a Counter-Battten and Batten grid system is
recommended to help prevent Ice-Damming.

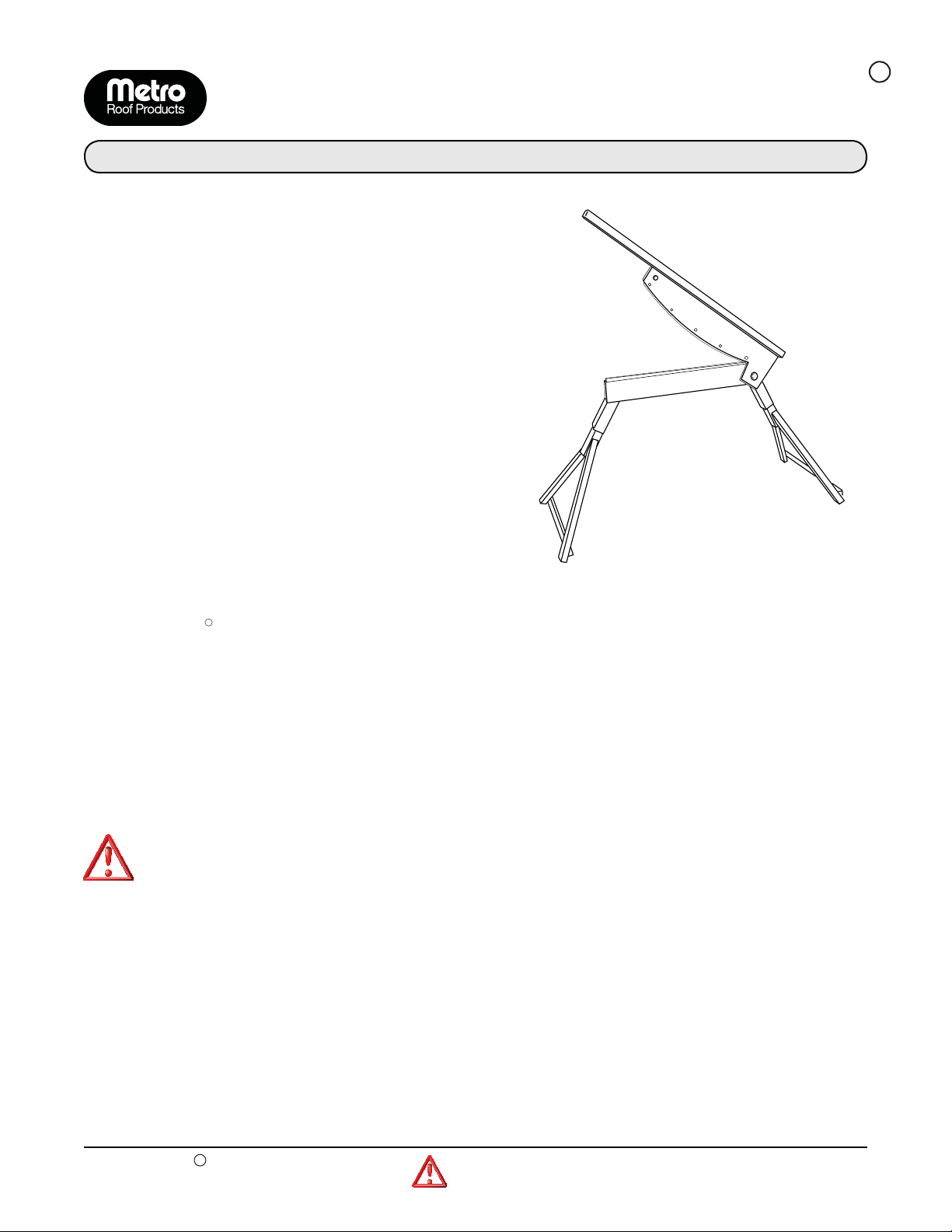

Metro CUTTER
R
R
*Optional
R
A MetroSHINGLE roof starts with perimeter metal
& valley flashings, followed by field panels; installed
from right to left, one course at a time, across the
roof and up towards the ridge. Panels are measured
and cut to fit areas around the perimeter of the roof;
i.e. rakes, ridges, hips, & valleys. Trim caps are then
installed, followed by an overall quality review of the roof.

Installation Details
MetroSHINGLE
Indicates critical areas of installation
MetroSHINGLE Installation Details 3
©Copyright, all rights reserved, Metro Roof Products, Sept 2009
rev 7/5/13
Colored areosol paints should
never be sprayed on stone-coated
panels & accessories.
CONCEALED Fastened:
Overall Length Range: 52” (1321mm)
Pitch (Course Cover): 9-1/4" (235mm)
Side-Lap: 3” (76mm)
Front Downturn Nose: 3/8” (9.52mm)
Back Up stand: 3/8” (9.52mm)
Back Horizontal Flange: 3/4” (20mm)
Materials:
Metro panels are produced from Aluminum-zinc alloy
coated steel complying with ASTM A792.
Packing and Storage:
Fasteners:
All fasteners (Nails or Screws) used on a Metro roof for
panels, trim caps and accessory items shall meet or
ASTM B-117, (1,000-hr minimum Salt Spray Corrosion
Resistance).
For HVHZ (High Velocity Hurricane Zone) areas refer to
local code requirements and/or Metro website (www.
metroroofs.com) for details.
Sealant/Caulking
Only exterior grade urethane or (non-acidic) caulking
should be used for sealant.
Testing:
Metro panels have been tested in accordance with
local, national & international building codes. Testing
has been conducted to evaluate fire, wind, penetration,
water infiltration, and durability resistance. Information
regarding specific tests and approvals can be obtained
from Metro Roof Products.
Ventilation:
Ensure proper attic ventilation as prescribed per local
codes. Either Smart Vents or Ridge venting can be
installed to achieve adequate ventilation.
Warranty:
This limited warranty is transferable and does not cover
damage due to improper handling or installation.
Dissimilar Metals:
To avoid adverse corrosion effects caused
by dissimilar metals, COPPER and LEAD
products and accessories. (refer to Metro SMARTbrief
#02004)
Finish coating:
Unless local conditions require otherwise, either one
or equivalent should be used with Metro panels.
Fastening Flange
Back-interlock
Under Side-lap
3”
Top Side-lap
R
R
R
A pallet of MetroSHINGLE contains approximately
16 squares. Care should be taken to store panels in
an area free from moisture. Refer to pallet storage
warning information for more details.
R
Minor scuffing of the Metro stone-coated finish can be
repaired with a Metro Touch-Up Kit. Use the Metro base-
-coat acrylic supplied in the kit (not caulking) for repairs.
Unfinished flashing material can be painted with durable
acrylic aerosol paints. Colored aerosol paints should
never be used as 'touch-up' on stone-coated products.
Front-Interlock
MetroSHINGLE panels are CONCEALED fastened.
They incorporate a rear fastening flange. Panels
interlock from top to bottom at the "Pittsburg-Lock"
formed sections on the panels. The interlocking
sections create a weather barrier. The dimensions
of this pannel are as follows:

Installation Details
MetroSHINGLE
Indicates critical areas of installation
MetroSHINGLE Installation Details 4
©Copyright, all rights reserved, Metro Roof Products, Sept 2009
rev 7/5/13

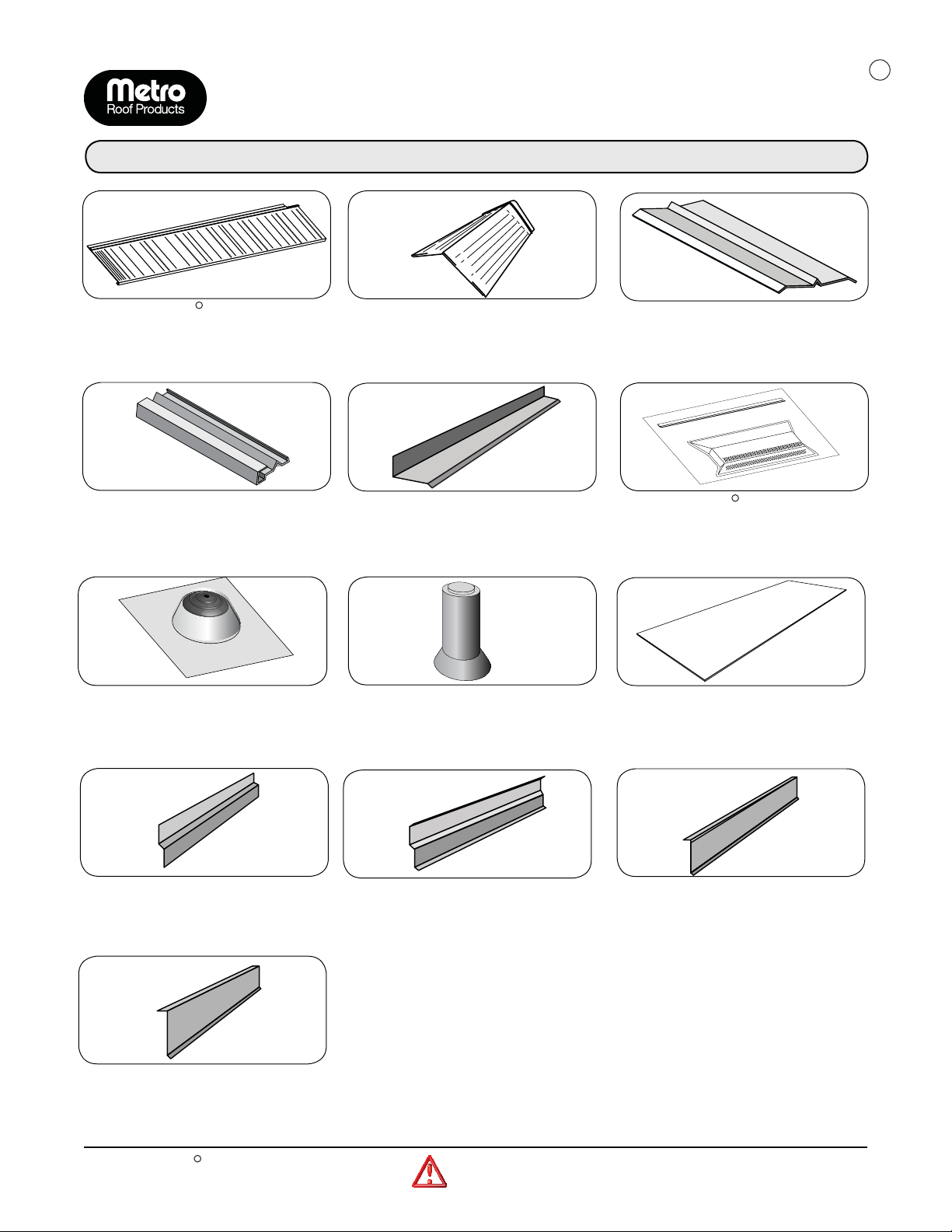

Stone-Coated Items
MetroSHINGLE
52" X 10-1/2" (1321 X 267mm)
3.6 lbs. (1.63 Kg)
Shingle Trim Cap (Hip & Ridge)
10-1/2" X 8" (267 X 203mm)
.57 lbs (.26 Kg)
Valley Center Cover
79" X 4" (2006 X 100mm)
3.5 lbs. (1.59 Kg)
Shingle Rake Channel
79" X 1" X 2" (2006 X 25 X 50mm)
3.00 lbs (1.36 Kg)
79" X 2-1/4" X 3-1/4"
(2006 X 57 X 83mm) 3.30 lbs (1.5kg)

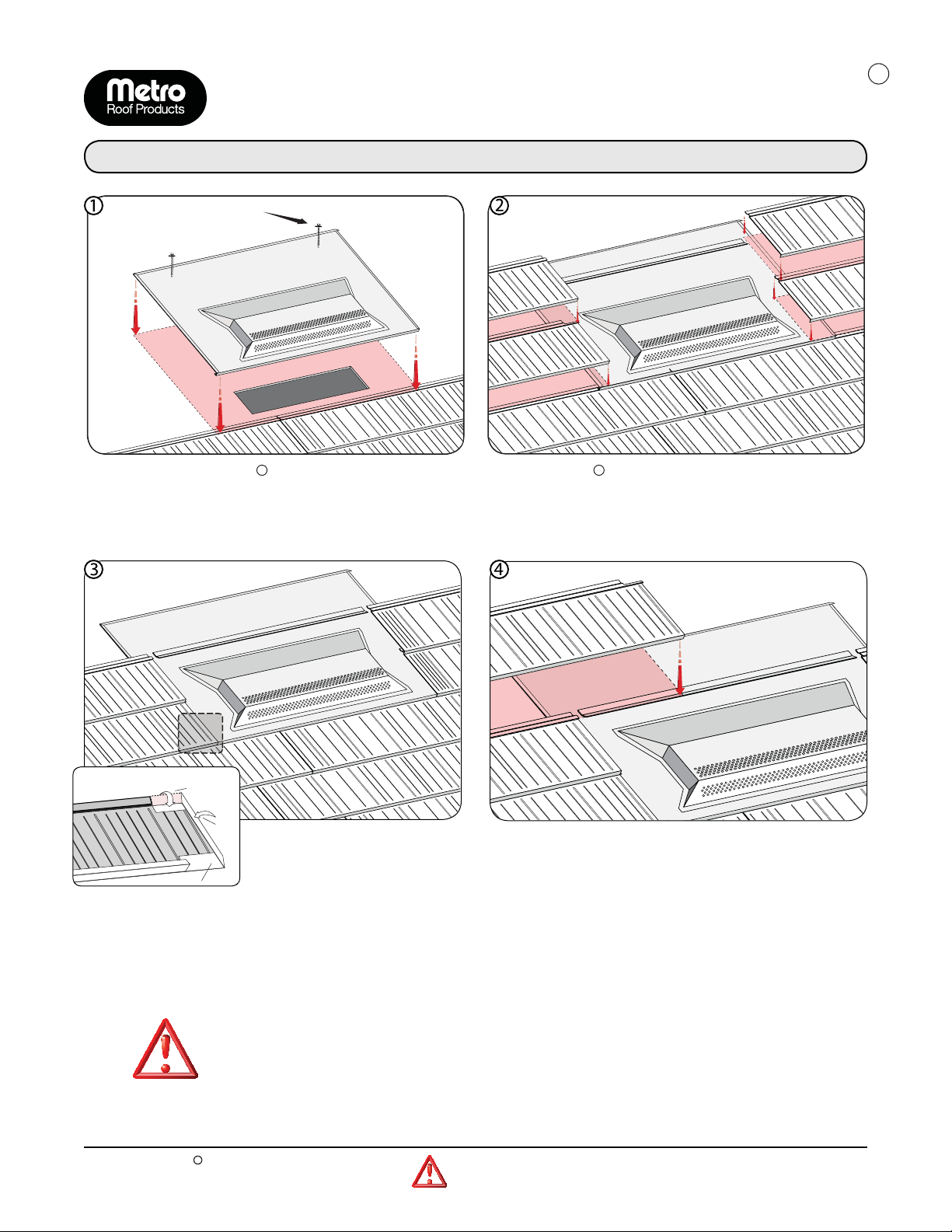

Head Wall Flashing MetroSHINGLE SMARTvent
59" X 3-1/2" X 16-3/4"
(1499 X 89 X 426mm) 10.5 lbs
(4.77 Kg)
SMART-jack (Small Base)
12" X 16" (300 X 407mm) 1.00 lbs
(.45 Kg)
SMART-Sleeve Universal
Pipe Cover
16" X 4" (407 X 100mm) 1.65 lbs
(.75 Kg)
52" X 18" (1321 X 457mm)
5.7 lbs (2.59 Kg)
Flat-Stock
Z-BAR (Large)
79" X 2-1/4" X 1" X 2-1/4"
(2006 X 57 X 25 X 57mm) 2.5 lbs
(1.14 Kg)
Z-BAR (Small)
79" X 1-3/8" X 1/2" X 1-3/8"
(2006 X 35 X 13 X 35mm) 2.0 lbs
(.90 Kg)
Fascia - Counter Flashing
79" X 3-1/2" X 3/4"
(2006 X 89 X 19mm) 2.50 lbs
(1.14 Kg)
Fascia - Counter Flashing
79" X 5" X 3/4" (2006 X 127 X 19mm)
3.75 Lbs (1.70 Kg)
R
R
R
R

Installation Details
MetroSHINGLE
Indicates critical areas of installation
MetroSHINGLE Installation Details 5
©Copyright, all rights reserved, Metro Roof Products, Sept 2009
rev 7/5/13
PAINTED ACCESSORIES
Shingle Fascia Starter
120" X 3" X 1-1/2"
(3048 X 76 X 38mm) 2.50 Lbs
(1.14 Kg)
FL Drip Edge
120" X 1-1/2" X 1-1/2"
(3048 X 38 X 38mm) 1.60 Lbs.
(.73 Kg)
Side-Wall Under-pan metal
120" X 4" X 3" (3048 X 100 X 76mm)
5.0 Lbs. (2.27 Kg)
Double ‘V’ Valley Metal
120" X 20" (3048 X 508mm)
12.50 Lbs. (5.68 Kg)
Chimney Saddle
60" X 18" X 4"
(1524 X 457 X 100mm) 6.75 Lbs.
(3.07 Kg)
Short Course Cleat
120" X 2" X 1/4" X 1"
(3048 X 50 X 7 X 25mm) 1.50 Lbs.
(.68 Kg)
R
R

General Information
These details are provided to demonstrate a recom-
mended installation method for Metro roof panels
and accessories. The details and information in this

United States. Installers of Metro roof panels and ac-



-
ers of Metro products use a Metro Cutter and have
#$%+<$=$><
=?
@Q[\
]Q>^_[`{

MetroSHINGLE
|$}>~[


%
WALKING ON YOUR METRO SHINGLE ROOF
Correct
Incorrect
Batten-less Installation Details
MetroSHINGLE R
R
R
Indicates critical areas of installation
$}>~>Q
]_[+?
?Rev 
R

Installation Details
MetroSHINGLE
Indicates critical areas of installation
MetroSHINGLE Installation Details 7
©Copyright, all rights reserved, Metro Roof Products, Sept 2009
rev 7/5/13
UNDERLAYMENT
DRIP EDGE
STARTER-STRIP
MetroSHINGLES are installed on new or existing
roofs pitched from at least 3:12 and above. Installation
Ice-& Water shield underlay should be installed per
local code and product application instructions in areas
where icing may occur. For re-roofing applications, the
Install Drip Edge, then Starter Strip metal under the
felt paper. Secure with fasteners spaced 12" (300mm)
apart. For high wind areas contact Metro.
R
R
R
begins with roofing edge metals followed by the
installation of roofing felt being conventionally applied.
existing shingles are to be cut back flush with the
perimeter of the roof. Consult local codes for specific
requirements.

Installation Details
MetroSHINGLE
Indicates critical areas of installation
MetroSHINGLE Installation Details 8
©Copyright, all rights reserved, Metro Roof Products, Sept 2009
rev 7/5/13
RAKE METAL
Install Rake Metal over Drip-edge metal with fasteners
placed in the outside channel as shown. Rake Metal is
notched to lap at joints leaving a minimum 2” overlap
in water channels.
Lap 2” minimum to
prevent leakage through
seams.
DOUBLE ‘V’ VALLEY METAL
Install 20” Double ‘V’ Valley metal overlapping a min.
of 4”. Attach valleys as shown below..
If fastening through the valley metal as
shown, fasteners must have a rubber
washer covered by metal cap to ensure
a seal around the fastener location.
R
R

Installation Details
MetroSHINGLE
Indicates critical areas of installation
MetroSHINGLE Installation Details 9
©Copyright, all rights reserved, Metro Roof Products, Sept 2009
rev 7/5/13
PANEL PLACEMENT
Notch each shingle course at the nailing
flange and front underlap where panels
intersect with Rake Channel as shown.
R
R
(305mm)
The first course of MetroSHINGLE panels hook
onto the Starter Strip Metal. Subsequent courses
of panels hook onto the rear of the panel beneath.
Metro Shingles lay from the right side of the roof
to the left.
R
The rear of the MetroSHINGLE panels are
fastened to the roof deck with a minimum of
four (4) fasteners.
R
3“(76cm)
Under-Side of Panel
For HVHZ (High Velocity Hurricane Zone)
areas, refer to local code requirements
and/or Metro website (www.metroroofs.com)
for details.

Installation Details
MetroSHINGLE
Indicates critical areas of installation
MetroSHINGLE Installation Details 10
©Copyright, all rights reserved, Metro Roof Products, Sept 2009
rev 7/5/13
PANEL LAYOUT
VALLEY PANELS
VALLEY CUT PANELS
Panels are installed with either a closed or open valley
detail.
CLOSED VALLEY (Shown)
OPEN VALLEY
R
R
Measure, mark & cut the panel to follow the center line
of the valley flashing.
Measure, mark & cut the panel to conform to the inside
small valley ribs to create an open valley. If this option
is used, the cut edge of the valley panel must be folded
down 3/8" (9.52mm) to form a hem.

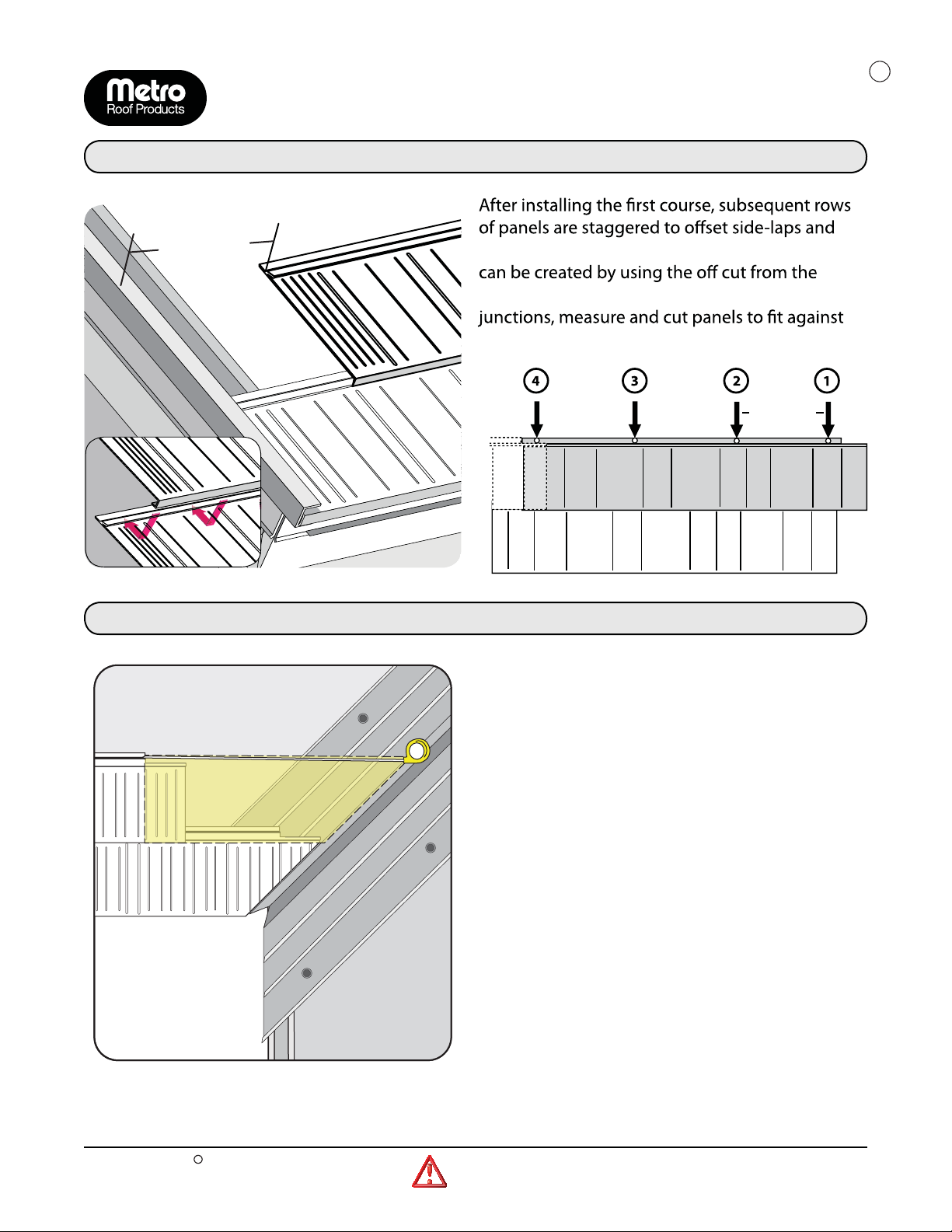

12“(304mm)
Random
prevent a stack bonded pattern. A stagger pattern
previous row to begin the next row. At valley
the valley center rib.

Installation Details
MetroSHINGLE
Indicates critical areas of installation
MetroSHINGLE Installation Details 11
©Copyright, all rights reserved, Metro Roof Products, Sept 2009
rev 7/5/13
MITER , NOTCH & FOLD
All MetroSHINGLE panels intersecting the
valley, shall be notched at both the top (Nail-
ing Flange) and the bottom (Front Interlock)
of each panel to prevent water migration under the
panel. Failure to follow this step may result in leaks
around the valley.
VALLEY COVER
Fasteners, attaching the Valley Covers,
penetrate through the shingle panels, but
do not perforate the valley flashing metal.
R
R
Open valleys are recommended in locations where
debris can accumulate (close proximity to trees).
Open valleys better facilitate periodic debris removal.
R
1” 1”
Bullnose cut
Under-Side of Panel
The first shingle panel at the bottom of both valleys
and Rake Channel intersections is cut, folded and
flattened to prevent water migration. The same
technique is used at junctions with SMART-vents
and SMART-jacks.
Valley Cover pieces are fastened with corrosion
resistant screws to alternating courses of panels.
MetroSHINGLE panels intersecting the valley are
notched at the nose and the return lip is removed.
The back flange is then notched and flattened as shown.
R

Installation Details
MetroSHINGLE
Indicates critical areas of installation
MetroSHINGLE Installation Details 12
©Copyright, all rights reserved, Metro Roof Products, Sept 2009
rev 7/5/13
FLASHING CHIMNEY OR SIMILAR SQUARE OBJECTS
Measure, cut & fold up the panels across the front of
Installation with Side-Wall Under-pan.
Measure 2" past each side and 6" past the top side
for overall path of Side-Wall Underpan.
install Side-Wall Under-pan below existing counter-flashing.
Alternatively, new Z-bar and Side-Wall Under-Pan can
be installed.
R
R
the penetration being flashed.
Install the panels after notching both the back fastening
flange & front interlock where they intersect the
Side-Wall Under-Pan flashing.
Cut & flatten the panel interlock where the Side-Wall
Under-Pan exits.
Front view of completed chimney or square cornered
penetration.
Notch & bend Side-Wall Under-Pan as shown, and
Cut Back-Interlock
& flatten

Installation Details
MetroSHINGLE
Indicates critical areas of installation
MetroSHINGLE Installation Details 13
©Copyright, all rights reserved, Metro Roof Products, Sept 2009
rev 7/5/13
CHIMNEY SADDLE PREPARATION
CHIMNEY SADDLE INSTALLATION
Cut Back-Interlock
& flatten
R
R
At the rear of a penetration, install Chimney Saddle
metal after hemming the sides and folding the corners
where it protrudes (Min 2" (50mm) past the penetration.
Trim and fold the flashing metal as needed. Seal with
caulking around the corners and along the rear of the
Chimney Saddle. Align and install a Short-Course
Cleat with the proximate course of panels. The cleat
allows the panels to interlock with the Chimney Saddle.
A completed and flashed square cornered penetration
is shown. The Chimney Saddle Flashing is shown
properly hemmed.
Apply a bead of sealant, set the Metro Short-Course
Cleat, & fasten through sealant.

Installation Details
MetroSHINGLE
Indicates critical areas of installation
MetroSHINGLE Installation Details 14
©Copyright, all rights reserved, Metro Roof Products, Sept 2009
rev 7/5/13
SHORT COURSE
Short Course Cleats are used to recreate the back
nailing (hook) section for a shingle panel. The Short
Course Cleat is installed in a bed of sealant and
secured with stitch screws.
Insert & secure panels over cleated sections.
HIP & RIDGE PANELS
HIP & RIDGE CUT PANELS
EPAT
R
R
At hip and ridge locations, the panels are cut where
the roof planes intersect. The junction between cut
panels is sealed with 4" (100 mm) wide "peel-n-stick"
roofing tape, prior to installing Trim Caps.
Cut panels along
the center line of
Hip & Ridge as
shown



$2%102+0%1&12++2
%20 12++2%2+1 5

0%

+22%
32
%$
$%0%2(/%+
R
R
12%20¡%2%00&
$%*(+%¢%2&+1('11(3+$£%(%,,%$
22(%1$%1$22(%0%02/0%%22(%2(%&+202
&5$$0%0¢

RR
12++1('+%10112(%2/&%(¡%21
1(5¢0%12*%2%''%2(%1('+%/%+152(
0%0+%2&2(%%2¢
£%$&1%+21/+%$+'2(%1$%1&
%2/00212++'2(%%0+//'
1('+%/%+1¢
!
"$%!'
*+135!6'
12%%01
%20/%+10%12++%$%02(%1$%1&
2(%¡%211(5¤52(,,3,¥(
¦§,,1$%+/¢

Installation Details
MetroSHINGLE
Indicates critical areas of installation
MetroSHINGLE Installation Details 16
©Copyright, all rights reserved, Metro Roof Products, Sept 2009
rev 7/5/13
ROOF PENETRATIONS
R
R
SOLAR SYSTEM FLASHING MOUNT:
As round pipe is often used to support solar systems, the details above can be used to flash the supporting
solar members.
New vent jacks are installed at roof penetrations. Panels are neatly cut around protrusions as required and
installed over vent flashings.
After first sealing the panel, the vent flashing is
positioned over protrusion.
Stitch screws are used to secure the flashing to the
shingle panel. Care is taken to locate the screws over
higher ribbed panel sections, or through sealant.
Then cut the Back-
-Interlock and flatten.

Installation Details
MetroSHINGLE
Indicates critical areas of installation
MetroSHINGLE Installation Details 17
©Copyright, all rights reserved, Metro Roof Products, Sept 2009
rev 7/5/13
Cut, fold and
attach as
shown
INSTALLING TRIM CAPS
R
R
CENTER CAP
To create a center cap, simply cut-off
the interlock flange and fold-over the
cut edge so it resembles the front
interlock nose of a factory cap.
Position and fasten the center cap
at the desired center point of the ridge
after installing the caps from either end
of the roof.
FIRST HIP CAPS
The first installed Trim Cap is cut and hemmed to lock over the
first course of shingle panels.
HIP JUNCTION
