Thermo Scientific STANDARD Series User manual

Thermo Scientific
Laboratory Temperature
Control Products
Manual Part Number 011-5013
Rev. 08/03/10
STANDARD Series Thermostats
SC 100
SC 150
SC 150L
ARCTIC Series Refrigerated Bath Circulators
A 5B
A 10
A 10B
A 25
A 25B
A 28
A 28F
A 24B
A 40
SAHARA Series Heating Bath Circulators
S 3 S 5T S 6P
S 7 S 12T S 14P
S 13 S 19T S 21P
S 15
S 21
S 30
S45
S49 Visit our Web site at:
http://www.thermoscientific.com/tc
Product Service Information, Applications Notes, MSDS Forms, e-mail

Thermo Fisher Scientic
25 Nimble Hill Road
Newington, NH 03801
Tel : [phone] or
[phone]
Fax : [phone]
www.thermoscientic.com/tc
Sales, Service, and Customer Support
25 Nimble Hill Road
Newington, NH 03801
Tel: [phone]
Sales: 8:00 am to 5:00 pm
Service and Support: 8:00 am to 6:00 pm Monday
through Friday (Eastern Time)
Fax: [phone]
service.tc.us@thermosher.com
Dieselstrasse 4
D-76227 Karlsruhe, Germany
Tel : [phone]
Fax : [phone]
info.tc.de@thermosher.com
Statement of Copyright
Copyright © 2010 Thermo Fisher Scientic. All rights reserved.
This manual is copyrighted by Thermo Fisher Scientic.
Users are forbidden to reproduce, republish, redistribute, or resell any materials from this manual in either machine-readable form
or any other form.
NOTE German and French versions of this manual are available in pdf format. Please contact our Sales, Service and Support. 

Thermo Scientific
Table of Contents
Preface ...................................................................................................................... i
Compliance ..............................................................................................................i
WEEE ......................................................................................................................i
After-Sale Support .................................................................................................ii
Feedback..................................................................................................................ii
Warranty ..................................................................................................................ii
Unpacking ...............................................................................................................ii
Section 1 Safety ..................................................................................1-1
Safety Warnings..................................................................................................1-1
Section 2 General Information................................................................2-1
Description .........................................................................................................2-1
  ThermostatSpecications................................................................................2-1
  Bath/CirculatorSpecications.........................................................................2-3
Wetted Materials.................................................................................................2-4
Section 3 Installation ...........................................................................3-1
Ambient Conditions..........................................................................................3-1
Ventilation...........................................................................................................3-2
Electrical Requirements ....................................................................................3-2
External Circulation ..........................................................................................3-5
Tubing..................................................................................................................3-6
Fluids ...................................................................................................................3-7
Additional Fluid Precautions ...........................................................................3-8
Filling Requirements .......................................................................................3-11
Draining.............................................................................................................3-11
Section 4 Operation .............................................................................4-1
STANDARD Thermostat................................................................................4-1
Setup ....................................................................................................................4-2
Initial Start Up....................................................................................................4-2
Daily Start Up.....................................................................................................4-3
Status Display .....................................................................................................4-3
Changing the Setpoint Window.......................................................................4-4
Menu Displays....................................................................................................4-5
Menu ....................................................................................................................4-6
Menu Tree ...........................................................................................................4-7
Editor - Setpoints...............................................................................................4-8
Editor - Auto start .............................................................................................4-9
Settings - Basic settings...................................................................................4-10
Settings - App. Settings - Limits ....................................................................4-11

Contents
Thermo Scientific
Settings - App. Settings - Fluids Type...........................................................4-12
Settings - Password/Reset ..............................................................................4-12
System - Adjustment .......................................................................................4-13
System - Interfaces...........................................................................................4-13
Installation - Information...............................................................................4-14
Installation - Diagnosis ...................................................................................4-14
Stopping the Unit.............................................................................................4-15
Power Down.....................................................................................................4-15
Shut Down........................................................................................................4-15
Section 5 Accessories..........................................................................5-1
Lifting Platform Installation.............................................................................5-1
Immersion Cooler Bridge Installation............................................................5-2
Rack Assembly Instructions.............................................................................5-3
Serial Communication Adapter........................................................................5-4
Tubing..................................................................................................................5-5
Section 6 Preventive Maintenance..........................................................6-1
Cleaning ...........................................................................................................6-1
Condenser Fins ..................................................................................................6-1
Testing the Safety Features...............................................................................6-2
Section 7 Troubleshooting............................................................................................... 7-1
Error Displays ....................................................................................................7-1
Appendix Serial Communications..................................................................................A-1
Declaration of Conformity
Return Materials Authorization Form
Warranty

Thermo Scientific i
Preface
Compliance Products tested and found compliant with the requirements dened in the
EC Directives as well as Low Voltage Directive (LVD) can be identied by
the CE Mark on the rear of the unit. The Declaration of Conformity can
be found in the appendix of this manual.
The conformity assessment were performed following dened procedures
according to each applicable directive.
The council decision 93/465/EEC shall be authoritative concerning the
modules of the various phases of the conformity assessment procedures
and the rules for the afxing and use of the CE Mark), which are intended
to be used in the technical harmonization directives.
To conrm compliance with the EC-Directive 2004/108/EC
Electromagnetic Compatibility (EMC) our products were tested according
to the EMC requirements for emission and immunity for electrical
equipment for measurement, control and laboratory use.
Some electrical equipment displaying the CE Mark, e.g., monitors or
analytical instruments, can be affected if their manufacture accepts
interference, e.g., ickering of a monitor, as a minimum operating quality
with electromagnetic compatibility. We recommend a minimum distance of
approximately one meter from this type of equipment.
For any additional information, refer to the Declaration of Conformity.
Visit www.ul.com/global/eng/pages to view the UL listings for
Thermo Fisher Scientic. Reference le #E164214 for these products.
WEEE This product is required to comply with the European Union’s Waste
Electrical & Electronic Equipment (WEEE) Directive 2002/96/EC. It is
marked with this symbol.
Thermo Fisher Scientic has contracted with one or more recycling/
disposal companies in each EU Member State, dispose of or recycle this
product through them. Further information on Thermo Fisher Scientic’s
compliance with these Directives is available at:
www.thermo.com/WEEERoHS

ii
Preface
Thermo Scientific
After-sale Support Thermo Fisher Scientic is committed to customer service both during
and after the sale. If you have questions concerning the unit operation,
or questions concerning spare parts or Service Contracts, call our Sales,
Service and Customer Support phone number, see this manual's inside
cover for contact information.
CAUTION
There can be up to three nameplates located on the rear of the unit. Before
calling, please obtain the serial number printed on the complete system
nameplate located on the upper rear of the bath.

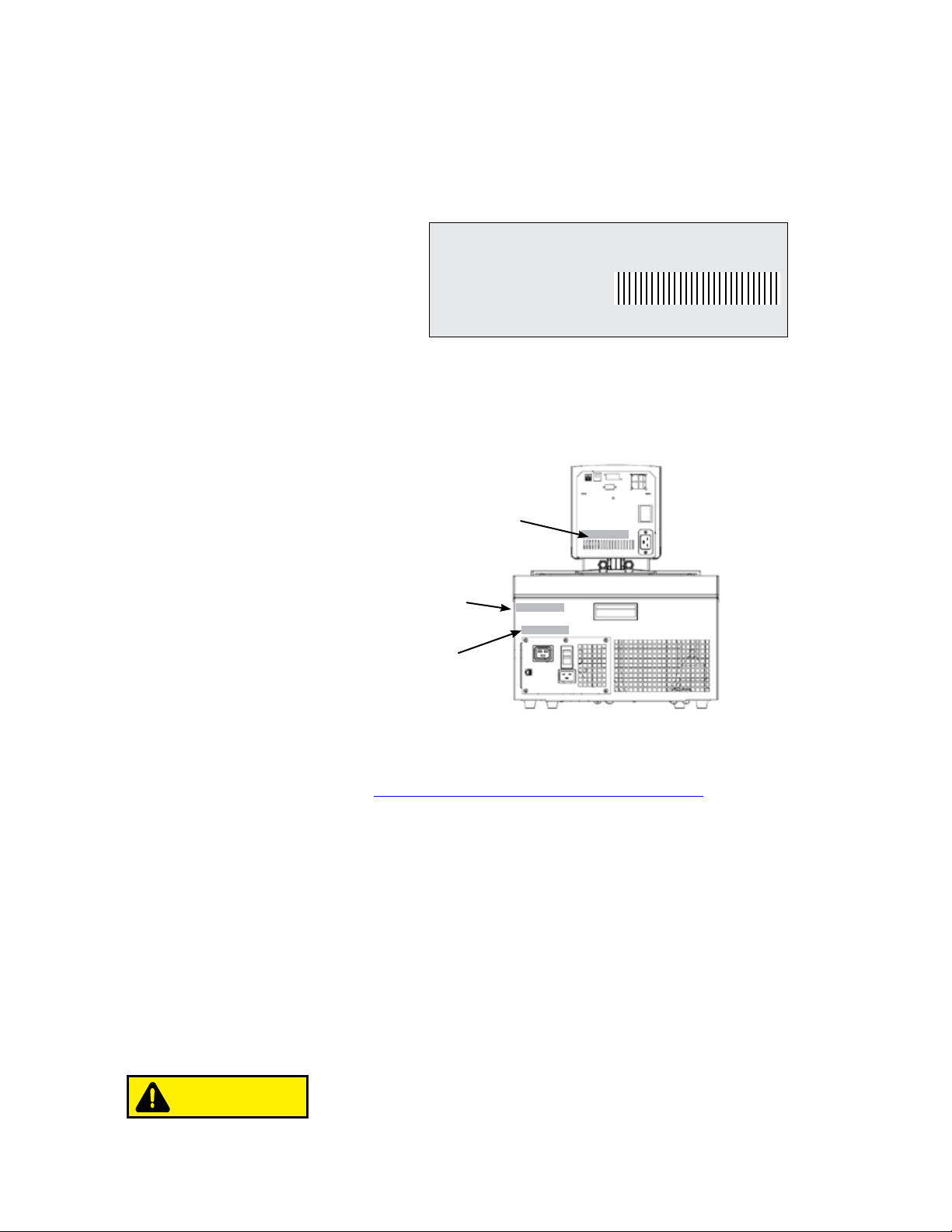

Sample Nameplate
Thermo Fisher Scientific
Newington, NH 03801 U.S.A.
[phone] / [phone]
BOM#: XXXXXXXXXXXX
S/N: XXXXXXXXX
XXX VOLTXXHZXPH X.X AMP
Nameplates (Typical Locations)
Complete System
Nameplate
Refrigerant
Nameplate
Thermostat Nameplate
Feedback We appreciate any feedback you can give us on this manual. Please e-mail
us at thermoscienticmanuals@thermosher.com. Be sure to include the
manual part number and the revision date listed on the front cover.
Warranty Thermo Scientic Laboratory Temperature Control Products have a
warranty against defective parts and workmanship for 36 months from date
of shipment. See back page of this manual for more details.
Unpacking Retain all cartons and packing material until the unit is operated and found
to be in good condition. If the unit shows external or internal damage
contact the transportation company and le a damage claim. Under ICC
regulations, this is your responsibility.
Refrigerated units should be left in an upright position for 24 hours
before starting. This will ensure the lubrication oil has drained back
into the compressor. 

Thermo Scientific 1-1
Make sure you read and understand all instructions and safety precautions
listed in this manual before installing or operating your unit. If you have
any questions concerning the operation of your unit or the information in
this manual, please contact us. See inside cover for contact information.

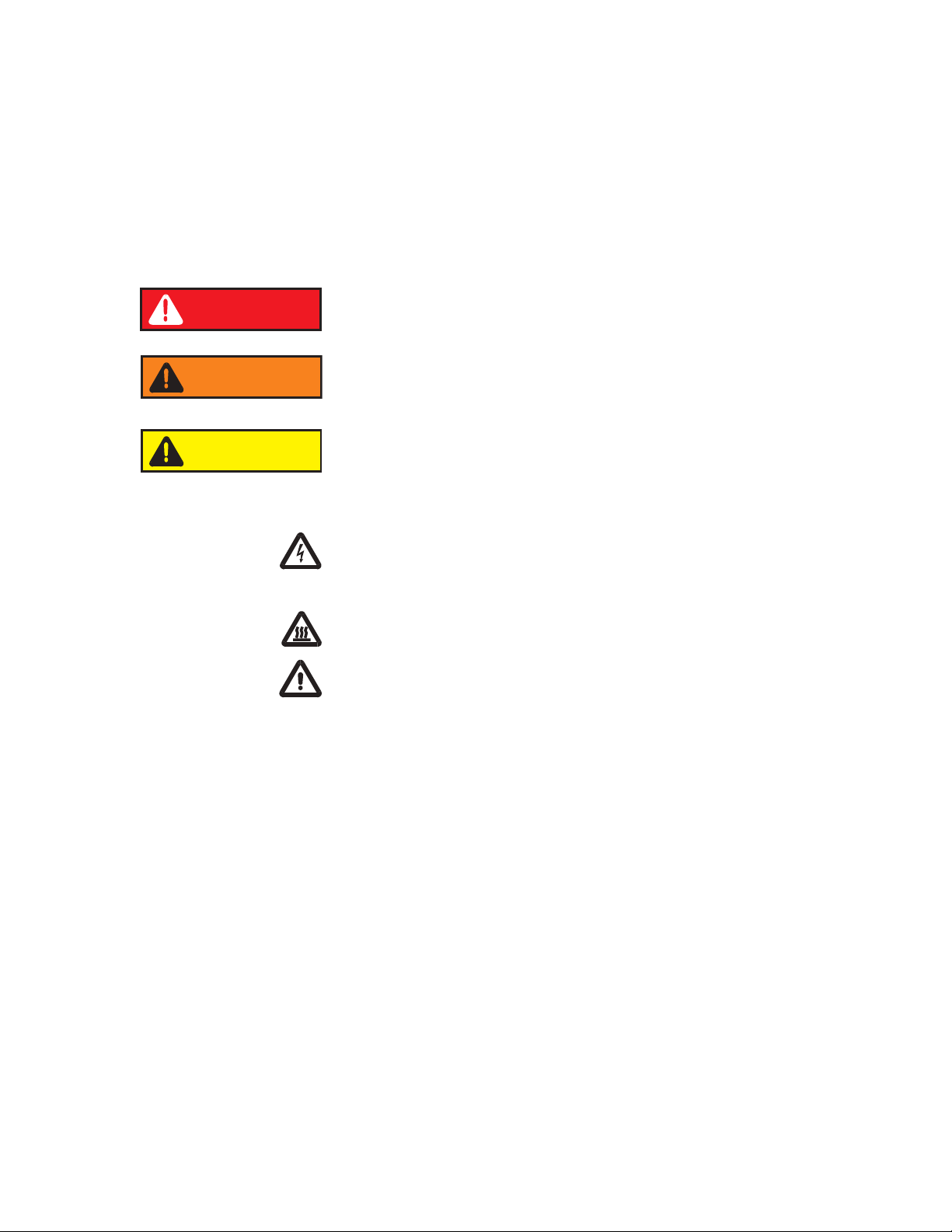

DANGER indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury. It is also be used to alert
against unsafe practices.
The lightning ash with arrow symbol, within an equilateral triangle, is
intended to alert the user to the presence of non-insulated "dangerous
voltage" within the unit's enclosure. The voltage magnitude is signicant
enough to constitute a risk of electrical shock.
This label indicates the presence of hot surfaces.
This label indicates read the manual.
The unit construction provides protection against the risk of
electrical shock by grounding appropriate metal parts. The
protection will not function unless the power cord is connected to a
properly grounded outlet. It is the user's responsibility to assure a
proper ground connection is provided. 
Never place the unit in a location or atmosphere where excessive
heat, moisture, or corrosive materials are present. 
Never use corrosive uids with this unit. Use of these uids will void
the manufacturer’s warranty. 
Observe all warning labels. 
Never remove warning labels. 
Refrigerated units should be left in an upright position for 24 hours
before starting. This will ensure the lubrication oil has drained back
into the compressor. 
Safety Warnings
Section 1 Safety
DANGER
WARNING
CAUTION

1-2
Section 1 Safety
Thermo Scientific
Other than water, before using any uid, or when performing maintenance where contact
with the uid is likely, refer to the manufacturer’s MSDS and EC Safety Data sheet for
handling precautions. 
Ensure the tubing you select will meet your maximum temperature and pressure
requirements. 
Never operate damaged or leaking equipment. 
Never operate the unit without uid in the reservoir. 
Never operate the unit or add uid to the reservoir with panels removed. 
Never operate the unit with the immersion circulator removed from the bath. 
Do not mount the immersion circulator backwards on the bath; the line cord could contact
the reservoir uid. Ensure the electrical cords do not come in contact with any of the
plumbing connections or tubing. 
Operate the unit using only the supplied line cords, never operate equipment with damaged
cords. 
Ensure all communication and electrical connections are made prior to starting the unit. 
If the unit's power cord is used as the disconnecting device, it must be easily accessible at
all times. 
Always turn the unit off and disconnect the supply voltage from its power source before
moving the unit or before performing any service or maintenance procedures. 
Ensure, that no toxic gases can be generated by the uid. Inammable gases can build up
over the uid during usage. 
Transport the unit with care. Sudden jolts or drops can damage the unit's components. 
Ensure the uid is at a safe temperature (20°C to 55°C) before handling or draining. 
Drain the unit before it is transported and/or stored in near or below freezing temperatures,
see Draining in Section 3. 
Do not clean the unit with solvents, a soft cloth and water is normally sufcient. 
Refer service and repairs to a qualied technician. 
Performance of installation, operation, or maintenance procedures other than
those described in this manual may result in a hazardous situation and will void the
manufacturer's warranty. 

2-1
Thermo Scientific
Section 2 General Information
The Thermo Scientic STANDARD Series of thermostats are used with
refrigerated and heated baths. All thermostats can pump to an external
system. All controllers have a digital display and easy-to-use touch pad, ve
programmable setpoint temperatures, acoustic and optical alarms, and SC 150
and SC 150L units offer adjustable high temperature protection.
The SC 100 is designed to be used only with water or glycol-water. The
SC 150 and SC 150L have an independent low liquid level protection, and a
design that allows use of different heat transfer liquids, see Section 3.
Description
STANDARD
Themostat

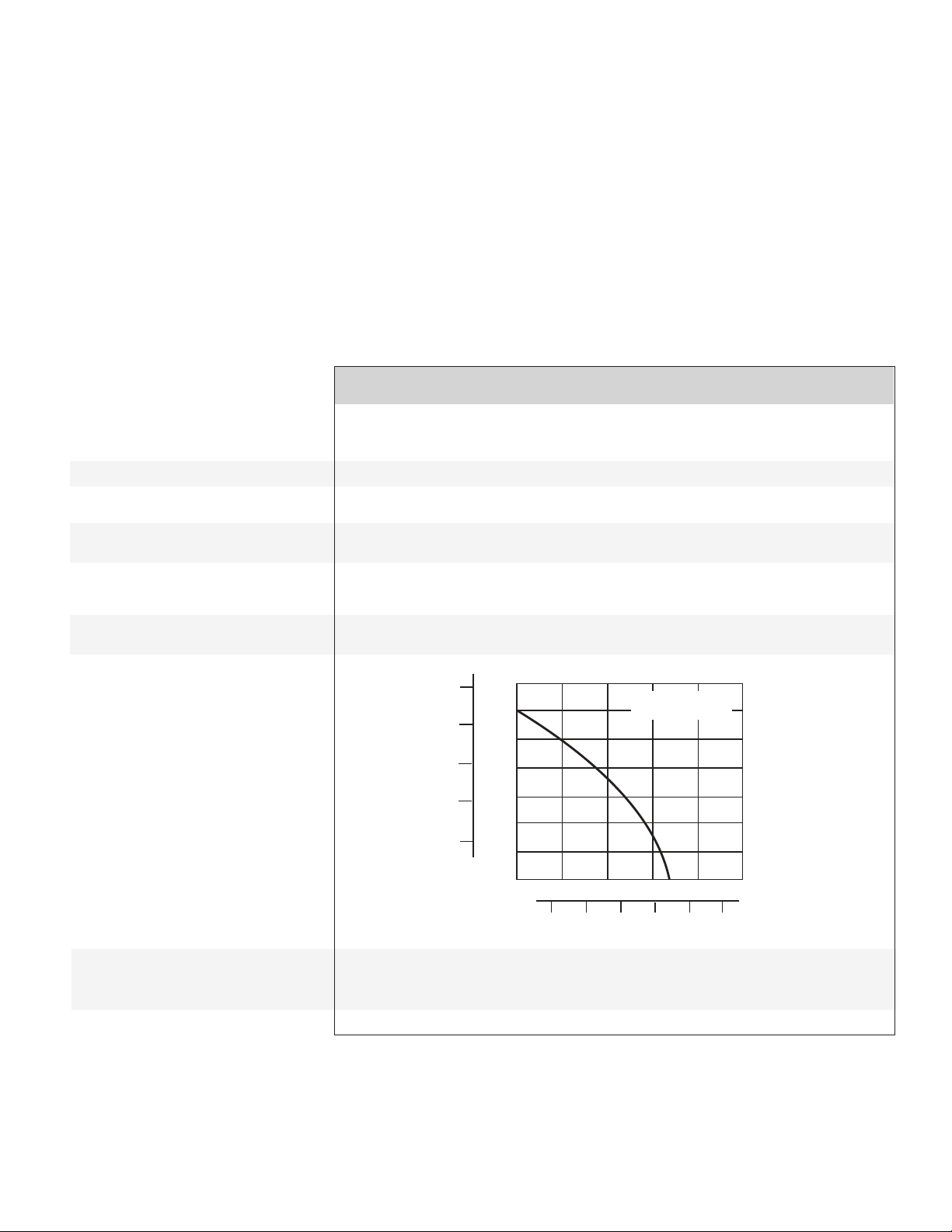

Specifications
• Performance specications established in accordance with DIN 12 876 (using water at 70°C).
• Lower temperature ranges available with supplemental cooling.
• The maximum bath wall thickness for thermostats that have a factory installed clamp is 26 mm.
• Thermo Fisher Scientic reserves the right to change specications without notice.
Pressure
psi mbar
Flow
5 10 15 20 25 LPM
1 2 3 4 5 6 GPM
350
300
250
200
150
100
50
5
4
3
2
1
High Speed Mode Max ow using a 12 mm id
hose = 12.5 lpm (3.3 gpm)
SC 100 SC 150 SC 150L
Temperature Ambient +13°C to +100°C Ambient +13°C to +150°C Ambient +13°C to +150°C
Range Ambient +23°F to +212°F Ambient +23°F to +302°F Ambient +23°F to +302°F
Temperature Stability ±0.02°C ±0.02°C ±0.02°C
Heater Capacity 230V/115V 2000/1200 Watts 2000/1200 Watts 2000/1200 Watts
Immersion Depth mm 75 to 145 75 to 145 75 to 190
inches 3.0 to 5.7 3.0 to 5.7 3.0 to 7.5
Dimensions (H x W x D) mm 336 x 138 x 199 336 x 138 x 199 384 x 138 x 199
inches 13.2 x 5.4 x 7.8 13.2 x 5.4 x 7.8 15.1 x 5.4 x 7.8
Net Weight kg 3.3 3.3 3.3
lb 7.3 7.3 7.3
Pumping Capacity
Electrical Requirements 100 V/50 Hz 100 V/60 Hz or
(Voltage ±10%) 115 V/60 Hz or
230 V/50 Hz
USB Interface No Yes Yes

Section 2 General Information
2-2 Thermo Scientific
Stainless Steel Refrigerated Baths/Circulators
A5B A10B A25B A28F A10
Temperature Range -5 to 100°C
23 to 212°F
-10 to 100°C
14 to 212°F
-25 to 150°C
-13 to 302°F
-28 to 150°C
-18 to 302°F
-10 to 100°C
14 to 212°F
Bath Volume liters
gallons
12 - 20
3.2 - 5.3
17 - 30
4.5 - 7.9
13 - 21
3.4 - 5.5
6 - 10
1.6 - 2.67
4 - 6
1.1 - 1.6)
Cooling Capacity at 20°C 200 watts 250 watts 500 watts 320 watts 240 watts
Refrigerant R134a R134a R134a R134a R134a
Dimensions (H x W x D)*mm
inches
471 x 429 x 738
18.5 x 16.9 x 29.0
471 x 429 x 913
18.5 x 16.9 x 36.0
740 x 324 x 541
29.0 x 12.7 x 21.3
520 x 514 x 426
20.5 x 20.2 x 16.8
632 x 220 x 414
24.9 x 8.7 x 16.3
Net Weight kg
lb
40.0
88.9
44.5
97.9
42.3
93.1
35.6
78.3
27.5
60.6
Electrical Requirements**
(Voltage ±10%)
100 V/50 Hz 100 V/60 Hz or
115 V/60 Hz or
230 V/50 Hz
Stainless Steel Refrigerated Baths/Circulators
A25 A28 A24B A40
Temperature Range -25 to 150°C
-13 to 302°F
-28 to 150°C
-18 to 302°F
-24 to 150°C
-11 to 302°F
-28 to 150°C
-18 to 302°F
Bath Volume liters
gallons
7 - 12
1.8 - 3.2
6 - 10
1.6 - 2.6
16 - 27
4.2 - 7.1
7 - 12
1.8 - 3.2
Cooling Capacity at 20°C 500 watts 320 watts 700 watts 800 watts
Refrigerant R134a R134a R404 R404
Dimensions (H x W x D)*mm
inches
711 x 273 x 483
28.0 x 10.7 x 19.0
711 x 273 x 483
28.0 x 10.7 x 19.0
574 x 765 x 610
22.6 x 30.1 x 24.0
749 x 385 x 519
29.5 x 15.1 x 20.4
Net Weight kg
lb
36.1
79.5
36.0
79.1
58.6
128.9
55.2
121.5
Electrical Requirements**
(Voltage ±10%)
100 V/50 Hz 100 V/60 Hz or
115 V/60 Hz or
230 V/50 Hz
*Add ~26 mm (1 inch) to D for drain tting.
**See Section 3 for additional information.
ARCTIC Refrigerated Bath/Circulator Specifications
• Thermo Fisher Scientic reserves the right to change specications without notice.
Temperature (°C)
Time (Minutes)
A
B
25 50 75 100
20
10
0
-10
-20
-30
-40
A = SC150-A25
B = SC150-A28

Section 2 General Information
2-3
Thermo Scientific
Stainless Steel Baths/Circulators
S3 S7 S13 S15
Temperature Range* Ambient +13 to 150°C
Ambient +23 to 302°F
Ambient +13 to 150°C
Ambient +23 to 302°F
Ambient +13 to 150°C
Ambient +23 to 302°F
Ambient +13 to 150°C
Ambient +23 to 302°F
Bath Volume liters
gallons
2 - 5
0.6 - 1.3
4 - 7
1.1 - 1.8
7 - 11
1.8 - 2.9
7 - 17
1.8 - 4.5
Dimensions (H x W x D)** mm
inches
406 x 235 x 428
16.0 x 9.2 x 16.8
456 x 235 x 428
18.0 x 19.2 x 16.8
456 x 312 x 428
17.9 x 12.6 x 16.8
456 x 381 x 457
17.9 x 15.0 x 18.0
Net Weight kg
lb
9.8
21.5
10.6
23.4
12.3
27.0
13.7
30.1
Stainless Steel Baths/Circulators
S21 S30 S45 S49
Temperature Range* Ambient +13 to 150°C
Ambient +23 to 302°F
Ambient +13 to 150°C
Ambient +23 to 302°F
Ambient +13 to 150°C
Ambient +23 to 302°F
Ambient +13 to 150°C
Ambient +23 to 302°F
Bath Volume liters
gallons
7 - 17
1.8 - 4.5
14 - 24
3.7 - 6.3
30 - 41
7.9 - 10.8
29 - 51
7.7 - 13.5
Dimensions (H x W x D)** mm
inches
409 x 381 x 628
16.1 x 15.0 x 24.7
456 x 381 x 628
17.9 x 15.0 x 24.7
556 x 381 x 628
21.9 x 15.0 x 24.7
456 x 579 x 746
17.9 x 22.8 x 29.4
Net Weight kg
lb
14.2
31.2
16.5
36.2
20.3
44.7
24.3
53.4
**Add ~26 mm (1 inch) to D for drain tting.
*** See Section 3 for additional information.
H
W
D
• Thermo Fisher Scientic reserves the right to change specications without notice.
*Lower temperature ranges available with supplemental cooling.
SAHARA Bath/Circulator Specifications
Temperature (°C)
Time (Minutes)
AB
5 10 15 20 25 30
100
80
60
40
20 A = SC150-S7 (5L water)
B = SC150-S13 (9.5L water

Section 2 General Information
2-4 Thermo Scientific
Wetted Materials STANDARD Thermostat
Viton
EPDM
Ryton
Ultem
Vectra
Stainless Steel
Stainless Steel Baths/Circulators
Stainless Steel 316
Stainless Steel 304
EPDM (drain tting)
Ryton
Zotek-N (cover seal)
Transparent Acrylic Baths/Circulators
Poly-acryl
Polyphenylene oxide (PPO) Baths/
Circulators
Polyphenylenoxid
Transparent Acrylic Baths/Circulators
S6T S12T S19T
Temperature Range* Ambient +13 to 60°C
Ambient +23 to 140°F
Ambient +13 to 60°C
Ambient +23 to 140°F
Ambient +13 to 60°C
Ambient +23 to 140°F
Bath Volume liters
gallons
4 - 6
1 - 1.6
8 - 12
2.1 - 3.2
12 - 19
3.2 - 5.0
Dimensions (H x W x D) mm
inches
360 x 194 x 445
14.2 x 7.6 x 17.5
360 x 360 x 370**
14.2 x 14.2 x 14.6**
360 x 360 x510**
14.2 x 14.2 x 20.1**
Net Weight kg
lb
6.3
13.9
7.3
16.1
8.7
19.1
Polyphenylene oxide (PPO) Baths/Circulators
S5P S14P S21P
Temperature Range* Ambient +13 to 100°C
Ambient +23 to 212°F
Ambient +13 to 100°C
Ambient +23 to 212°F
Ambient +13 to 100°C
Ambient +23 to 212°F
Bath Volume liters
gallons
3 - 5
0.8 - 1.3
8 - 14
2.1 - 3.7
13 - 21
3.4 - 5.5
Dimensions (H x W x D) mm
inches
360 x 187 x 395
14.2 x 7.2 x 15.6
360 x 360 x 450
14.2 x 14.2 x 17.7
360 x 360 x 650
14.2 x 14.2 x 25.6
Net Weight kg
lb
5.1
11.2
6.3
13.9
6.6
14.5
• Thermo Fisher Scientic reserves the right to change specications without notice.
*Lower temperature ranges available with supplemental cooling.
**Add ~13 mm (1/2 inch) to D for drain tting.
***See Section 3 for additional information.

3-1
Thermo Scientific
Section 3 Installation
Ambient Temperature Range 5°C to 40°C (41°F to 104°F)
Maximum Relative Humidity 80% at 31°C (88°F)
Operating Altitude Sea Level to 2000 meters (6560 feet)
Overvoltage Category II
Pollution Degree 2
Degree of Protection IP 20
The unit is designed for continuous operation and for indoor use.
The thermostat normally ships with it mounted facing the reservoir. You may
change the position ±90° by removing thumb screws, no tools are required.
Do not mount it backwards; the line cord could contact the reservoir
uid. 
Ambient
Conditions
CAUTION
CAUTION
CAUTION
The nozzle at the end of the pump can be repositioned for maximum ow
in the bath. When repositioning the head ensure the nozzle is not directed
towards a bath wall. There is a second opening on the pump that is capped,
remove the cap if that direction is needed.
Never place the unit in a location where excessive heat, moisture,
inadequate ventilation, or corrosive materials are present. 
Refrigerated units should be left in an upright position for 24 hours
before starting. This will ensure the lubrication oil has drained back
into the compressor. 
Rotate thermostat
only ±90° from shown
position

Section 3 Installation
3-2 Thermo Scientific
Electrical
Requirements
The unit construction provides protection against the risk of electrical
shock by grounding appropriate metal parts. The protection will not
function unless the power cord is connected to a properly grounded
outlet. It is the user's responsibility to assure a proper ground
connection is provided. 
The unit is intended for use on a dedicated outlet. All thermostats are
equipped with automatic thermally-triggered 20 Amp circuit protector.
NOTE If the circuit protector activates allow the unit to cool before
resetting the protector. Restart the unit. Contact us if it activates again. 
The circuit protection is designed to protect the controller, and is not
intended as a substitute for branch circuit protection.
If the unit's power cord is used as the disconnecting device, it must be
easily accessible at all times. 
Operate the unit using only the supplied line cords, never operate
equipment with damaged cords. 
Refer to the bath nameplate on the rear, upper-left-hand corner of the
bath for specic electrical requirements. Voltage deviations of ± 10%
are permissible. The outlet must be rated as suitable for the total power
consumption of the unit, see page 3-4.
NOTE If a bath and thermostat were purchased separately, follow the elec-
trical requirements listed on the bath nameplate. 
DANGER
Ventilation The unit can operate with 0 clearance on two exhaust sides as long as the
third exhaust side has unrestricted air ow. Blocked ventilation will increase
the unit's temperature, reduce its cooling capacity and, on refrigerated units,
eventually lead to premature compressor failure.
Ventilation Options

Section 3 Installation
3-3
Thermo Scientific
The following power options are available:
Unit Volts1/Hertz/Phase Amps2 Total Wattage Plug Type
A10 115/60/1 12 1325 N5-15
100/50-60/1 12 1135 N5-15
230/50/1 12 2370 Country Specific
A28 115/60/1 12 1345 N5-15
100/50-60/1 12 1150 N5-15
230/50/1 12 2395 Country Specific
A25 115/60/1 12 1345 N5-15
100/50-60/1 12 1150 N5-15
230/50/1 12 2395 Country Specific
A5B 115/60/1 12 1325 N5-15
100/50-60/1 12 1135 N5-15
230/50/1 12 2370 Country Specific
A10B 115/60/1 12 1325 N5-15
100/50-60/1 12 1135 N5-15
230/50/1 12 2370 Country Specific
A25B 115/60/1 12 1345 N5-15
100/50-60/1 12 1150 N5-15
230/50/1 12 2395 Country Specific
A28F 115/60/1 12 1325 N5-15
100/50-60/1 12 1135 N5-15
230/50/1 12 2370 Country Specific
A40 115/60/1 16 1525 N5-20
100/50-60/1 16 1660 N5-20
230/50/1 12 2600 Country Specific
A24B 115/60/1 16 1525 N5-20
100/50-60/1 16 1660 N5-20
230/50/1 12 2600 Country Specific
All Heated 115/60/1 12 1300 N5-20
Baths/Circulators 100/50-60/1 12 1000 N5-20
230/50/1 12 2135 Country Specific
1. Volts ± 10%
2. Maximum amp draw
20 Amp Outlet 15 Amp Outlet
(16 Amp) (12 Amp)

Section 3 Installation
3-4 Thermo Scientific
A = Power Inlet from Bath
Thermostat
Bath
B = Power Outlet to Thermostat
C = Power Inlet Power Supply
Cable required for
proper communication
between the bath and the
thermostat.
For refrigerated baths:
Ensure all communication and electrical connections are made prior to
starting the unit. 
Install the power cord from the connector on the rear of the•
controller, A, to the connector on the rear of the refrigerated bath, B.
Connect the bath’s power cord, C, to a grounded power outlet.•
Install the supplied communications cable between the thermostat•
and the bath RJ45 connectors (similar to Ethernet).
For refrigerated baths, never connect controller power inlet, A, to
a power outlet. Never connect power outlet, B, to anything but a
thermostat. 
Ensure the electrical cords do not come in contact with any of the
plumbing connections or tubing. 
Bath
Communication
Thermostat
Communication

Section 3 Installation
3-5
Thermo Scientific
Plumbing Connections (Typical)
External
Circulation
Tubing
Requirements
Tubing is normally used to connect the pump to an external application.
NOTE Cap the pump nozzle with the supplied tting for maximum pressure
to the external application, it may be necessary to remove the thermostat
from the bath to access the nozzle. 
NOTE The maximum allowable length of tube depends largely on the
size, form and material of the external vessel. The length of tube and its
diameter, combined with the circulating capacity, have a large effect on the
temperature stability. Whenever possible, use a wider tube diameter and place
the application as close as possible to the circulator. 
Extreme operating temperatures will lead to extreme temperatures on
the tube surface, this is even more critical with metal nozzles. 
the required tube material depends on the heat transfer liquid used •
tubes must not be folded or bent•
after prolonged use, tubes may become brittle or they may get very soft, •
check them on a regular basis and replace if necessary
secure all tube connections using clamps•
When using the internal bath only, the plumbing connections can be closed
with the supplied plate and union nuts.
Ensure none of the tubing comes in contact with the power cord. 
CAUTION
Pump Nozzle (Typical)
Ensure the supplied
o-ring is installed on
the nut.
The plumbing connections for external circulation are located on the rear of
the thermostat. is the return ow from the external application.
is the outlet ow to the external application (supply side). The
connections are 16 mm O.D. Remove the union nuts and plates to install the
8 mm or 12 mm hose barbs and clamps supplied with the unit.
Return Flow Outlet Flow

Section 3 Installation
3-6 Thermo Scientific
Tubing Tubing for Thermo Scientic temperature control systems is optional.
Tubing is available in lengths of 0.5, 1.0 and 1.5 meters. Couplings for
connecting tubes are also available. The smallest opening inside the metal
tubes is 10 mm. The metal tubing is provided with coupling nuts (M16 x 1,
DIN 12 879, part 2) at either end.
Please select the proper tubing from the table shown in Section 5.
Ensure the tubing you select will meet your maximum temperature
and pressure requirements. 
Plastic and rubber tubing
If other plastic and rubber tubes are used, ensure that the tubes selected are
fully suitable for the particular application, i.e., that they will not split, crack
or become disengaged from their connections.
Connect the tubing using the supplied tube ttings for 8 or 12 mm i.d. They
are attached to the plumbing connections with a supplied coupling nut.
We highly recommend using foam rubber insulation on the tubing and the
ttings.
Metal tubing
Thermo Scientic metal tubing (stainless steel insulated) offers a particularly
high degree of safety and is suitable for both low and high temperatures/
liquids.
The metal tubing is attached directly to the plumbing connections, gaskets are
not required.
Do not subject tubing to mechanical strain and ensure any specied
bend radius is not exceeded. 
CAUTION
CAUTION

Section 3 Installation
3-7
Thermo Scientific
Fluids
The user is always responsible for the uid used. Never use
corrosive uids with this unit. 
Never use 100% glycol. 
Handling and disposal of liquids other than water should be done
in accordance with the uid manufacturers specication and/or the
MSDS for the uid used. 
Always adjust the unit's software to the uid used, see Section 4. 
When using water above 80°C closely monitor the uid level,
frequent top-offs will be required. It will also create steam. 
Water/glycol mixtures require top-offs with pure water, otherwise
the percentage of glycol will increase resulting in high viscosity and
poor performance. 
Thermo Fisher Scientic takes no responsibility for damages caused by
the selection of an unsuitable bath uid.
Unsuitable bath uids are uids which:
are very highly viscous (much higher than 30 mPas at the respective •
working temperature)
have corrosive characteristics or•
tend to break down at high temperatures•
For uid selection consider application requirements, operating
temperature range, material compatibility, safety concerns, and
environmental issues.
5°C to 95°C — Distilled Water or Deionized Water (up to 3 MΩ-cm)
Normal tap water leads to calcareous deposits necessitating frequent unit
decalcication, see table on next page.
Calcium tends to deposit itself on the heating element. The heating
capacity is reduced and service life shortened.
-30°C to 80°C — Water with Glycol
Below 5°C water has to be mixed with a glycol. The amount of glycol
added should cover a temperature range 5°C lower than the operating
temperature of the particular application. This will prevent the water/
glycol from gelling (freezing) near the evaporating coil.
Excess glycol deteriorates the temperature accuracy due to its high
viscosity.
CAUTION
CAUTION
CAUTION
CAUTION
DANGER
DANGER

Section 3 Installation
3-8 Thermo Scientific
-40°C to 200°C — SIL180 (SC 150 and SC 150L units only)
SIL180 is suitable for covering nearly the entire range with just one liquid,
especially when used with the cooling units.
Unfortunately SIL180 has a wetting tendency necessitating the occasional
cleaning of the bath cover.
other temperatures (SC 150 and SC 150L units only)
Thermo Fisher Scientic offers a range of heat transfer uids for these
temperature control applications.
SYNTH 60, SYNTH 200, SYNTH 260: (SC 150 and SC 150L units only)
Synthetic thermal liquid with a medium life span (several months) and little
smell annoyance.
SIL 100, SIL 180, SIL 300: (SC 150 and SC 150L units only)
Silicone oil with a very long life span ( over 1 year) and negligible smell.
Thermo Fisher heat transfer uids are supplied with an EC Safety Data
Sheet.
Ensure, when selecting the heat transfer uid, that no toxic gases can
be generated. Inammable gases can build up over the uid during
usage. 
Ensure the over temperature cut-off point is set lower than the re
point for the heat transfer uid selected. 
The highest working temperature as dened by the EN 61010 (IEC
1010) must be limited to 25°C below the re point of the bath uid. 
CAUTION
DANGER
CAUTION
When working with uids other than water:
Do not use any uid until you have read and understood the label and •
the Material Safety Data Sheet (MSDS).
Ensure any uid residue or any other material is thoroughly removed •
before lling the unit with a different uid.
Always wear protective clothing, especially a face shield and gloves.•
Avoid spattering on any of the unit's components, always• slowly add uid.
When adding, point the opening of a container away from yourself.
Use fume hoods.•
Do not allow any ignition sources in the vicinity. •
Additional Fluid
Precautions
