Metrohm 930 Compact IC Flex User manual

930 Compact IC Flex
930 Compact IC Flex Oven/Deg/MB
Manual – Short Instructions
8.930.8121EN / 2022-11-15

Metrohm AG
CH-9100 Herisau
Switzerland
[phone]
[email protected]
www.metrohm.com
930 Compact IC Flex
930 Compact IC Flex Oven/Deg/MB
2.930.2180
Manual – Short Instructions
8.930.8121EN / 2022-11-15

Technical Communication
Metrohm AG
CH-9100 Herisau
This documentation is protected by copyright. All rights reserved.
This documentation has been prepared with great care. However, errors
can never be entirely ruled out. Please send comments regarding possible
errors to the address above.
Disclaimer
Deficiencies arising from circumstances that are not the responsibility of
Metrohm, such as improper storage or improper use, etc., are expressly
excluded from the warranty. Unauthorized modifications to the product
(e.g. conversions or attachments) exclude any liability on the part of the
manufacturer for resulting damage and its consequences. Instructions and
notes in the Metrohm product documentation must be strictly followed.
Otherwise, Metrohm's liability is excluded.

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Table of contents
930 Compact IC Flex Oven/Deg/MB (2.930.2180) ￭￭￭￭￭￭￭￭ III
Table of contents
1 About this quick start guide 1
2 Introduction 2
2.1 Instrument description ......................................................... 2
2.2 Accessories and additional information ............................. 4
2.3 Symbols and conventions .................................................... 4
3 Safety 6
3.1 Intended use ......................................................................... 6
3.2 Responsibility of the operator ............................................. 6
3.3 Requirements for operating personnel ............................... 7
3.4 Safety instructions ................................................................ 7
3.4.1 General notes on safety ........................................................... 7
3.4.2 Electrical safety ........................................................................ 7
3.4.3 Tubing and capillary connections ............................................. 8
3.4.4 Flammable solvents and chemicals ........................................... 9
3.4.5 Recycling and disposal ............................................................. 9
4 Overview of the instrument 10
4.1 Front .................................................................................... 10
4.2 Rear ...................................................................................... 12
5 Installation 14
5.1 Setting up the instrument .................................................. 14
5.1.1 Packaging .............................................................................. 14
5.1.2 Checks .................................................................................. 14
5.1.3 Location ................................................................................ 14
5.2 Capillary connections in the IC system ............................. 14
5.3 Removing transport locking screws .................................. 15
5.4 Connecting the drainage tubing and leak sensor ............ 17
5.4.1 Installing the drainage tubing ................................................ 17
5.4.2 Connecting the leak sensor .................................................... 18
5.5 Column oven ....................................................................... 19
5.6 Connecting the eluent bottle ............................................. 19
5.7 Connecting the eluent degasser ........................................ 21
5.8 Installing the high-pressure pump .................................... 22
5.9 Installing an inline filter ..................................................... 22

Table of contents ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
IV ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Oven/Deg/MB (2.930.2180)
5.10 Installing the pulsation absorber ...................................... 22
5.11 Injection valve ..................................................................... 22
5.12 Installing the conductivity detector .................................. 22
5.13 Connecting the sample degasser (optional) ..................... 23
5.14 Connecting the instrument to a computer ....................... 24
5.15 Connecting the instrument to the power grid ................. 25
5.16 Initial start-up ..................................................................... 26
5.17 Connecting and rinsing the guard column ....................... 28
5.18 Connecting and rinsing the separation column ............... 29
5.19 Conditioning ........................................................................ 31
6 Operation 33
Index 34

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Table of figures
930 Compact IC Flex Oven/Deg/MB (2.930.2180) ￭￭￭￭￭￭￭￭ V
Table of figures

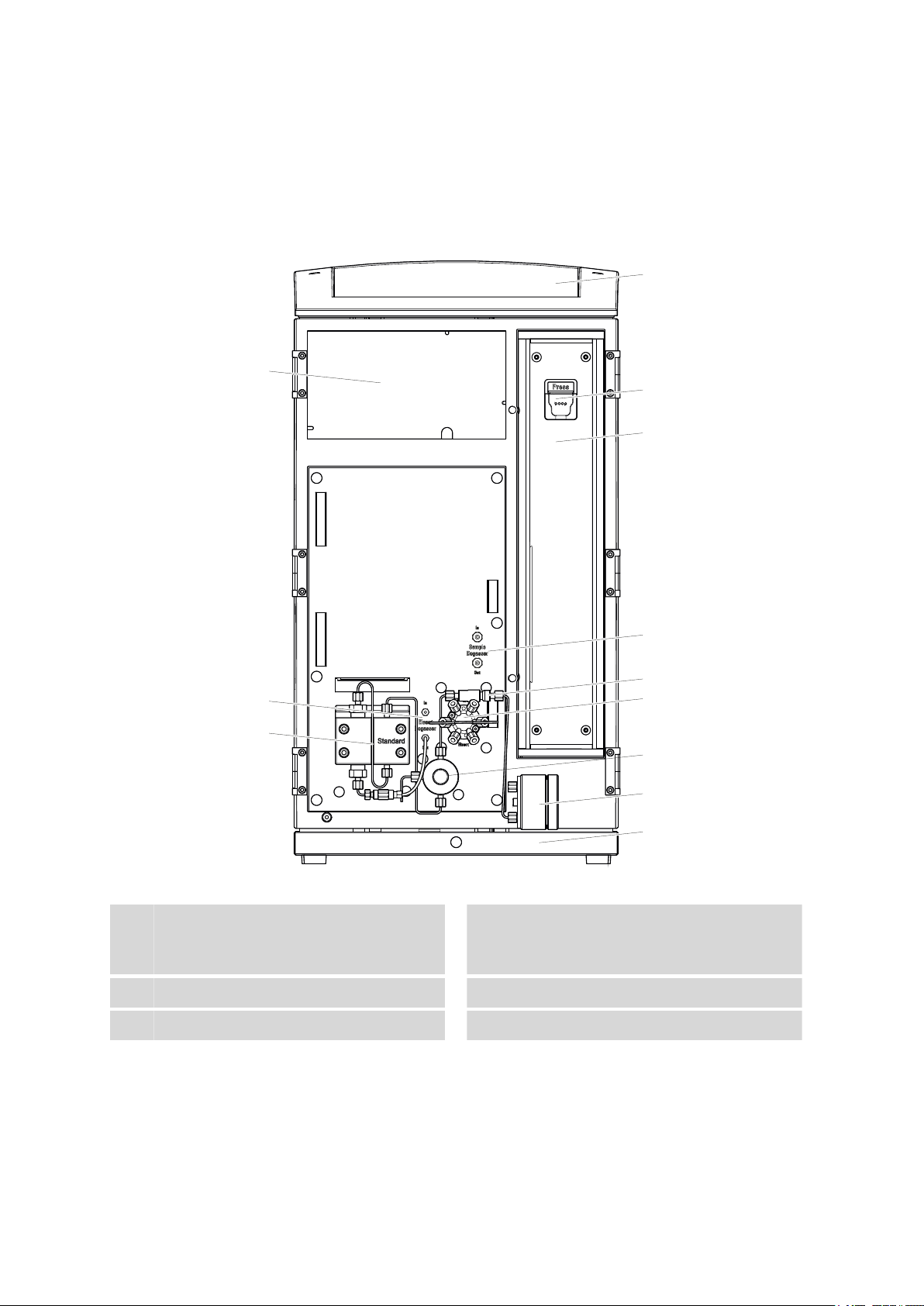

Figure 1 Front ............................................................................................... 10
Figure 2 Rear ................................................................................................ 12
Figure 3 Removing the transport locking screws ............................................ 16
Figure 4 Installing the tubing weighting and aspiration filter .......................... 21

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 1 About this quick start guide
930 Compact IC Flex Oven/Deg/MB (2.930.2180) ￭￭￭￭￭￭￭￭ 1
1 About this quick start guide
This short instruction manual contains important chapters from the com-
prehensive manual. In addition to an introduction, safety instructions and
an overview of the instrument, you will also find information about instal-
ling and operating the 930 Compact IC Flex Oven/Deg/MB as well as
information regarding the warranty. The comprehensive manual can be
downloaded as a PDF file from the Internet.
Downloading the manual
You can find the detailed manual on the Internet under
http://www.metrohm.com/:
1. Enter the order number for your instrument as the search term (e.g.
2.930.2180).
2. Click on Documents.
All available documents for the instrument will be displayed.
3. Click on the PDF link to download the desired manual.

2.1 Instrument description ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
2￭￭￭￭￭￭￭￭ 930 Compact IC Flex Oven/Deg/MB (2.930.2180)
2 Introduction
2.1 Instrument description
The 930 Compact IC Flex is a robust ion chromatograph. It is distinguished
by:
￭Its intelligence: All of the functions are monitored, optimized and docu-
mented in an FDA-compatible manner. Intelligent components, such as
iColumns, save important data onto a chip.
￭Its compact design: It has a small footprint.
￭Its transparency: All components are easily accessible and located for
simple visibility and can be monitored during operation through a large
window.
￭Its safety: The wet end and the electronics are physically separated.
This prevents fluids from coming into contact with the electronics to a
large extent. A leak sensor is integrated into the wet end.
￭Its environmental compatibility.
￭Its low noise emission.
￭The intelligent MagIC Net software.
￭Its performance: Short retention times and sharp peaks when used
with the IC Conductivity Detector MB and a column with a diameter of
2 mm.
The 930 Compact IC Flex is operated using the MagIC Net software. A
USB cable is used to connect the instrument to a computer with
MagIC Net installed. The intelligent software detects the instrument auto-
matically and checks its functionality. The software controls and monitors
the instrument, evaluates the measured data and manages it in a data-
base.
The 930 Compact IC Flex Oven/Deg/MB consists of the following mod-
ules:
Housing
The sturdy housing contains the instrument's electronic components,
including their interfaces and one connector for a separation column. In
addition, the housing provides space for a conductivity detector or an
amperometric detector. Capillaries and cables can be fed into and out of
the instrument through several openings.
Leak sensor
The leak sensor detects leaking liquid that collects in the instrument's base
tray. Liquid that leaks in the instrument is routed to the base tray using
drainage tubing and detected there.

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 2 Introduction
930 Compact IC Flex Oven/Deg/MB (2.930.2180) ￭￭￭￭￭￭￭￭ 3
Column oven
The column oven regulates the temperature for the separation column
and the eluent, thereby providing stable measuring conditions. There is a
column holder with chip reader in the column oven.
Eluent degasser
The eluent degasser removes gas bubbles and dissolved gases from the
eluent.
High-pressure pump
The intelligent and low-pulsation high-pressure pump pumps the eluent
through the IC system. It is equipped with a chip where its technical speci-
fications and "life history" (operating hours, service data, etc.) are stored.
Inline filter
Inline filters protect the separation column reliably from potential contam-
ination from the eluent. The filter pads with 2 µm pore size can be
replaced quickly and easily. They remove particles from the solutions, such
as bacteria and algae.
Pulsation absorber
The pulsation absorber protects the separation column from damage
caused by pressure fluctuations, e.g. when the injection valve is switched,
and reduces interfering pulsations during highly sensitive measurements.
Injection valve
The injection valve connects the eluent path to the sample path. By a
quick and precise switching of the valve, a quantity of sample solution
defined by the size of the sample loop is injected and flushed to the sepa-
ration column with the eluent.
Detector
Metrohm offers a series of different detectors for various analysis tasks. A
suitable detector type must be ordered as a separate device.
Sample degasser
The sample degasser removes gas bubbles and dissolved gases from the
sample.
Separation column
The intelligent separation column separates different components accord-
ing to their interactions with the column. Metrohm separation columns
are equipped with a chip where their technical specifications and history
(start-up, operating hours, injections etc) are stored.

2.2 Accessories and additional information ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
4￭￭￭￭￭￭￭￭ 930 Compact IC Flex Oven/Deg/MB (2.930.2180)
2.2 Accessories and additional information
Additional information is available on the Metrohm website (https://
www.metrohm.com):
￭Product family
￭Product versions
￭Accessories
￭Documents about the product
Downloading the accessories list
NOTICE
The accessories list is a part of the product documentation. Download
the accessories list and store it as a reference.
1. Use the search function to search for the product.
2. Open the desired product version.
3. Download the accessories list.
2.3 Symbols and conventions
The following symbols and formatting may appear in this documentation:
Cross-reference to figure legend
The first number refers to the figure number, the
second to the instrument part in the figure.
Instruction step
Perform the steps one after the other.
Method Dialog text, parameter in the software
File ▶ New Menu or menu item
[Continue] Button or key
WARNING
This symbol draws attention to a possible life-threat-
ening hazard or risk of injury.
WARNING
This symbol draws attention to a possible hazard due
to electrical current.

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 2 Introduction
930 Compact IC Flex Oven/Deg/MB (2.930.2180) ￭￭￭￭￭￭￭￭ 5
WARNING
This symbol draws attention to a possible hazard due
to heat or hot instrument parts.
WARNING
This symbol draws attention to a possible biological
hazard.
WARNING
Warning of optical radiation
CAUTION
This symbol draws attention to possible damage to
instruments or instrument parts.
NOTICE
This symbol highlights additional information and
tips.

3.1 Intended use ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
6￭￭￭￭￭￭￭￭ 930 Compact IC Flex Oven/Deg/MB (2.930.2180)
3 Safety
3.1 Intended use
The 930 Compact IC Flex Oven/Deg/MB is used for the determination of
cations, polar substances and anions without suppression using ion
chromatography.
The 930 Compact IC Flex Oven/Deg/MB is suitable for the use of columns
with a diameter of 2 mm.
This instrument is suitable for processing chemicals and flammable sam-
ples. Therefore, the use of the 930 Compact IC Flex requires the user to
have basic knowledge and experience in handling toxic and caustic sub-
stances. Knowledge regarding the application of fire prevention measures
prescribed for laboratories is also mandatory.
3.2 Responsibility of the operator
The operator must ensure that basic regulations on occupational safety
and accident prevention in chemical laboratories are observed. The opera-
tor has the following responsibilities:
￭Instruct personnel in the safe handling of the product.
￭Train personnel in the use of the product according to the user docu-
mentation (e.g. install, operate, clean, eliminate faults).
￭Train staff on basic occupational safety and accident prevention regula-
tions.
￭Provide personal protective equipment (e.g. protective glasses, gloves).
￭Provide suitable tools and equipment to carry out the work safely.
The product may be used only when it is in perfect condition. The follow-
ing measures are required to ensure the safe operation of the product:
￭Check the condition of the product before use.
￭Remedy defects and malfunctions immediately.
￭Maintain and clean the product regularly.

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 3 Safety
930 Compact IC Flex Oven/Deg/MB (2.930.2180) ￭￭￭￭￭￭￭￭ 7
3.3 Requirements for operating personnel
Only qualified personnel may operate the product. Qualified personnel are
persons who meet the following requirements:
￭Basic regulations on occupational safety and accident prevention for
chemical laboratories are known and complied with.
￭Knowledge of handling hazardous chemicals is present. Personnel have
the ability to recognize and avoid potential dangers.
￭Knowledge regarding the application of fire prevention measures for
laboratories is available.
￭Safety-relevant information is communicated and understood. The per-
sonnel can operate the product safely.
￭The user documentation has been read and understood. The personnel
operate the product according to the instructions in the user documen-
tation.
3.4 Safety instructions
3.4.1 General notes on safety
WARNING
Operate this instrument only according to the information contained in
this documentation.
This instrument left the factory in a flawless state in terms of technical
safety. To maintain this state and ensure non-hazardous operation of the
instrument, the following instructions must be observed carefully.
3.4.2 Electrical safety
The electrical safety when working with the instrument is ensured as part
of the international standard IEC 61010.
WARNING
Only personnel qualified by Metrohm are authorized to carry out service
work on electronic components.

3.4 Safety instructions ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
8￭￭￭￭￭￭￭￭ 930 Compact IC Flex Oven/Deg/MB (2.930.2180)
WARNING
Never open the housing of the instrument. The instrument could be
damaged by this. There is also a risk of serious injury if live components
are touched.
There are no parts inside the housing which can be serviced or replaced
by the user.
Supply voltage
WARNING
An incorrect supply voltage can damage the instrument.
Only operate this instrument with a supply voltage specified for it (see
rear panel of the instrument).
Protection against electrostatic charges
WARNING
Electronic components are sensitive to electrostatic charges and can be
destroyed by discharges.
Do not fail to pull the power cord out of the power socket before you
set up or disconnect electrical plug connections at the rear of the
instrument.
3.4.3 Tubing and capillary connections
CAUTION
Leaks in tubing and capillary connections are a safety risk. Tighten all
connections well by hand. Avoid applying excessive force to tubing con-
nections. Damaged tubing ends lead to leakage. Appropriate tools can
be used to loosen connections.
Check the connections regularly for leakage. If the instrument is used
mainly in unattended operation, then weekly inspections are manda-
tory.

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 3 Safety
930 Compact IC Flex Oven/Deg/MB (2.930.2180) ￭￭￭￭￭￭￭￭ 9
3.4.4 Flammable solvents and chemicals
WARNING
All relevant safety measures are to be observed when working with
flammable solvents and chemicals.
￭Set up the instrument in a well-ventilated location (e.g. fume cup-
board).
￭Keep all sources of flame far from the workplace.
￭Clean up spilled liquids and solids immediately.
￭Follow the safety instructions of the chemical manufacturer.
3.4.5 Recycling and disposal
This product is covered by European Directive 2012/19/EU, WEEE – Waste
Electrical and Electronic Equipment.
The correct disposal of your old instrument will help to prevent negative
effects on the environment and public health.
More details about the disposal of your old instrument can be obtained
from your local authorities, from waste disposal companies or from your
local dealer.

4.1 Front ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
10 ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Oven/Deg/MB (2.930.2180)
4 Overview of the instrument
4.1 Front
1
2
3
4
5
6
7
8
9
10
12
11
Figure 1 Front
1Bottle holder
Offers space for the eluent bottle and addi-
tional accessories.
2Column holder
For hanging the separation column (iCol-
umn). With column recognition.
3Column oven 4Sample degasser
5Inline filter 6Injection valve

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 4 Overview of the instrument
930 Compact IC Flex Oven/Deg/MB (2.930.2180) ￭￭￭￭￭￭￭￭ 11
7Purge valve
For purging the high-pressure pump. With
rotary knob in the center and pressure sen-
sor.
8Pulsation absorber
9Base tray
With leak sensor.
10 High-pressure pump
Pumps the eluent through the IC system.
11 Eluent degasser 12 Detector chamber
Offers space for an embedded detector and
additional accessories.

4.2 Rear ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
12 ￭￭￭￭￭￭￭￭ 930 Compact IC Flex Oven/Deg/MB (2.930.2180)
4.2 Rear
Figure 2 Rear
1Bottle holder 2Drainage tubing connection
For connecting the drainage tubing, which
guides escaped fluids away from the bottle
holder.
3Knurled screws
For fastening the removable back panel.
4Back panel
Removable. Enables access to the detector
chamber.
5Drainage tubing connection
For connecting the drainage tubing, which
guides escaped liquids away from the detec-
tor chamber.
6Transport locking screws
For securing the vacuum pump when trans-
porting the instrument.
