Mi-Light MiBoxer FUT039SA User manual

Controller adopt the widely used 2.4G wireless technology with
the features of low power consumption, long signal transmitting
and strong anti-interference, etc. Controller has auto-transmitting
and auto-synchronizing function. Widely used on the controlling
of hotel lighting and home lighting.
Subordinate New Brand
RGB+CCT LED Controller Kits
Model No.: FUT039SA

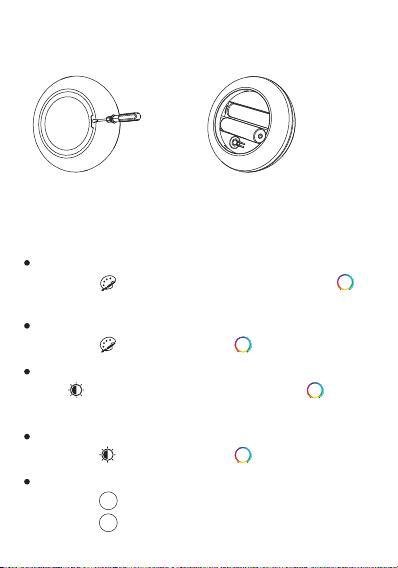

Install The Battery For Remote
Note: 2*AAA Battery need to buy seperately
1. Open battery cover
behind remote.
2. Install battery correctly and
close battery cover.
Remote Instruction
74.5mm
36mm 17mm
24mm
70mm
LED Controller
Working Voltage: DC12V~24V
Output: 6A/Channel
Total Output: Max 12A
RF: 2.4GHz
Control Distance: 30m
Working Temperature: -10~40°C
Output Connection: Common anode
Rainbow Remote
Working Voltage: 3V(AAA*2PCS)
Transmitting Power: 6dBm
Standby Power: 20uA
RF: 2.4GHz
Modulation Method: GFSK
Short press key twice in succession, and then touch
to adjust RGB.
Press key twice in succession, and then touch to
adjust color saturation of lighting.
Adjust saturation
Adjust RGB
Short press key once, then touch to adjust color temp.
Adjust color temperature
Short press key once, then touch to adjust brightness.
Adjust brightness
Long press key until indicator light flashes twice, then
short press key to cycle switch.
(Note: it will exit automatically if no operation after 3 seconds)
Dynamic mode switching
ON
ON
Introduction Parameters
V+
B
G
R
WW
CW
Input: DC12V/24V
V- V+
V+RGBCW
OUTPUT
WW
Button Diagram
Touch ring:
brightness, saturation, color temperature, RGB use together.
(
It turns to adjust brightness by default if remote is not operated for 3 seconds)
Turn on lights /
Dynamic mode /
Link / Unlink
Brightness /
Saturation
Turn off lights
RGB / Color temp.
Dim brightness /
saturation
Color temperature
adjustable
2.4G RF wireless
transmission technology
Remote control
Control distance 30m
Support third party voice control
(2.4GHz gateway is needed)
DMX512 controllable
(DMX512 LED transmitter is needed)
Smartphone App control
(2.4GHz gateway is needed)
16 Millions of
colors to choose

Controller adopt the widely used 2.4G wireless technology with
the features of low power consumption, long signal transmitting
and strong anti-interference, etc. Controller has auto-transmitting
and auto-synchronizing function. Widely used on the controlling
of hotel lighting and home lighting.
Subordinate New Brand
RGB+CCT LED Controller Kits
Model No.: FUT039SA
Install The Battery For Remote
Note: 2*AAA Battery need to buy seperately
1. Open battery cover
behind remote.
2. Install battery correctly and
close battery cover.
Remote Instruction
74.5mm
36mm 17mm
24mm
70mm
LED Controller
Working Voltage: DC12V~24V
Output: 6A/Channel
Total Output: Max 12A
RF: 2.4GHz
Control Distance: 30m
Working Temperature: -10~40°C
Output Connection: Common anode
Rainbow Remote
Working Voltage: 3V(AAA*2PCS)
Transmitting Power: 6dBm
Standby Power: 20uA
RF: 2.4GHz
Modulation Method: GFSK
Short press key twice in succession, and then touch
to adjust RGB.
Press key twice in succession, and then touch to
adjust color saturation of lighting.
Adjust saturation
Adjust RGB
Short press key once, then touch to adjust color temp.
Adjust color temperature
Short press key once, then touch to adjust brightness.
Adjust brightness
Long press key until indicator light flashes twice, then
short press key to cycle switch.
(Note: it will exit automatically if no operation after 3 seconds)
Dynamic mode switching
ON
ON
Introduction Parameters
V+
B
G
R
WW
CW
Input: DC12V/24V
V- V+
V+RGBCW
OUTPUT
WW
Button Diagram
Touch ring:
brightness, saturation, color temperature, RGB use together.
(
It turns to adjust brightness by default if remote is not operated for 3 seconds)
Turn on lights /
Dynamic mode /
Link / Unlink
Brightness /
Saturation
Turn off lights
RGB / Color temp.
Dim brightness /
saturation
Color temperature
adjustable
2.4G RF wireless
transmission technology
Remote control
Control distance 30m
Support third party voice control
(2.4GHz gateway is needed)
DMX512 controllable
(DMX512 LED transmitter is needed)
Smartphone App control
(2.4GHz gateway is needed)
16 Millions of
colors to choose

Controller adopt the widely used 2.4G wireless technology with
the features of low power consumption, long signal transmitting
and strong anti-interference, etc. Controller has auto-transmitting
and auto-synchronizing function. Widely used on the controlling
of hotel lighting and home lighting.
Subordinate New Brand
RGB+CCT LED Controller Kits
Model No.: FUT039SA
Install The Battery For Remote
Note: 2*AAA Battery need to buy seperately
1. Open battery cover
behind remote.
2. Install battery correctly and
close battery cover.
Remote Instruction
74.5mm
36mm 17mm
24mm
70mm
LED Controller
Working Voltage: DC12V~24V
Output: 6A/Channel
Total Output: Max 12A
RF: 2.4GHz
Control Distance: 30m
Working Temperature: -10~40°C
Output Connection: Common anode
Rainbow Remote
Working Voltage: 3V(AAA*2PCS)
Transmitting Power: 6dBm
Standby Power: 20uA
RF: 2.4GHz
Modulation Method: GFSK
Short press key twice in succession, and then touch
to adjust RGB.
Press key twice in succession, and then touch to
adjust color saturation of lighting.
Adjust saturation
Adjust RGB
Short press key once, then touch to adjust color temp.
Adjust color temperature
Short press key once, then touch to adjust brightness.
Adjust brightness
Long press key until indicator light flashes twice, then
short press key to cycle switch.
(Note: it will exit automatically if no operation after 3 seconds)
Dynamic mode switching
ON
ON
Introduction Parameters
V+
B
G
R
WW
CW
Input: DC12V/24V
V- V+
V+RGBCW
OUTPUT
WW
Button Diagram
Touch ring:
brightness, saturation, color temperature, RGB use together.
(
It turns to adjust brightness by default if remote is not operated for 3 seconds)
Turn on lights /
Dynamic mode /
Link / Unlink
Brightness /
Saturation
Turn off lights
RGB / Color temp.
Dim brightness /
saturation
Color temperature
adjustable
2.4G RF wireless
transmission technology
Remote control
Control distance 30m
Support third party voice control
(2.4GHz gateway is needed)
DMX512 controllable
(DMX512 LED transmitter is needed)
Smartphone App control
(2.4GHz gateway is needed)
16 Millions of
colors to choose

Controller adopt the widely used 2.4G wireless technology with
the features of low power consumption, long signal transmitting
and strong anti-interference, etc. Controller has auto-transmitting
and auto-synchronizing function. Widely used on the controlling
of hotel lighting and home lighting.
Subordinate New Brand
RGB+CCT LED Controller Kits
Model No.: FUT039SA
Install The Battery For Remote
Note: 2*AAA Battery need to buy seperately
1. Open battery cover
behind remote.
2. Install battery correctly and
close battery cover.
Remote Instruction
74.5mm
36mm 17mm
24mm
70mm
LED Controller
Working Voltage: DC12V~24V
Output: 6A/Channel
Total Output: Max 12A
RF: 2.4GHz
Control Distance: 30m
Working Temperature: -10~40°C
Output Connection: Common anode
Rainbow Remote
Working Voltage: 3V(AAA*2PCS)
Transmitting Power: 6dBm
Standby Power: 20uA
RF: 2.4GHz
Modulation Method: GFSK
Short press key twice in succession, and then touch
to adjust RGB.
Press key twice in succession, and then touch to
adjust color saturation of lighting.
Adjust saturation
Adjust RGB
Short press key once, then touch to adjust color temp.
Adjust color temperature
Short press key once, then touch to adjust brightness.
Adjust brightness
Long press key until indicator light flashes twice, then
short press key to cycle switch.
(Note: it will exit automatically if no operation after 3 seconds)
Dynamic mode switching
ON
ON
Introduction Parameters
V+
B
G
R
WW
CW
Input: DC12V/24V
V- V+
V+RGBCW
OUTPUT
WW
Button Diagram
Touch ring:
brightness, saturation, color temperature, RGB use together.
(
It turns to adjust brightness by default if remote is not operated for 3 seconds)
Turn on lights /
Dynamic mode /
Link / Unlink
Brightness /
Saturation
Turn off lights
RGB / Color temp.
Dim brightness /
saturation
Color temperature
adjustable
2.4G RF wireless
transmission technology
Remote control
Control distance 30m
Support third party voice control
(2.4GHz gateway is needed)
DMX512 controllable
(DMX512 LED transmitter is needed)
Smartphone App control
(2.4GHz gateway is needed)
16 Millions of
colors to choose

Attention
1. Please check whether the voltage of the power supply is in
accordance with the controller, and please check the
connection of both the cathode and anode, otherwise the
controller will be broken.
2. Please don’t connect wires with power on. Please turn on again
only when it is in right connection and no short circuit.
3. Please do not use the controller in the place with widely range
metal area or strong electromagnetic wave nearby, otherwise,
the remote distance will be seriously affected .
Made in China
Controller can not
use in humid area

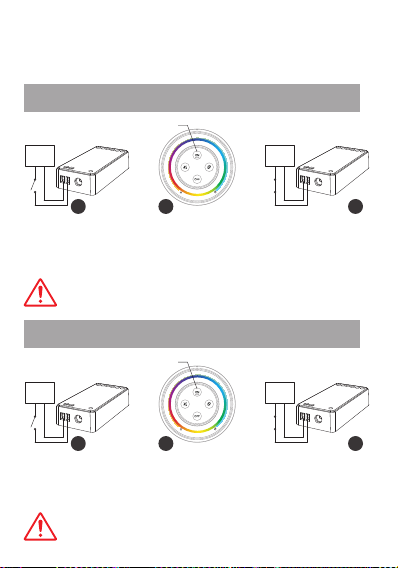

Linking Code / Unlinking Code Instructions
Linking Code Instructions
Attention: No need to match code since its already matched code
in factory setting
Unlinking Code Instructions
Link/Unlink
button
Switch off controller,
after 10 seconds then
switch on again.
Switch off controller,
after 10 seconds then
switch on again.
Short press "ON"
button 3 times
within 3 seconds
when light on.
Short press "ON"
button 5 times
within 3 seconds
when light on.
Lights blink 3 times
slowly means linking
is done successfully.
Linking failed if light is not blinking slowly, Please follow above
steps again.(Note: controller that have linked can't link again)
Lights blink 10 times
quickly means
unlinking is done
successfully.
Unlinking failed if light is not blinking quickly, Please follow above
steps again.(Note: controller haven't linked that don't need to unlink)
1 2 3
Link/Unlink
button
Dynamic mode table
Dynamic Mode Brightness / Saturation
Mardi Gras
Automatic color change
Sam
Gemstone
Twilight
American
Fat Tuesday
Party
Slow Color Splash
1
2
3
4
5
6
7
8
9
Adjustable
Number

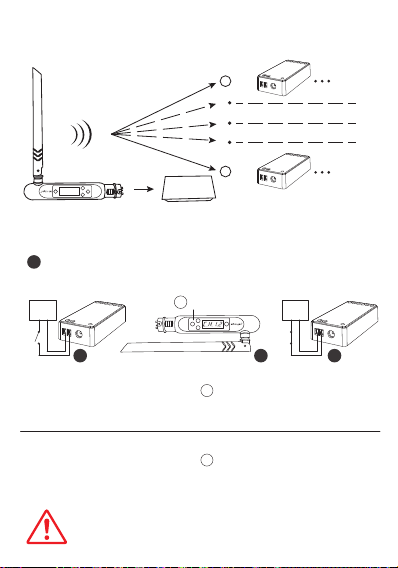

Linking Code / Unlinking Code
If the link or unlink failed, please follow the above steps again.
(Note: controller that have linked can't link again, controller
haven't linked that don't need to unlink).
Switch off controller,
after 10 seconds
then switch on again.
Switch off controller,
after 10 seconds
then switch on again.
2 3
Power Power
4
Lights blink 3 times
slowly means linking
is done successfully.
Lights blink 10 times
quickly means unlinking
is done successfully.
Short press " " button
3 times within 3 seconds
when light on.
Link/Unlink button
+
SET
-
SET
SET
Short press " " button
3 times within 5 seconds
when light on.
SET
Choose the zone for the controller by pressing ‘ + ’ or
‘ - ’ (e.g. ‘CH12’ means zone 12)
Link Code
Unlinking Code
1
Power Power
1 2 3
Power Power
+
SET
-
8.8.8.8
DMX512
console
connect
DMX512 Transmitter
2.4GHz Wireless Signal
1zone umlimited
umlimited
16 zone
Compatible with DMX512 LED Transmitter
(Purchase separately)
Controller Controller
Signal transmitting &
Modes synchronization
Distance 30m

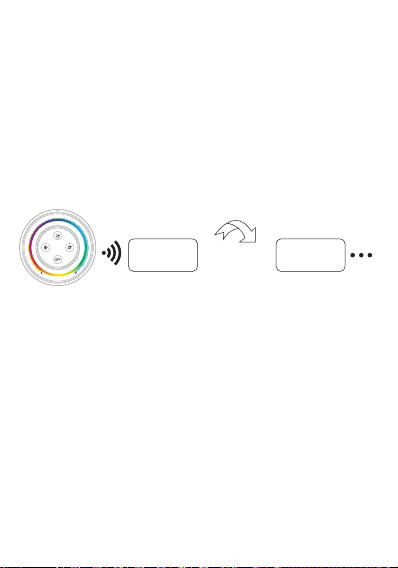

Signal transmitting
One controller can transmit the signals from the remote control to
another controller within 30m, as long as there is a
controller within
30m, the remote control distance can be limitless.
Different controllers can work synchronously when they are
started at different times, controlled by the same remote, under
same dynamic mode and within 30m distance.
Modes synchronization
PWM high frequency / low frequency switching
Switch to high frequency (8KHz): on the condition of turning on the light
1. Short press the “OFF” button of the remote control once;
2. Short press the “ON” button 5 times within 3 seconds, the white
light blink 2 times quickly, indicating successfully.
Switch to low frequency (500Hz): on the condition of turning off the light
1. Short press the “ON” button of the remote control once;
2. Short press the “OFF” button 5 times within 3 seconds, the white
light blink 2 times slowly, indicating successfully.

Attention
1. Please check whether the voltage of the power supply is in
accordance with the controller, and please check the
connection of both the cathode and anode, otherwise the
controller will be broken.
2. Please don’t connect wires with power on. Please turn on again
only when it is in right connection and no short circuit.
3. Please do not use the controller in the place with widely range
metal area or strong electromagnetic wave nearby, otherwise,
the remote distance will be seriously affected .
Made in China
Controller can not
use in humid area
Linking Code / Unlinking Code Instructions
Linking Code Instructions
Attention: No need to match code since its already matched code
in factory setting
Unlinking Code Instructions
Link/Unlink
button
Switch off controller,
after 10 seconds then
switch on again.
Switch off controller,
after 10 seconds then
switch on again.
Short press "ON"
button 3 times
within 3 seconds
when light on.
Short press "ON"
button 5 times
within 3 seconds
when light on.
Lights blink 3 times
slowly means linking
is done successfully.
Linking failed if light is not blinking slowly, Please follow above
steps again.(Note: controller that have linked can't link again)
Lights blink 10 times
quickly means
unlinking is done
successfully.
Unlinking failed if light is not blinking quickly, Please follow above
steps again.(Note: controller haven't linked that don't need to unlink)
1 2 3
Link/Unlink
button
Dynamic mode table
Dynamic Mode Brightness / Saturation
Mardi Gras
Automatic color change
Sam
Gemstone
Twilight
American
Fat Tuesday
Party
Slow Color Splash
1
2
3
4
5
6
7
8
9
Adjustable
Number
Linking Code / Unlinking Code
If the link or unlink failed, please follow the above steps again.
(Note: controller that have linked can't link again, controller
haven't linked that don't need to unlink).
Switch off controller,
after 10 seconds
then switch on again.
Switch off controller,
after 10 seconds
then switch on again.
2 3
Power Power
4
Lights blink 3 times
slowly means linking
is done successfully.
Lights blink 10 times
quickly means unlinking
is done successfully.
Short press " " button
3 times within 3 seconds
when light on.
Link/Unlink button
+
SET
-
SET
SET
Short press " " button
3 times within 5 seconds
when light on.
SET
Choose the zone for the controller by pressing ‘ + ’ or
‘ - ’ (e.g. ‘CH12’ means zone 12)
Link Code
Unlinking Code
1
Power Power
1 2 3
Power Power
+
SET
-
8.8.8.8
DMX512
console
connect
DMX512 Transmitter
2.4GHz Wireless Signal
1zone umlimited
umlimited
16 zone
Compatible with DMX512 LED Transmitter
(Purchase separately)
Controller Controller
Signal transmitting &
Modes synchronization
Distance 30m
Signal transmitting
One controller can transmit the signals from the remote control to
another controller within 30m, as long as there is a
controller within
30m, the remote control distance can be limitless.
Different controllers can work synchronously when they are
started at different times, controlled by the same remote, under
same dynamic mode and within 30m distance.
Modes synchronization
PWM high frequency / low frequency switching
Switch to high frequency (8KHz): on the condition of turning on the light
1. Short press the “OFF” button of the remote control once;
2. Short press the “ON” button 5 times within 3 seconds, the white
light blink 2 times quickly, indicating successfully.
Switch to low frequency (500Hz): on the condition of turning off the light
1. Short press the “ON” button of the remote control once;
2. Short press the “OFF” button 5 times within 3 seconds, the white
light blink 2 times slowly, indicating successfully.

Attention
1. Please check whether the voltage of the power supply is in
accordance with the controller, and please check the
connection of both the cathode and anode, otherwise the
controller will be broken.
2. Please don’t connect wires with power on. Please turn on again
only when it is in right connection and no short circuit.
3. Please do not use the controller in the place with widely range
metal area or strong electromagnetic wave nearby, otherwise,
the remote distance will be seriously affected .
Made in China
Controller can not
use in humid area
Linking Code / Unlinking Code Instructions
Linking Code Instructions
Attention: No need to match code since its already matched code
in factory setting
Unlinking Code Instructions
Link/Unlink
button
Switch off controller,
after 10 seconds then
switch on again.
Switch off controller,
after 10 seconds then
switch on again.
Short press "ON"
button 3 times
within 3 seconds
when light on.
Short press "ON"
button 5 times
within 3 seconds
when light on.
Lights blink 3 times
slowly means linking
is done successfully.
Linking failed if light is not blinking slowly, Please follow above
steps again.(Note: controller that have linked can't link again)
Lights blink 10 times
quickly means
unlinking is done
successfully.
Unlinking failed if light is not blinking quickly, Please follow above
steps again.(Note: controller haven't linked that don't need to unlink)
1 2 3
Link/Unlink
button
Dynamic mode table
Dynamic Mode Brightness / Saturation
Mardi Gras
Automatic color change
Sam
Gemstone
Twilight
American
Fat Tuesday
Party
Slow Color Splash
1
2
3
4
5
6
7
8
9
Adjustable
Number
Linking Code / Unlinking Code
If the link or unlink failed, please follow the above steps again.
(Note: controller that have linked can't link again, controller
haven't linked that don't need to unlink).
Switch off controller,
after 10 seconds
then switch on again.
Switch off controller,
after 10 seconds
then switch on again.
2 3
Power Power
4
Lights blink 3 times
slowly means linking
is done successfully.
Lights blink 10 times
quickly means unlinking
is done successfully.
Short press " " button
3 times within 3 seconds
when light on.
Link/Unlink button
+
SET
-
SET
SET
Short press " " button
3 times within 5 seconds
when light on.
SET
Choose the zone for the controller by pressing ‘ + ’ or
‘ - ’ (e.g. ‘CH12’ means zone 12)
Link Code
Unlinking Code
1
Power Power
1 2 3
Power Power
+
SET
-
8.8.8.8
DMX512
console
connect
DMX512 Transmitter
2.4GHz Wireless Signal
1zone umlimited
umlimited
16 zone
Compatible with DMX512 LED Transmitter
(Purchase separately)
Controller Controller
Signal transmitting &
Modes synchronization
Distance 30m
Signal transmitting
One controller can transmit the signals from the remote control to
another controller within 30m, as long as there is a
controller within
30m, the remote control distance can be limitless.
Different controllers can work synchronously when they are
started at different times, controlled by the same remote, under
same dynamic mode and within 30m distance.
Modes synchronization
PWM high frequency / low frequency switching
Switch to high frequency (8KHz): on the condition of turning on the light
1. Short press the “OFF” button of the remote control once;
2. Short press the “ON” button 5 times within 3 seconds, the white
light blink 2 times quickly, indicating successfully.
Switch to low frequency (500Hz): on the condition of turning off the light
1. Short press the “ON” button of the remote control once;
2. Short press the “OFF” button 5 times within 3 seconds, the white
light blink 2 times slowly, indicating successfully.

Attention
1. Please check whether the voltage of the power supply is in
accordance with the controller, and please check the
connection of both the cathode and anode, otherwise the
controller will be broken.
2. Please don’t connect wires with power on. Please turn on again
only when it is in right connection and no short circuit.
3. Please do not use the controller in the place with widely range
metal area or strong electromagnetic wave nearby, otherwise,
the remote distance will be seriously affected .
Made in China
Controller can not
use in humid area
Linking Code / Unlinking Code Instructions
Linking Code Instructions
Attention: No need to match code since its already matched code
in factory setting
Unlinking Code Instructions
Link/Unlink
button
Switch off controller,
after 10 seconds then
switch on again.
Switch off controller,
after 10 seconds then
switch on again.
Short press "ON"
button 3 times
within 3 seconds
when light on.
Short press "ON"
button 5 times
within 3 seconds
when light on.
Lights blink 3 times
slowly means linking
is done successfully.
Linking failed if light is not blinking slowly, Please follow above
steps again.(Note: controller that have linked can't link again)
Lights blink 10 times
quickly means
unlinking is done
successfully.
Unlinking failed if light is not blinking quickly, Please follow above
steps again.(Note: controller haven't linked that don't need to unlink)
1 2 3
Link/Unlink
button
Dynamic mode table
Dynamic Mode Brightness / Saturation
Mardi Gras
Automatic color change
Sam
Gemstone
Twilight
American
Fat Tuesday
Party
Slow Color Splash
1
2
3
4
5
6
7
8
9
Adjustable
Number
Linking Code / Unlinking Code
If the link or unlink failed, please follow the above steps again.
(Note: controller that have linked can't link again, controller
haven't linked that don't need to unlink).
Switch off controller,
after 10 seconds
then switch on again.
Switch off controller,
after 10 seconds
then switch on again.
2 3
Power Power
4
Lights blink 3 times
slowly means linking
is done successfully.
Lights blink 10 times
quickly means unlinking
is done successfully.
Short press " " button
3 times within 3 seconds
when light on.
Link/Unlink button
+
SET
-
SET
SET
Short press " " button
3 times within 5 seconds
when light on.
SET
Choose the zone for the controller by pressing ‘ + ’ or
‘ - ’ (e.g. ‘CH12’ means zone 12)
Link Code
Unlinking Code
1
Power Power
1 2 3
Power Power
+
SET
-
8.8.8.8
DMX512
console
connect
DMX512 Transmitter
2.4GHz Wireless Signal
1zone umlimited
umlimited
16 zone
Compatible with DMX512 LED Transmitter
(Purchase separately)
Controller Controller
Signal transmitting &
Modes synchronization
Distance 30m
Signal transmitting
One controller can transmit the signals from the remote control to
another controller within 30m, as long as there is a
controller within
30m, the remote control distance can be limitless.
Different controllers can work synchronously when they are
started at different times, controlled by the same remote, under
same dynamic mode and within 30m distance.
Modes synchronization
PWM high frequency / low frequency switching
Switch to high frequency (8KHz): on the condition of turning on the light
1. Short press the “OFF” button of the remote control once;
2. Short press the “ON” button 5 times within 3 seconds, the white
light blink 2 times quickly, indicating successfully.
Switch to low frequency (500Hz): on the condition of turning off the light
1. Short press the “ON” button of the remote control once;
2. Short press the “OFF” button 5 times within 3 seconds, the white
light blink 2 times slowly, indicating successfully.
