Mi-Light MIBOXER FUT035Z User manual

74.5mm
36mm
17mm
Dual White LED Controller (Zigbee 3.0)
Input Voltage: DC12V~24V
Output: 12A/Channel
Working Temp.: -10~40°C
Control Distance: 100m (open area)
Total Output: Max 12A
Model No.: FUT035Z
Input: DC12V/24V
V- V+
V+
WW
CW
Model No.: FUT035Z
Input Voltage: DC12V~24V
Output: 12A/Channel
Total Output: Max 12A
Working Temp.: -10~40°C
Control Distance: 100m (open area)
Dual White LED Controller (Zigbee 3.0)
Made in China
Press SET 3 times continuously to
pair zigbee network
CWWW
OUTPUT
SET
Dim brightness
Color temperature
adjustable
Product follow Zigbee 3.0
standard protocol
Zigbee 3.0
Zigbee remote control
Support third party voice control
(Zigbee 3.0 gateway is needed)
Smartphone APP control
(Zigbee 3.0 gateway is needed)
Input Voltage: DC12V~24V
Output Max: 12A
Control Distance: 100m (open area)
Working Temp.: -10~40°C
Single Color LED Controller (Zigbee 3.0)
Model No.: FUT036Z
Dim brightness Product follow Zigbee 3.0
standard protocol
Zigbee 3.0
Zigbee remote control
Support third party voice control
(Zigbee 3.0 gateway is needed)
Smartphone APP control
(Zigbee 3.0 gateway is needed)
Input: DC12V/24V
V- V+
LED V+
LED V-
SET
OUTPUT
Model No.: FUT036Z
Input Voltage: DC12V~24V
Output Max: 12A
Working Temp.: -10~40°C
Control Distance: 100m (open area)
Single Color LED Controller (Zigbee 3.0)
Press SET 3 times continuously to
pair zigbee network
Made in China
Features
This item supports zigbee 3.0 standard protocol with low consumption,
strong ability to pair with network automatically and resist interference.
User can use zigbee wireless remote to dim light. It supports to pair
with zigbee gateway and enjoy the function (wireless dimmable, remote
control, timmer, group control and music rhythm).
Input Voltage: DC12V~24V
Output: 6A/Channel
Working Temp.: -10~40°C
Control Distance: 100m (open area)
Total Output: Max 12A
RGB LED Controller (Zigbee 3.0)
Model No.: FUT037Z
Input: DC12V/24V
V- V+
V+
G
R
B
SET
RGB
OUTPUT
Model No.: FUT037Z
Input Voltage: DC12V~24V
Output: 6A/Channel
Total Output: Max 12A
Working Temp.: -10~40°C
Control Distance: 100m (open area)
RGB LED Controller (Zigbee 3.0)
Press SET 3 times continuously to
pair zigbee network
Made in China
Dim brightness
Product follow Zigbee 3.0
standard protocol
Zigbee 3.0
Zigbee remote control
Support third party voice control
(Zigbee 3.0 gateway is needed)
Smartphone APP control
(Zigbee 3.0 gateway is needed)
16 Millions of
colors to choose
Input Voltage: DC12V~24V
Output: 6A/Channel
Working Temp.: -10~40°C
Control Distance: 100m (open area)
Total Output: Max 12A
RGBW LED Controller (Zigbee 3.0)
Model No.: FUT038Z
Input: DC12V/24V
V- V+
SET
RGB
OUTPUT
W
Model No.: FUT038Z
Input Voltage: DC12V~24V
Output: 6A/Channel
Total Output: Max 12A
Working Temp.: -10~40°C
Control Distance: 100m (open area)
RGBW LED Controller (Zigbee 3.0)
Press SET 3 times continuously to
pair zigbee network
Made in China
Dim brightness/
white color
Product follow Zigbee 3.0
standard protocol
Zigbee 3.0
Zigbee remote control
Support third party voice control
(Zigbee 3.0 gateway is needed)
Smartphone APP control
(Zigbee 3.0 gateway is needed)
16 Millions of
colors to choose
LED Controller (Zigbee 3.0)
Subordinate New Brand
Model: FUT035Z / FUT036Z / FUT037Z / FUT038Z / FUT039Z
V+
B
G
R
W

Input Voltage: DC12V~24V
Output: 6A/Channel
Working Temp.: -10~40°C
Control Distance: 100m (open area)
Total Output: Max 12A
RGB+CCT LED Controller (Zigbee 3.0)
Model No.: FUT039Z
Made in China
Controller can not
use in humid area

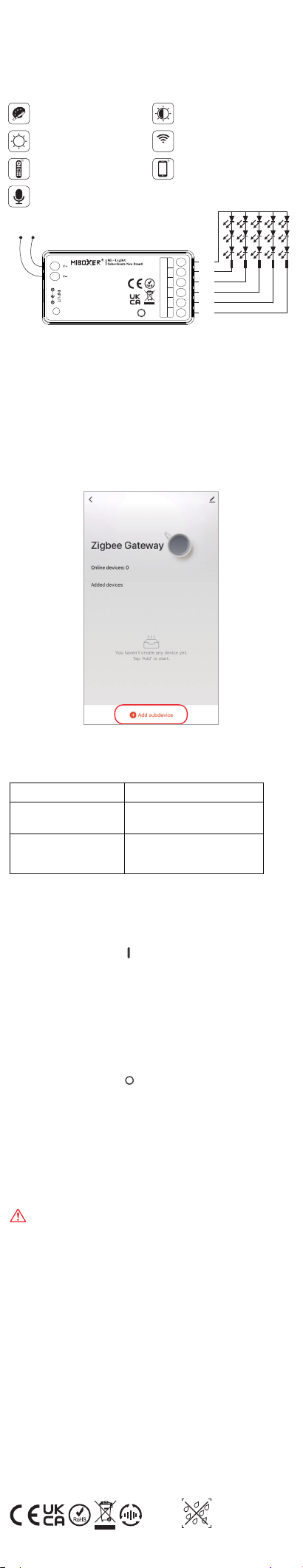

1. Connect with power supply.
2. Turn on/off light continuously over 3 times or press " SET " 3
times continuously, confirm the light with red color in
breathe ambience.
3. Open [ MiBoxer Smart ] APP and add sub-device ( see
following screenshot).
4. You can dim light,group control and ambience control after
adding device completely.
How to control the light via phone APP?
Please add zigbee 3.0 gateway to [ MiBoxer Smart ] APP firstly
1. Connect with power supply.
2. Ensure the light is always on ( please wait 5 seconds and turn
off, turn on again 1 time if the light is in breathe ambience).
3. Long press group control " " button with 3 seconds untill the
indicator of remote flash quickly ( check details in remote
instruction).
4. Please keep closerfor remote and the light which you want to
connect ( within 1 meter).
5. Matching is done if the light breathe 3 times.
1. Connect with power supply.
2. Ensure the light is always on.
3. Long press group control " " button with 3 seconds untill the
indicator of remote flash slowly ( check details in remote
instruction).
4. Please keep closerfor remote and the light which you want to
connect ( within 1 meter).
5. Dismatching is done if the light breathe 3 times.
Match and Dismatch with zigbee remote
Instruction of Matching
Instruction of Dismatching
stay closer distance between the gateway and remote
Please repeat above steps if you are failed
Remote
The remote doesn't pair
with zigbee gateway
The remote paired with
Zigbee gateway
Support match and dismatch light
Only support match and
dismatch light which
connected with same gateway
Light
Attention
Input: DC12V/24V
V- V+
SET
V+RGBCW
OUTPUT
WW
Model No.: FUT039Z
Input Voltage: DC12V~24V
Output: 6A/Channel
Total Output: Max 12A
Working Temp.: -10~40°C
Control Distance: 100m (open area)
RGB+CCT LED Controller (Zigbee 3.0)
Press SET 3 times continuously to
pair zigbee network
Made in China
Dim brightness Product follow Zigbee 3.0
standard protocol
Zigbee 3.0
Zigbee remote control
Support third party voice control
(Zigbee 3.0 gateway is needed)
Smartphone APP control
(Zigbee 3.0 gateway is needed)
16 Millions of
colors to choose
Color temperature
adjustable
V+
B
G
R
WW
CW
Warning
1. Please check whether the voltage of the power supply is in
accordance with the controller, and please check the connection of
both the cathode and anode, otherwise the controller will be broken.
2. Please don’t connect wires with power on. Please turn on again only
when it is in right connection and no short circuit.
3. Please do not use the controller in the place with widely range metal
area or strong electromagnetic wave nearby, otherwise, the remote
distance will be seriously affected .
1. Remote only match or dismatch with one light in one time, it will
match or dismatch with the nearest light since the light identify
light by nearest signal.
2. Remote doesn't pair with gateway: one lampe is only controlled
by one remote.
3. Lamp doesn't pair with gateway: it can not be controlled by
remote which already paired with gateway.
4. One light can be controlled by many remotes if remote and
light both connected with gateway. （the max quantity for
remote and light is based on max gateway which is connected).
