Microlab X14 User manual

Before using, please read the manual carefully
MULTIMEDIA SPEAKER SYSTEM
All other brand and product names are trademarks of their respective holders. Actual contents may differ slightly from those shown in print. All
specifications and designs are subjected to changes without any prior notice.
No:80-X14-97-0001-02
X14
User Manual
Microlab Technology Company Ltd.
Made in China
80-X14-97-0001-02 2008-06-12

Troubles Solution
Check if the system is powered on
Check the power plug is well connected
Check if the audio source is working well
Check if the audio and speaker cables are well
connected
Check if the volume is at right level
One or more satellite no sound Check if the satellite cable is well connected
No Bass Check if the Bass Volume is at right level
Remote control not working Check if the battery is in the remote control
If the problem still exists, please contact the distributor or ask for professional service
Power LED won't light up
No Sound
Sound is distorted
Check if the volume is at lower level
If you experience problems with your speaker, the following troubleshooting may help.
1
Caution:
Explanation of Graphical Symbols:
WARNINGS:
To reduce the risk of electric shock, do not dismantle the apparatus and do not expose the apparatus to rain or moisture.
No user-serviceable parts inside. Refer servicing to qualified personnel.
The lightning flash within an equilateral triangle is intended to alert you to the presence of uninsulated dangerous
voltage within the product's enclosure that may be of sufficient magnitude to constitute an electric shock to
persons.
The exclamation point within an equilateral triangle is intended to alert you to the presence of important operating
and maintenance (servicing) instructions in the literature accompanying the appliance.
1. Read Instructions All the safety and operating instructions should be read before the appliance is operated.
2. Retain Instructions The safety and operating instructions should be retained for future reference.
3. Heed warnings All warnings on the appliance and in the operating instructions should be adhered to.
4. Follow instructions All operating and use instructions should be followed.
5. Installation Install in accordance with the manufacture's instructions.
6. Power sources This product should be operated only from the type of power source indicated by the marking adjacent
to the power cord entry. If you are not sure of the type of power supply to your home, consult your product dealer or local
power company.
7. Grounding or polarisation the appliance is not required to be grounded. Ensure the plug is fully inserted into the wall
outlet or extension cord receptacle to prevent blade or pin exposure. Some versions of the product are equipped with a
power cord fitted with a polarized alternating line plug ( a plug having one blade wide than the other). This plug will fit
onto the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try
reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat
the safety purpose of the polarised plug. When using an extension power-supply cord or a power-supply cord other than
that supplied with the appliance, it should be fitted with the appropriate moulded-on plugs and carry safety approval
appropriate to the country of use.
8. Power cord protection Power-supply cords should be routed so that they are not likely to be walked on or pinched by
items placed on or against them, paying particular attention to cords at plugs, convenience receptacles and the point
where they exit from the appliance.
9. Overloading Do not overload wall outlets, extension cords or integral convenience receptacles, as this can result in a
risk of fire or electric shock.
10.Ventilation To ensure reliable operation of the product and to protect it from overheating, put the product in a position
and location that will not interfere with its proper ventilation.
11.Heat The product should be situated away from heat sources such as radiators, heat registers, stoves, or other
products)including amplifiers that produce heat. No naked flame sources, such as lighted candles, should be placed on
the apparatus.
12.Wall or ceiling mounting The product should be mounted to a wall or ceiling only as recommended by the manufacture.
13.Water and moisture To reduce the risk of fire or electric shock, do not expose the product to rain, dripping, splashing
or excessive moisture such as in a sauna or bathroom. Do not use this product near water for example, near a bathtub,
washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool and the like.
14.Object and Liquid Entry Never push objects of any kind into this product through openings, as they may touch
dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on
the product. Do not place any object containing liquid on top of the product.
15.Cleaning Unplug the product from the wall outlet before cleaning. The cabinet of the subwoofer may be cleaned by
dusting with a dry cloth. If you wish to use an aerosol cleaning spray, do not spray directly on the cabinet; spray onto the
cloth. Be careful not to disturb the drive units.
16.Attachments Do not use attachments not recommended by the product manufactures, as they may cause hazards.
17.Accessories Do not place this product on an unstable cart, stand, tripod, bracket or table. The product may fall,
causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket
or table recommended by the manufacturer or sold with the product. Any mounting of the product should follow the
manufacturer's instructions and should use a mounting accessory recommended by the manufacturer.
18.Moving the appliance A product and cart combination should be moved with care. Quick stops, excessive force and
uneven surfaces may cause the product and cart combination to overturn.
19.Non-use periods The power cord of the appliance should be unplugged from the outlet during lightning storms or when
“
”
－
－
－
－
－
－
－
－
－
－
－
－
－
－
－
－
－
－
－
－
Important Safety Instructions
Trouble Shooting
6
80-X14-97-0001-02 2008-06-12

2
the apparatus is left unused for a long period of time.
20.Serving Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service personnel.
21.Replacement parts When replacement parts are required, be sure the service technician has used replacement parts
specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may
result in fire, electric shock or other hazards.
22.Mains fuses For continued protection against fire hazard, use fuses only of the correct type and rating. The correct fuse
specification for each voltage range is marked on the product.
23.Do not turn up the volume while listening to a section with very low level inputs or no audio signals. If you do, the
speaker may be damaged when a peak level section is suddenly played.
24.The only means of completely disconnecting the product from the power supply is by removing the power cord from the
wall outlet or the product. Either the wall outlet or the power cord entry to the product must remain freely accessible at all
times while the apparatus is in use.
－
－
－
Unpacking:
*Fold the carton flaps right back and invert the carton and contents.
*Lift the carton clear of the contents.
*Remove the inner packing from the product.
We suggest you retain the packing for future use.
You should find following items while unpacking:
*
Subwoofer 1pc
Center speaker 1pc
Satellite speakers 4pcs
Satellite stands(plastic) 4pcs
1pc
2pcs
Audio cables(2RCA-2RCA) 3pcs
Audio cable(3.5mm-2RCA) 1pc
User manual 1pc
Metal stands of satellite: this accessory is optional. If you have not order it at the time buying, then
this packing does not include it
Remote control
Batteries
Unpacking the system
Specification
*Amplifier specification:
AC IN 220V-240V~ 50Hz 800mA
Power output 60W+15Wx5 RMS
Frequency response Woofer 30Hz-130Hz
Satellite 130Hz-20kHz
Sensitivity input 420mV
Distortion <0.3%(1W 1KHz)
Separation >50dB
S/N >75dB
*Driver unit: (Woofer Speaker )6.5"
(Satellite Speaker)2"x5(magnetically shielded)
*Audio input: RCA jacks
*Audio output: RCA jacks
* Product size(WxDxH): Woofer Speaker 220 x360x325mm
Center Speaker 159x64x65mm
Satellite Speaker 102x90x193mm
Technical Information
5
Features
:
: 6.5 subwoofer unit made of dual Sr Magnet system blazes the trail in the use
of costly low-Q value, long-stroke program design, having the low-frequency quality of quick and high
resolution.
5.1system
6.5 subwoofer＂＂
A perfect acoustic effect could be reached if connected to the audio source with AC-3
or DTS decoder.
EAirbass: eAirbass creates no distortion when enhancing bass. With brandnew airflow passage
design, it delivers clearer sound with an extended frequency range. The use of electronic control
technology enables a precise bass signal selection for enhanced bass delivery and crystal clear high
notes reproduction. Moreover the sychronous phase control technology guarantees accurate bass
delivery, providing an effective solution for slow frequency response.
80-X14-97-0001-02 2008-06-12

LR
LR
FL
FL
FR
FR
CEN
CEN
SW
SL
SL
SR
SR
CDAUX5.1CHINPUTAUDIO OUTPUT
ON
OFF
AC IN FUSE
T1.25AL250V
LR
LR
FL
FL
FR
FR
CEN
CEN
SW
SL
SL
SR
SR
CDAUX5.1CHINPUTAUDIO OUTPUT
ON
OFF
AC IN FUSE
T1.25AL250V

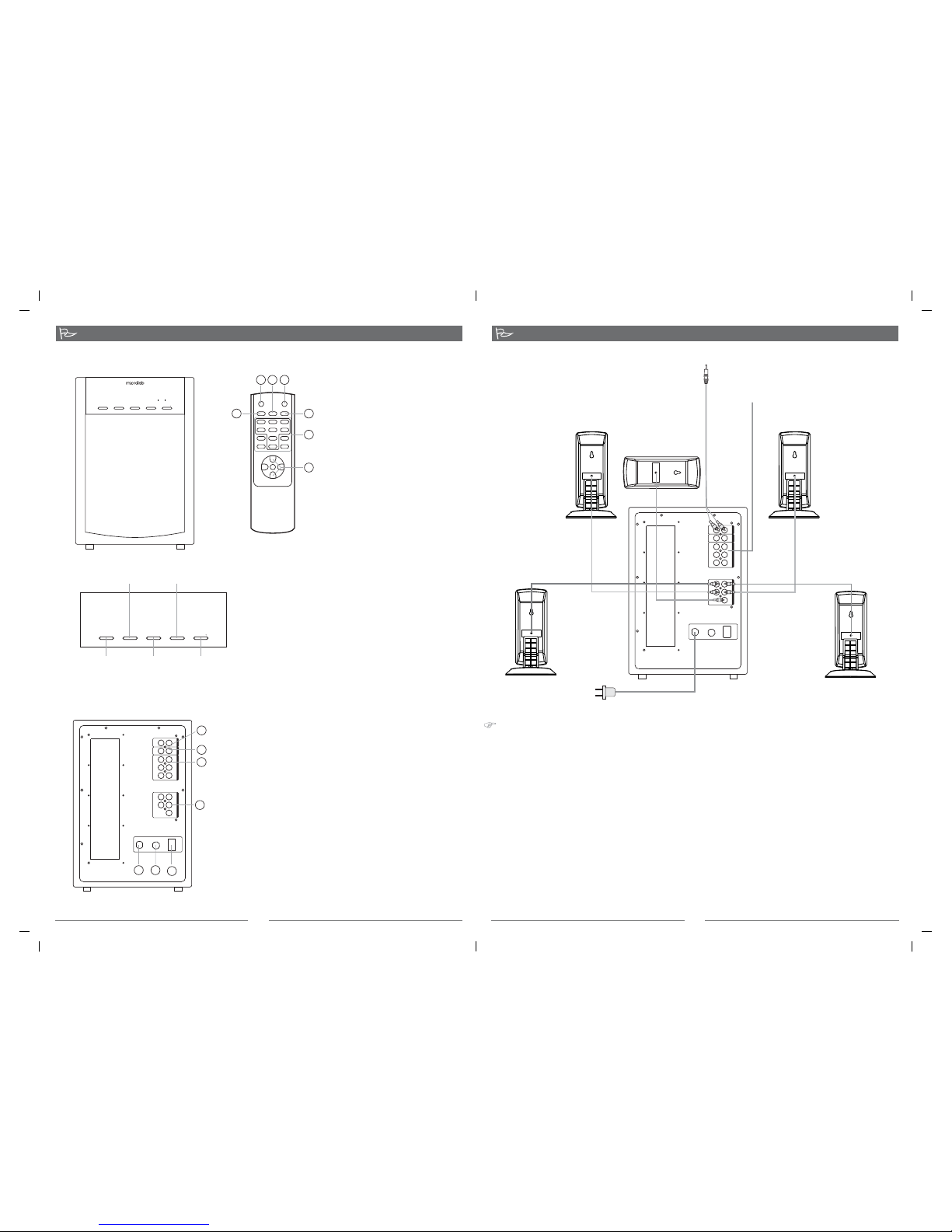

*Front View of the Subwoofer
*Back View of the Subwoofer
Function Instruction
*Front View of
Remote control
1.CD INPUT: 2RCA input jacks
2.AUX INPUT: 2RCA input jacks
3.5.1CH INPUT: 5.1 channel (6RCA) audio input jacks
4.AUDIO OUTPUT: 5.1 channel (5 RCA) audio output
jacks
5.
6.FUSE
7.POWER CORD
POWER: Press the switch ON or OFF
3
1. Connect the front left/right, center, surround left/right speaker cables into the appropriate 5.1CH
output jacks on the back of the subwoofer.
2. While connecting to VCD, DVD, etc, please use the audio cables with double RCA ends. Connect
one end of the audio cables into the appropriate 5.1CH INPUT jacks on the back of the subwoofer,
the other end into the appropriate output jacks on the VCD, DVD, etc.
3. While connecting to the stereo audio source, please use the audio cable(3.5mm-2RCA). Connect the
RCA plugs of the audio cable into the CD or AUX audio input jacks on the back of the subwoofer, and
then the other end into the audio output on stereo audio source.
4.
5. Check the connection and make sure every cable is correctly connected, then connect power plug to
the right AC outlet. The shape of the plug and power outlet depends on the country of use.
* Statement indicating that the socket-outlet shall be installed near the equipment and shall be
easily accessible.
* .
System Connection:
Remarks: the jacks and plugs are color-coded. Be sure to attach each color-coded plug to a matching
color coded jack.
The highest environmental temperature suitable for this product is 40 C
o
System Connection
4
ST-BY MUTE
INPUT-SEL RESET MODE
+++
___
+++
___
FRONT CENTER REAR
TREBLE S.W. BASS
VOL+
VOL-
STANDBY INPUT-SEL MODE VOLUME VOLUME
Standby Mode Volume+
Volume-
Input select
1
2 3 4
5
6
7
1.INPUT-SEL: select Input mode
2.ST-BY:Standby
3.
select put mode
VOLUME CONTROL: Adjust the
speaker system's volume to your
desired level
Reset: press this key to return to
the Start situation
4.Mute: press the key to make the
system in muting
5.MODE: Out
6.Channel volume trimming keys
7.
1
2
3
4
5
6
7
SR SL
FR FL
CENTER
SUBWOOFER
To stereo audio source
To VCD, DVD, etc,
*Please note the correct placement of speaker is shown in the above picture.
STANDBY
STANDBY
INPUT-SEL MODE VOLUME VOLUME
2.1 5.1
MULTIMEDIA SPEAKER SYSTEM
OUTPUT
80-X14-97-0001-02 2008-06-12
