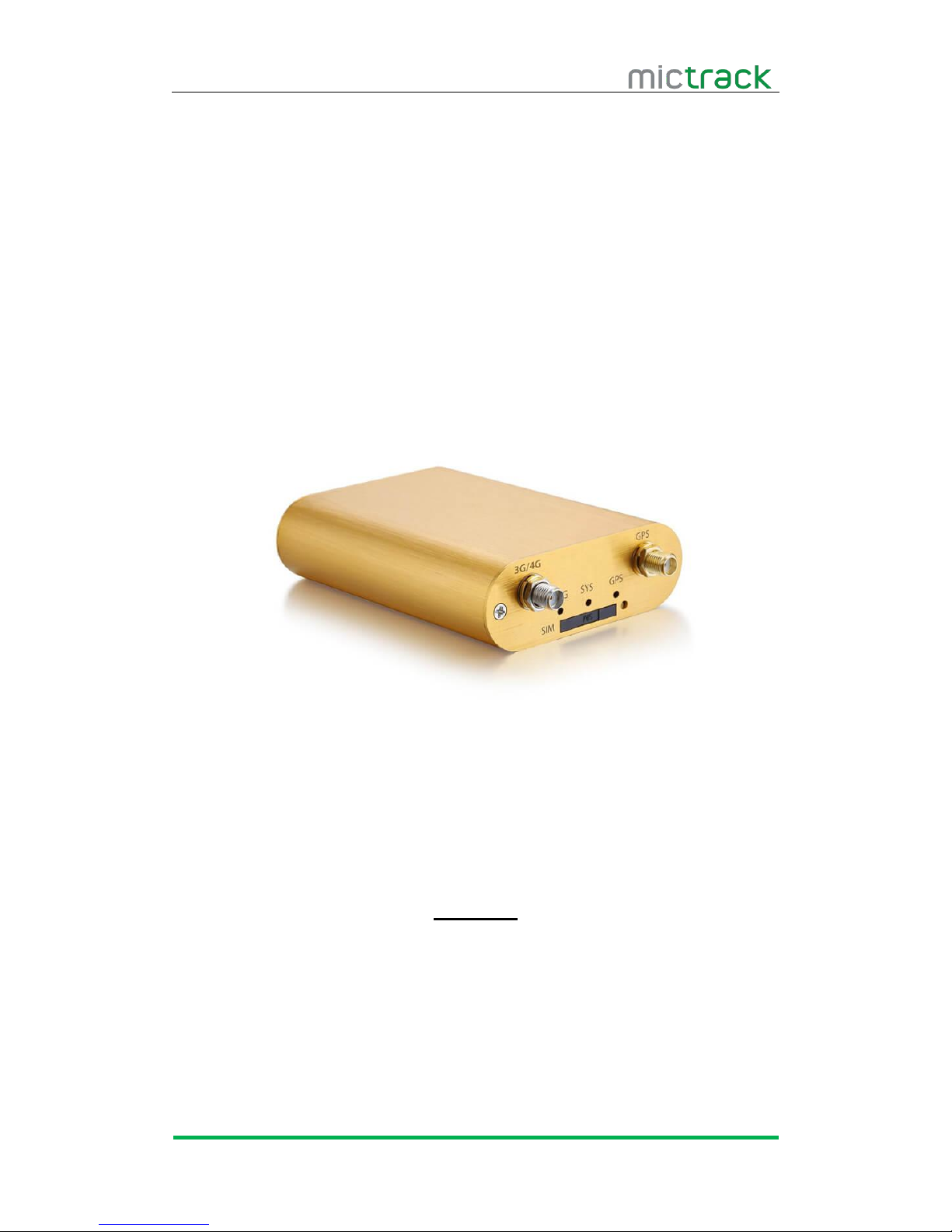

MT600 Plus 4G GPS Tracker
User Manual V1.0
Preface
Congratulations on choosing the Mictrack MT600 Plus 4G Vehicle GPS tracker. This
manual shows how to easily program and setup the tracker for best results. Make sure to
read this manual carefully before using this product, so as to avoid delays or confusion
with it’s operation. Please note that specifications and instructions are subject to change
without notice to facilitate product improvement. Updates and changes will be integrated
into the latest release. The manufacturer assumes no responsibility for any errors or
omissions in outdated documents.

MT600 Plus User Manual V1.0
http://www.mictrack.com
Contents
1. Overview............................................................................................................................................. 1
2. Application...........................................................................................................................................1
3. Specifications..................................................................................................................................... 1
4. MT600 Plus and Accessories........................................................................................................ 3
5. Unit Diagram...................................................................................................................................... 3
6. Installation........................................................................................................................................... 3
6.1 SIM Card installation.............................................................................................................3
6.2 LED Indications.......................................................................................................................4
6.2.1 CHG-Charge indicator (RED).................................................................................. 4
6.2.2 SYS-System indicator (BLUE)................................................................................. 4
6.2.3 GPS-GPS indicator (GREEN)................................................................................. 5
6.3 Device Button Instruction..................................................................................................... 5
6.4 Install 4G & GPS Antenna.................................................................................................. 5
6.5 J1 Connection (6PIN wired)................................................................................................ 6
6.6 Install the SOS button.......................................................................................................... 6
6.7 J2 Connection (8PIN wired)................................................................................................ 6
7. Setup and Configuration................................................................................................................. 7
7.1 Setting Authorized Phone Numbers.................................................................................. 7
7.2 Instant Location Request (used to receive unit location via SMS).......................... 7
7.3 SOS Alarm (optional)............................................................................................................ 8
7.4 Geo-fence (Setting of size of Geo-Fence)...................................................................... 8
7.5 Remote cut off fuel and ignition (optional)..................................................................... 8
7.6 External power cut off alarm.............................................................................................. 8
7.7 Towing Alarm........................................................................................................................... 8
7.8 Low Battery Alarm (backup battery)................................................................................. 8
7.9 Low Battery Alarm (Vehicle Battery)................................................................................. 8
7.10 Door Siren Alarm (optional).............................................................................................. 9
7.10.1 Enable Door Siren Alarm....................................................................................... 9
7.10.2 Disable Door Siren Alarm...................................................................................... 9
7.11 Over-Speed Alarm................................................................................................................9
7.11.1 Setup Over-speed value......................................................................................... 9
7.11.2 Over-speed siren alarm.......................................................................................... 9
7.12 External output (Reserved)..............................................................................................9
7.13 Set Time Zone..................................................................................................................... 9
7.14 Set APN (Access Point Name)......................................................................................10
7.15 Set Tracking Server IP and PORT...............................................................................10
7.16 Set Upload Interval Time.................................................................................................10
7.16.1 ACC ON (Upload status is AUTO)................................................................... 10
7.16.2 Vehicle Towed Alarm (vehicle moves whilst ACC is turned OFF)........... 10
7.16.3 ACC OFF & Vehicle Stationary (Upload status is AUTOLOW).................10
7.17 SMS Response ON/OFF................................................................................................. 10

MT600 Plus User Manual V1.0
http://www.mictrack.com
7.18 Unit Phone Calling Control (useful for SIM Card data cost saving)................... 11
8. App & PC Tracking platform....................................................................................................... 11
8.1 Subscribe the server plan with your sales................................................................... 11
8.2 App install & Login.............................................................................................................. 11
8.3 PC login................................................................................................................................. 12
9. Troubleshooting............................................................................................................................... 12

MT600 Plus User Manual V1.0
http://www.mictrack.com
1
1. Overview
MT600 Plus is a multifunctional 4G GPS tracker, fully supporting 4G LTE mobile
networks, and also can extend to support Fuel sensor, temperature sensor, door sensor
and siren etc. It is commonly used to track and locate individual vehicles, motorbikes or
boats, and is a valuable tool for enhanced fleet management.
The MT600 Plus has an excellent track record for stable performance and possesses
a wide variety of features.
2. Application
4G LTE network support
Real-time tracking
Vehicle trip history
SOS report (optional)
Two way voice(optional)
Voice monitor(optional)
ACC switch status report
Geo-Fence report
External power cut off alarm
Remote cut off fuel / ignition (optional)
Vehicle towing alarm
Over-Speed alarm
Backup battery low power alarm
Car battery low power alarm
Power saving mode/Sleep mode
Door status report (optional)
Temperature report (optional)
Fuel level sensor (optional)
Siren (optional)
3. Specifications
Item
Specifications
Dimension
90(L) x 70(W) x 24(H) mm
Weight
138g
Input Voltage
12-36 VDC
Backup battery
3.7 V 500 mAh
Power consumption
50mA standby current

MT600 Plus User Manual V1.0
http://www.mictrack.com
2
Item
Specifications
Working temperature
-20°C to 60°C
Humidity
5%~95% non-concretion
Working Hours
10 hours in power-saving mode, 4 hours in normal mode
LED Indicator
4G(blue), GPS(green), Power(red)
Microphone & Speaker
External (optional)
Sensor
3D acceleration/movement sensor/ temperature sensor
Antennas
External 4G & GPS antennas
GPS Sensitivity
-162dBm
Positioning Accuracy
2.5m
4G Frequency bands
MT600 Plus E
4G LTE: B1/B3/B5/B7/B8/B20
3G WCDMA : 850/900/2100MHz
2G: 900/1800MHz
MT600 Plus A
4G LTE: B2/B4/B12
3G WCDMA: 850/1700/1900MHz
MT600 Plus V
4G LTE: B4/B13
MT600 Plus AU
4G LTE: B1/B2/B3/B4/B5/B7/B8/B28/B40
3G WCDMA: 850/900/1900/2100MHz
2G :850/900/1800/1900MMz
MT600 Plus AUT
4G LTE: B1/B3/B5/B7/B28
3G WCDMA: 850/2100MHz
Note: Please select correct device according to your
local frequency band, or contact us for help.
I/O Port
2 digital inputs (12-24V),2 digital output (12-24V)
1 analog inputs (0-5V) Fuel sensor
1 Audio
1 USB port
1-Wire® temperature sensor

MT600 Plus User Manual V1.0
http://www.mictrack.com
3

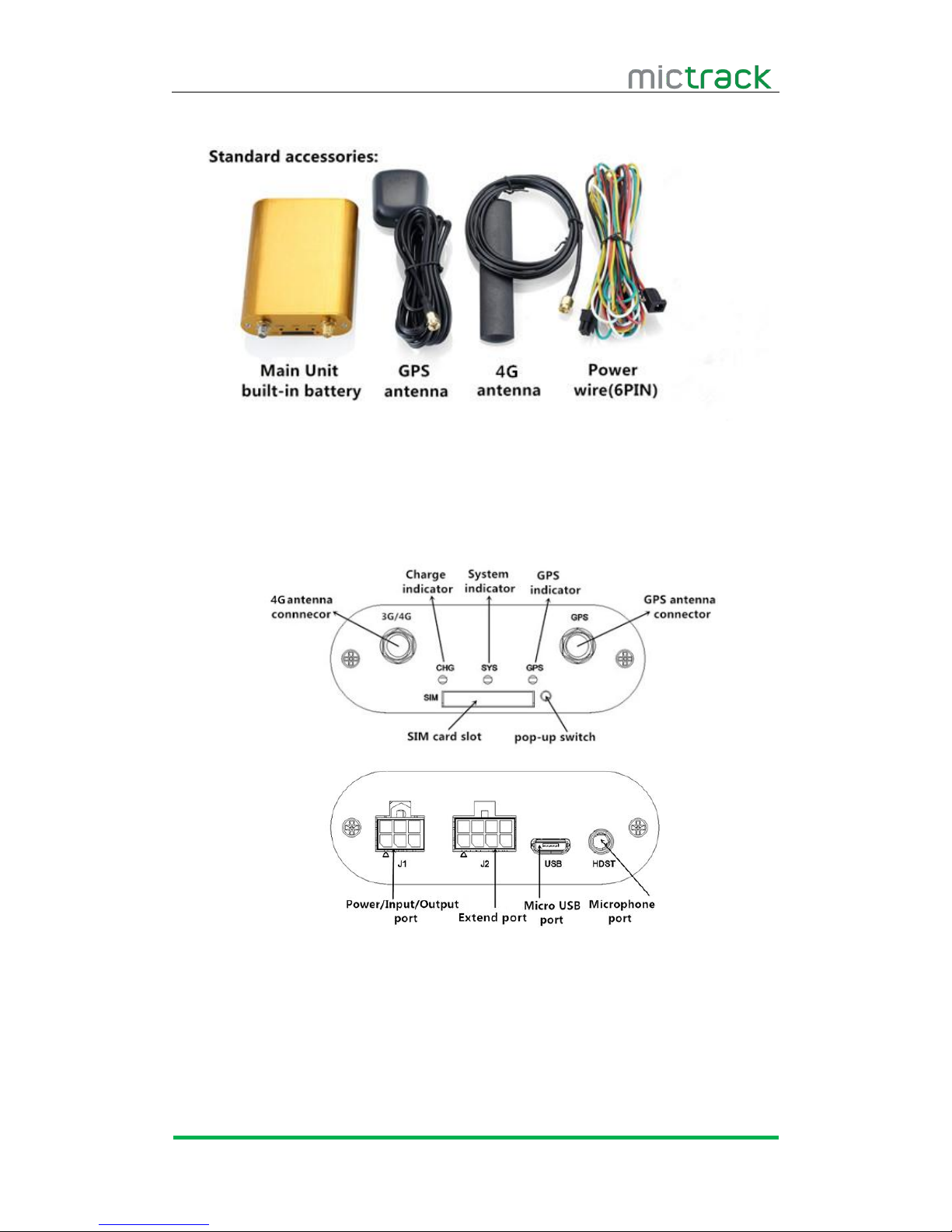

4. MT600 Plus and Accessories
Optional accessories:
Siren/Speaker/Microphone/Temperature sensor/door sensor/SOS/Relay
5. Unit Diagram
6. Installation
6.1 SIM Card installation
Pay attention to the following items before installing the SIM card:
Ensure the SIM card have enough balance
Ensure the SIM card enable caller ID and GPRS function

MT600 Plus User Manual V1.0
http://www.mictrack.com
4
Ensure the SIM card disable PIN password and call forwarding function.
Power off the device before installing the SIM card
To install the SIM card, perform the following operations:
1. Insert the SIM card into the SIM card plastic tray.
2. Ensure the SIM card has metal contacts facing up (Diagram #1).
3. Gently slide the SIM Tray into the SIM Slot (Diagram #2).
Note:
This device only support Standard SIM card
If you want to take out the SIM card, use the tweezers to press the SIM card pop-up
switch,the SIM card slot will pop up.
Diagram #1 Diagram #2
6.2 LED Indications
6.2.1 CHG-Charge indicator (RED)
6.2.2 SYS-System indicator (BLUE)
Status
Description
Constant ON
No SIM Card or Network unavailable
OFF
Vehicle Parked – ACC Power OFF
Quick flash
Normal Working Mode
Status
Description
Constant ON
Currently Charging
OFF
Charging Complete/Battery full
(Note: it will auto-charging when backup battery voltage is
low and LED light, or LED no light.)

MT600 Plus User Manual V1.0
http://www.mictrack.com
5
6.2.3 GPS-GPS indicator (GREEN)
6.3 Device Button Instruction
Button
Description
Power
ON/OFF
Insert the SIM tray to POWER ON the unit; Take out SIM tray to
POWER OFF the unit
Connect the external power to POWER ON; Disconnect the
power to POWER OFF
SOS Button
Press and hold the button for 3 seconds, the unit will send
position data to authorized phone numbers and Web Tracking
Platform.
6.4 Install 4G & GPS Antenna
Connect the 4G Antenna firmly to "3G/4G" Socket
Connect the GPS Antenna firmly to “GPS” socket
Note: Do not install the GPS antenna at a place with metal.
Status
Description
OFF
GPS Unavailable
Quick flash
GPS available

MT600 Plus User Manual V1.0
http://www.mictrack.com
6
6.5 J1 Connection (6PIN wired)
When installing the device, please connect supplied wiring loom as follows: (or
contact our sales team for help)
Red: Connect to constant 12V Car Battery(+)
Black: Connect to Earth (Chassis) Car battery(-)
Green: Connect to ACC switched 12V Power
Yellow: Connect to red wire of supplied SOS switch
White: Connect to Relay terminal (85)
Pink: Connect to Relay terminal (86)
Note: Relay is optional for remote fuel / ignition shut-off.
6.6 Install the SOS button
Red: connect to Yellow wire from supplied wiring loom
Black: connect to Earth (Chassis) Car battery(-)
Note: installation Video: http://youtube.com/c/mictrackgps
6.7 J2 Connection (8PIN wired)
1-Black
2-Yellow
3-Red
4-Blue
5-Green
6-Orange
7-Purple
8-White

MT600 Plus User Manual V1.0
http://www.mictrack.com
7
7. Setup and Configuration
Note: When sending SMS command to the unit, do NOT use spaces or symbols not
listed below. * and # are valid command parameters.
7.1 Setting Authorized Phone Numbers
SMS Command format: mobile number+password+[command parameter]
Note: Command Parameter here is the sequence of the mobile number
i.e. [1=Admin] or [2=SOS call number]
For example: *13424392330*0000*1**
Unit Reply: SET USER NUMBER 1 OK.
Note:
The defaulted password is 0000.
It can authorize up to 3 phone numbers.
7.2 Instant Location Request (used to receive unit location via SMS)
SMS Command format: 666+password
For example: 6660000
When sent, this command will result in a Unit Reply SMS as follows:
ID:865662000409210
Date:05:36:59 05/26/2018
Fix:A State:SMS
http://maps.google.com/maps?q=+22.63146%2c1+14.03701
